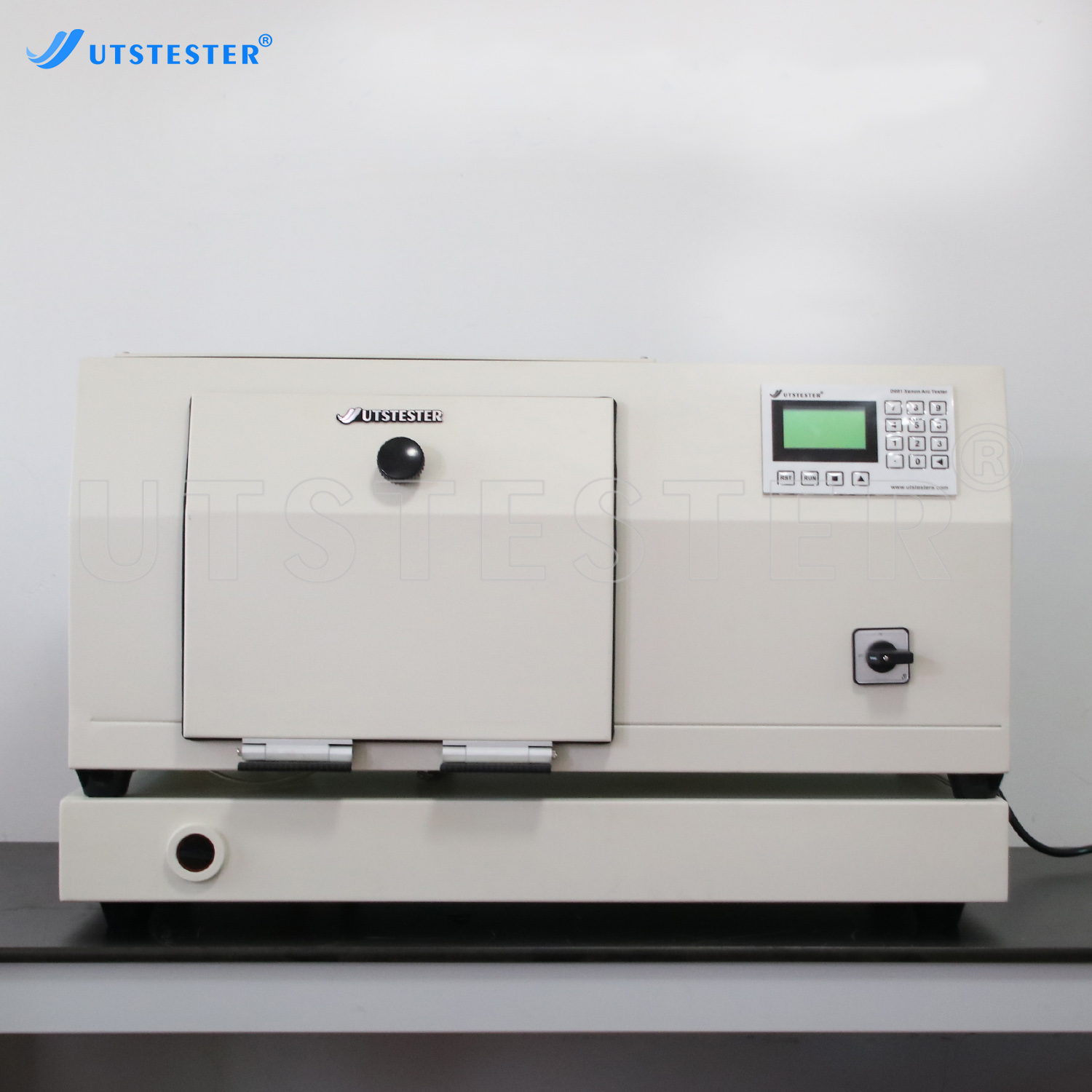

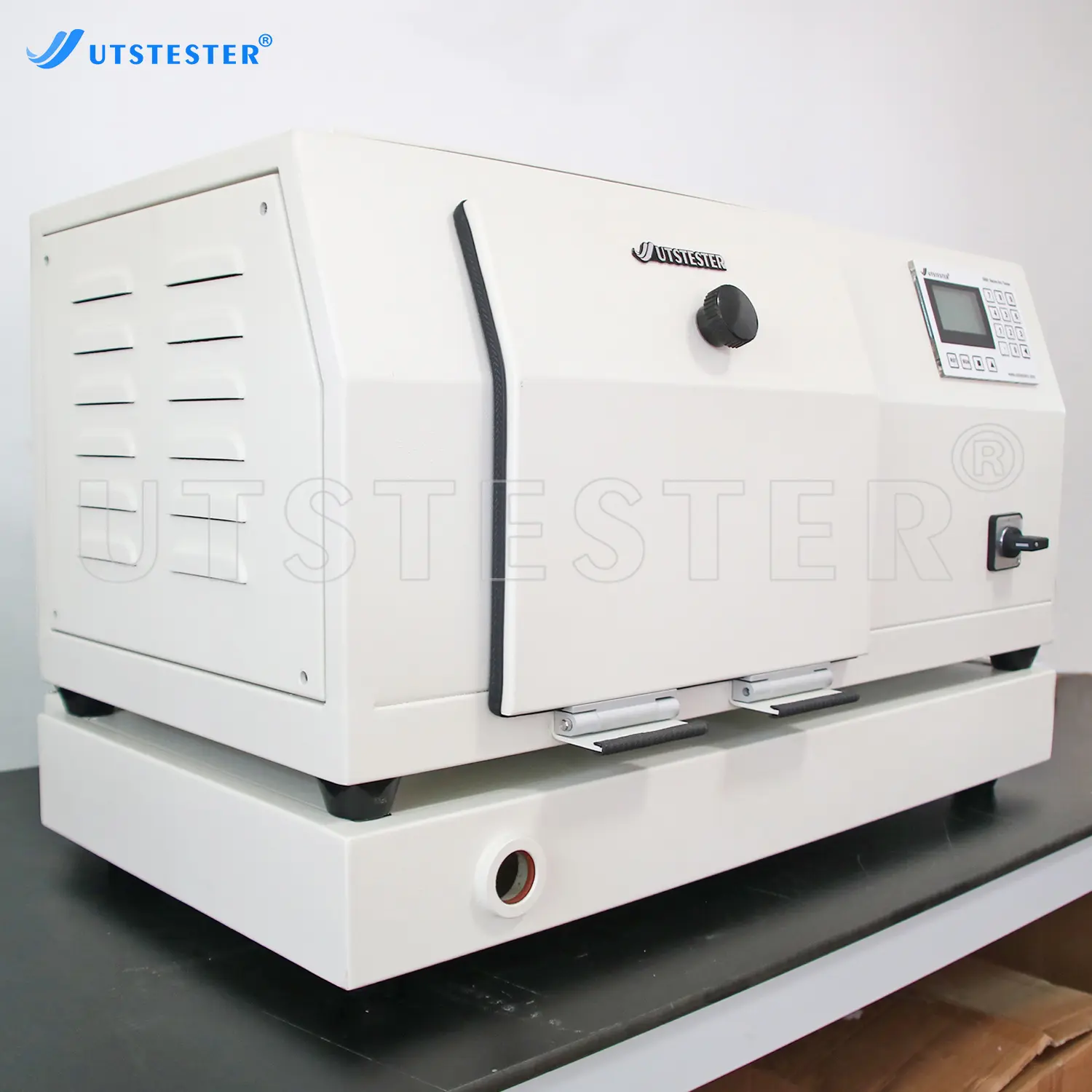

AATCC16 Xenon Light Fastness Test Machine Desktop Xenon Arc Tester D001
Overview
To do accelerated light fastness tests and photo stability tests. This model is tabletop unit with microprocessor controller for simple operation.
Application
FABRICS
AUTOMOTIVE SAFETY GLASS
FURNITURE
ALUMINUM COMPOSITE PANEL
Standards
AATCC16, ISO 105 B02
Key Parameters
|
Model |
D001 |
|
Xenon lamp |
1500W |
|
Exposure area |
200 x 280 mm |
|
Power supply |
220- 240 V, 50/60 Hz 4KW |
|
Dimension |
800 x 460 x 480 mm |
|
Weight |
47kg |
Product Details

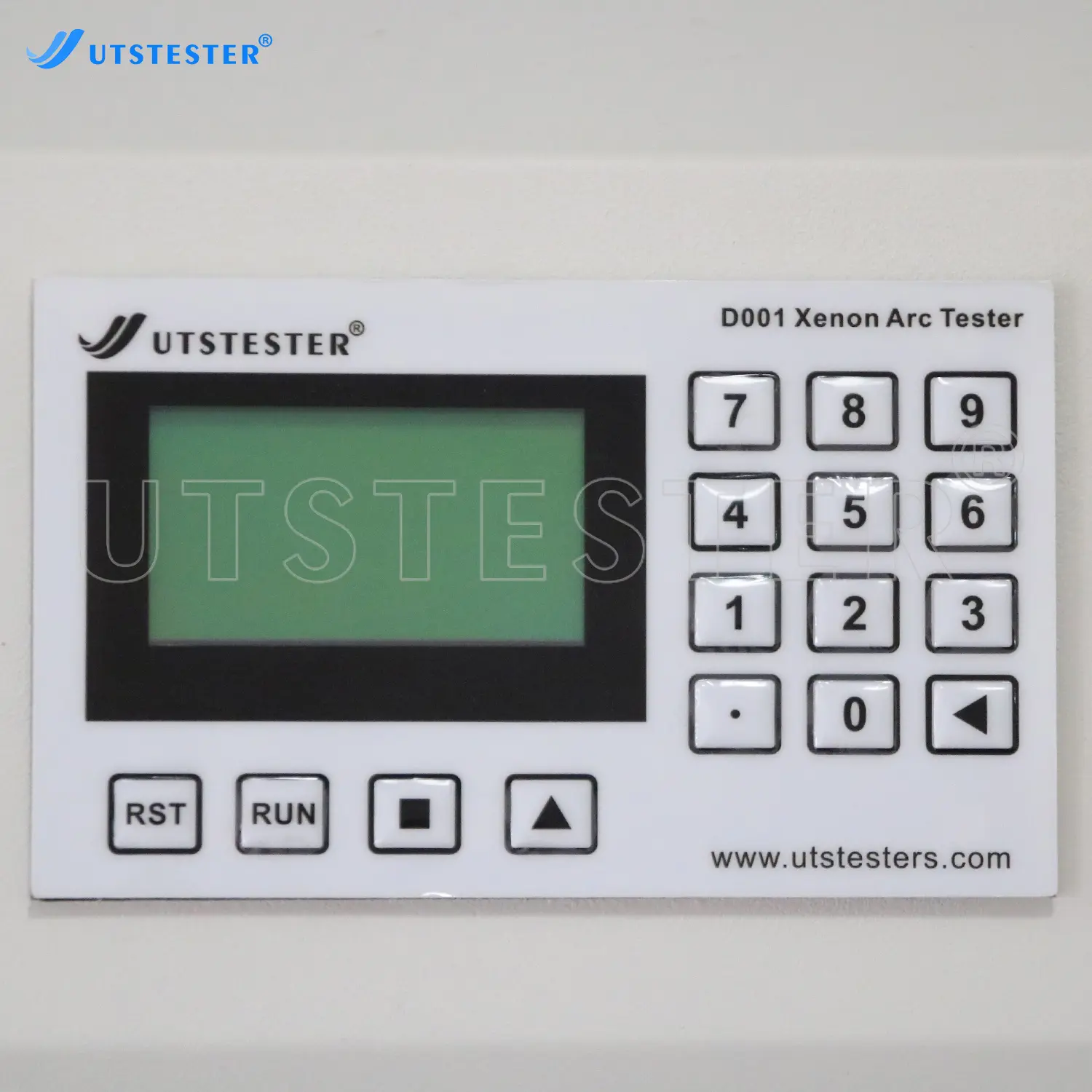

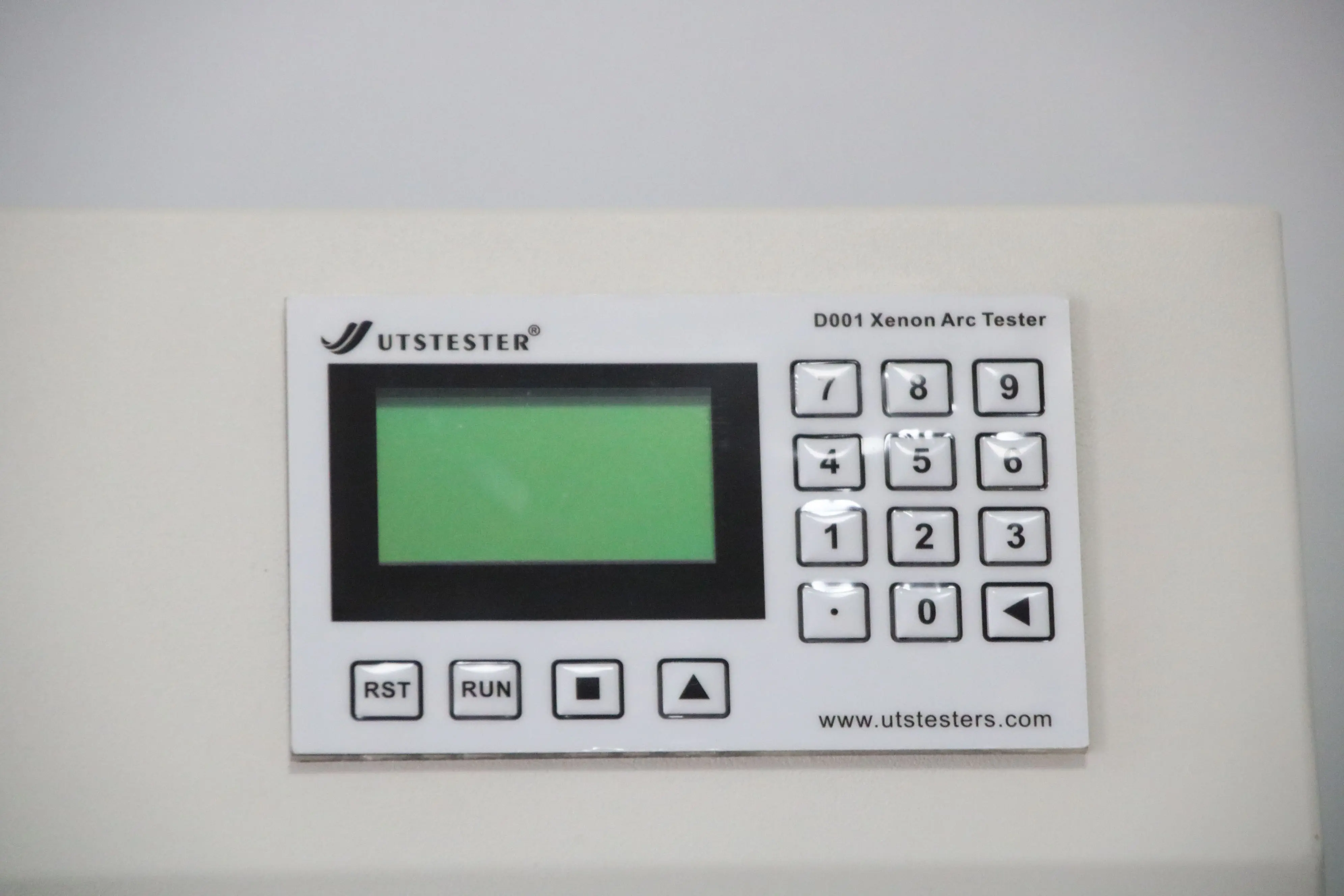

Controller

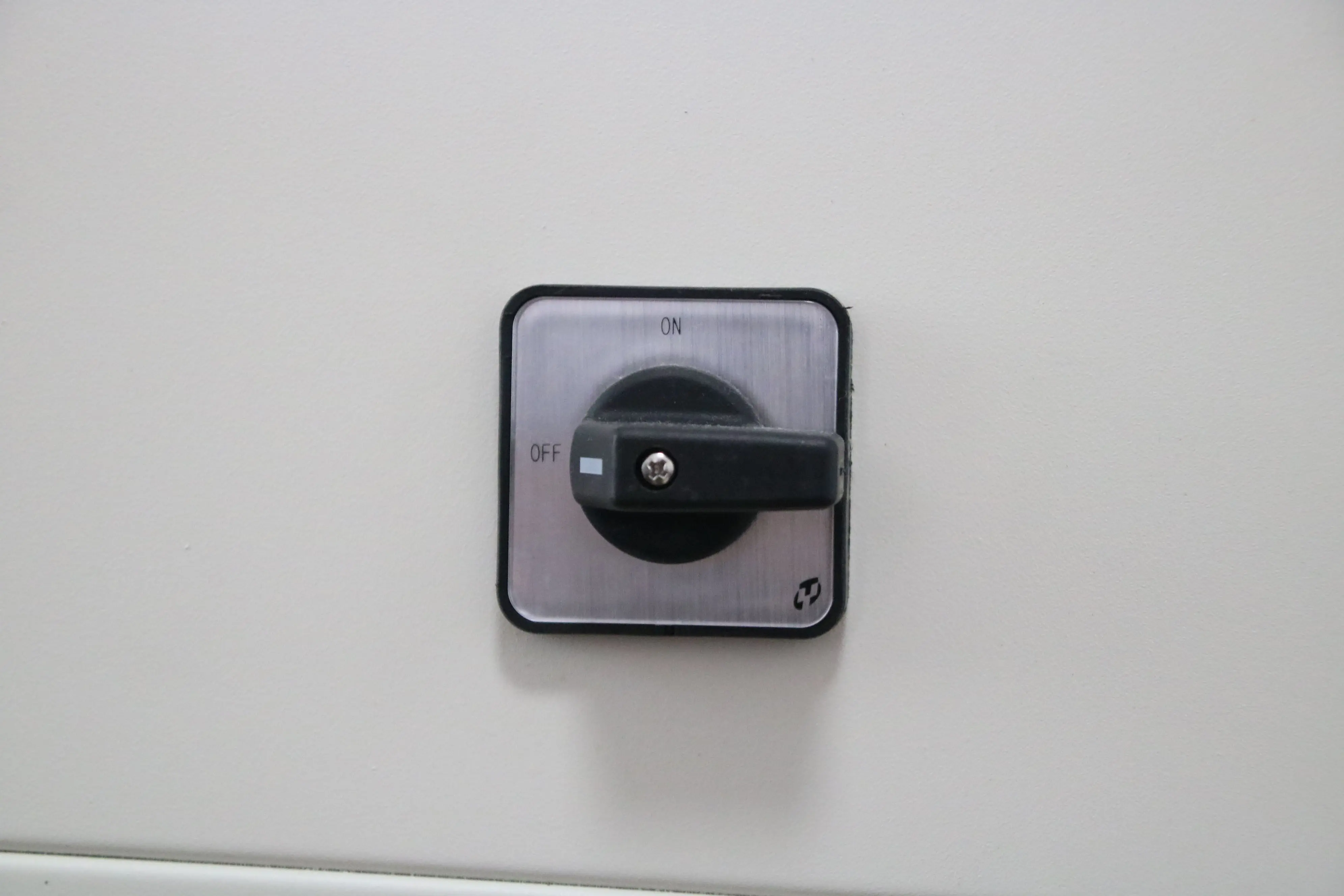

ONOFF Switch

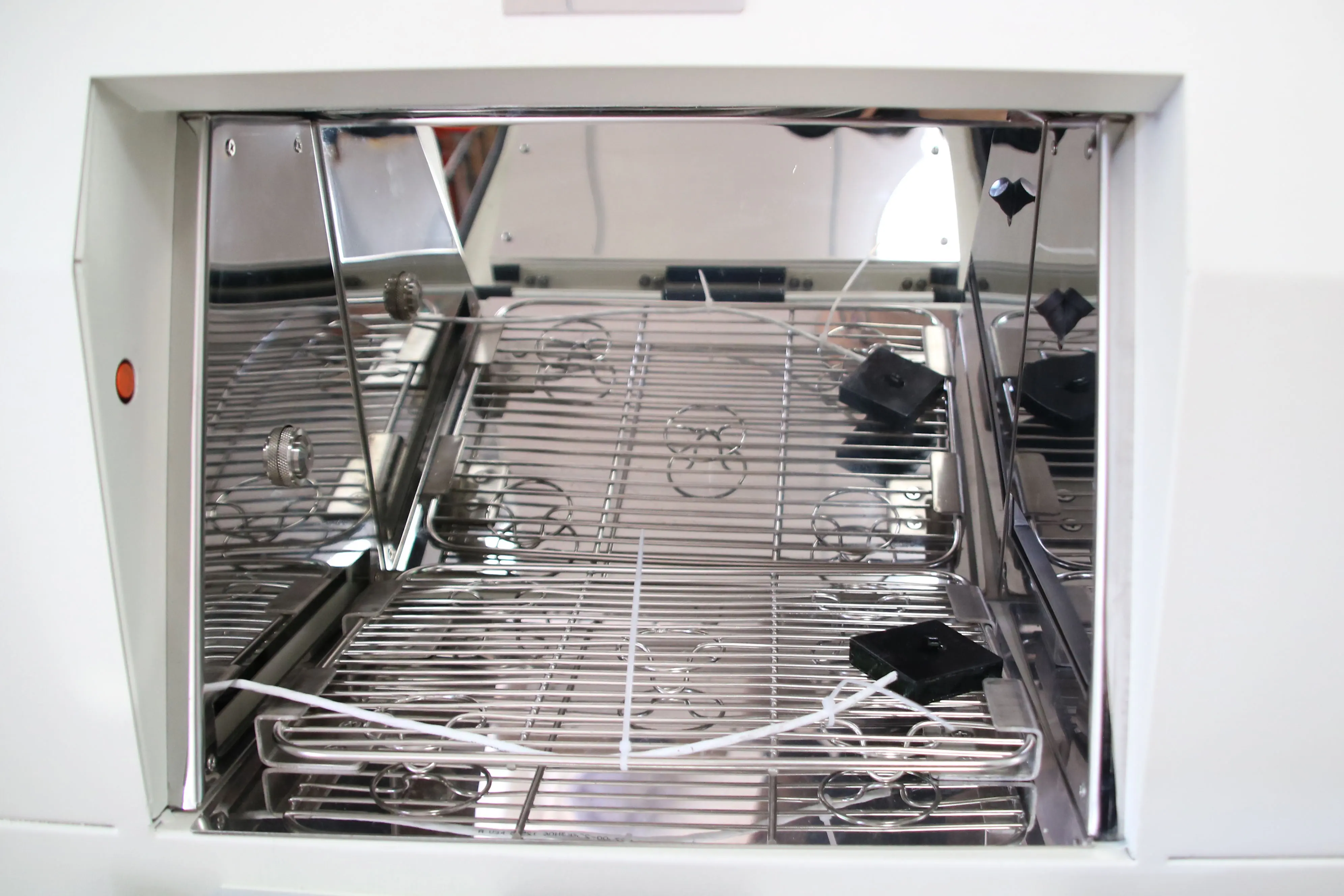

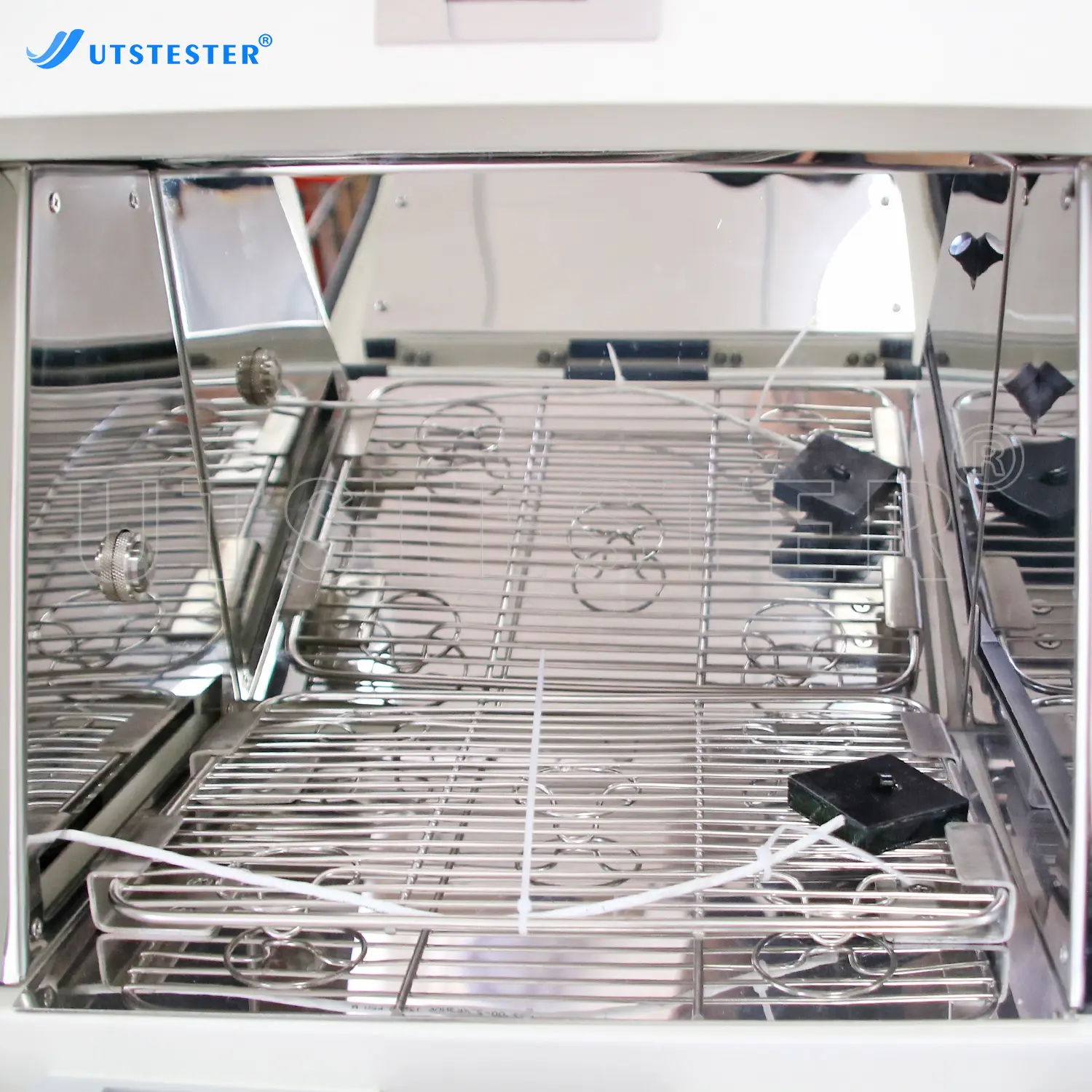

Reflector

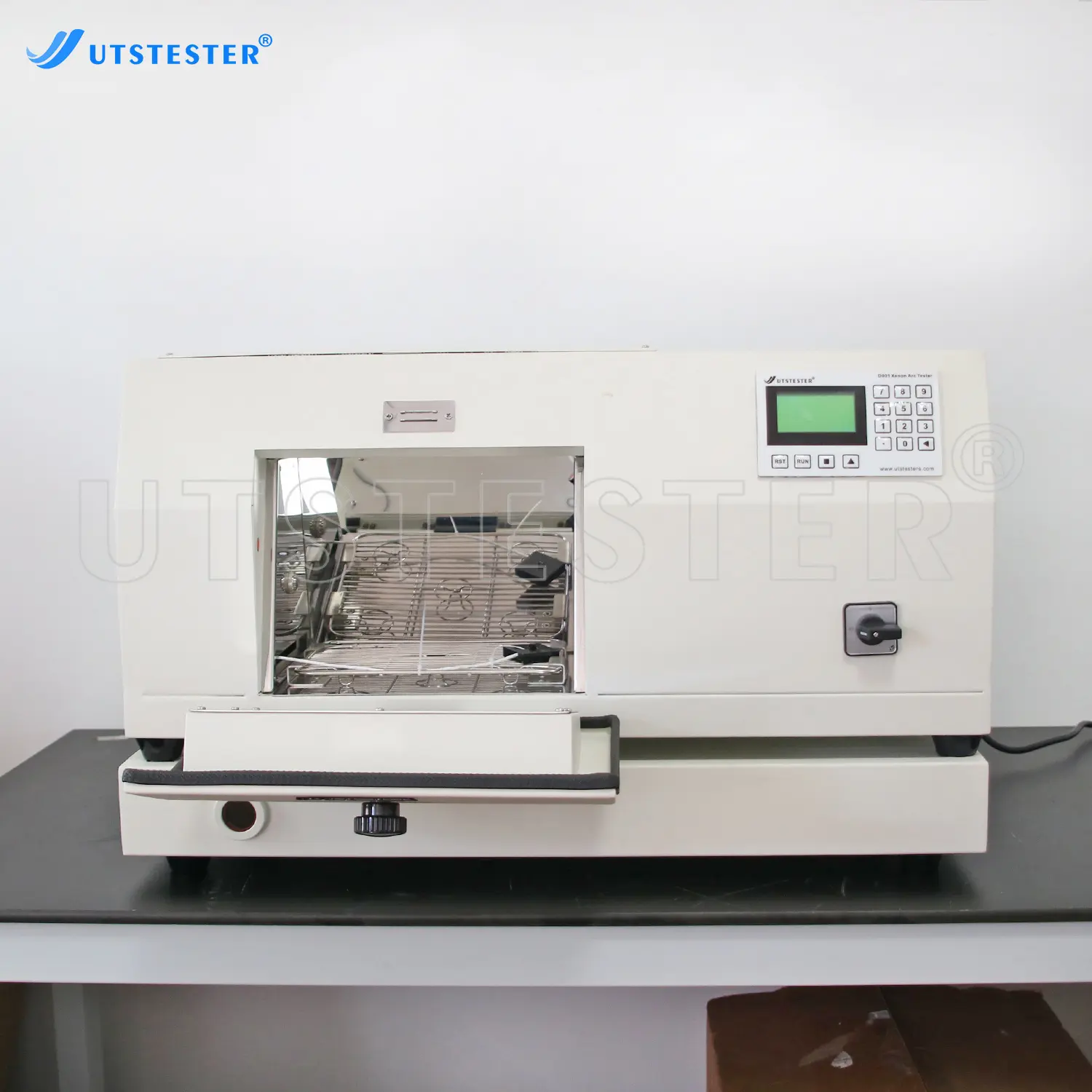

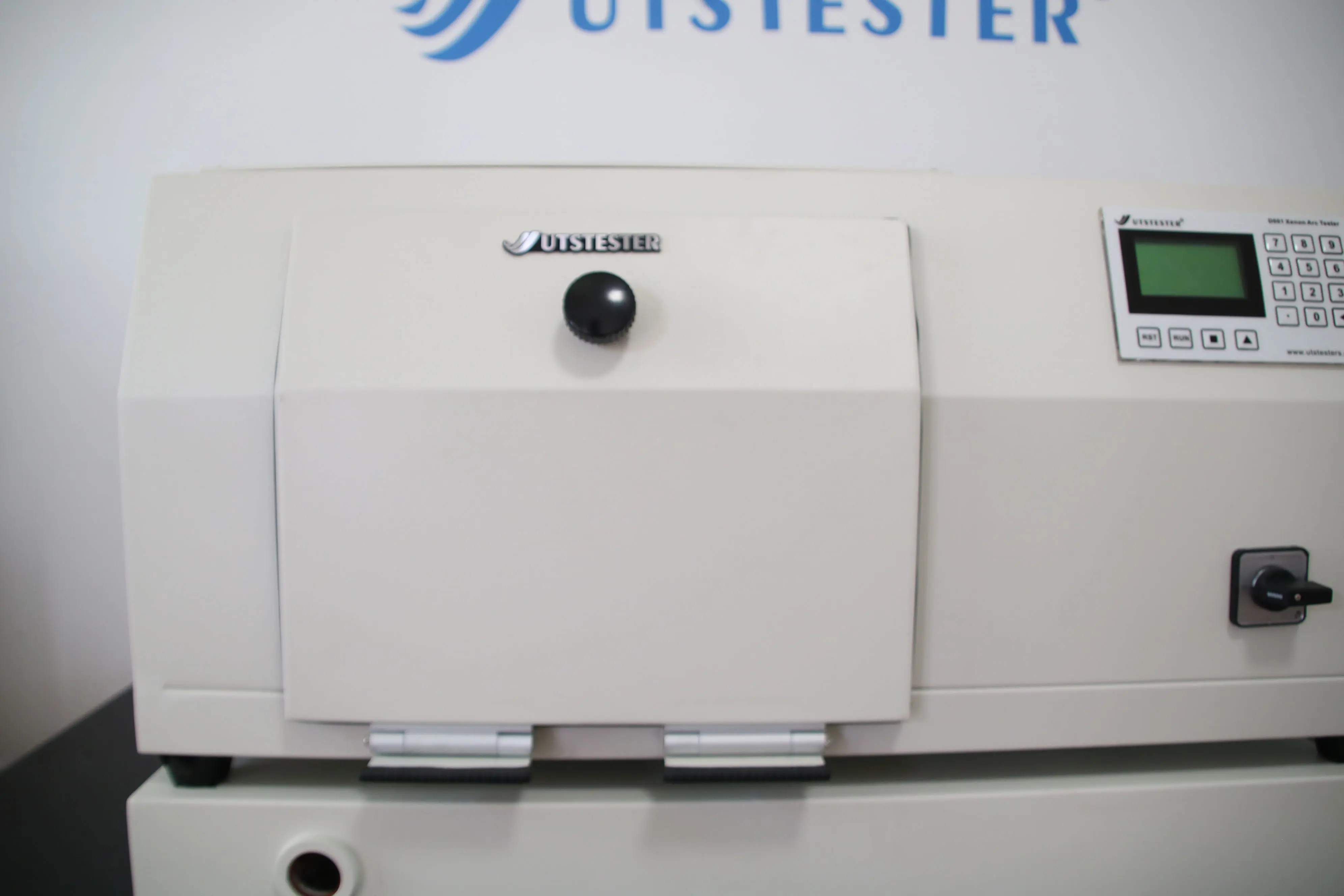

Test chamber door

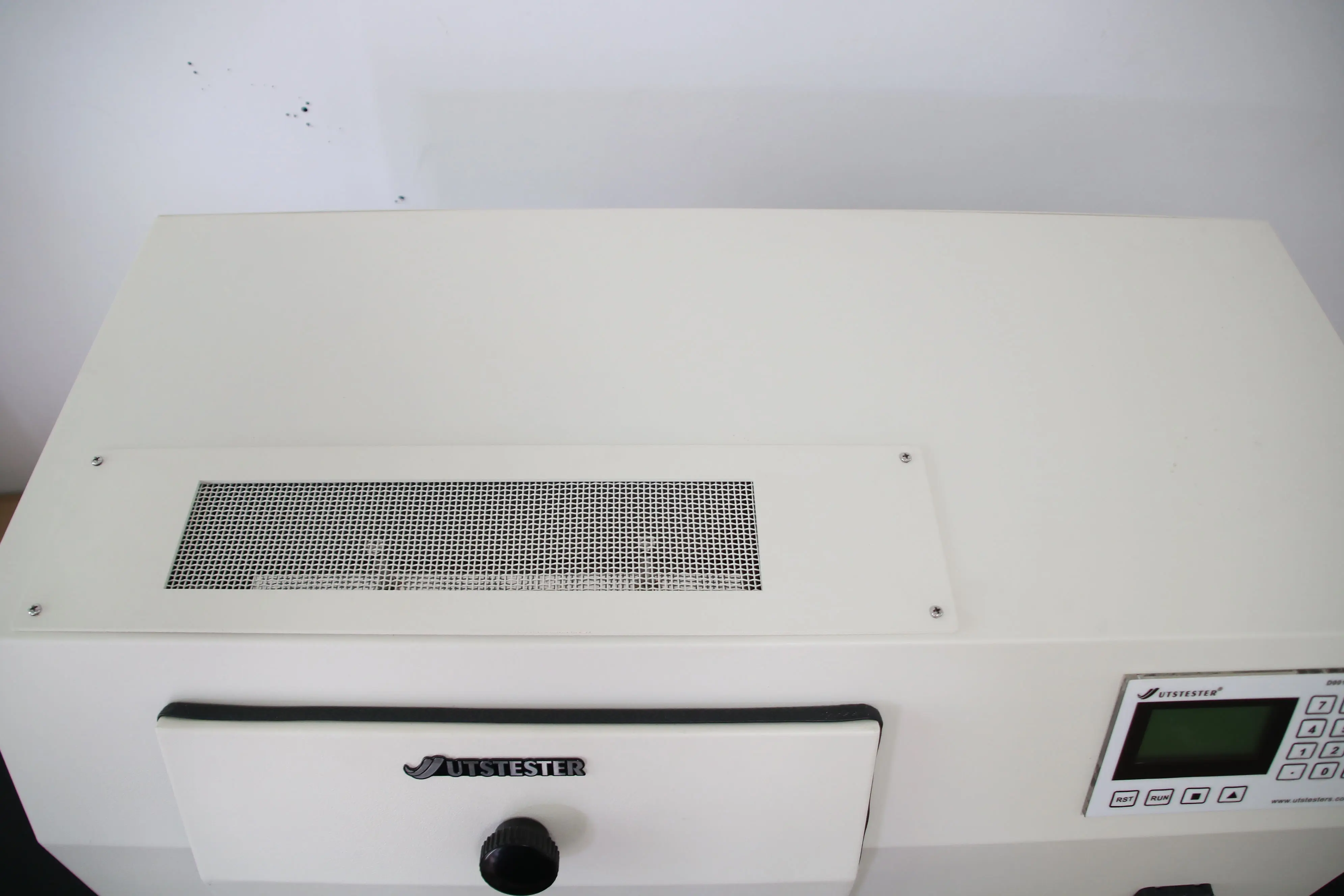

Top plate

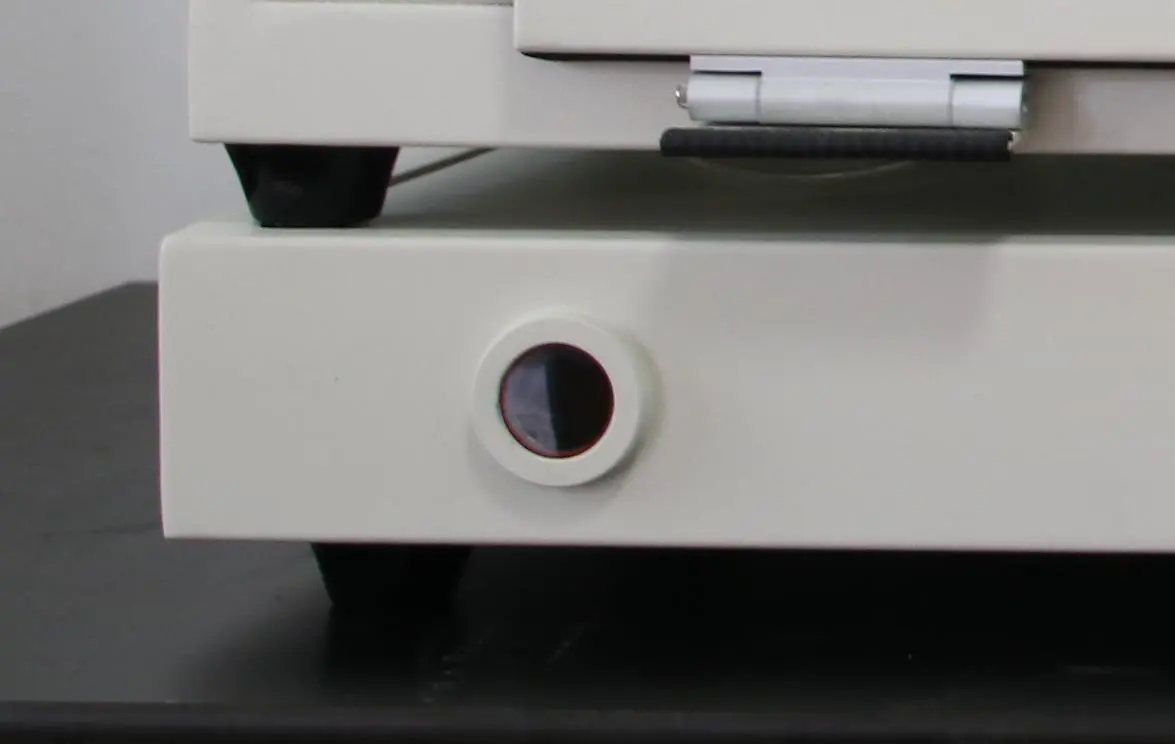

Water level glass
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
