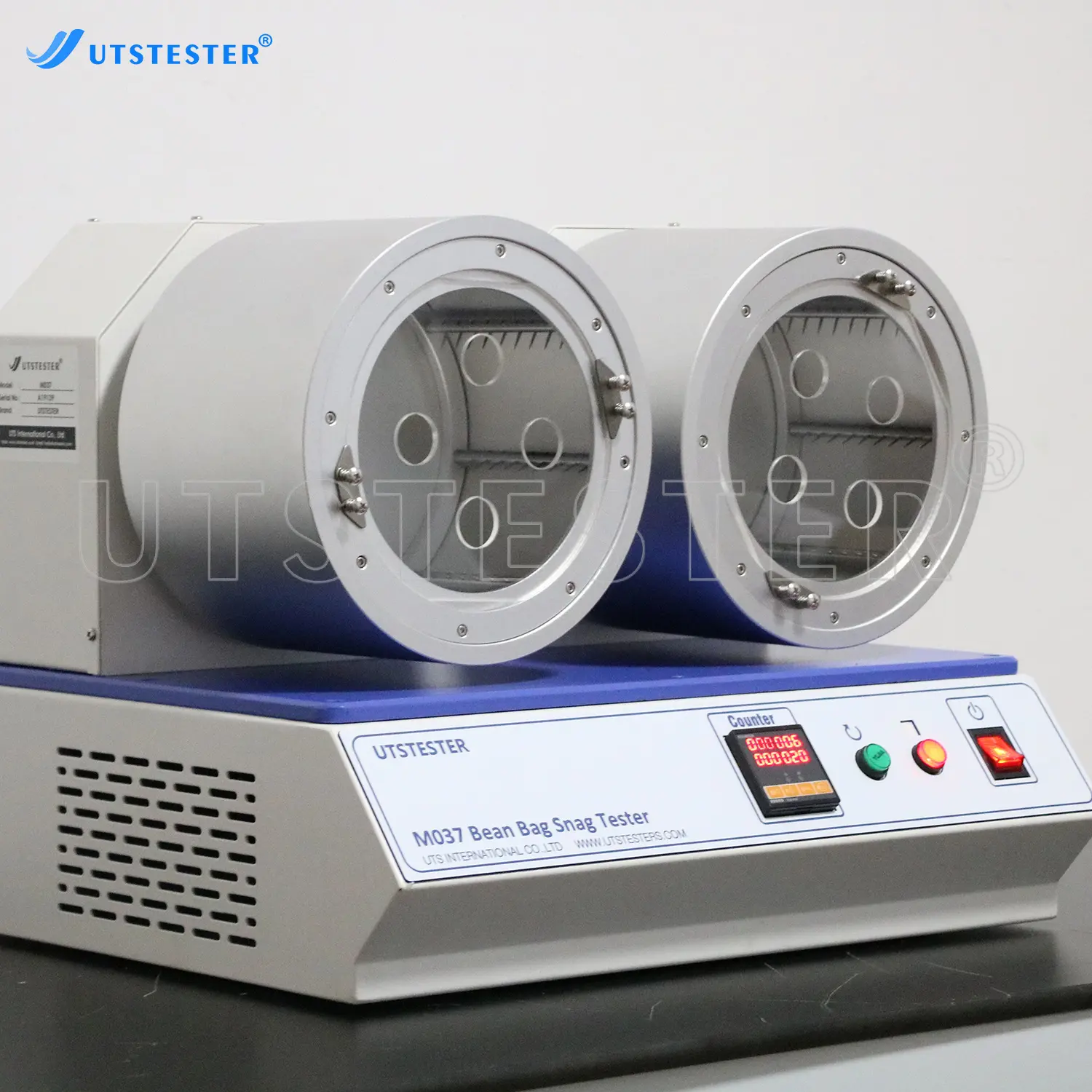

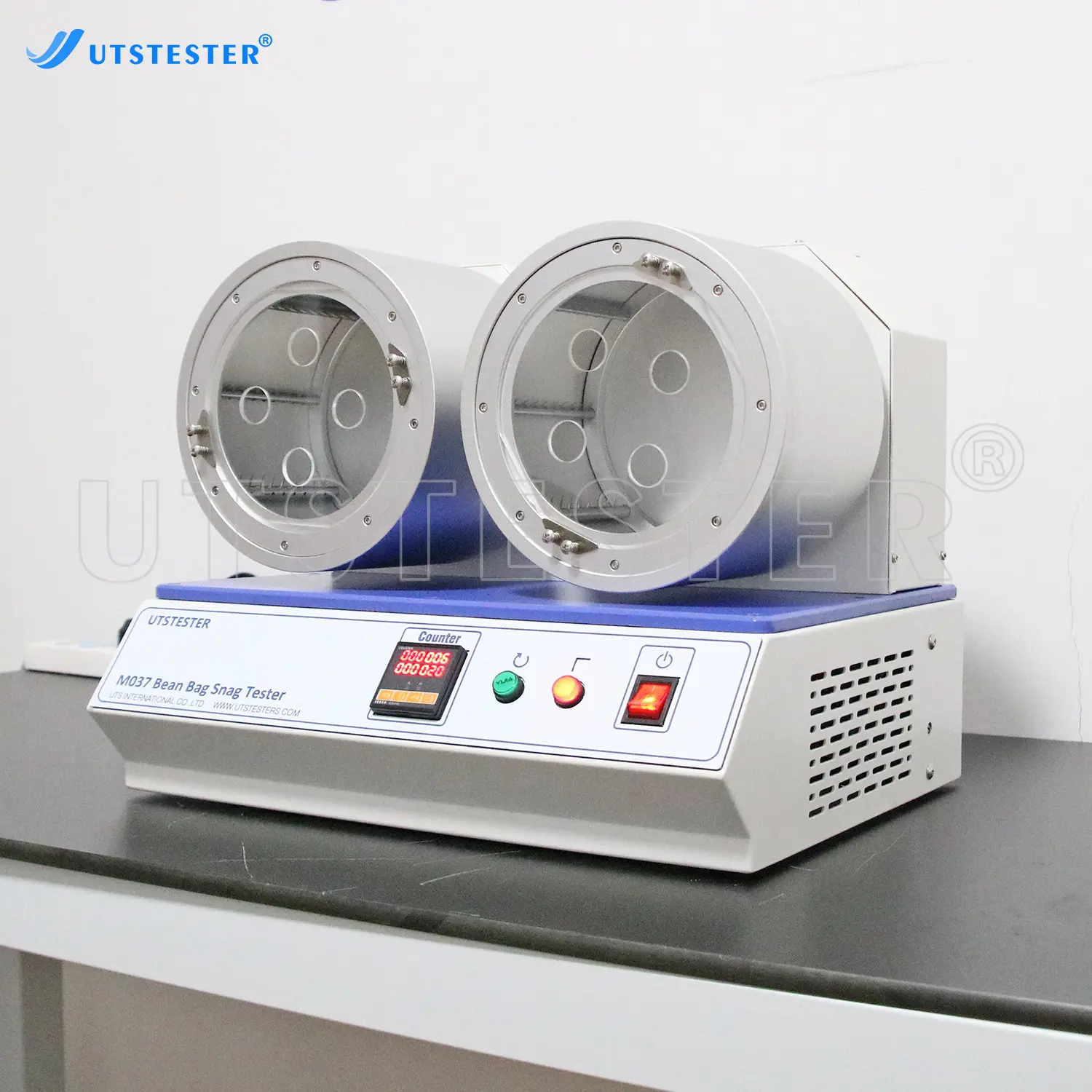

ASTM D5362 Textile Machinery Fabric Bean Bag Snag Tester M037
Overview
M037 Bean Bag Snag Tester, to determine snagging resistance for knitted and woven fabrics. It complies with ASTM D5362, JIS L1058, etc
Application
knitted
woven fabrics
Standards
ASTM D5362 JIS L1058 M&S P21A
Key Parameters
|
Model |
M037 |
|
Test speed |
20±3 r/min |
|
Test roller |
Inner diameter 200mm,depth 145mm |
|
Bean bag |
Weight 450±10g / piece |
|
Nail rod |
External diameter 8mm, length 127mm, 9 pcs of nail / nail rod |
|
Nail |
Protruding length 10mm, interval 12mm, Angle to the vertical direction: 30±5° |
|
Sample size |
215 x 115mm |
|
Power Supply |
1∮ AC 220V 50/60Hz 3A |
|
Dimensions |
47 x 38 x 38cm(L x W x H) |
|
Weight |
38Kg |
Product Details

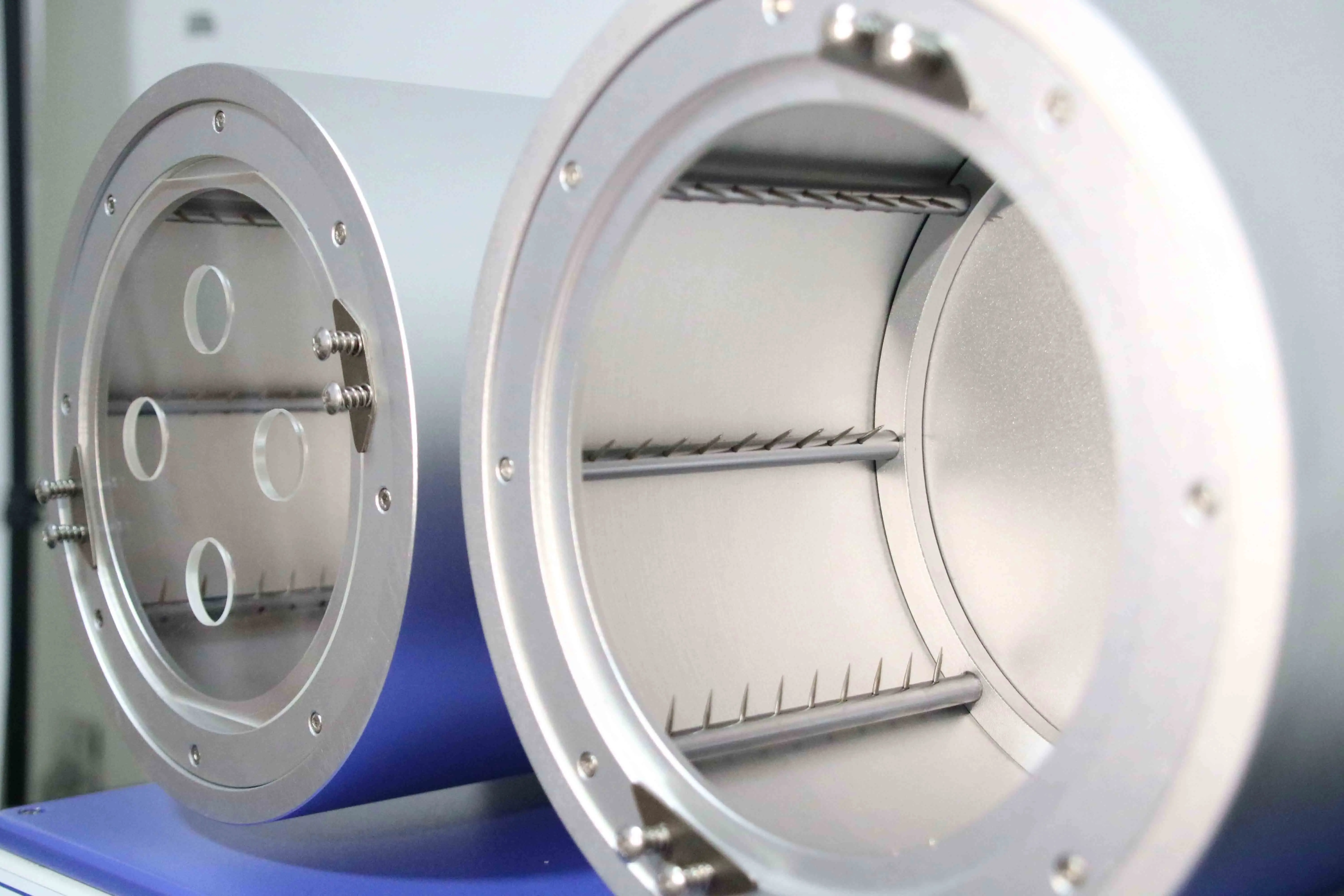

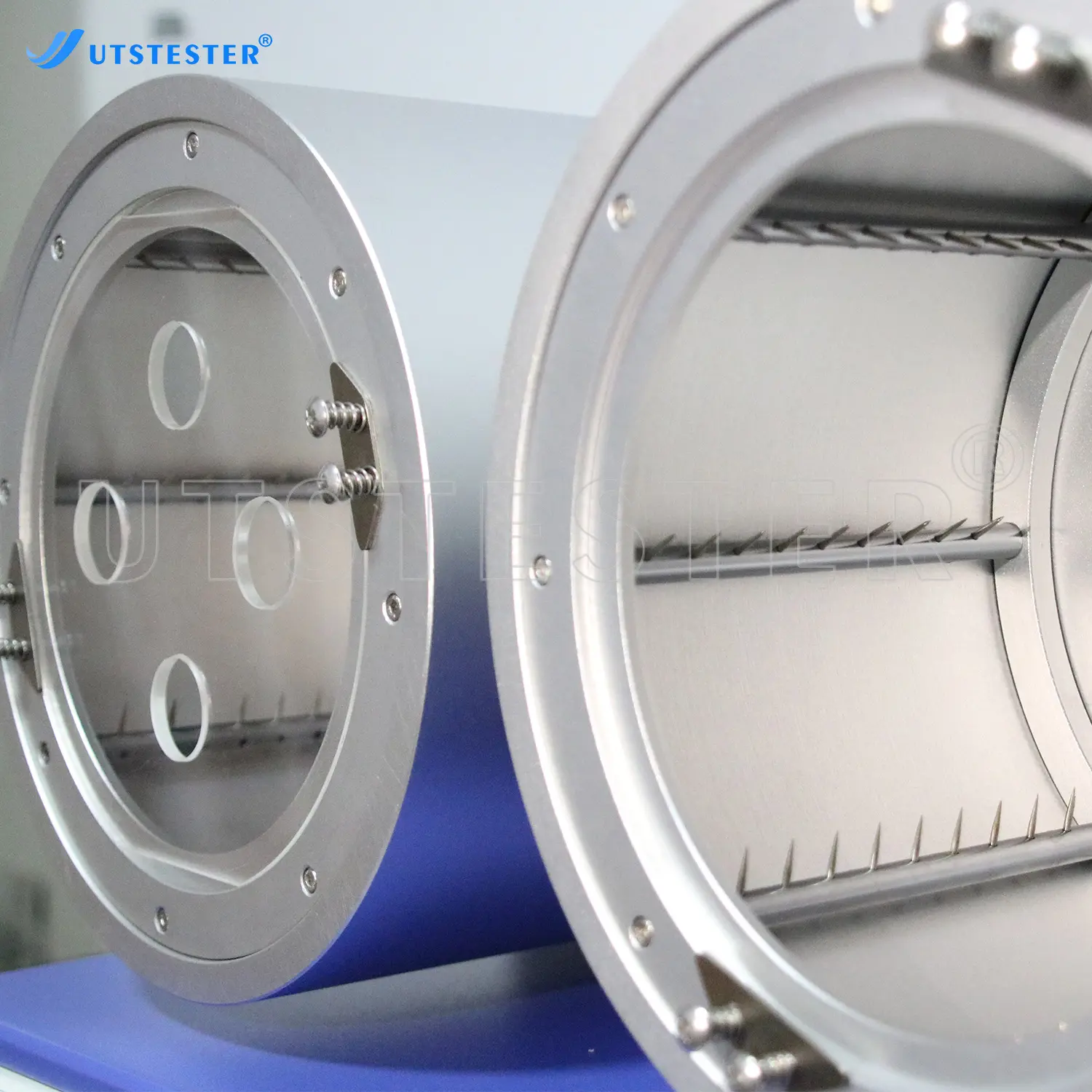

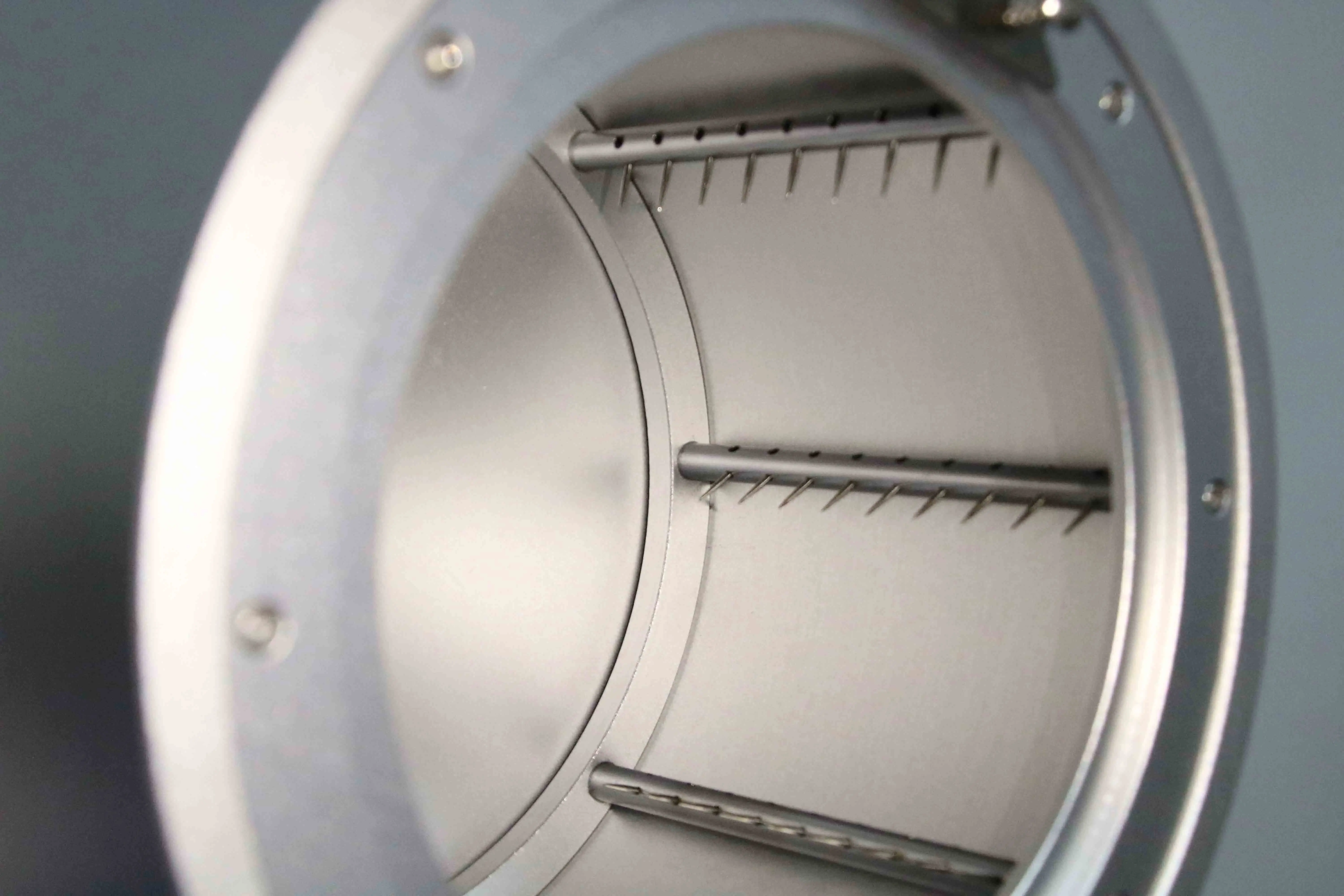

The drum

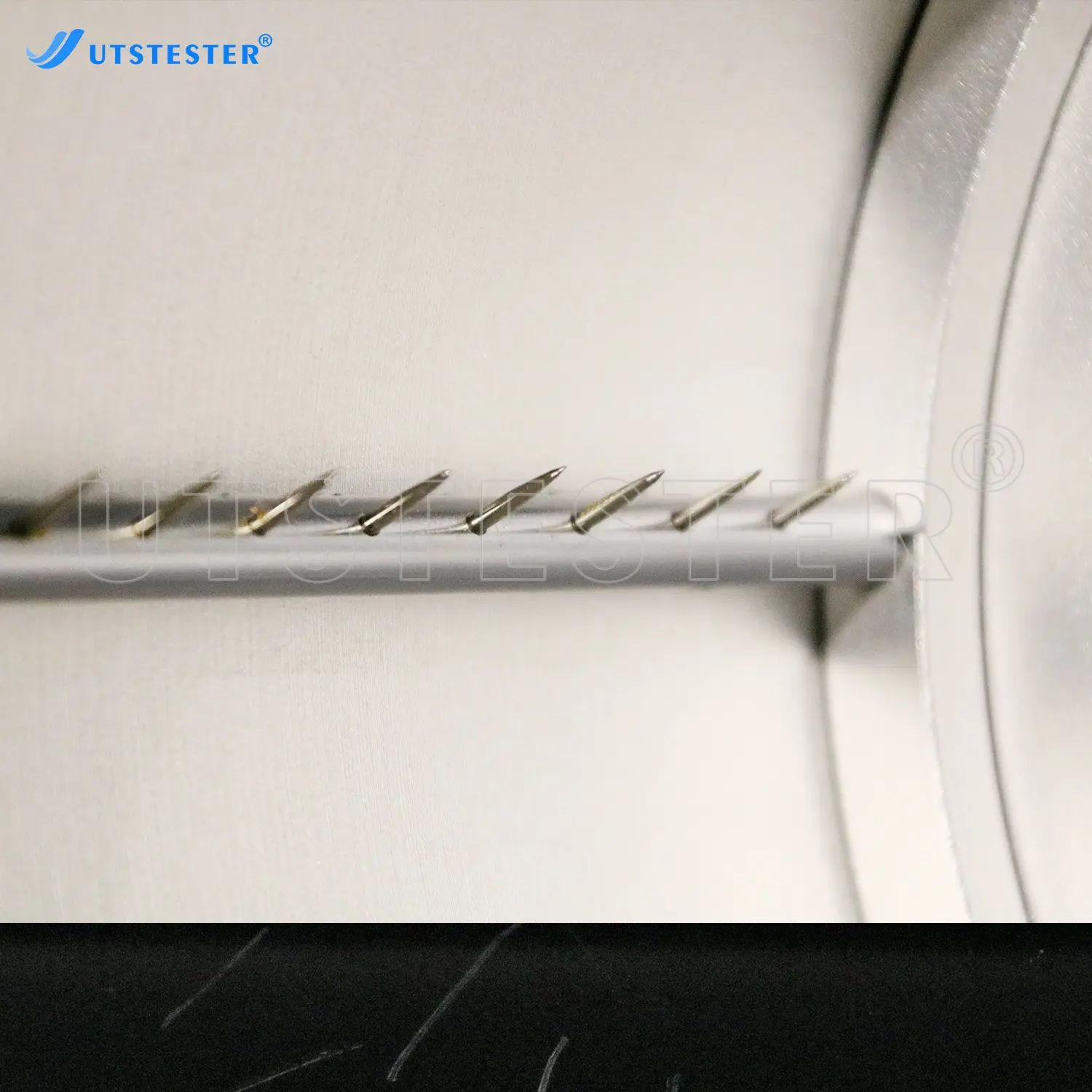

The nail

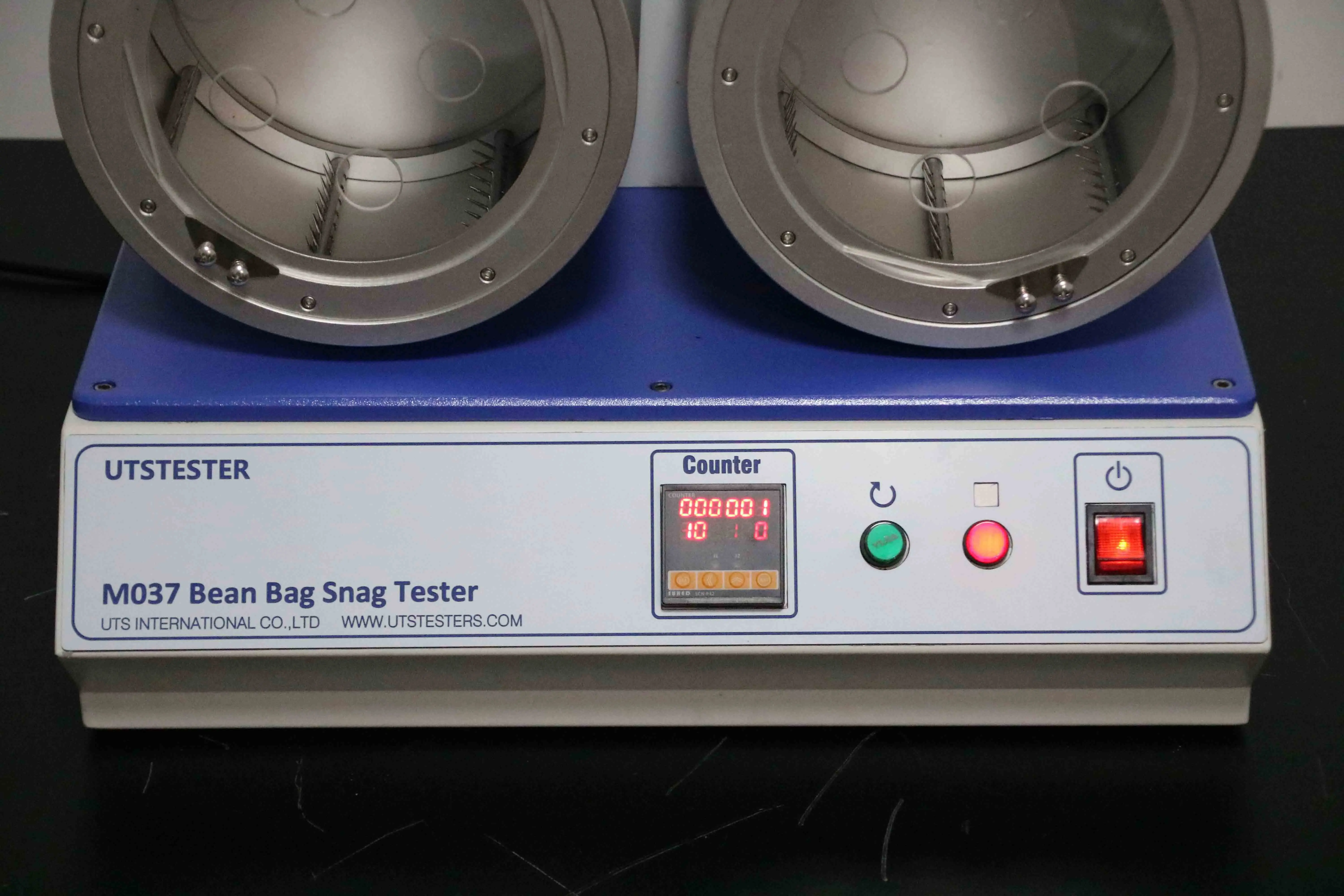

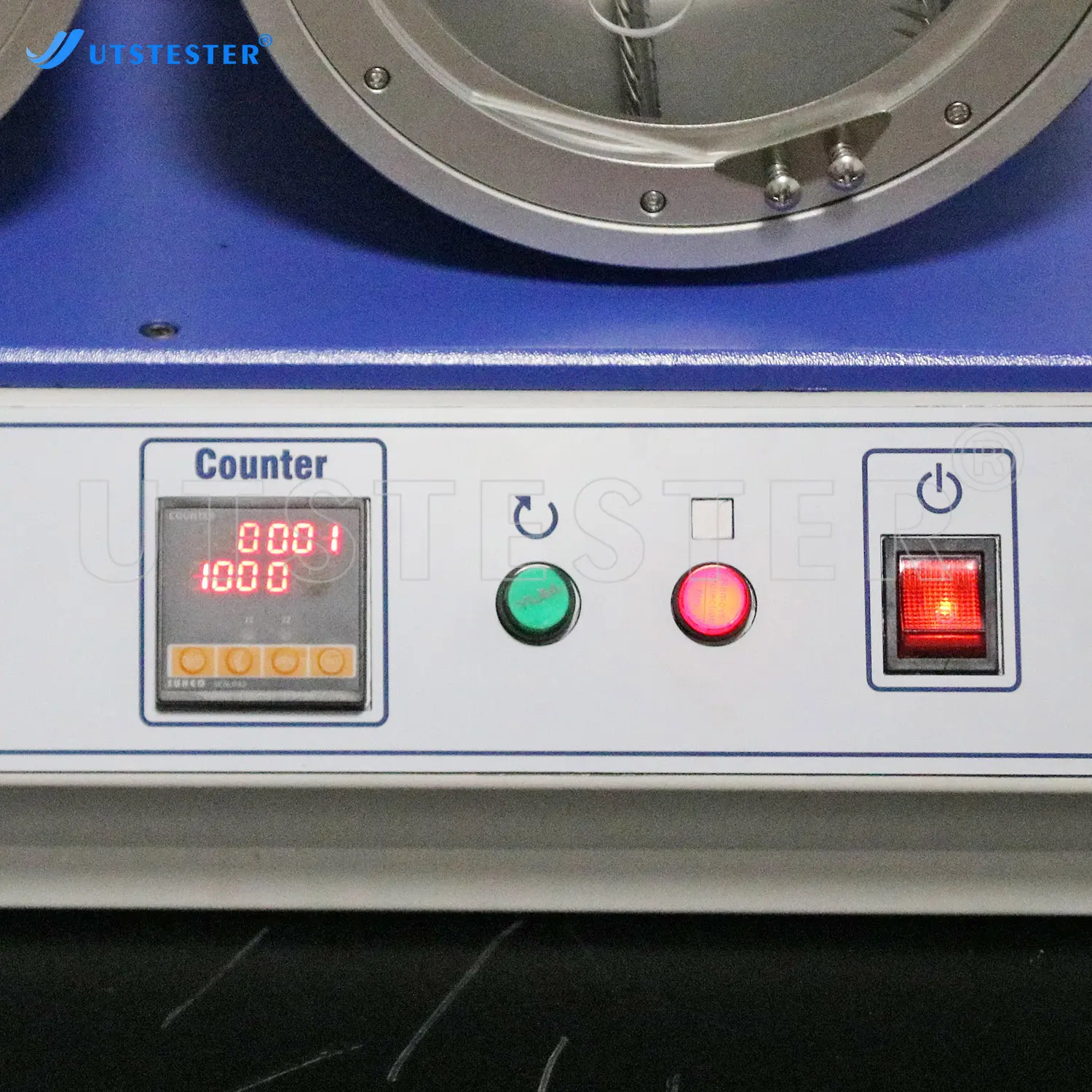

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
