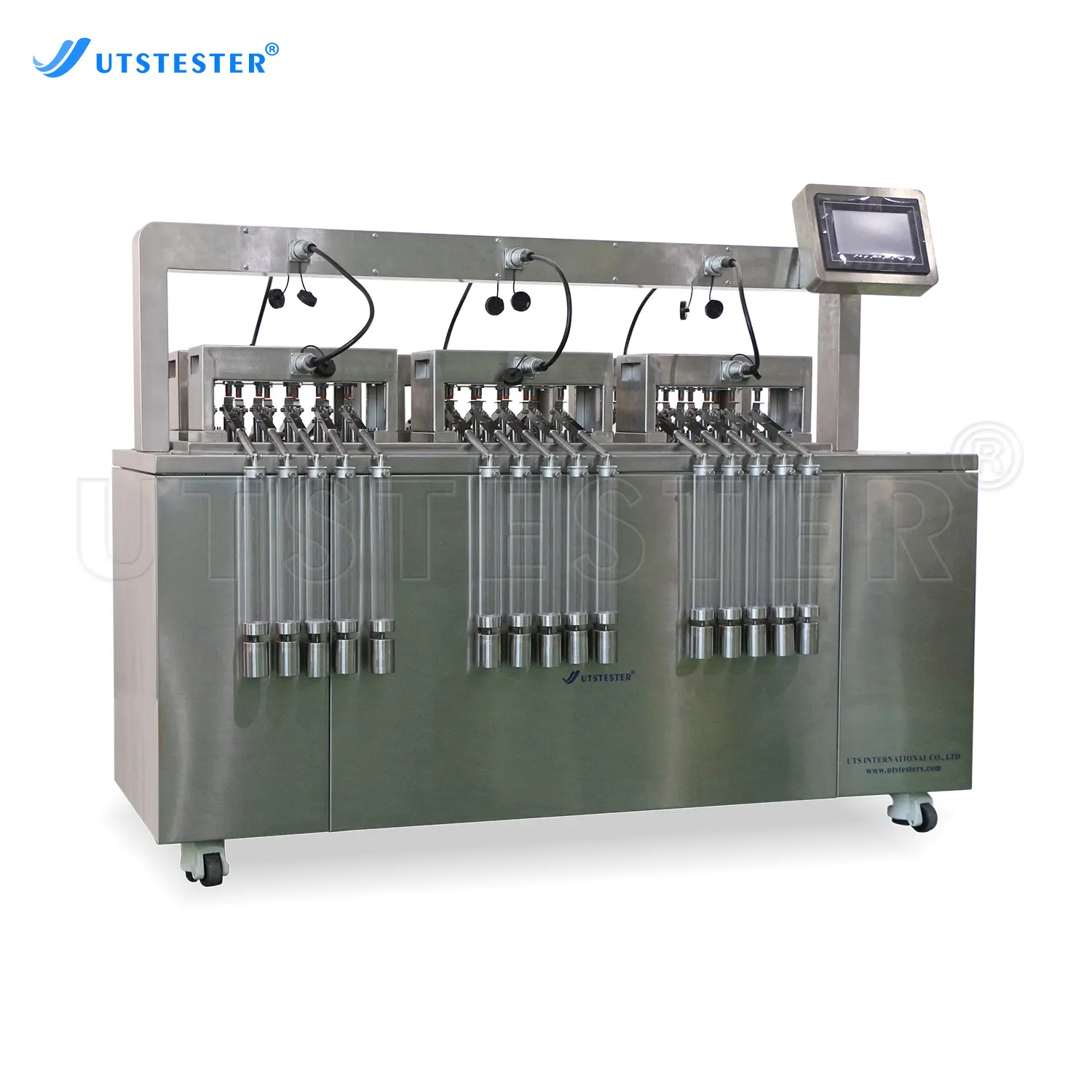

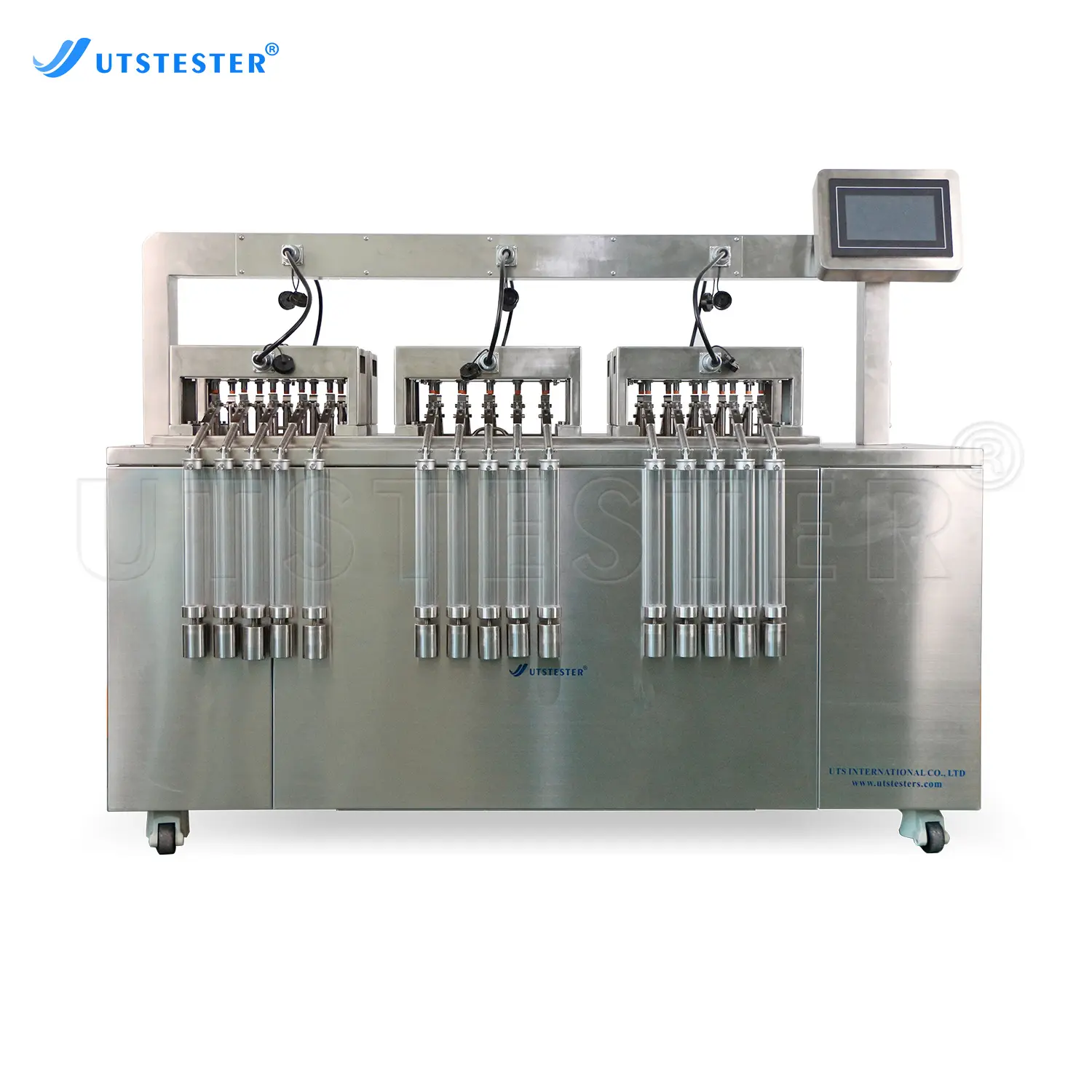

ASTM D539 Notch Constant Tensile Testing Machine for Geosynthetic MA12
Overview
It is a standard test instrument suitable for evaluating the tensile cracking resistance of polyethylene (PE) geomembrane, polyvinyl chloride (PVC) geomembrane, chlorinated polyethylene (CPE) geomembrane and various composite geomembranes.
This instrument has unique design, compact structure, complete functions and easy operation. The instrument adopts single-chip microprocessor control and color touch screen, which can realize full touch screen operation.
Application
Geotextile
Geotextile
Geotextile
Standards
ASTM D 5397(APP.)
Key Parameters
|
Model |
MA12 |
|
Test units |
6 |
|
Number of workstations per group of units |
5 |
|
Load range |
200g--5000g |
|
The weight of the hanging pipe |
196±3g |
|
Glass tube can hold steel ball mass |
600g |
|
Timing range |
1s—9999h59min59s |
|
Timing accuracy |
1s |
|
Timing deviation |
1min |
|
Bath volume |
125L |
|
Temperature control range: room temperature |
Room temperature—60℃ |
|
Display sub-meter rate |
0.1℃ |
|
Temperature control accuracy |
±0.5℃ |
|
Sample fixture shaft diameter |
6mm |
|
Operating ambient temperature |
10℃--35℃ |
|
Heating power |
2KW |
|
Power supply |
220V 3KW |
|
Overall dimensions |
length 1900mm×width 500mm×height 1400mm |
|
Weight |
180kg |
Product Details

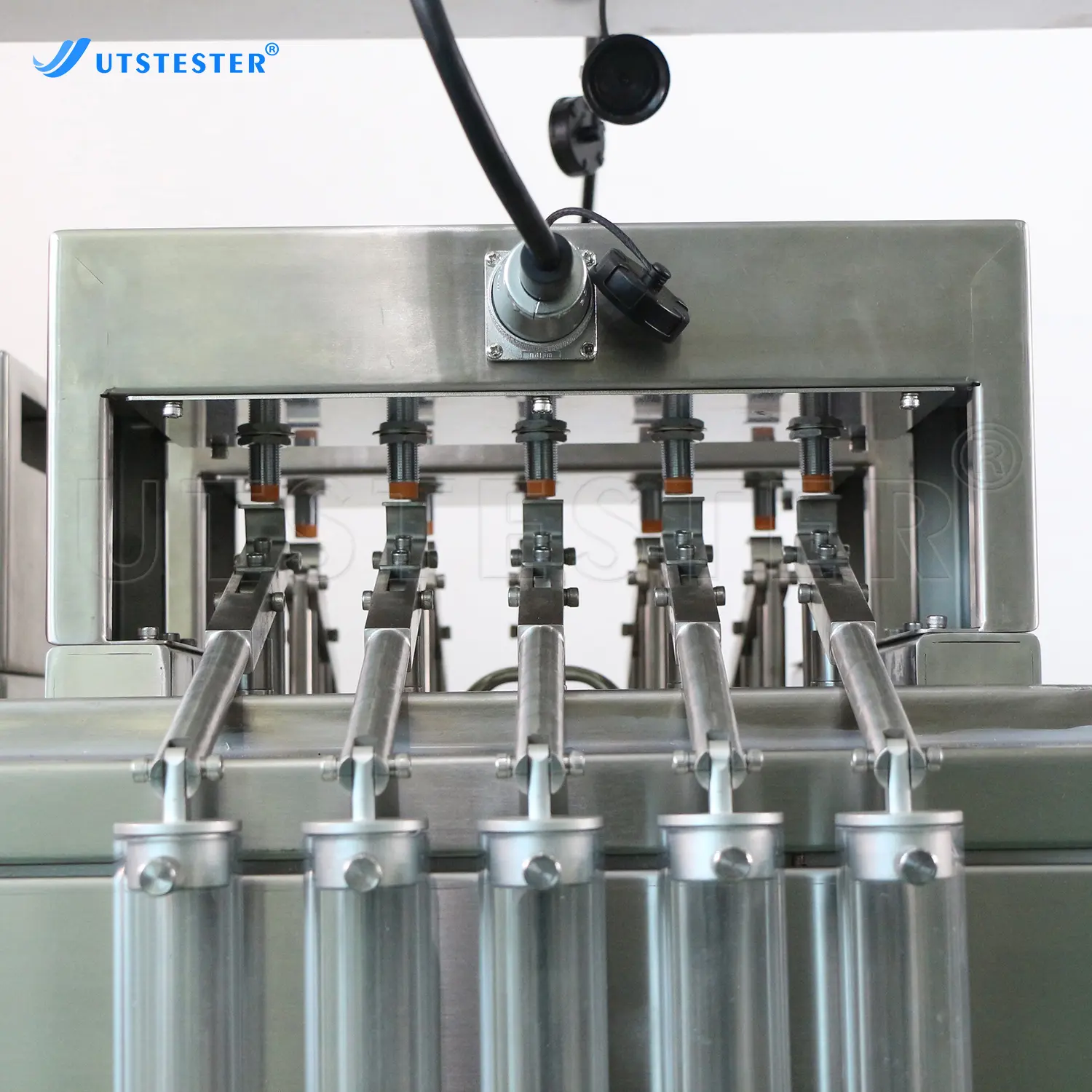

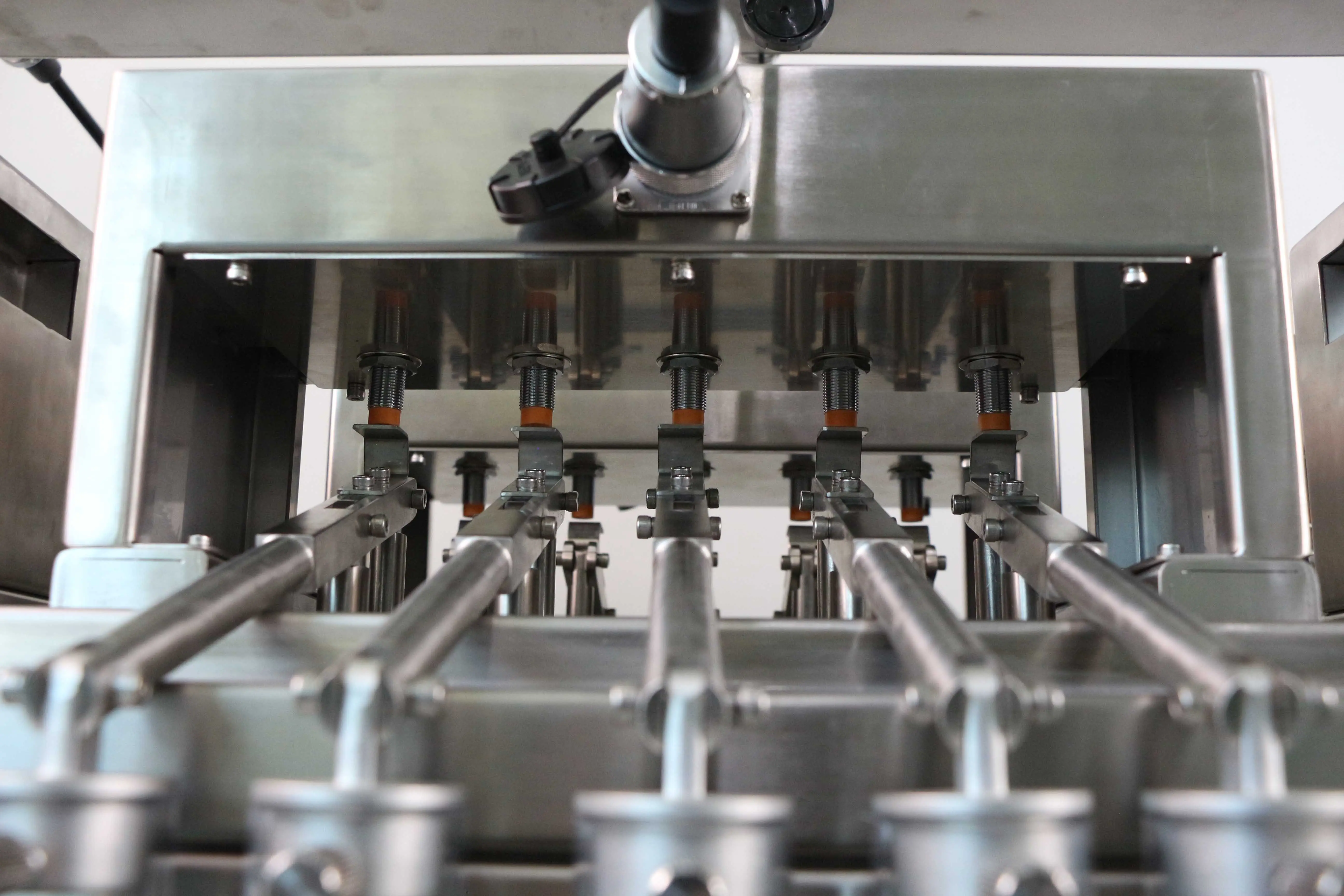

Test module

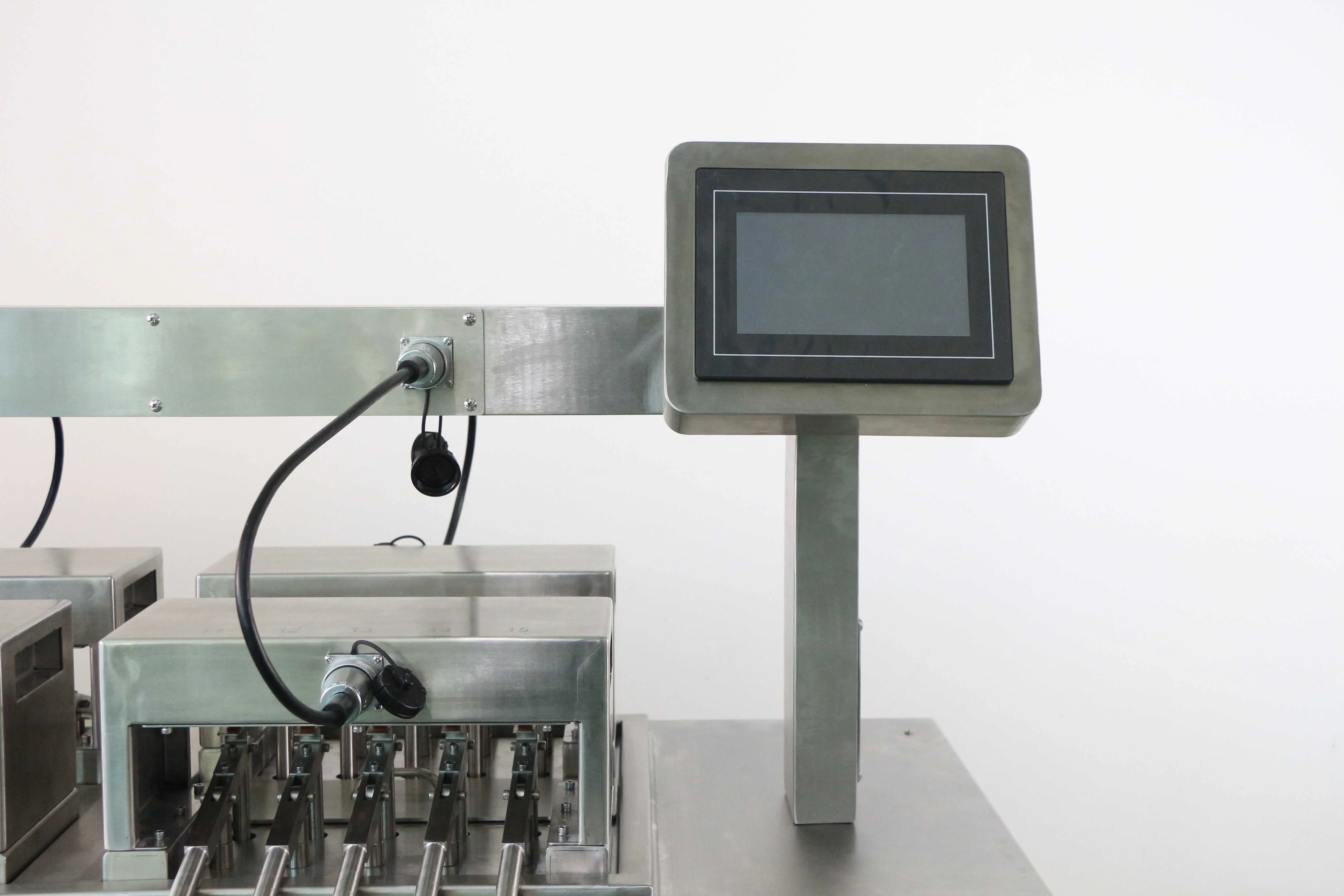

Color touch screen display

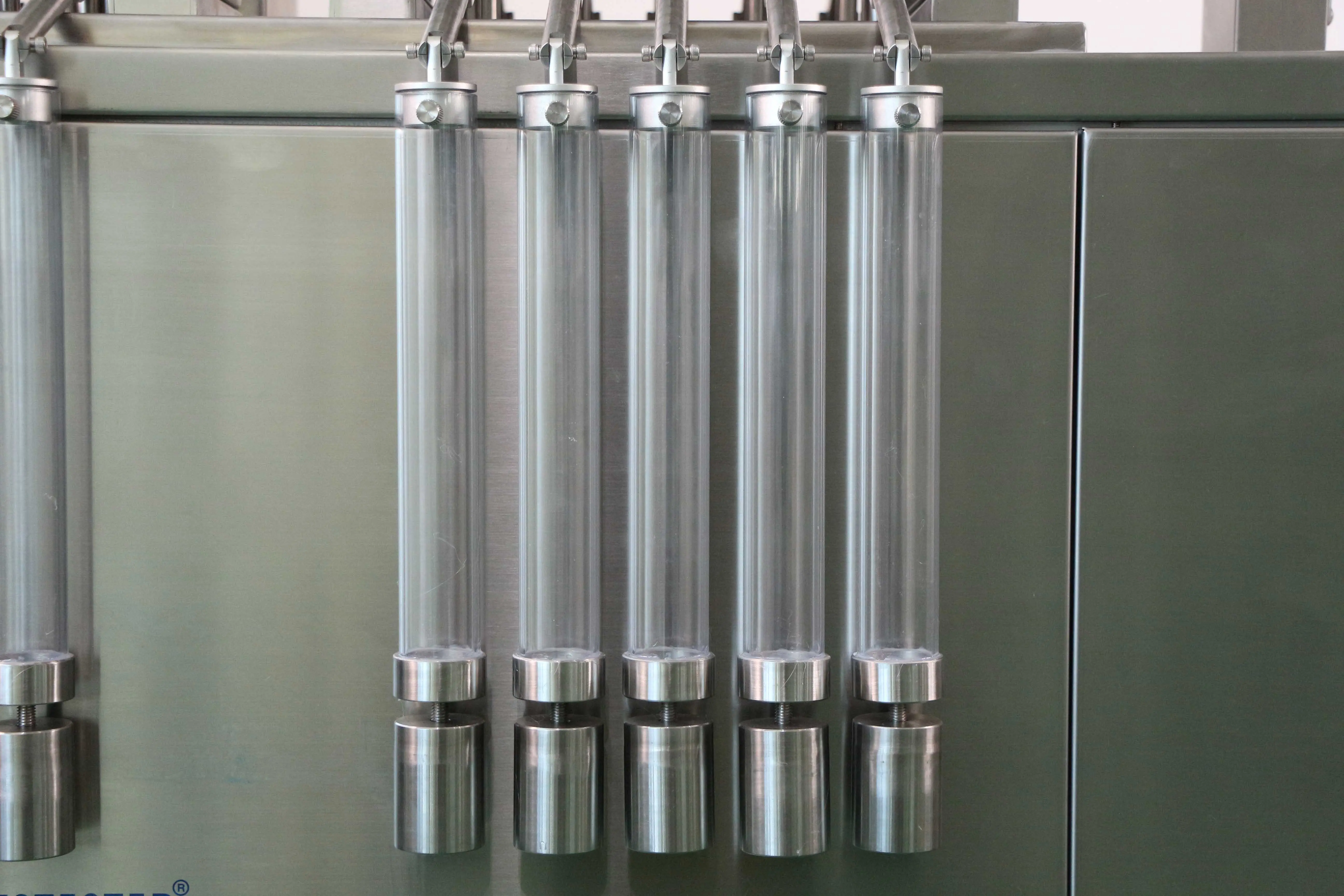

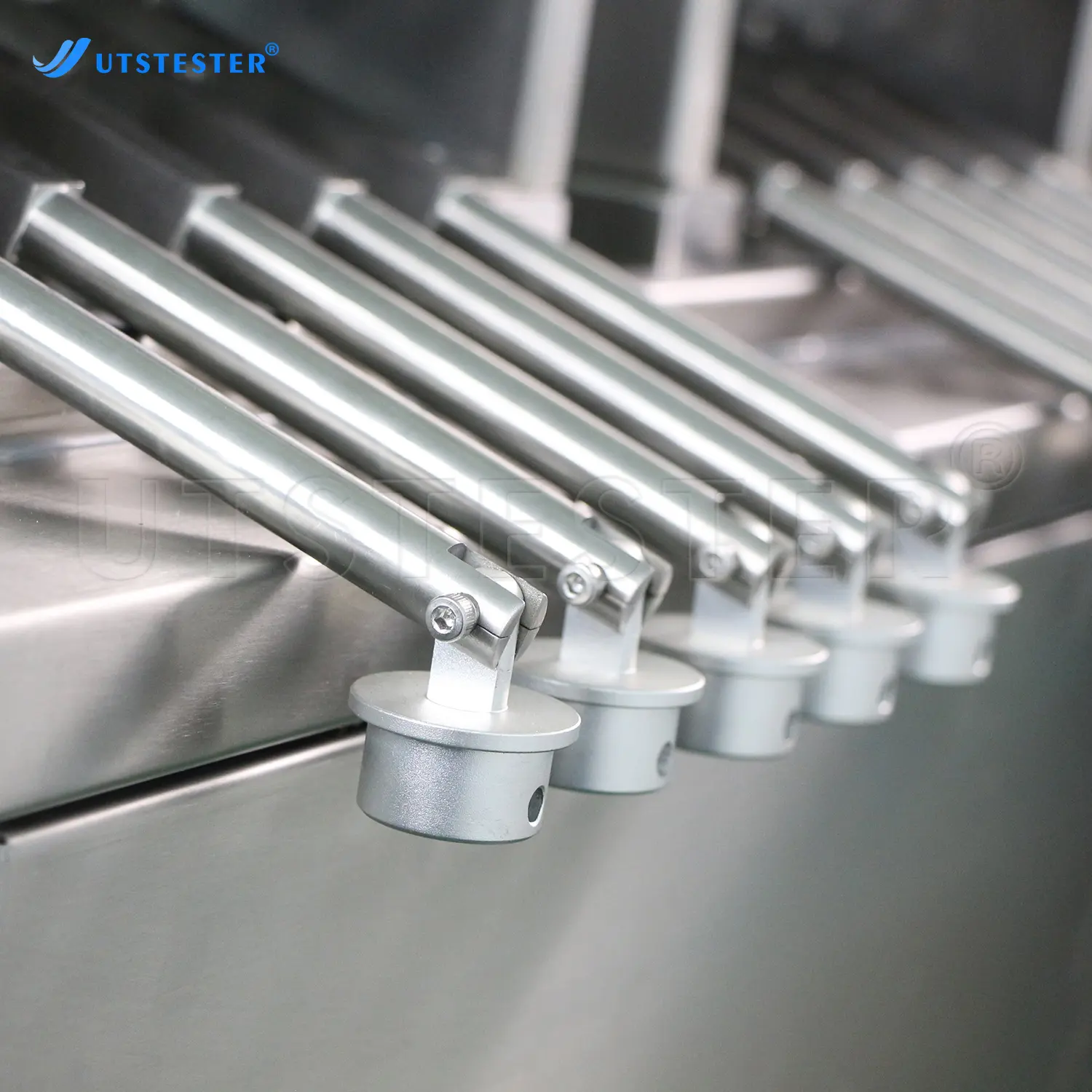

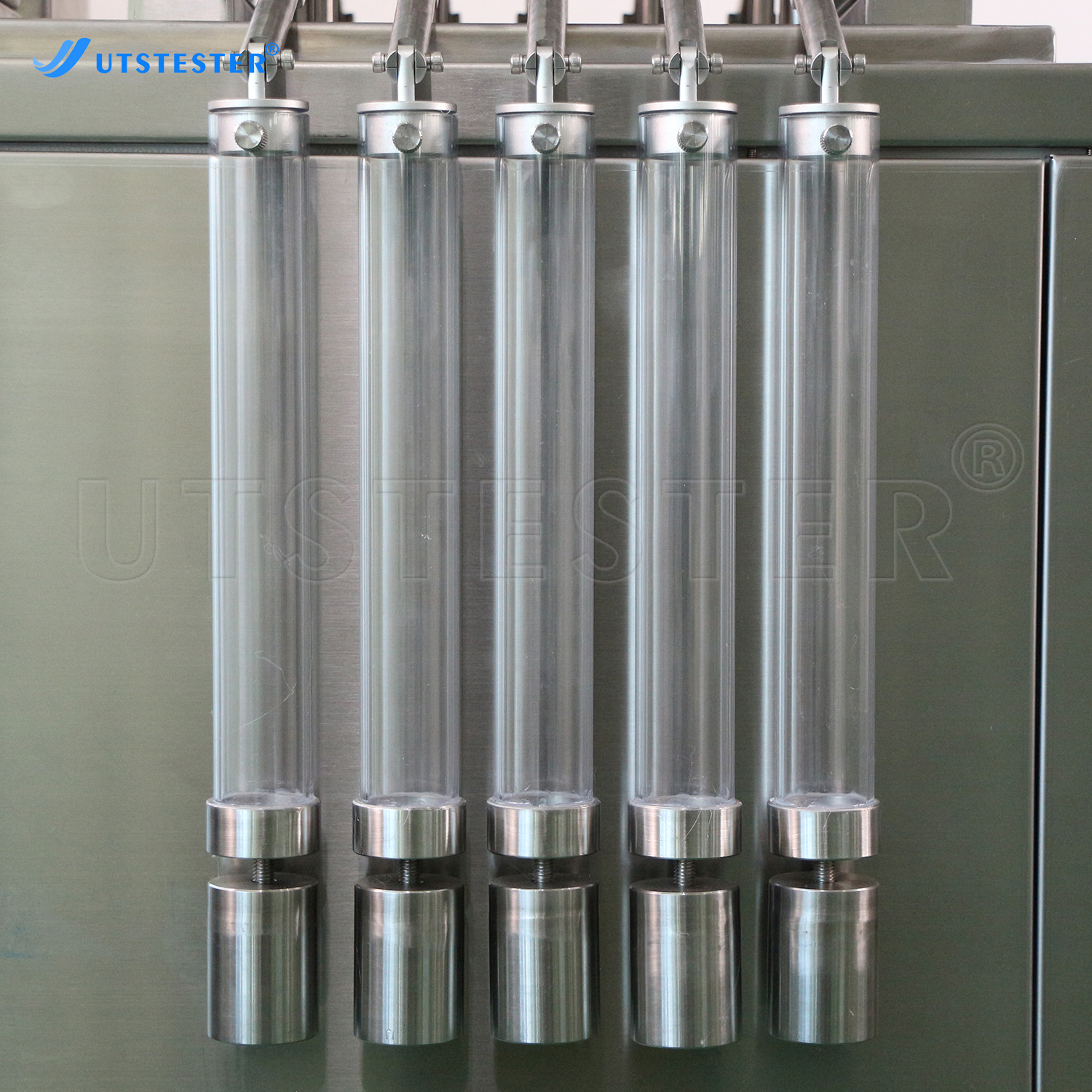

Counterweight assembly

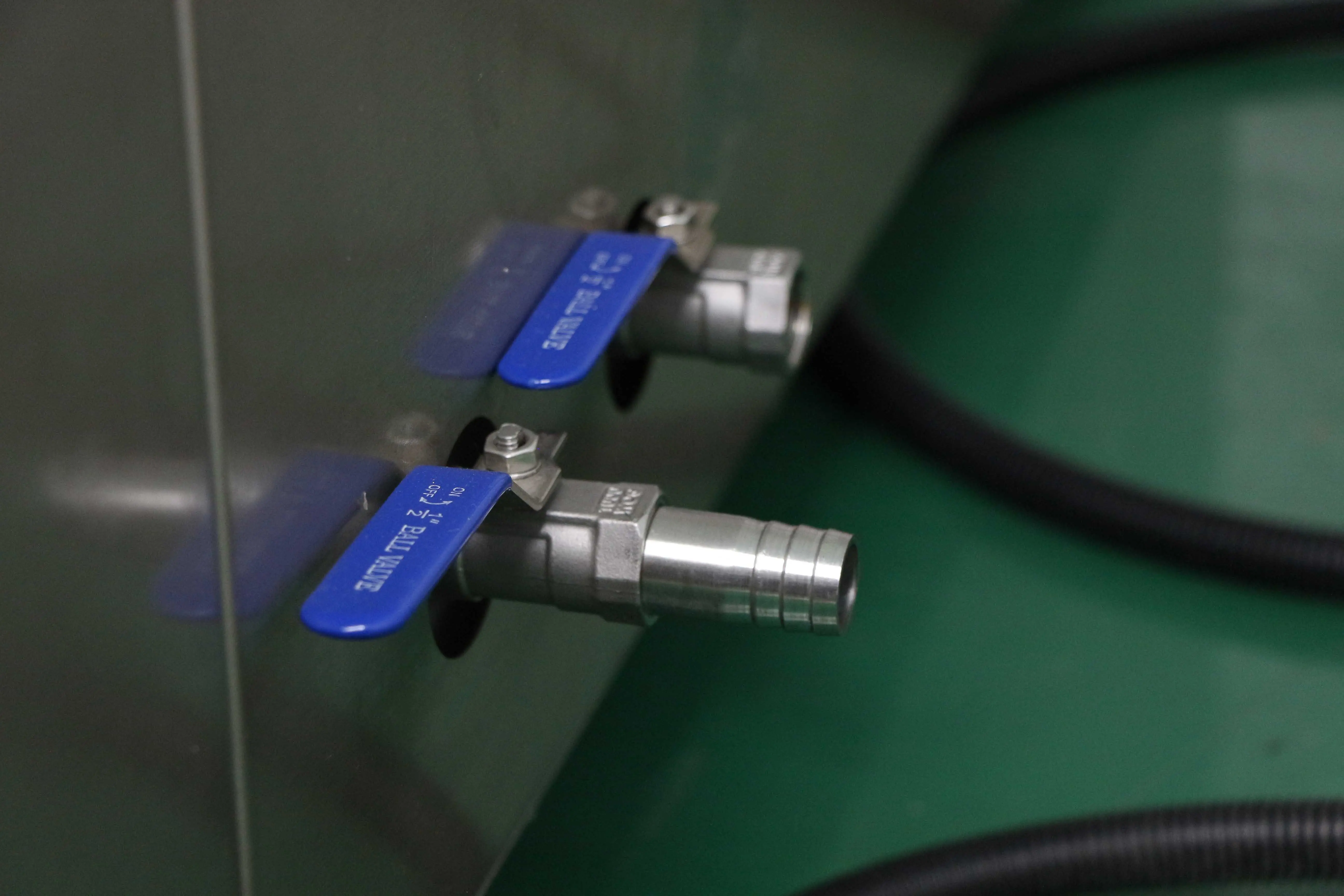

Drain valve
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
