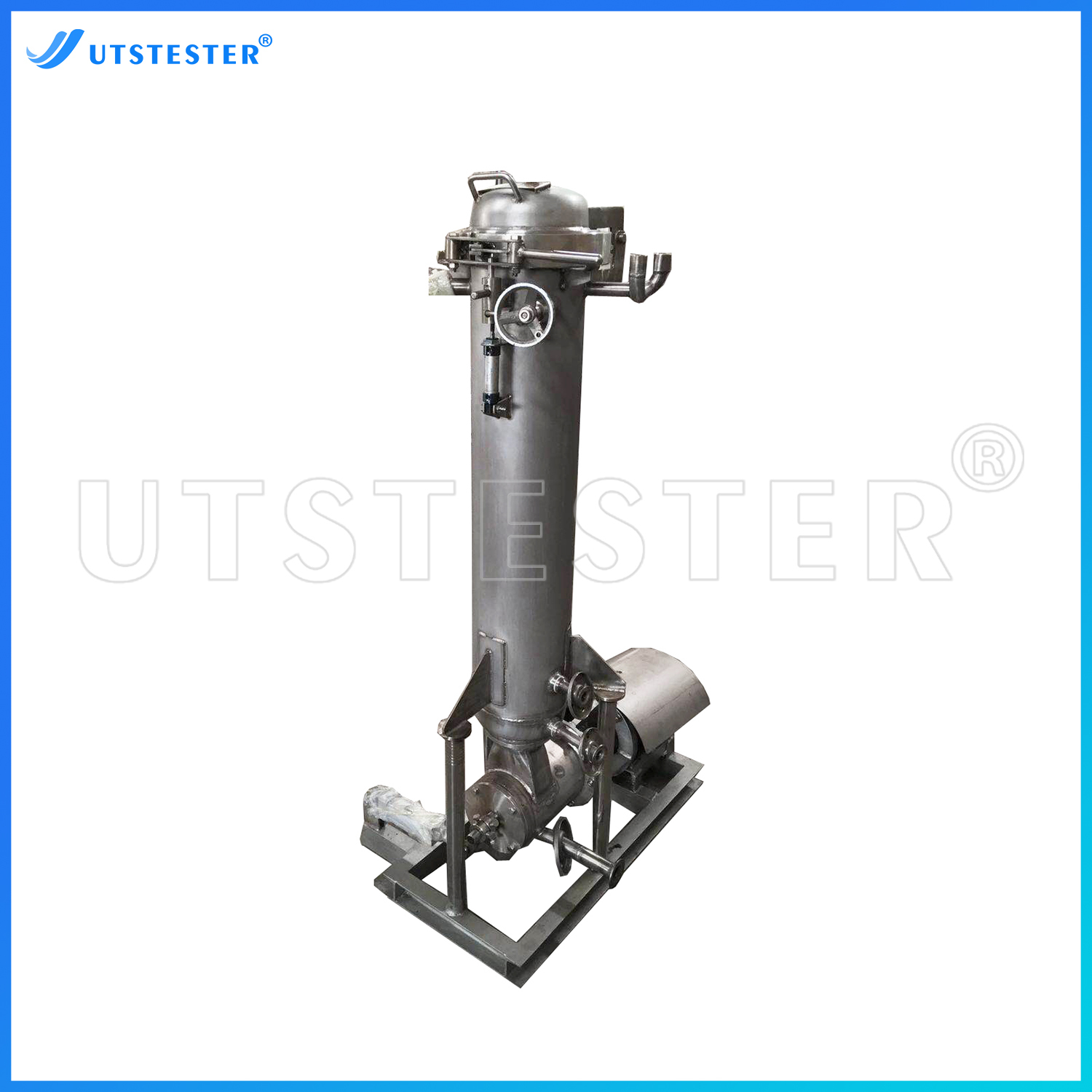

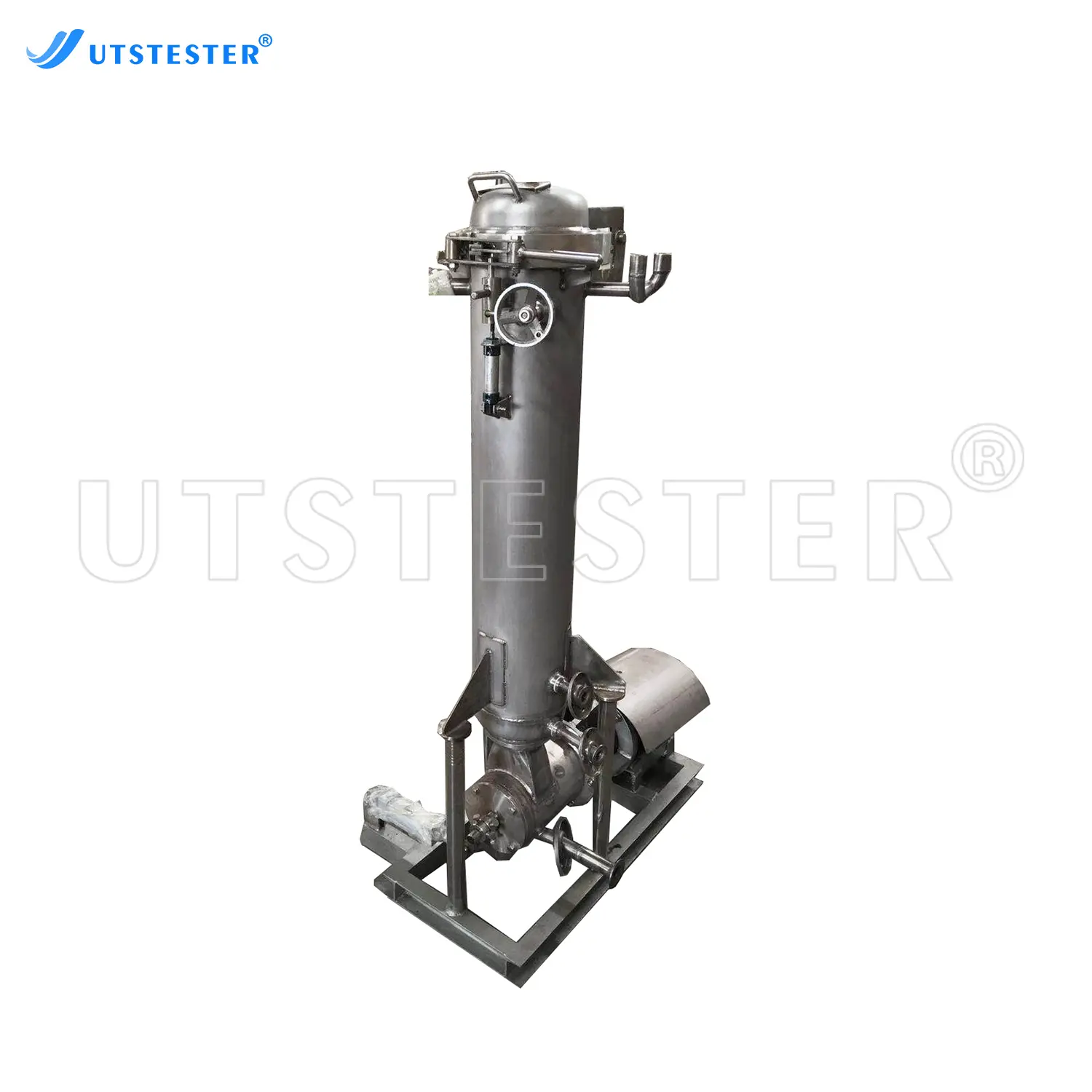

Bobbin Yarn Dyeing Machine Creel Dyeing Tester D040

1)Made of high quality stainless steel SUS321 material, strong and durable.
2)Soft processing state, to ensure that the material is not damaged, will not produce wool.
(Optional)
3)Equipped with online detection, frequency conversion, PLC and computer control system, so as to realize temperature program, reversing time, flow size, proportional feeding, water, drainage and overflow control.

product details

Production Processes

Packing System

Overview

The creel dyeing machine is an indispensable basic equipment in the workshop. It has similar functions with the large capacity creel dyeing machine, and its water ratio and flow rate are similar to that of the large production equipment. It is suitable for the experiment of creel dyeing, dyeing and finishing technology.

Application

Yarn

Standards

Key Parameters

Model	D040
Design capacity	3KG.
Bath ratio	1:6 ~ 1:10.
Design temperature	140℃; Maximum operating temperature 135℃.
Heating rate	saturated vapor pressure above 0.6mpa heating rate: 2℃ ~ 5℃/MIN.
Cooling rate	130℃ ~ 80℃ for about 25 minutes (Cooling water pressure is 0.3mpa, temperature is 5℃ ~ 10℃)
Design pressure	0.44mpa
The highest working pressure	0.4mpa
Safety device	equipped with safety interlocking device, to ensure safe operation.
Material	SUS321
thickness	3mm
Cylinder diameter	250mm
Type of yarn column	cylindrical type removable mandrel, self-locking.
Inner cylinder capacity	1-2 bobbin
Control mode	English computer control.
Type of electric cabinet	connected with dyeing VAT, stainless steel bracket is provided.
body type	heating cooling 316L pneumatic valve, stainless steel safety valve.
Main pump type	GIT pump body.
Motor power	2.2KW.
Heating form	built-in pipe heating.
positive and negative cycle	controlled by the time controller.
clamping type	double clamping type.
Opening type	manual opening.
Power supply	three-phase /380V/50HZ 3KW
Size	950×900×1700mm.
Weight	200KG.

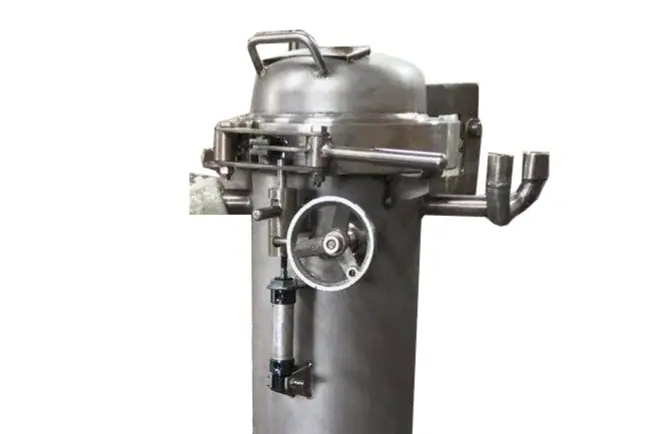

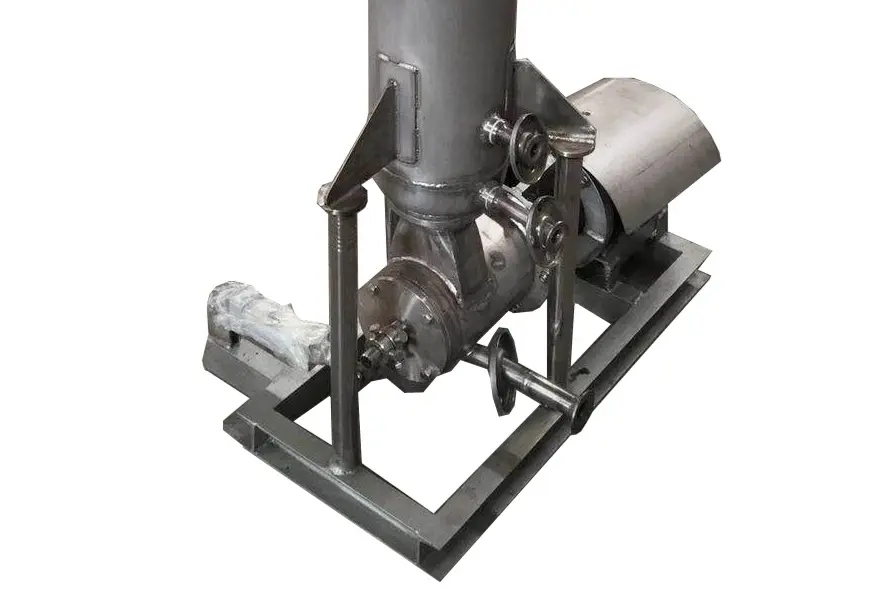

Product Details

Sample Testing Area

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
