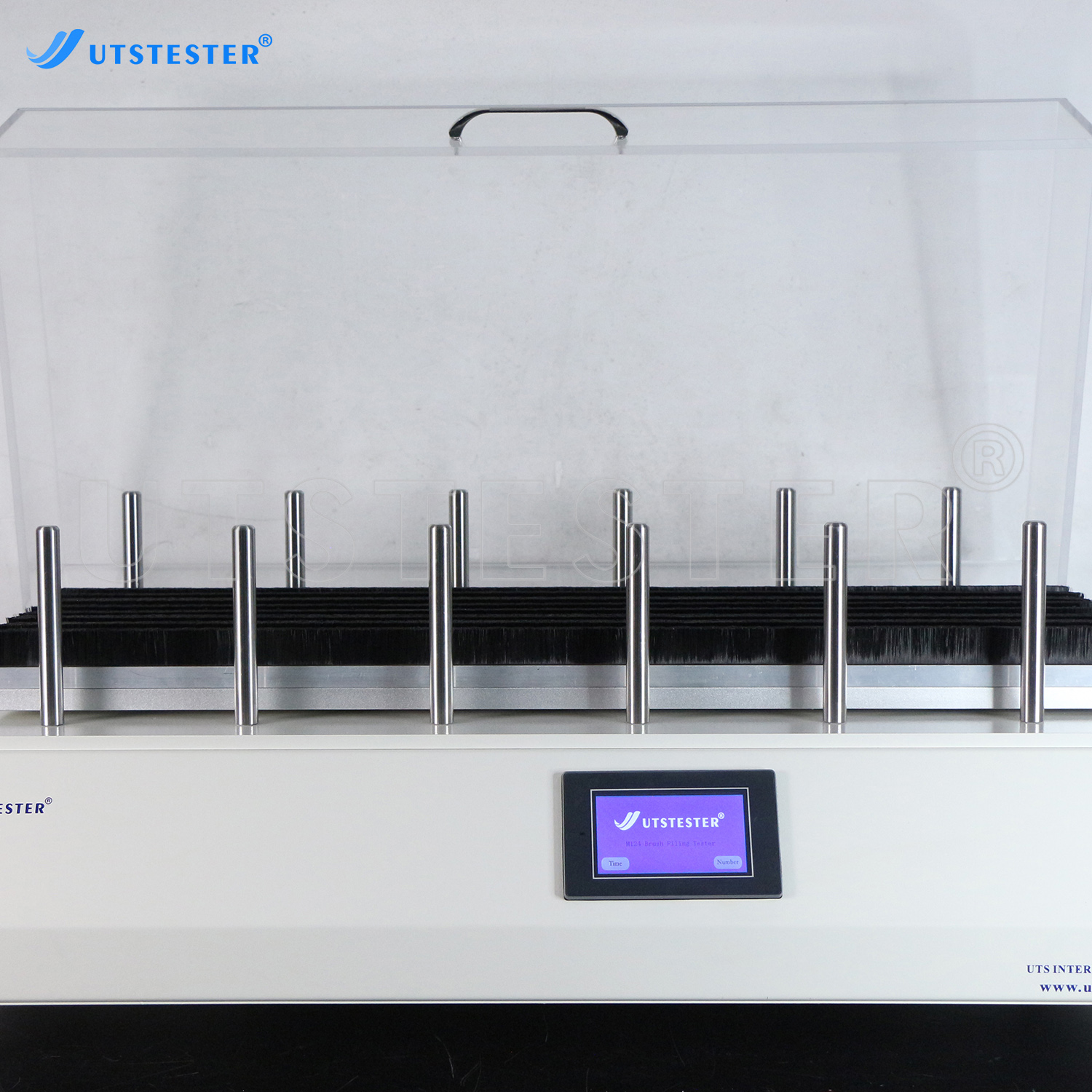

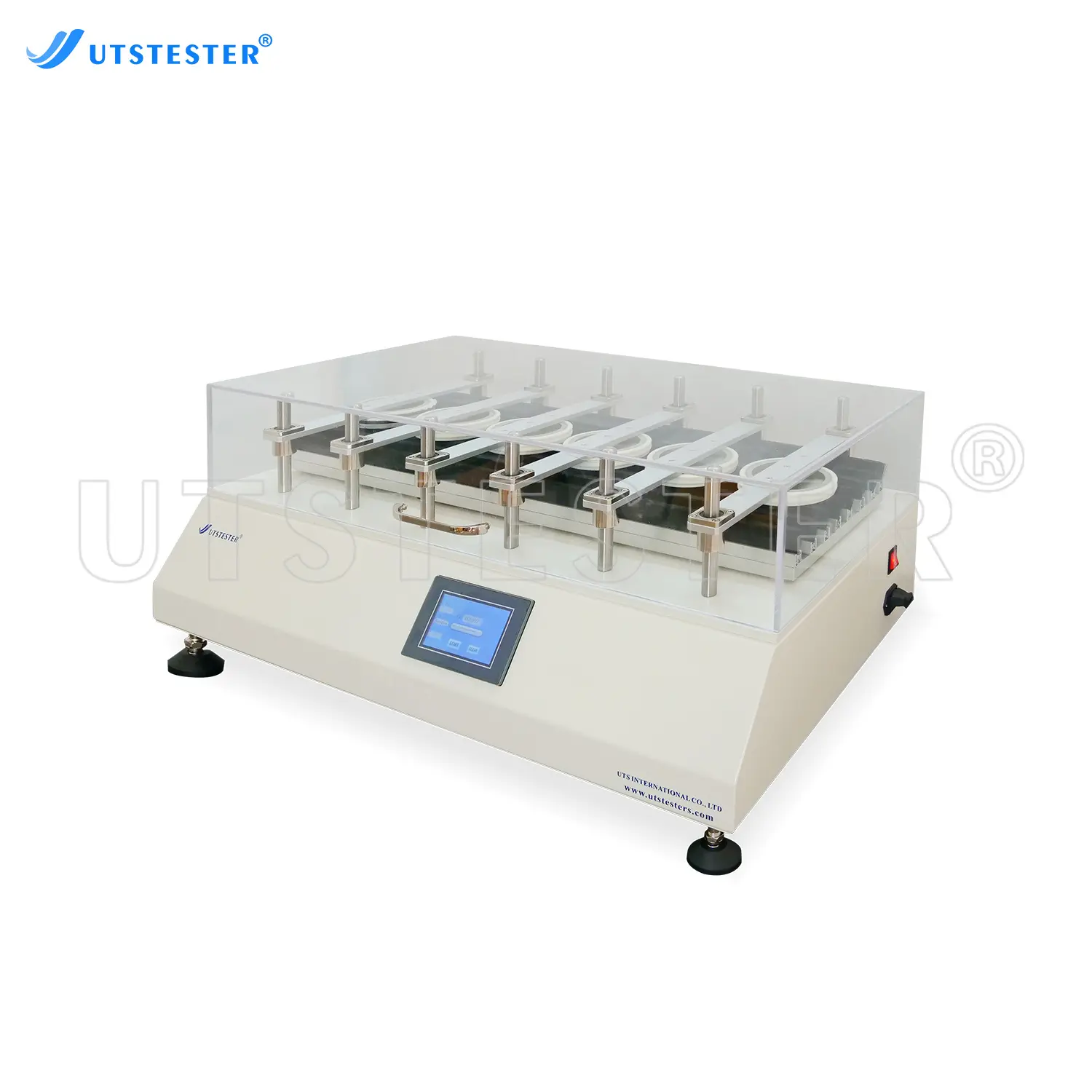

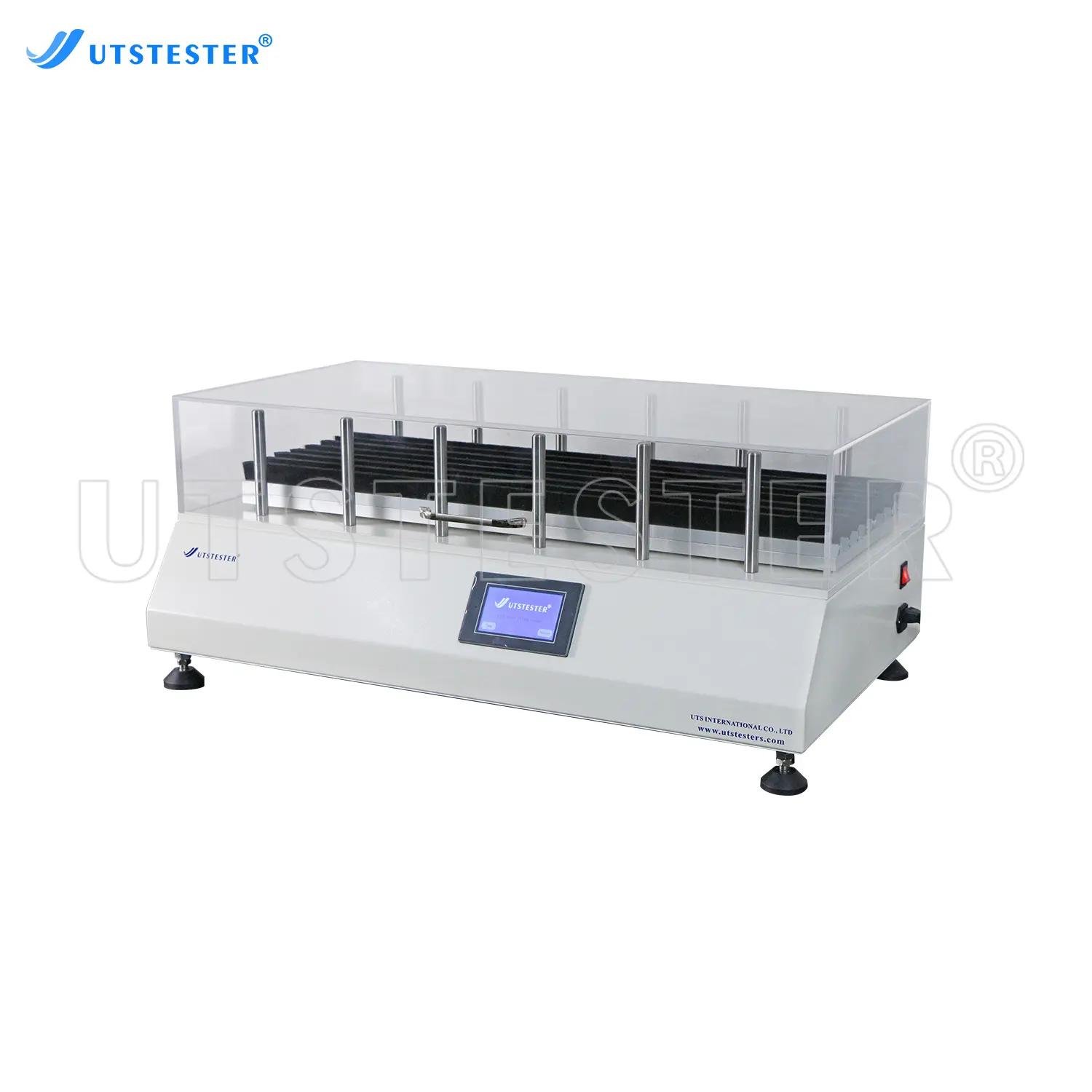

Brush Type Pilling Tester Brush Testing Machine Pilling and Snagging Tester M124
Overview
This instrument simulates the pilling or pilling performance of fabrics under wearing and normal use conditions, and can be used for apparel, home textiles and automotive upholstery materials, including woven and knitted fabrics. Test specimens are rated using a pilling rating sight glass, light box or similar box for comparison with standard pilling chart cards. Conforms to standards such as ASTH D 3511
Application
textiles
paper
glass
Standards
ASTM D3511
Key Parameters
|
Model |
M124 |
|
660g, soft foam rubber surface |
|
|
Pilling range |
19mm |
|
Nylon brush (height) |
25.4mm |
|
Square sample |
6 grips, rubber side fixture, sandpaper back |
|
Rotation speed |
58r/min |
|
size 51×102×152mm |
|
|
Friction number |
1 ~ 999999 times (can be set) |
|
Power supply |
AC220 V/50 Hz |
|
Overall size |
914mm×305mm×381mm (L×W×H) |
Product Details

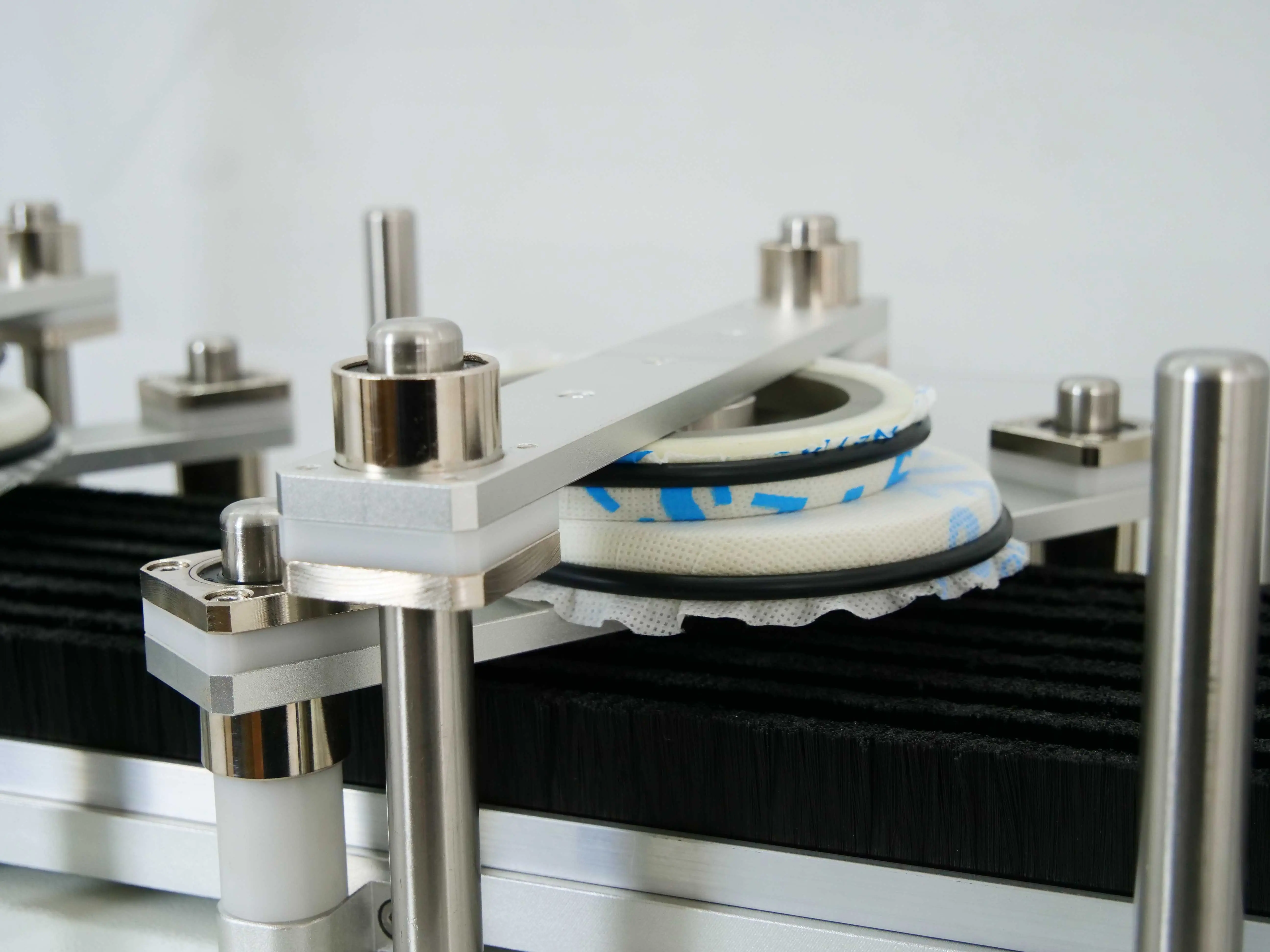

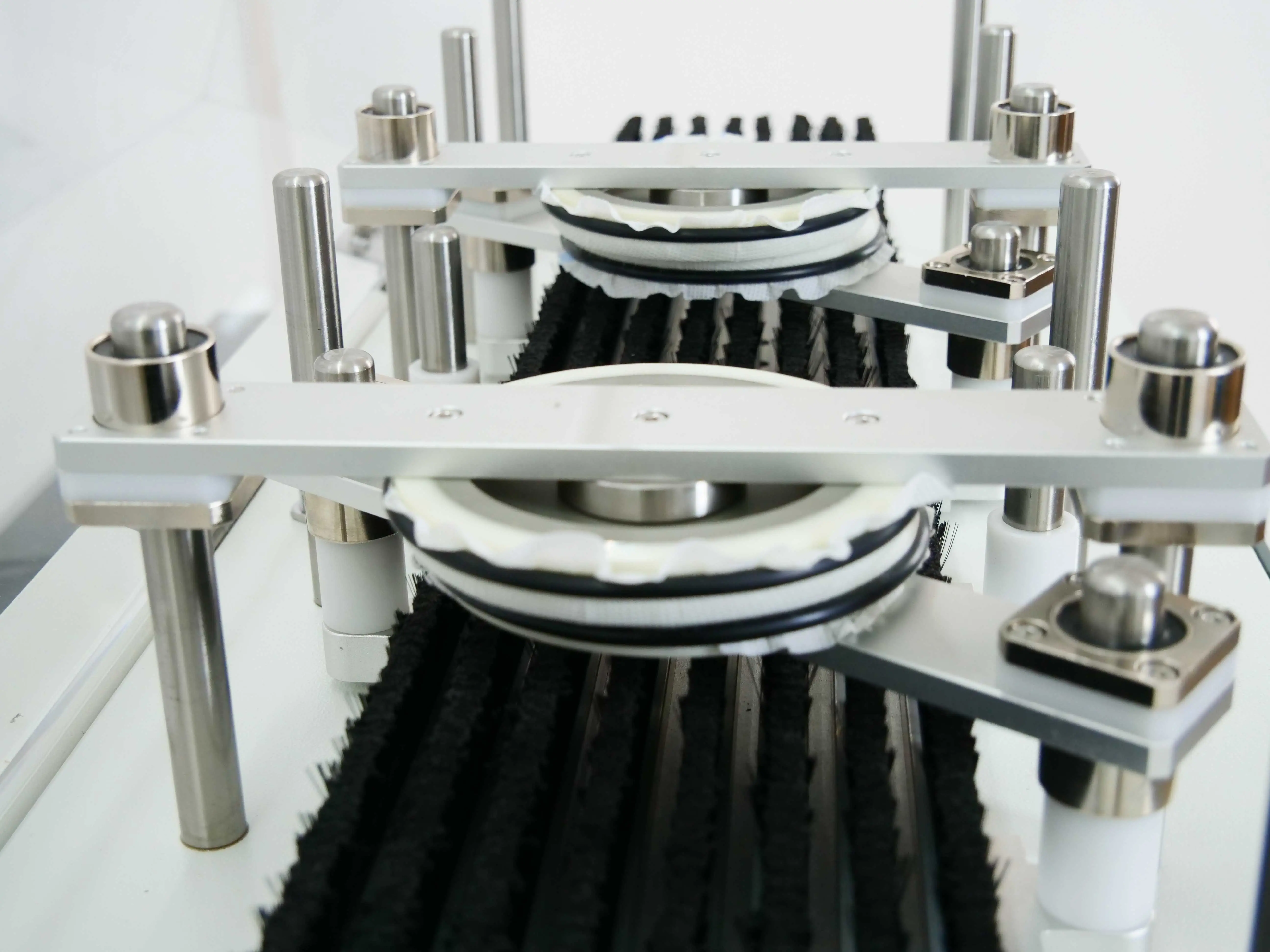

Sample mounting base

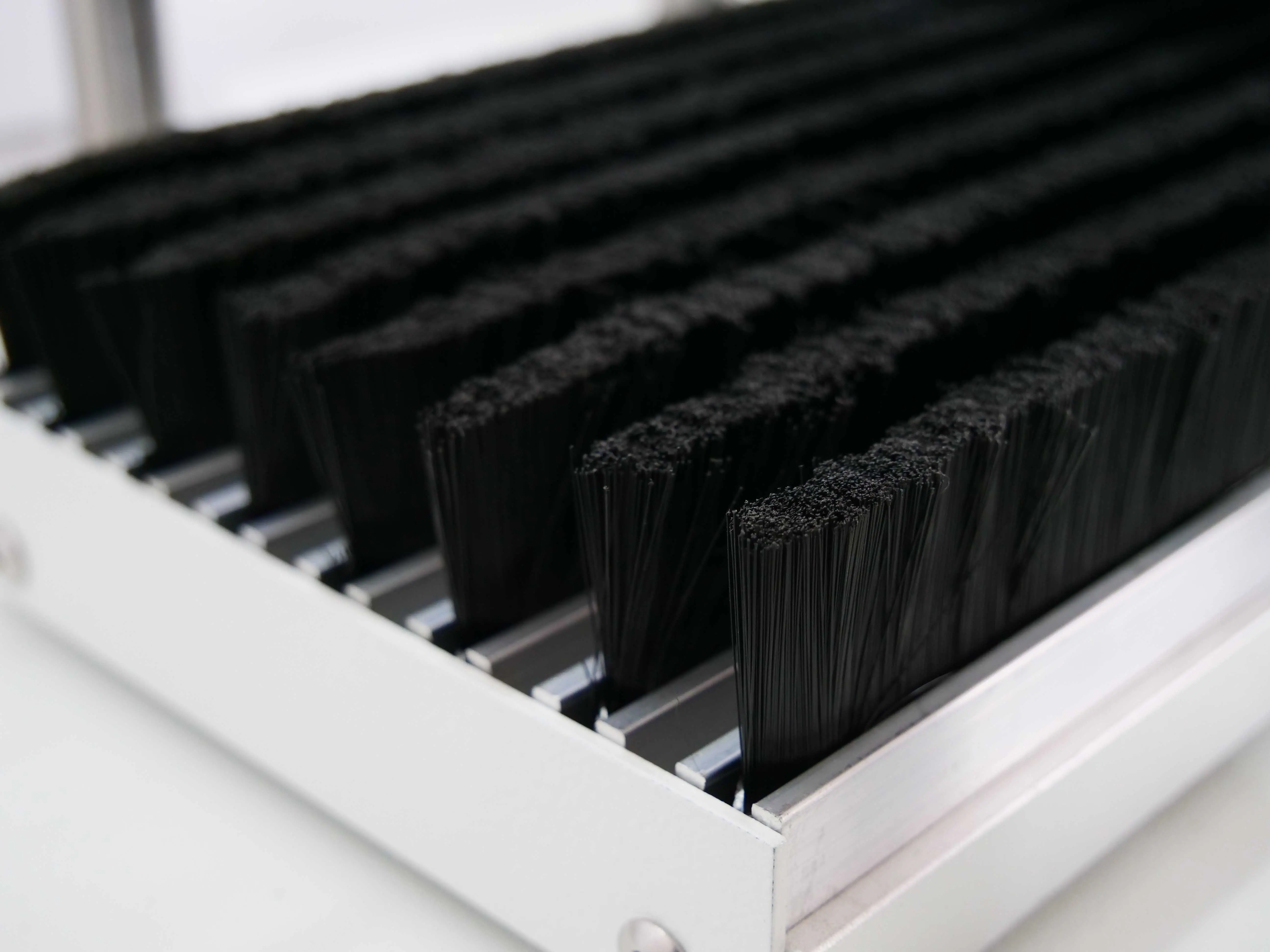

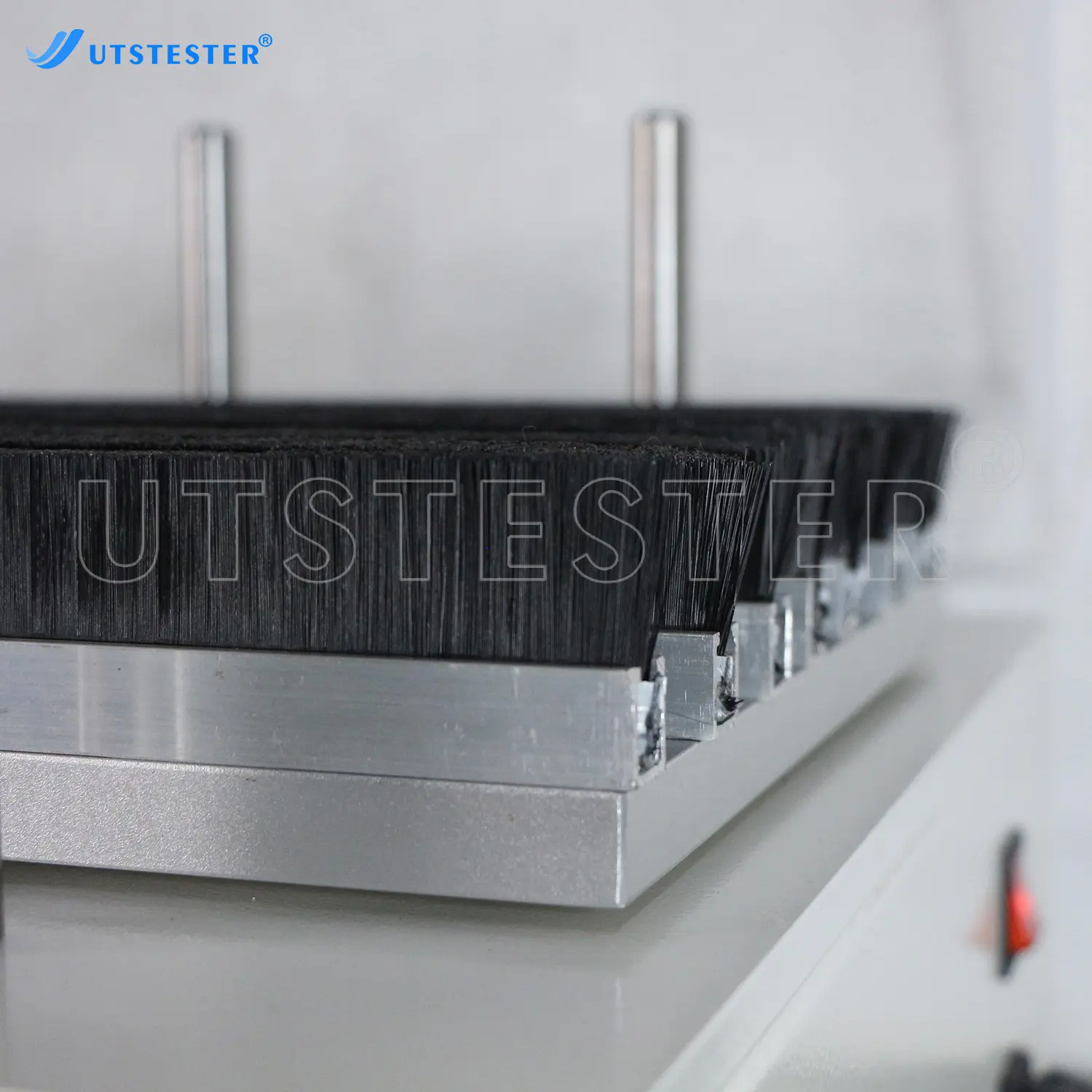

Nylon brush

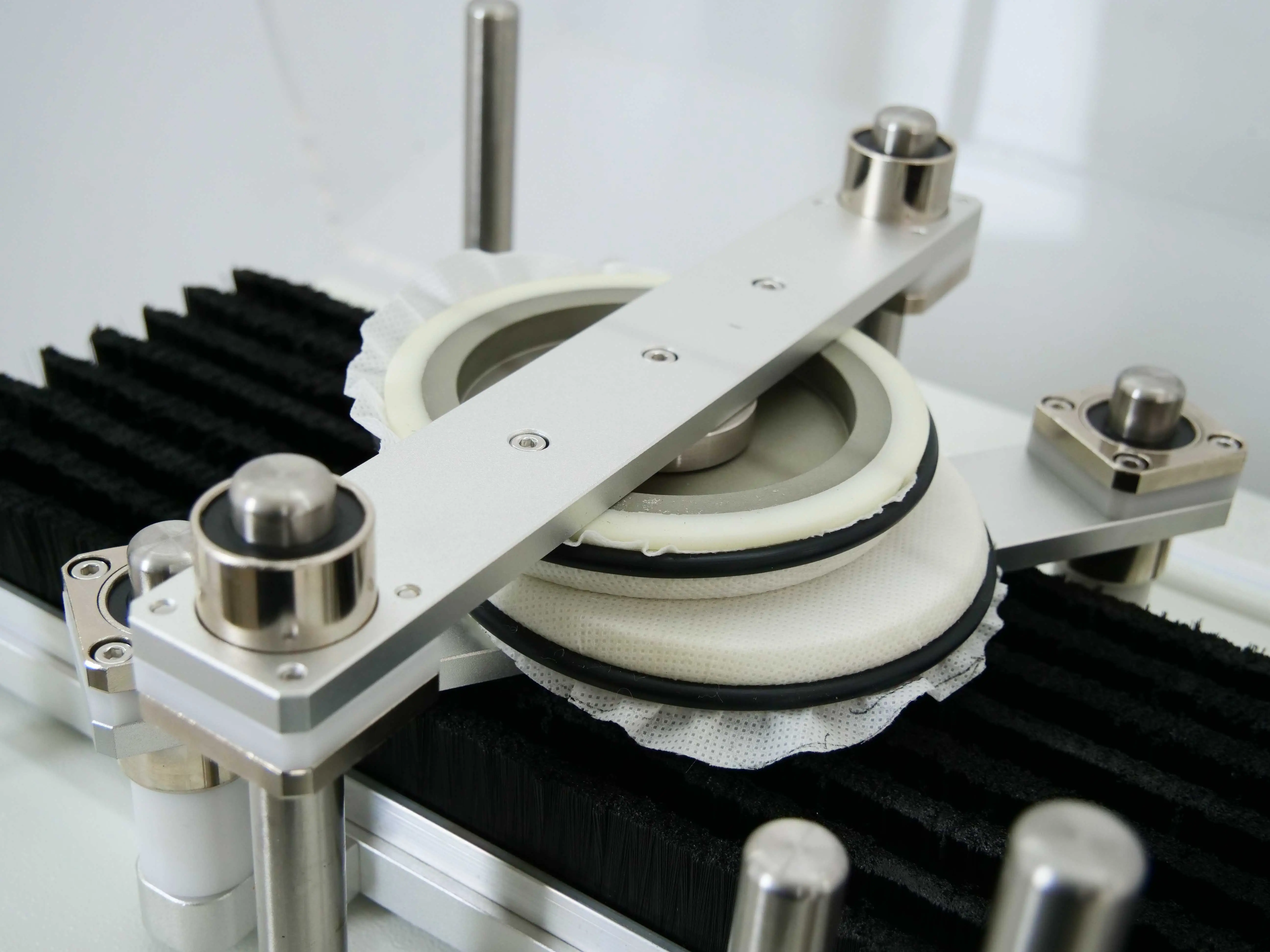

Sample mounting base

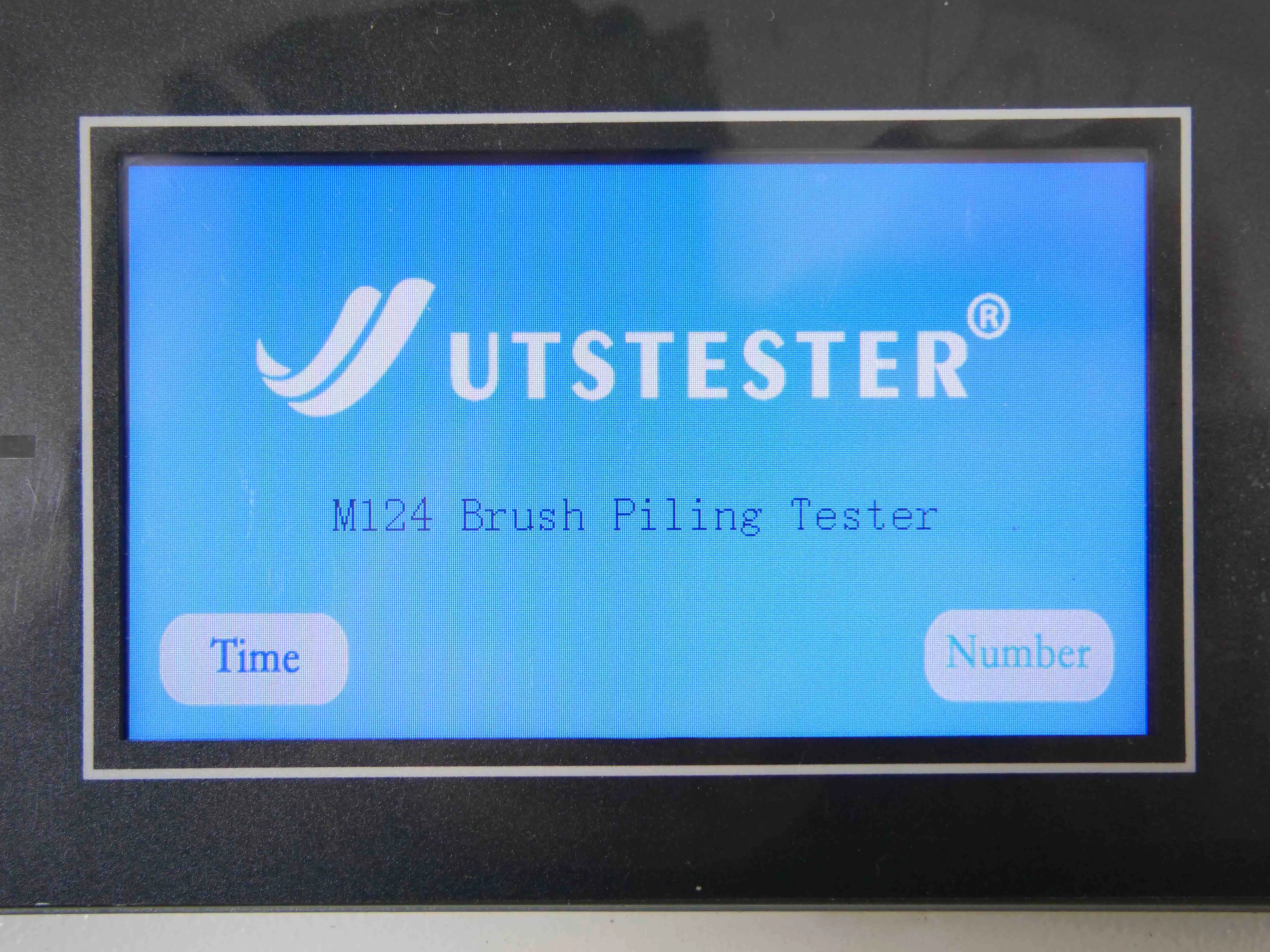

Control Interface

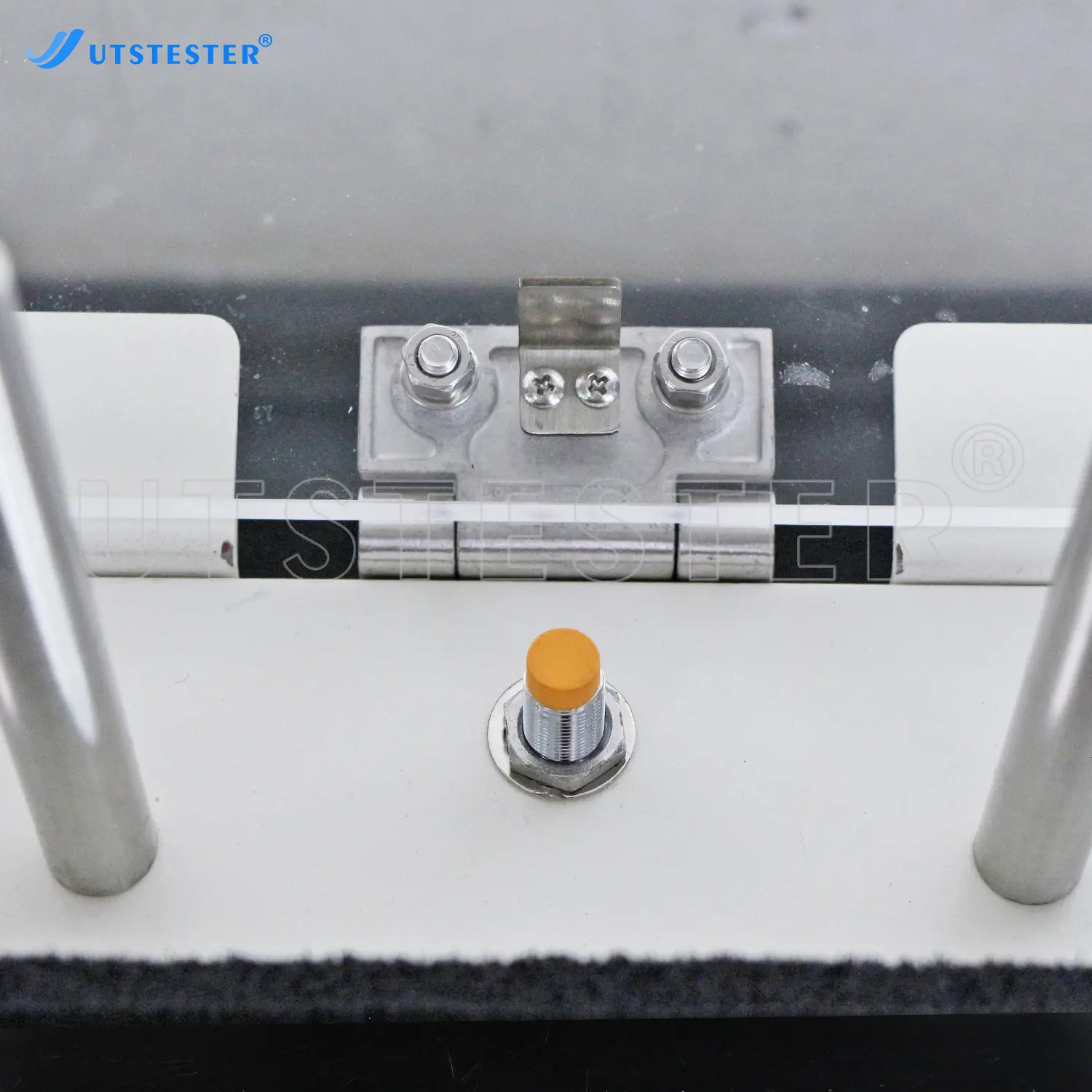

Sample mounting base

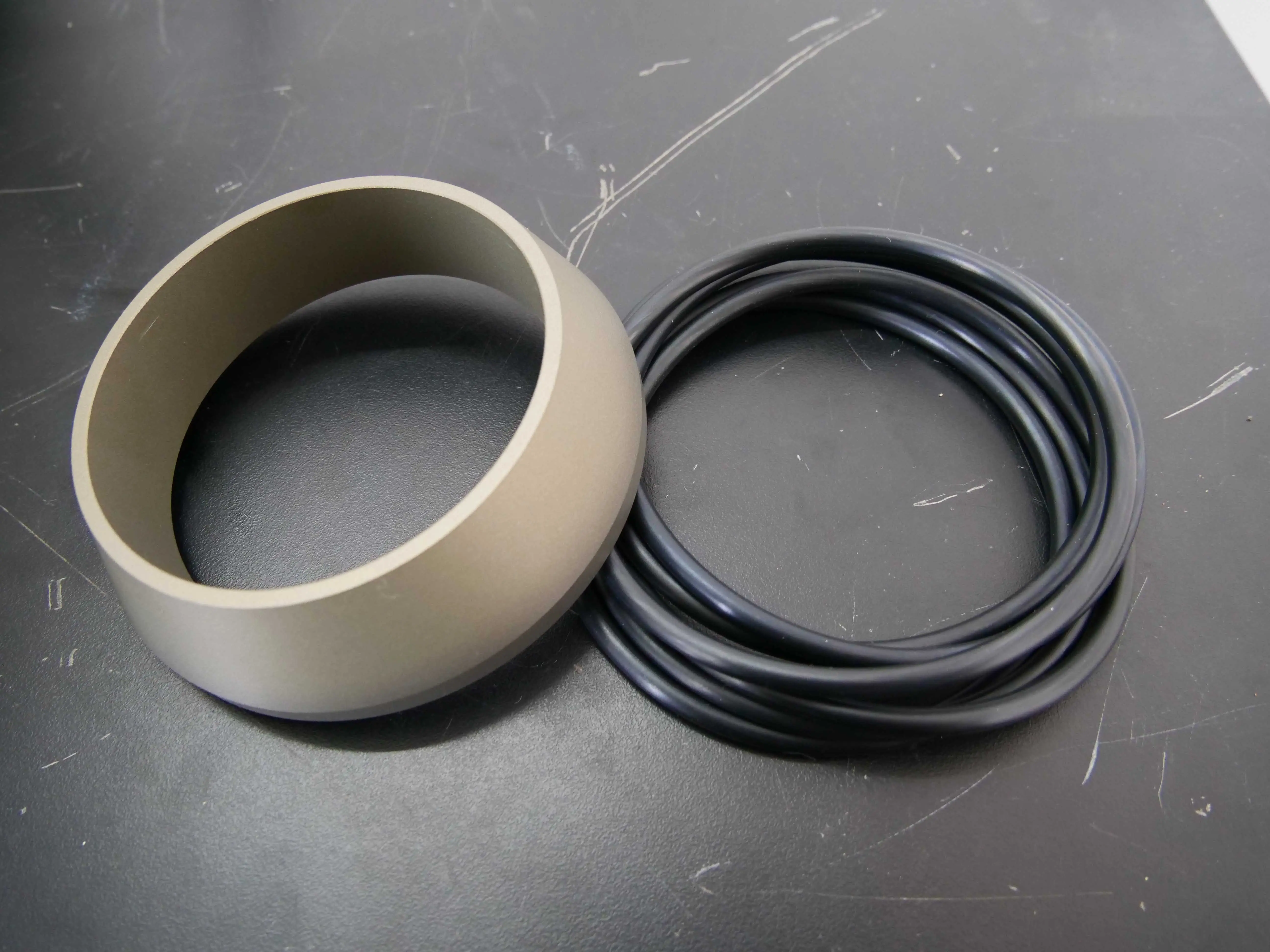

0-Ring and Sample mounting
base
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
