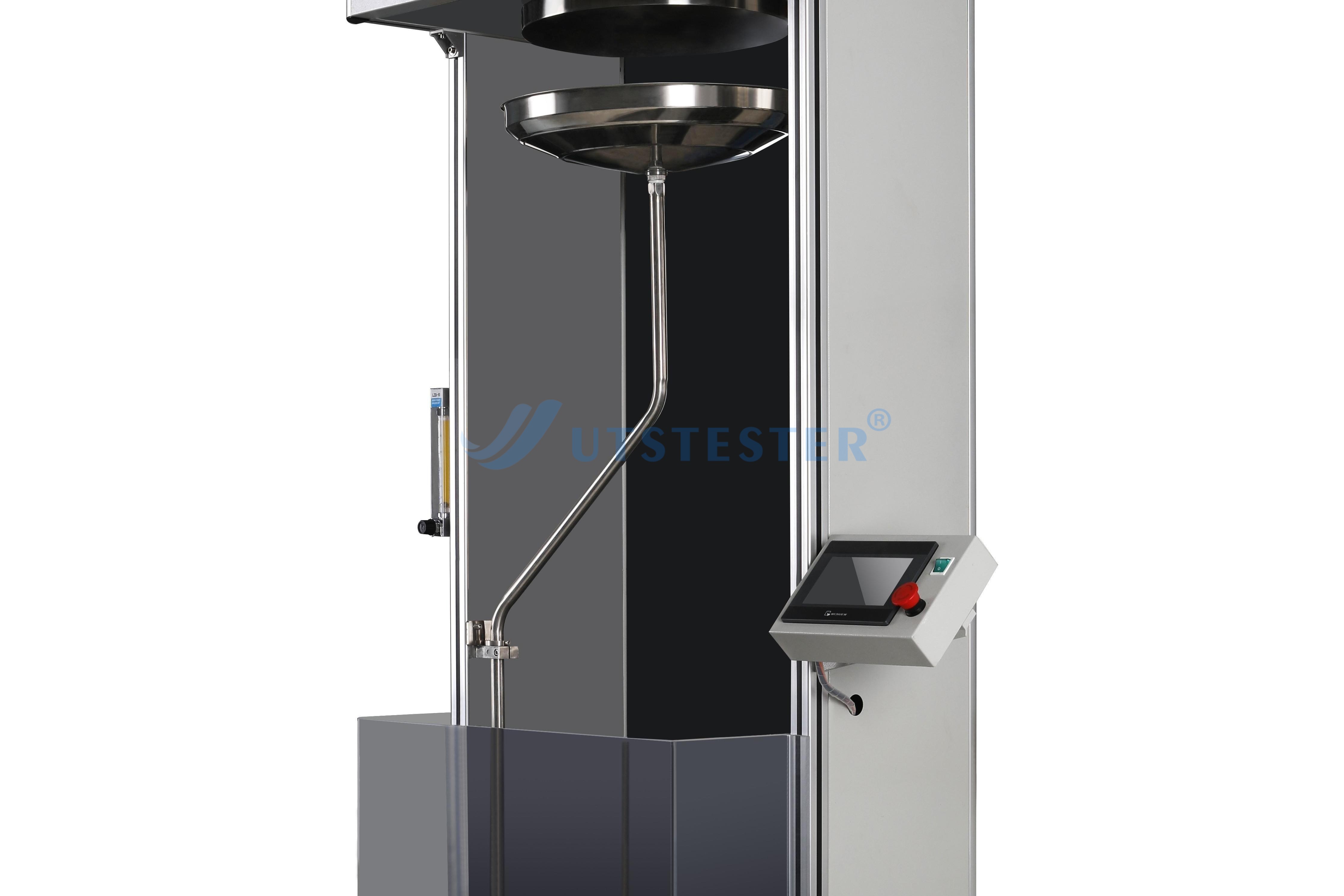

Bundesmann Rain-Shower Water Tester Repellence Tester Rain Water Proof Test Chamber M110
Overview
Determination of water repellency of fabrics by the Bundesmann rain-shower test.
Application
FABRICS
FABRICS
FABRICS
Standards
GB/T14577, ISO9865, BS EN 29865, DIN53888, JIS L1092
Key Parameters
|
Model |
M110 |
|
Rainfall area |
about 1300cm2 |
|
The water outlet of the dripper |
300 |
|
Rainfall (per 100cm2) |
(100 ~ 300)ml/min (adjustable) |
|
Test sheet specification |
diameter 140mm |
|
Test area |
about 80cm2 |
|
Test sample cup diameter |
100mm |
|
Test sample cup installation Angle |
150 |
|
Test sample cup rotation speed |
6r/min |
|
Cross wiper specifications |
(48×5)mm |
|
Wiper rotation speed |
about 20r/min |
|
The friction pressure of the wiper |
about 2.5N |
|
Test time |
Display |
|
Power supply |
AC 220V±10% 50Hz 200W |
|
The overall size |
(600×800×2350)mm |
|
Weight |
about 190kg |
Product Details
Sample plate

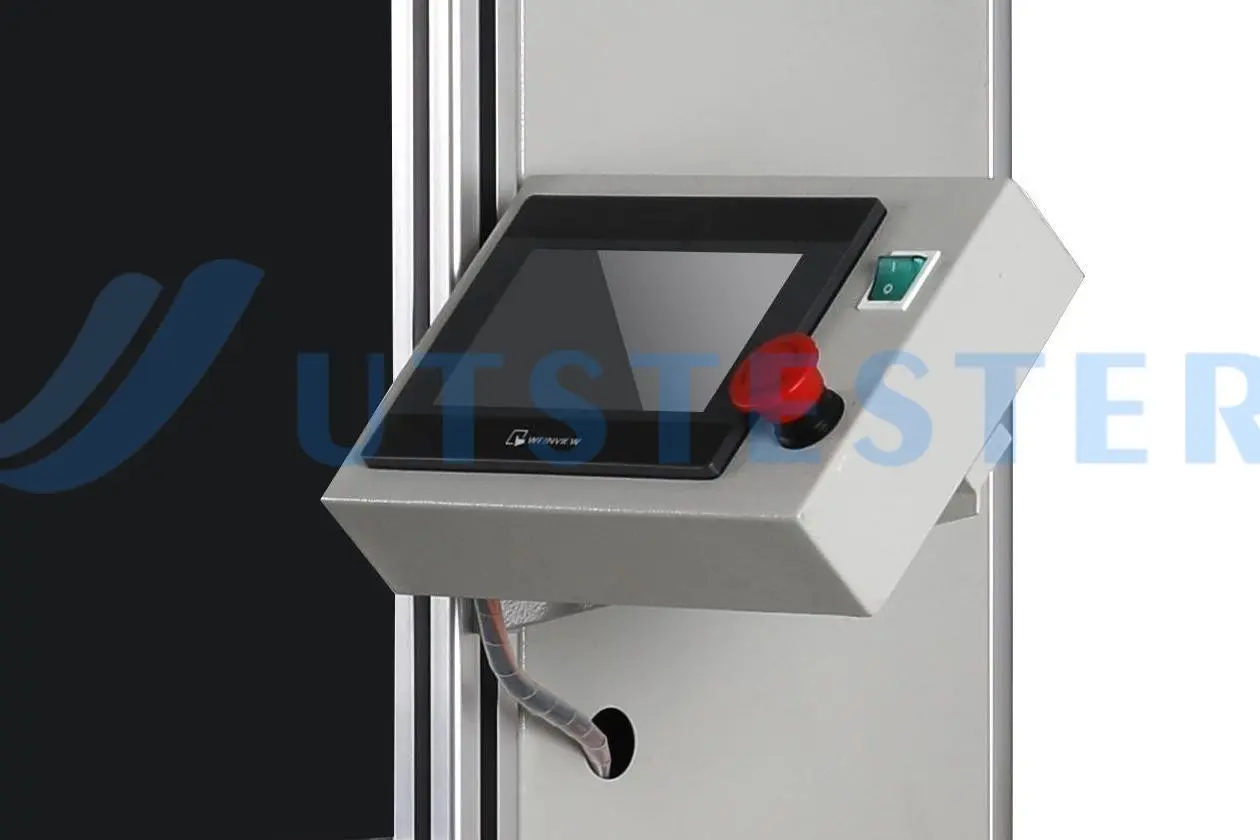

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
