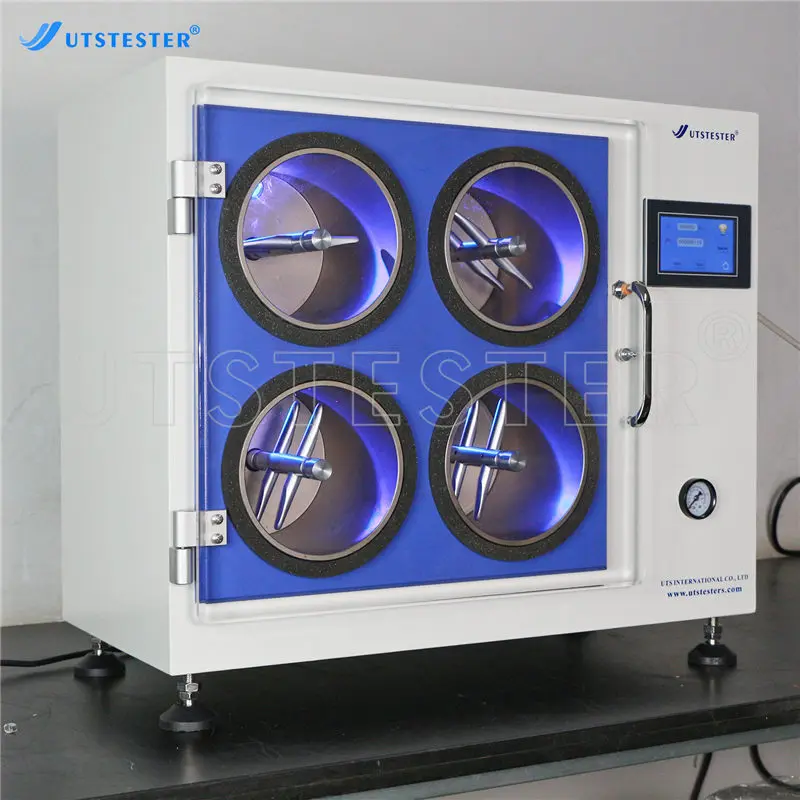

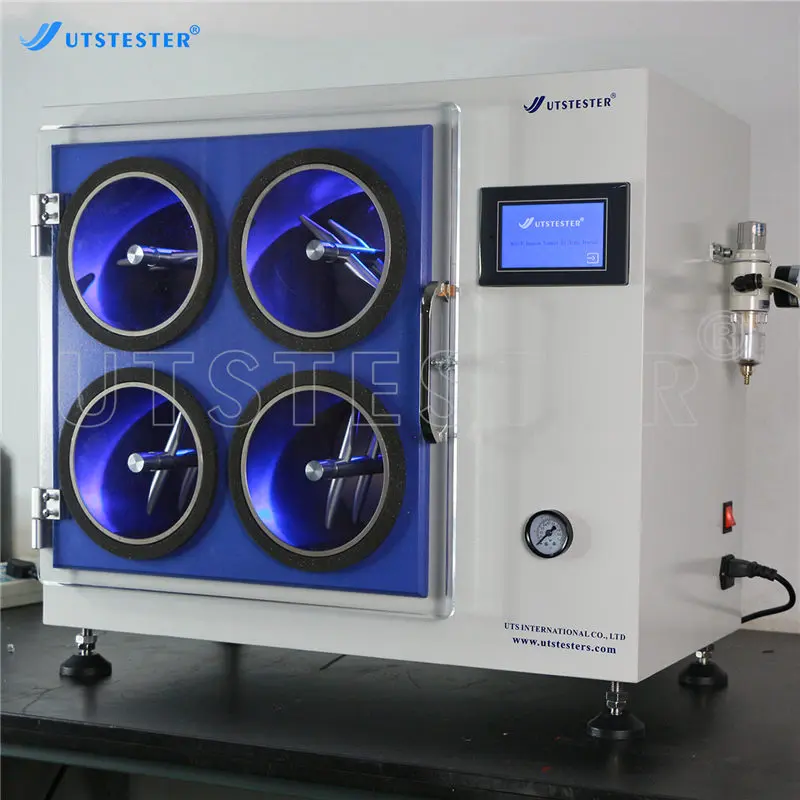

Chamber Touch Screen Control Random Tumble Pilling Tester M011B
Overview
To determine the pilling and fuzzing property of textile which random tumble inside roller accorded with standard ASTM D3512. Along with the critically important cork liner and high-speed impeller for agitating the test samples for preset test time, compressed air is required to assist in the tumbling action.
Application
FLEECE FABRIC
KNITTED FABRIC
WOVEN FABRIC
Standards
GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375
Key Parameters
|
Model |
M011B |
|
Test chambers |
4 |
|
Roller size |
(146±1) x (152±1)mm |
|
Cork lining size |
(452±1) x (146±1) x (1.5±1) mm( L x W x H) |
|
Stirring rod size |
L=121±1mm |
|
Rotating speed |
1200±1 rpm |
|
Compressed air |
0.014 - 0.021 Mpa |
|
Power supply |
AC220V 50/60Hz |
|
Dimensions |
480×400×680mm (L×W×H) |
|
Weight |
80kg |
Product Details

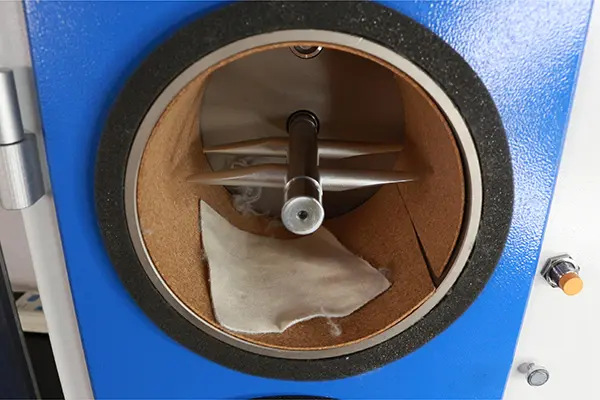

Blanket

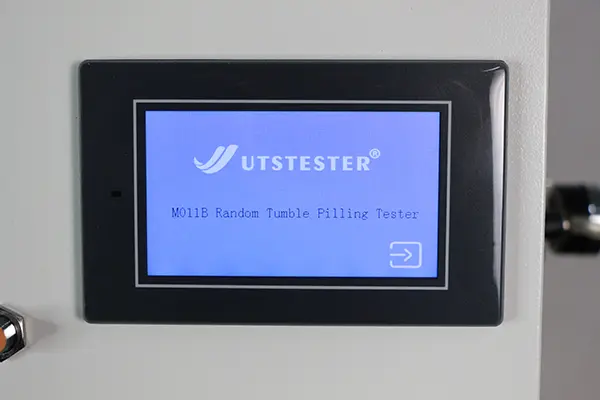

Display screen

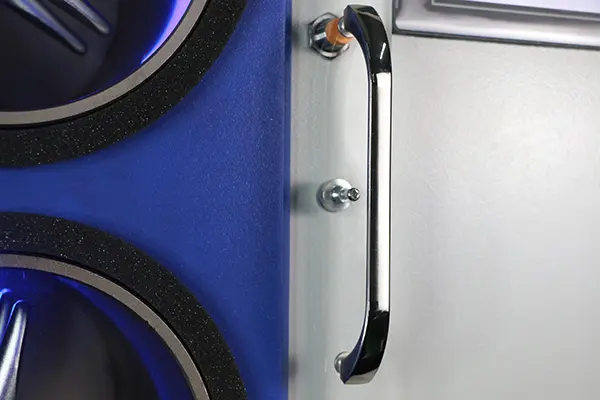

Doorknob

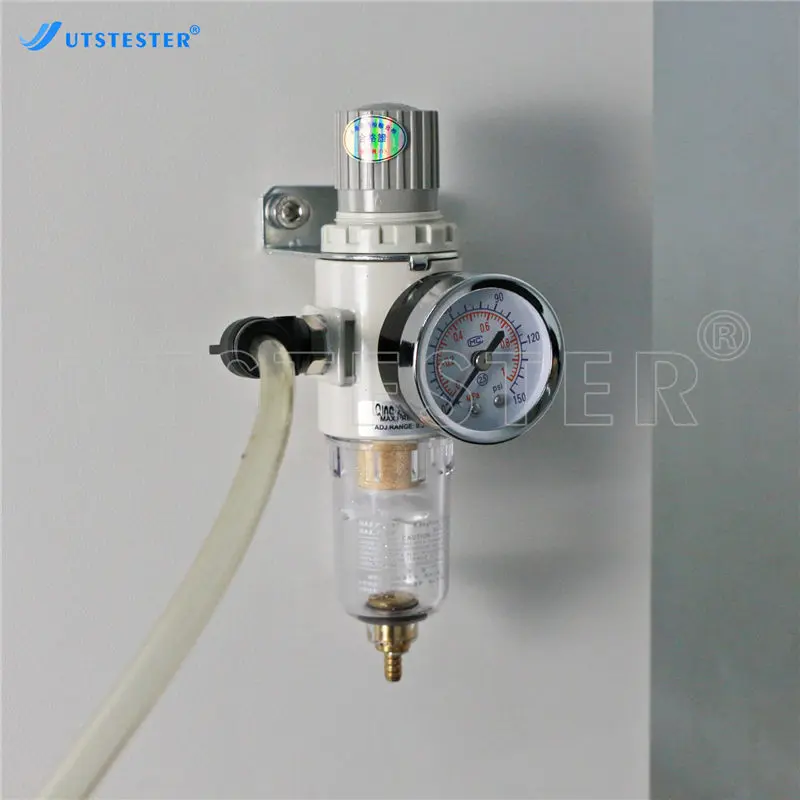

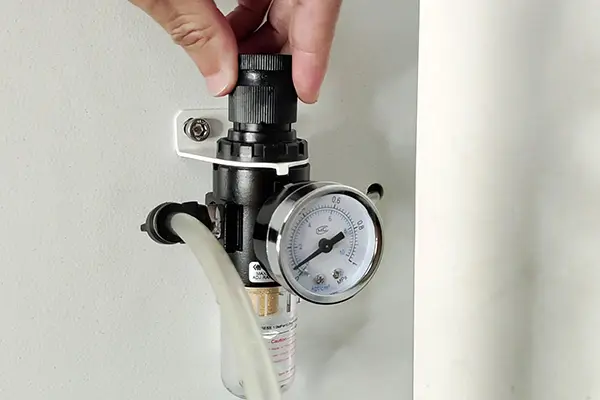

Pressure regulating valve

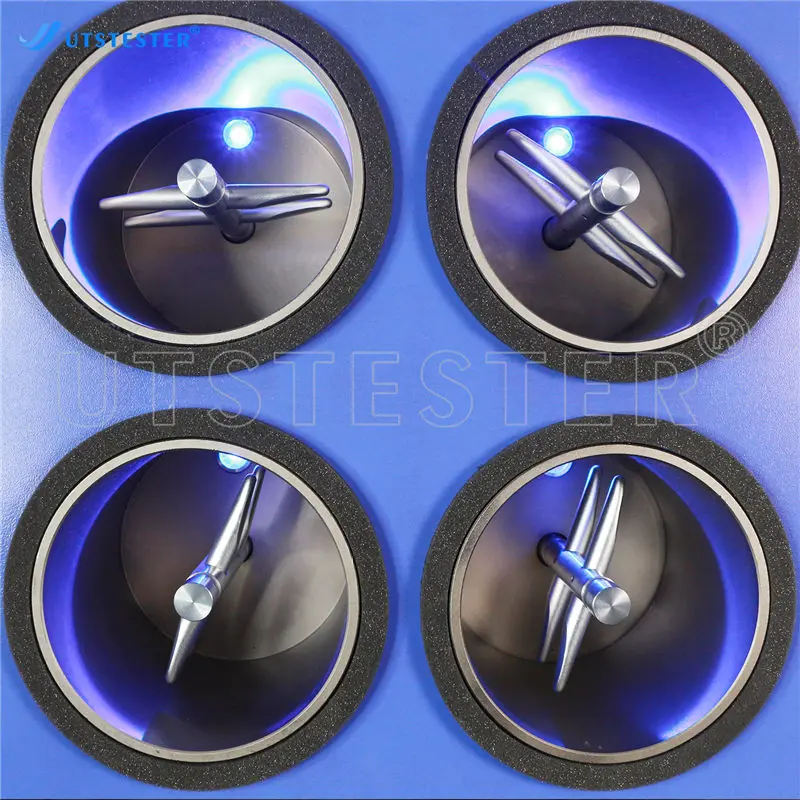

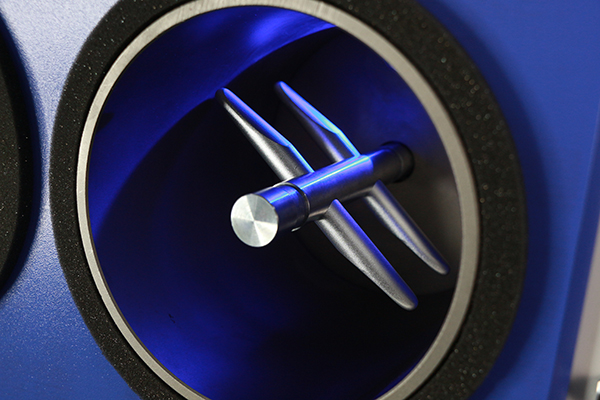

rolling box
Sample
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Air source installation
connect the air source at the air source interface of the pressure regulating valve and adjust the pressure regulating valve to 0.3MPa.
Put in cork lining
Cut the standard cork liner to the appropriate size and place it in the test chamber.

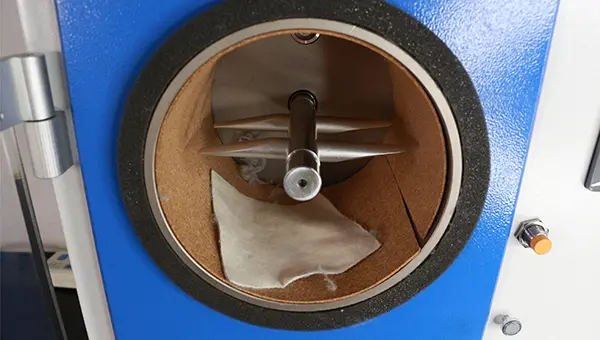

Put in sample
Use a sampling board to take a sample of a certain size and put it into the test chamber. Place a small ball of gray soft cotton on top of the sample and close the chamber door.

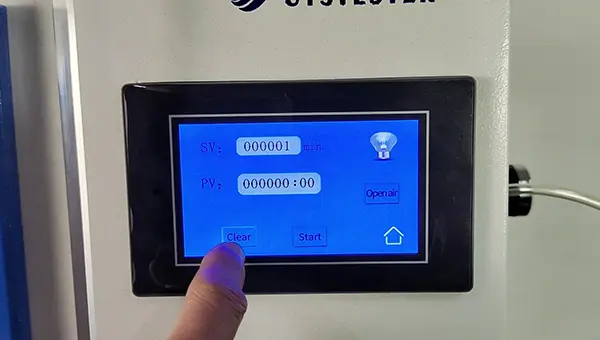

Start testing

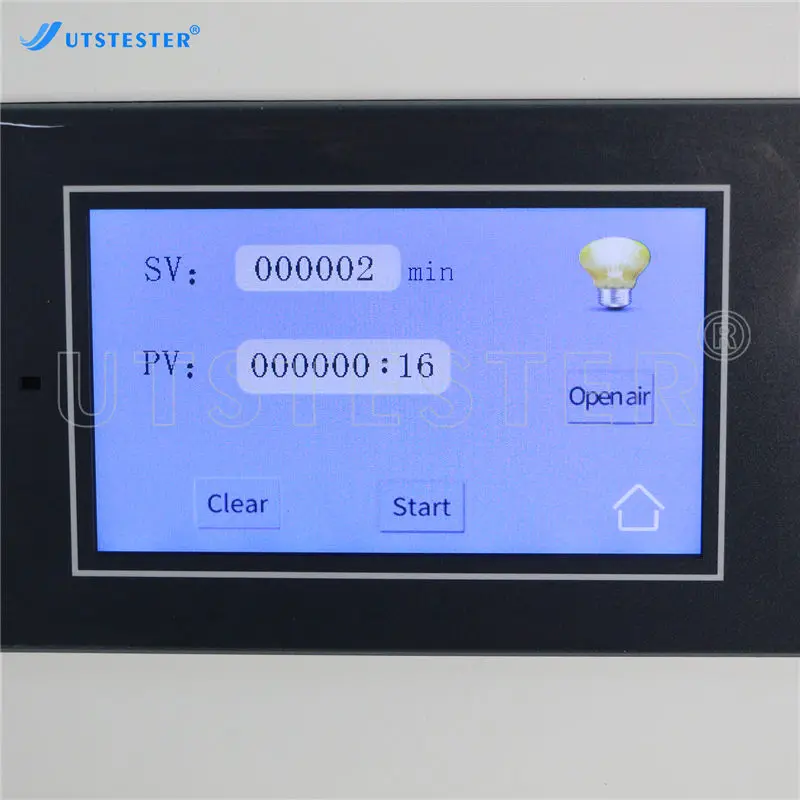

Before the test, turn on the gas source, click Clear, and click Start to start the test.

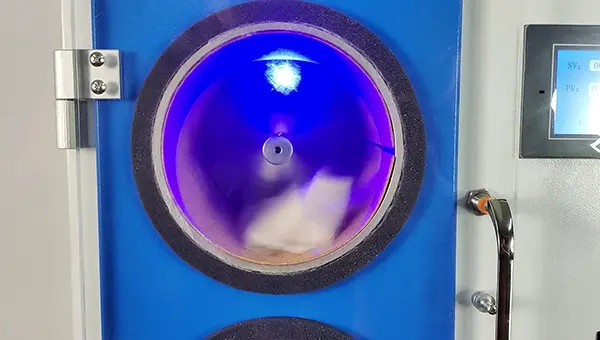

Lighting
Turn on the lights to facilitate observation of the samples in the test chamber.

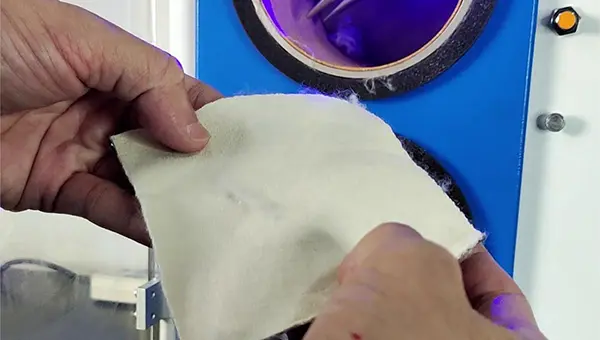

Observe sample
After the test, take out the sample and compare it with the standard.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
