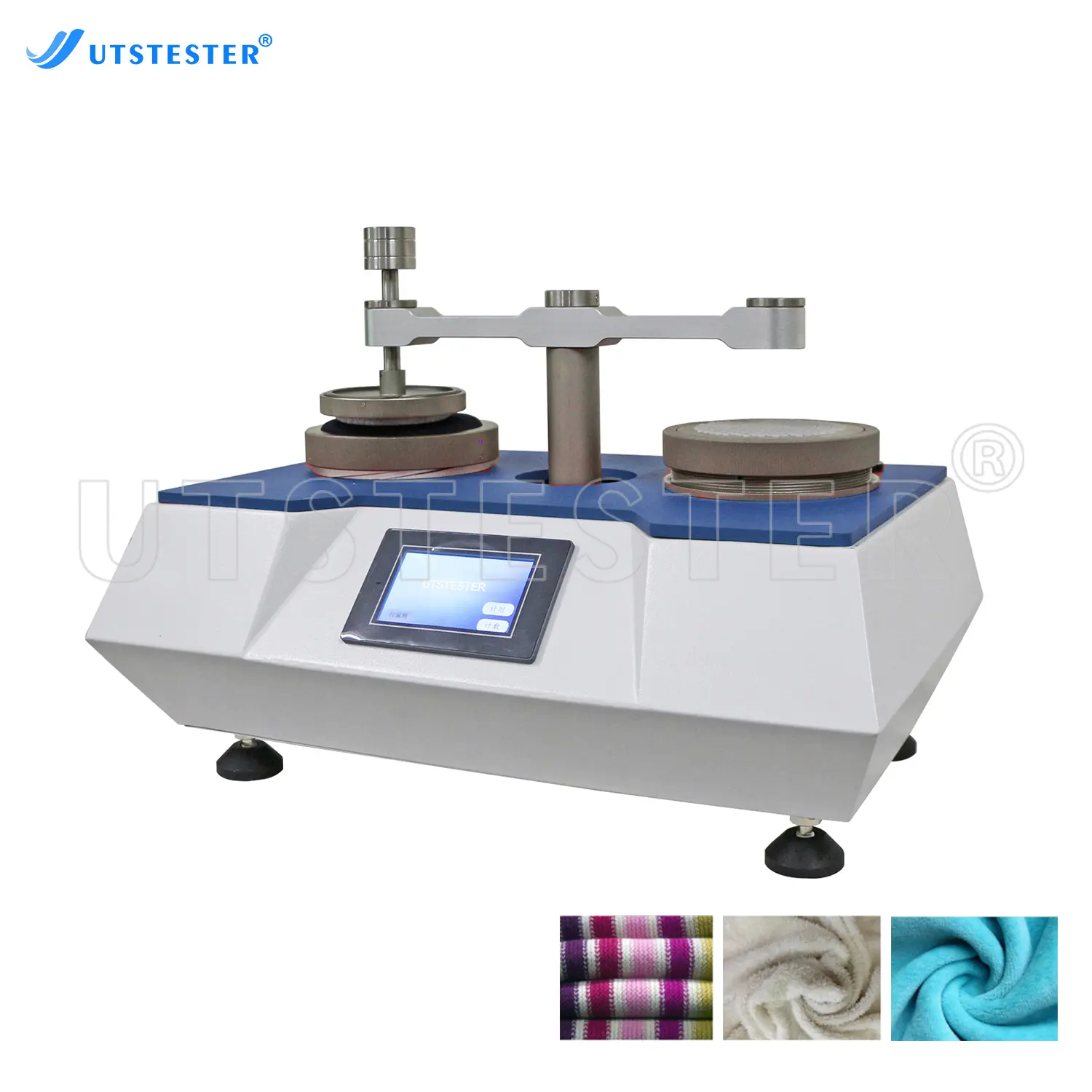

Circular Locus Tester Fabric Textile Fuzzing and Pilling Testing Machine M014
Overview
The Circular Locus Tester is used to assess surface deterioration and quality of fuzzing and pilling property for fabrics (wool, chemical fiber, mixed, kitted and woven fabrics).
Application
Napped fabric
Knitted fabrics
Fabric
Standards
GB/T 4802.1, JJG 040-1990
Key Parameters
|
Model |
M014 |
|
Φ40mm Circular Locus |
|
|
Brush adjustable height |
2-12 mm |
|
Sample pressure |
Chemical fabric pressure for 590cN Combed wool fabric pressure for 780cN Carded wool fabric pressure for 490cN |
|
Sample size |
￠ 112.8mm, area 100 cm2 |
|
Times counting |
1～999999 times |
|
Time counting |
1～999999 minutes |
|
Sample reciprocating speed |
60 times / min |
|
Speed range |
(40～80)±2r/min |
|
Power supply |
AC 220V 50Hz 40W |
|
Dimensions |
560×350×380mm (L x W x H) |
|
Weight |
28kg |
Product Details

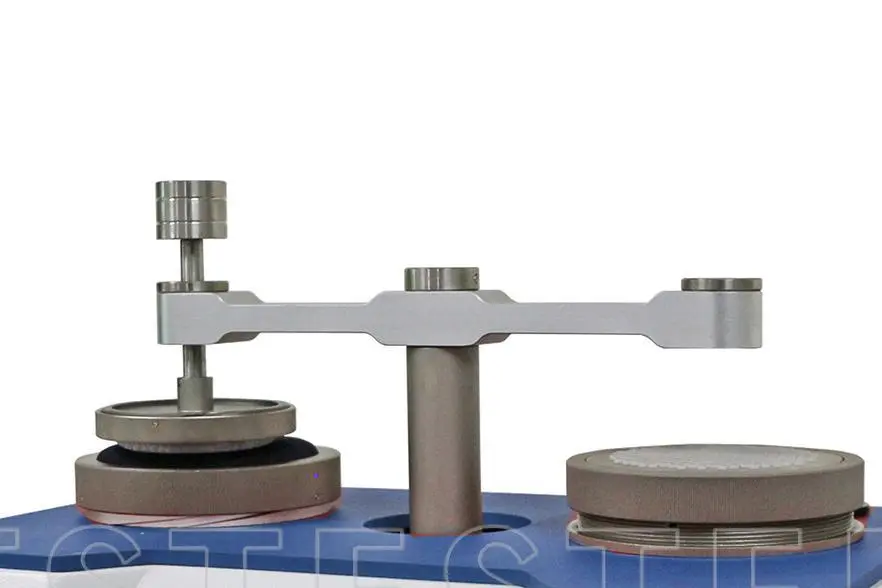

Fixture

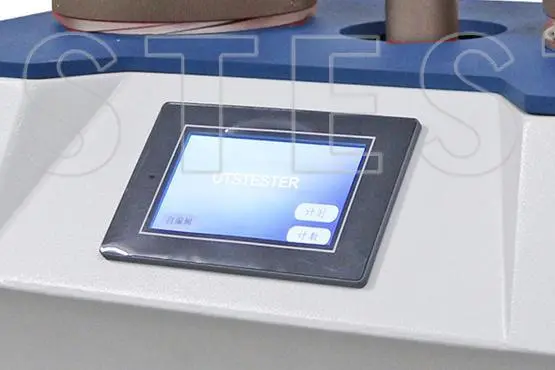

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
