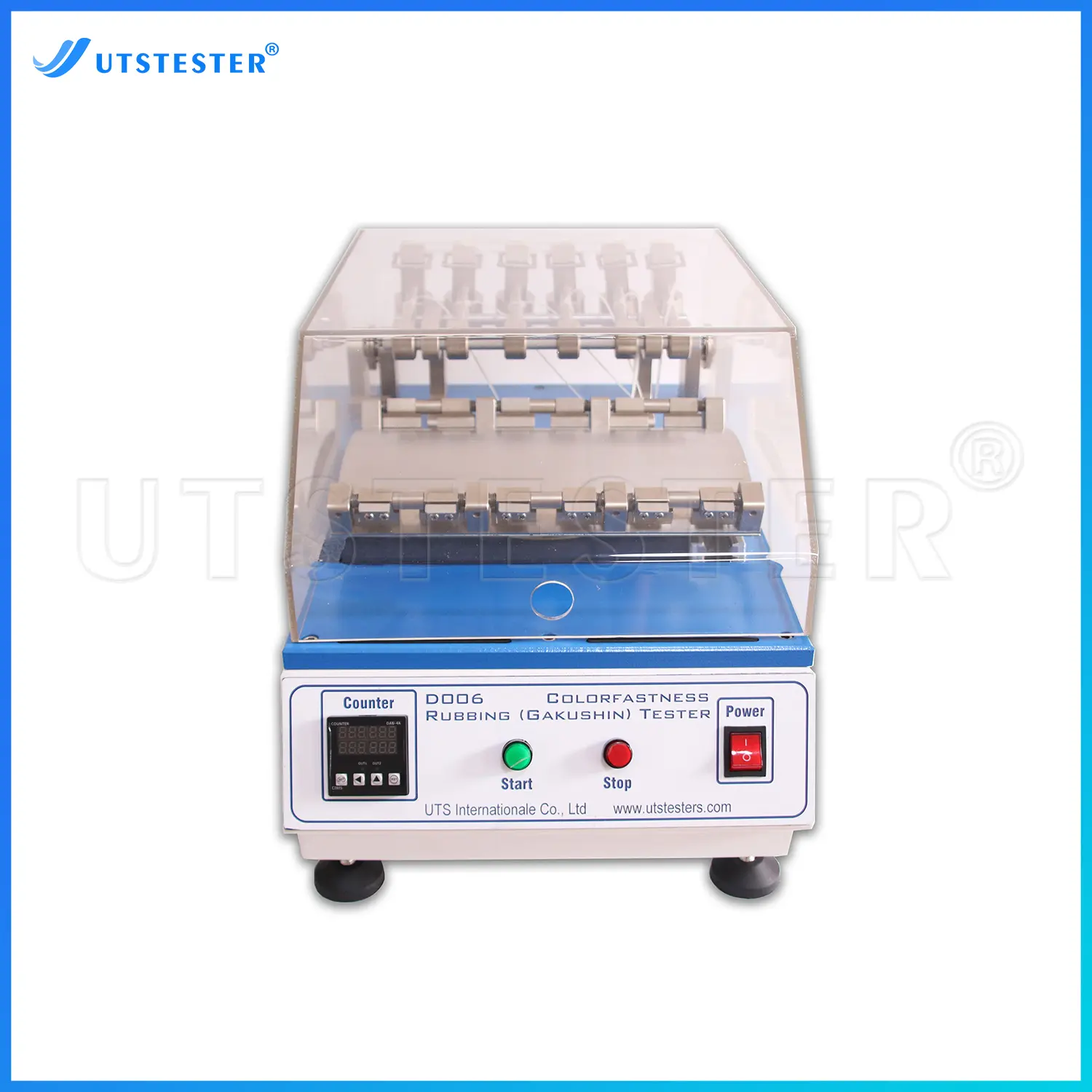

Colour Fastness Rubbing Gakushin Type Rubbing Tester Analysis Meter Equipment D006
Overview
This model is the special JIS standard resistance to colorfastness tester. Applicable for testing the resistance to colorfastness property of fabrics after rubbing under dry or wet state.
Application
Textiles
Carpets
Standards
JIS L 0849 Type II; JIS L 1075 Part 7.4
Key Parameters
|
Model |
D006 |
|
Working positions |
6 |
|
Testing track length |
100±1mm |
|
Rubbing plate |
Round rubbing surface with radius R200 |
|
Friction mallet |
200g |
|
Test speed |
30±2r/min |
|
Rubbing cloth size |
50mm x 50mm |
|
Sample size |
220mm x 30mm |
|
Counter |
0~99999 times adjustable |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions |
48.5x54x28cm ( L x W x H ) |
|
Weight |
70kg |
Product Details

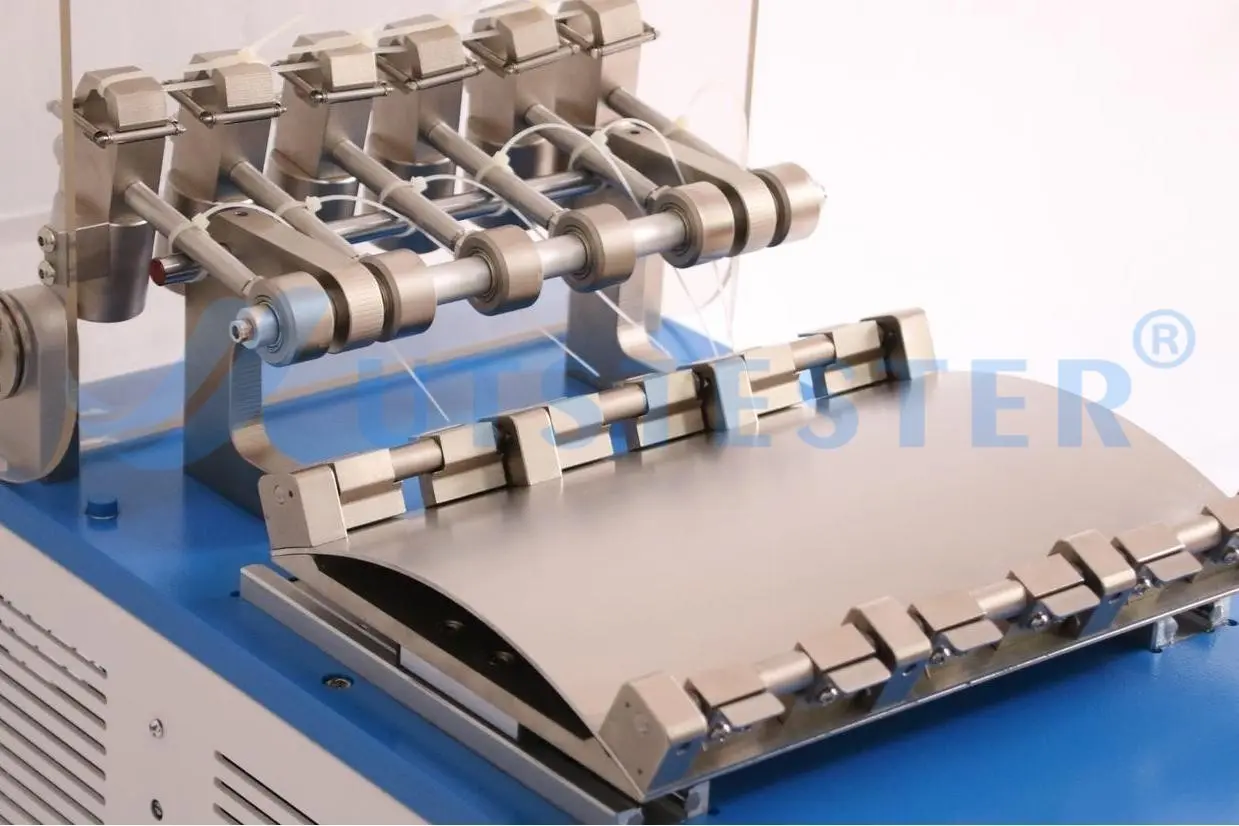

Friction head

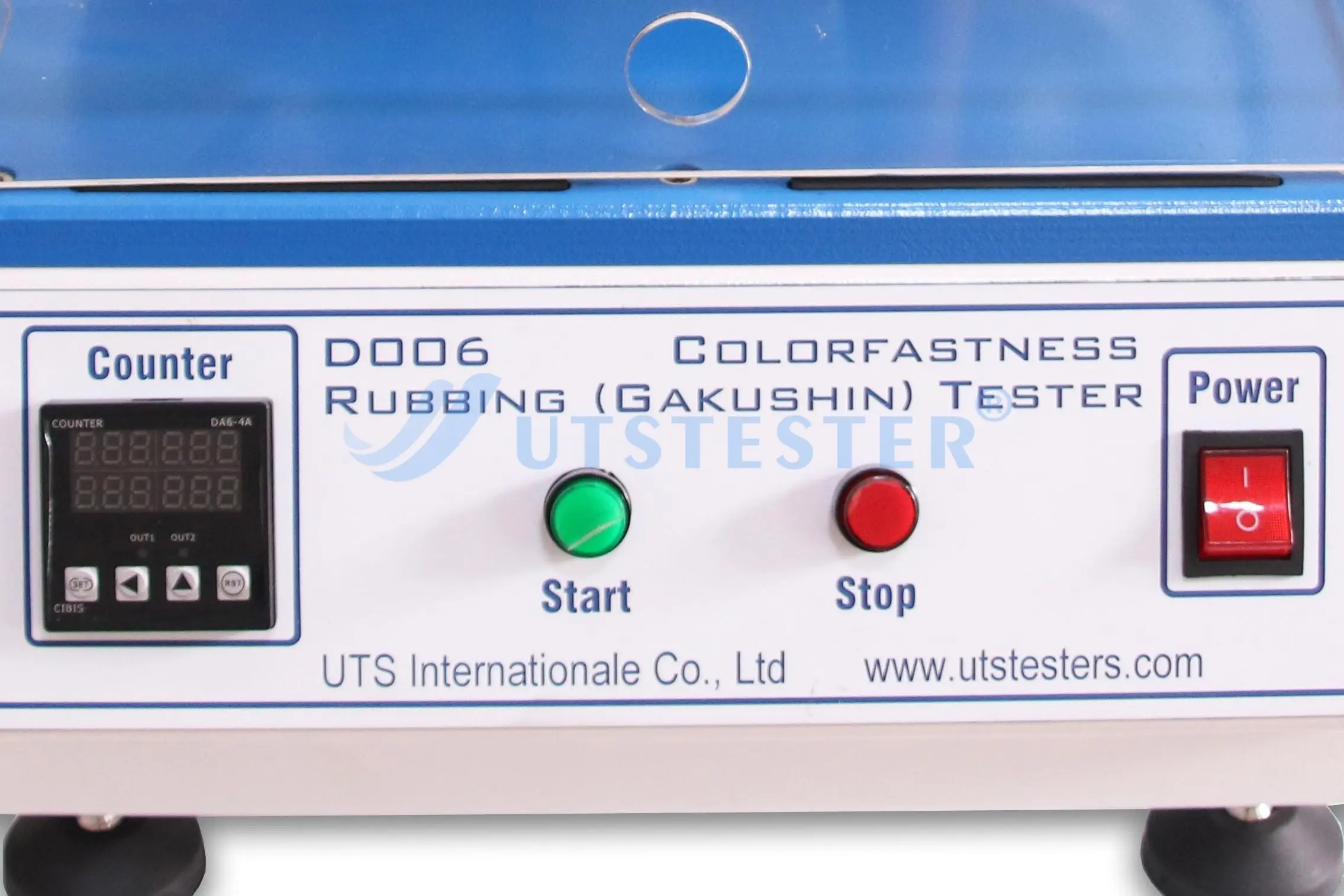

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
