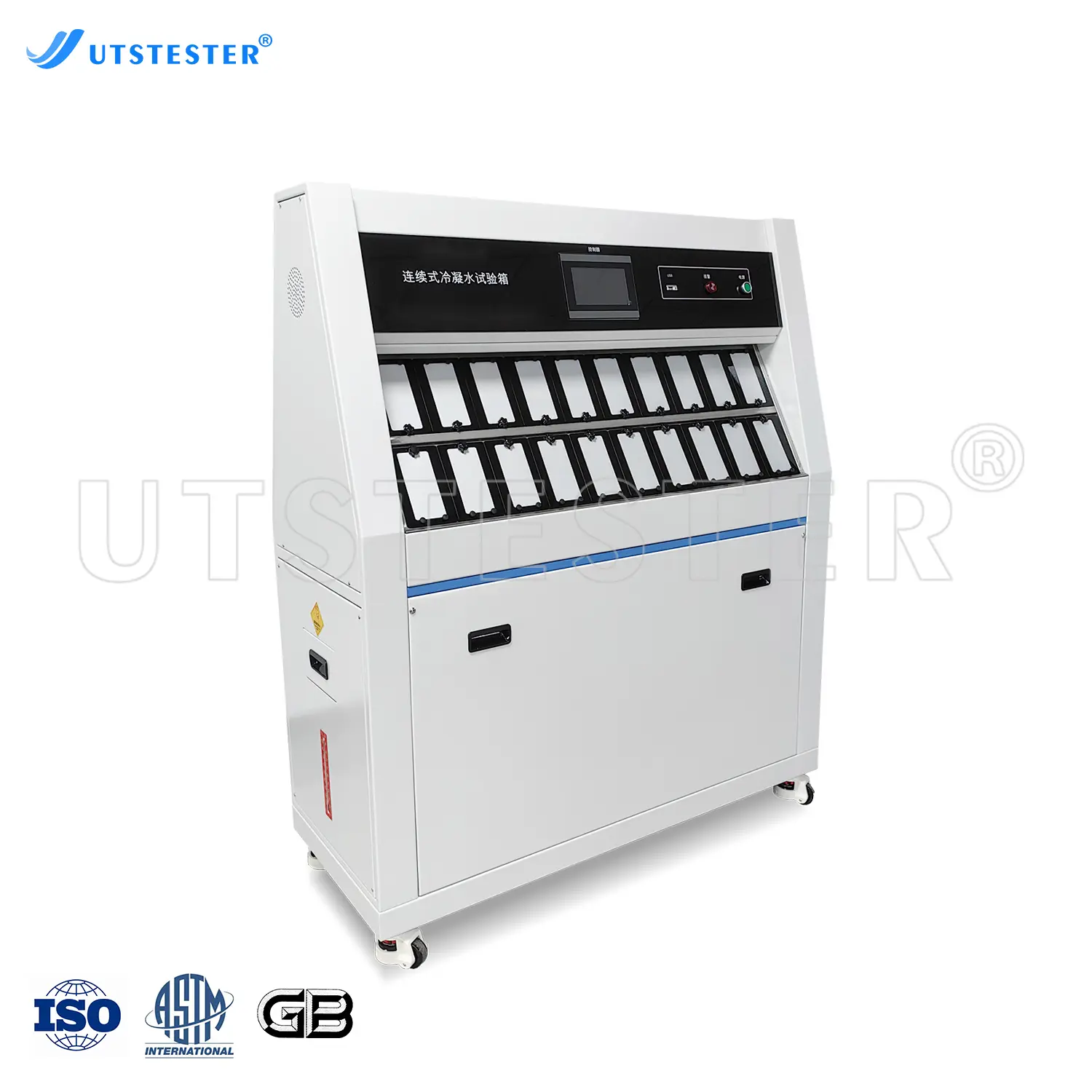

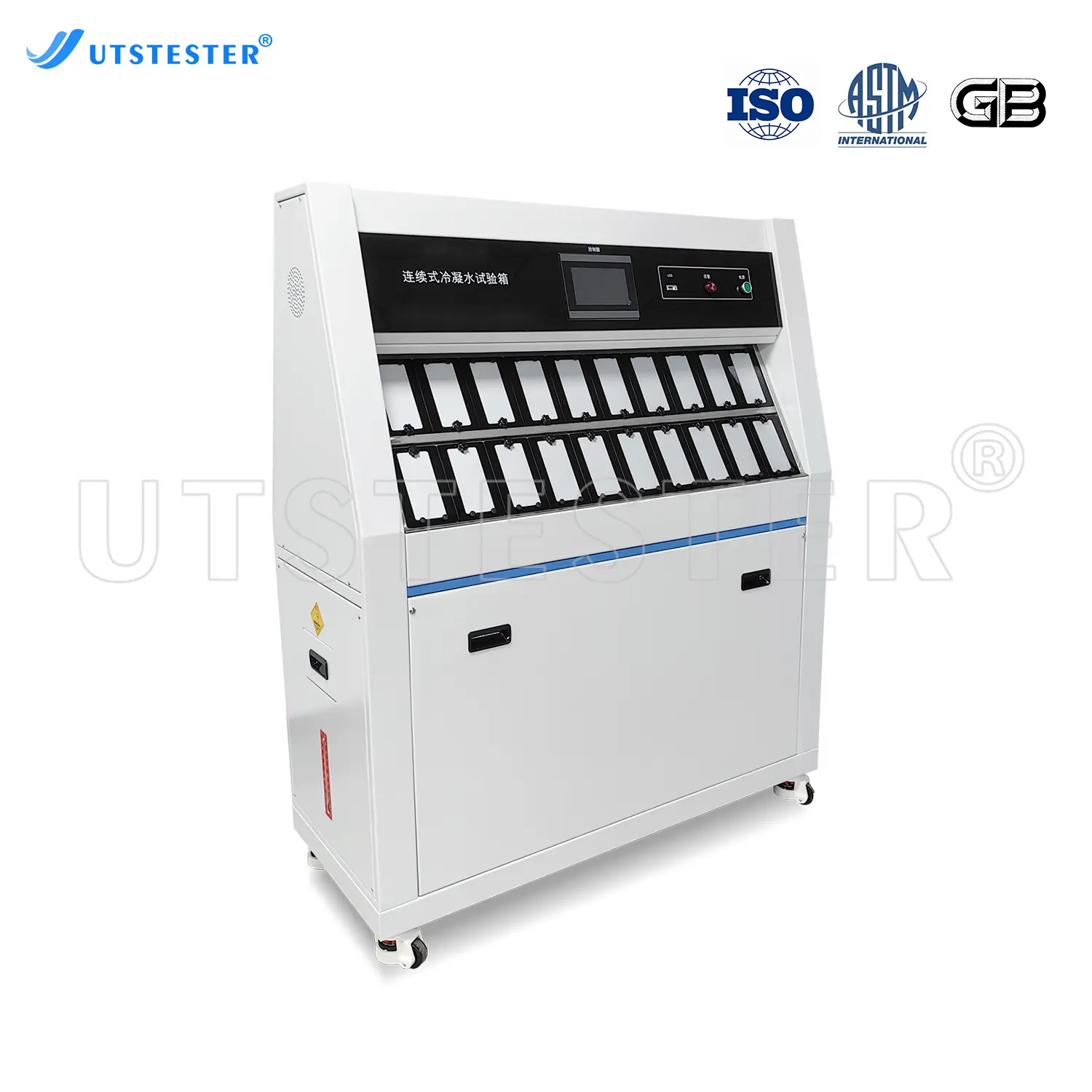

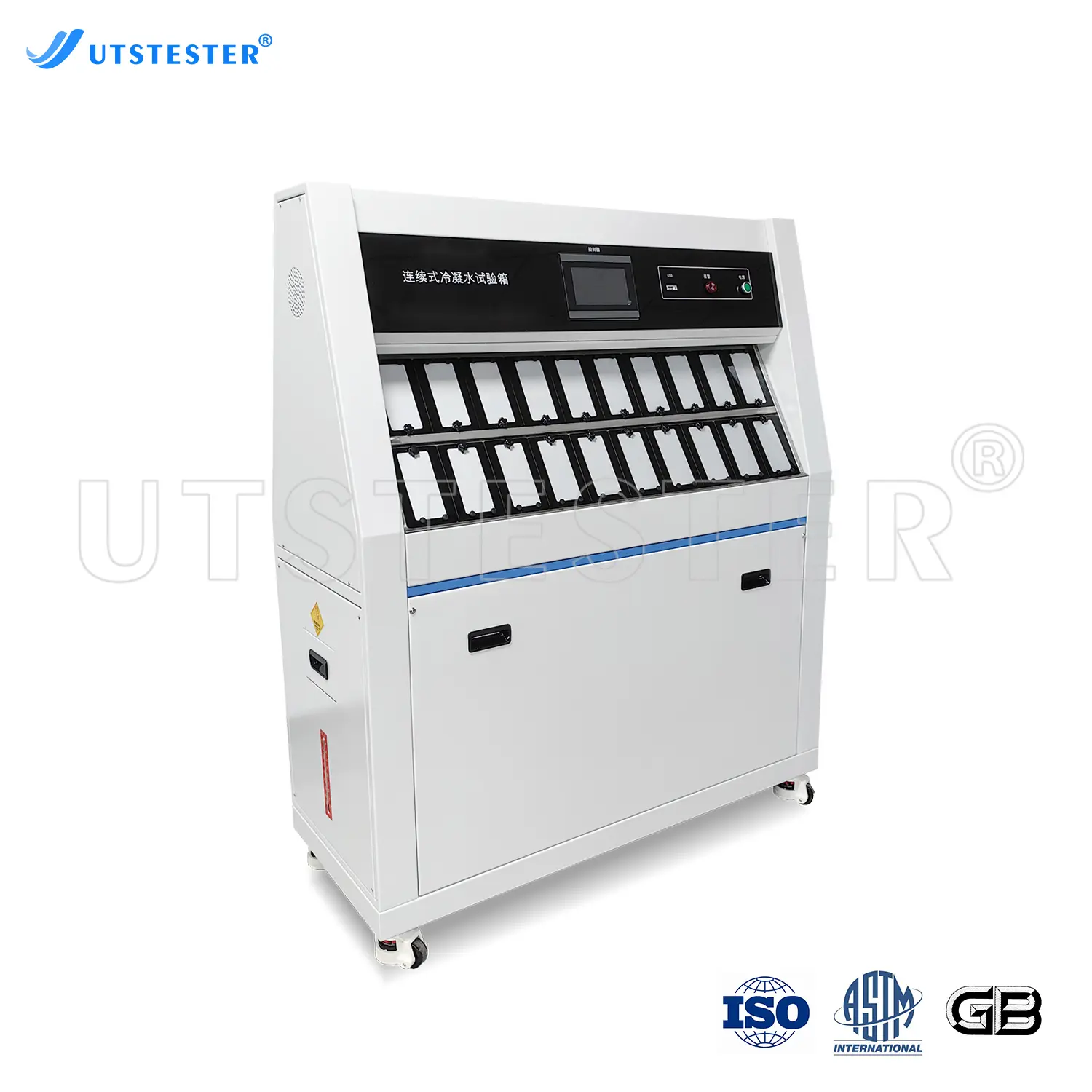

Continuous Condensation Tester Coating Moisture Resistance Test Machine E009N
Overview
Most of the polymer materials in the outdoor due to moisture (especially condensation) causes corrosion more than other factors, so the coating moisture resistance test is also an important method to assess its corrosion resistance test, the method can be used as an important means of assessment to examine the coating in the resistance to corrosion.
Application
Plaster
Timber
Metal
Standards
ISO 6270:2017 series of standards is a test method standard for assessing the resistance of coatings to humid environments, which consists of 3 parts, namely:
Part 1: Colour paints and varnishes Determination of resistance to humidity Part 1: Condensation (one-sided exposure)
Part 2: Determination of the humidity resistance of coloured paints and varnishes Part 2: Condensation (exposure in a test chamber with a heated water bath)
Part 3: Determination of the humidity resistance of coloured paints and varnishes Part 3: Condensation (exposure in a chamber with a heated, bubbling water bath)
Key Parameters
1.Test plate and the horizontal plane angle: (60 ± 5)°
2.Sample capacity: 40 pieces (150mm × 100mm/150mm × 75mm/150mm × 70mm standard test plate, note that the maximum width of 100mm)
3.Temperature range of the working chamber: room temperature ~ 60
4.Overall dimensions: 1350mm × 500mm × 1100mm (L × W × H)
5.Weight: 130KG
6.Power supply: 220V 50HZ; the maximum power of the machine 2.0KW
Product Details
![E009N 第二部分[00-00-00][20250707-100529225]](https://ecdn6.globalso.com/upload/p/256/image_other/2025-07/e009n-part-2-00-00-00-20250707-100529225.jpg)

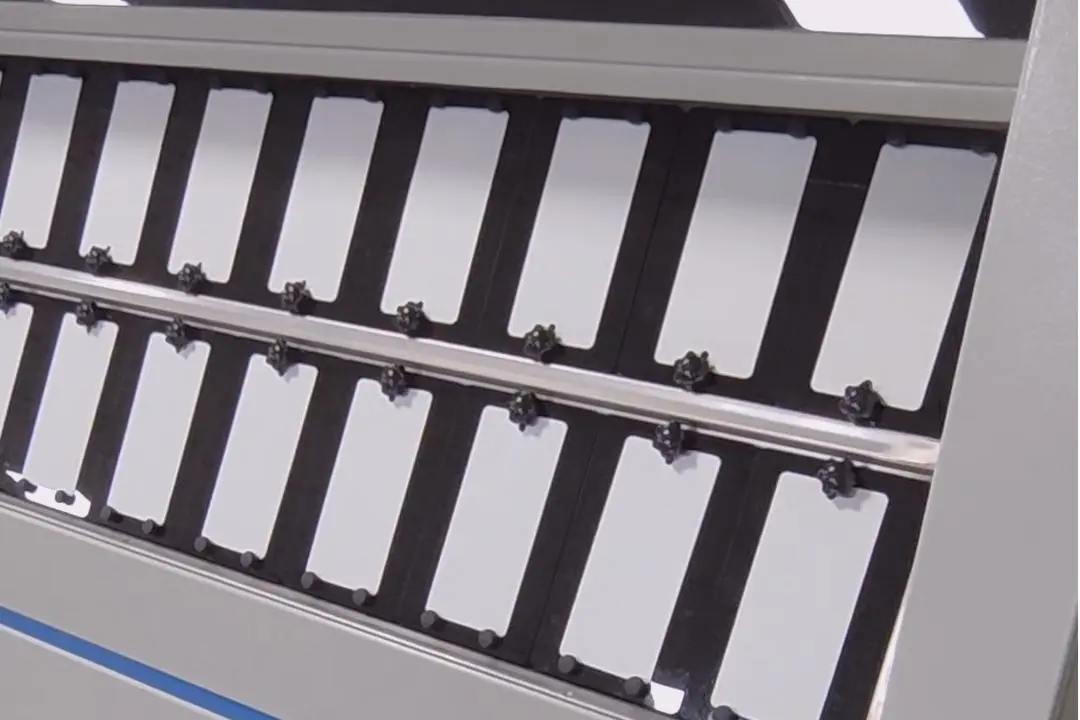

Test Chamber
![E009N 第二部分[00-00-12][20250707-100549462]](https://ecdn6.globalso.com/upload/p/256/image_other/2025-07/e009n-part-2-00-00-12-20250707-100549462.jpg)

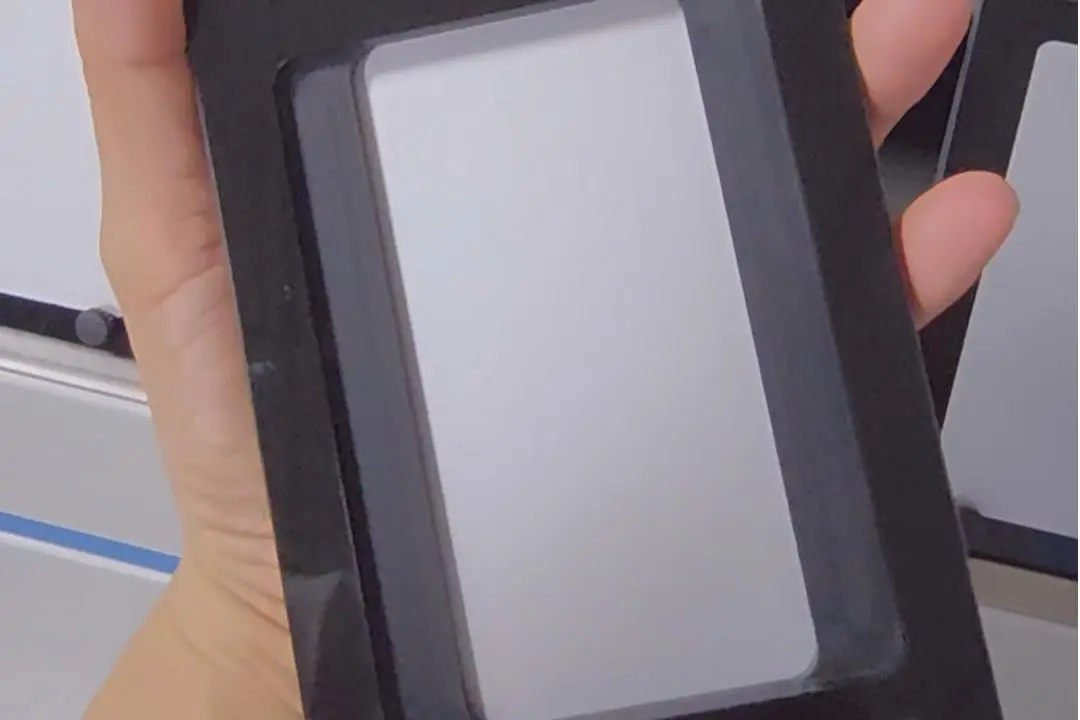

Sample Clip
![E009N 第二部分[00-00-36][20250707-100623883]](https://ecdn6.globalso.com/upload/p/256/image_other/2025-07/e009n-part-2-00-00-36-20250707-100623883.jpg)

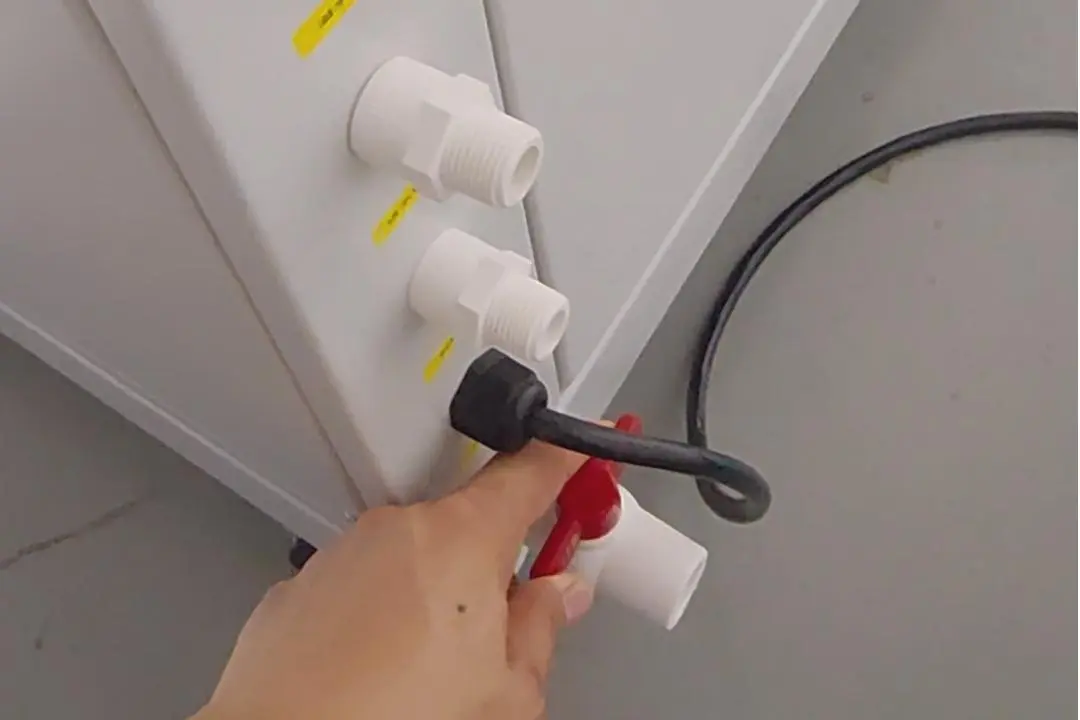

Inlet and outlet
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
