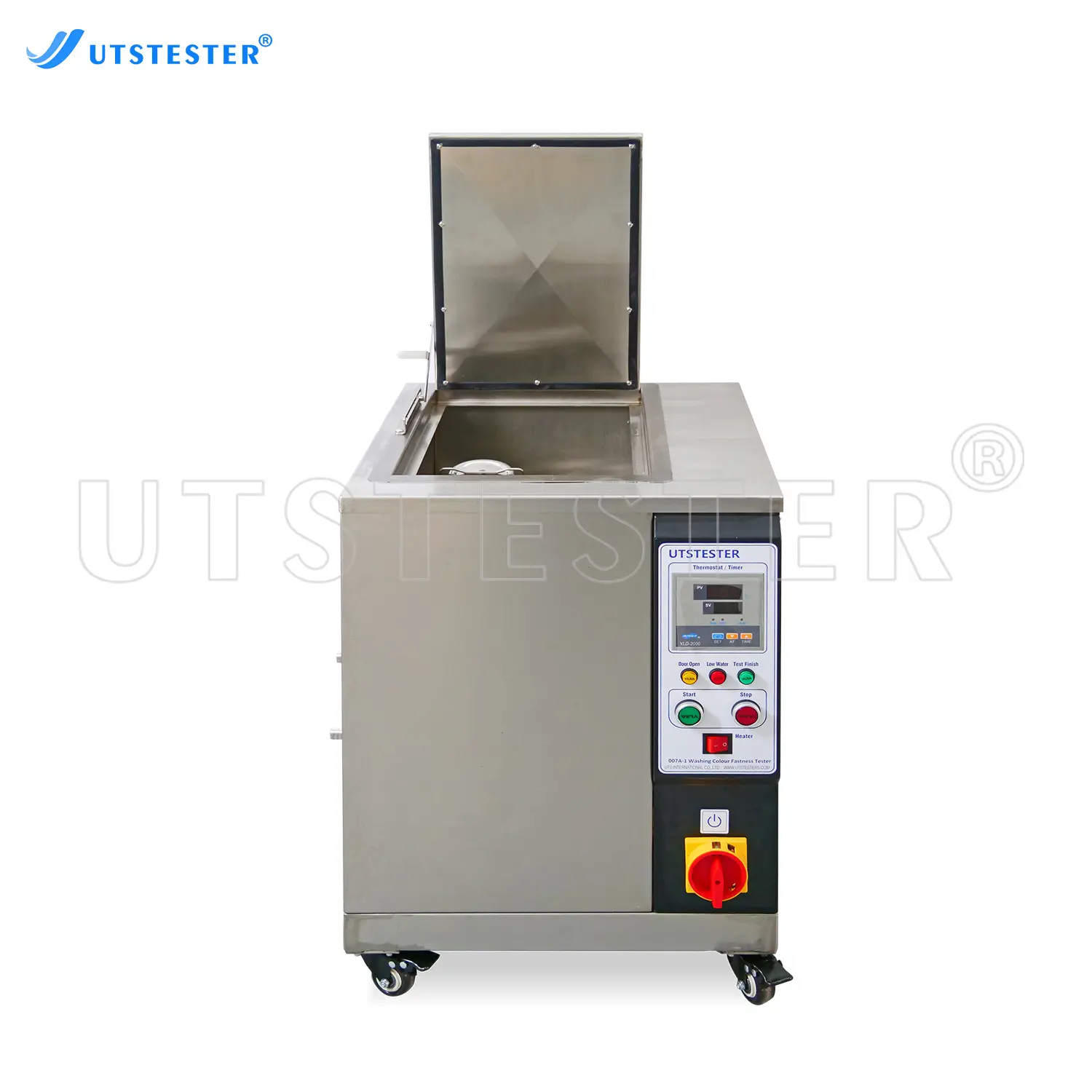

Digital Washing Colorfastness Tester Washing Machinery for Textile and Yarn D007A
Overview
D007 Laundry / Washing Colorfastness Tester is to determine the washing and dry colorfastness resistance property for dyed textile or dyed yarn after washing.
Application
Silk
Garment
Hessian
Fabrics
Standards
BS 1006 D02, ISO 105X12/D02, AATCC 8/165, BS 4655,M&S C4A, M&S C10A, M&S C12A, M&S C37
Key Parameters
| Model | D007A | ||||
| Washing cups | A(AATCC cup volume): 1200±50ml B(ISO cup volume): 550±50ml | ||||
| Washing cups | No. | D007A-1 | D007A-2 | D007A-3 | D007A-4 |
| Combination | 8B | 4A+4B | 12B | 6A+6B | |
| Display | LCD | ||||
| Test speed | 40±2 r/min | ||||
| Steel ball | Diameter 6mm, SUS 304 | ||||
| Steel disc | Diameter 32mm, thickness 3.2mm, weight 20±3g, SUS 304 | ||||
| Sample size | 40mmx100mm | ||||
| Temperature | Room temp. To 99 ℃ | ||||
| Heating methods | Electrical heating tube | ||||
Product Details

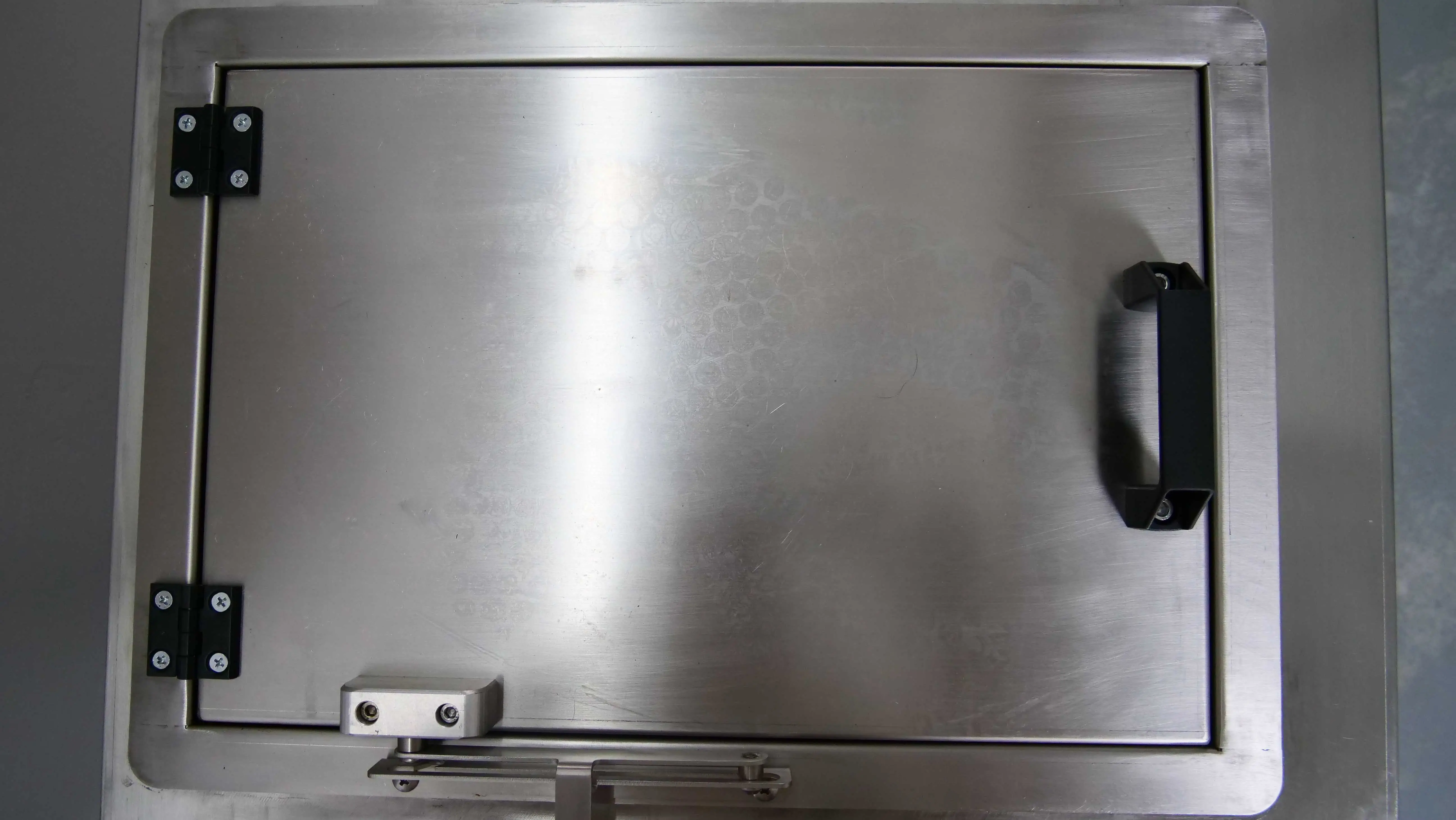

Cover

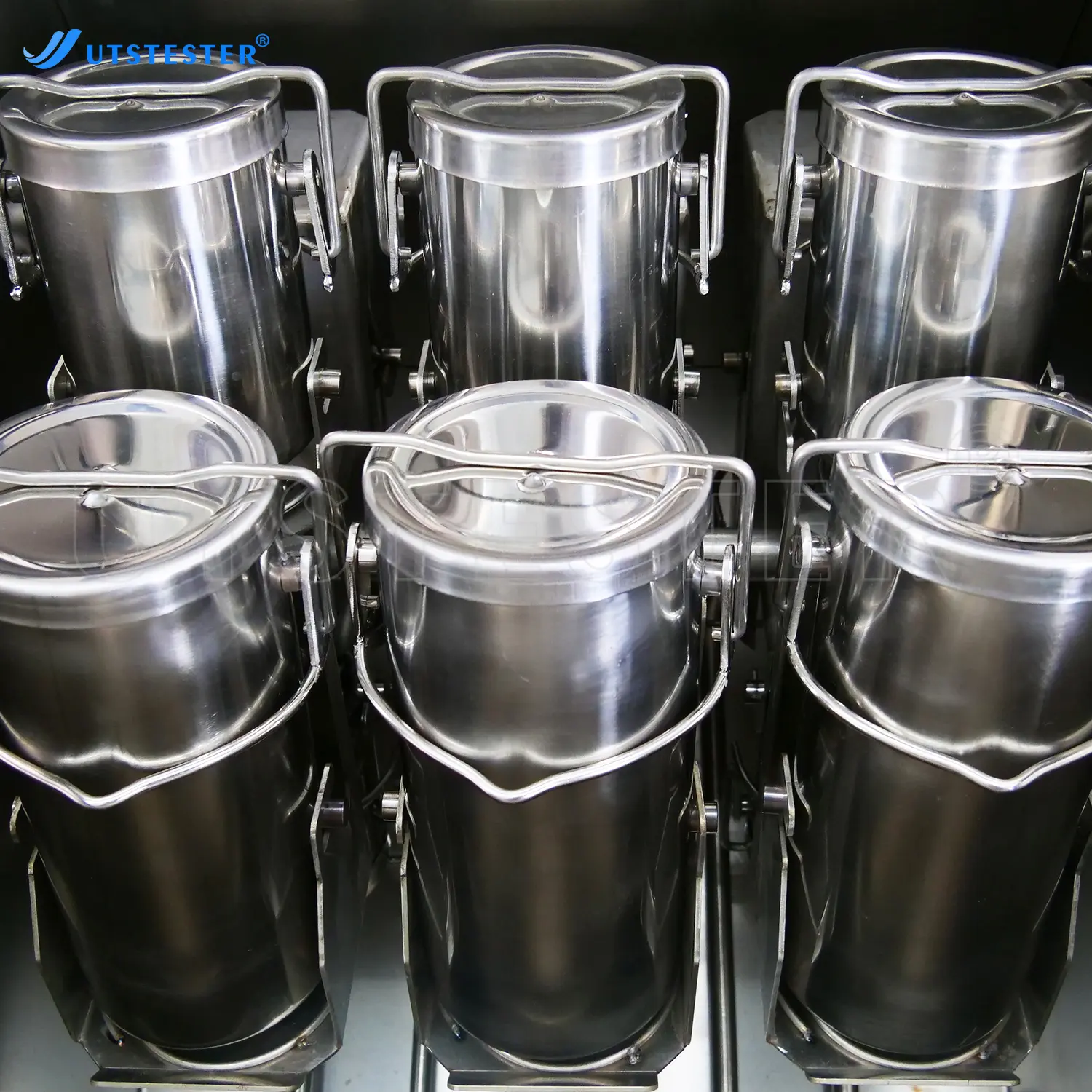

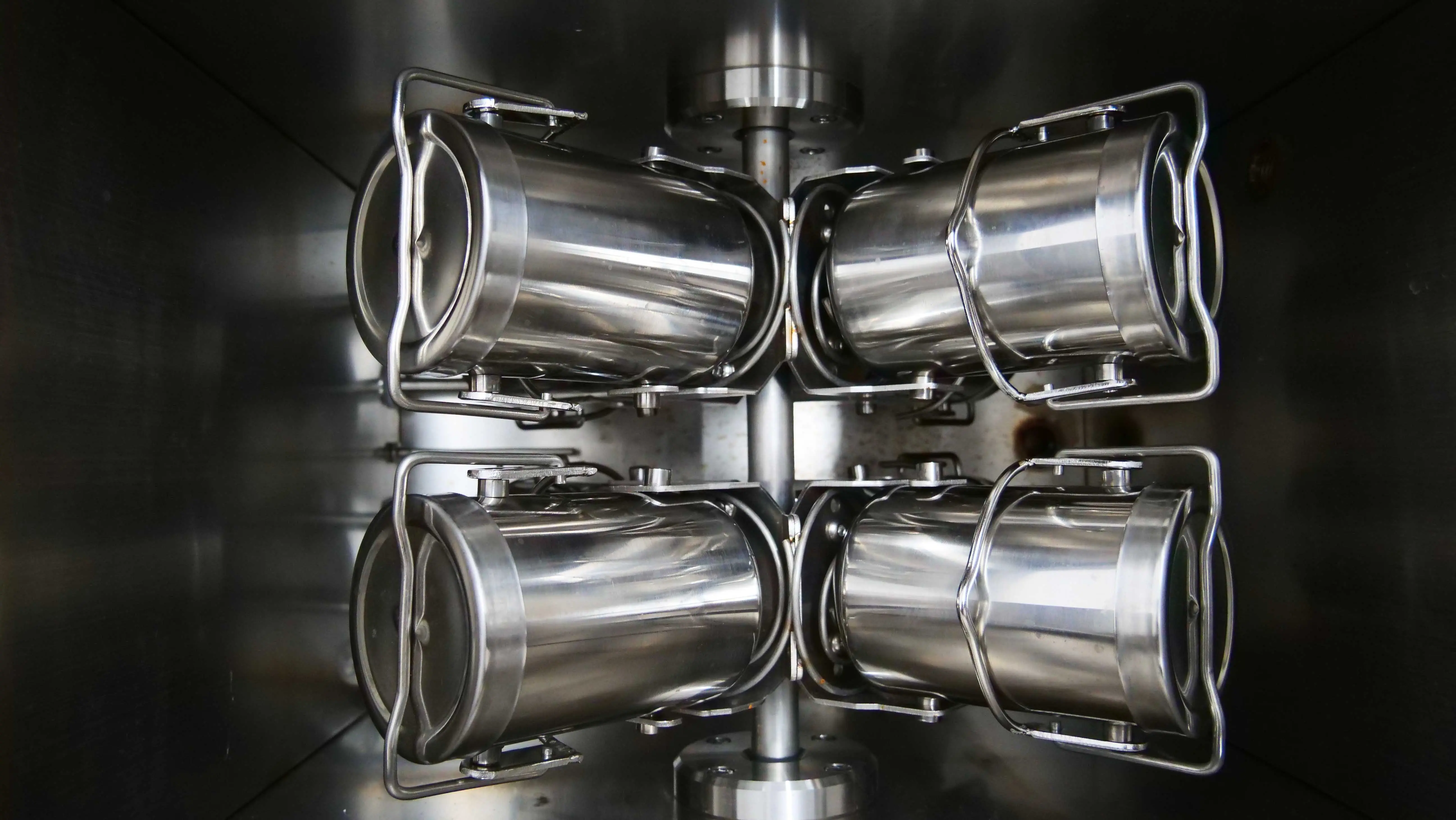

Sample cups

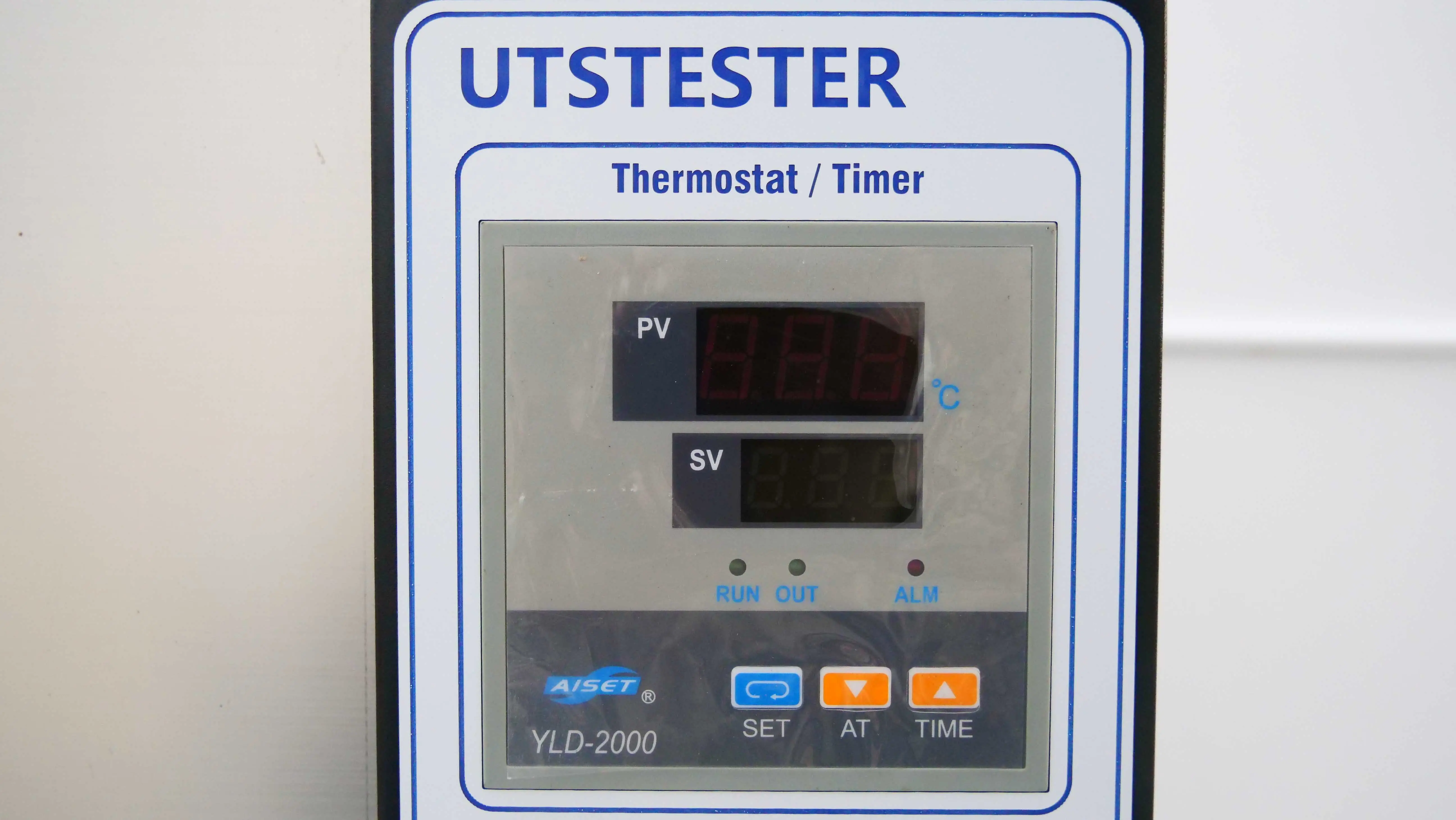

Thermostat Timer

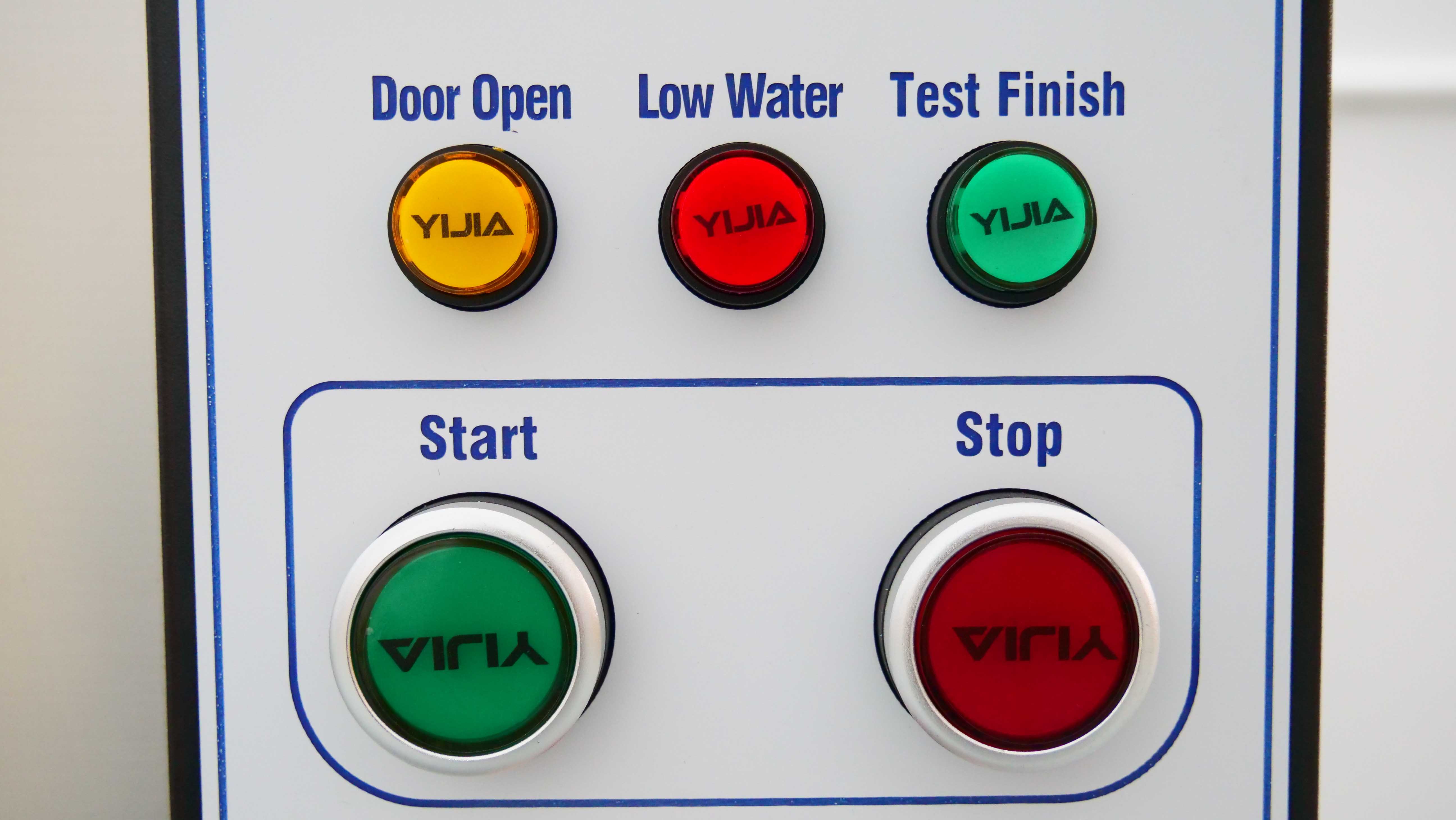

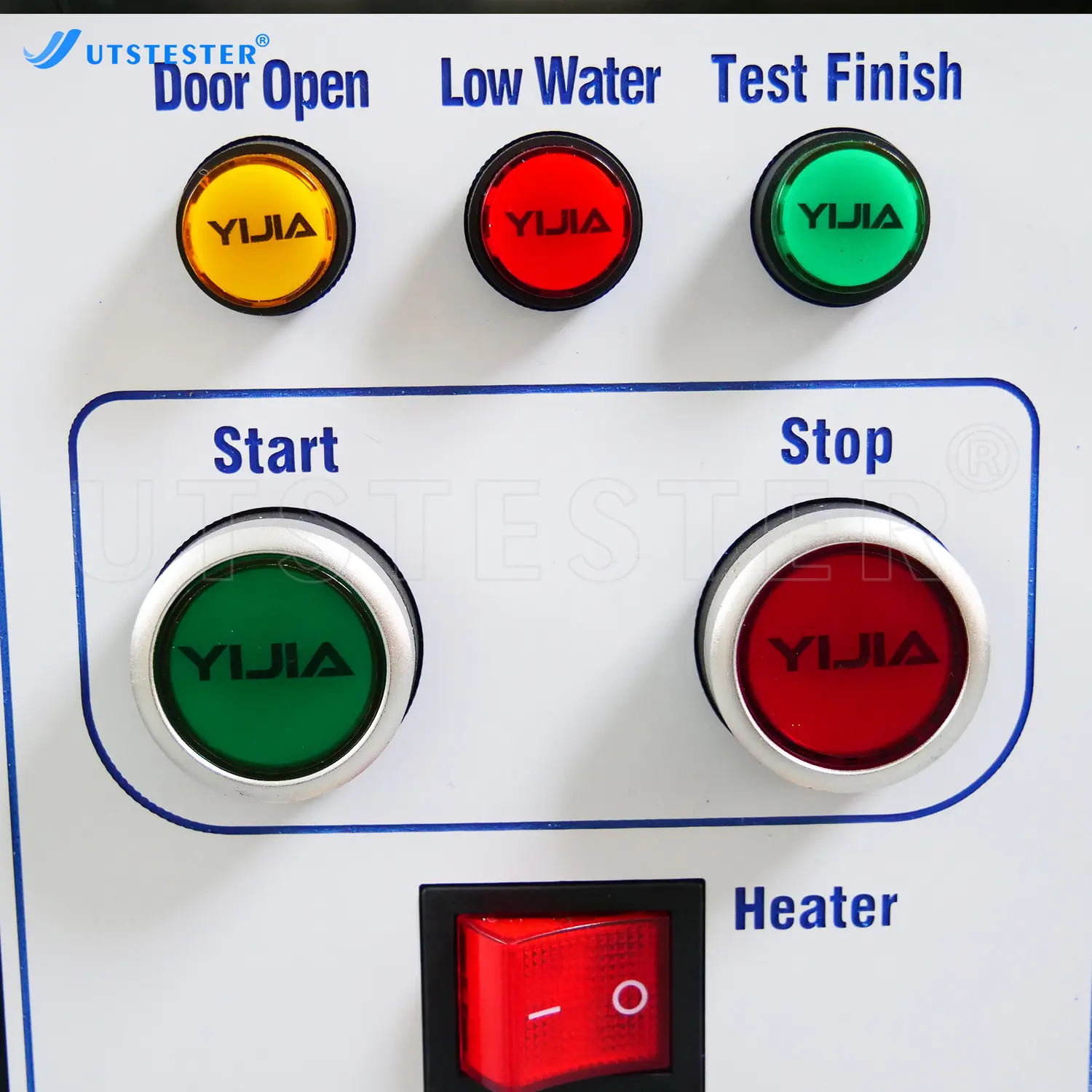

Buttons

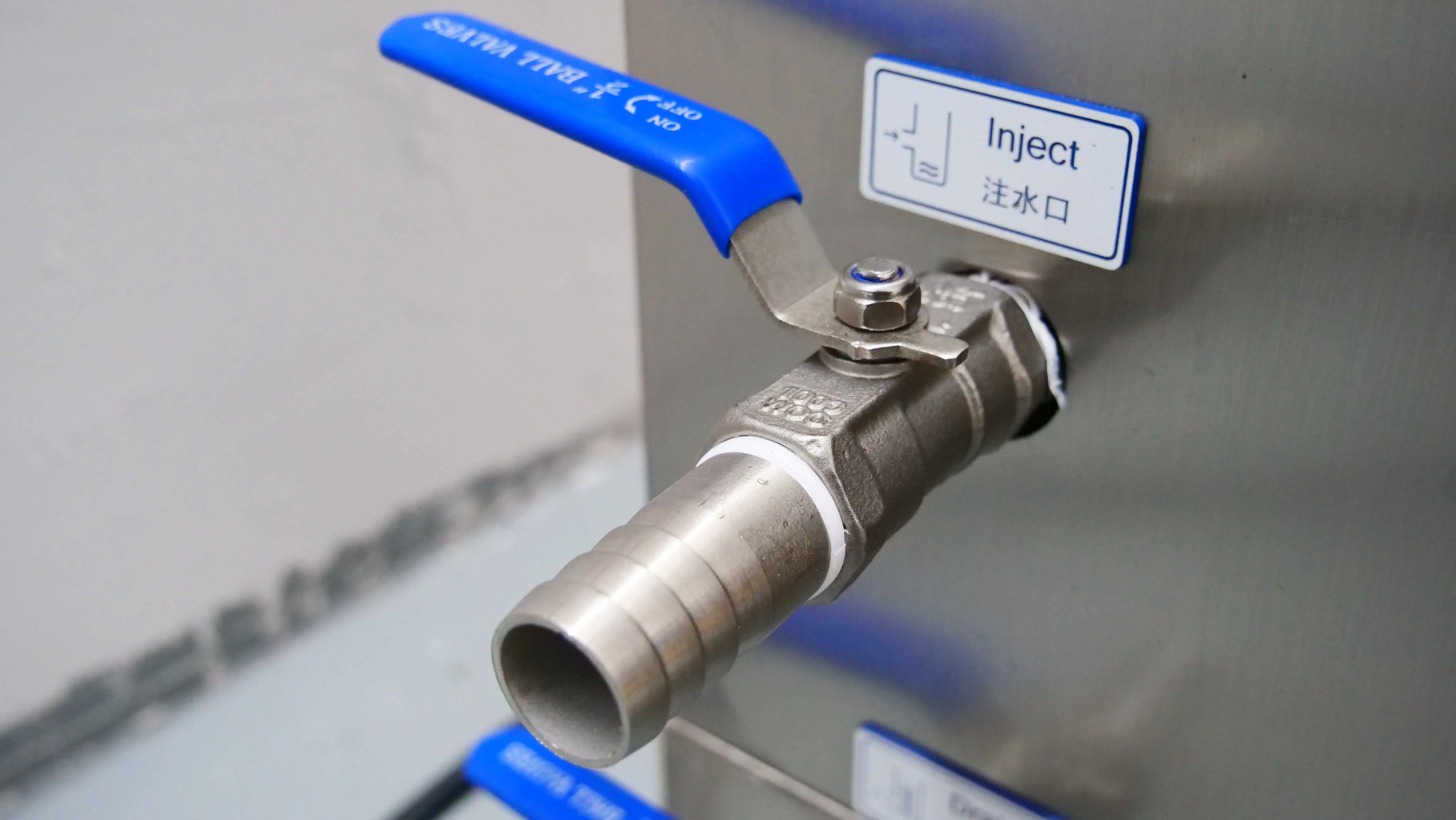

Water injection port

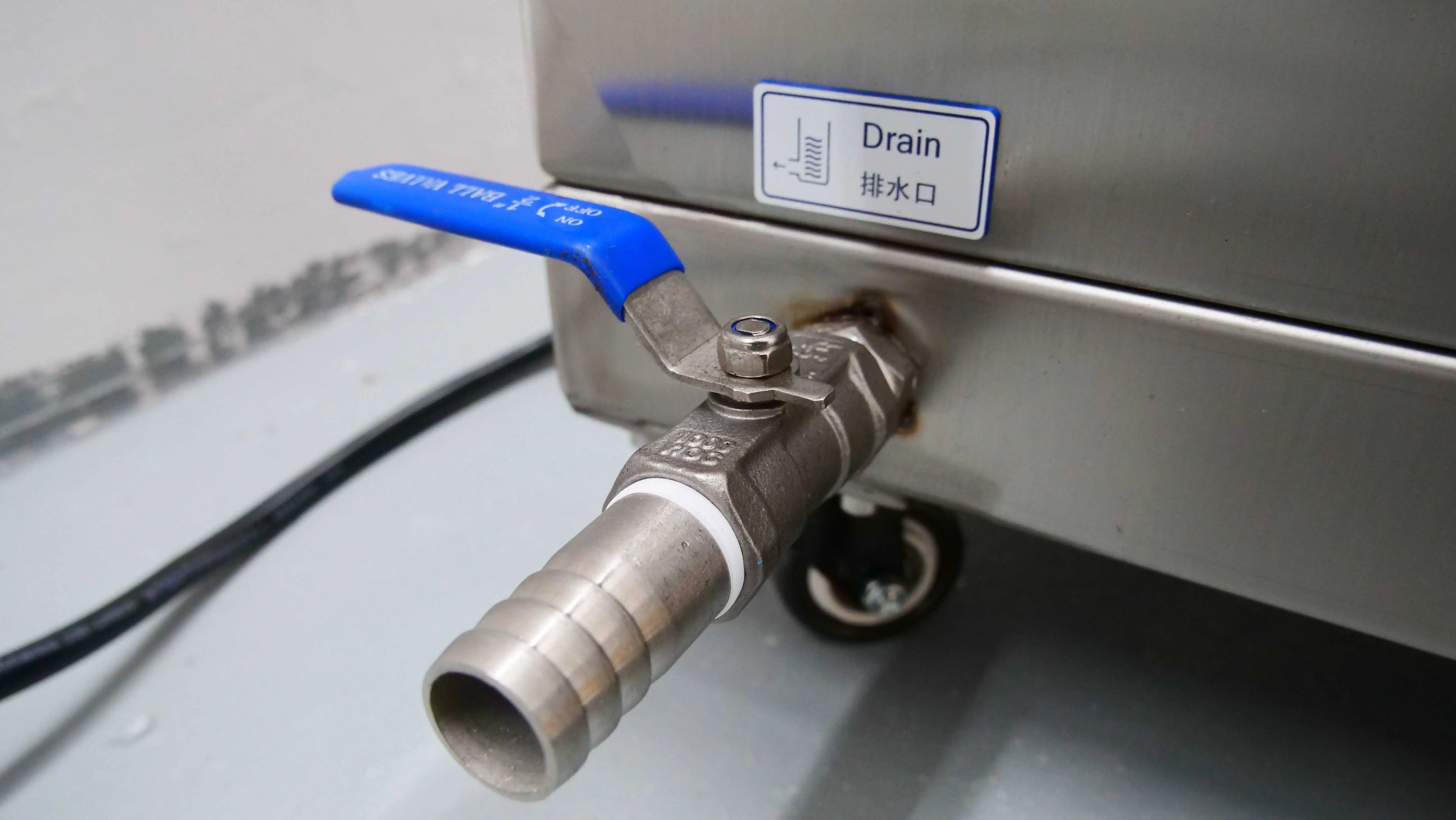

Drainage outlet
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
