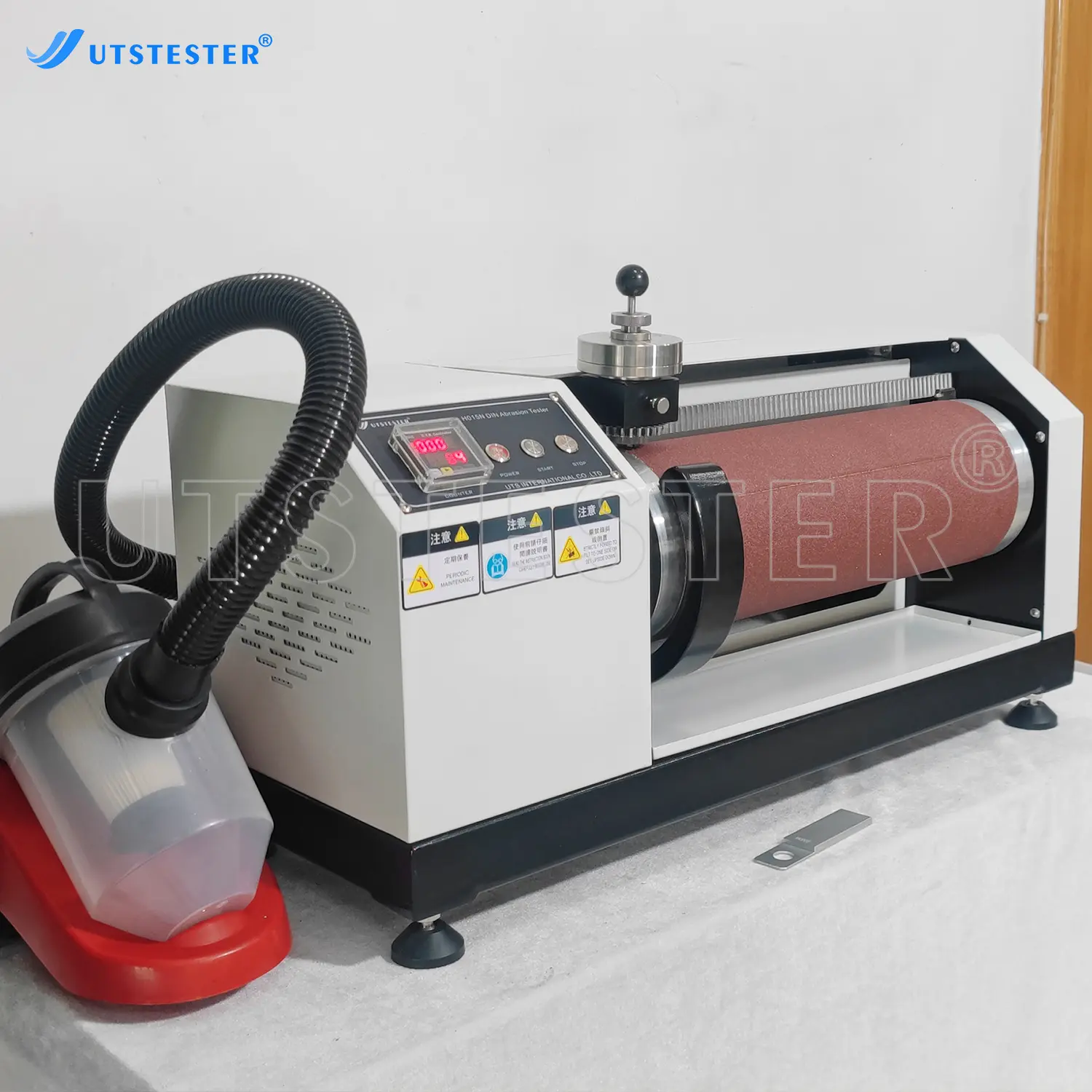

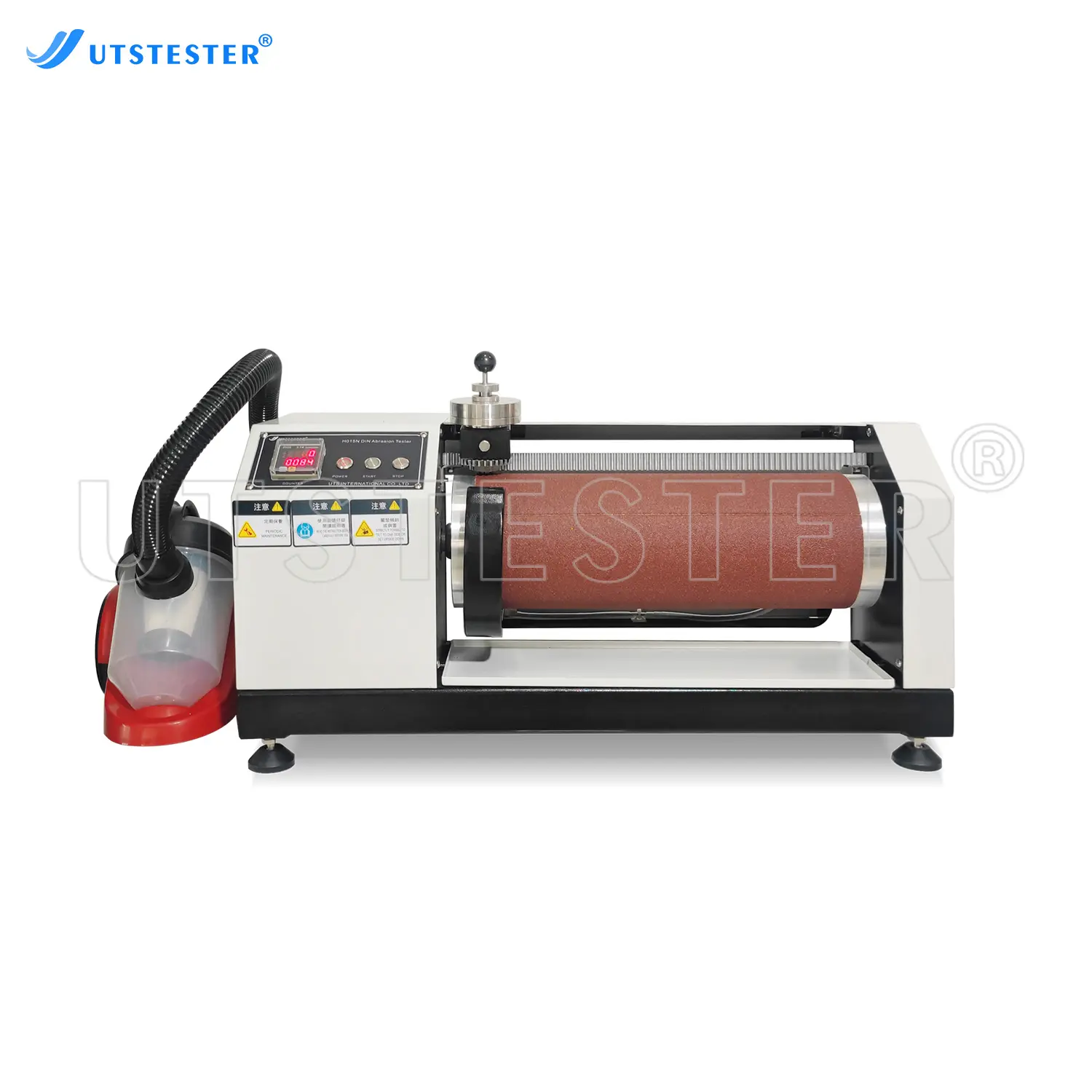

DIN Abrasion Tester Rubber and Polyurethane Abrasion Resistance Test Machine H015N
Overview
The machine is used to test rubber and polyurethane to assess its wear resistance in everyday wear. The testing principle is very simple.
Application
Tire
Sole
Conveyor belts
Standards
BS EN 12770, DIN-53516, SATRA TM174, BS 903-A9 Method A, ASTM D5963
EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, ISO20871
GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867, QB/T2884
JIS-K6369, JIS K6264-2
Key Parameters
|
Model |
H015N |
|
Sample dimension |
ø16 mm x thickness 6-15 mm |
|
Fixture load |
2.5N |
|
Weight load |
2.5N, 5N |
|
Sample bearing force |
10±0.2N |
|
Sample moving speed |
4.2 mm/r |
|
Wear wheel diameter |
150 mm |
|
Wear wheel length |
460mm |
|
Wear wheel speed |
40±1rpm |
|
Stroke |
40 / 20m |
|
Abrasion speed |
0.32m/sec |
|
Inclination angle |
3° (the angle between sample support shaft and the vertical plane of roller) |
|
Grit size of sandpaper |
#60 |
|
Power supply |
1∮AC 220V 50/60HZ 3A |
|
Dimensions (L x W x H) |
700 x 300 x 300 mm |
|
Weight |
58kg |
Product Details

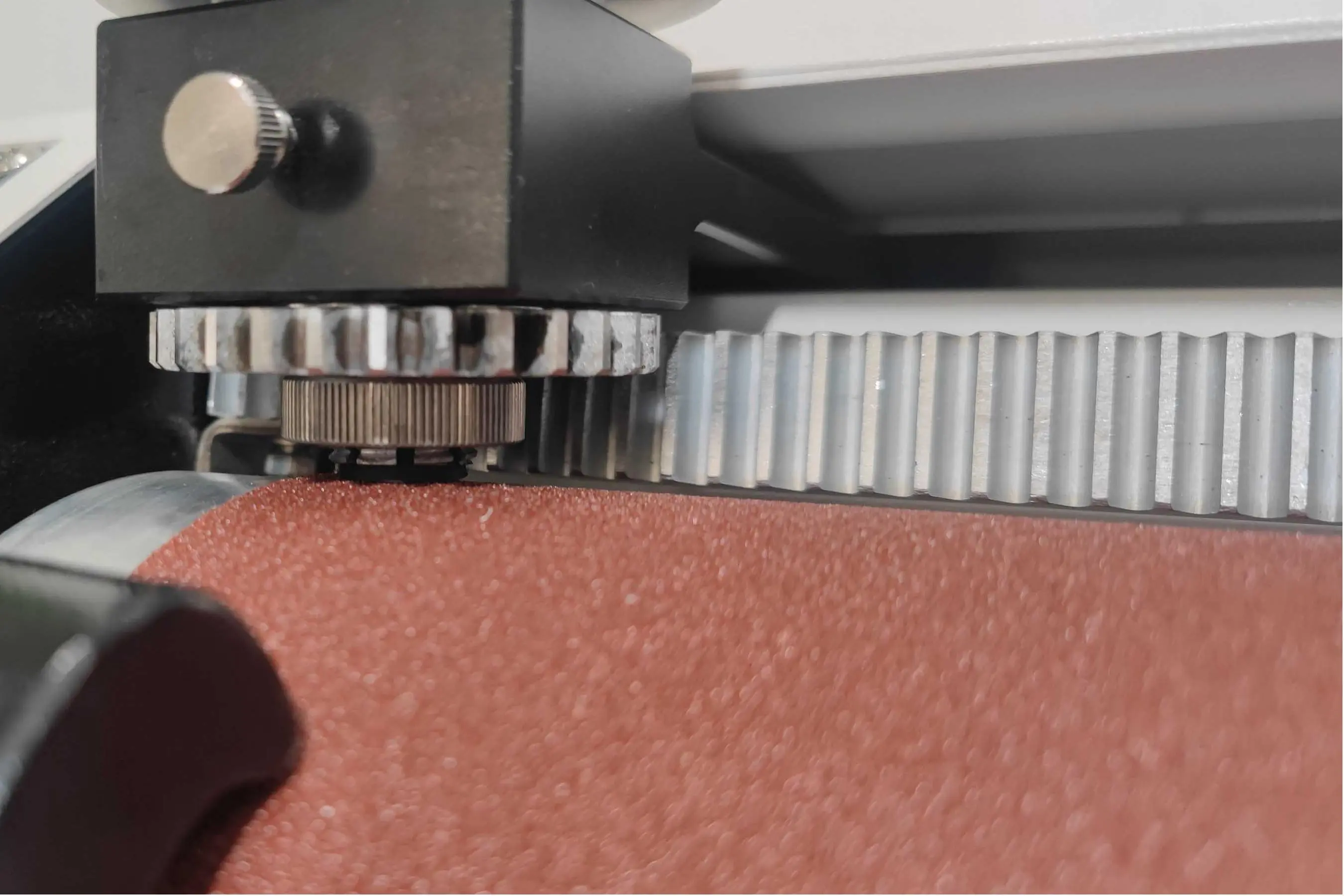

Sand paper

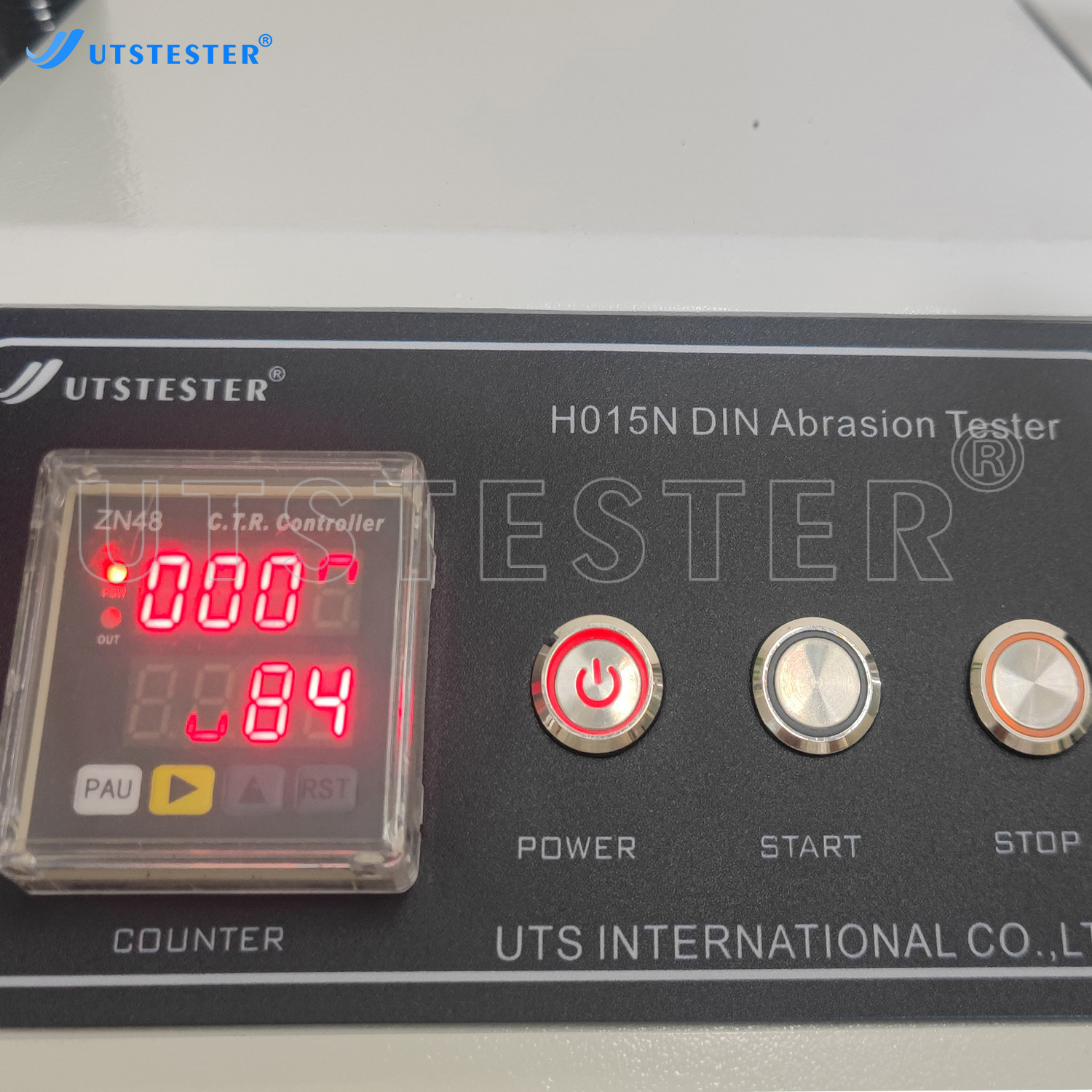

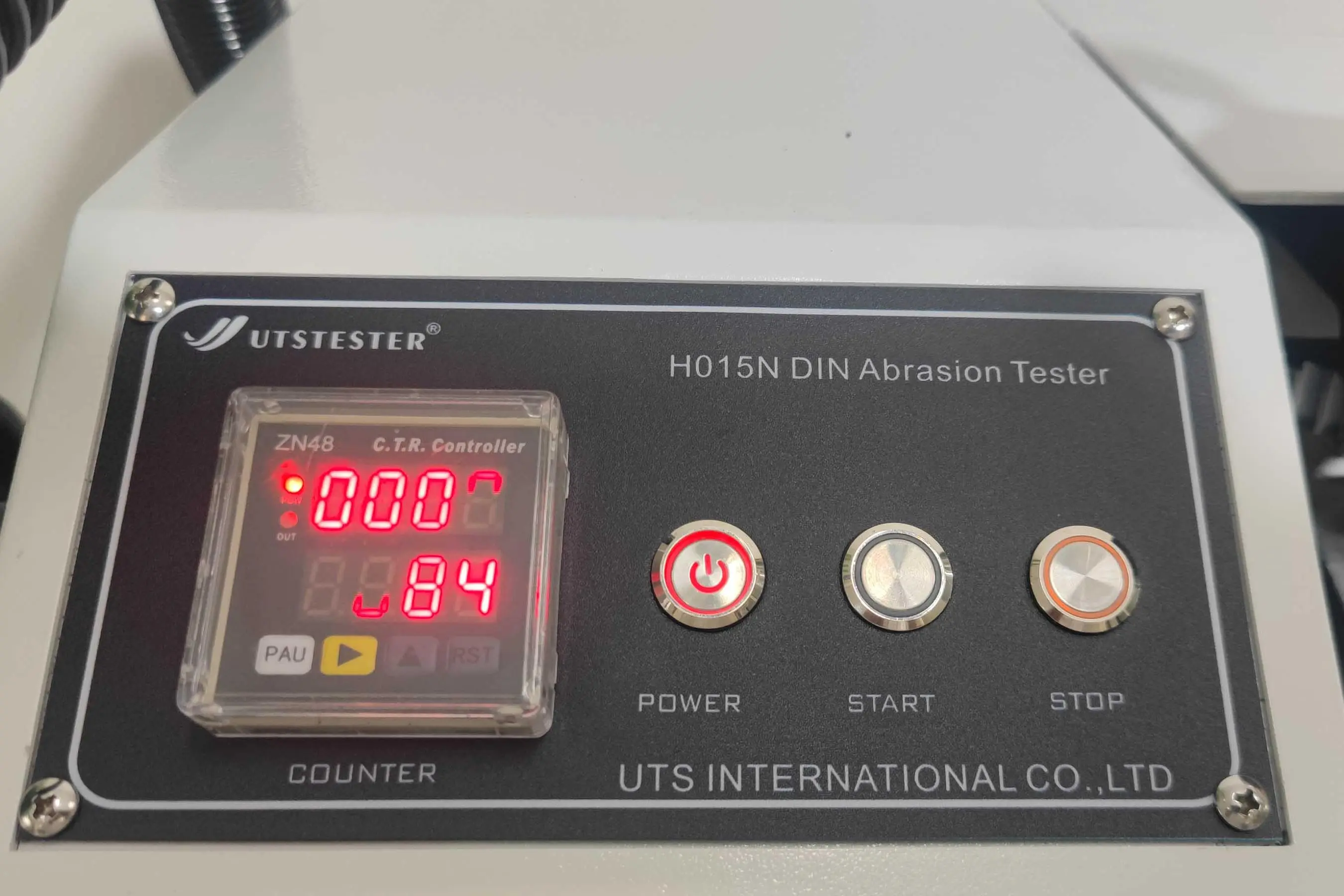

Control Panel

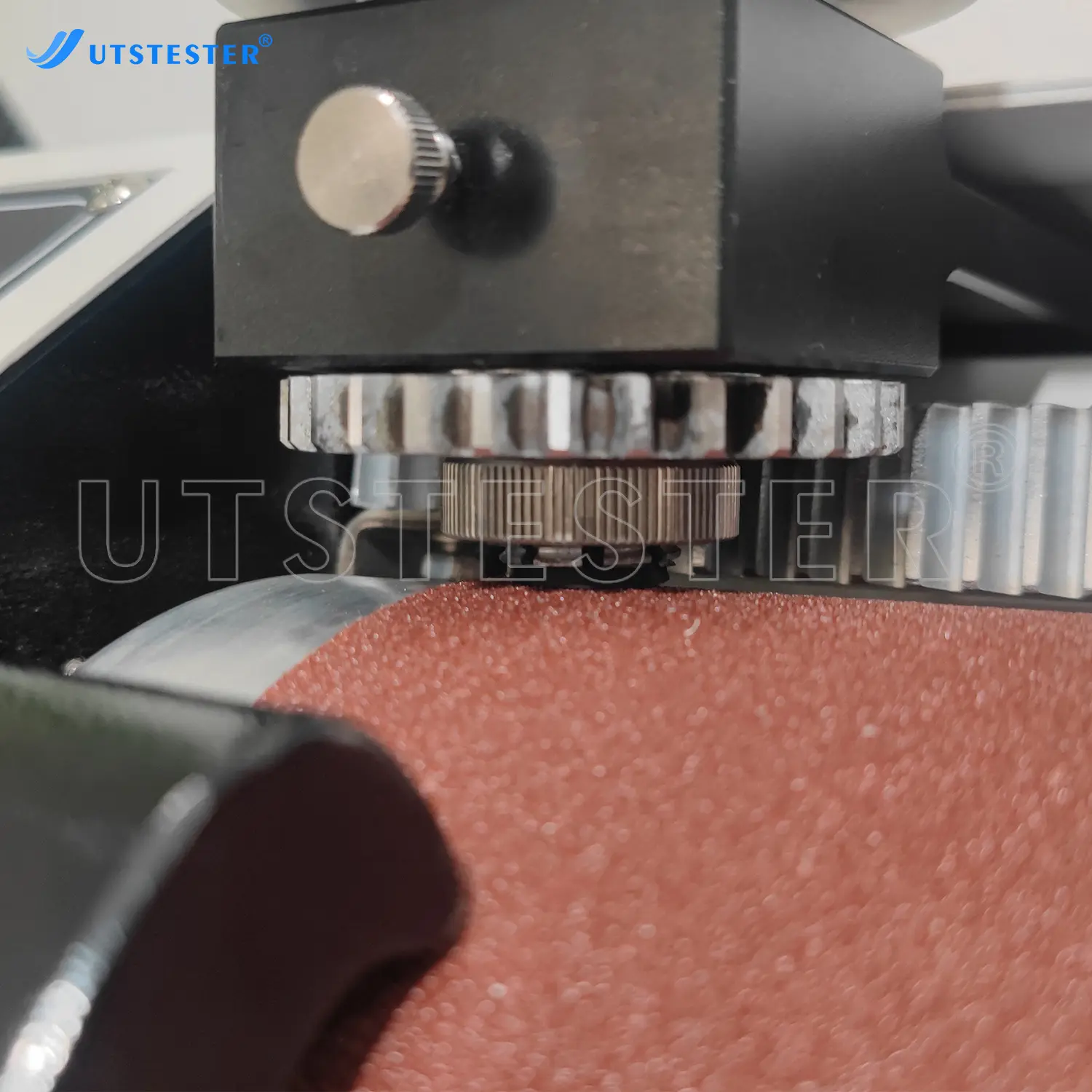

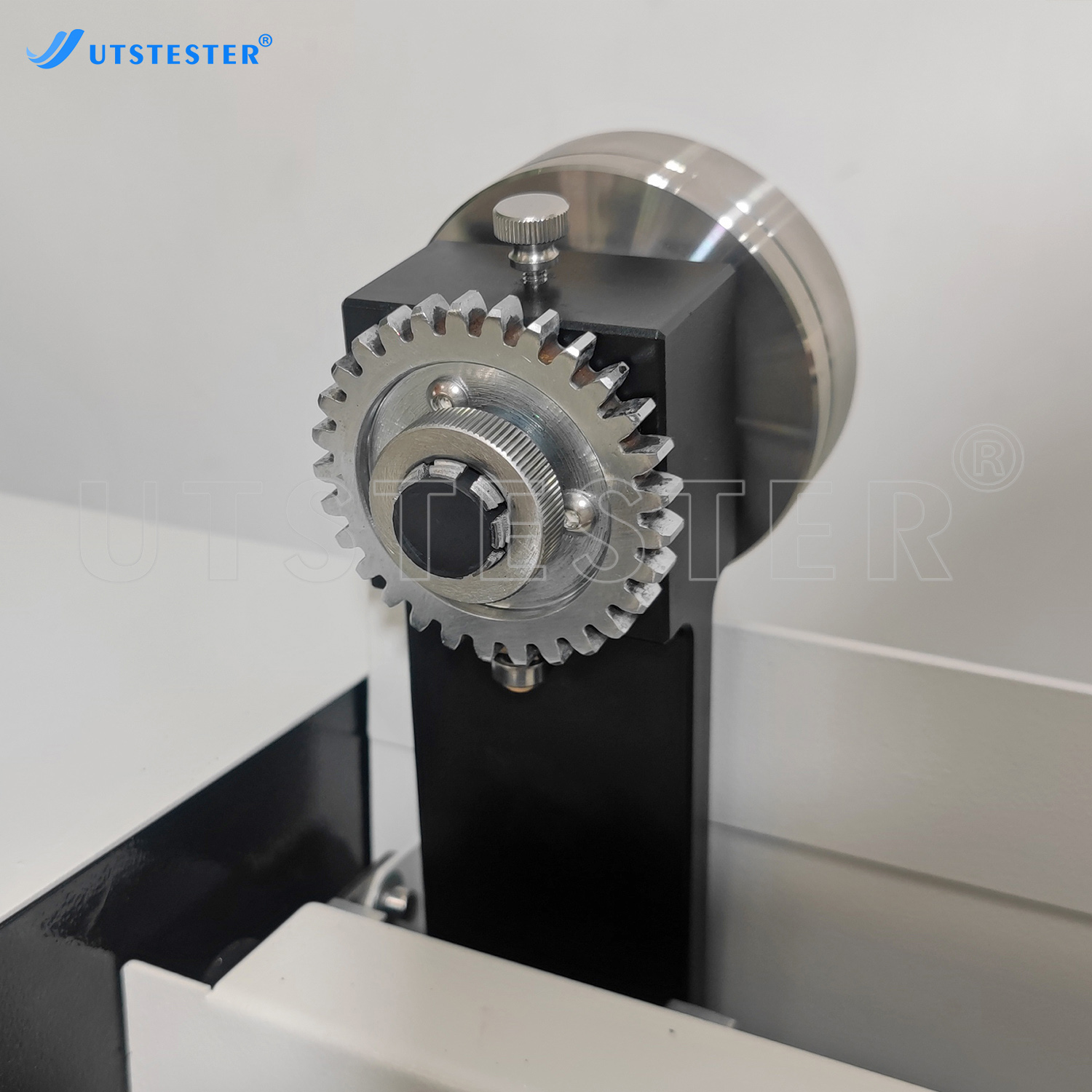

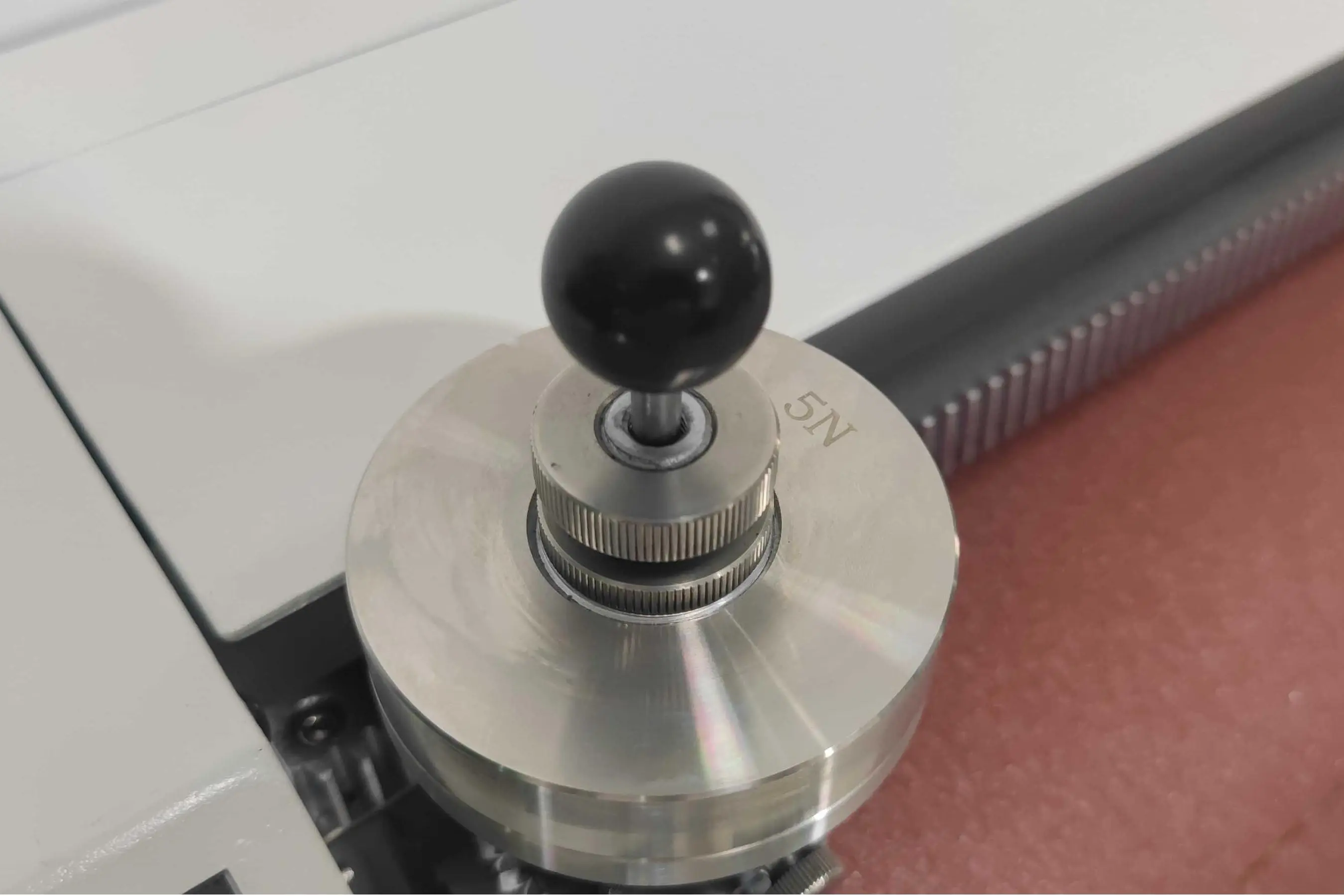

Holder
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
