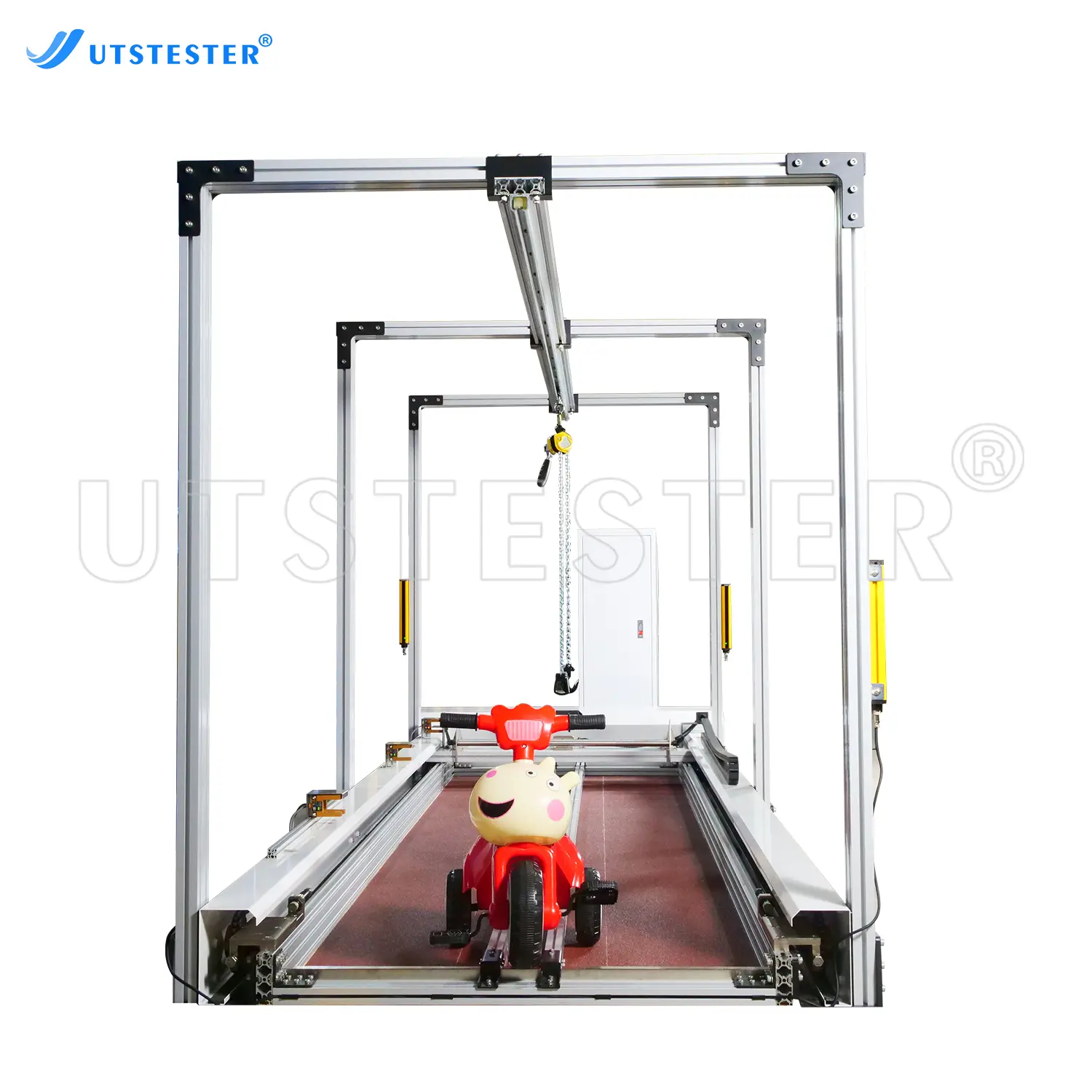

Dynamic Strength & 2m/S Tester Strength Testing Machine for Ride-on Toys TF012
Overview
T012 Dynamic Strength & 2m/s Tester is used test dynamic strength for wheeled ride-on toys.
Simulate children wheeled ride-on toys vertically crush the inelastic step 50 x 50 mm at the stable speed of 2m/s±0.2/s, and then check the damage degree.
This device can be used for children ride-on toys, such as children tricycle, toy bikes, scooters, etc.
Application
Children bicycle
Scooter
Toys car
Standards
EN 71-1 section 8.22 ;
ASTM F963 section 8.20
ISO 8124-1 section 5.24.4 and 5.27 ;
GB 6675 section 5.24.4
Key Parameters
|
Model |
T012 |
|
Test sample amount |
1 unit / times |
|
Drive mode |
Motor drive |
|
Test speed |
2±0.2m/s |
|
Load weight |
25Kg / 50Kg |
|
Obstacle block size |
50mm x 50mm |
|
Test channel width |
90cm |
|
Weights protection frame material |
Aluminum |
|
Control method |
PLC touch screen control |
|
Main body dimension |
480 x 120 x 200cm |
|
Control box size |
36 x 32 x 100cm |
|
Weight |
800kg |
|
Standards accessories |
Load A and Load B |
|
English manual |
|
|
Certificate of quality |
Product Details

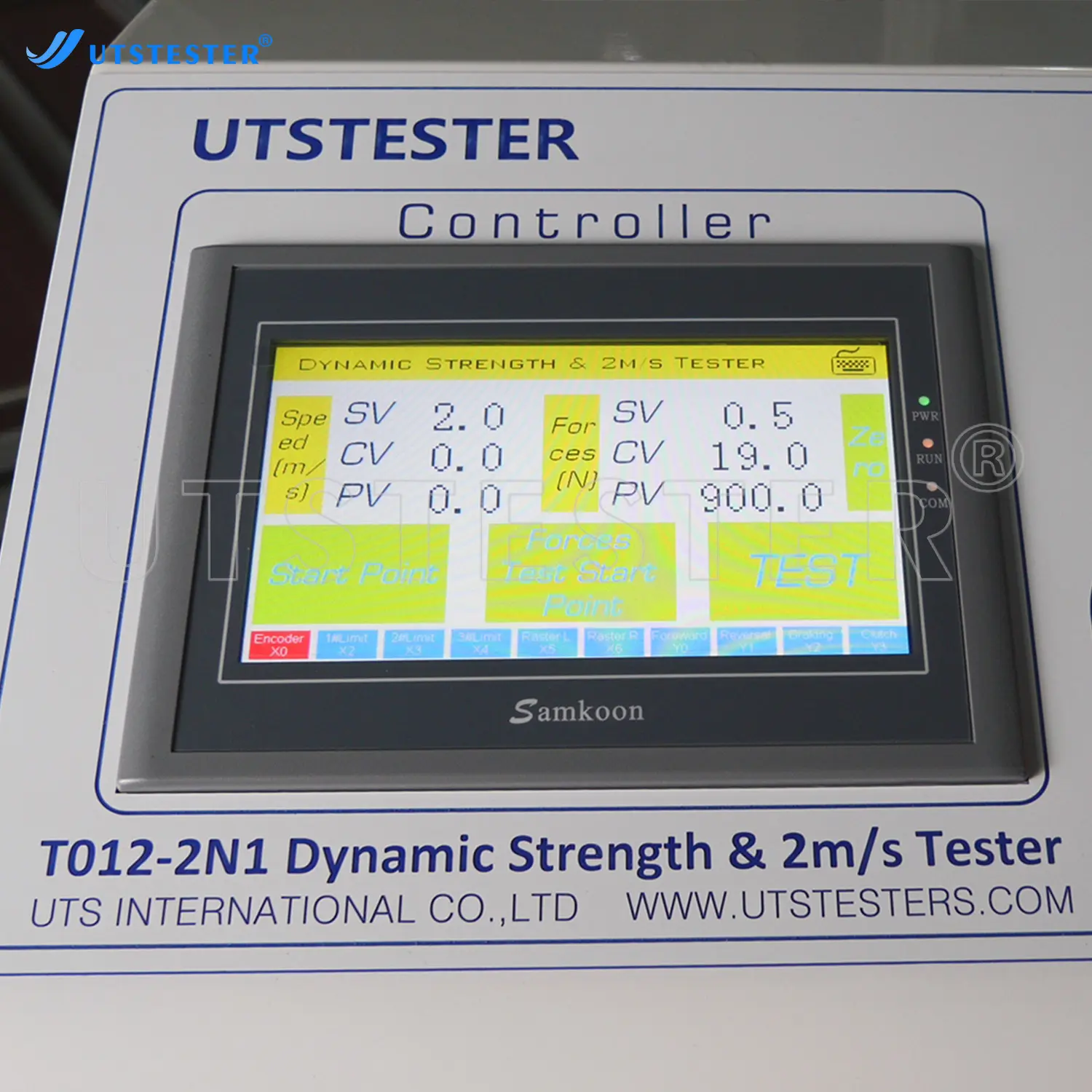

Control panel

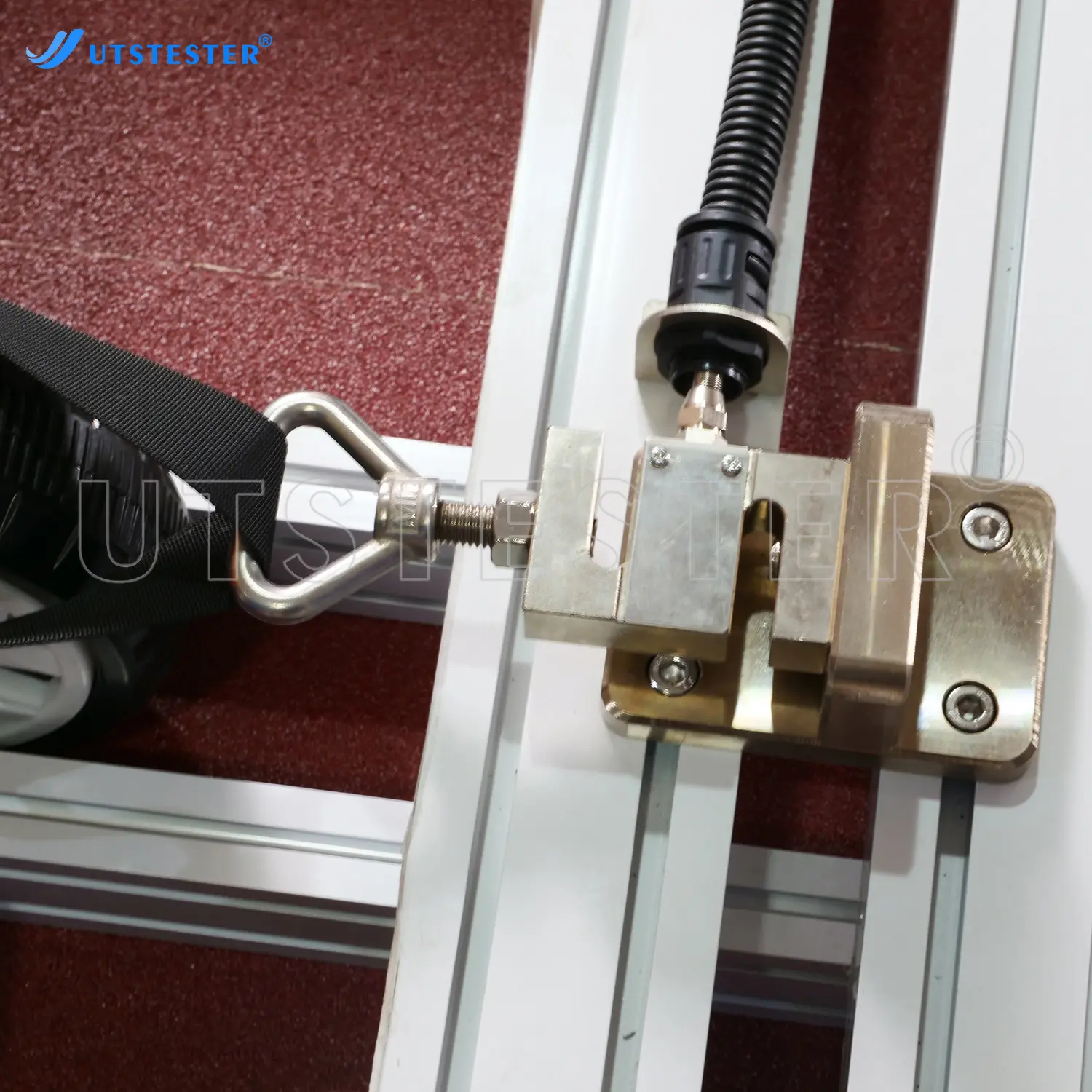

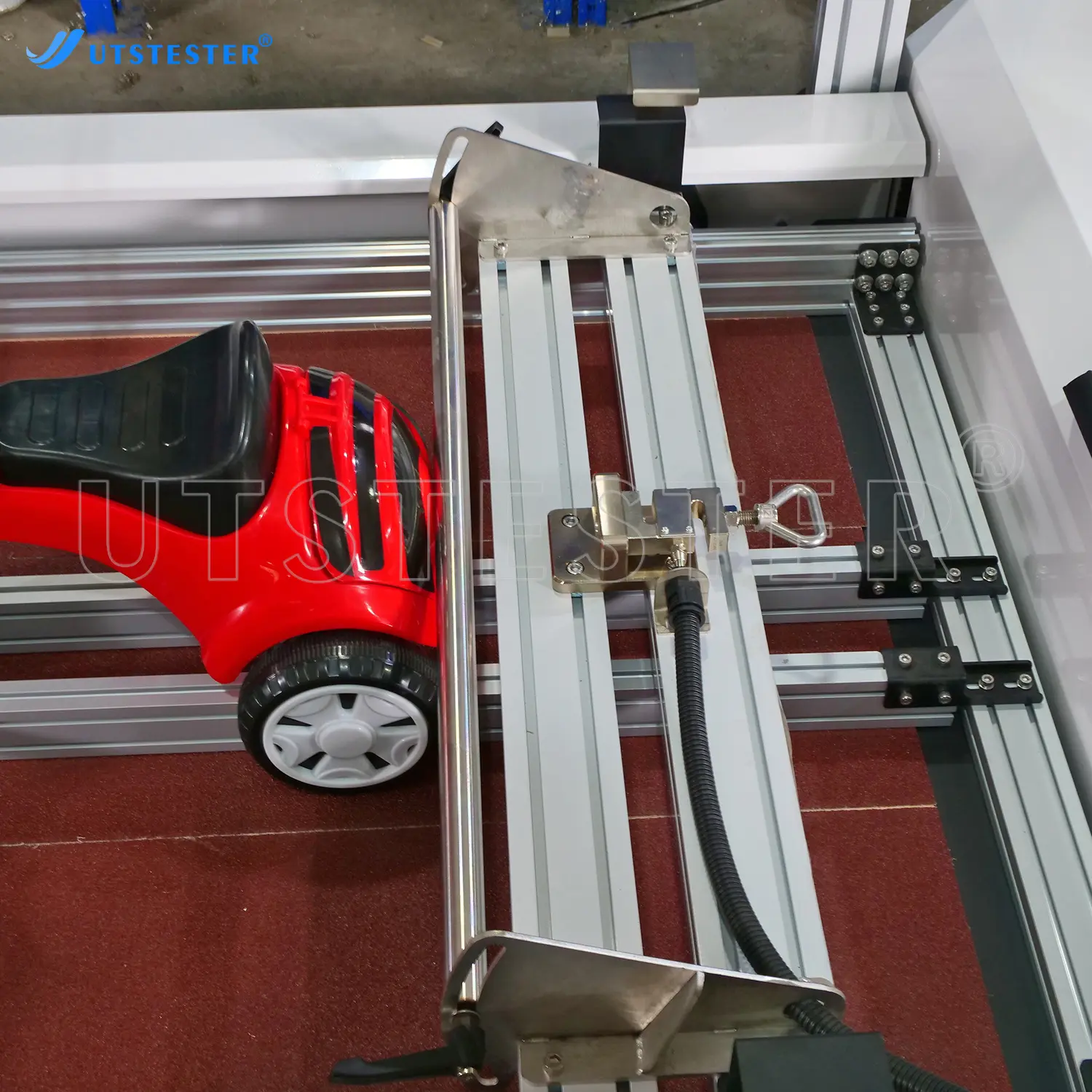

Slide frame

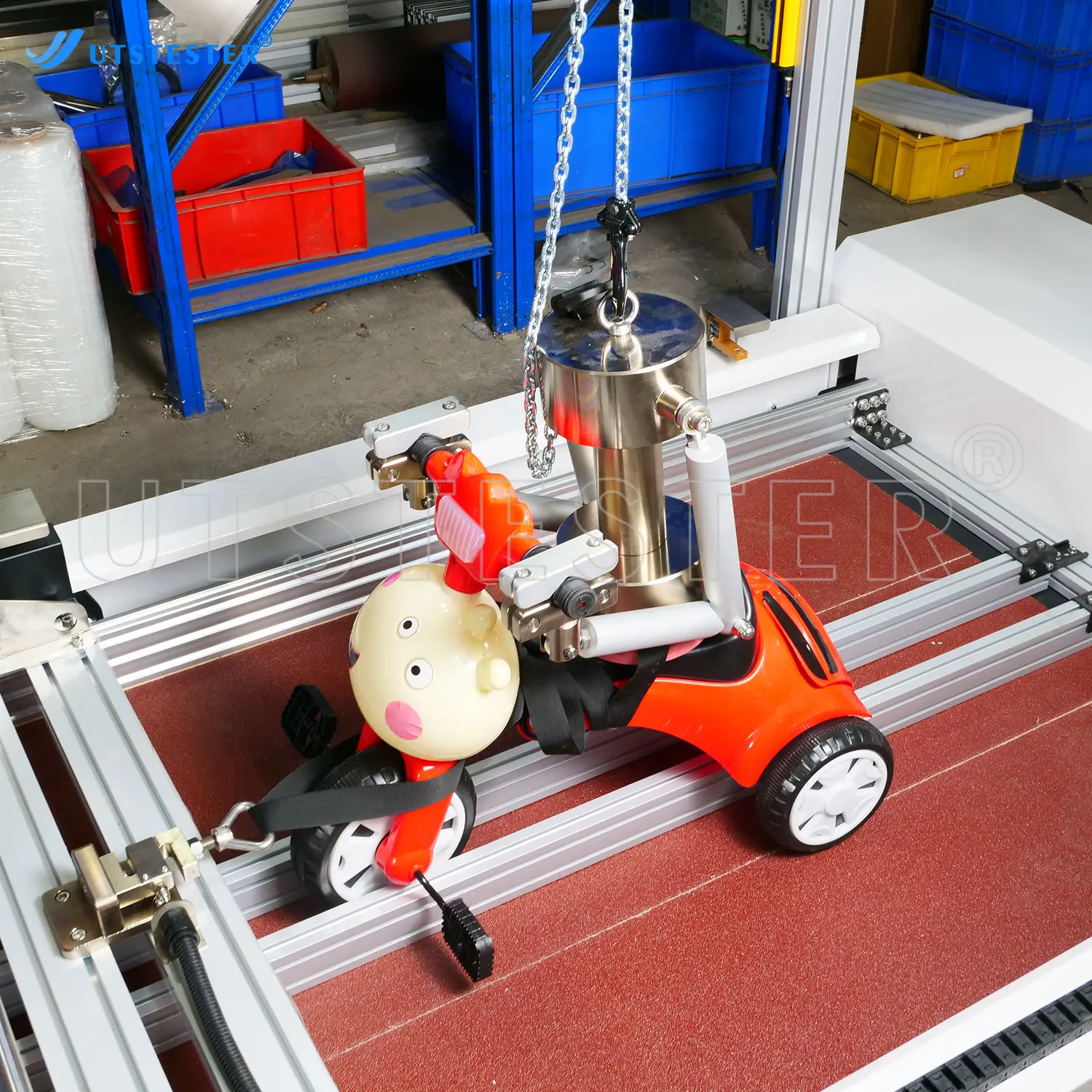

Weight chain
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
