Electric Denim Warp Dyeing Machine for Lab Scale Textile Testing D036

Model

D036

Dyeing tank

Maximum capacity is 8 liters

Refill tank

Max. 500ml

Heating power

2KW;Automatic temperature control.

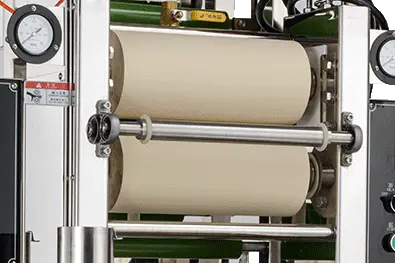

Rolling part

vertical rolling roll

Roll: the lower roll is active, the upper roll is driven

Material: Butadiene rubber

Length: length: 300 mm

Diameter: ￠127mm

Hardness: Shore 70°

Roller pressure

compressed air pushes air film, pressure is 0.03 ~ 0.6mpa, pressure is stable, easy to adjust.

Cylinder

large section thin film cylinder, strong resistance to guide rail friction, power off automatic reset, no left or right deviation.

Transmission power

0.37kW

Speed control

Frequency conversion speed control: the speed is 0.4 ~ 4 m/min

Configuration

safety protection switch.

Whole machine electricity

electric power is 2.5KW;

Power supply AC220V, 50HZ.

Cross-distributing capacity

the standard cross-distributing capacity of the whole machine is 4.25m.

Part of the ventilation frame

Including yarn manual tension control and rectifying device;

All guide rollers are made of high quality stainless steel.

The surface is sprayed with Teflon for quick and easy cleaning.

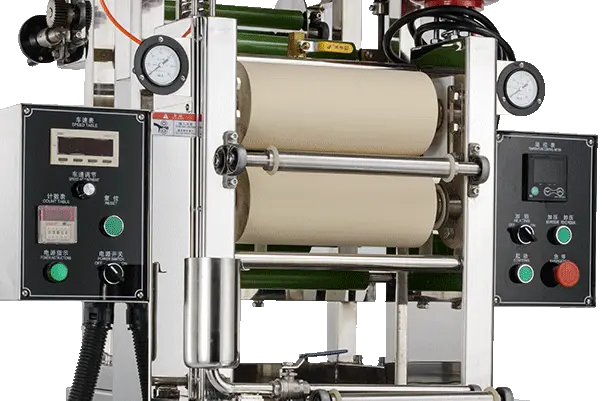

Control display of the whole machine

yarn deviation control, power display, speed display, count display,

Temperature display and alarm device.

External dimension

920 mm × 1030 mm × higher than 1750 mm

Weight

200KG
