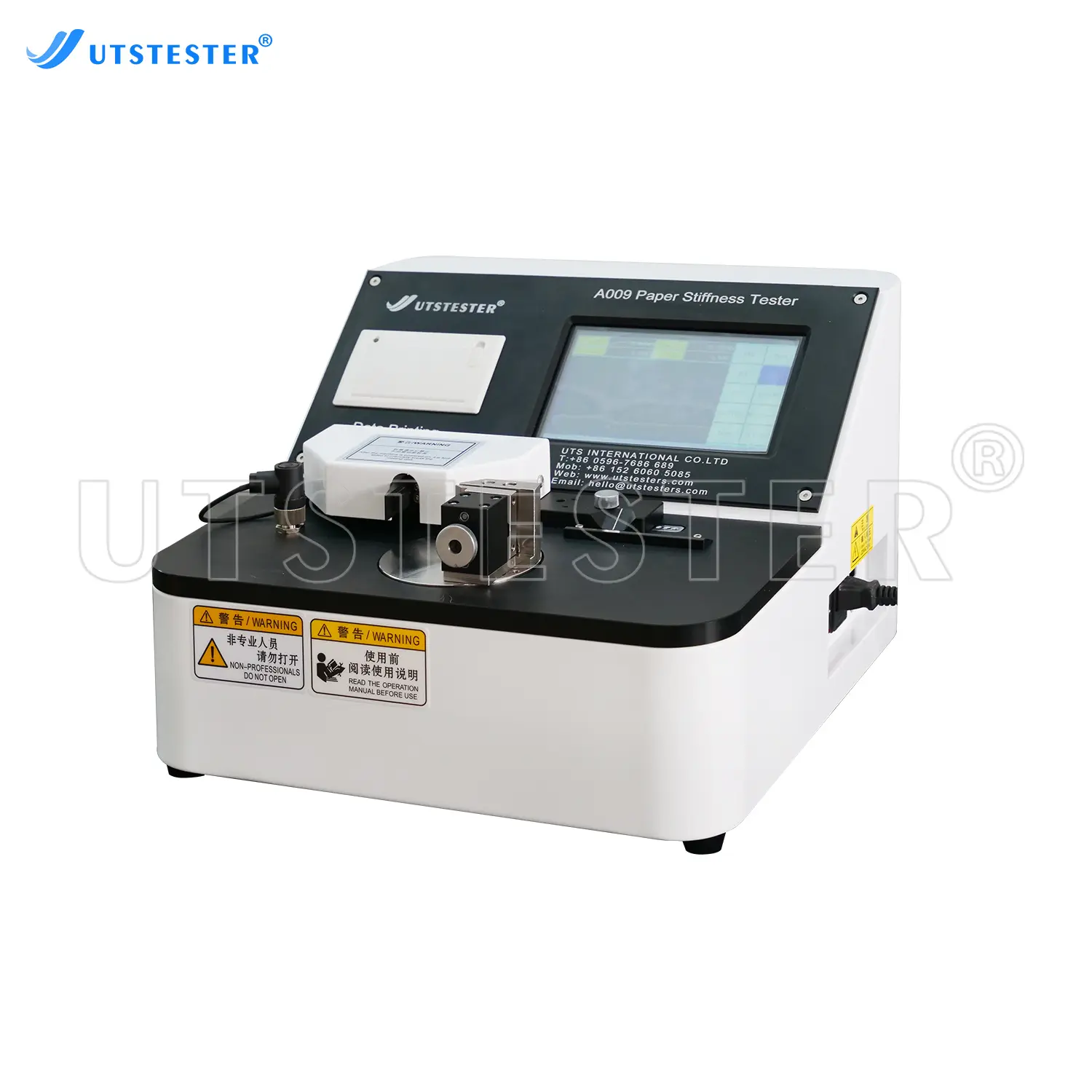

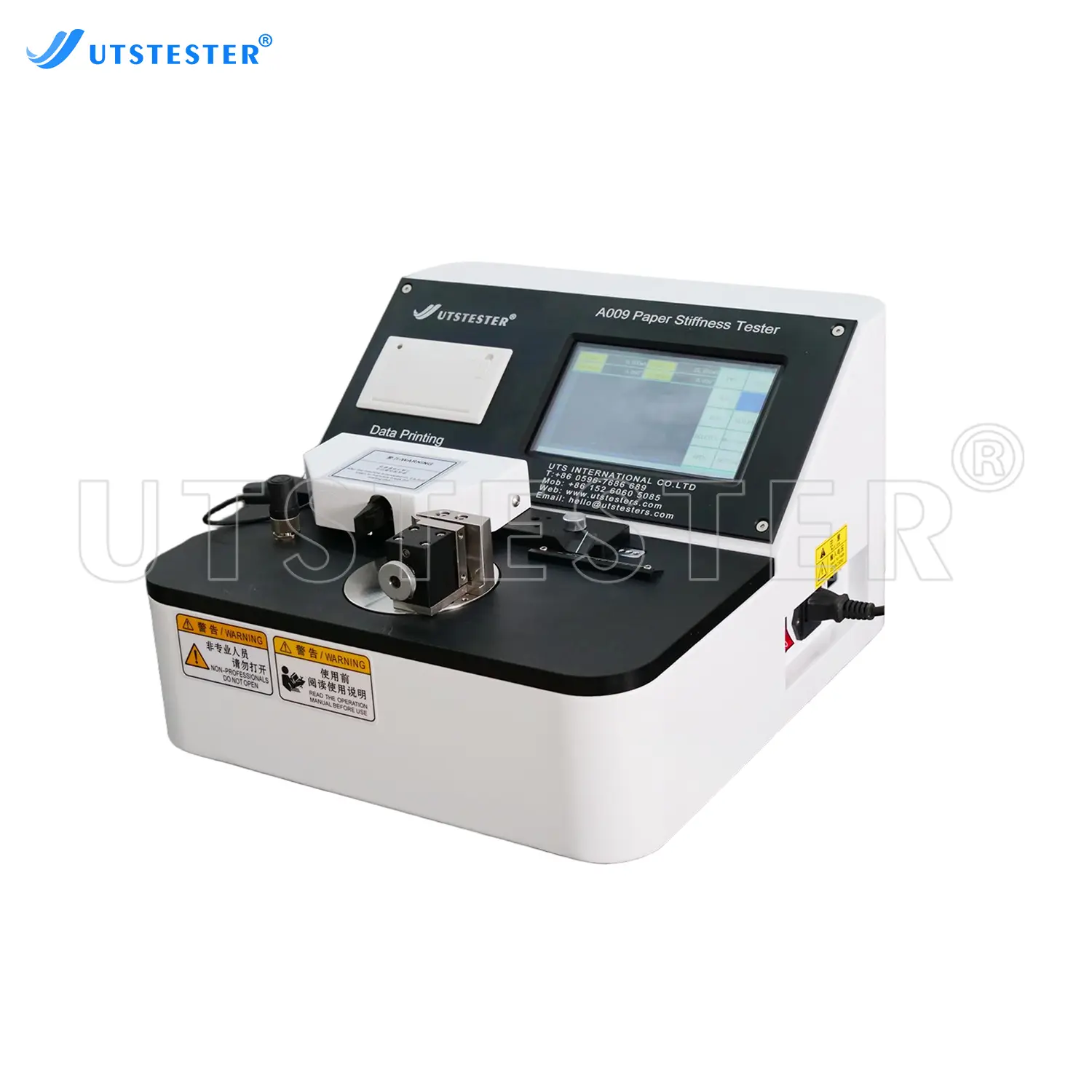

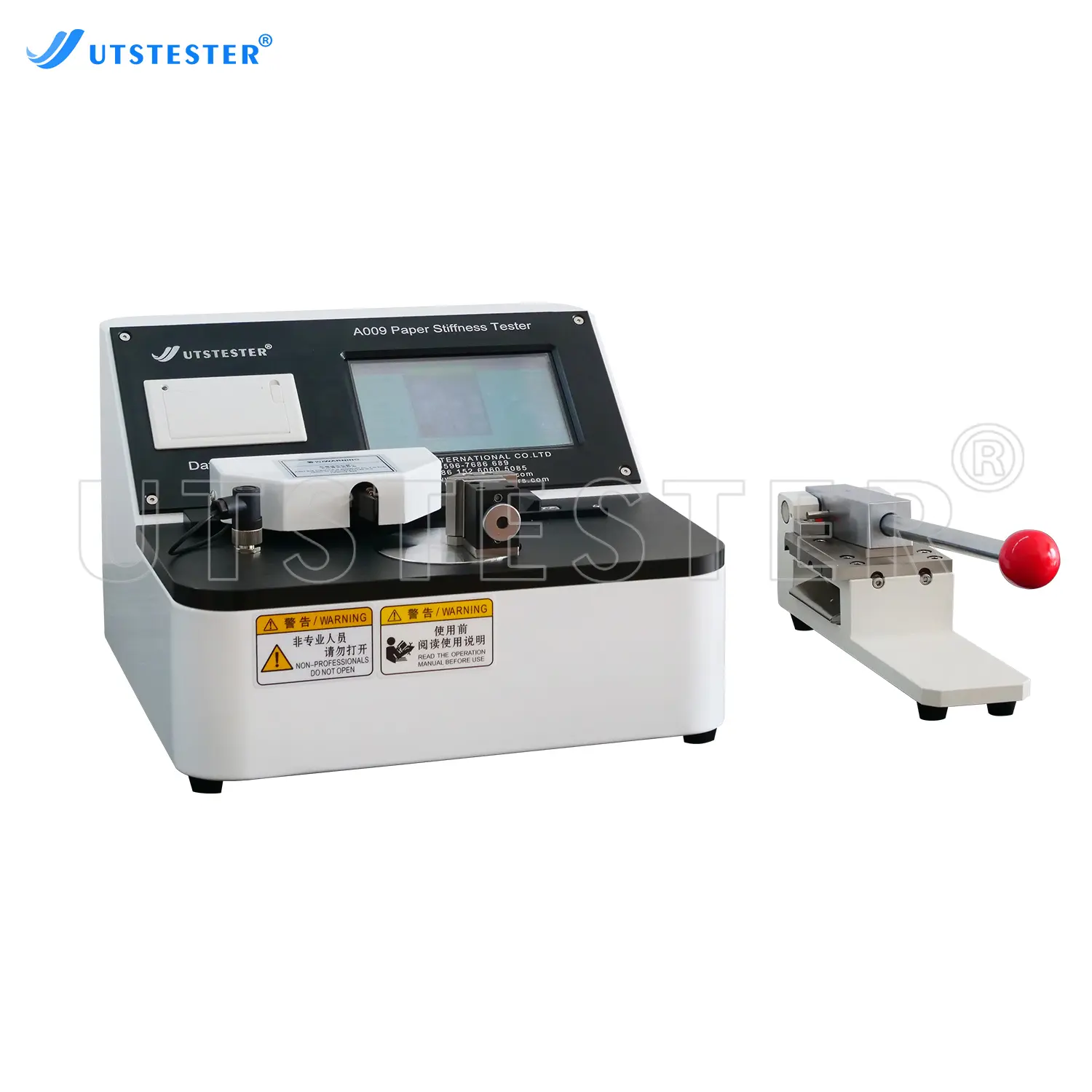

Electronic Bending Stiffness Tester for Paper and Cardboard Resistance Testing Machine A009
Overview
Material bending stiffness tester (hereinafter referred to as the tester) is a basic instrument for testing the bending stiffness and softness of materials. This tester is a multifunctional stiffness tester. The test angle can be set arbitrarily between (1-93)º. It has an automatic zeroing function. It is the first stiffness tester in China to launch a human-machine interface with a liquid crystal curve display. It has the function of real-time display of stiffness and time curves. The operation is simple and convenient. The instrument features accurate data and small errors.
Application
Paper
Standards
GB/T 23144 "General Principles for Determination of Static Bending Stiffness of Paper and Paperboard"; GB 22364-2018 "Determination of Bending Stiffness of Paper and Paperboard"; and other standards.
Key Parameters
|
Model |
A009 |
|
The sample size |
|
|
Actual measurement |
|
|
Span range |
Span length 1~60mm, 5-60mm range of automatic pole - free adjustable. Minimum force arm 1mm, 1-6mm pole-free adjustable needs additional customization.
|
|
Span precision |
±0.1mm |
|
Measuring range |
（0~10000）mN |
|
The sensor |
Sensor accuracy ±0.1% |
|
resolution |
0.01mN |
|
Bending Angle |
1~92 º The promise is adjustable |
|
Multiangle measurement |
Three different angles can be measured simultaneously in a single test, including 7.5°, 15° and 30° |
|
Angular velocity control |
0.5 -- 50 °/ SEC adjustable, three test angles and duration independently adjustable |
|
Precision of Angle |
±0.1 |
|
Measurable thickness |
Suitable for paper and other composite materials with thickness of 0.01~5.0 mm |
Product Details

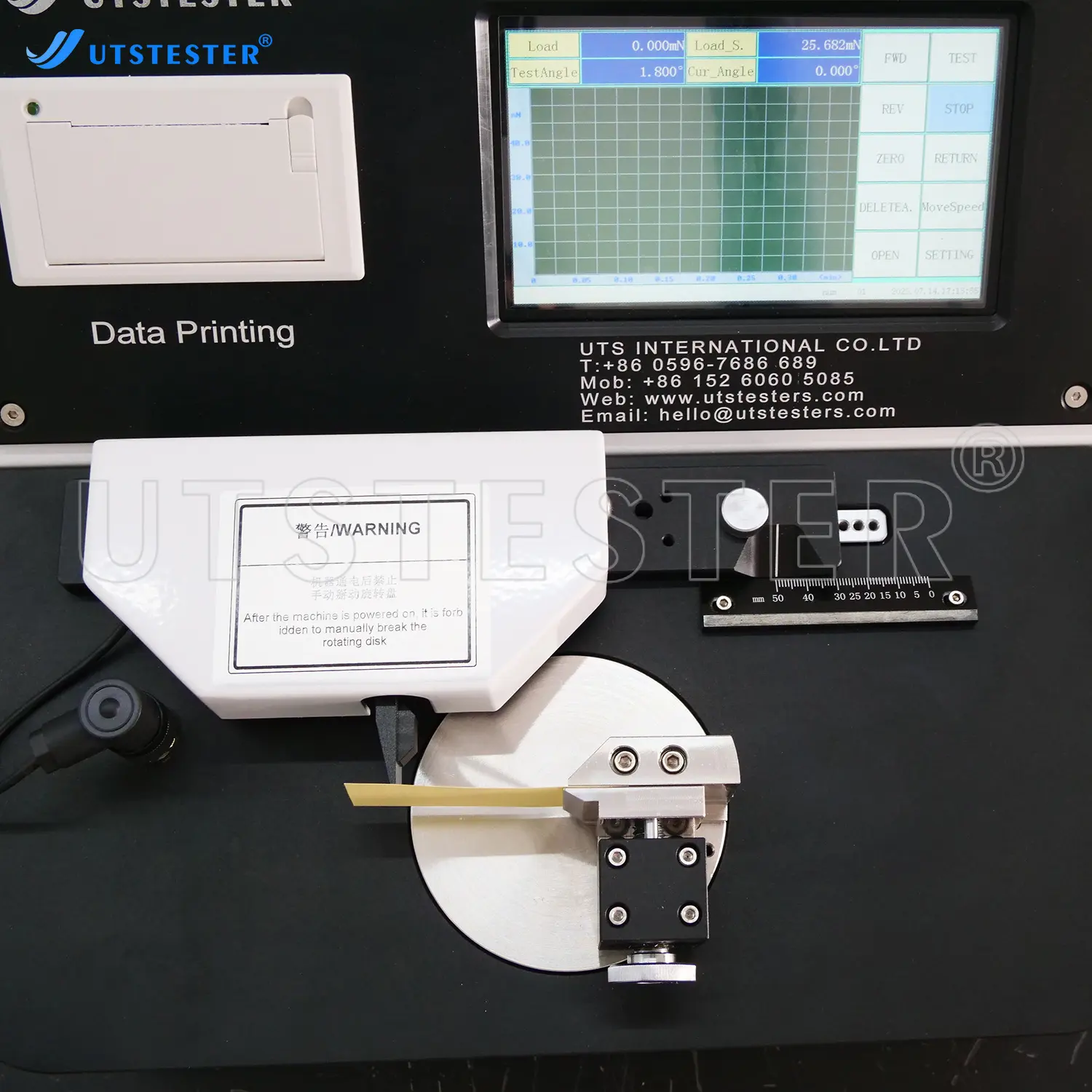

Control panel
Force arm scale
Sample fixture
Sample Cutter
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
