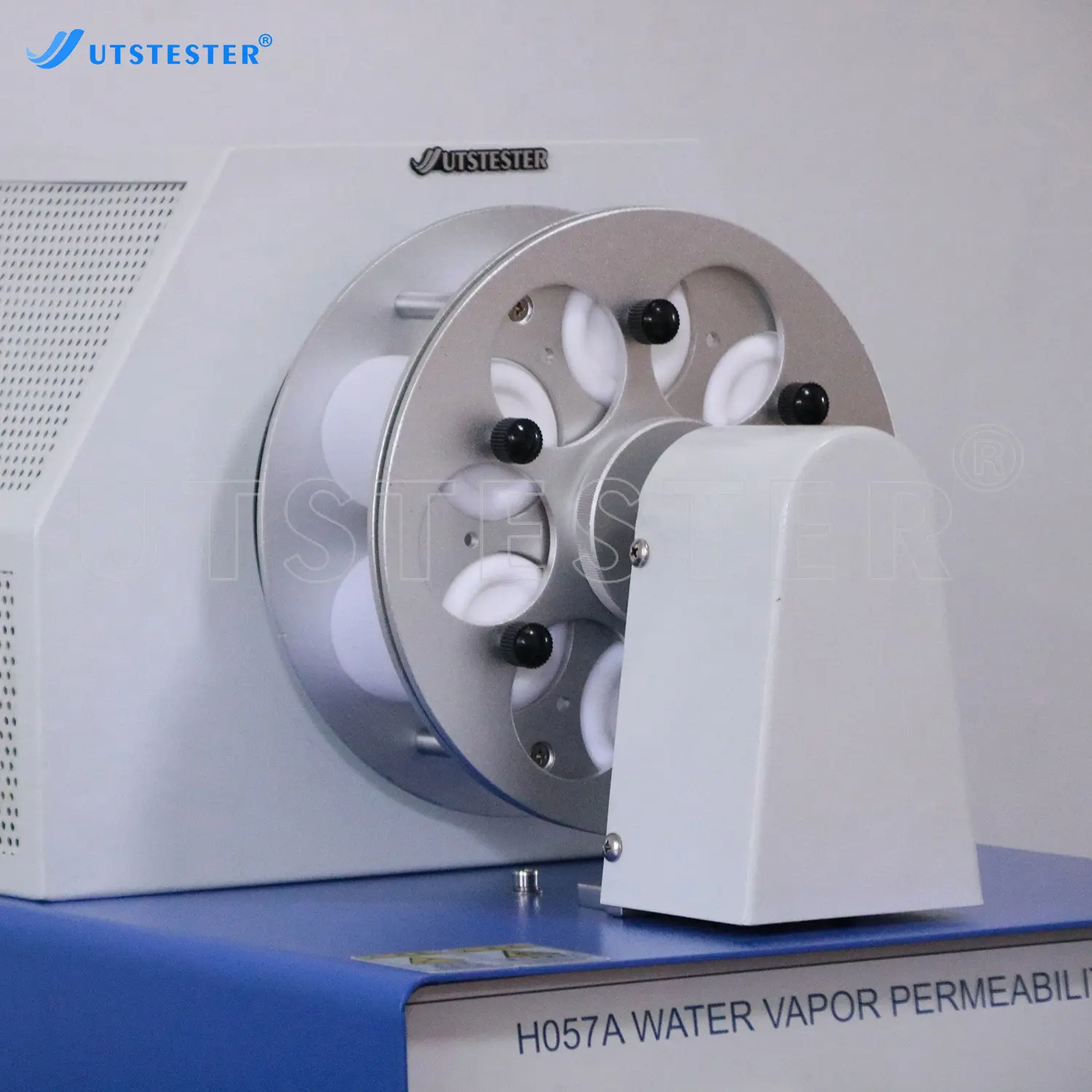

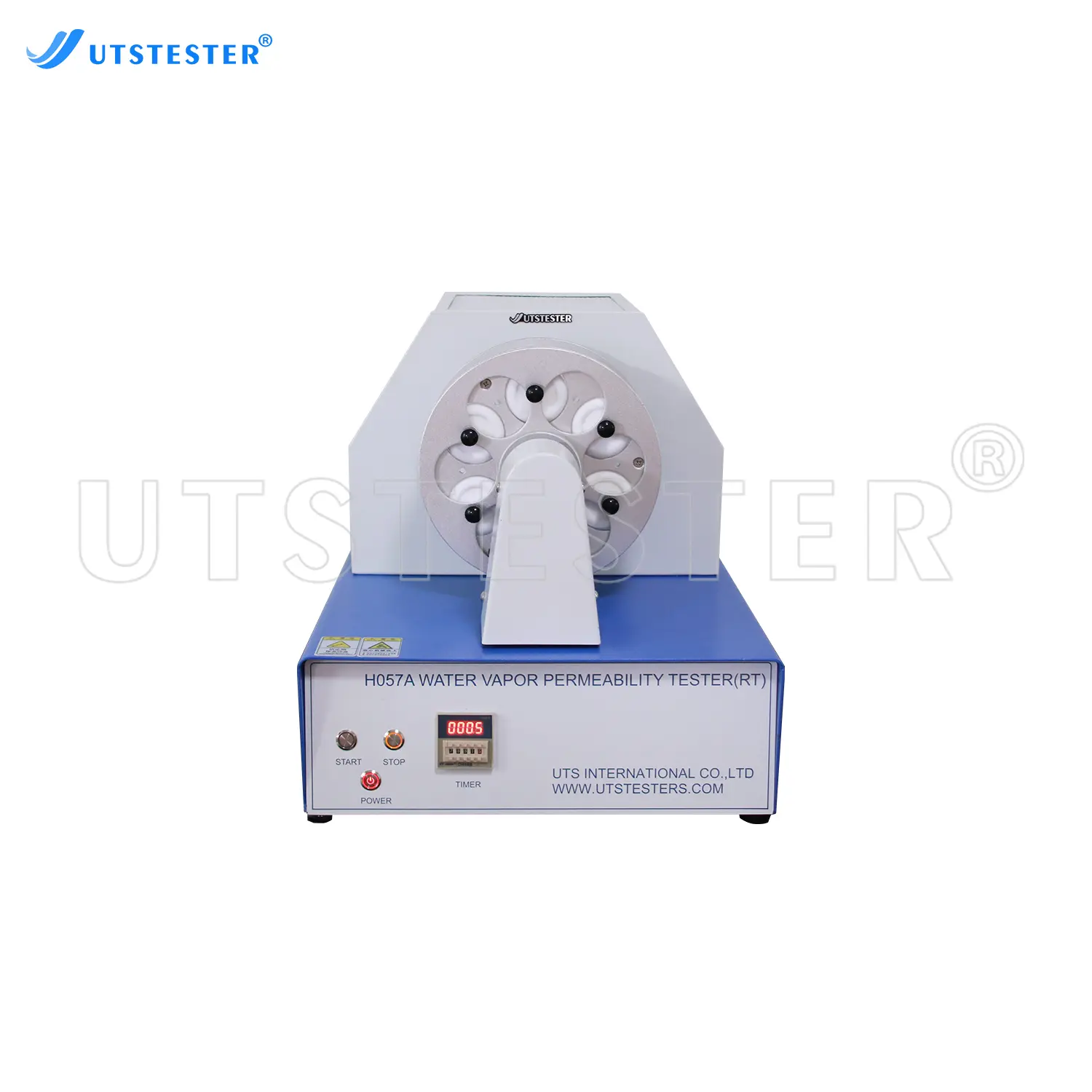

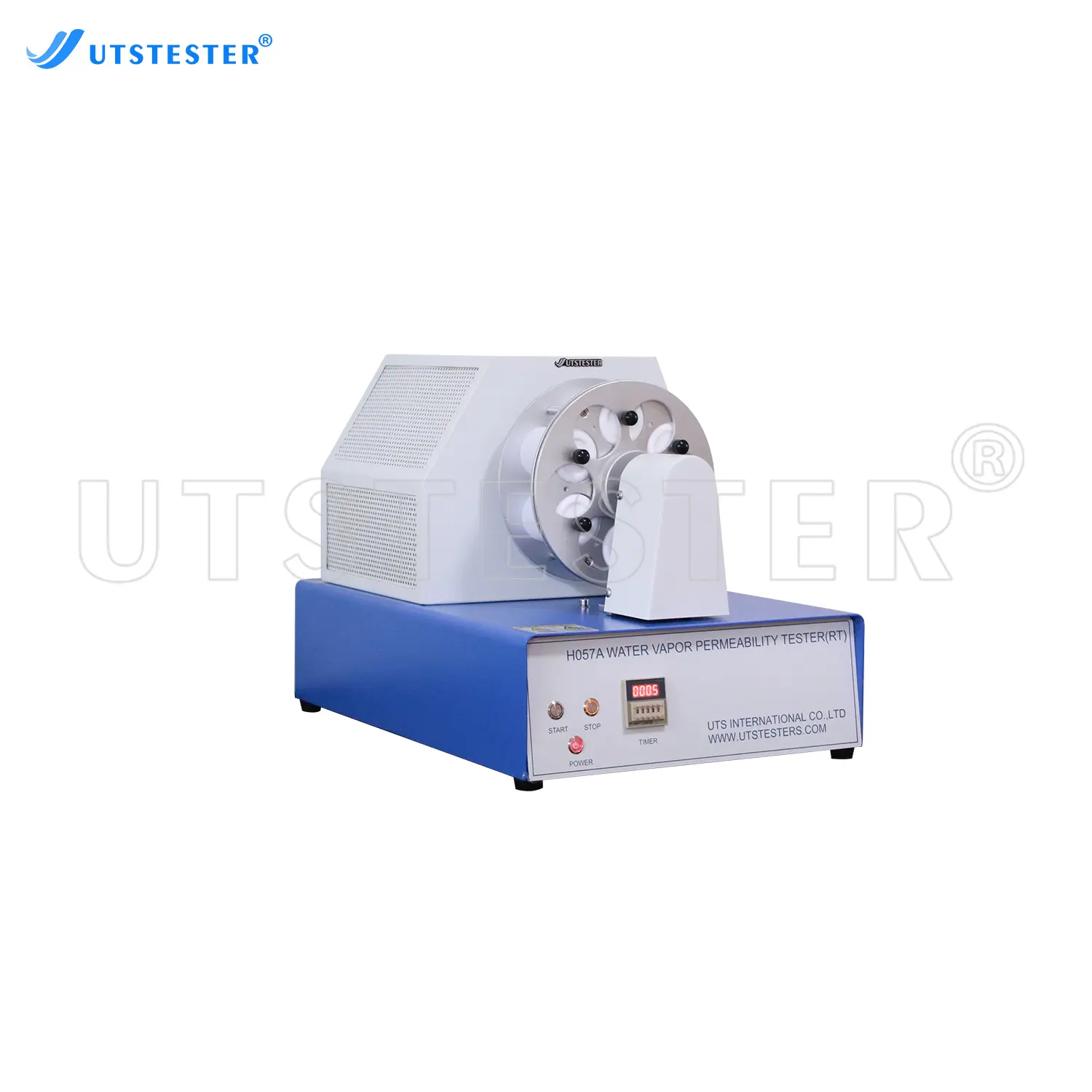

Fabric Moisture Permeability Tester Testing Principle Leather Water Vapor Permeability Tester H057A
Overview
The apparatus is used to measure the amount of water vapour released by a material at a specified time through its structure. This test is mainly applicable to leather and fabric materials used in shoes and fabrics, and can measure the ability of these materials to absorb the wearer's skin surface perspiration.
Application
Leather
Rubber
Standards
EN ISO 20344 Part 6.6, EN 344-1, DIN 5333, SATRA TM172, EN 13515 clause 7.1
Key Parameters
|
Model |
H057A |
|
Test position |
6 |
|
Beaker diameter |
30mm |
|
Beaker rotating speed |
75±5r/min |
|
Distance of beaker to fan |
10mm |
|
Dimension |
40*56*43cm |
|
Weight |
50kg |
Product Details
Test Bottle
Holder

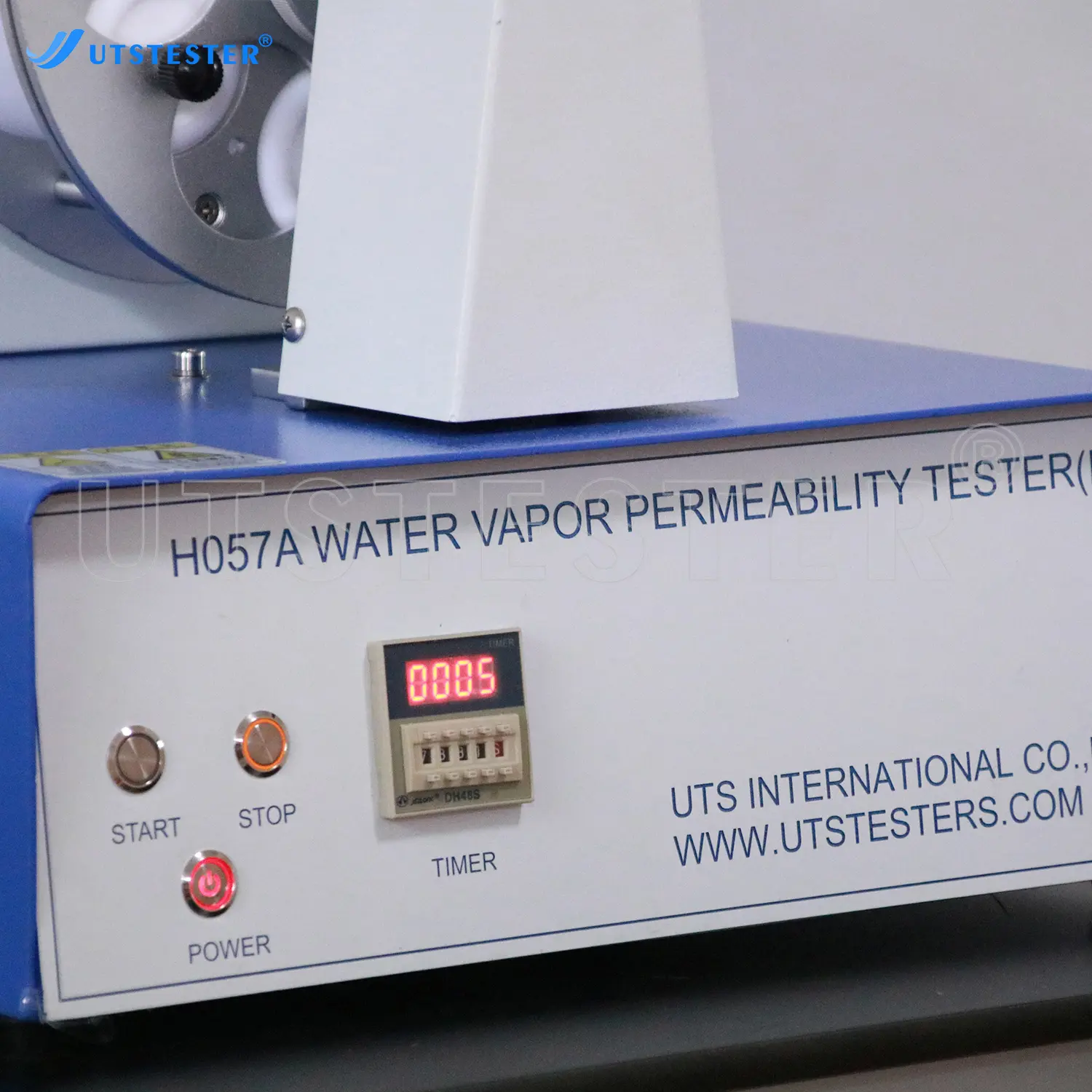

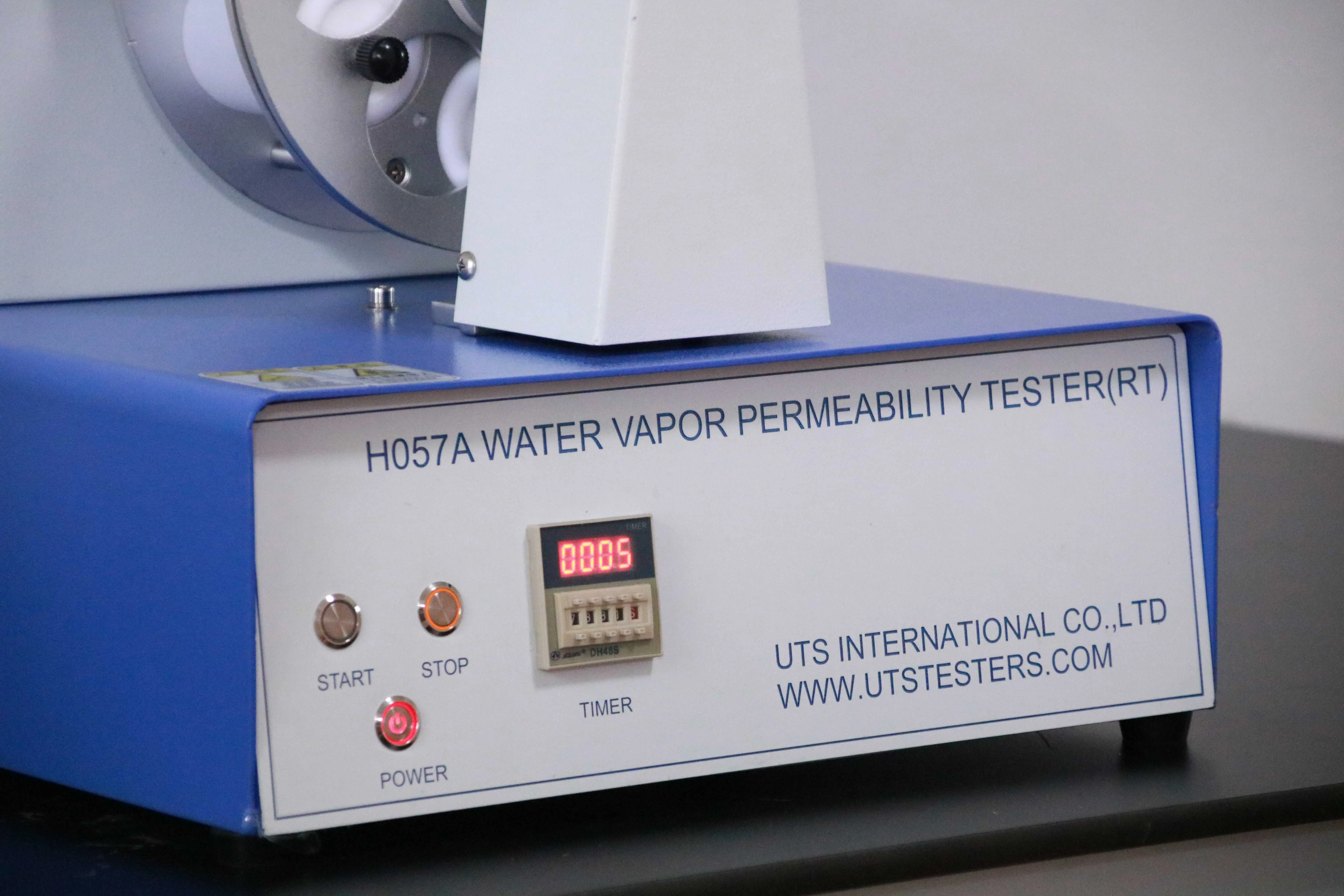

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
