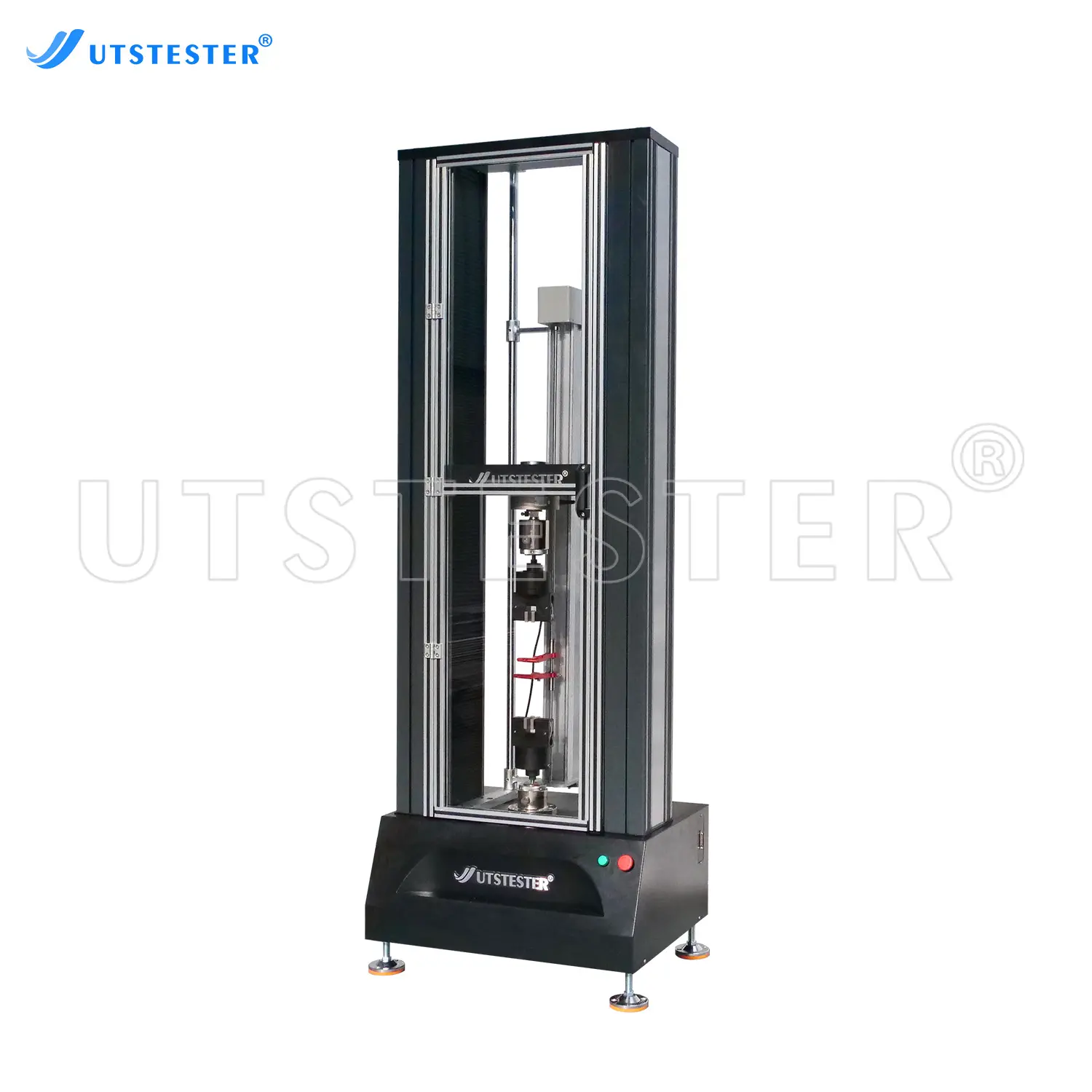

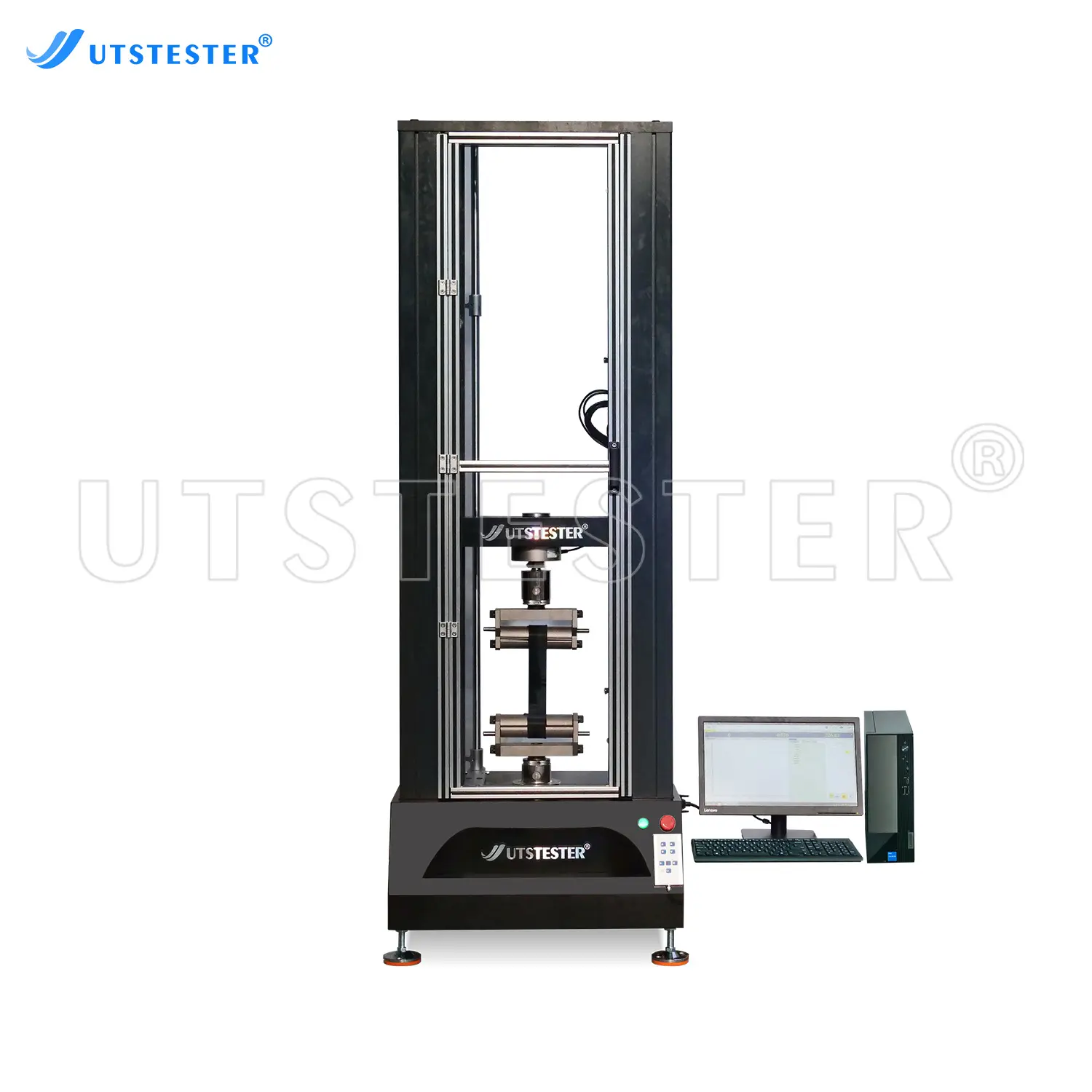

Fabric Tensile Tester Universal Tensile Strength Tester Elongation Testing Machine MA10-5
Overview
The machine can be widely used in metal and non-metal tensile, compression, bending and other mechanical properties of the test after equipped with the appropriate accessories. Applicable to quality supervision, teaching and research, aerospace, iron and steel metallurgy, automotive, rubber and plastic, woven materials and other test areas, is the production and manufacturing enterprises,building construction units, product quality supervision and inspection and building materials product testing department necessary testing equipment, but also for institutions of higher learning for students to do demonstration tests.
Application

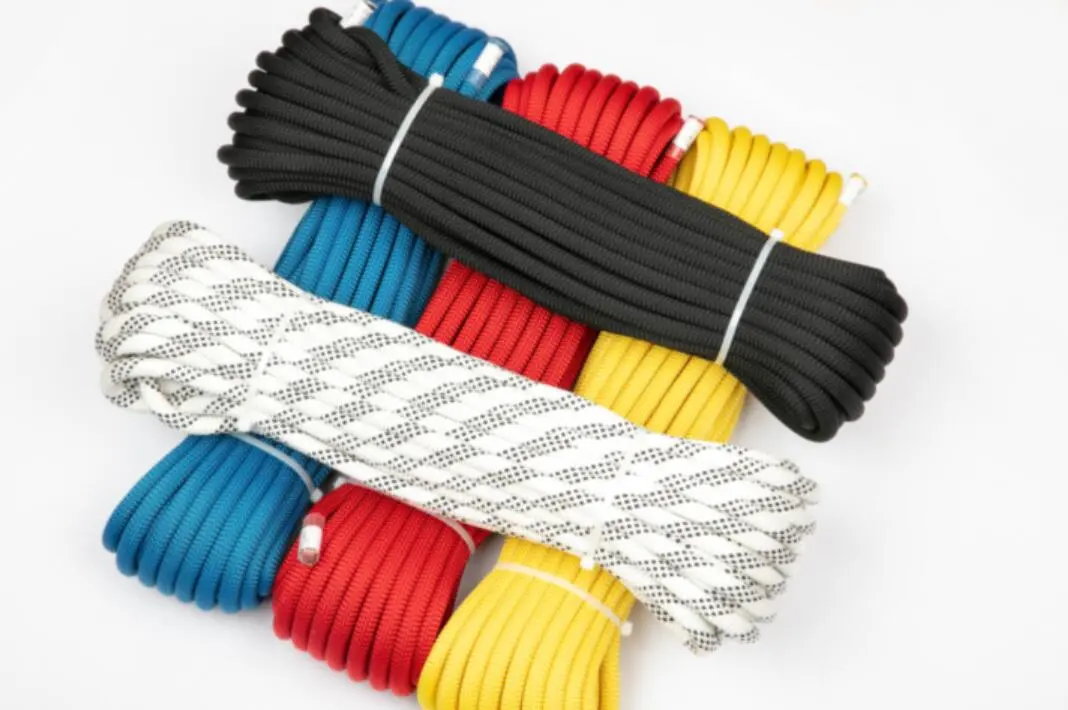

rope
Standards
FMVSS209 ISO 75001 Part 1: Tension/compression testing machines -- Calibration and verification of the force-measuring system;
Key Parameters
|
Model |
MA10-5 |
|
Max. load force |
100KN(10Ton) |
|
Test method |
Constant velocity extension (CRE) principle |
|
Force measurement range |
1% to 100% of the full range |
|
Test machine accuracy |
0.5 grade |
|
Accuracy of test force |
≤±0.5％ |
|
Resolution |
1/500000 |
|
Effective collection frequency |
50HZ |
|
Deformation index |
Maximu0.5%m value: 50mm Measurement range: 1%-100% Accuracy: better than ±0.5％of the indicated value |
|
Displacement measurement accuracy |
≤±0.5%, resolution: 0.001mm |
|
Speed range |
0.01mm/min ~ 500mm/min stepless speed regulation |
|
Speed accuracy |
≤±0.2％ |
|
Host power supply |
AC 220V±10% 50Hz 1.5KW |
|
Effective test width |
400mm |
|
Maximum spacing of cross pins |
1100mm |
|
Machine size |
820×630×1800mm |
|
Net weight |
450kg |
Product Details

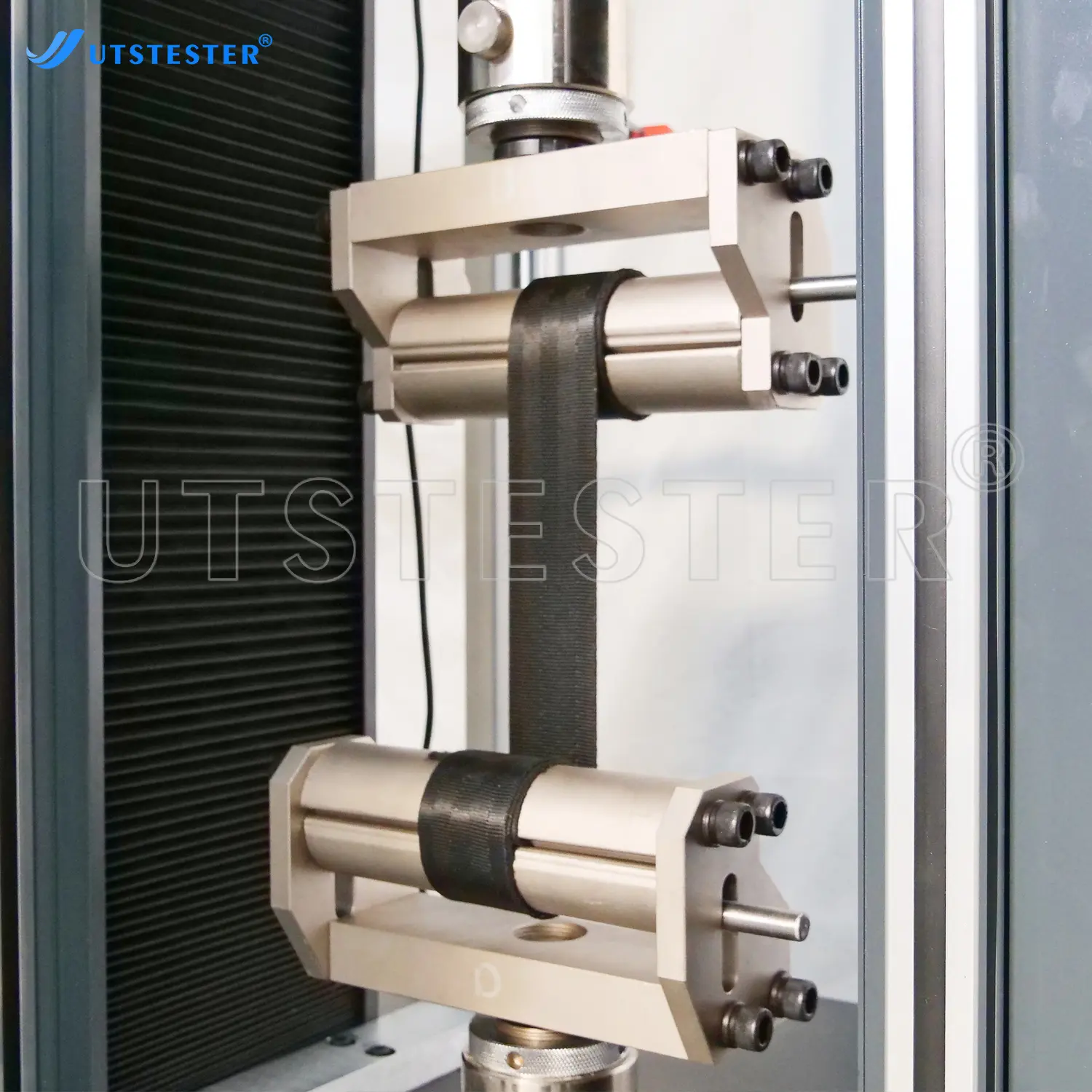

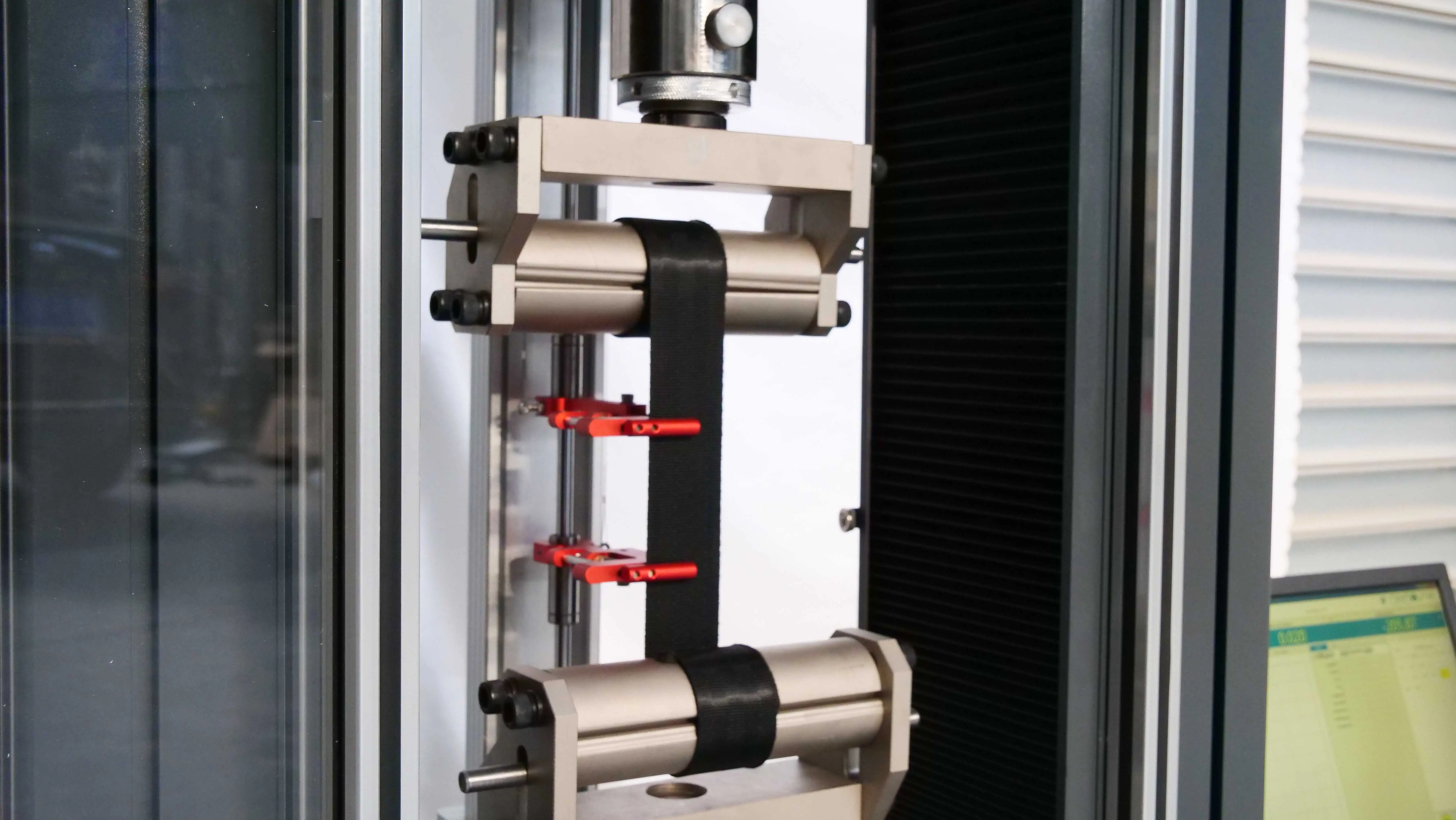

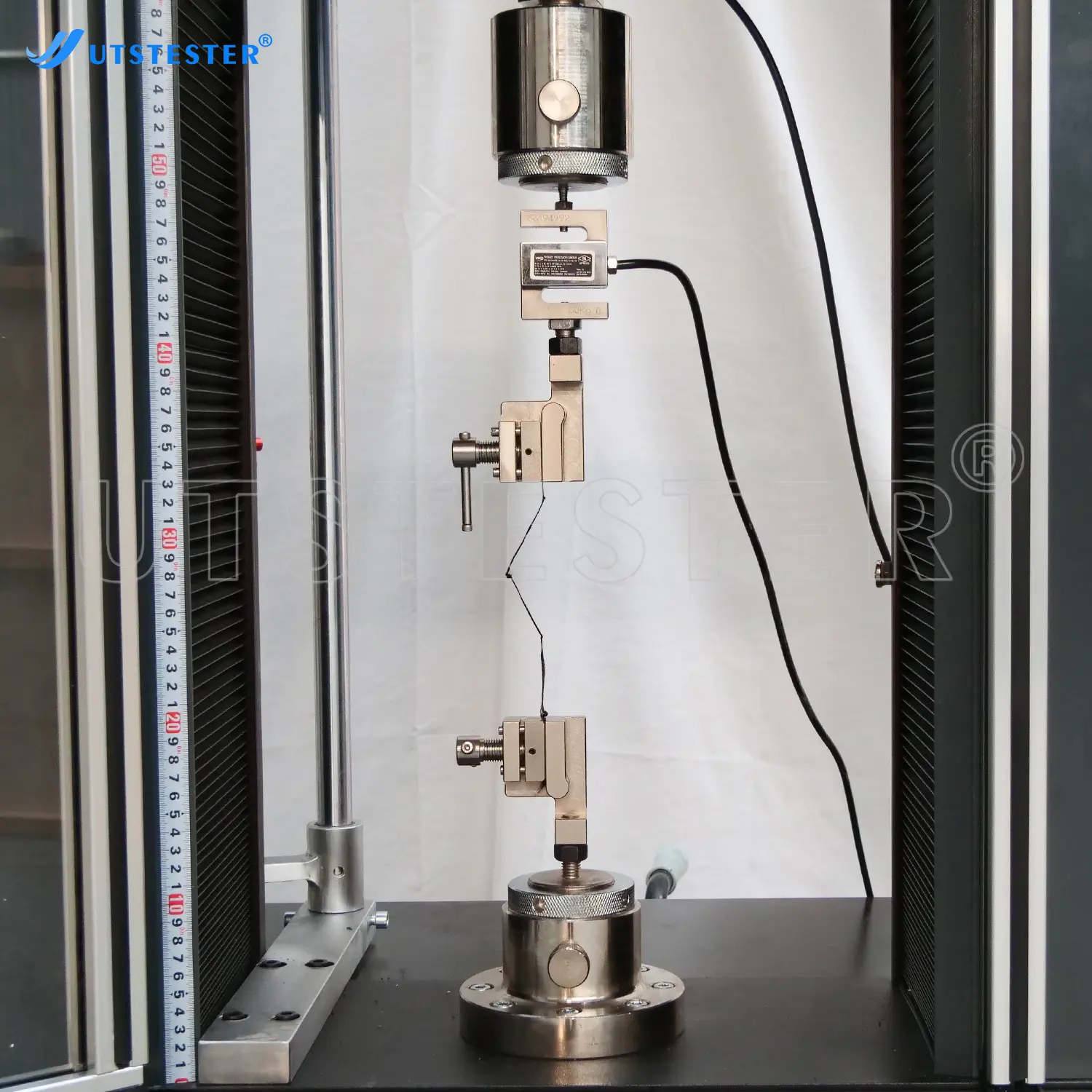

Grip

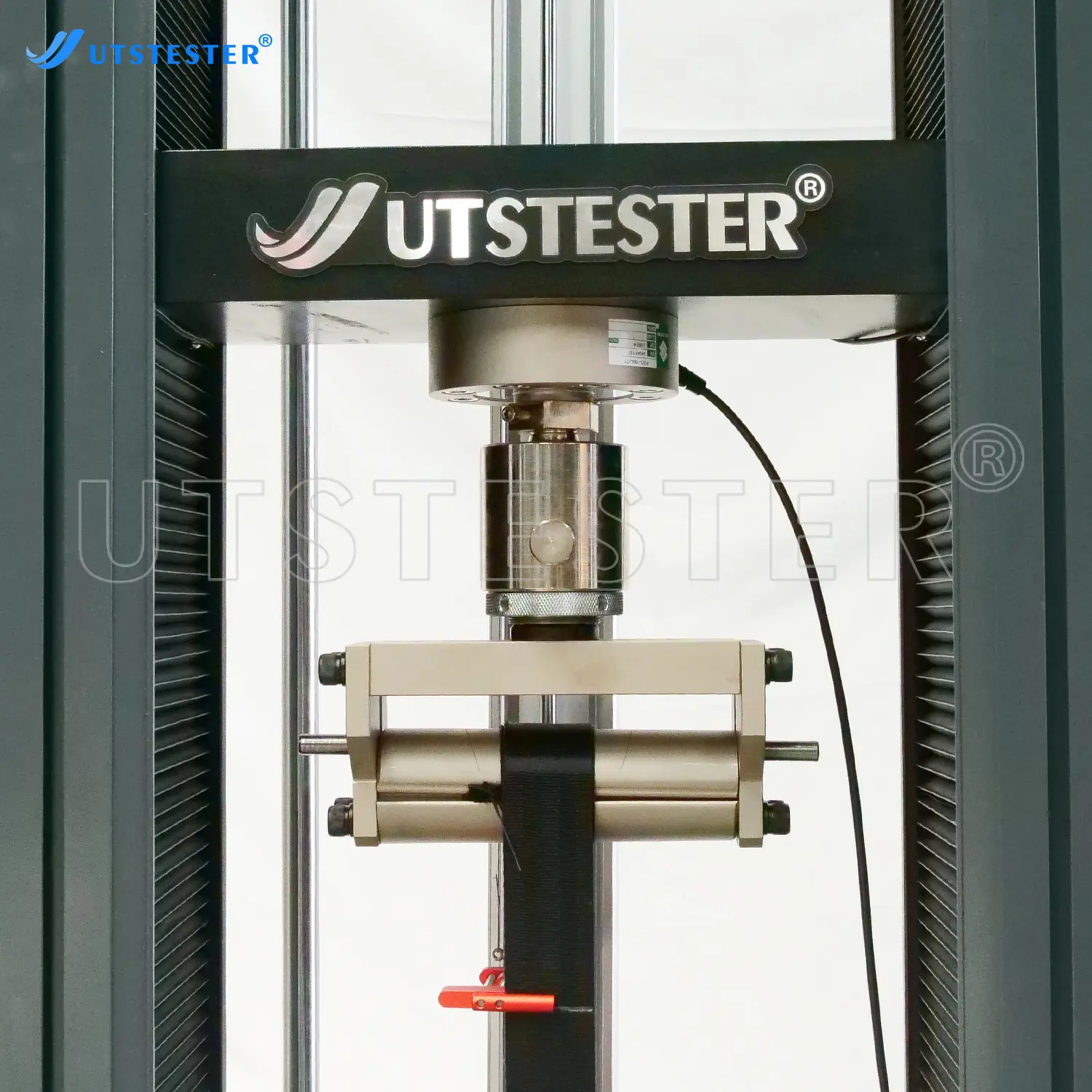

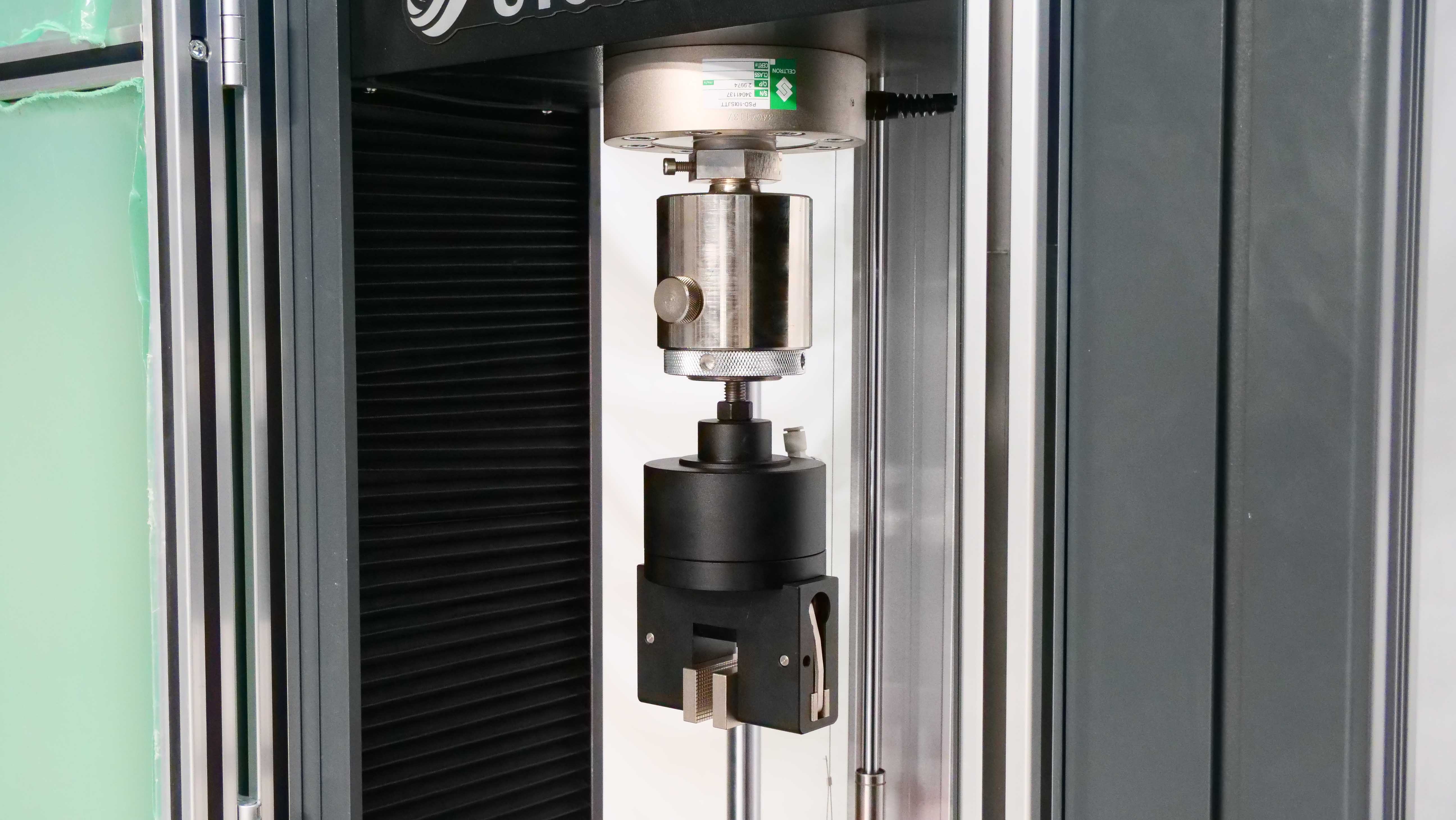

load sensor

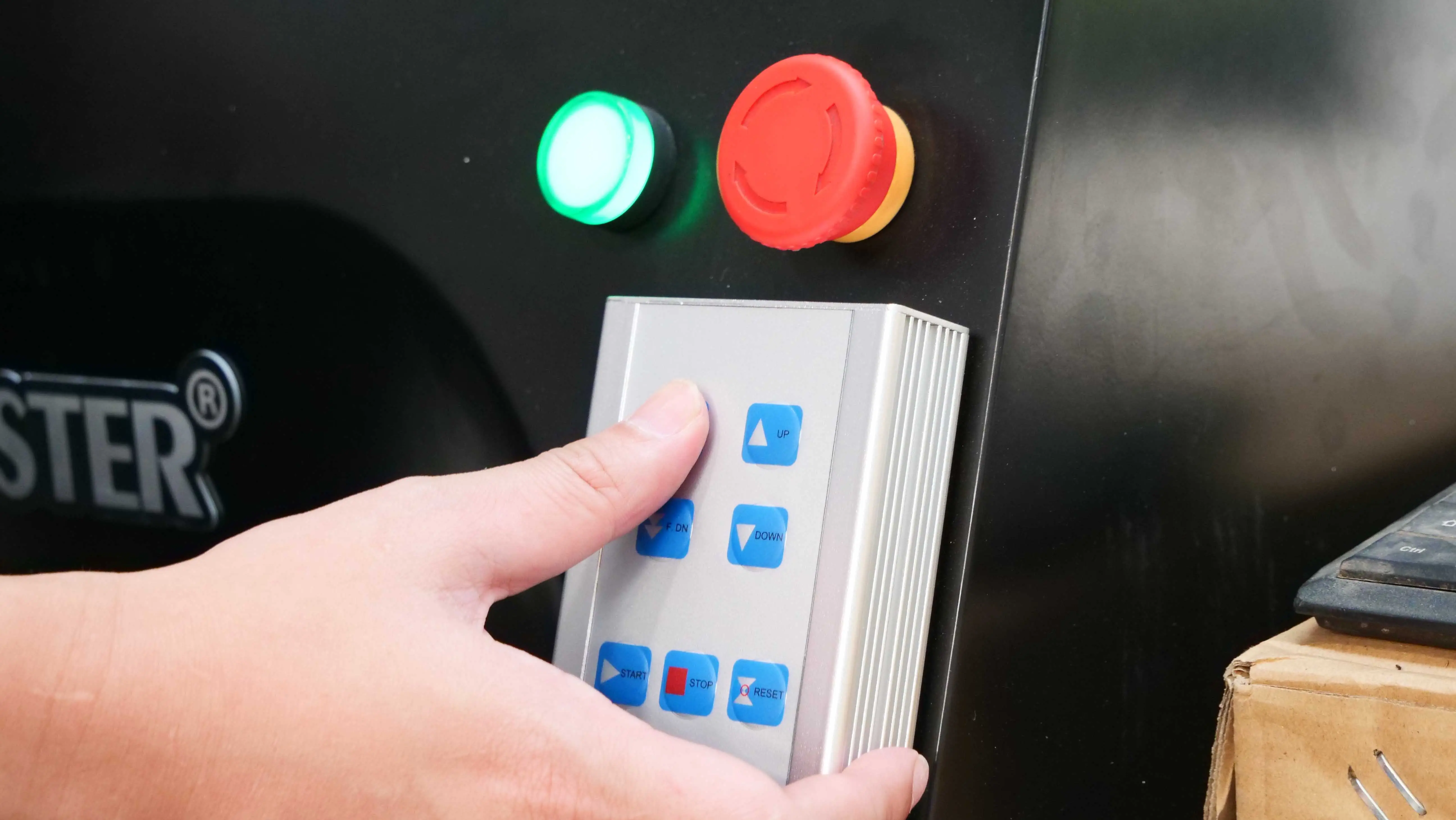

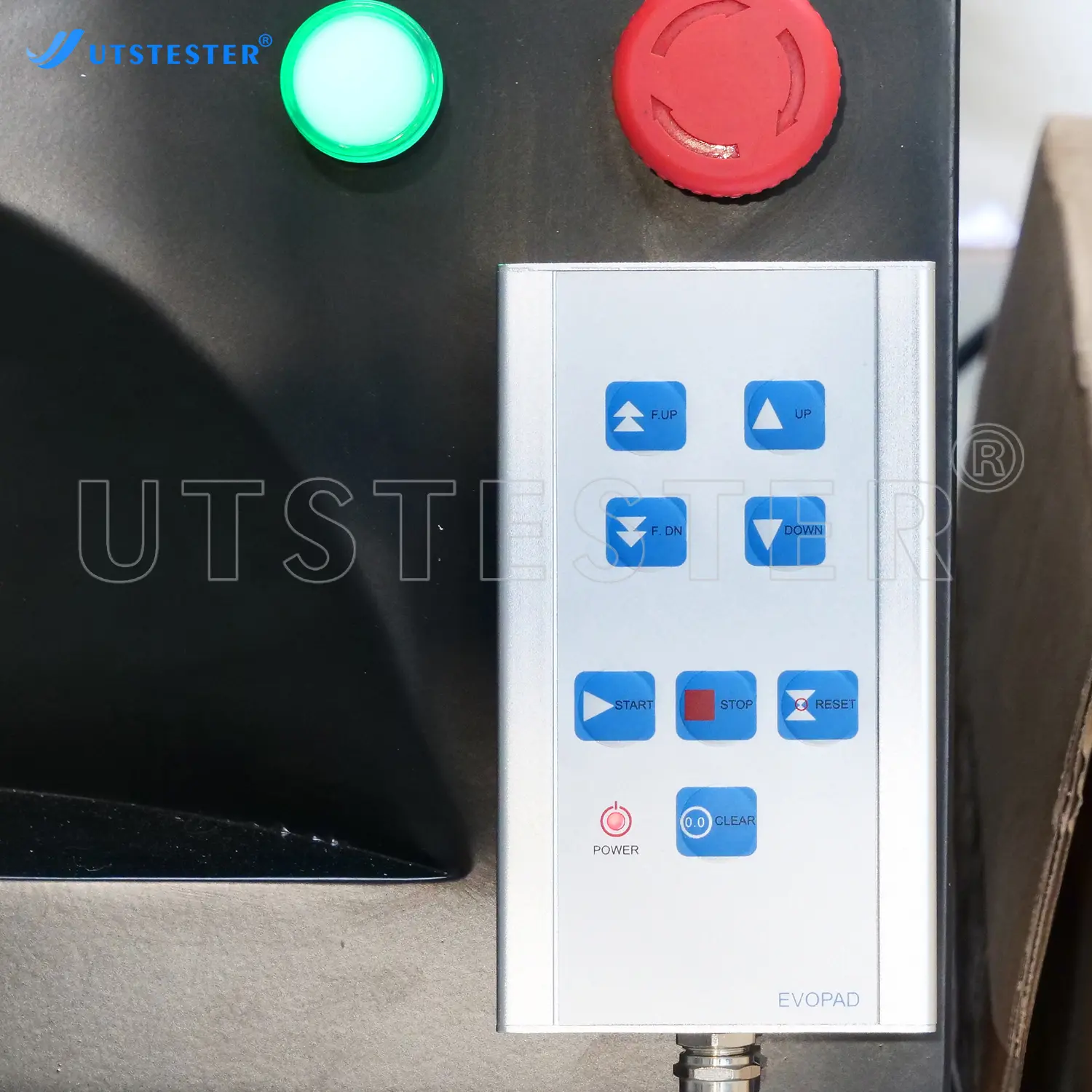

controller
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
