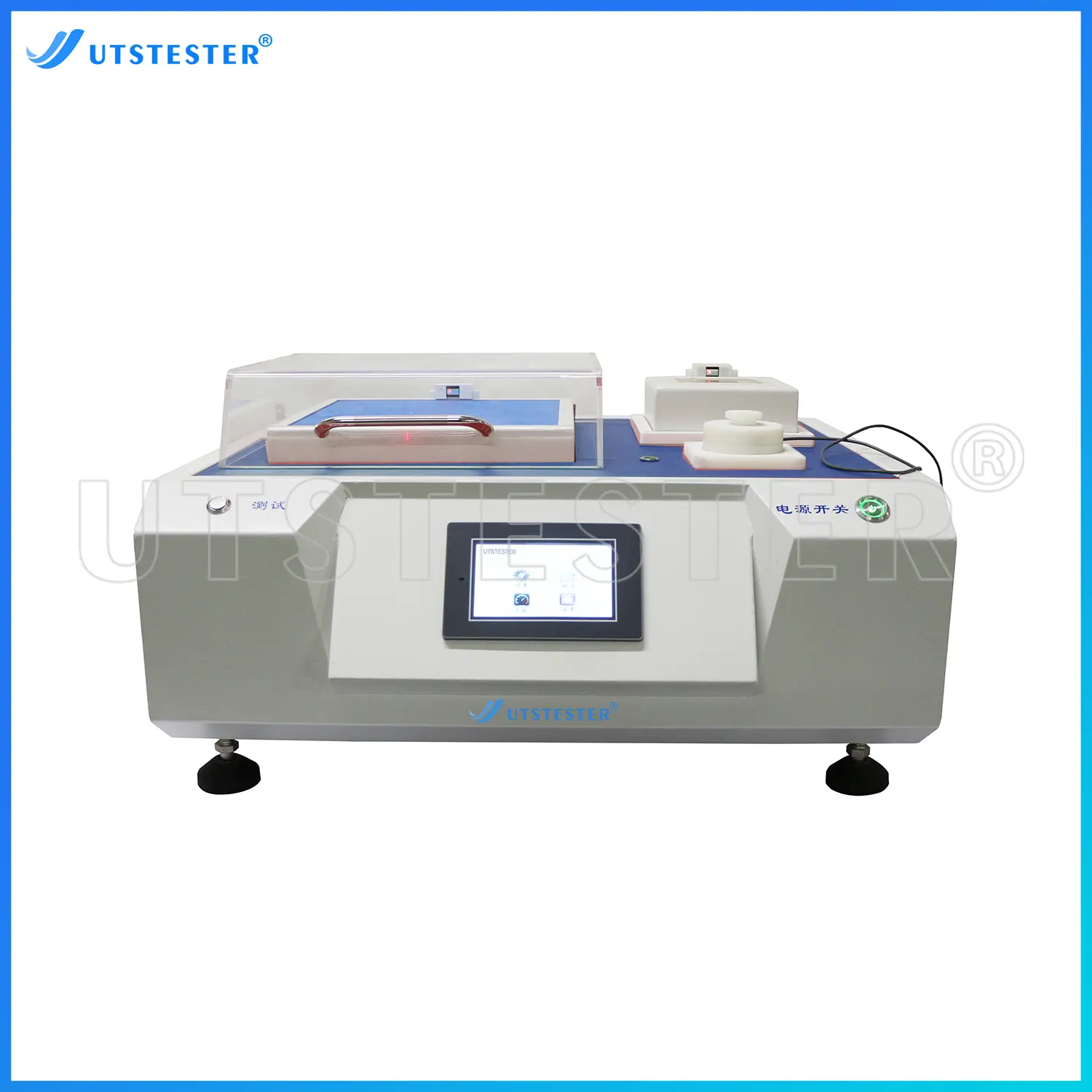

Fabric Testing Instruments Textile Surface Coolness Tester M125
Overview
Fabric coolness performance tester is the fabric and human skin contact fabric to the skin temperature stimulation in the human brain formed on the judgment of cold and warm; when the fabric and skin contact instant, due to the existence of temperature difference, the fabric and the skin will occur between the heat exchange, so that the skin's temperature increases or decreases; the fabric and the skin between the form of heat exchange is mainly heat conduction, the fabric of the internal heat radiation and the influence of natural convection is very small, can be Normally (except the environment temperature is higher than the skin temperature), the skin temperature is higher than the environment temperature, so the fabric tends to decrease the skin temperature after contacting with the skin.
Used to test the coolness of pajamas, bedding, fabrics, and underwear.
Application
pajamas
bedding
fabrics
Standards
GB/T 35263-2017
Key Parameters
|
Model |
M125 |
|
|
0.01℃ |
||
|
Test accuracy |
0.001J/(cm².s) |
|
|
Test time |
1~99s can be set |
|
|
Heating temperature range |
20~40℃ |
|
|
Heat testing plate |
Area |
9cm², |
|
Pressure |
0.9±0.09N/cm² |
|
|
Test bench size |
Length 220mm, width 220mm |
|
|
Electricity |
AC 220V 50Hz 100W |
|
|
External dimensions |
550 × 590 × 270mm |
|
|
Weight |
30kg |
|
Product Details

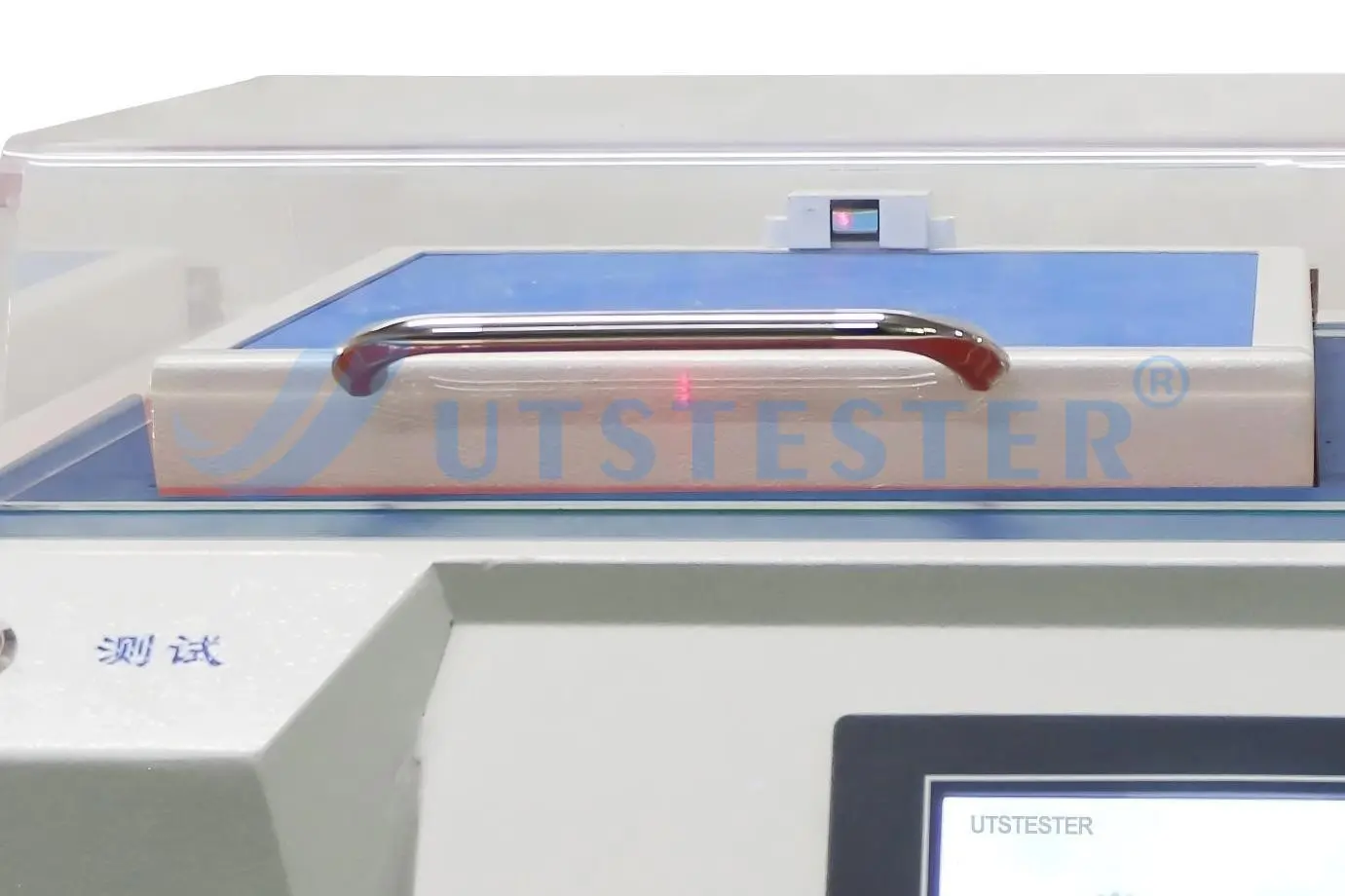

Sample test area

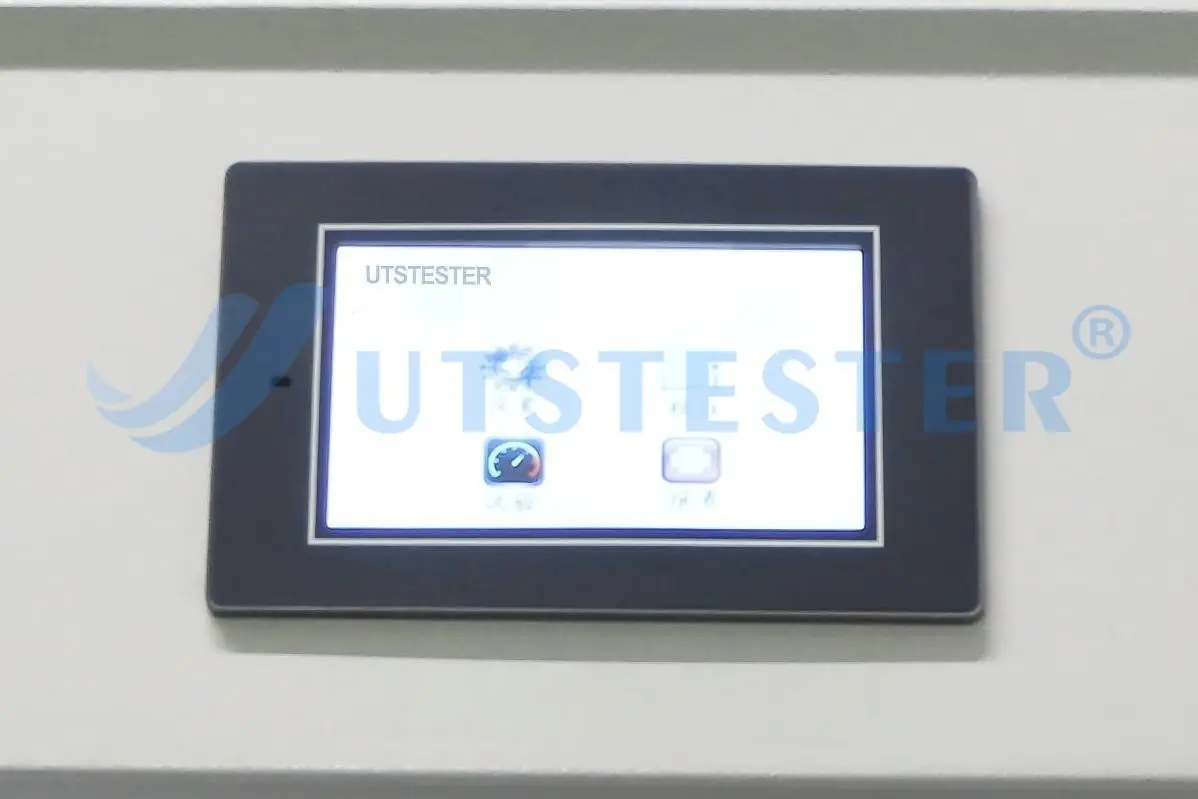

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
