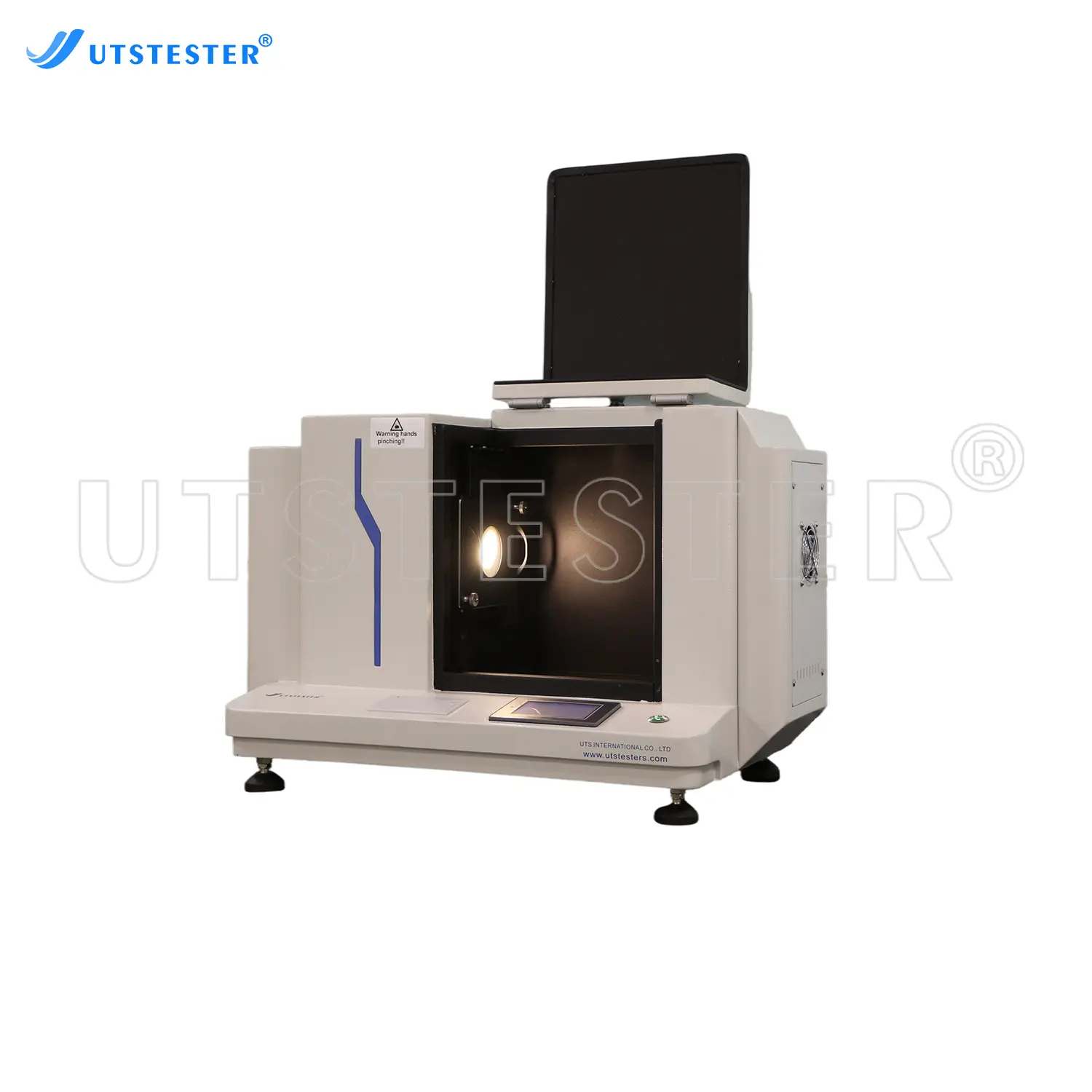

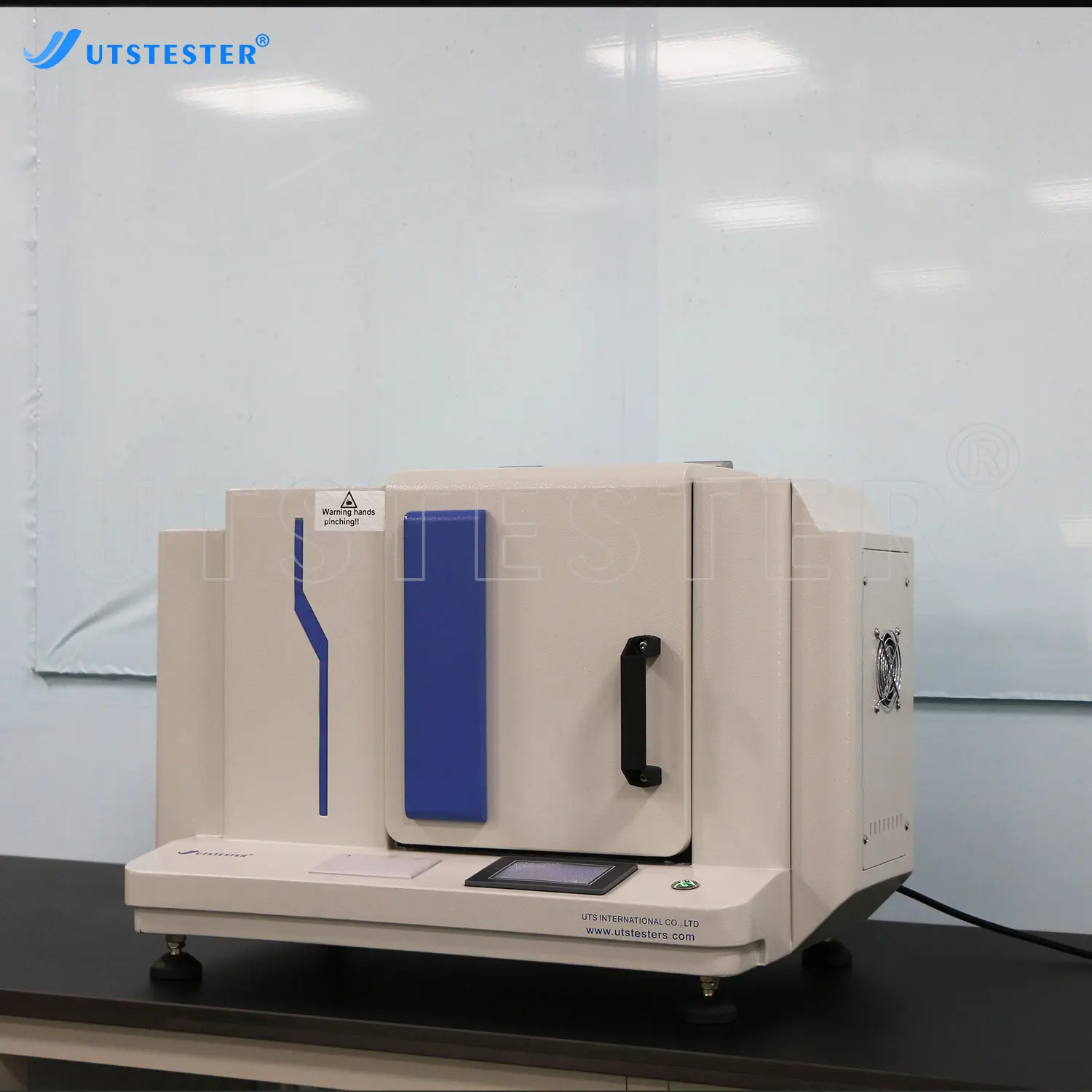

Fabric Testing Machine Light Blocking Effect Testing Machine M112
Overview
It is used to measure the total visible light transmittance of fabrics to evaluate the shading performance of fabrics. It is suitable for sheet textile products such as curtain materials.The instrument has unique design, compact structure, complete functions and convenient operation. The instrument is controlled by a single chip microprocessor and displayed with a color touch screen, which can realize full touch screen operation.
Application
Bed curtain
Window curtain
Window curtain
Standards
AATCC 148-2015
Key Parameters
|
Model |
M112 |
|
Test illumination |
about 7,000 lux |
|
Sensor measurement range |
0-200K LUX |
|
Sensor measurement accuracy |
±2% |
|
Light source parameters |
AC12V 5W LED lamp cup |
|
Color temperature of light source |
6000-6500K white light |
|
Bulb life |
about 15,000 hours |
|
Power source |
AC 220V±10% 50Hz 200W |
|
Overall dimensions |
765×410×504mm |
|
Weight |
30kg |
Product Details

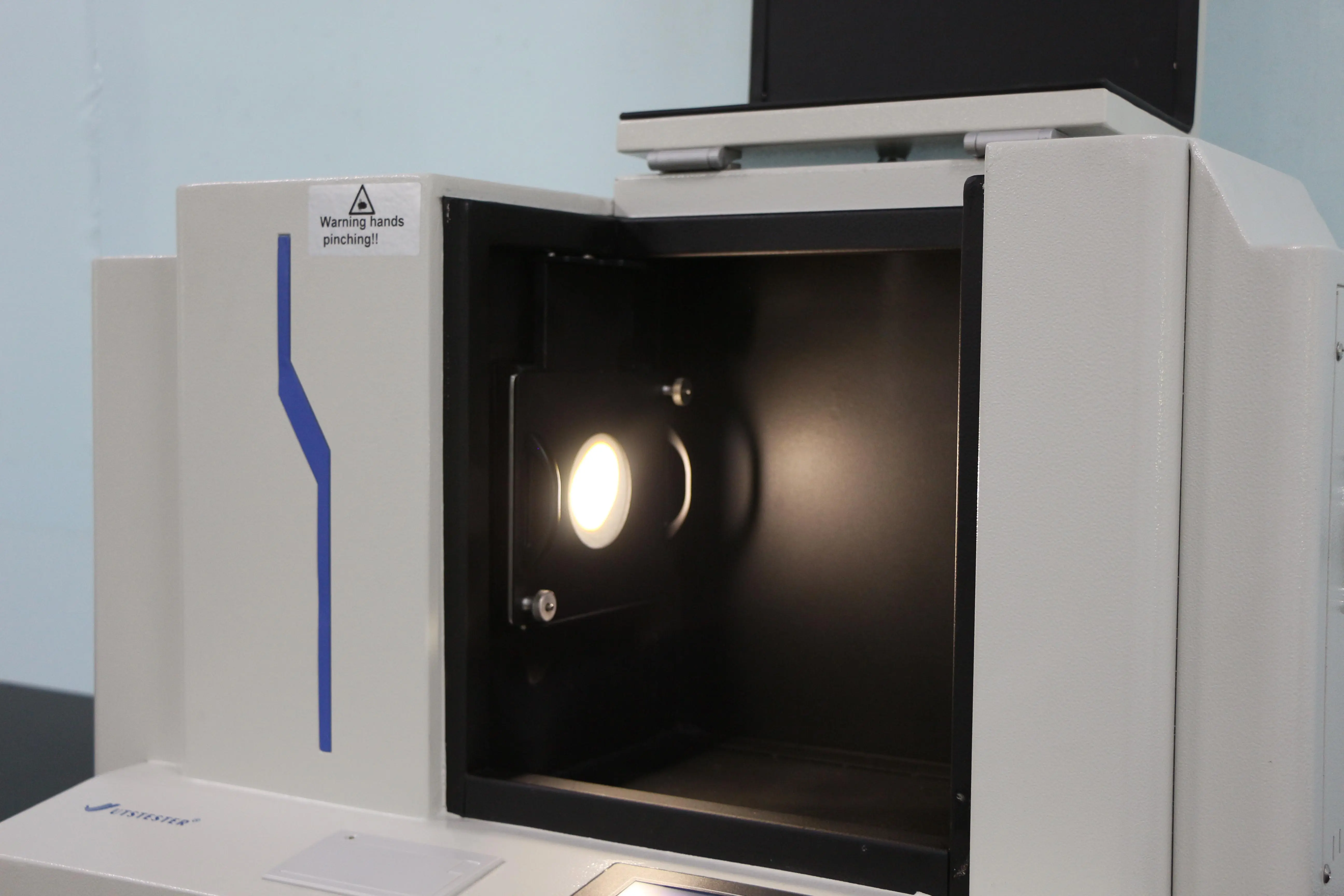

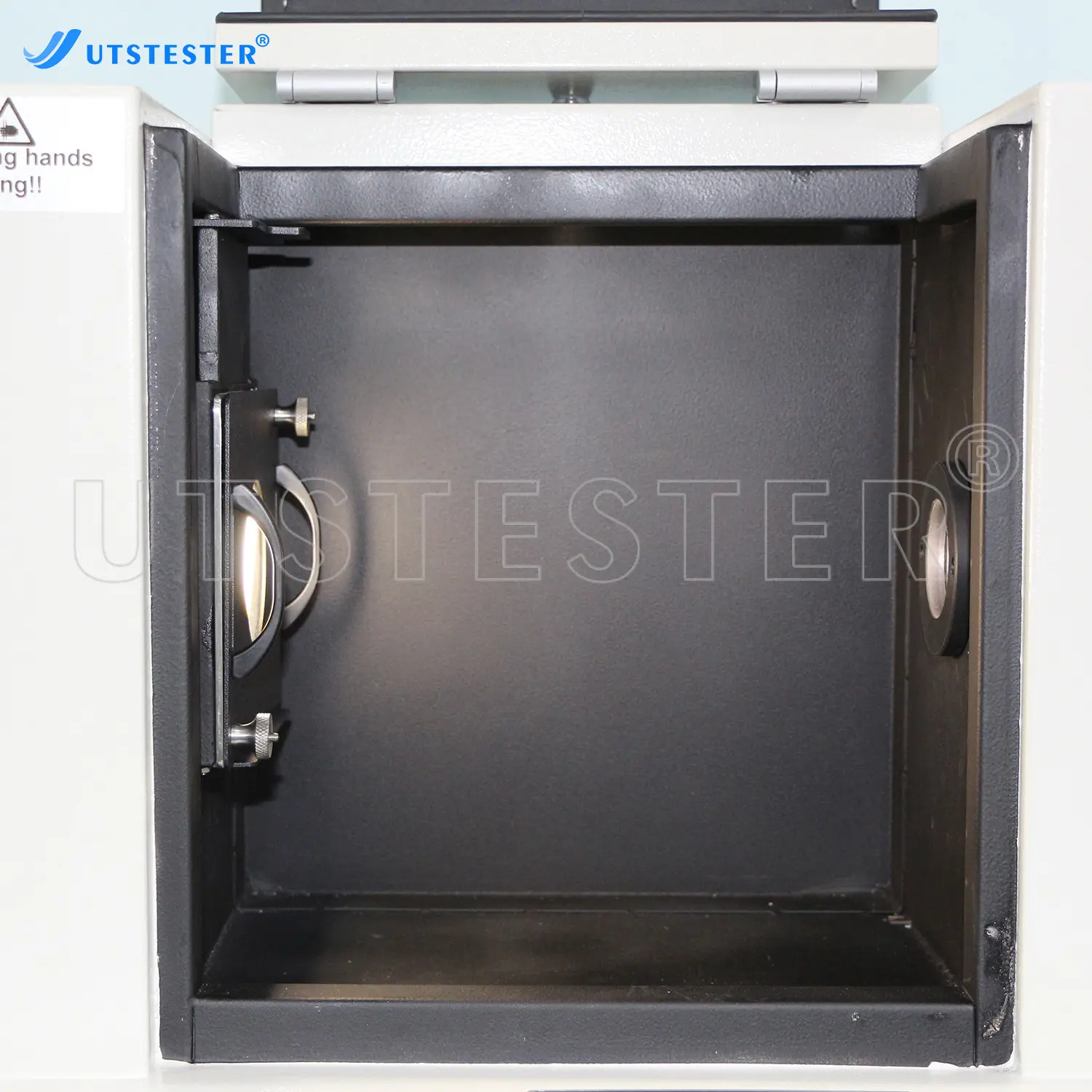

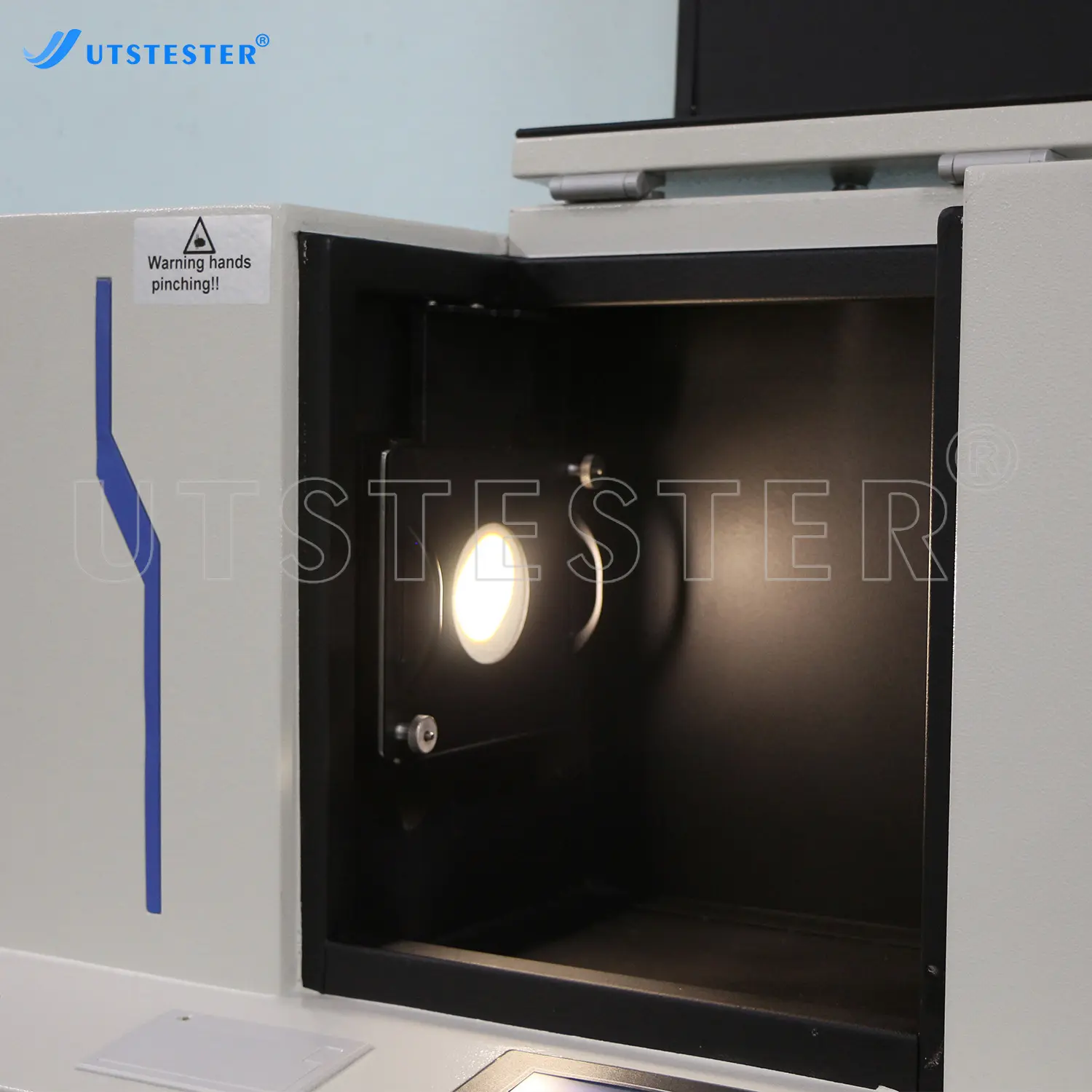

Test chamber

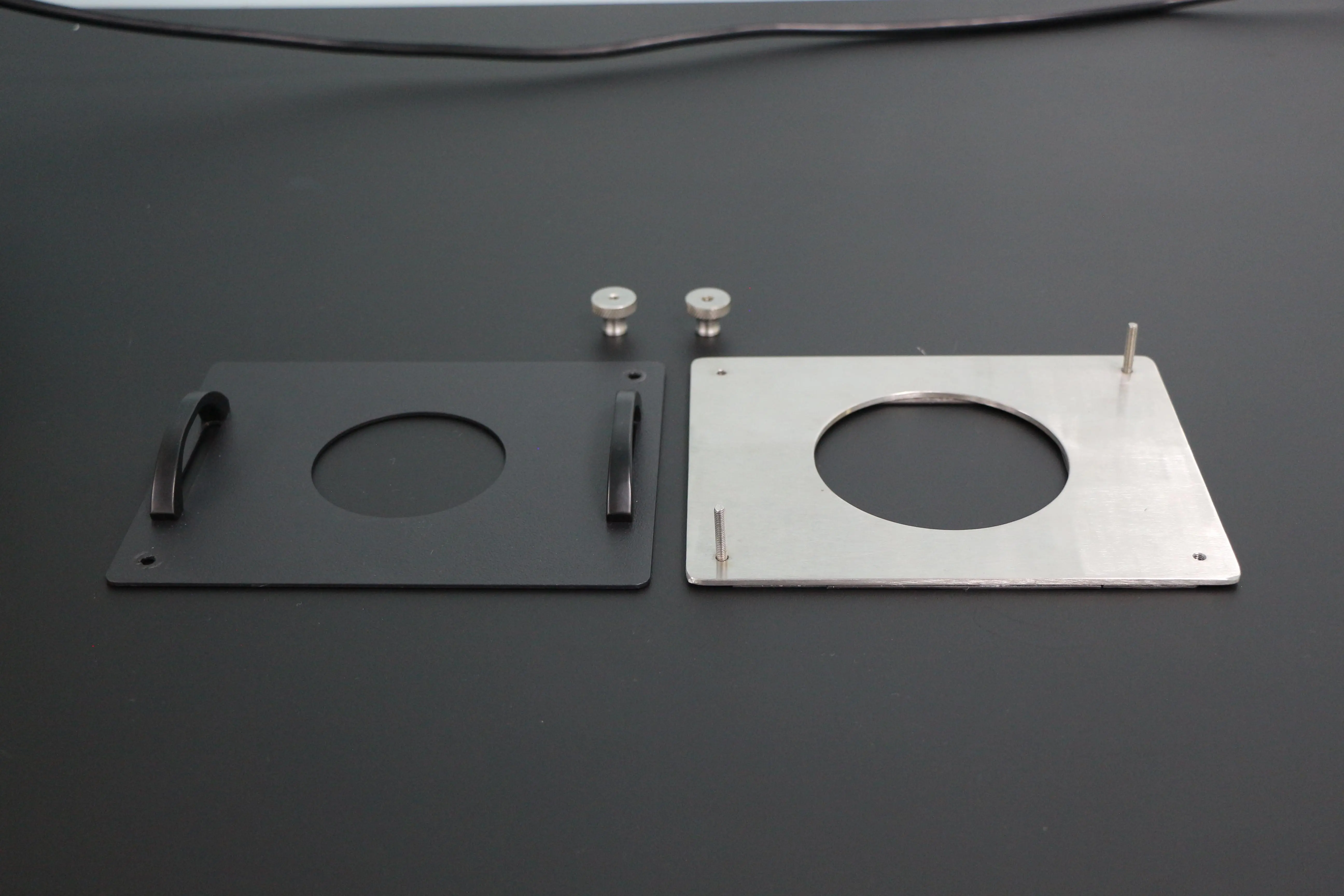

Sample Fixture

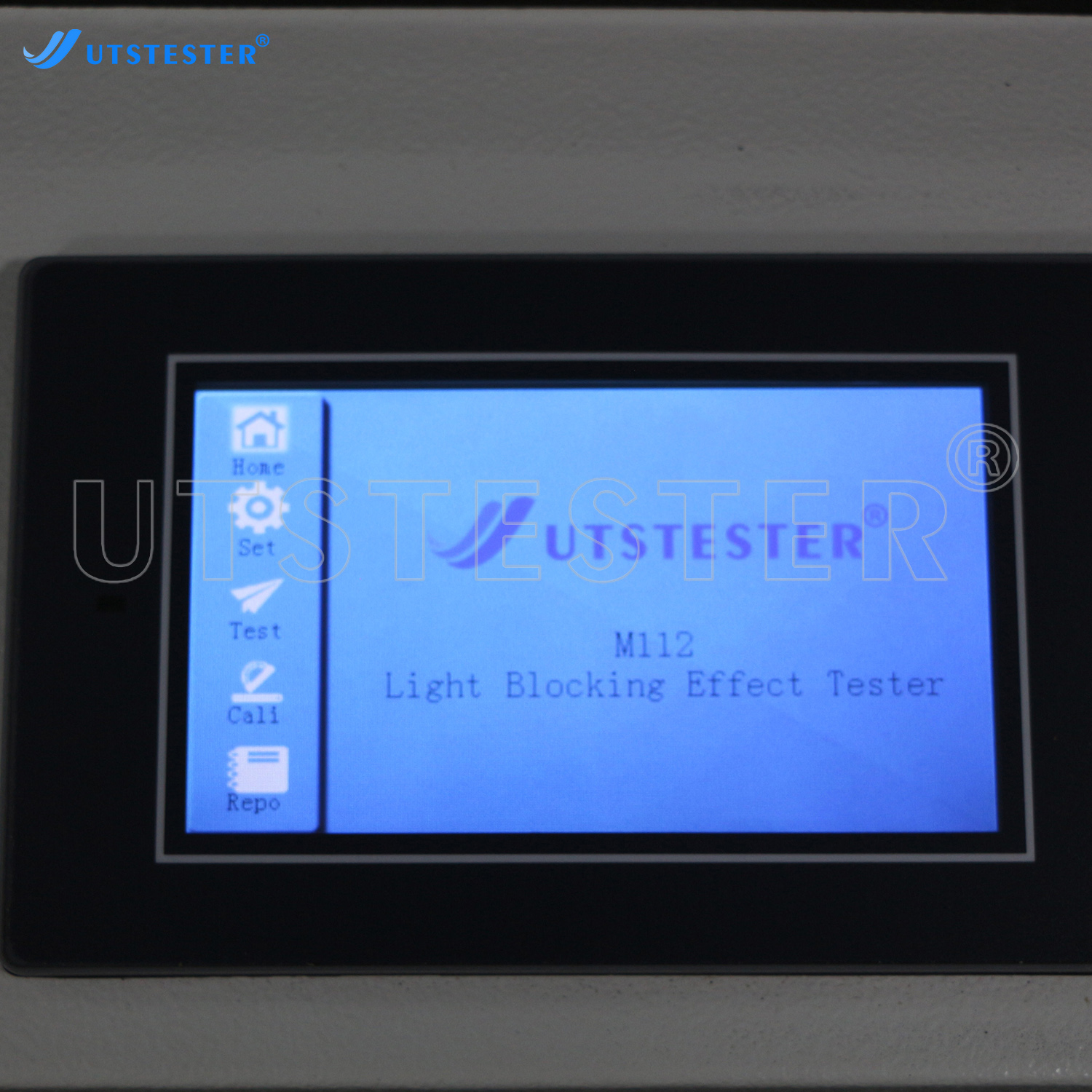

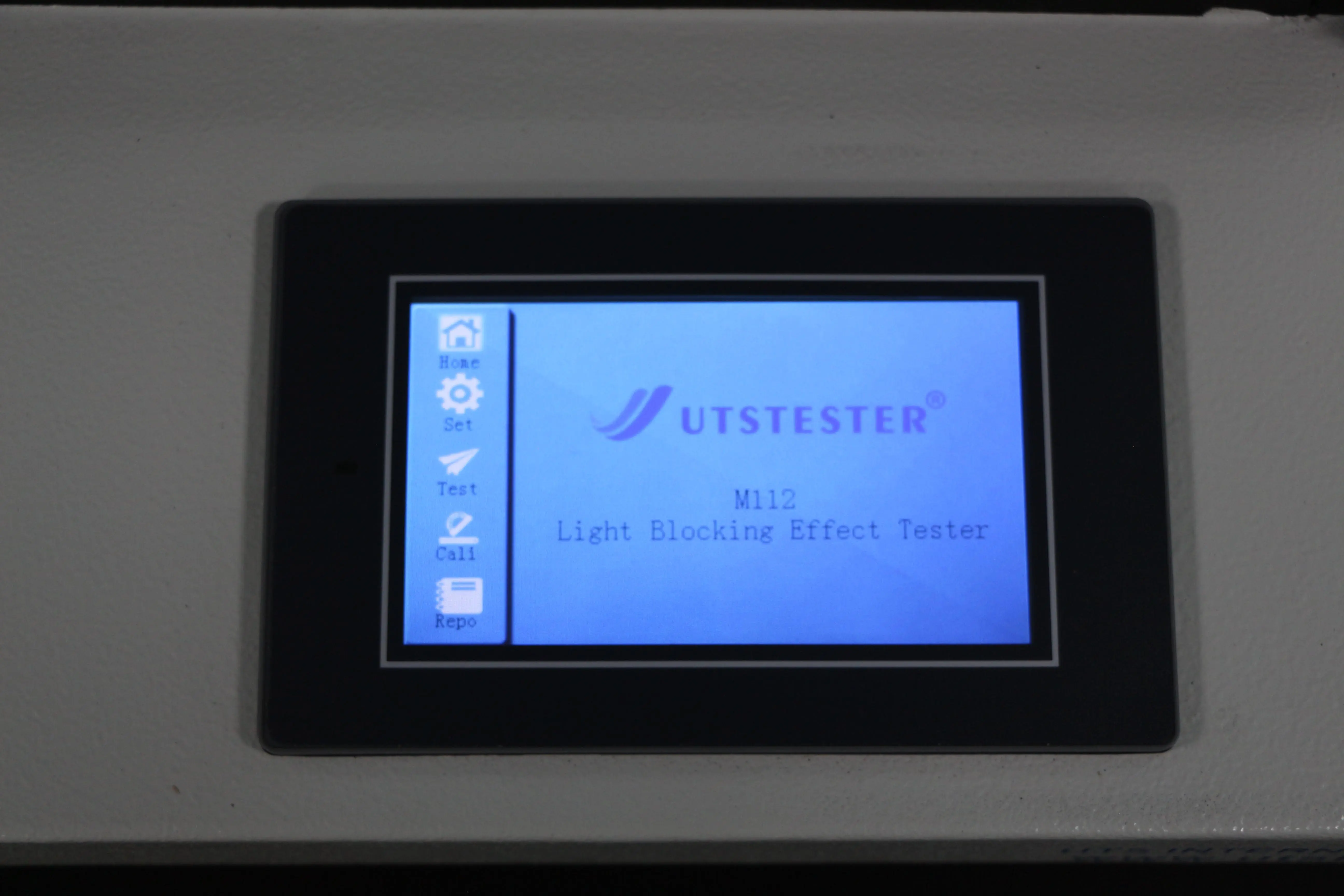

Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
