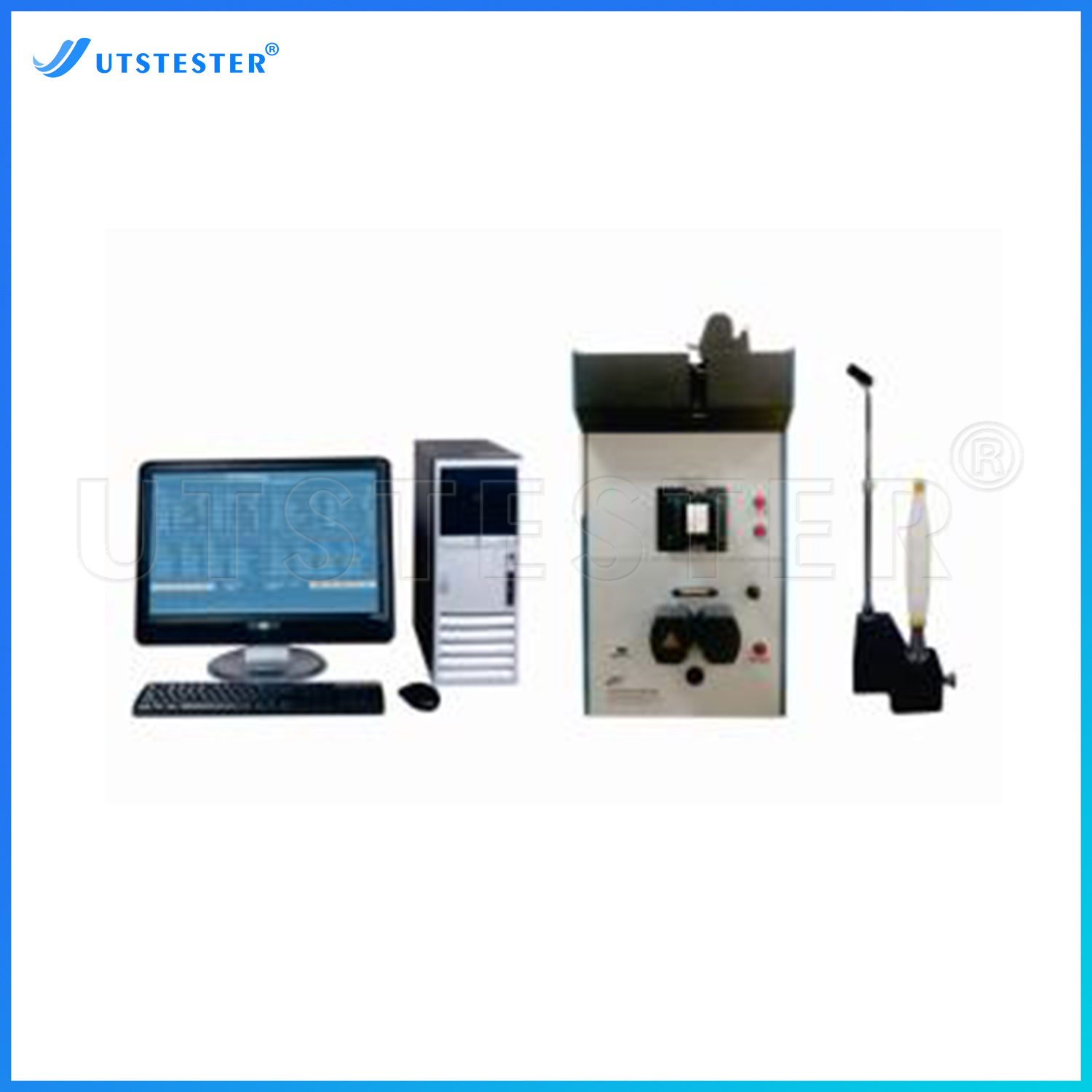

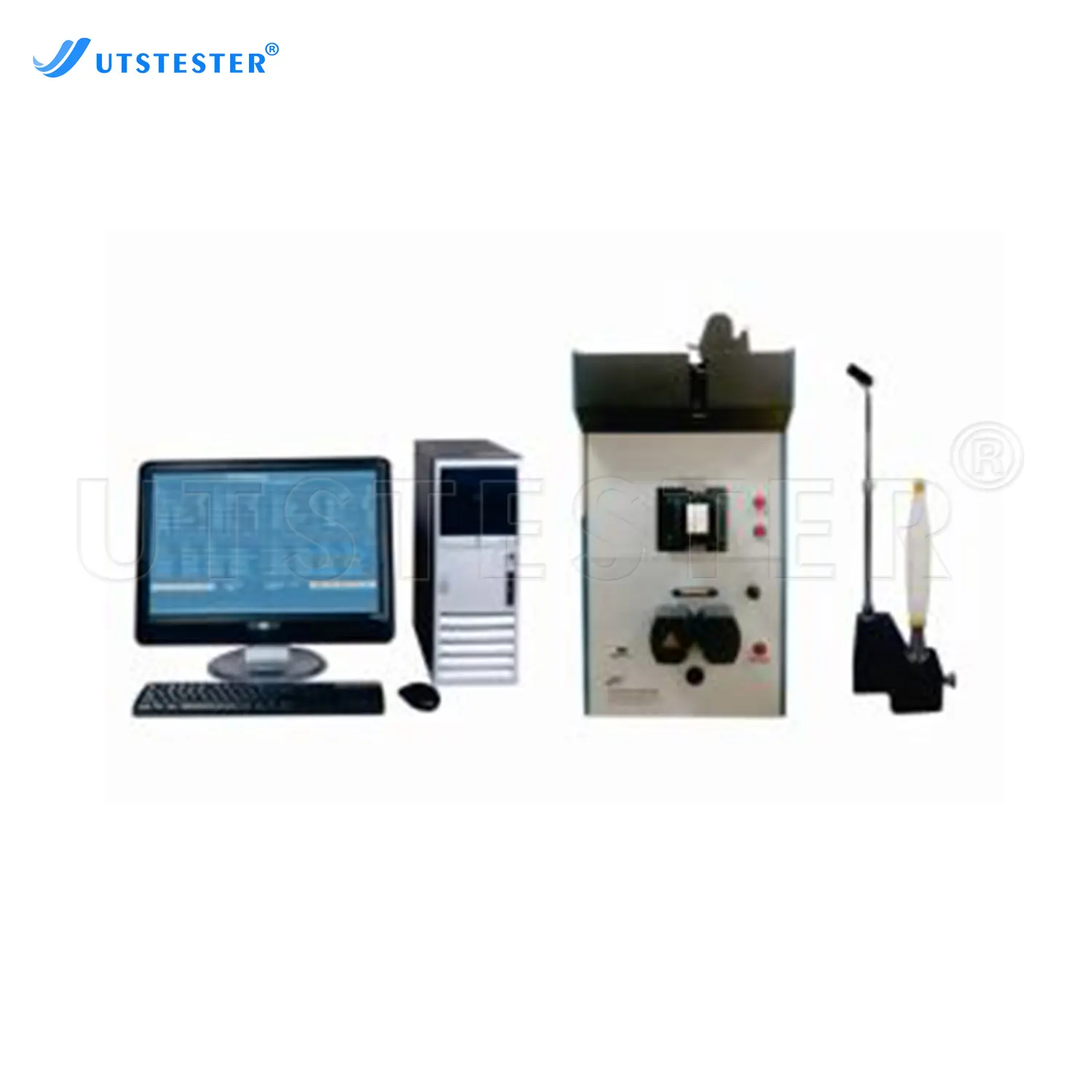

Fabric Testing Machine Yarn Evenness Tester Determination of Yarn Y010F

1. Adopt advanced driving technology to realize the 800m/min high-speed test.
2. The detection sensor is automatically moved and changed according to the fineness of the yarn measured, and the test results are more accurate.
3. Automatically teariness to zero, automatically adjust the mean value, which is more convenient and more efficient.
4. Expert analysis system can evaluate yarn quality level and provide users with technical and equipment failure analysis results.
5. Unique CV－L curve analysis software can quantitatively analyze the process of yarn non-periodic irregularity and can be traced back to the production process in real time.

product details

Production Processes

Packing System

Overview

Specially designed to determine spun yarn’s evenness only.

Application

Yarn

Roving

Standards

Key Parameters

Model	Y010F
Test Slot	3
Test range	4tex~160tex
Evenness test speed	4, 8, 25, 50, 100, 200, 400, 800m/min
Test time	Freely setting between 10Sec~20min
CV%, U% value range	0.2%-100%
Variation - Length curve	Cutting length 1cm-1500m
Defect value	Simultaneously output 12 grades’ defect value Thin: -30%, -40%, -50%, -60% Thick: +35%, +50%, +70%, +100% Nep: +140%, +200%, +280%, +400%
Wave spectrogram	170 channels, wavelength 1cm-2950m
The frequency distribution of the linear density	-100~+100%, +100%~+400%
Drift rate (DR%) value	Output DR(1m, +5%), DR. (1m, -5%), DR(20cm, +35%) DR(20CM, -30%), 4dr %
A single group of measurement times	≦20, can simultaneously measure two varieties Same type: Maximum 10 groups including 200 tubes data statistic
Power supply	220V±10% 50Hz±5Hz ≤500VA

Product Details

Hosts

Computer software

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
