Flammability Test Equipment

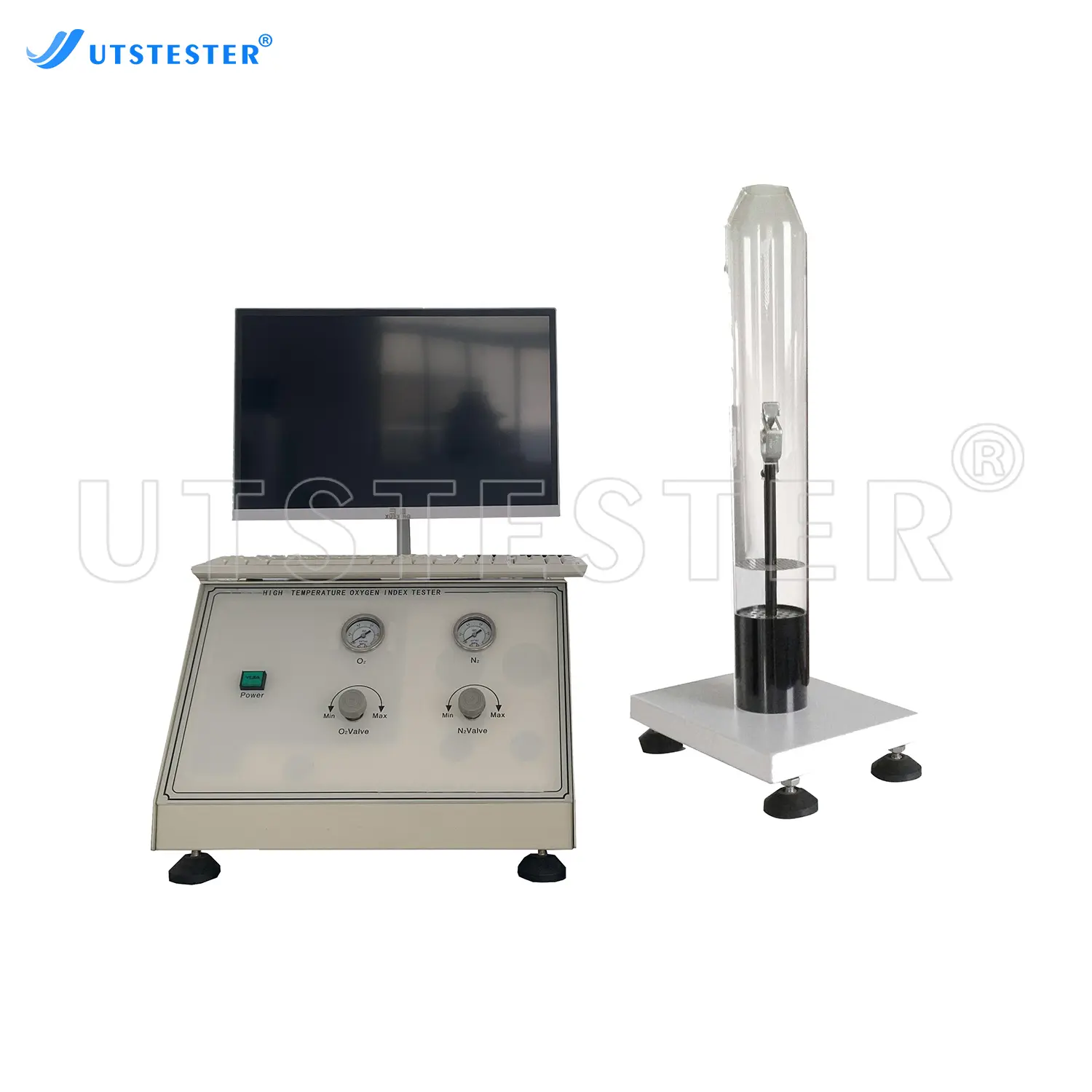

1. Controlled by computer software, the operation is simpler and more user-friendly.
2. The mass flow meter controls the flow of oxygen and nitrogen, which greatly improves the mixing accuracy and stability.
3. Imported paramagnetic oxygen sensor, high sensitivity and long-term use without replacement, saving costs.
4. Multiple mixing tanks to ensure uniform mixing and stable output concentration.
5. The test data is directly converted into EXCEL report without manual calculation.

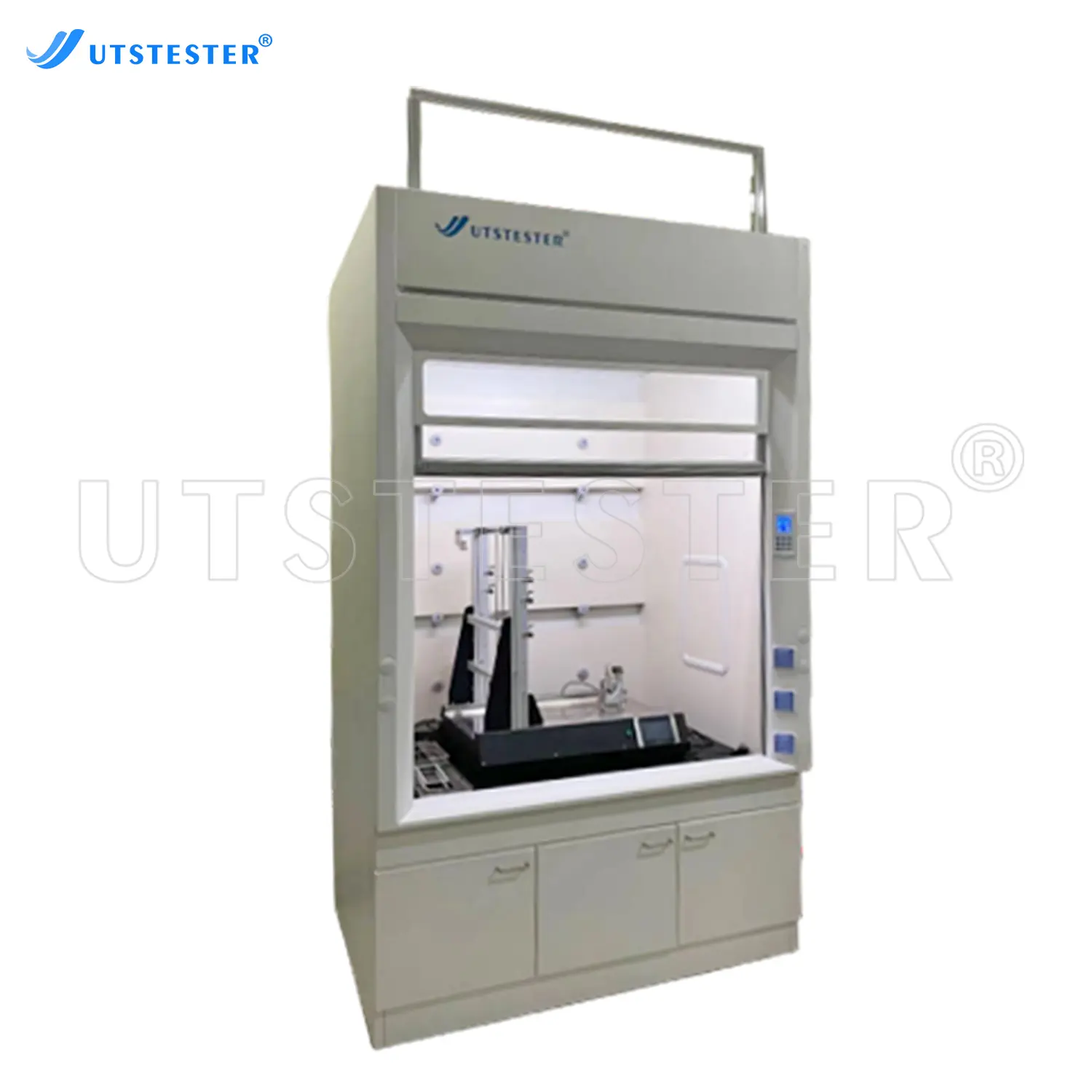

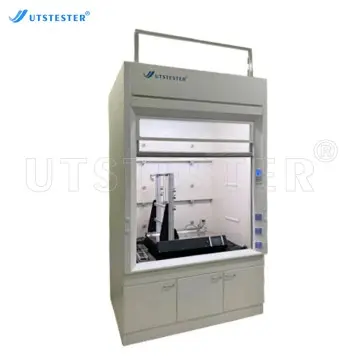

Shell material is: 1.2 mm thick high quality cold-rolled primes manufactured by Shanghai baosteel group, after processed by degreasing, pickling, watch, phosphating and drying, mechanical polishing treatment.
Electrostatic spraying of epoxy resin powder for surface, with good resistance to acid and alkali corrosion. So as to make surface in smooth, resistance to moisture, rustproof, good bearing performance with long service life;
Overall structural in strong strength and long service life, the exterior of upper cupboard adopts traditional slope, the door plate of lower cupboard adopts new type aluminum alloy, with elegant appearance.

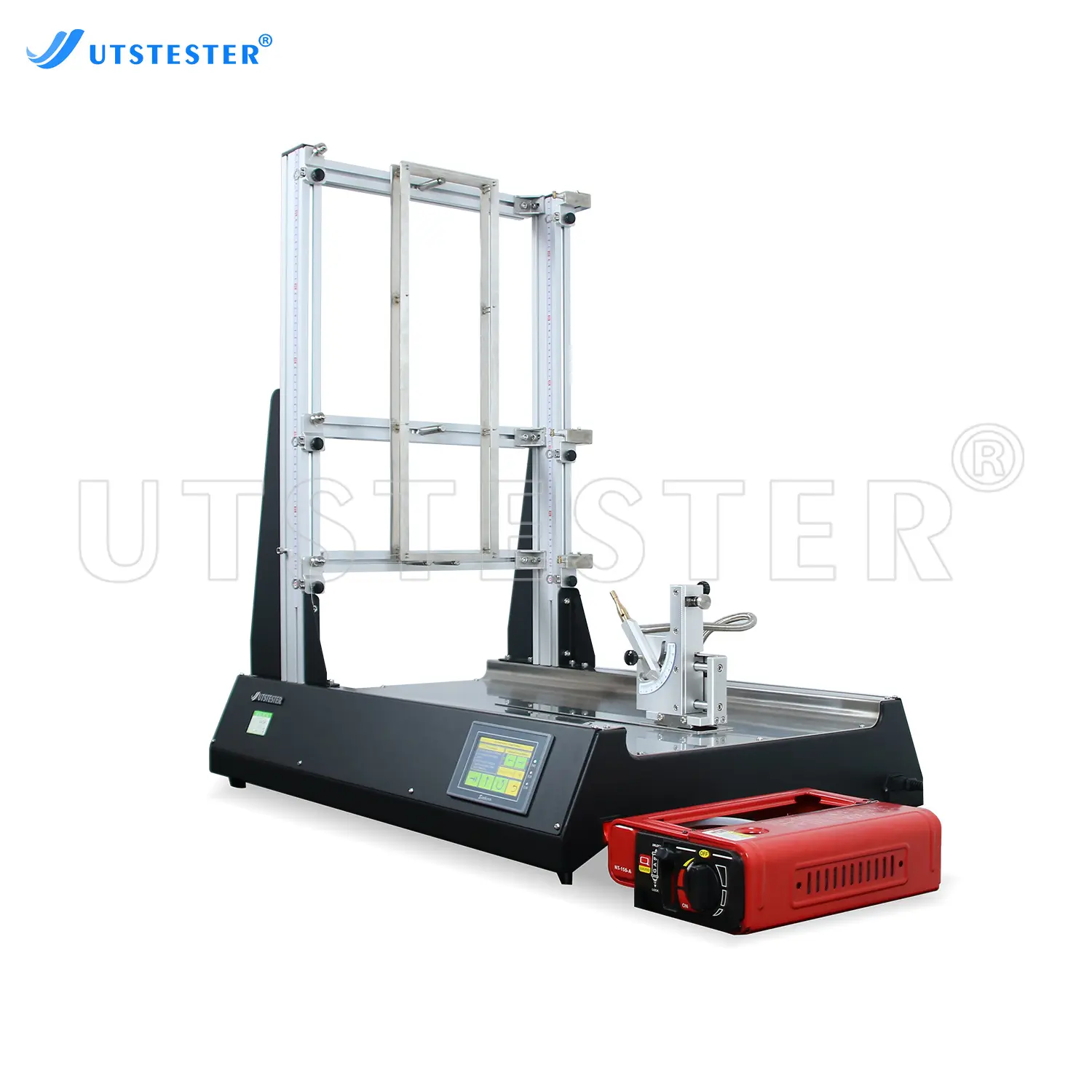

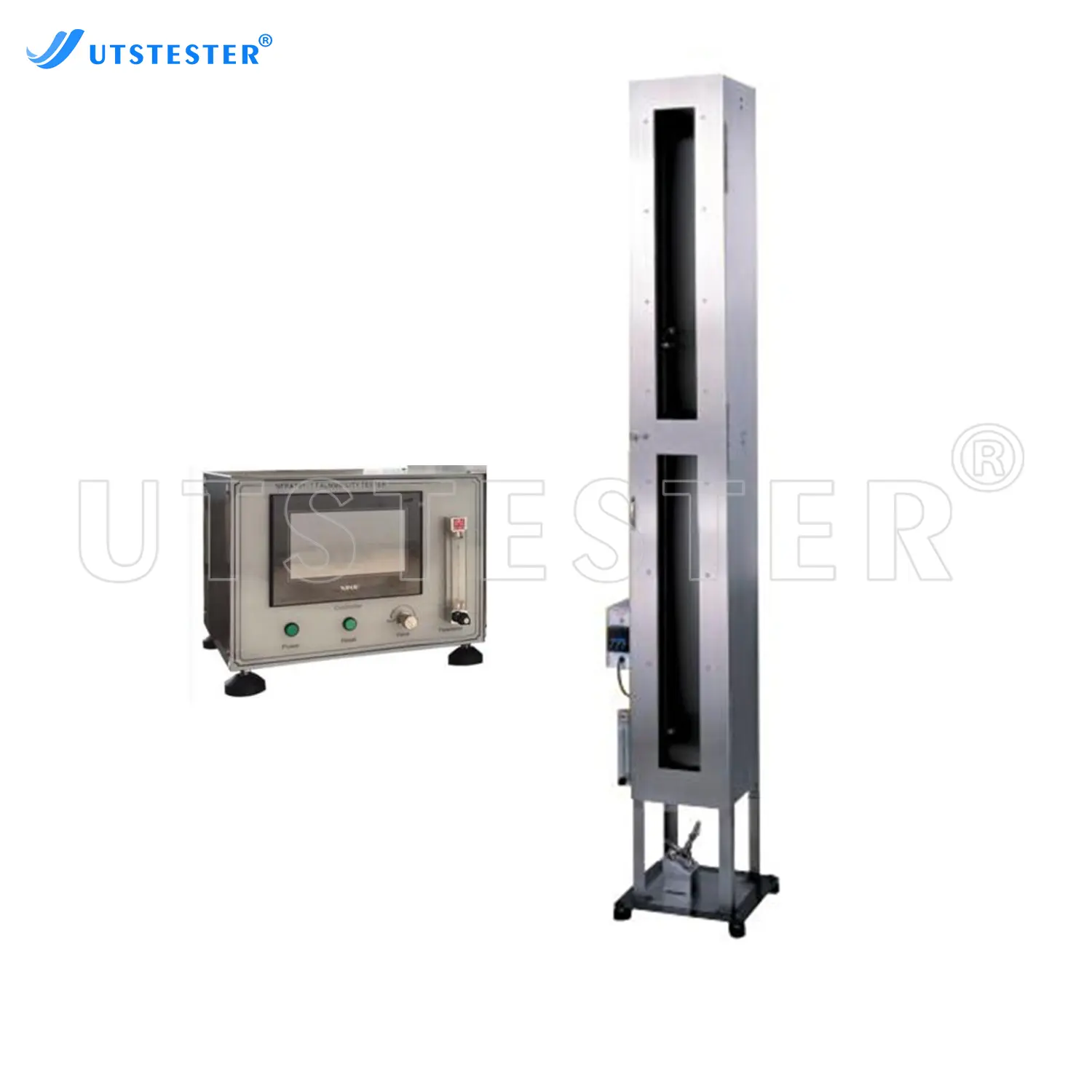

1.Fully in accordance with the latest version of NFPA 701-method 2 and other requirements of the design
2.Adopting 2mm cold plate CNC machining center for automobile manufacturing, beautiful and high-grade appearance.
3.Outdoor-level powder baking paint technology, high quality, long-term use as new, no discoloration.
4.Automatic control of the testing process and adjustable flame height.

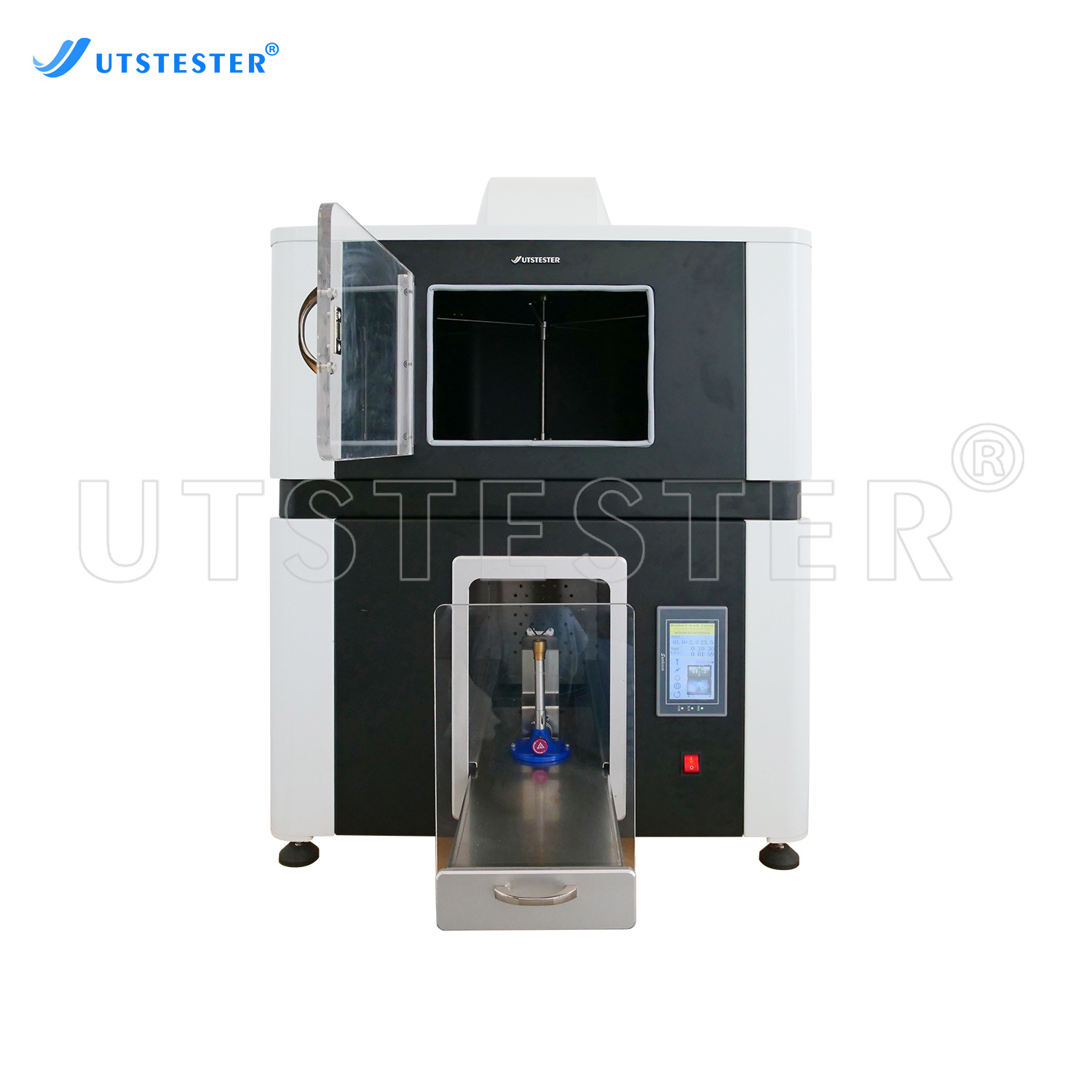

1. 304 stainless steel chassis.
2. Color touch screen controller control system.
3. The test process is automatically controlled.
4. The flame height can be adjusted.

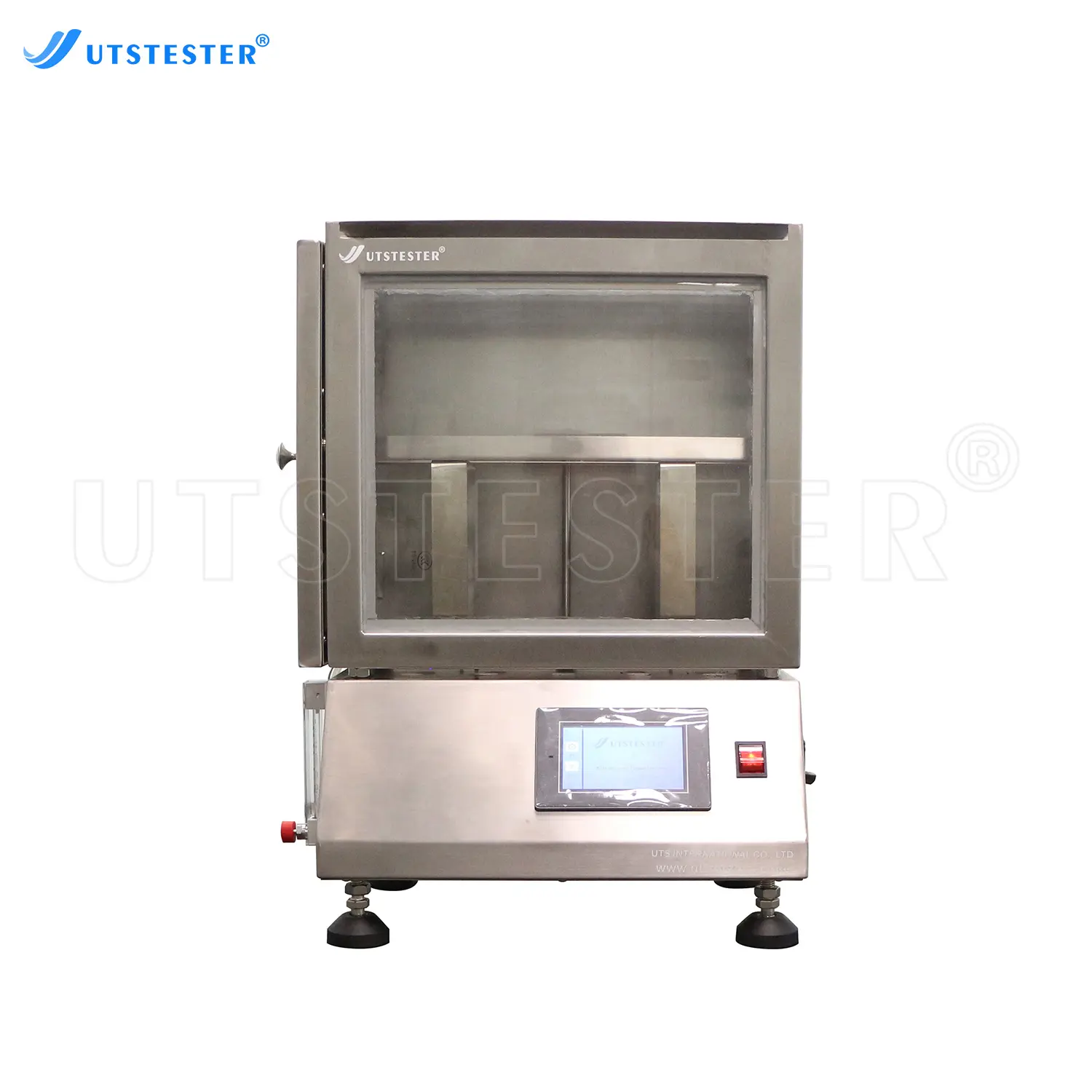

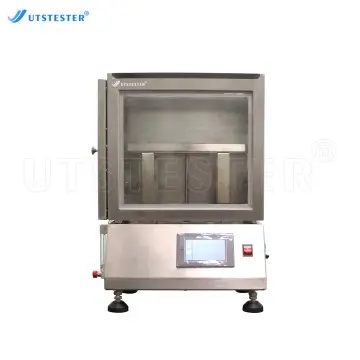

Mainly used to test the flammability property for nightwear.

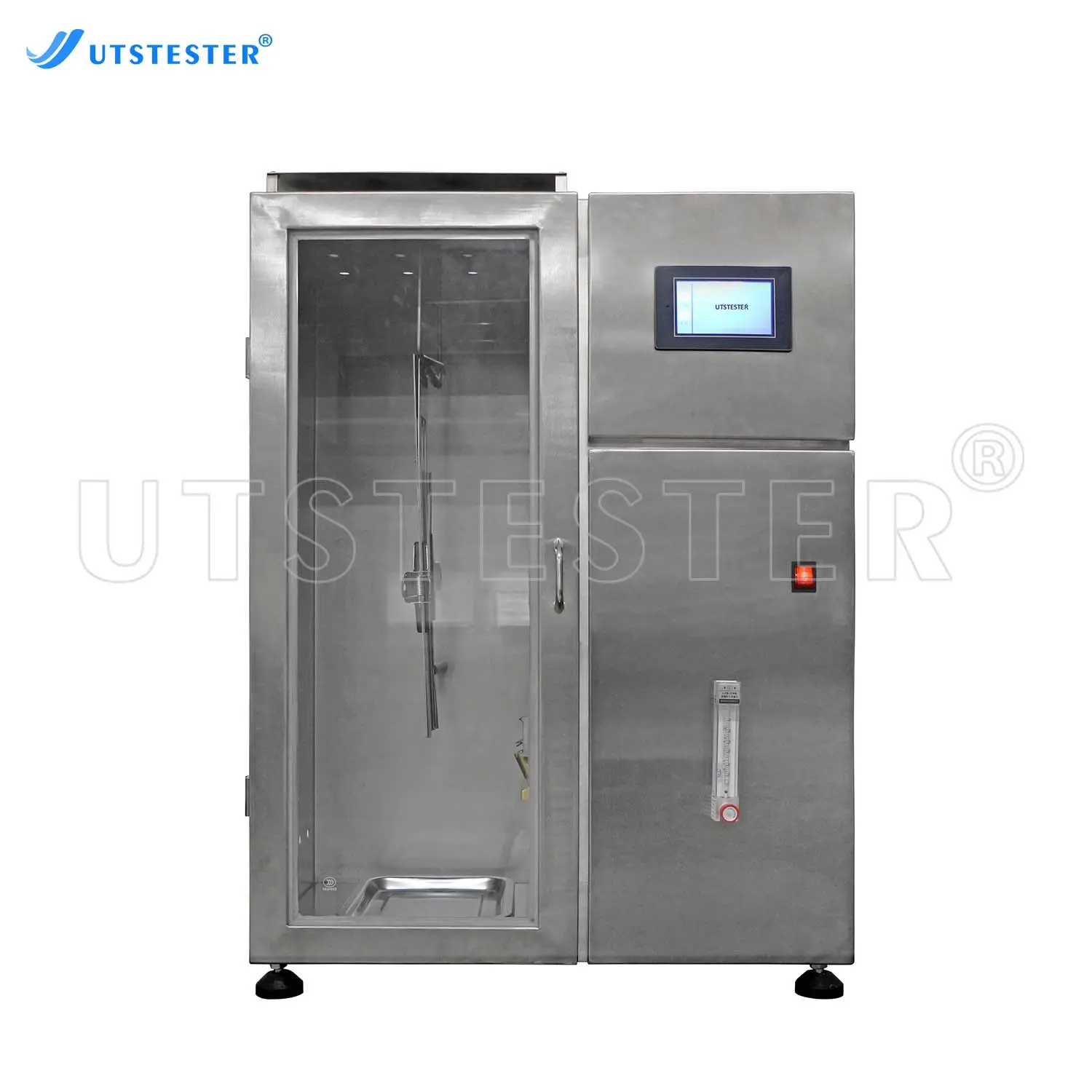

1.Test chamber case made of SUS 304 stainless steel material.
2.Tempered glass door equipped for easy observation during testing process.
3.Flame height measuring device provided.
4.Come with standard stainless sample grips.

Machine 2mm cold plate powder coating, CNC bending and laser cutting molding
New touch screen control system
One-button timing device, convenient for recording test data
Advanced and convenient test circuit, fully in line with standard test requirements

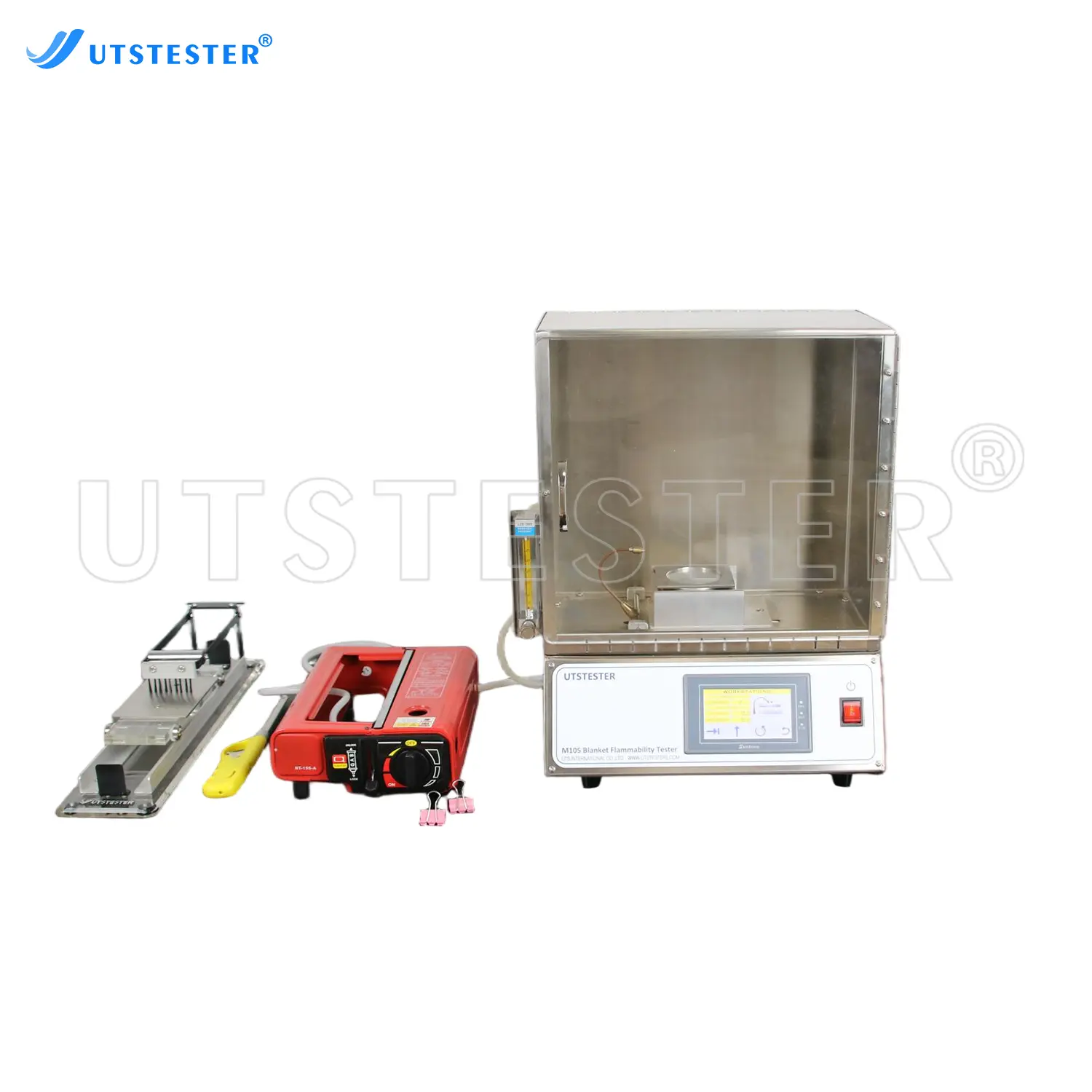

In the specified device, place the treated sample horizontally, place a paper piece with a central circular hole on the surface, use the prescribed preane ignition source to ignite and burn the surface of the circular core felt on the paper piece, and burn the paper piece through the edge of the circular hole. coke, carbonization or discoloration to determine whether the blanket has ignited.

Put sample fabrics and control specimen into chamber, stop the test until the color of control specimen changes to the fading color as standard fading required. And compare with grey scale for color assessment. If without color changes after one test cycle, continue to test specified testing times or the testing cycle which will be able to change color.

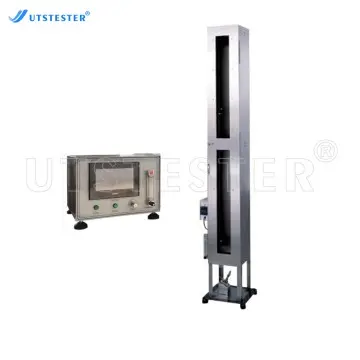

Mount sample into the fixture and hang on vertically inside test chamber. Burn the underneath of sample with specified height of flame for a certain of time, record the time of afterflame and smoldering, damaged length, so as to assess its flammability property.

The finished product sample or material sample is installed on the corresponding fixture of this instrument, and the sample is placed vertically with the required height of flame combustion for a certain period of time, and relevant data (such as combustion time and combustion rate) is recorded to evaluate its combustion performance.

1、With all stainless steel material appearance to prevent smoke;
2 Using industrial colour touch screen display control, durable, convenient and simple operation;
3、Motor drive ignition mechanism, automatic ignition is easy to operate;
4, flow meter to adjust the flame height, no need for constant gas pressure;
5, the instrument resistance wire ignition time can be adjusted, the use of different environments to ensure ignition;
6, the instrument test data directly display the second mark burning rate and the third mark burning rate.
