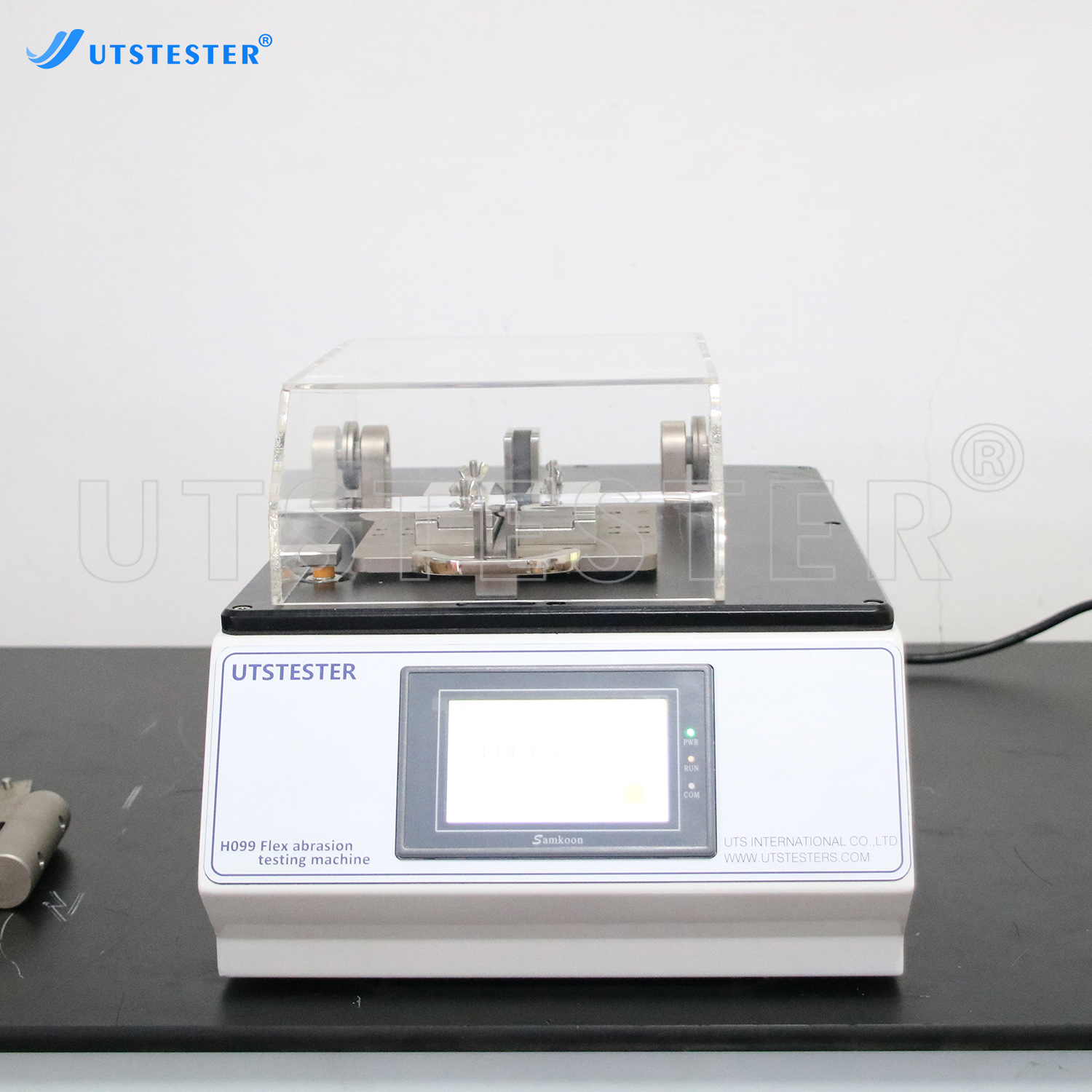

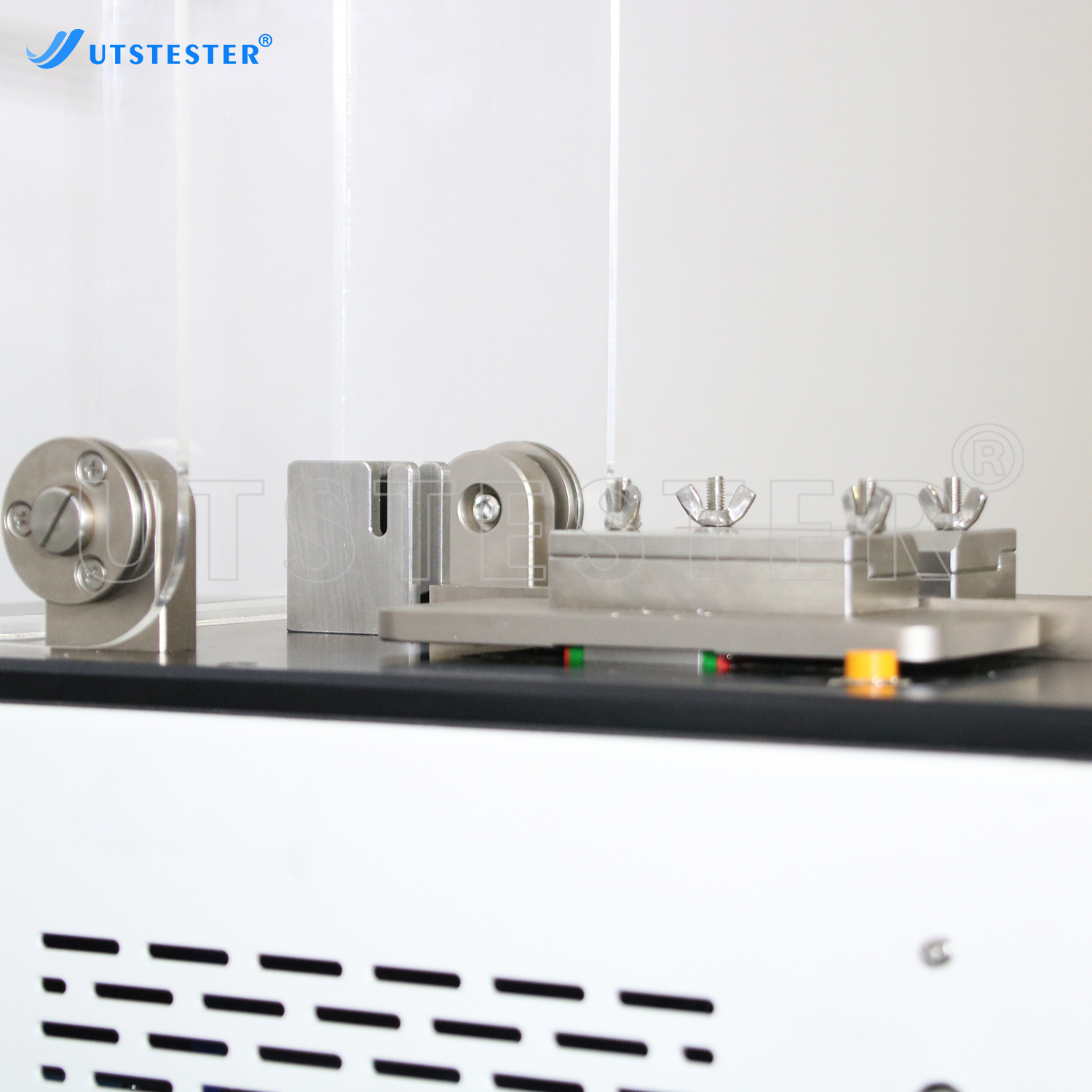

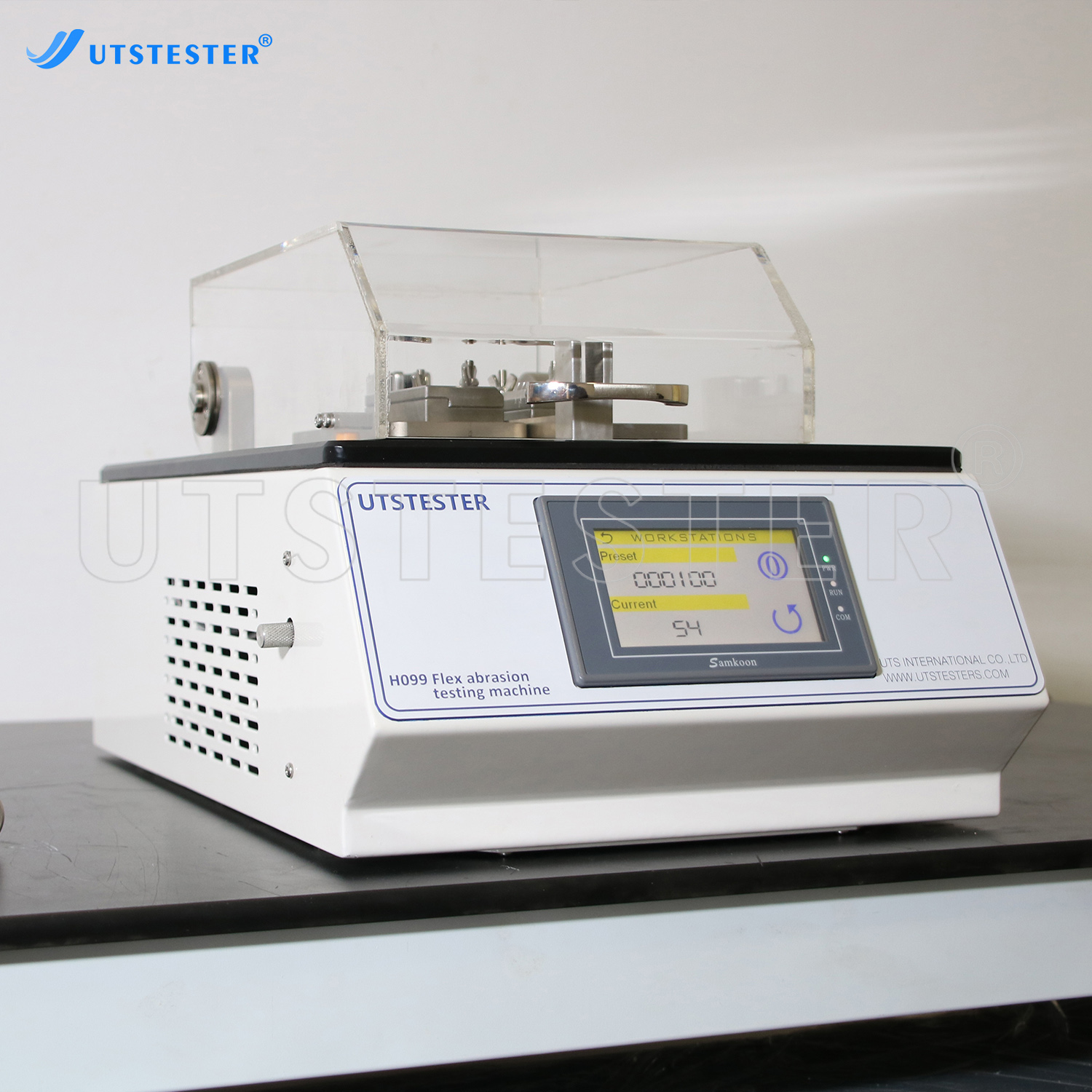

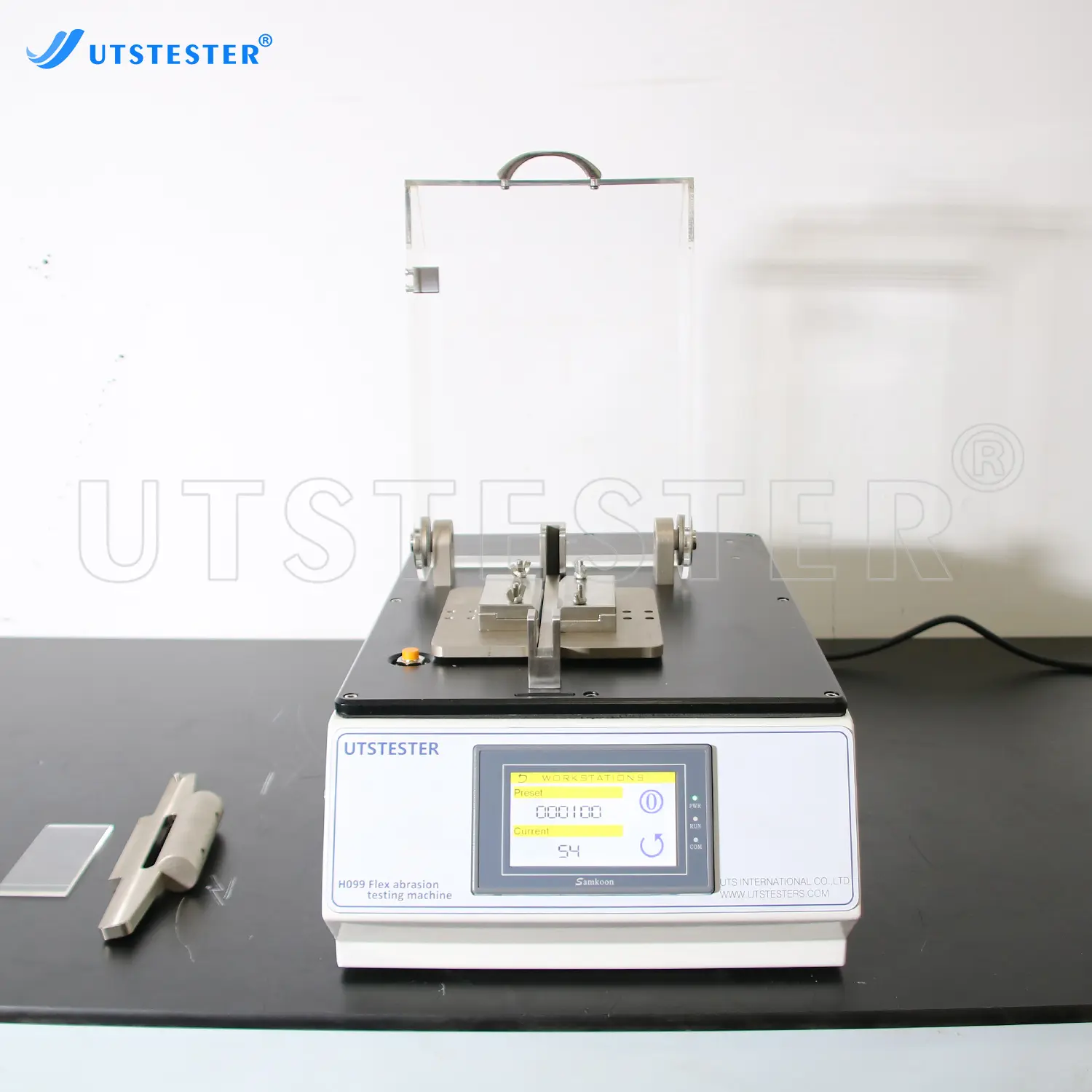

Flex Abrasion Testing Machine for Polyurethane Coating Material Folding Tester H099
Overview
This tester is suitable for testing the shearing and flexural friction resistance of rubber or plastic-coated fabrics. It can be used in Method A and Method B.
1. Method A uses presser foot to apply force to the sample.
2. Method B Apply force without pressing foot.It is through the simple contact between the sample surface resistance to produce friction.This method is more suitable for sample damage due to the friction of the presser foot, such as materials with a viscous surface, rough surface coated with a thin layer of polyurethane materials.
Application

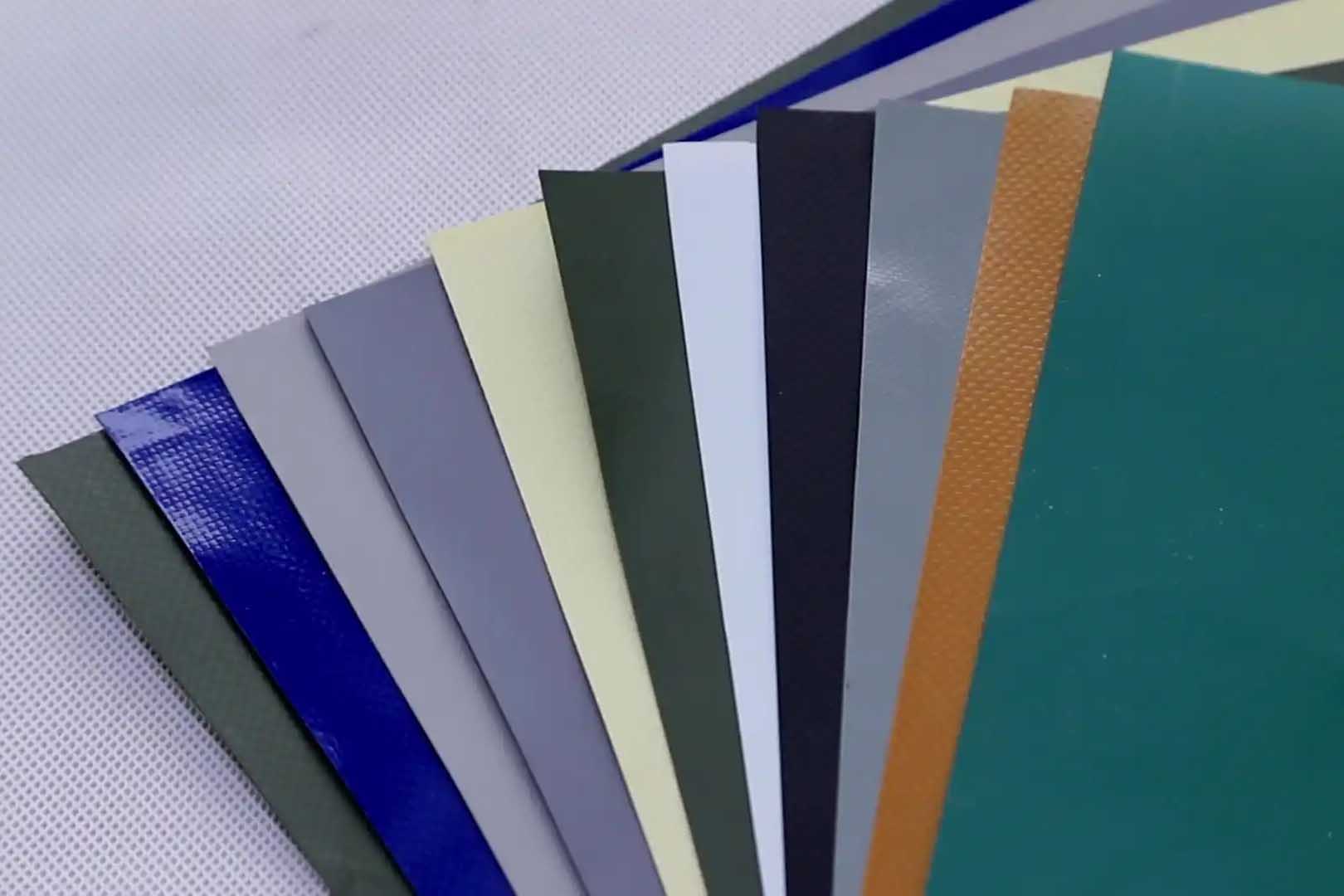

Plastic-coated fabrics

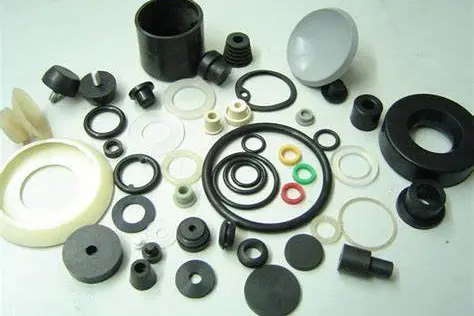

Rubber
Standards
ISO 5981, HG/T 3048 and other standards.
Key Parameters
|
Model |
H099 |
|
Number of test pieces |
1 piece |
|
Fixture spacing |
12mm±0.3mm |
|
Pressing plate specification |
length (100±1) × width (10±0.2) mm |
|
Pressure plate load |
5N± 0.1n \10N± 0.2n second gear |
|
Loading method |
increasing loading of compression code |
|
Friction distance |
40mm±1mm |
|
Test speed |
144 ~ 180 times /min (2.4 ~ 3.OHz) |
|
Digital display |
LCD can be set freely (6 bits) |
|
Power source |
AC 220V 50Hz |
|
External dimension |
38.5cm×50cm×22.5cm |
Product Details

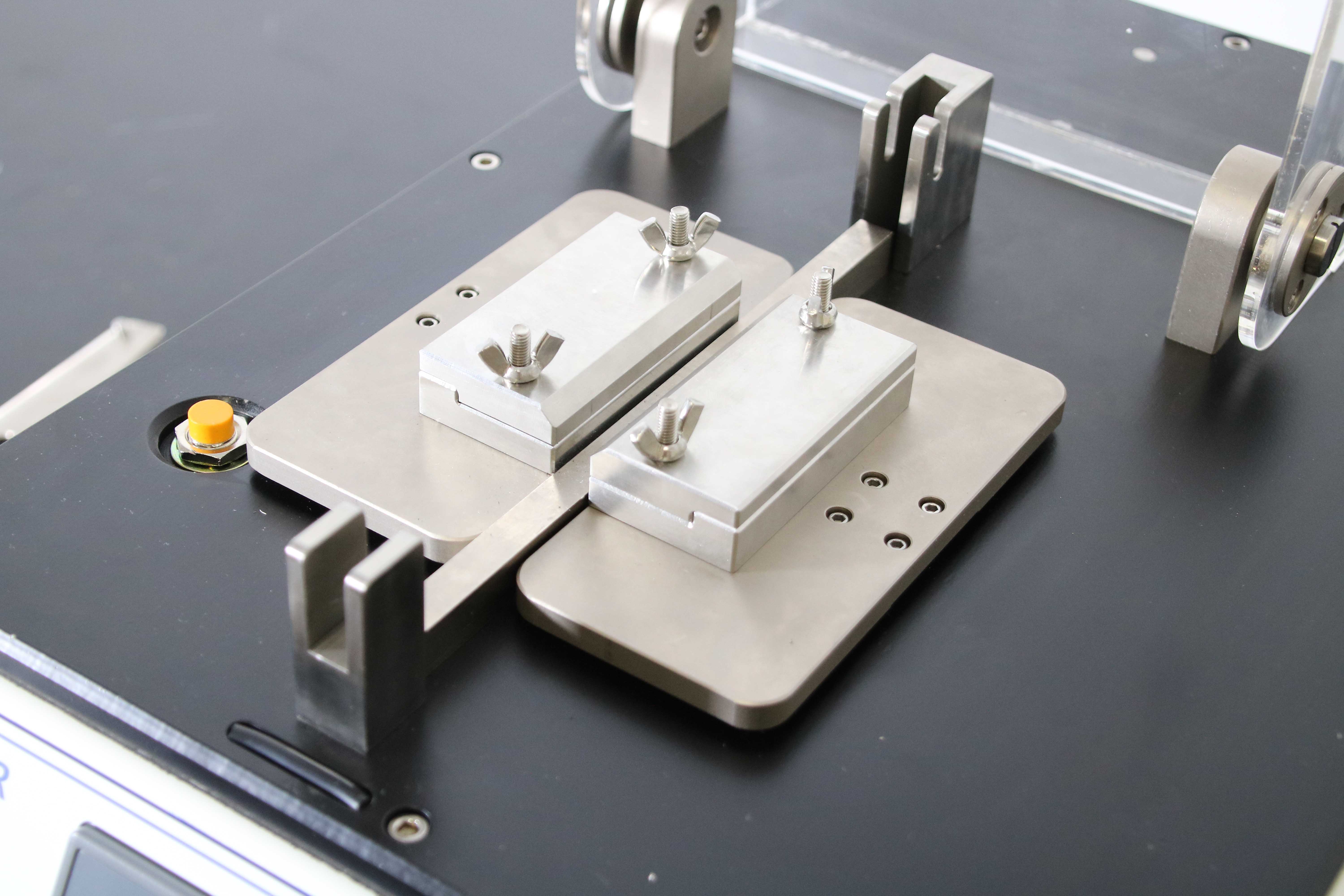

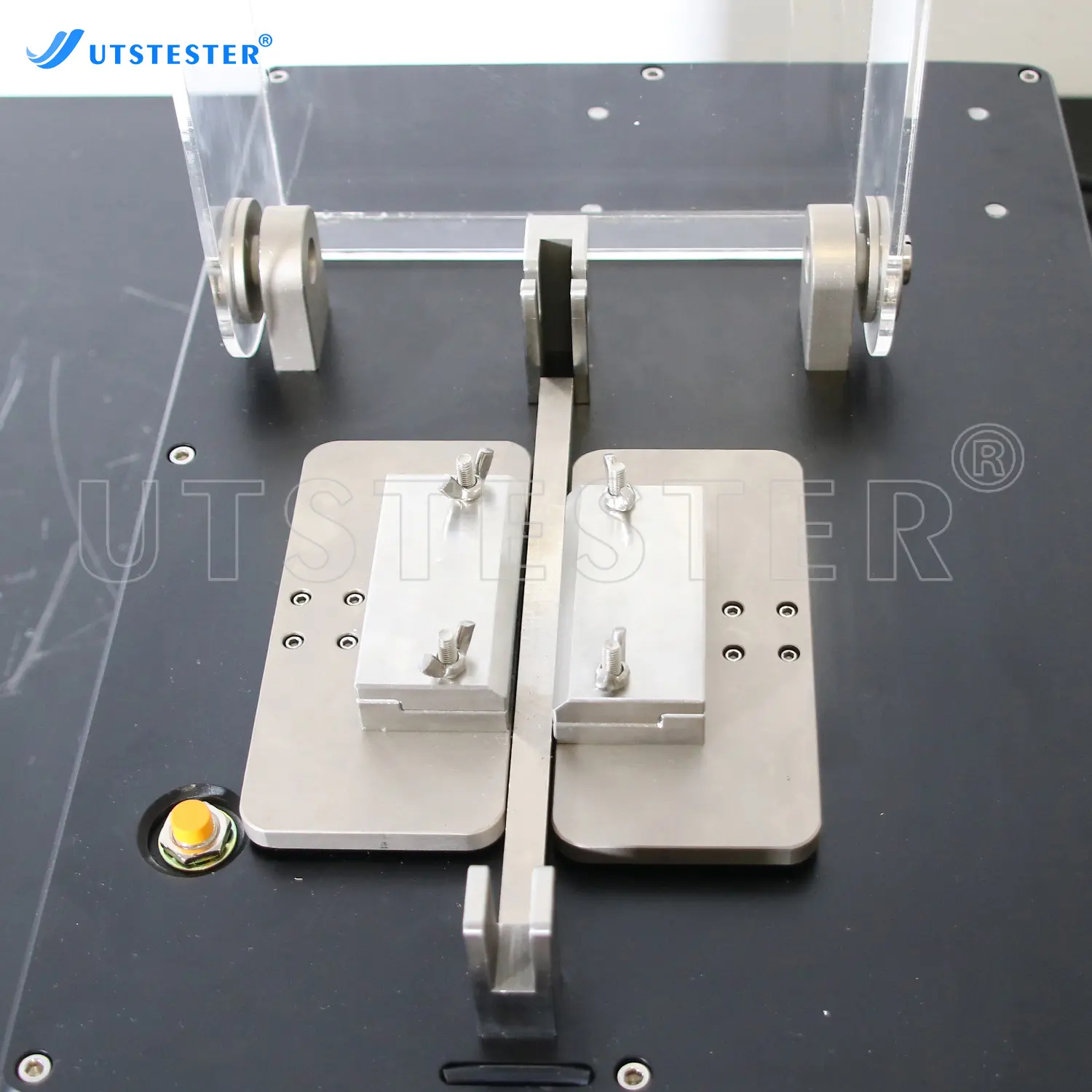

Fixture (machining)

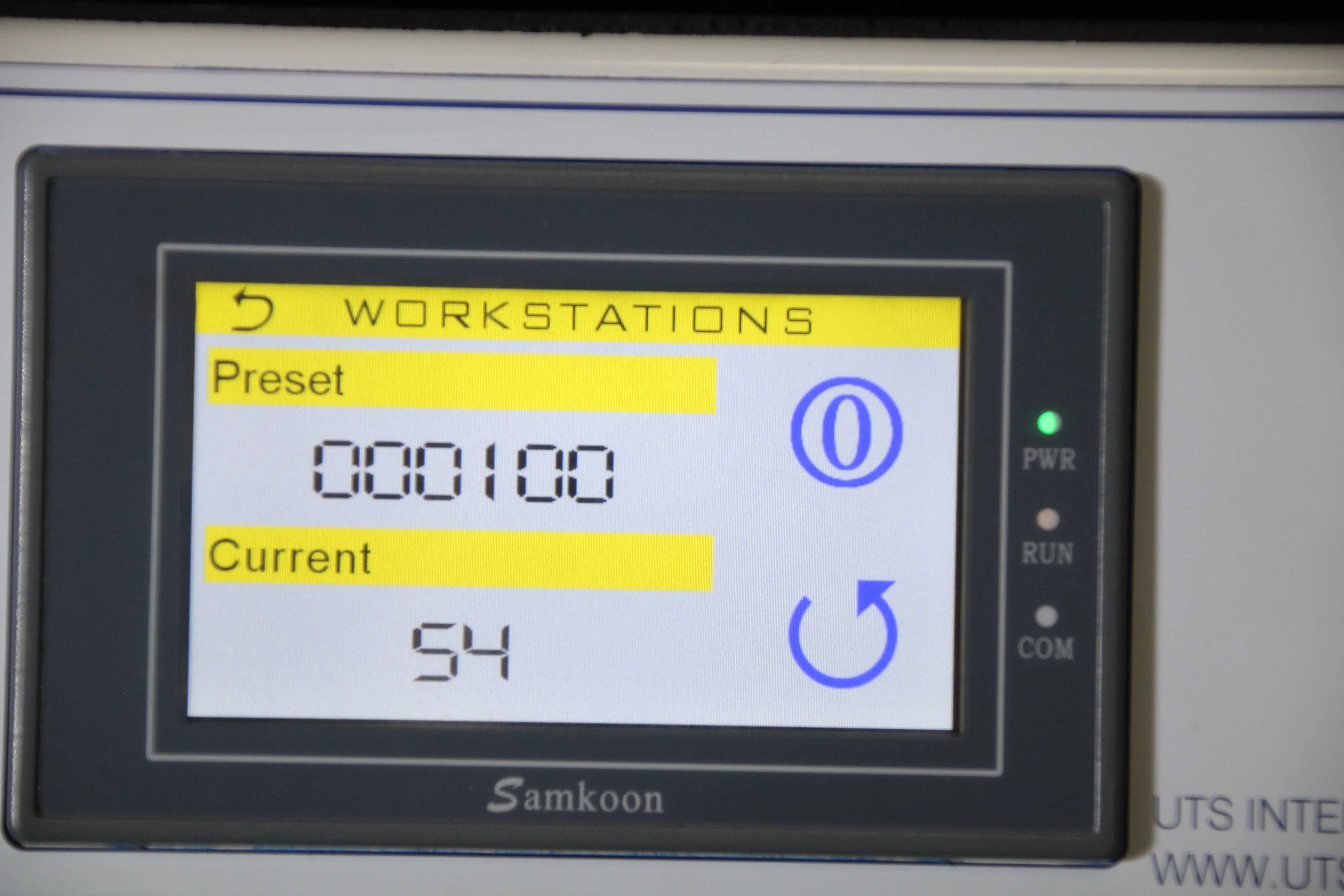

Touch Screen
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
