Footwear Testing Equipment

1. Upper fixtures are driven by motor to do reciprocating motion with horizontal shaft. Downward moving angle is 22.5  0.5.
2.Flexing times can be set and real flexing times is display at real time.
3.Counter stop to count when reached preset test times and machine stop to work automatically.
4.12 or 24 working positions can be optional.
5.With manual location function.

The test piece is continuously wetted on one surface and is flexed and compressed in the same manner as the sole of a shoe during walking. This enables various aspects of heavy leather water resistance to be measured with respect to time.

Take two shoelaces cross reciprocally. Fix the both ends of one shoelace onto the movable fixture which is able to do reciprocating linear motion. The other piece of shoelace, fix one end onto corresponding fixture, the other end is connected to a weight through the pulley. Two reciprocally crossing shoelaces rub against each other via movable fixtures’ reciprocating motion. Interval time can be set. When preset test times reached, machine stop working automatically. Interval time reaches, machine continue to work. In such reciprocal work until reaches preset test times reached or sample break, counter stop to counting, so as to be able to test sample resistance to abrasion property.

1.Strictly comply with International standards including EN ISO 20344 .
2.Support to test various safety shoes to ensure the insulation to heat property.

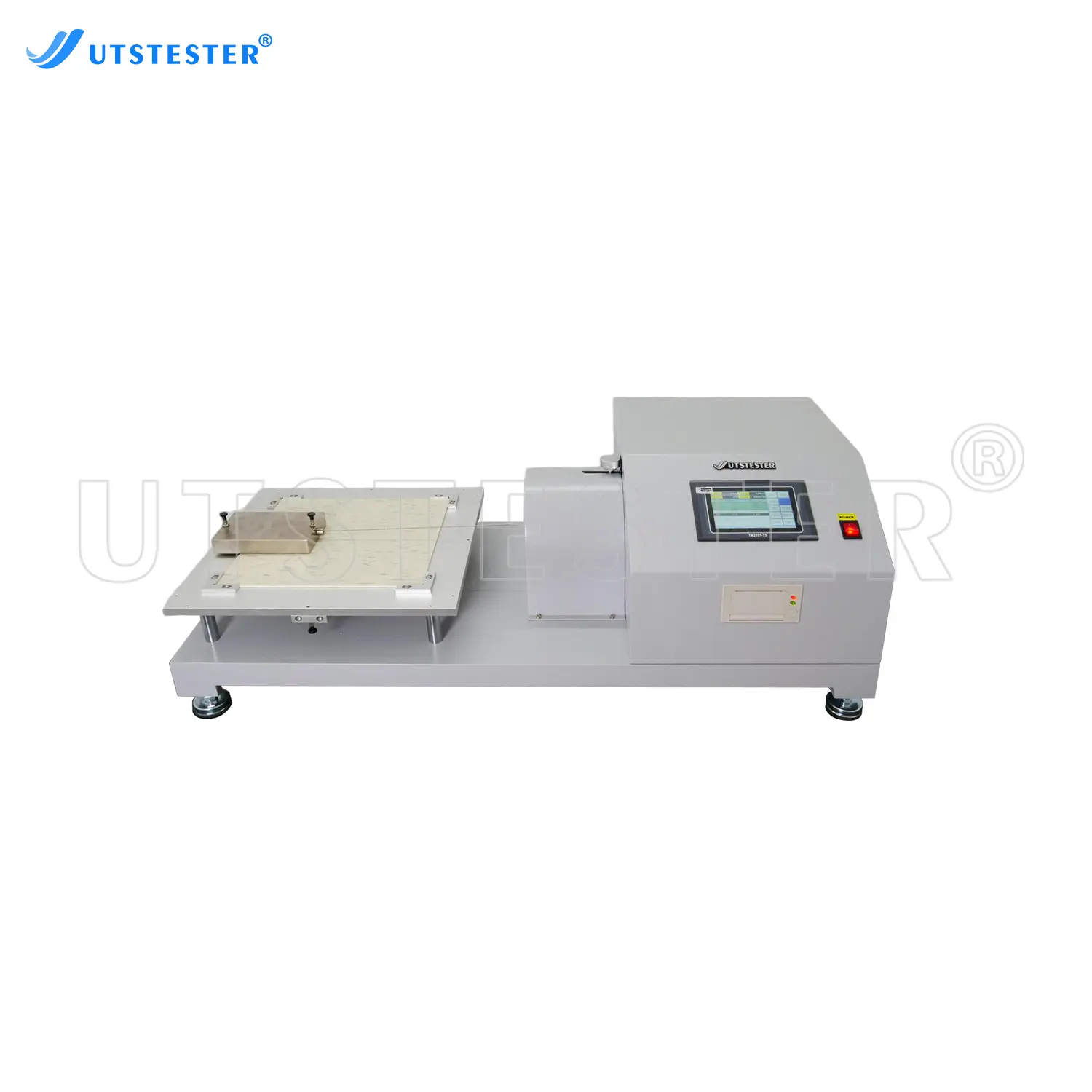

Mount the specified sample onto the friction plate horizontally as standard required. The sample surface needed to test face down, applying certain load, use the method of horizontal pulling to pull the sample at a certain speed, measured its maximum tension, and calculate the static coefficient of friction, so as to measure sample’s static non-slip performance.

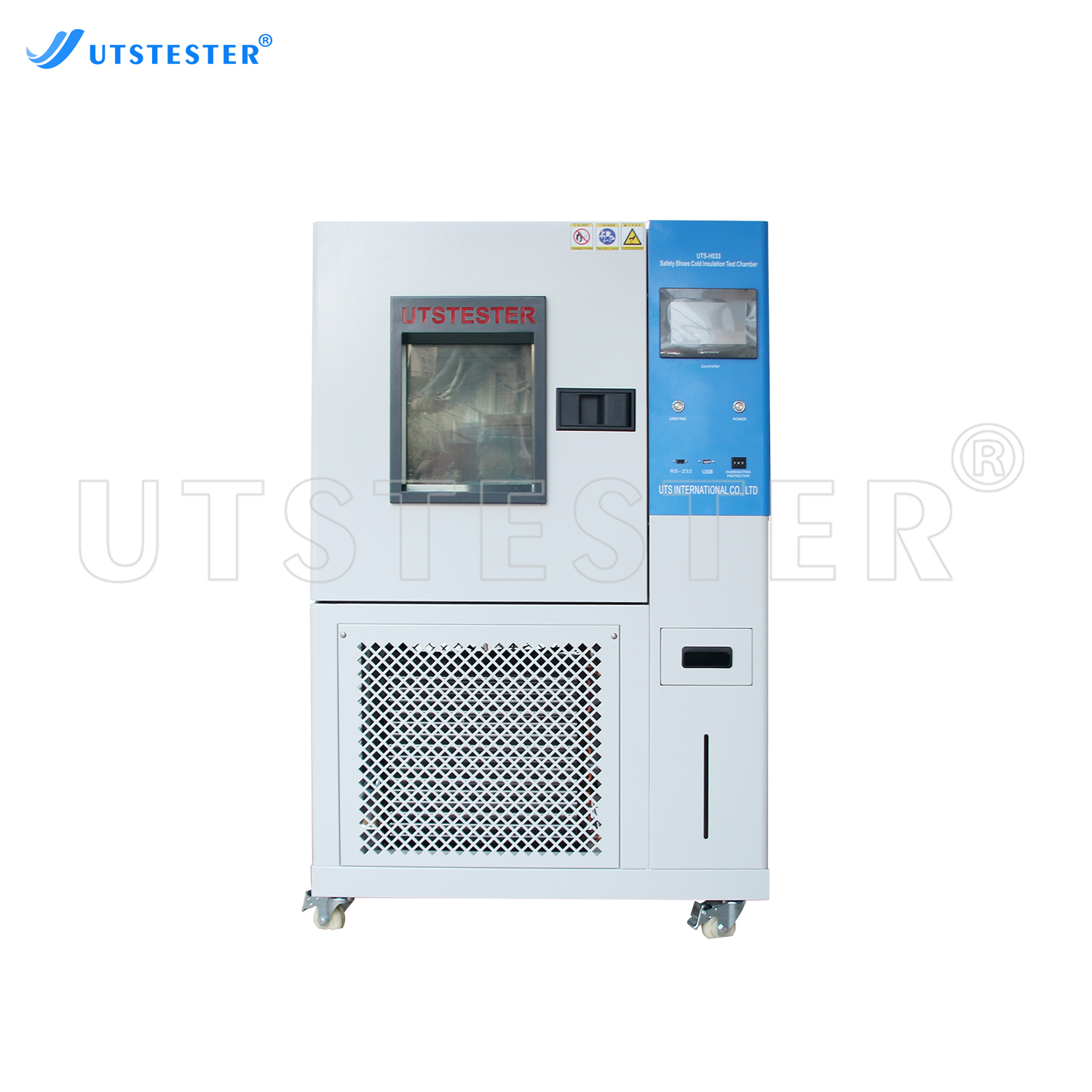

The test shoes are loaded with steel balls, a temperature probe is inserted into the insole of the shoes, and then the shoes are sealed with heating insulation sleeve, and placed in a cryogenic box to observe the temperature change in the sole and determine the insulation situation.

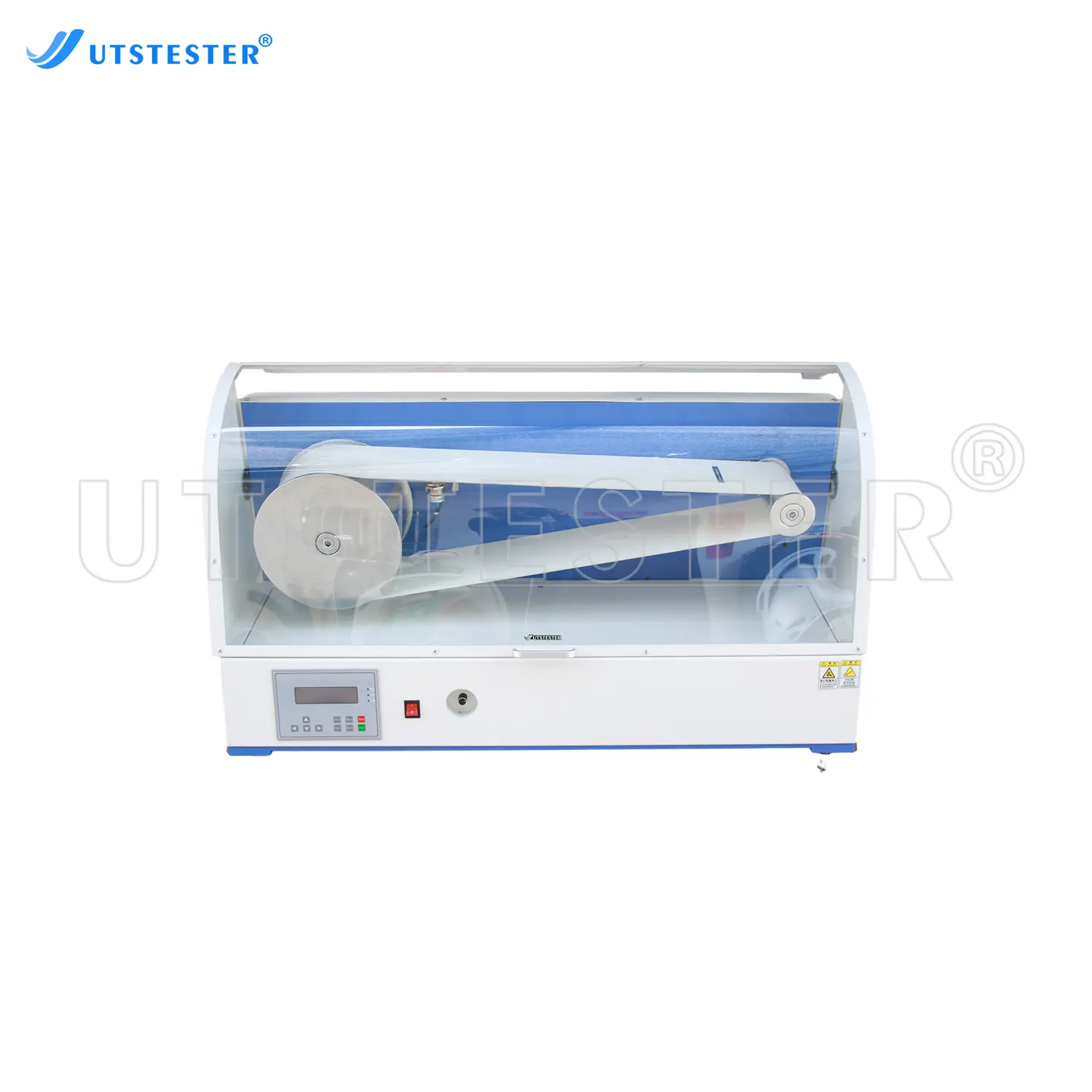

To stick or sew the outsole of non leather materials onto canvas belt surface, and belt is installed on the rotor shaft. Start the machine and rotor shaft, outsole will be flexed. After flexing for a certain of times, inspect the damage and crack condition for outsole, so as to assess its resistance to flex property. The belt rotating due to big rotary wheel drives small rotary wheel. Three different small rotary wheels with different diameter are optional to meet test requirements.

Sample is touched with heat source(constant temperature metal block) under fixed pressure for about 1 minute, after that, visually inspect damage degree of sample surface, such as softening, melting, craze, etc. Determine whether it is qualified or not according to standards.

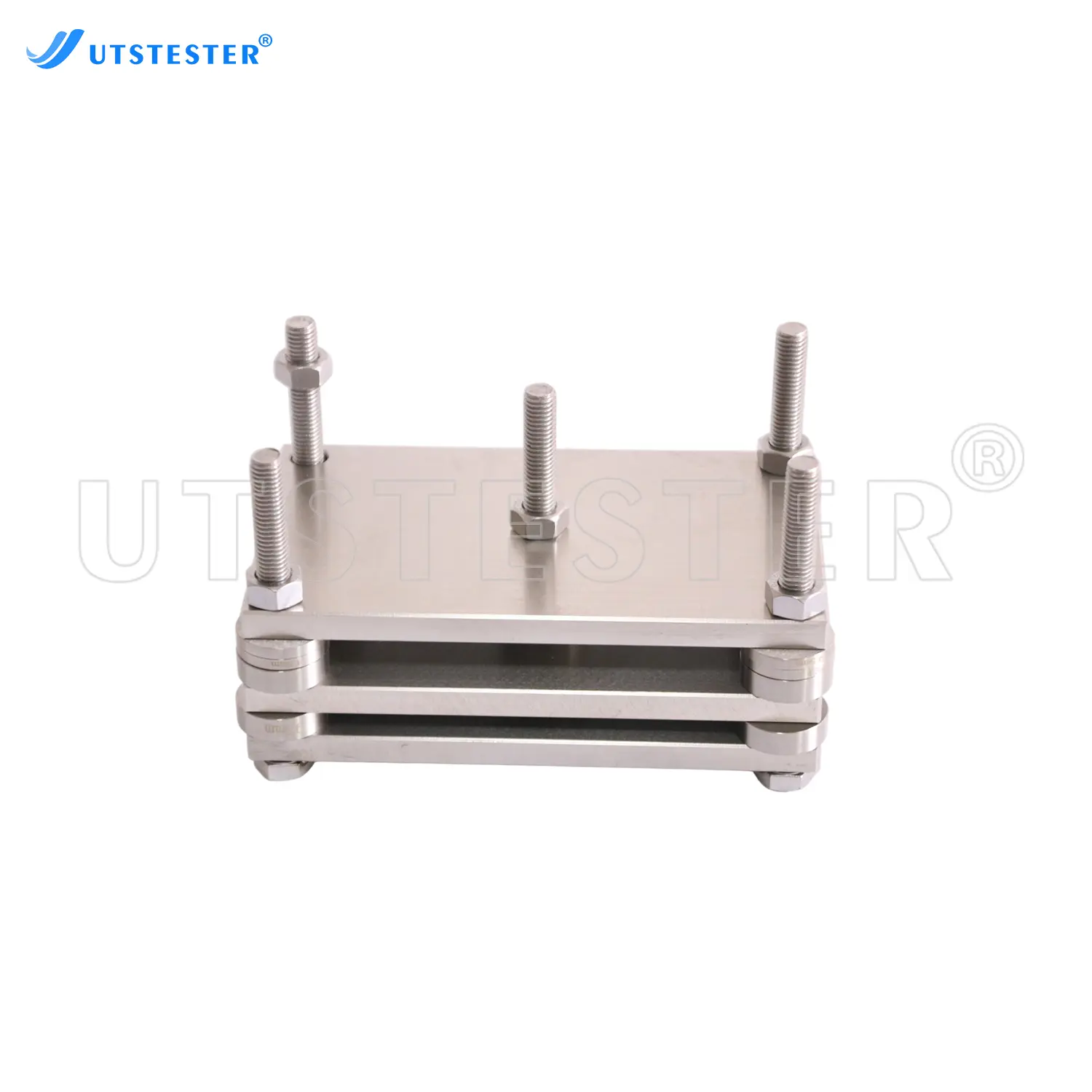

Take standard specimens, clamp between this flat plates, screw rotation, compress to a certain ratio, then put in a certain temperature of oven (purchase  separately), after the prescribed time, remove the specimen, cooling for 30 minutes, measuring its thickness for calculating its permanent deformation rate.

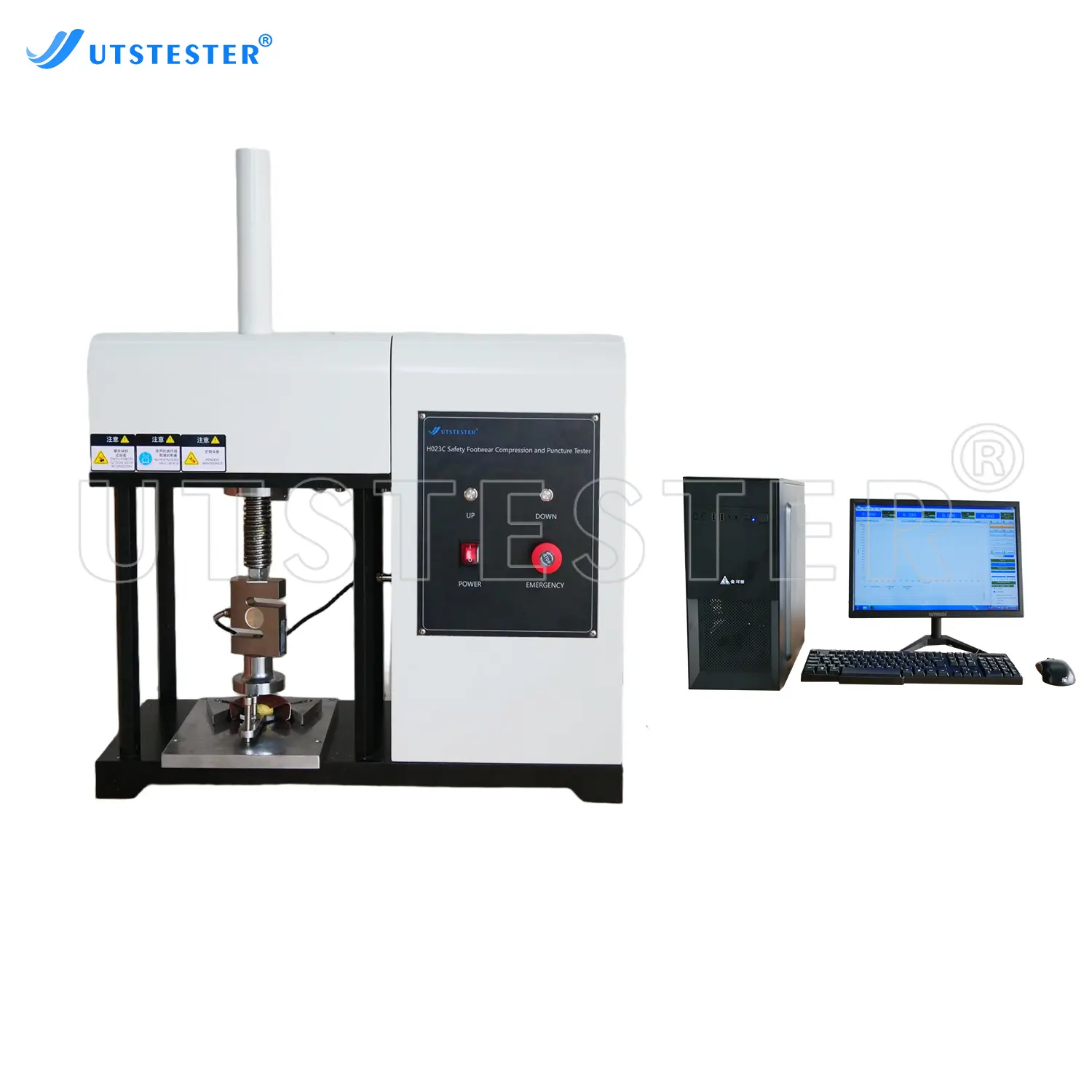

This machine is mainly used for the pressure test of the toe of safety shoes. The instrument carries out a continuous pressure holding force at the speed of 5mm/min for the fixed toe, such as: 15000N holding pressure for 1 minute. In addition, the fixture can be replaced for the puncture test of different safety shoe midsole materials. The sample is fixed on the fixture at the speed of 10mm/min to Pierce the sample or zero puncture, and the maximum nail puncture force value that the material can withstand is evaluated.

1. LCD screen directly display testing times.
2. Automatic stop after tests finished.
3. New version with protective cover to ensure safety during testing.
4. Working positions available to customize for meet different demand.

1.Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials;
2.Square button, easy to operate, soft sight;
3.Industrial timer, high precision, clear digital display;
4.Equipped with industrial grade double shock proof pressure gauge, high precision;
5.Double station, independent control fixture;
6.Double control, key test, foot control, easy to operate;
7.Full copper air inlet, anti-swing design;
8.Thick explosion-proof transparent glass sink, mirror design, easy to observe the product condition;
