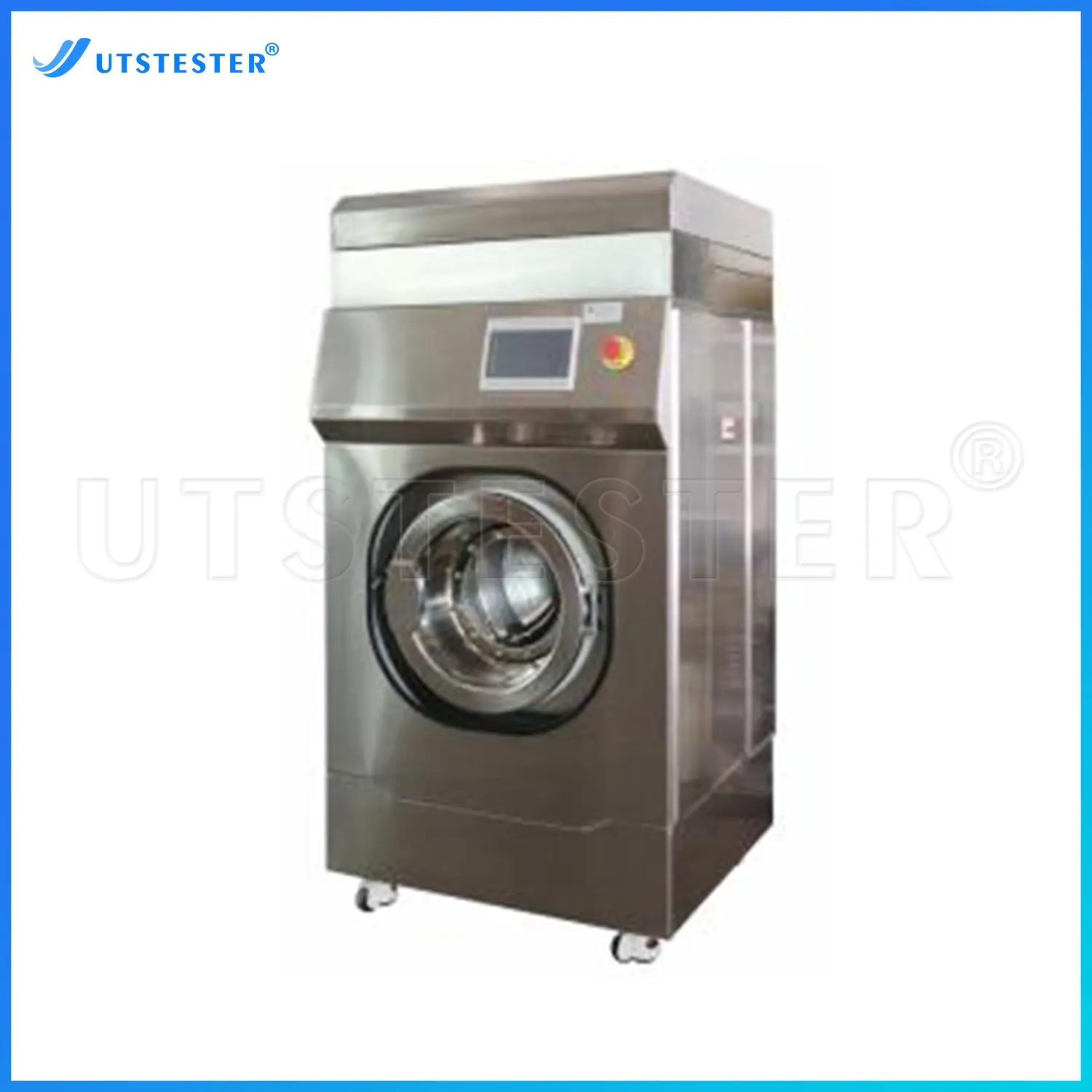

Fully Automatic Fabric Shrinkage Testing Machine D013N-A
Overview
Fabrics,garments or other textiles are tested for dimensional stability after laundering.
Standard
ISO 6330-2012 Textiles - Domestic washing and drying procedures for testing.
GB/T 8629-2017 Textiles - Household washing and drying procedures for testing.
FZ/T 70009 Test method for relaxation dimensional change rate and felting dimensional change rate of wool textile products after washing.
BS 4923 Methods for individual domestic washing and drying for use in textile testing.
BS EN ISO 6330 Textiles. Domestic washing and drying procedures for textile testing. IEC 60456
Application
Fabrics
Garment
Key Parameters
|
Model |
D013N-A |
|
Type |
Front Door Feeding; Horizontal Roller |
|
Inner cylinder |
Diameter:(5201) Mm; Depth: (3151) Mm; Net Volume: 61l Lifting Wings: Quantity: 3 Pieces; Height: (531) m; Length: Extended To The Bottom Of The Inner Frame, The Pieces Are Angle Between Slices 120° |
|
Outer cylinder |
Diameter (5541) Mm |
|
Drum speed |
Washing: (52±1) Rpm Dehydration: Low Speed (50020) Rpm High Speed (80020) Rpm Customizable 1000 Rpm |
|
Water level control |
1~20cm Digital Setting |
Product Details
Sample Testing Area
Control Panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
