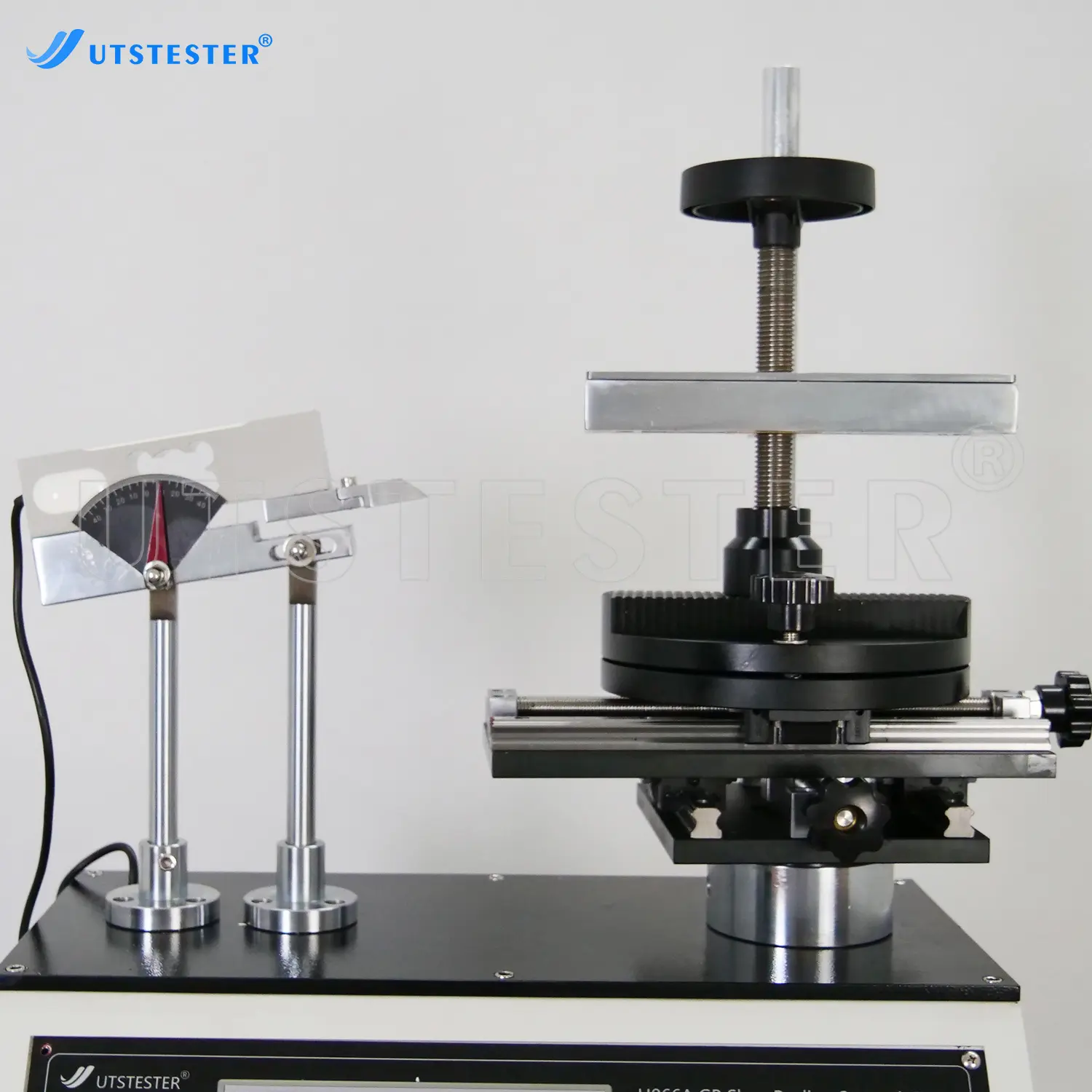

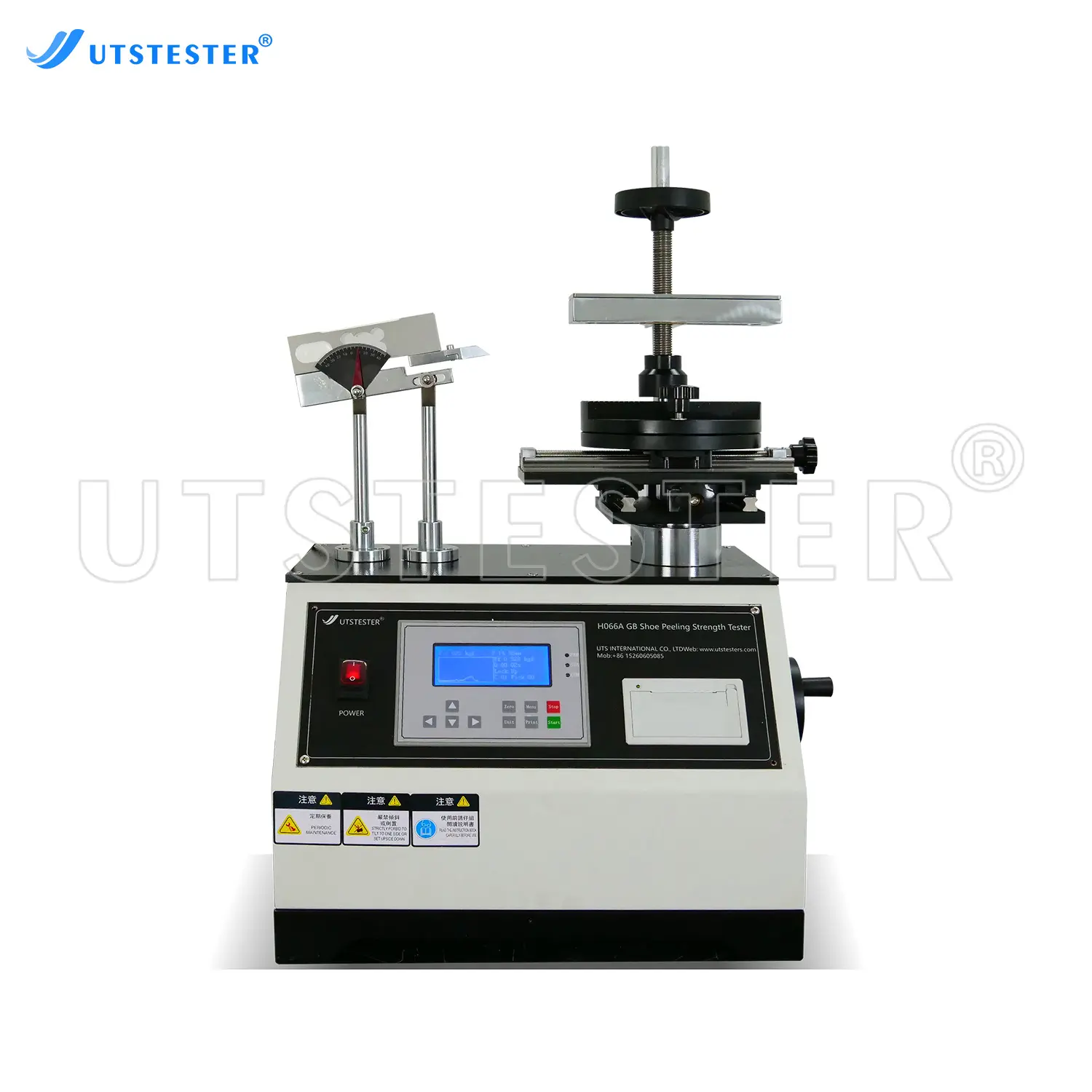

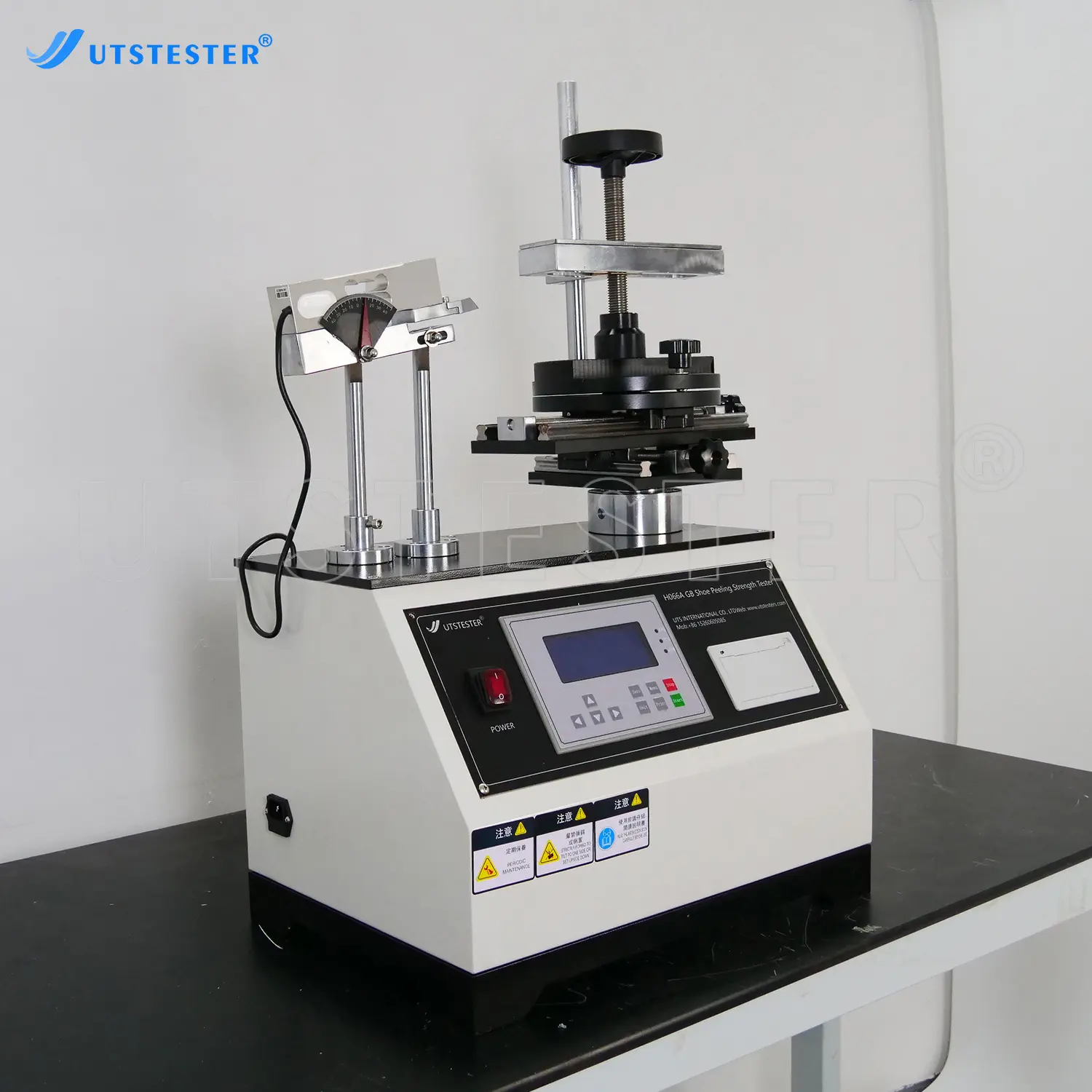

GB Shoe Peeling Strength Tester Shoe Split Strength Test Machine H066A
Overview
The peeling strength testing machine is suitable for testing the peeling strength between the sole and the upper of the shoe. The principle is to install the shoe last and hold it on the machine. The peeling knife will peel the joint of the sole and the upper, and the force value required for peeling is measured.
Application
Casual shoes
Sports shoes
Work shoes
Standards
GB/T 15107-2013, GB/T 3903.3-2011, BS 20344, QB/T4329-2012, QB/T1002-2015.6.5
Key Parameters
|
Model |
H066A |
|
Maximum peeling force |
2000N |
|
Peeling blade width |
20±0.2mm and 10±0.1mm |
|
Down speed of peeling knife edge |
20±2mm/min, up and down speed can be adjusted |
|
Spacing between positioning rod and tie rod |
50~70 mm adjustable |
|
Dial gauge meter |
0.001~ 10 mm, accuracy: 0.001 |
|
Average lifting range |
40 mm |
|
power supply |
1∮ AC 220V, 50HZ |
|
Volume (approx.) |
560×320×750 mm |
|
Weight (about) |
45 kg |
Product Details

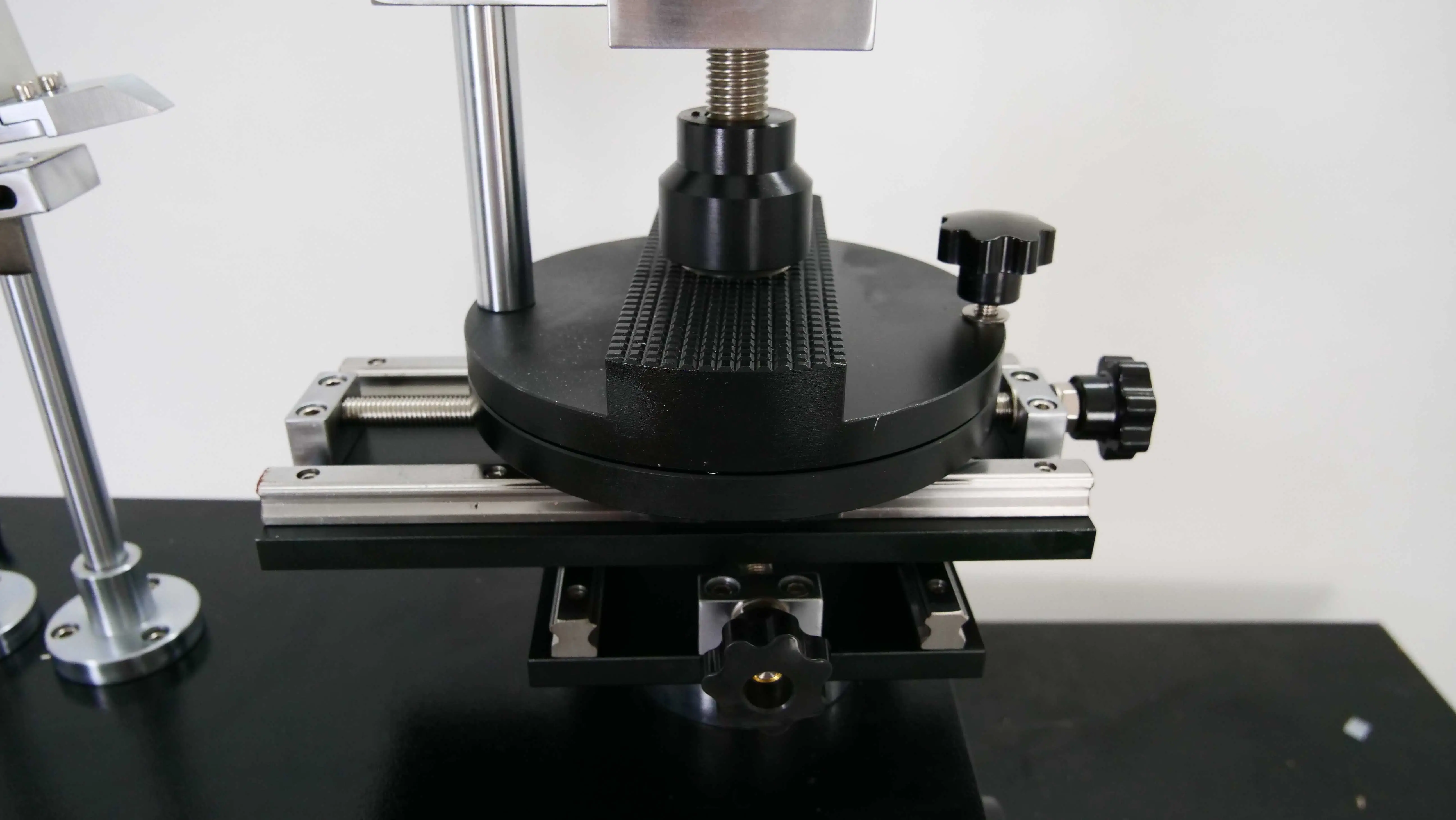

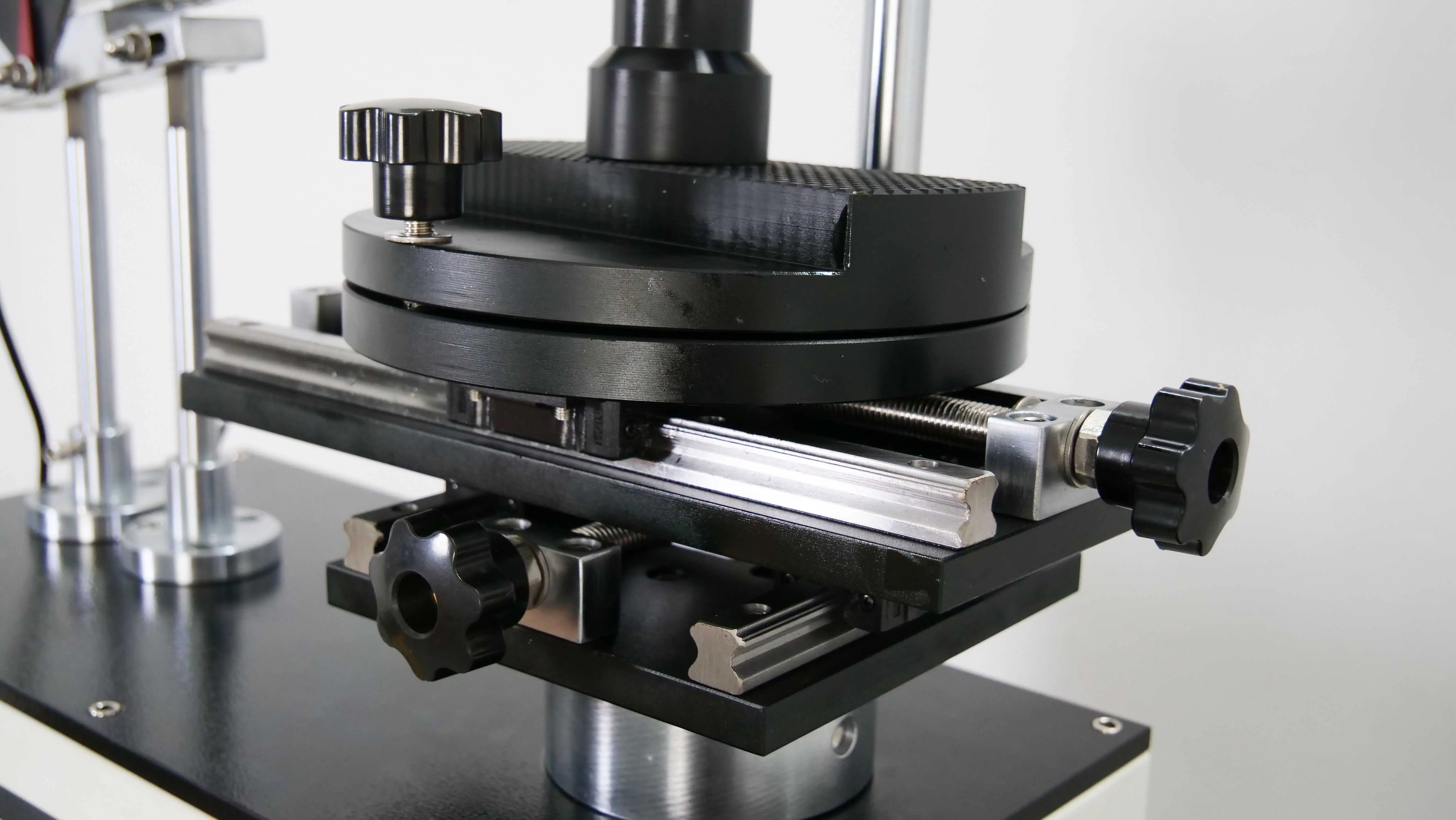

360 degree turntable

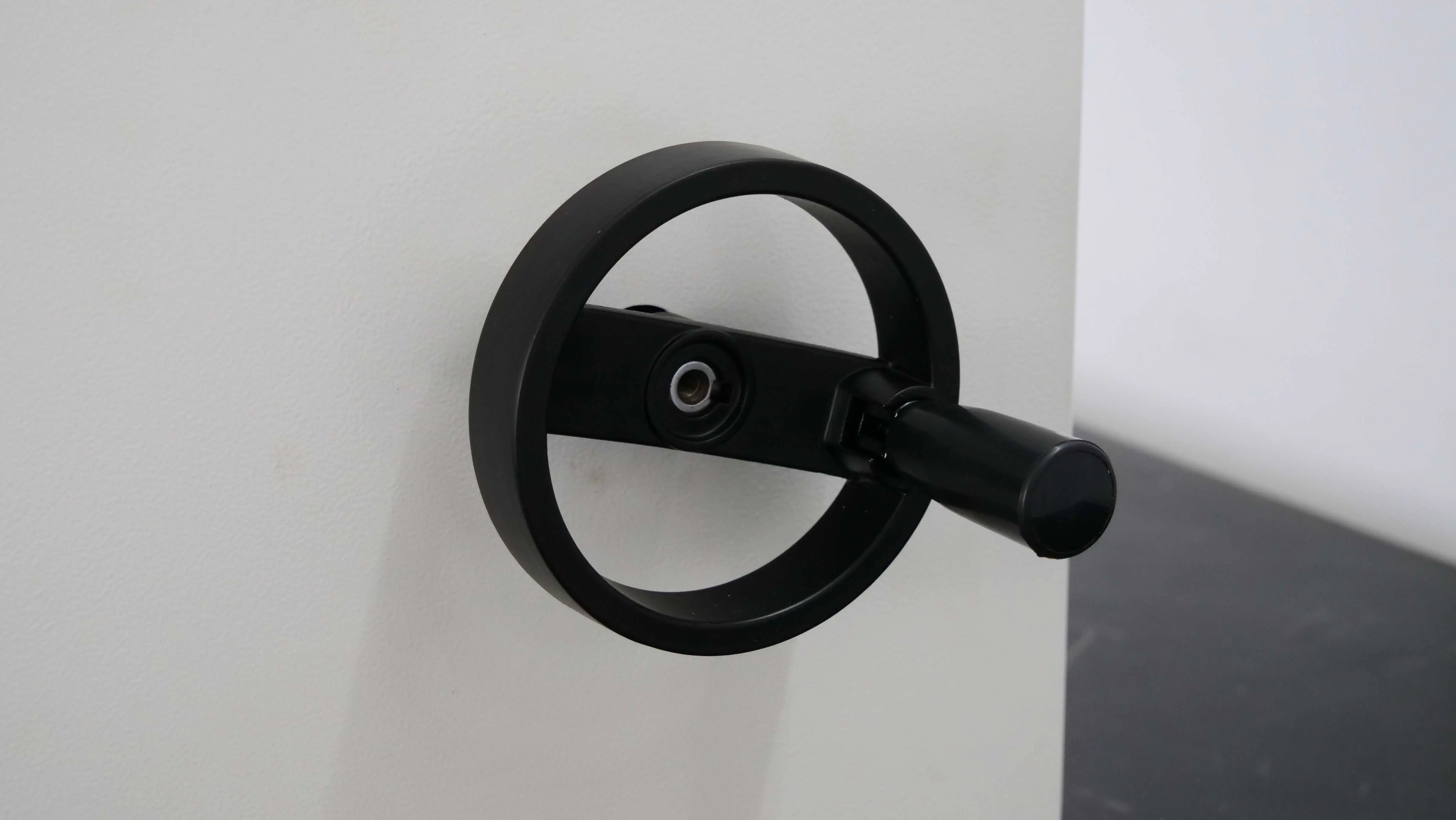

Handwheel

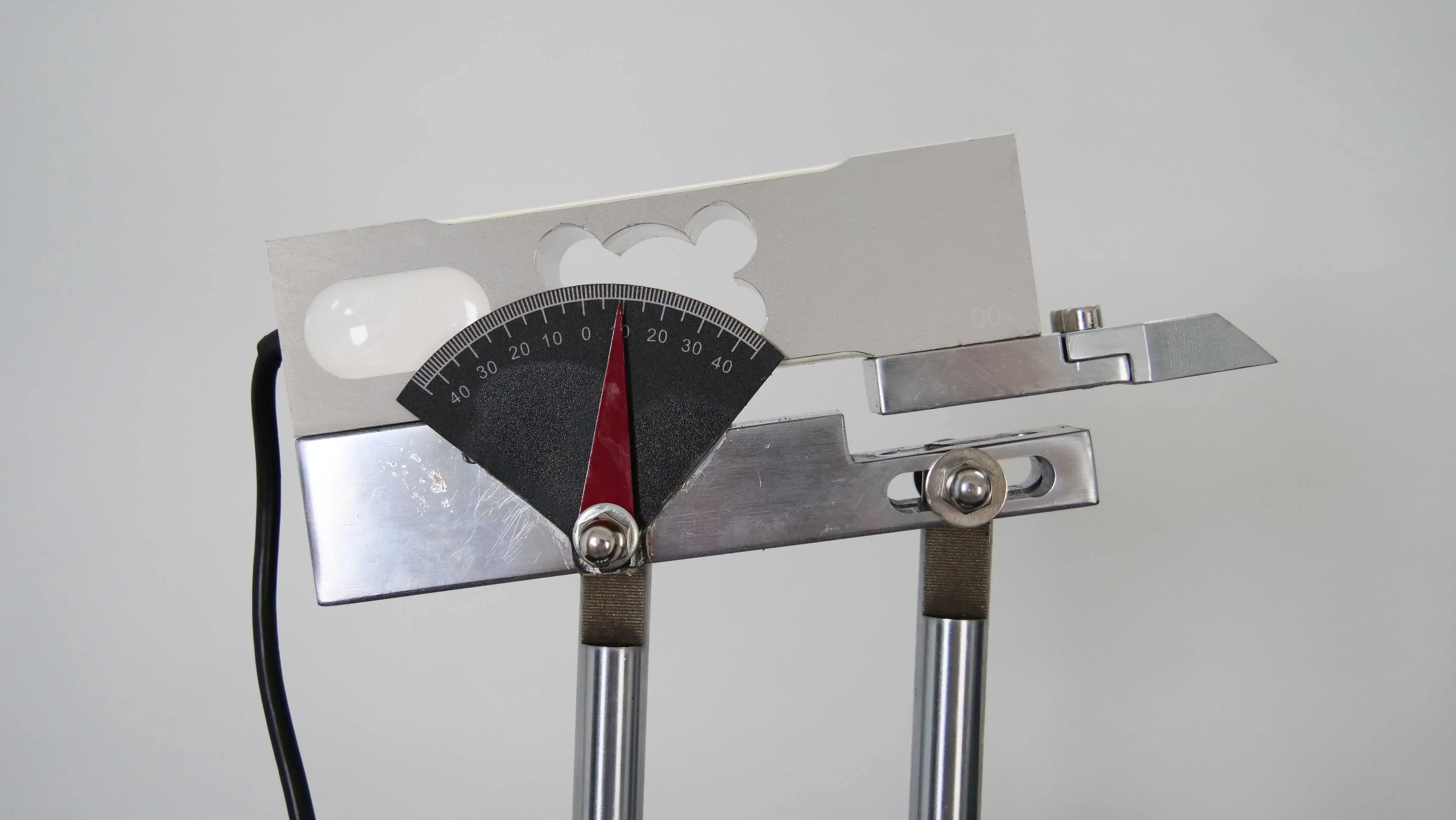

Dial

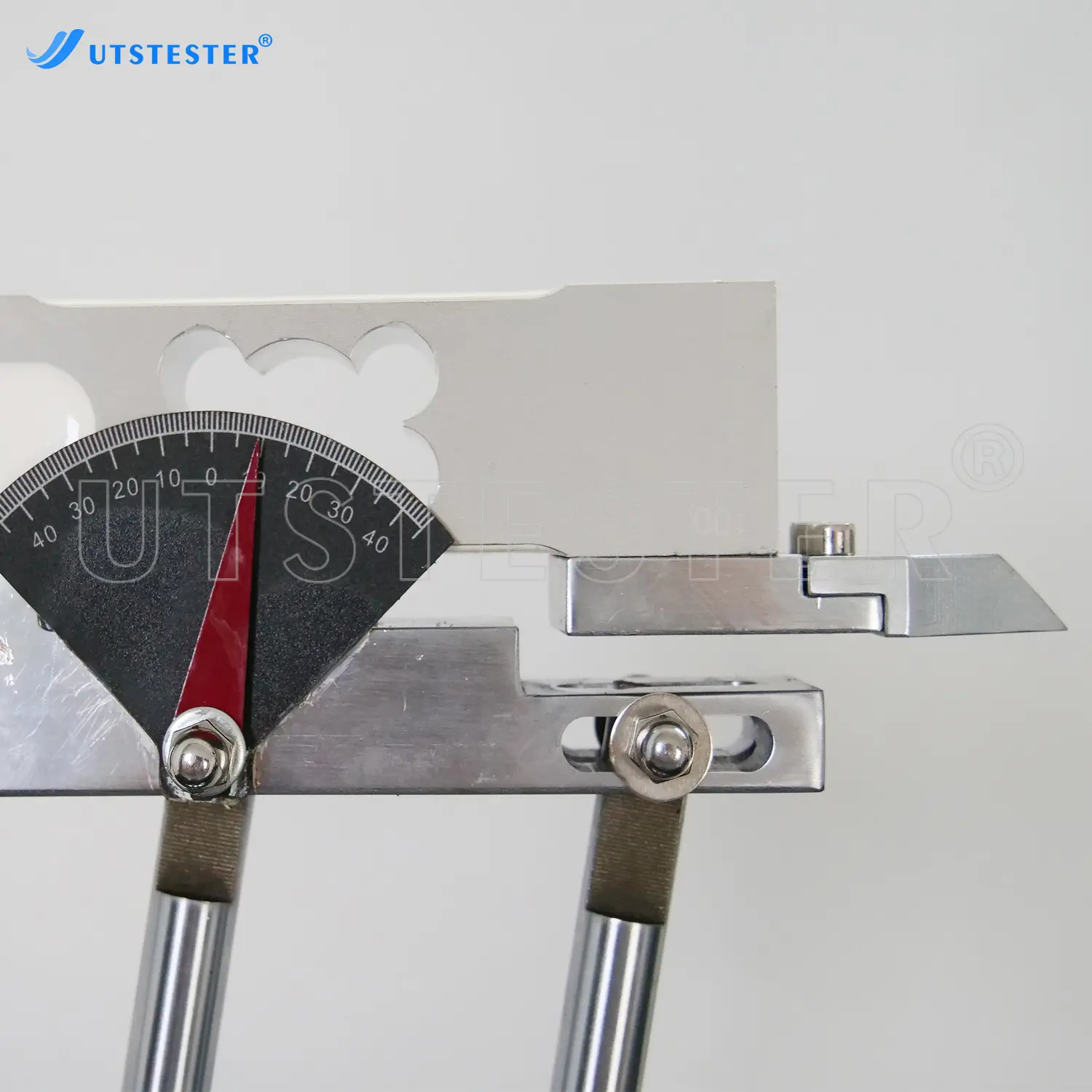

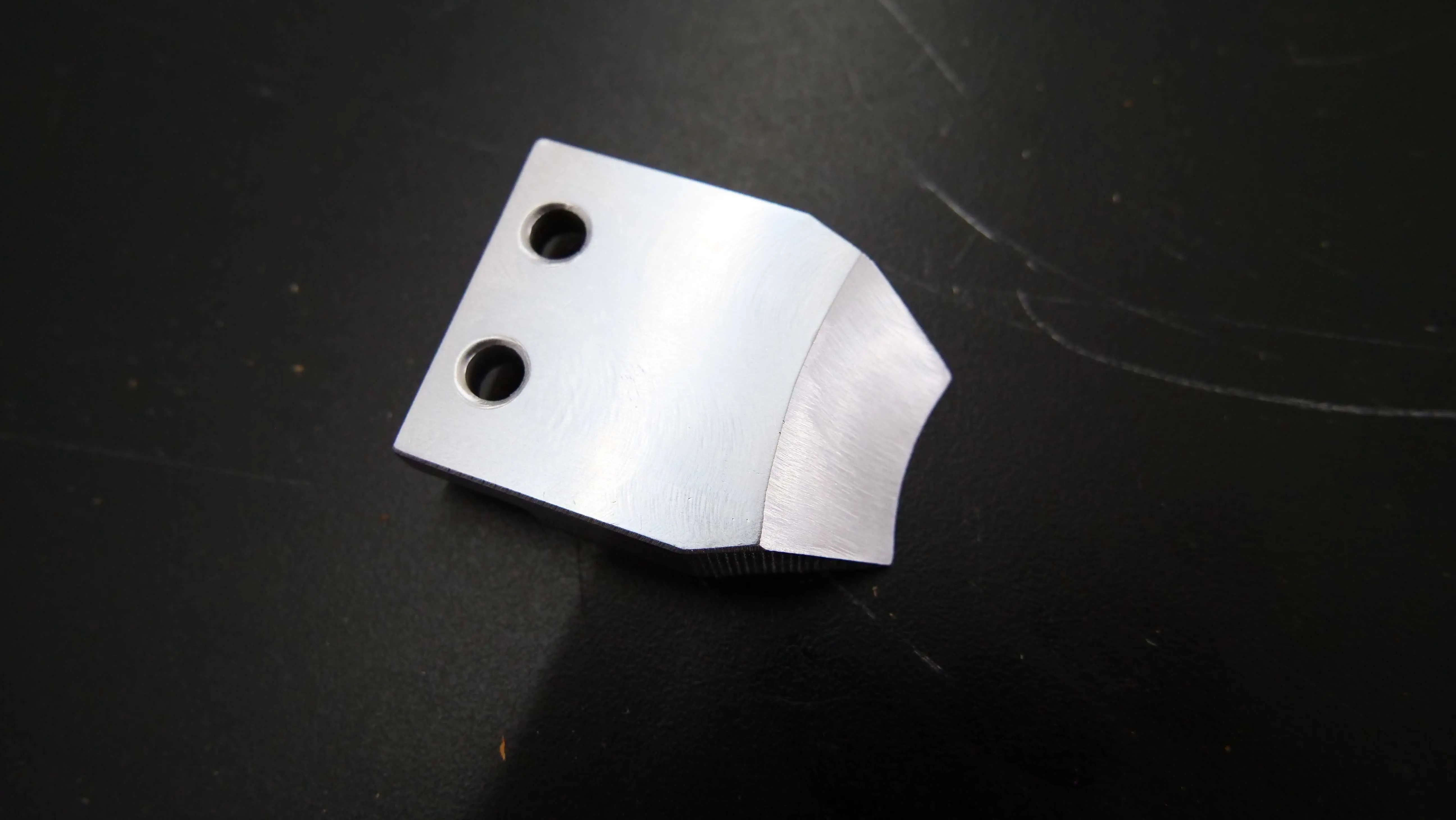

Blade

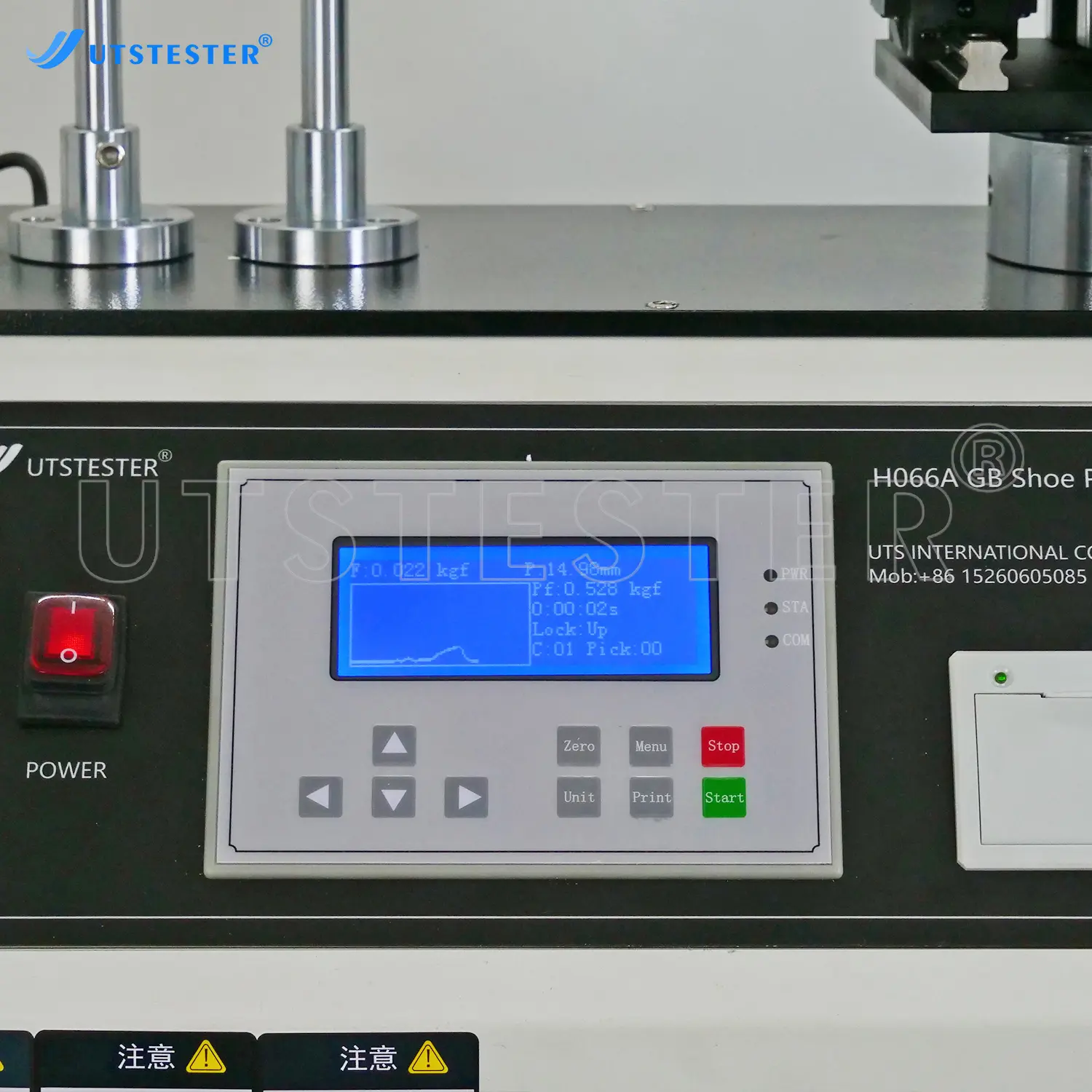

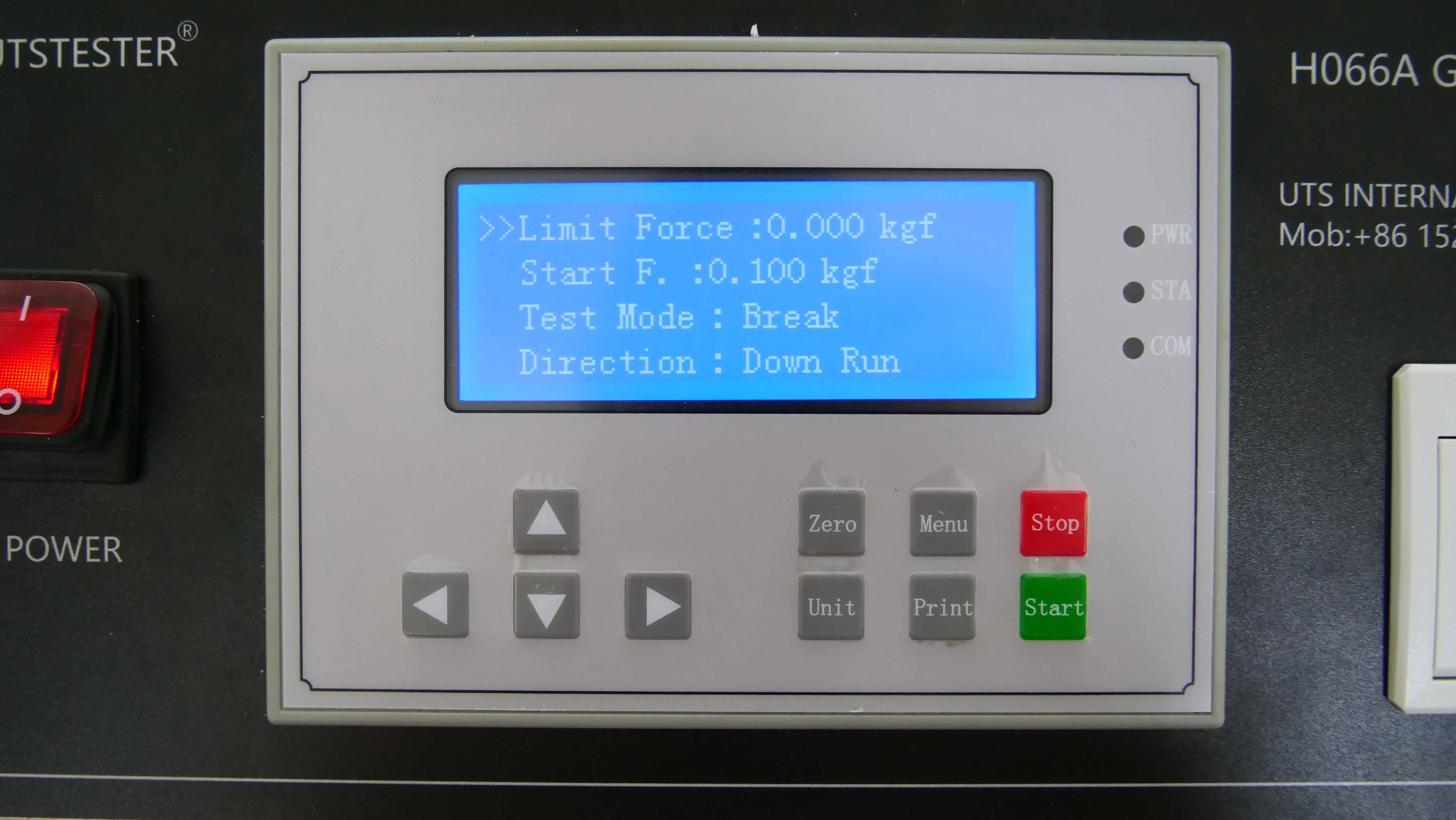

Controller
Blade
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
