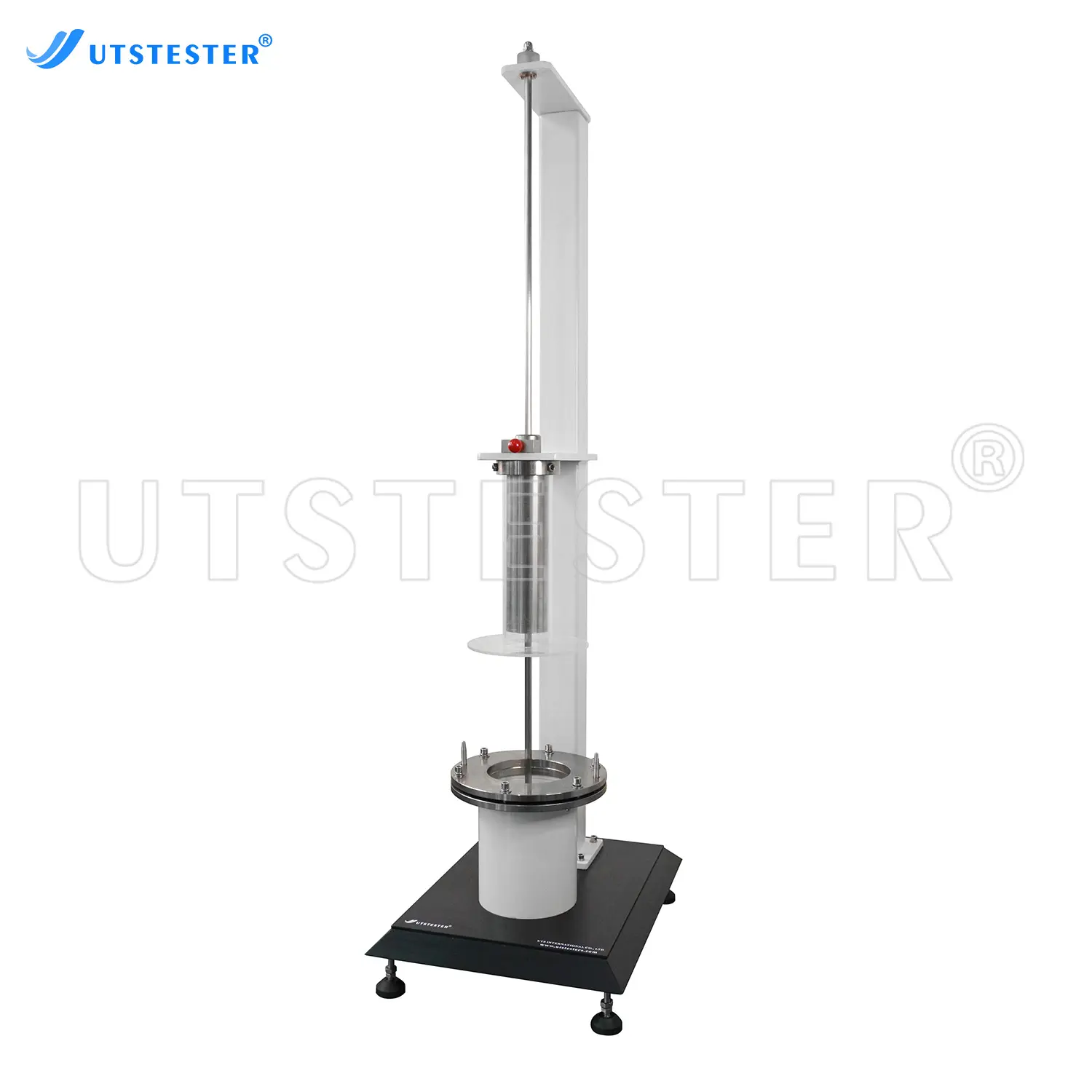

Geotextile Cone Drop Dynamic Perforation Tester Falling Body Perforation Test Machine MA04
Overview
Used for testing the penetration resistance of geotextiles, geotextiles and related products to steel cones falling from a fixed height.
Application
Silk
Garment
Hessian
Standards
GB/T 17630 geotextiles and related products dynamic perforation test falling cone method
ISO 13433 dynamic perforation test for geosynthetic materials (cone drop test)
JTG E50
Key Parameters
| Model | MA04 |
| Internal diameter of fixture | 150±0.5mm |
| Test height | 500±2mm |

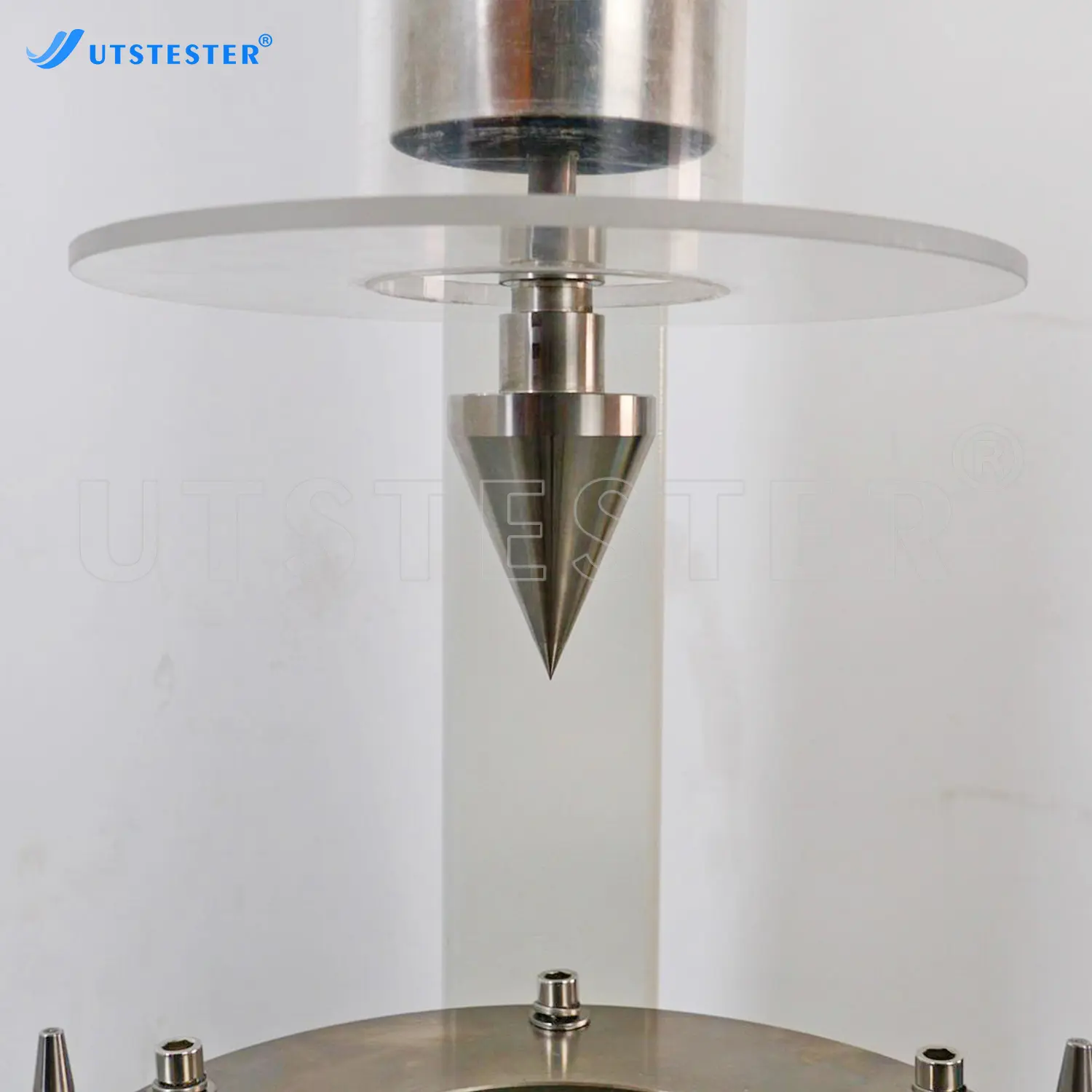

| Stainless steel cone | Cone Angle 45 °, Load 1000±5g |
| Volume of the cone | Cone Angle 45 °, Load 600±5g |
| Overall dimension | 435 * 575 * 1600mm |
| Weight | 55kg |
Product Details

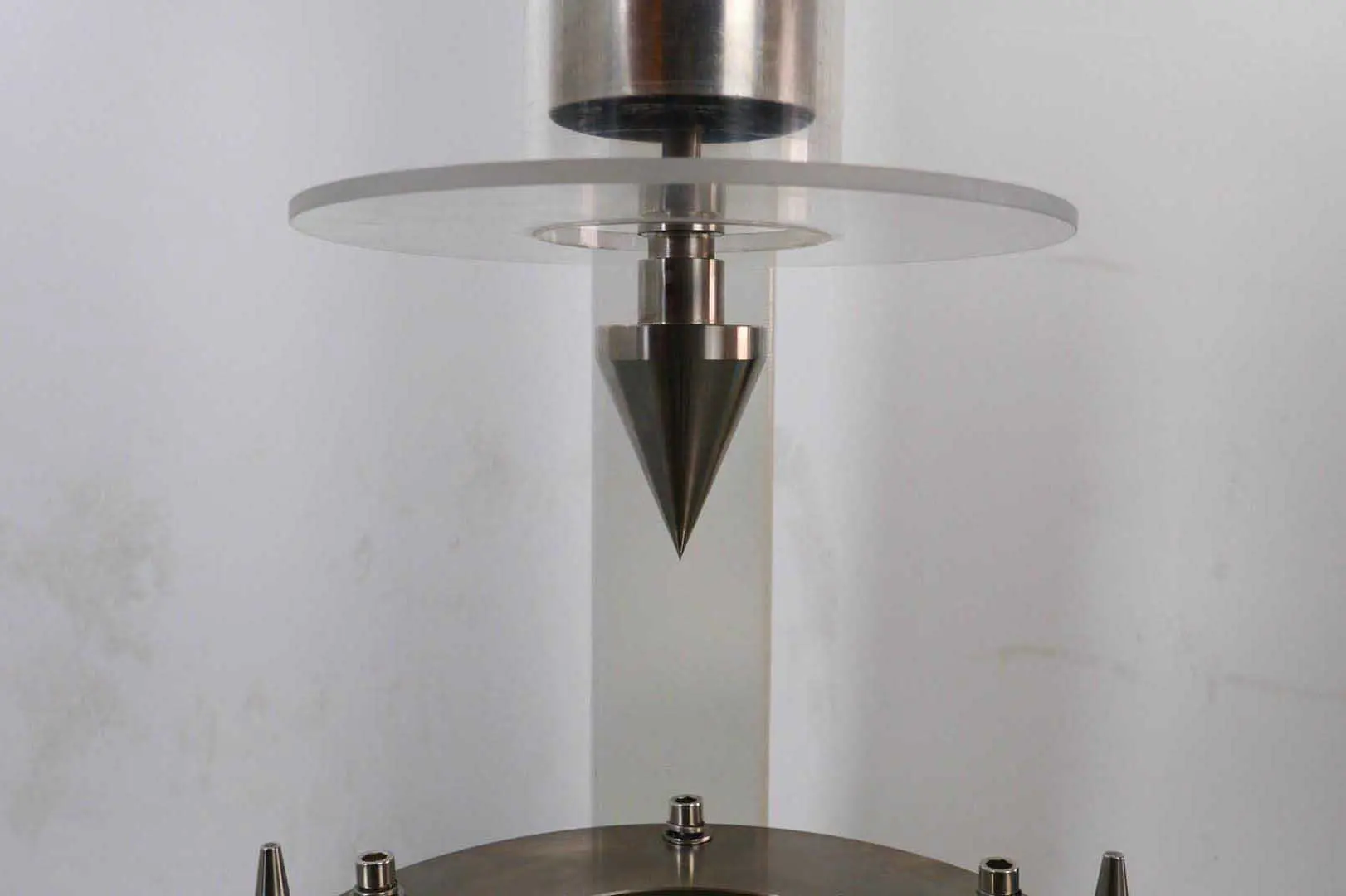

Transparent protective cover

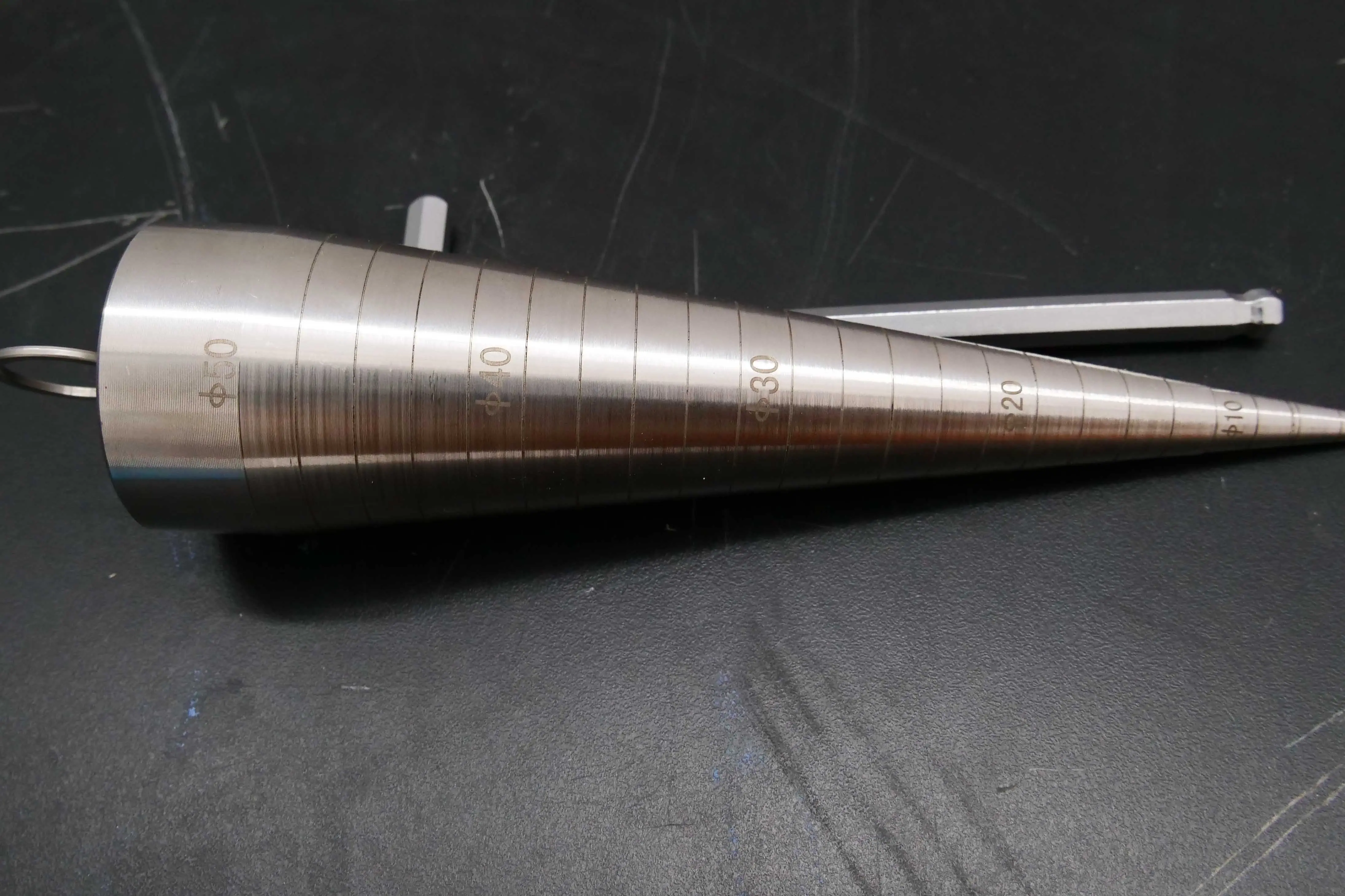

Steel pricker

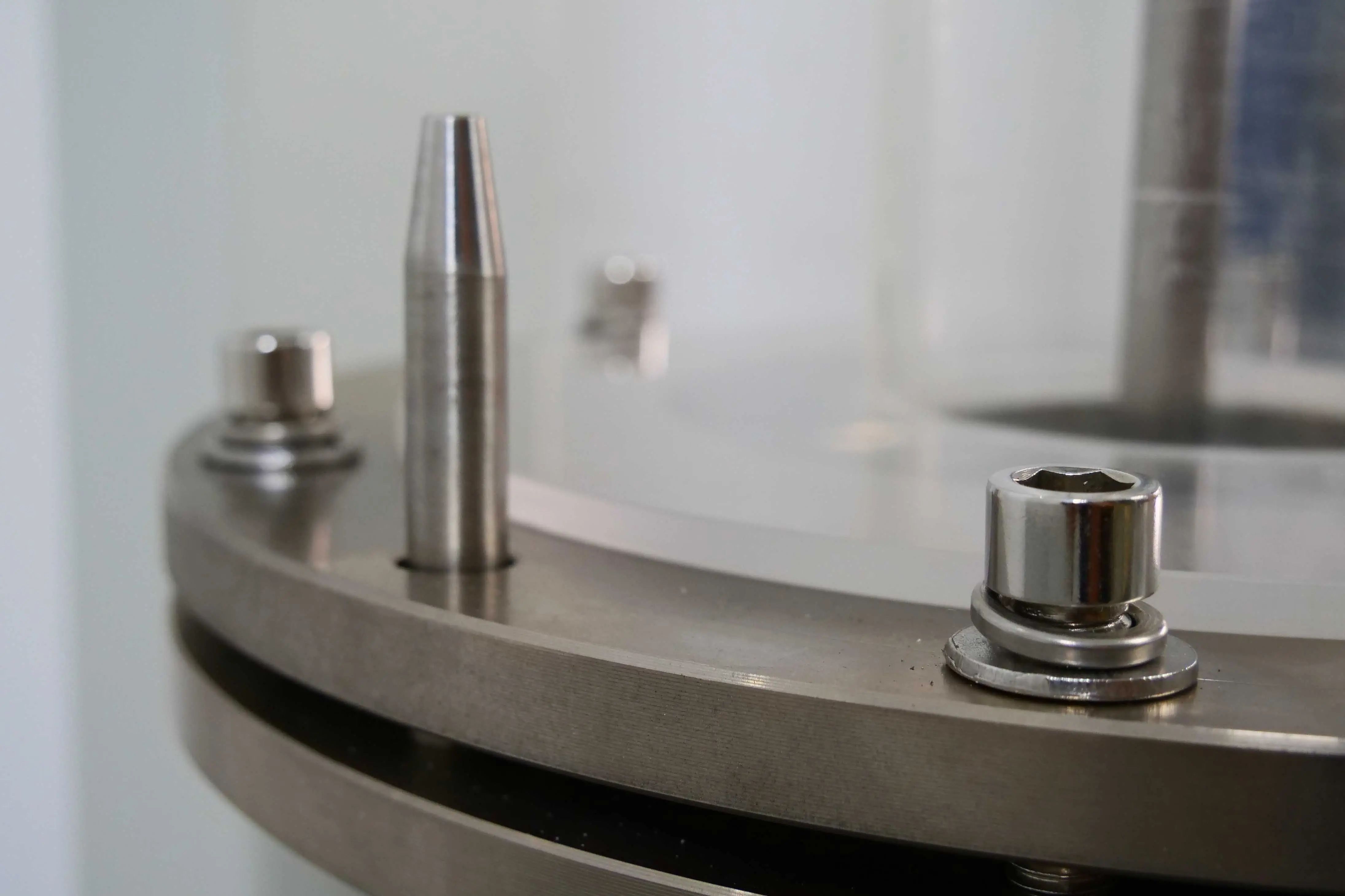

Screw bolt

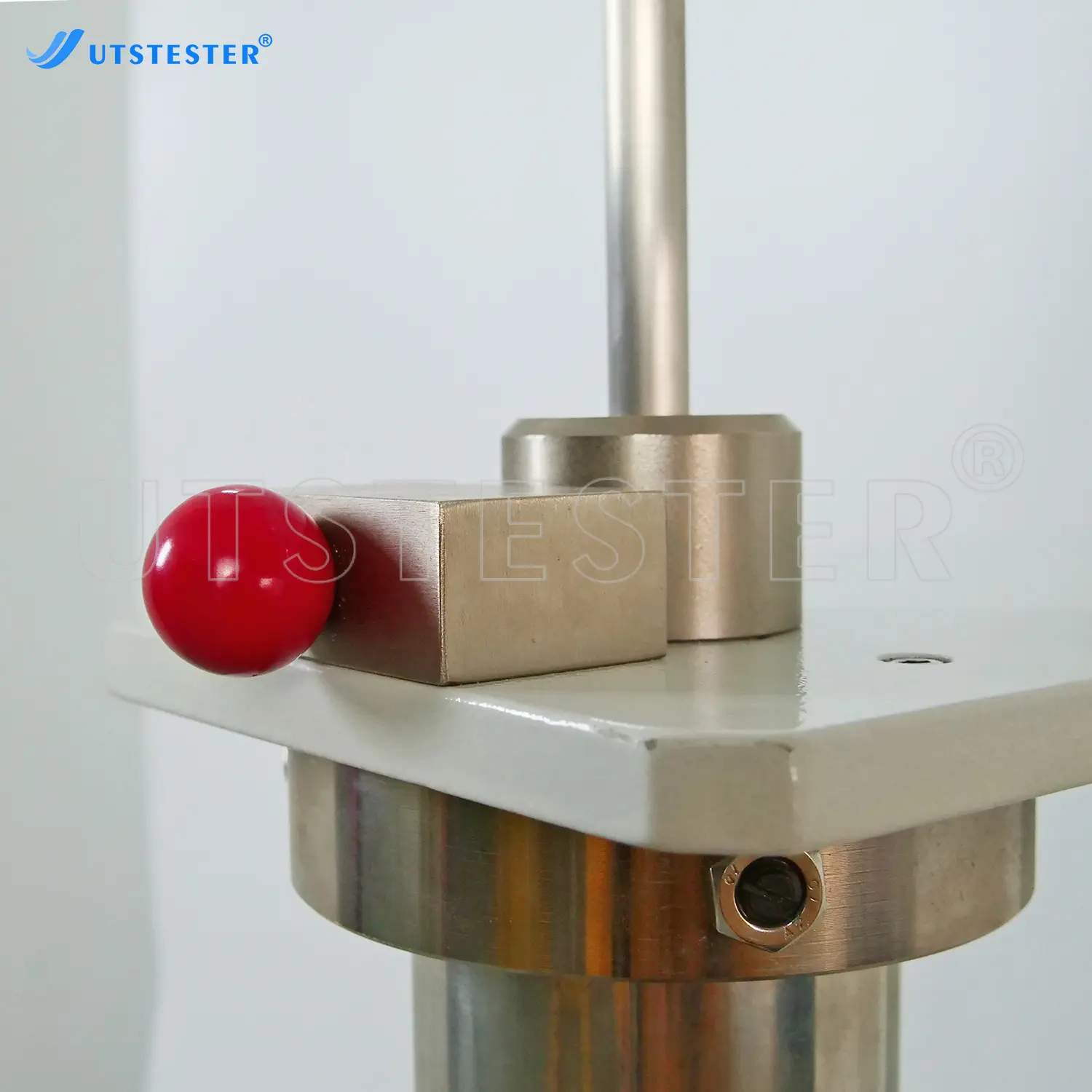

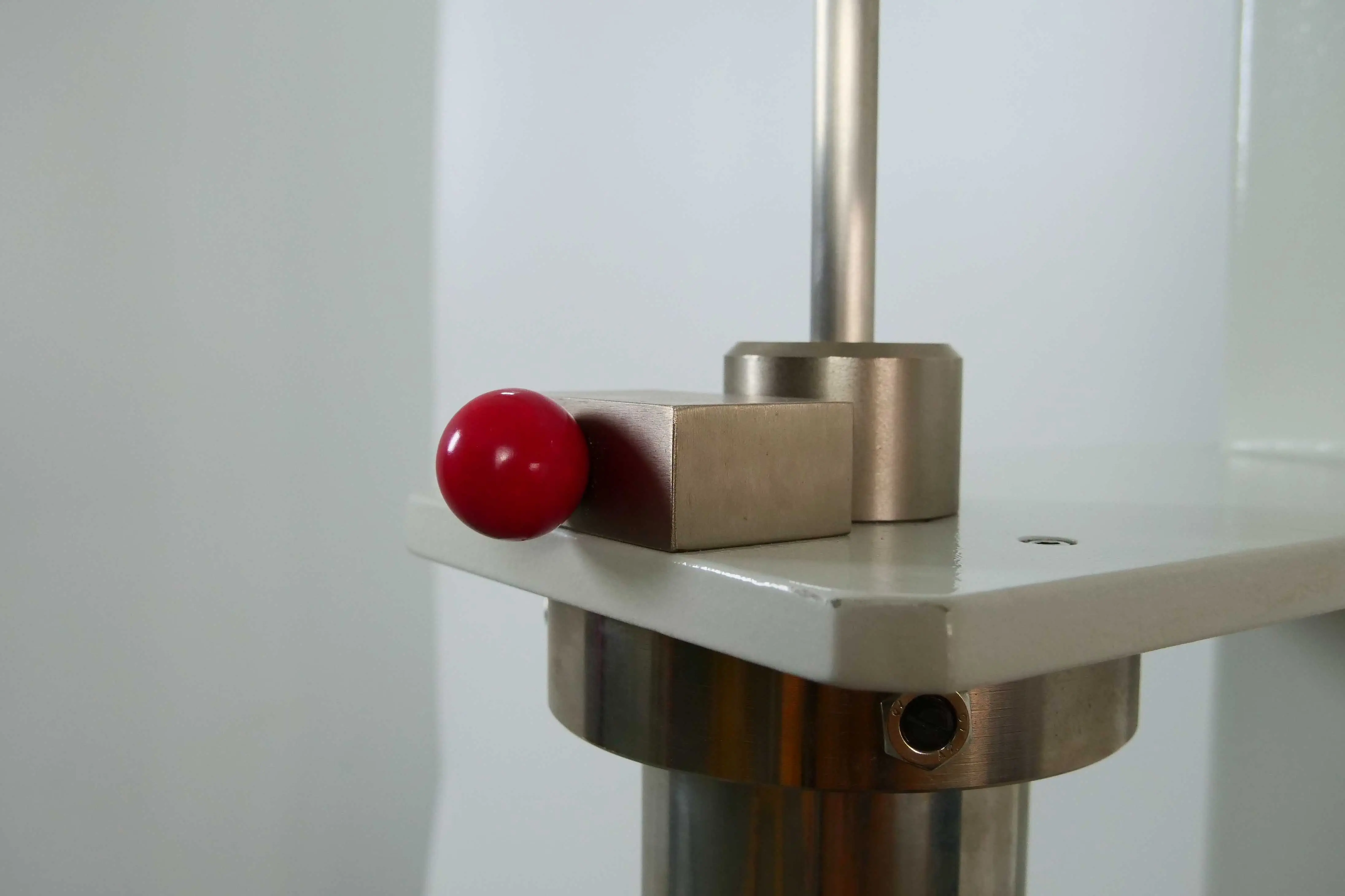

Release device

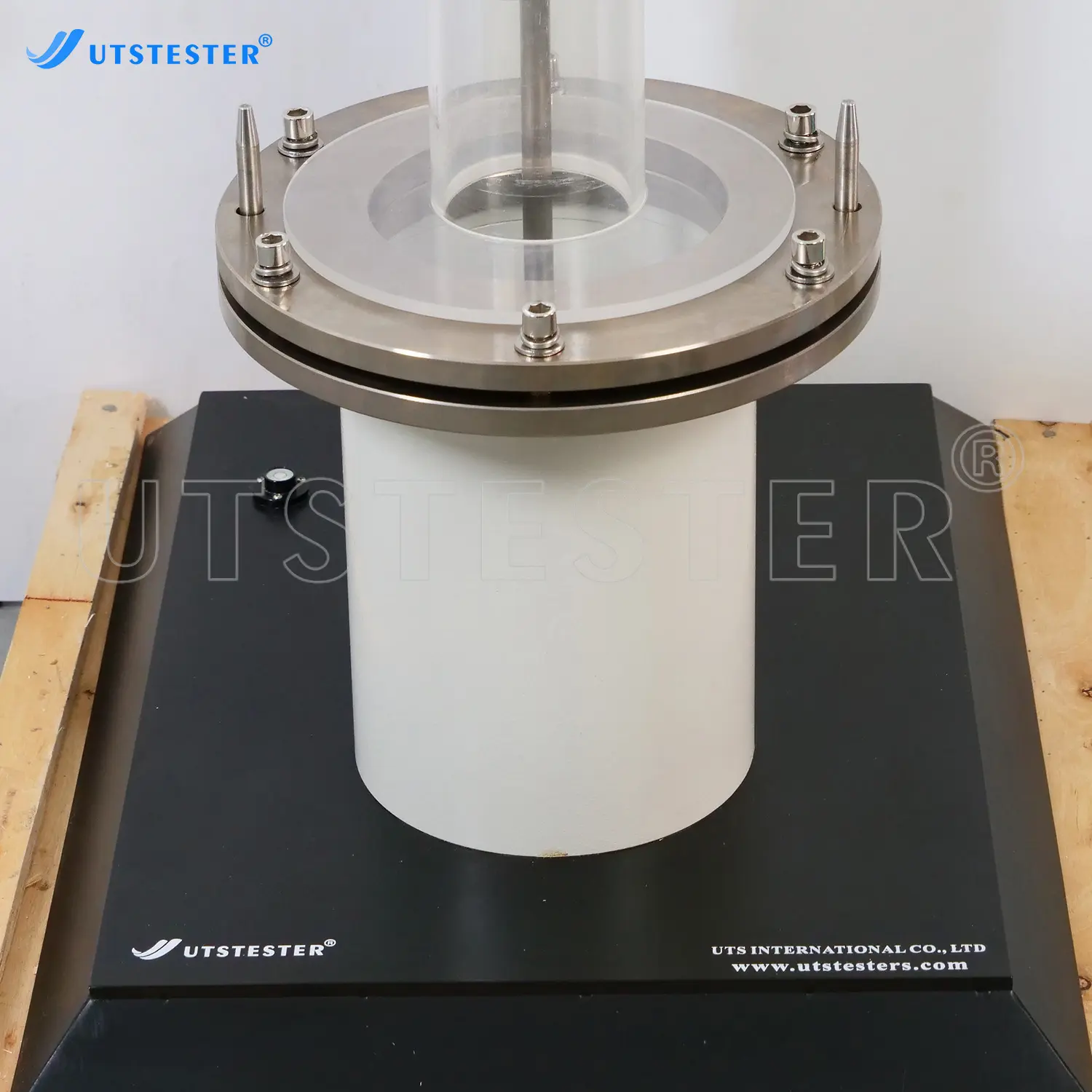

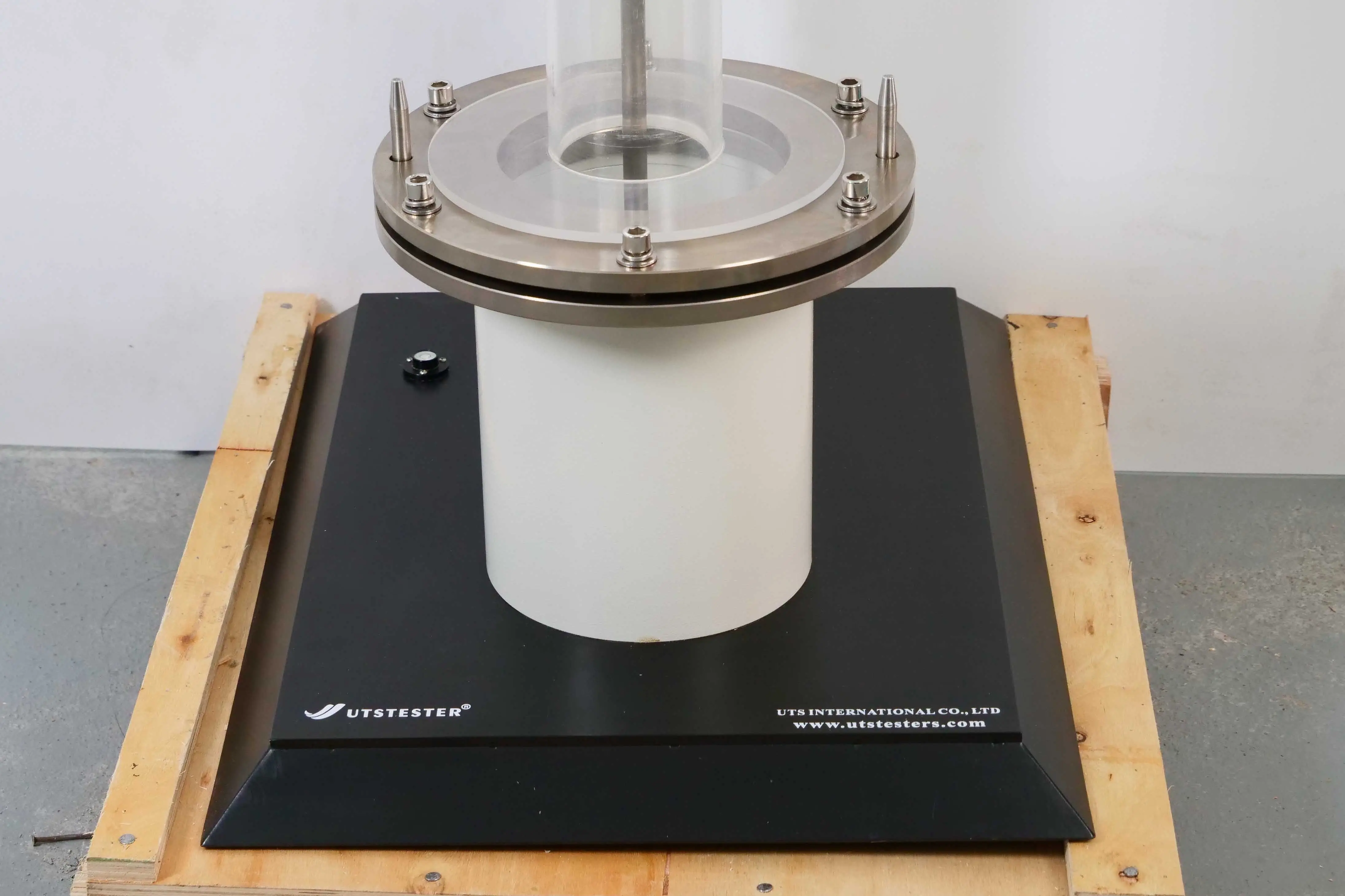

Grip supporting cylinder

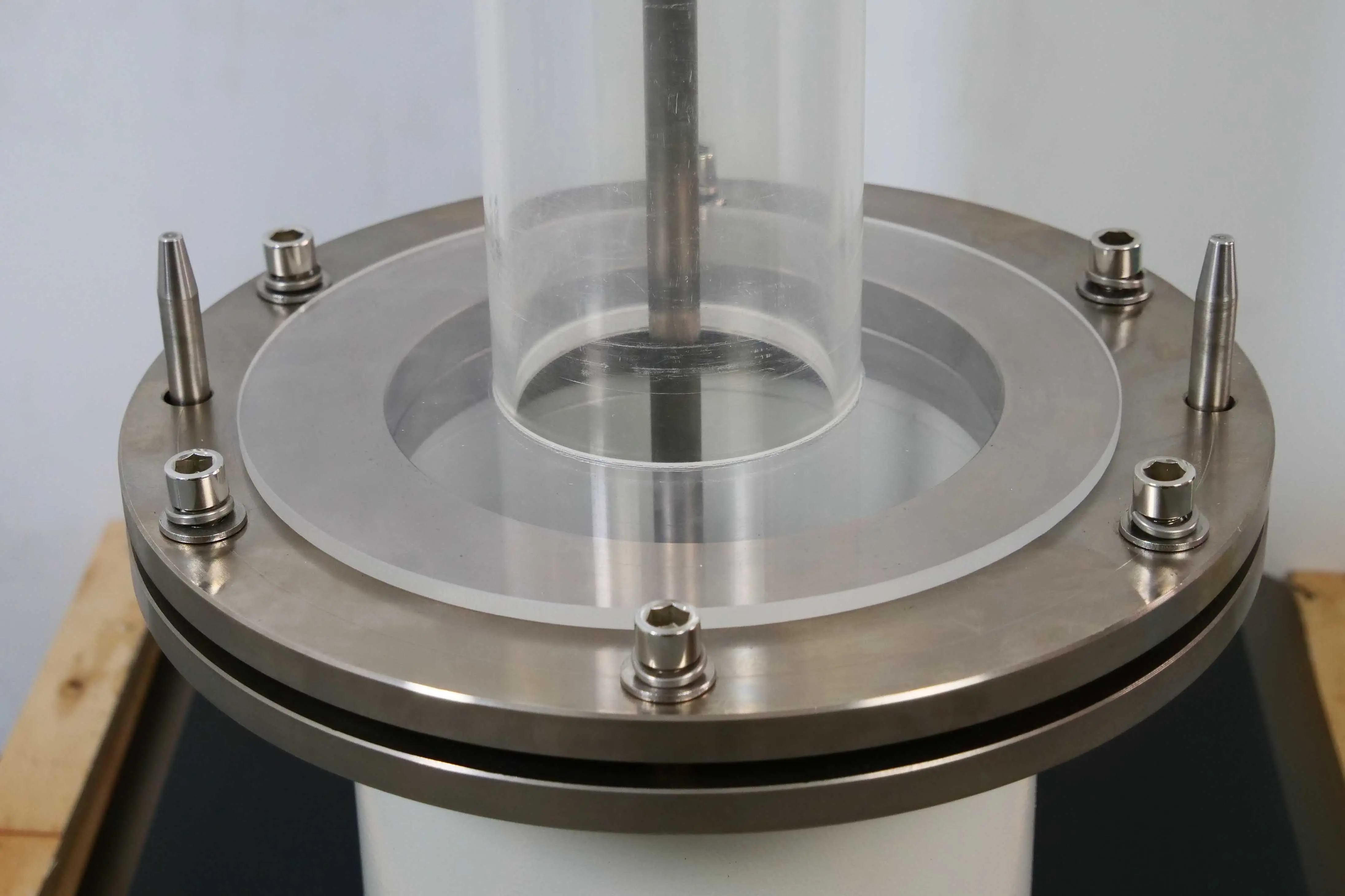

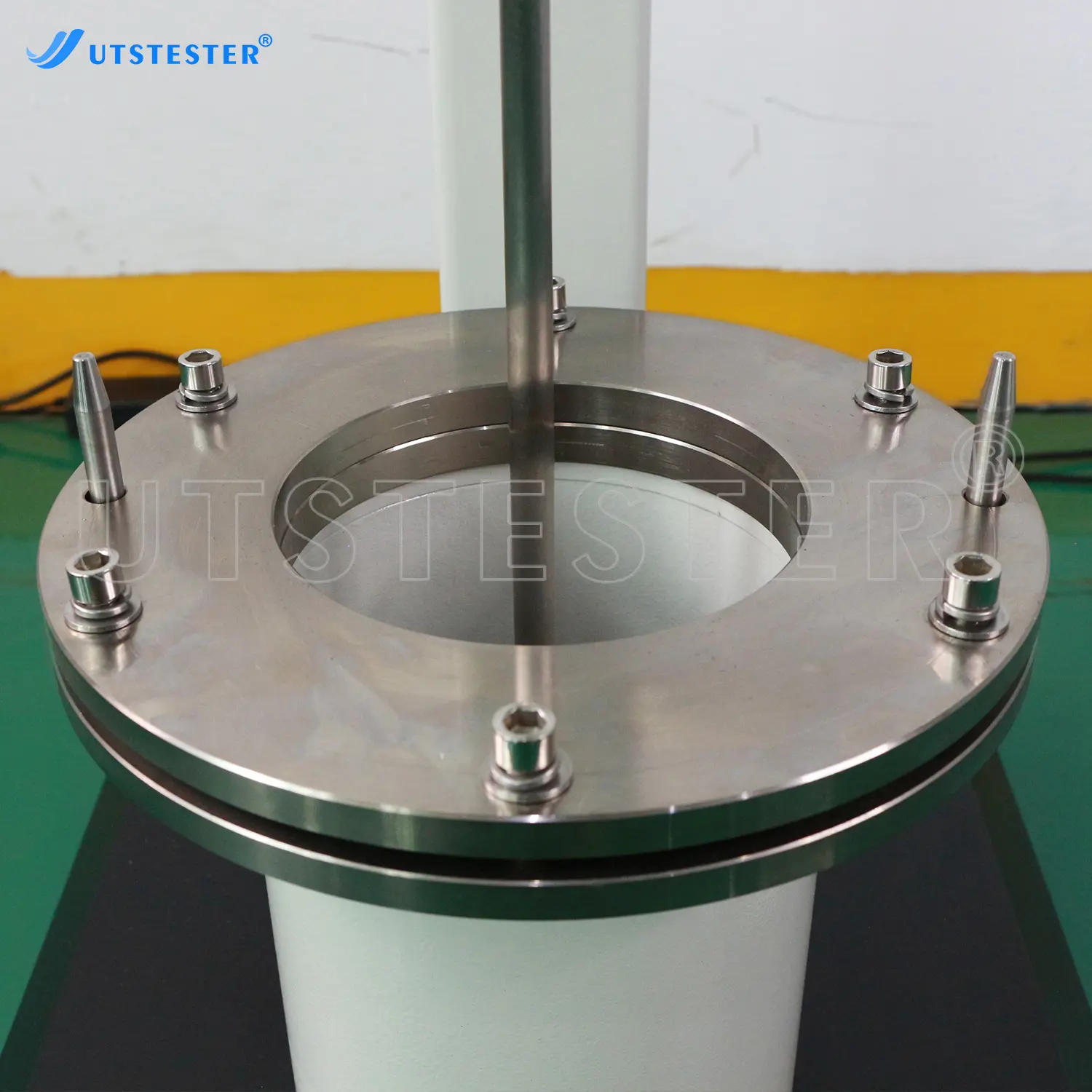

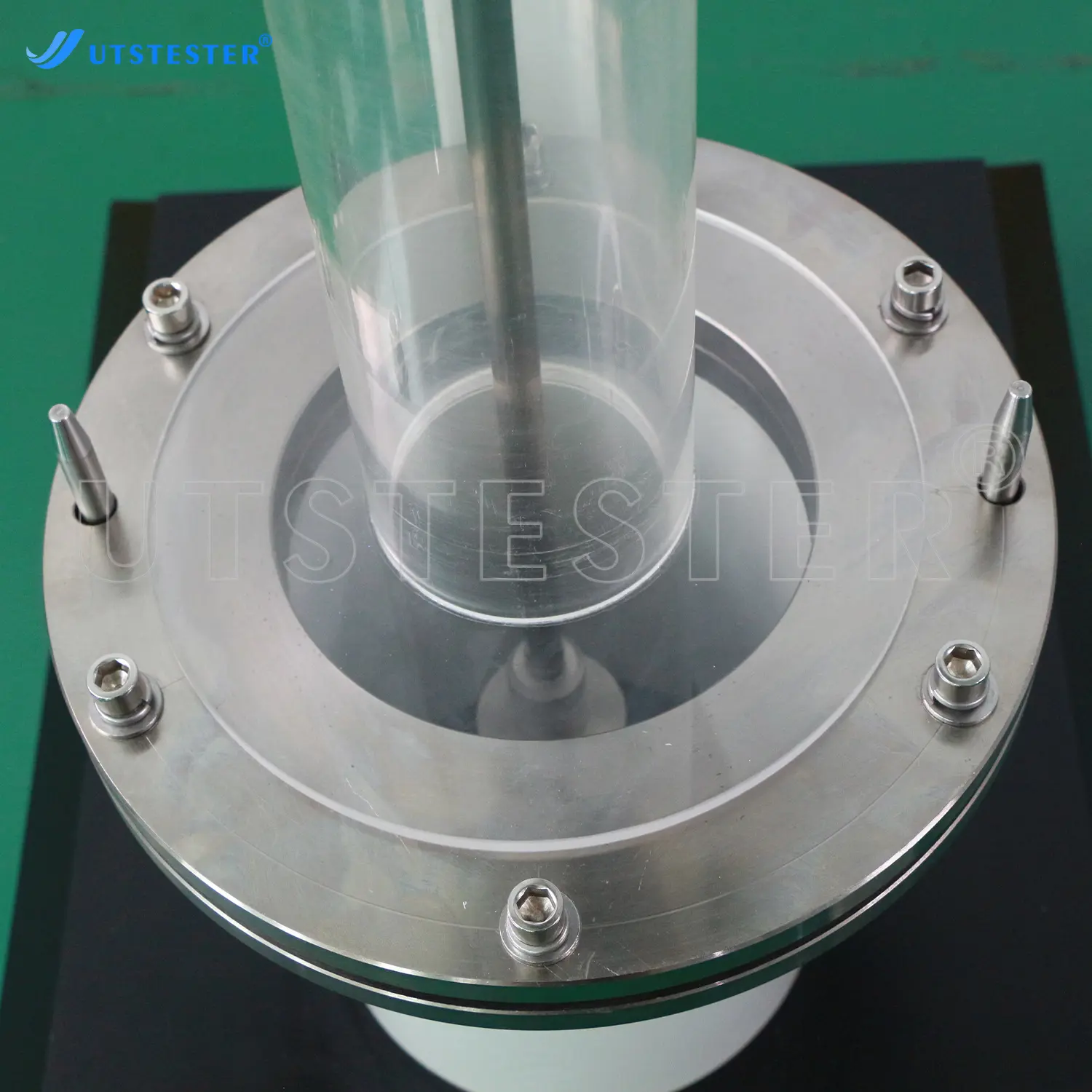

Clamp ring
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
