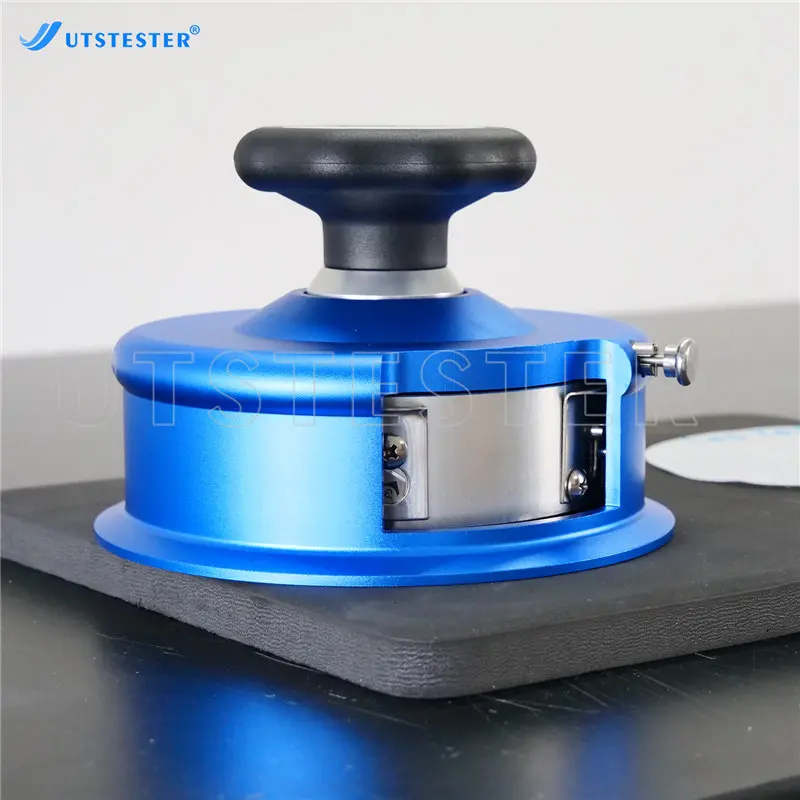

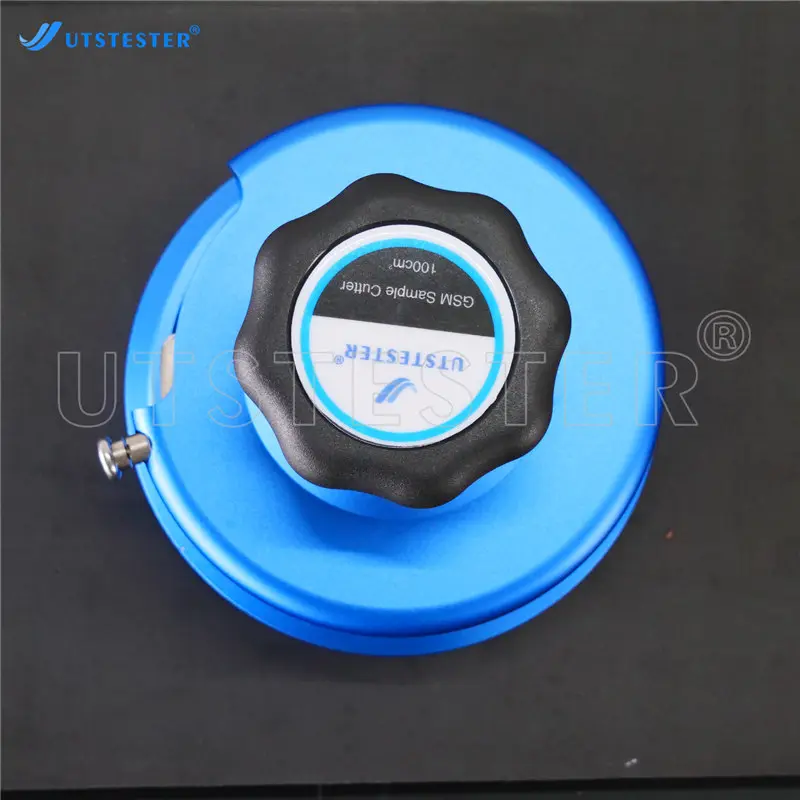

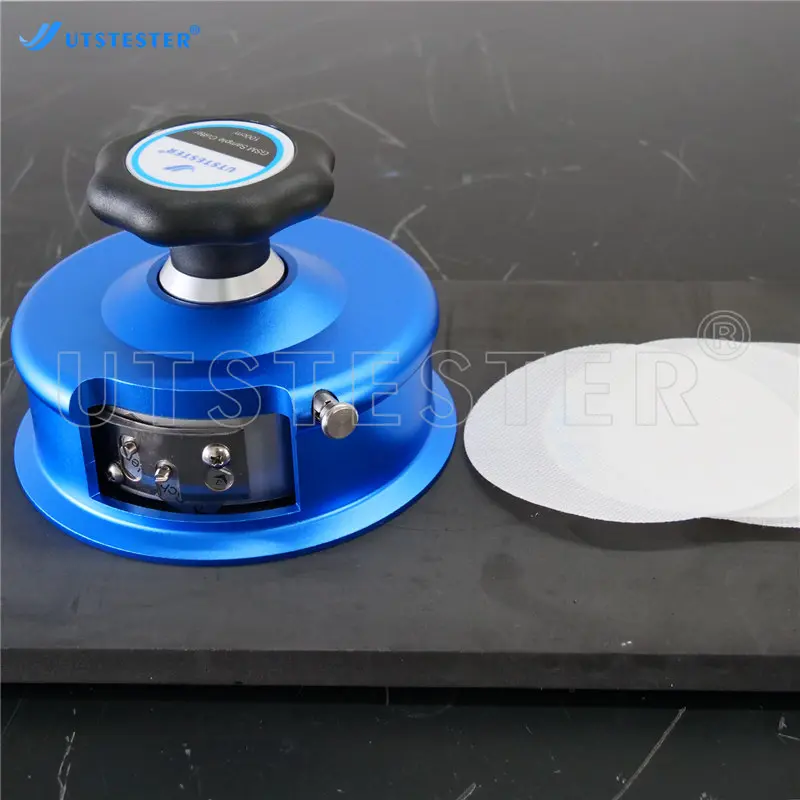

GSM Sample Cutter Circular Sample Cutter
Overview
GSM Sample round cutter is designed for cutting all kinds of textile, such as cotton, woolen, polyester, knitting, etc. It is also suitable for cutting leather, paper, paperboard and aluminum foil.
The instrument can quickly and accurately cut the standard area about 100 square centimeters, 5mm thickness.
Combine with electronic balance to use.Cutting mat and spare blades are equipped.
Application
ALUMINUM FOIL
COTTON
LEATHER
PAPER
PAPERBOARD
WOOLEN
Standards
GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375
Key Parameters
|
Model |
M018A |
|
Control mode |
Manual |
|
Cutting area |
100cm2 |
|
Cutting diameter |
Φ112.8mm |
|
Cutting thickness |
5mm |
|
Dimension |
Φ160×115 |
|
Weight |
1kg |
|
Standards accessories |
Schroder spare blades (Made in Germany) x 4pcs |
|
Cutting mat x 1pc |
Product Details

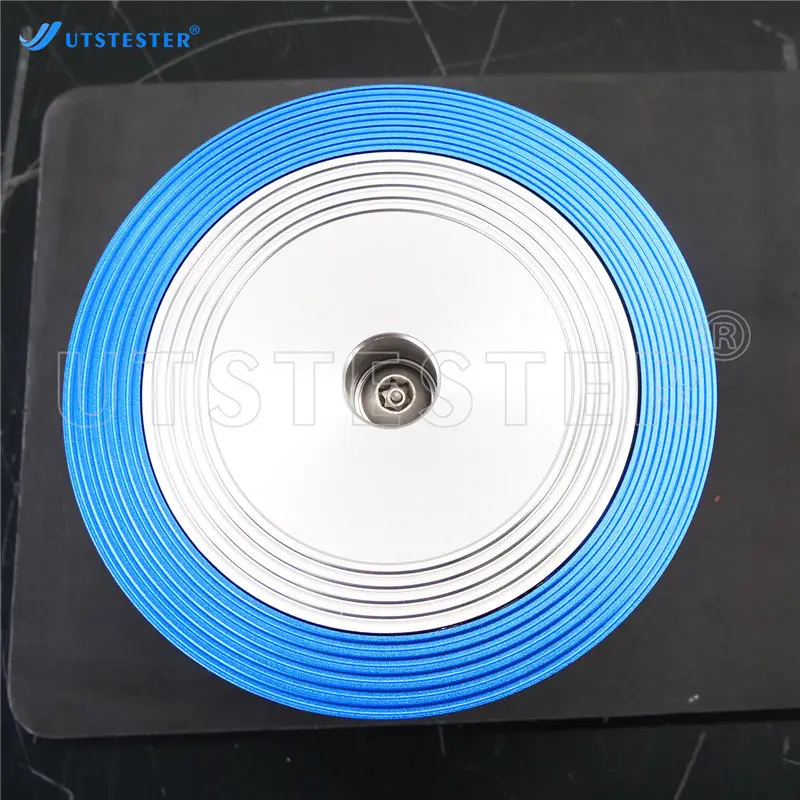

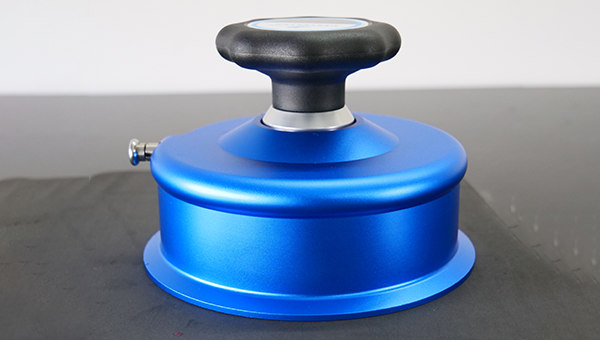

aluminum shell

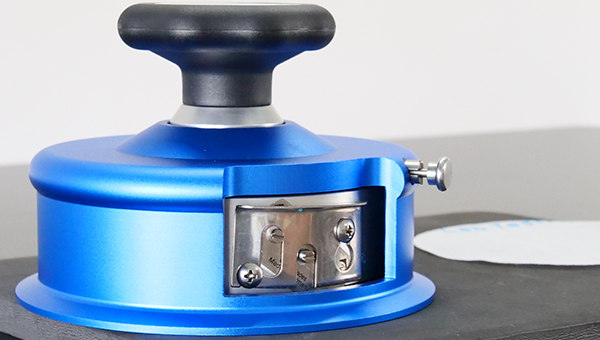

blade

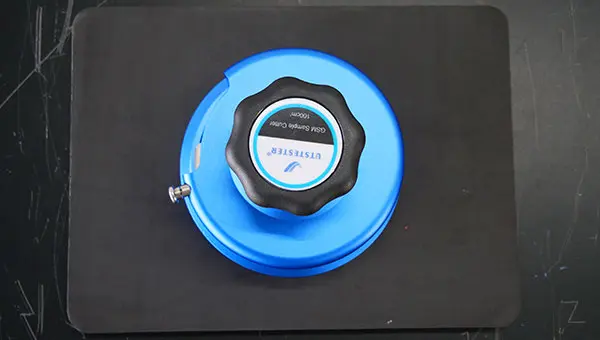

handle

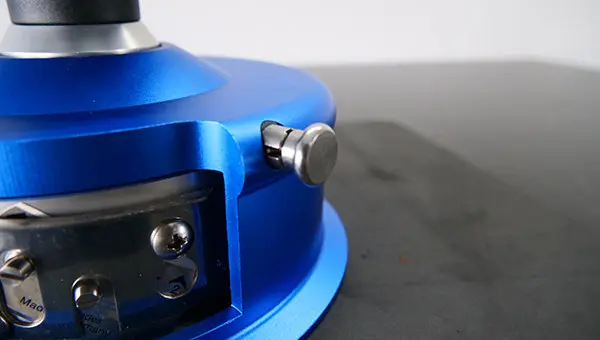

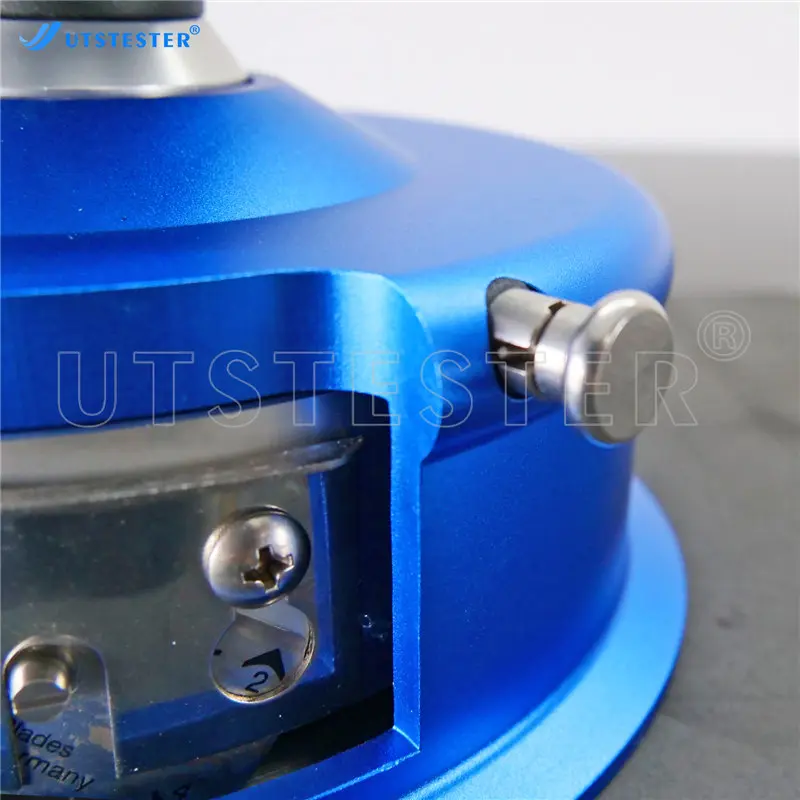

security lock
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Place the sample

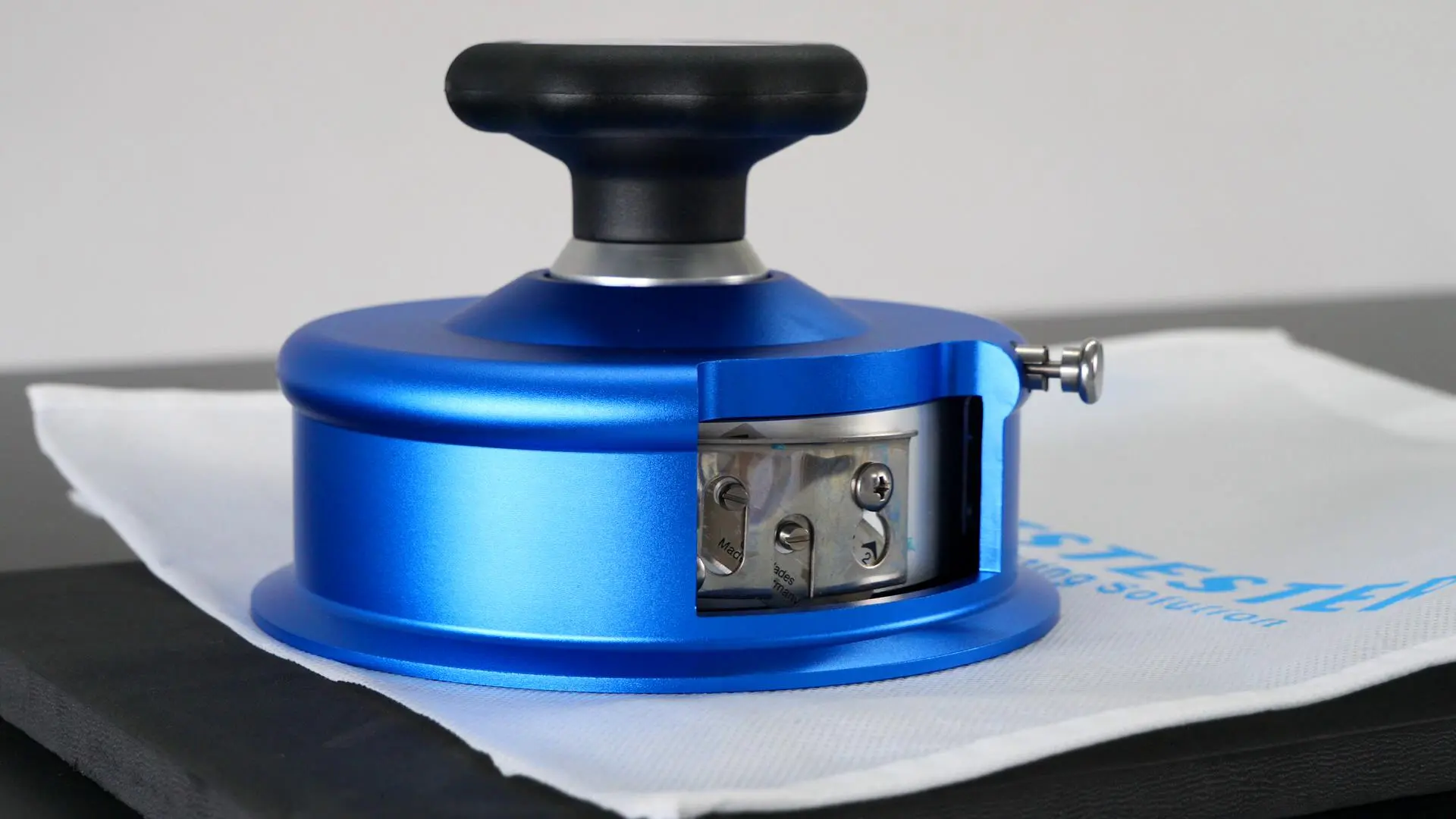

Place the sample on the cutting board making sure that it is flat and smooth .Do not stretch it.

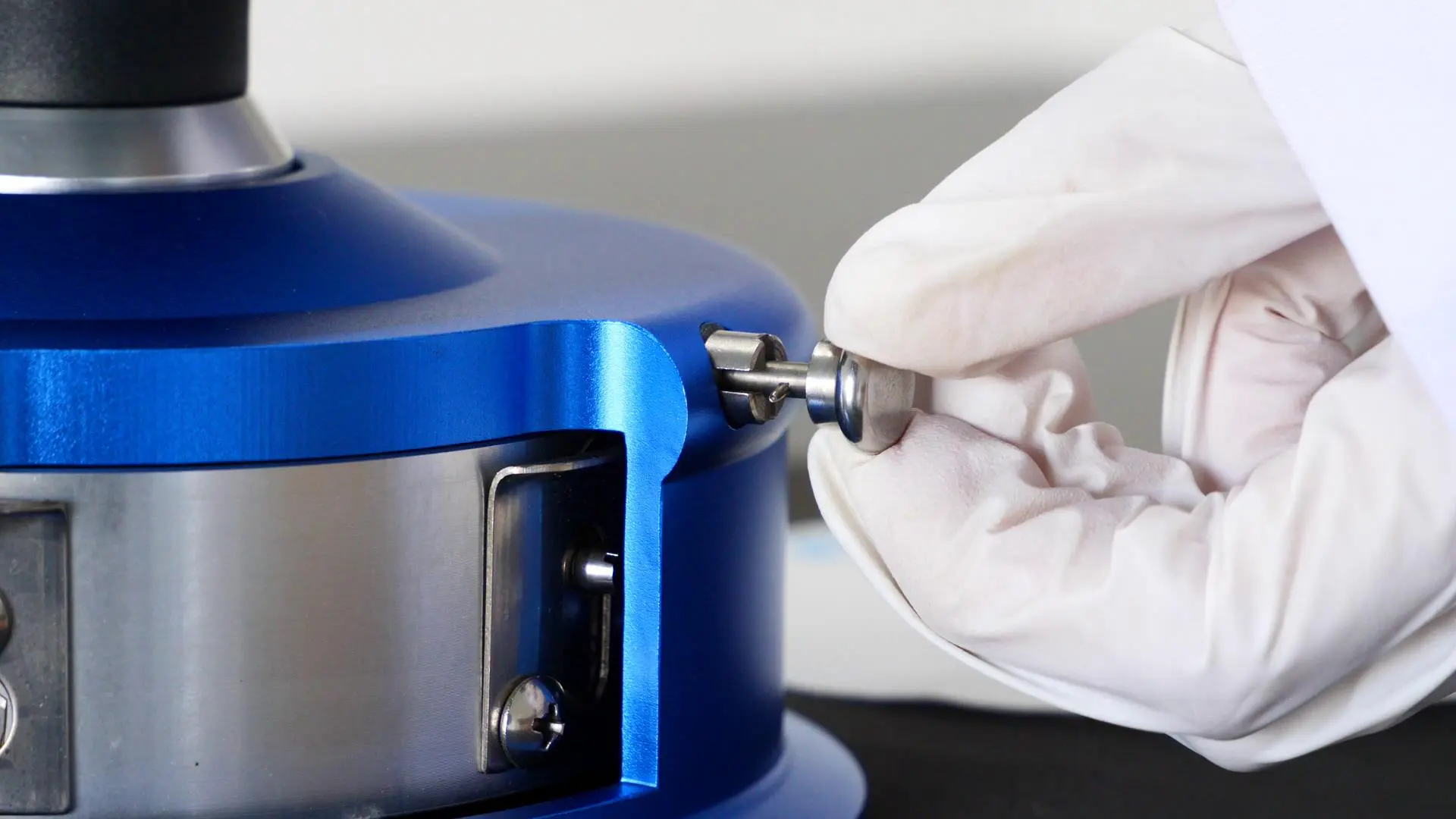

Release the safety catch

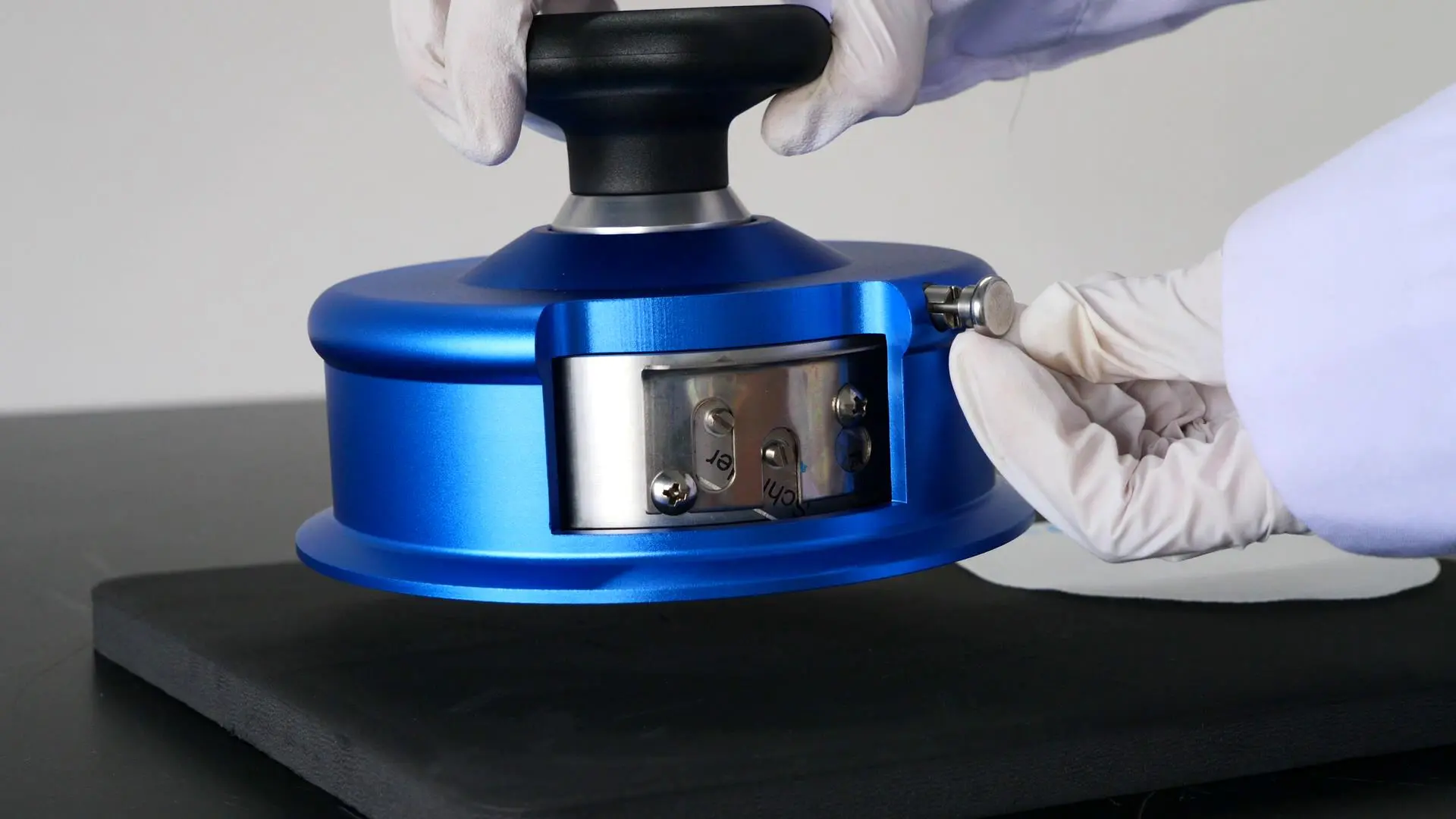

Place the cutter on the sample and release the safety catch.
This is done by withdrawing the head of the catch,turning it through 90 degrees and locating the pin in the two recesses. This allows the blades to become operational.

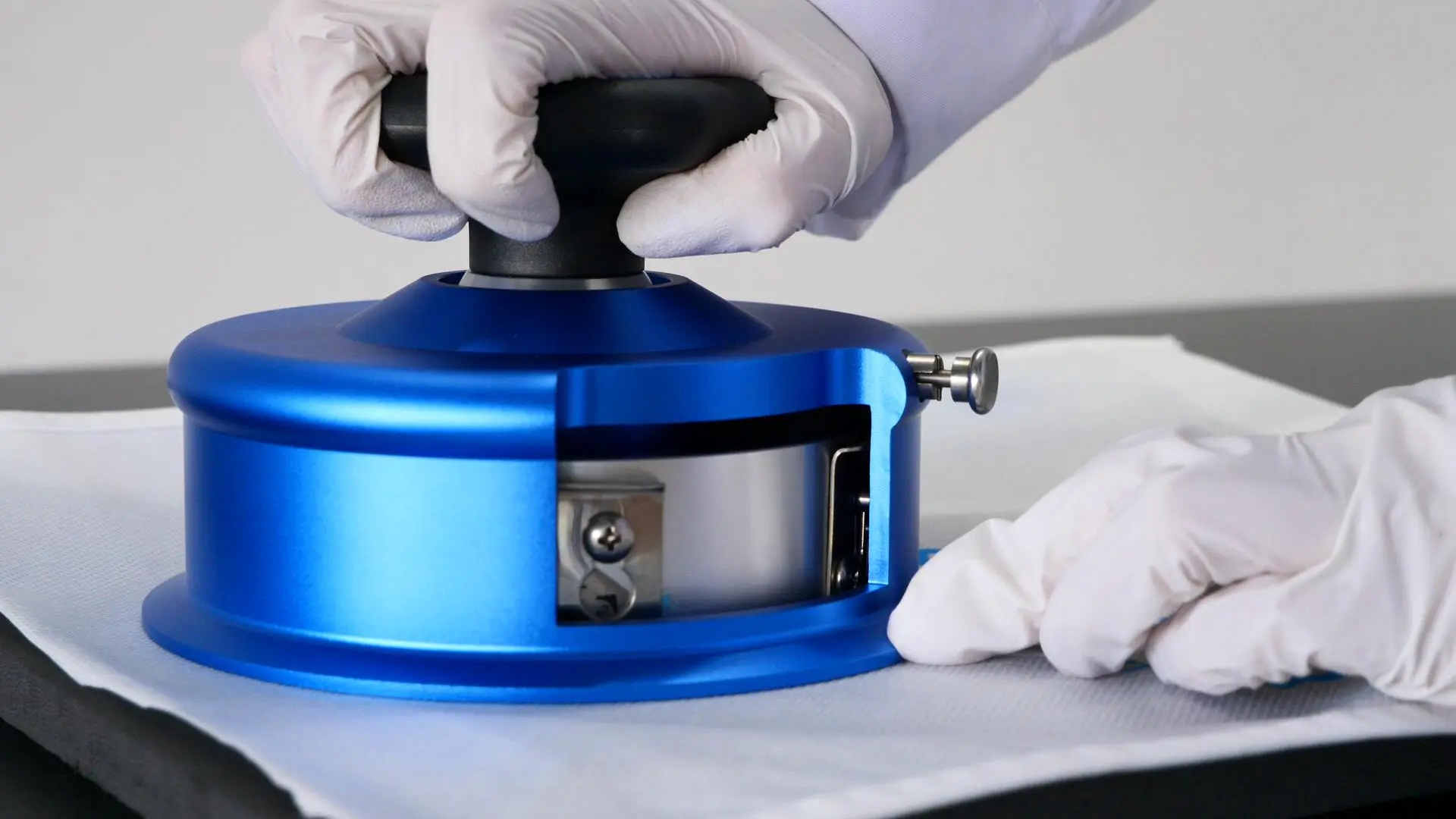

Cut sample
Whilst holding the cutter with one hand, apply pressure to the handle and rotate through at least 180 degrees,It may be necessary to turn further for certain materials.
Retract the blade
Ro-lock the safety catch and remove the cutter.
For determination of weight per unit area ,weigh the specimen to 0.01g or0.0001oz(We have a range of balances available for weighing the cut specimens. Welcome to ask for query.).
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
