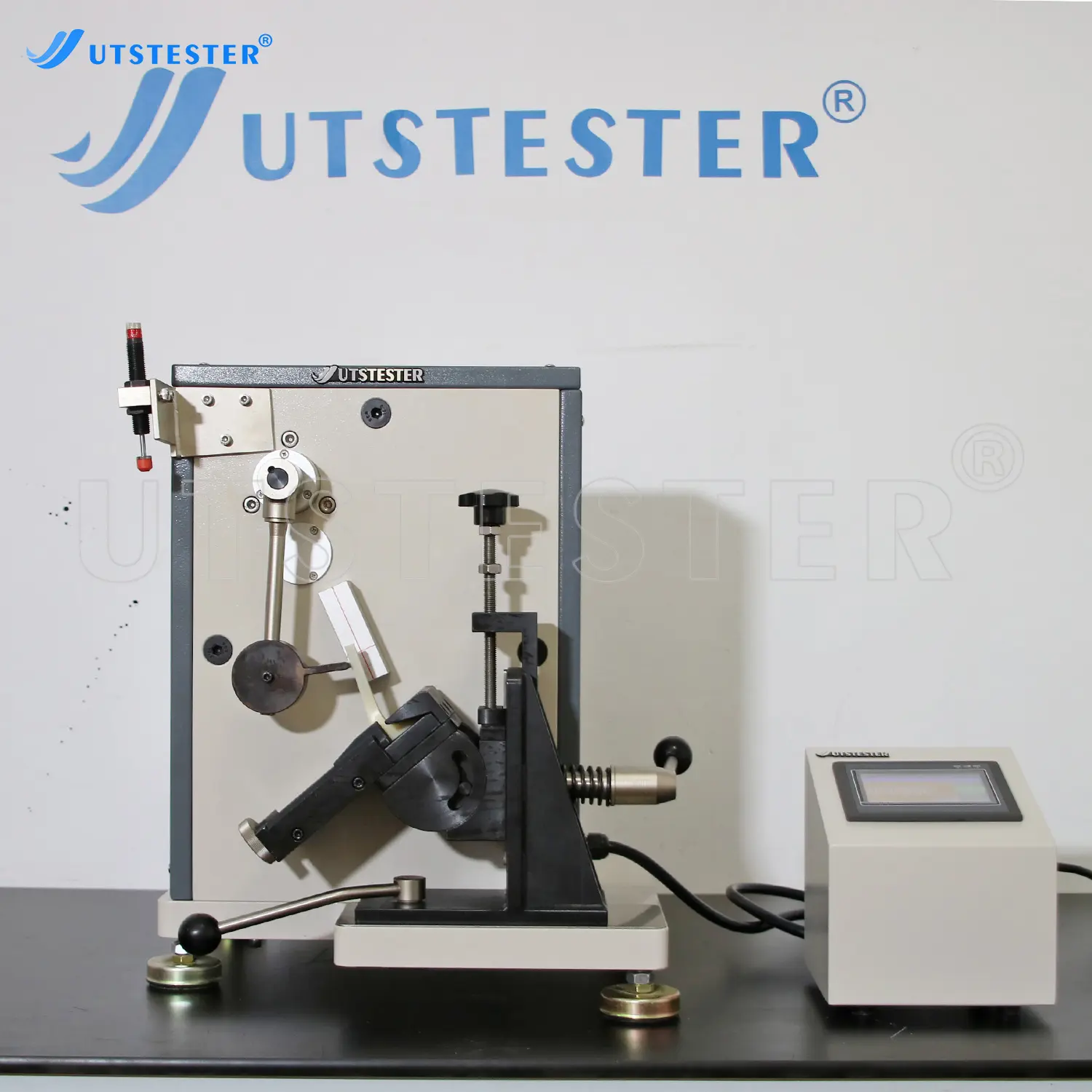

Heel Fatigue Tester Shoe Fatigue Testing Machine H026
Overview
To test resistance to repeated impact property for medium and high heels of female’s shoes at wearing state.
Application
High Heels
Mid-heeled shoes
Standards
QB/T 2864 BS-5131 SATRA TM21
Key Parameters
|
Model |
H026 |
|
Pendulum bob |
f 12.5± 1 mm |
|
Impact energy |
0.68J ± 0.02J |
|
Distance between pendulum bob center to impact hammer center |
152±2 mm |
|
Impact hammer |
f 57 ± 1 mm, Thickness 20 ± 1 mm |
|
Impact head |
L35±2 mm, W20±1 mm, Radium 3.0±0.5 mm, Thickness 6±0.5 mm |
|
Impact angle |
90° |
|
Distance between top of impact head to center of pendulum bob |
63.5±2 mm |
|
Test speed |
60 rpm |
|
Counter |
LCD digital display99,999,999 ( adjustable) |
|
Power supply |
1∮AC 220V 50/60HZ 3A |
|
Dimensions |
60 x 40 x 65cm |
|
Weight |
70kg |
Product Details

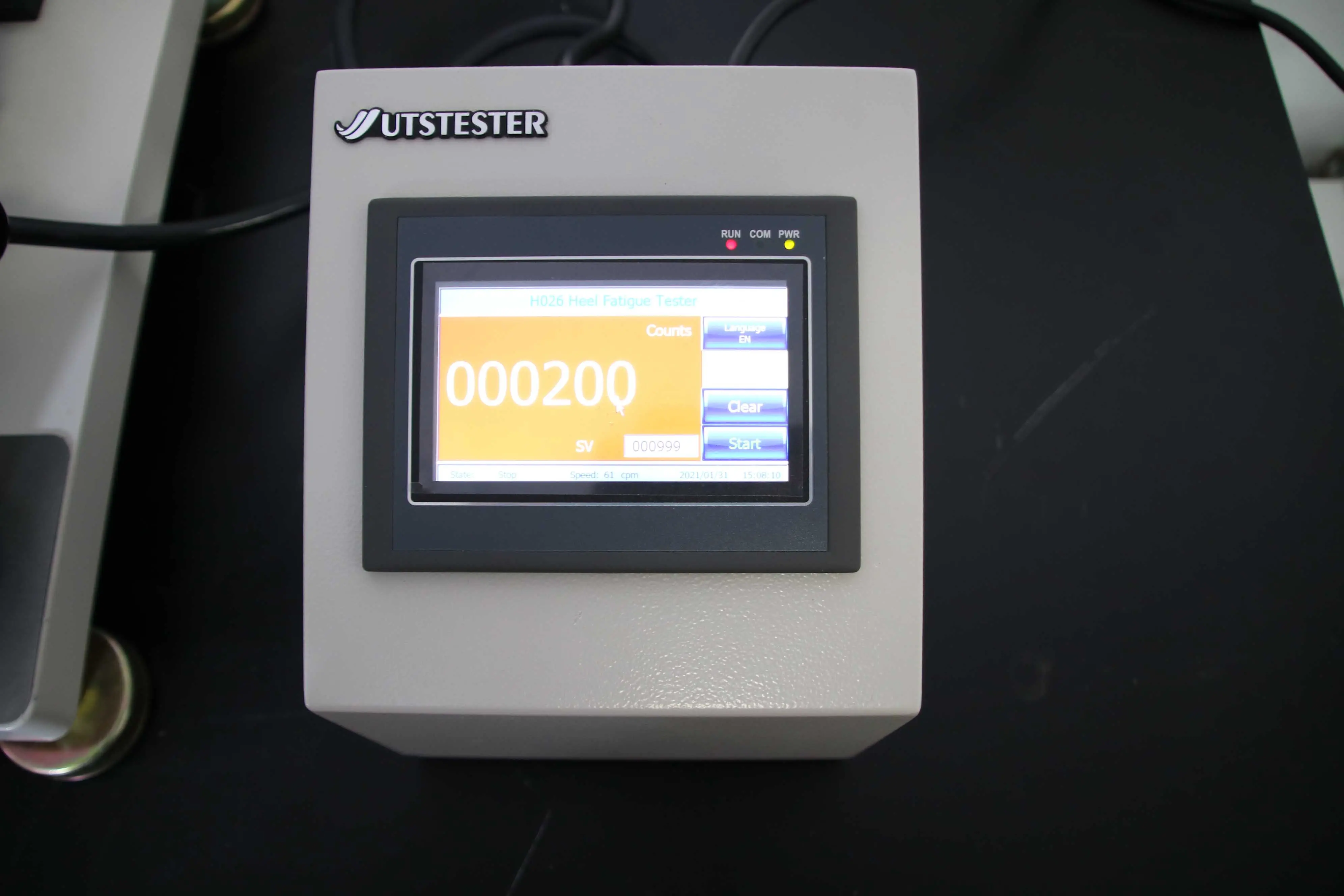

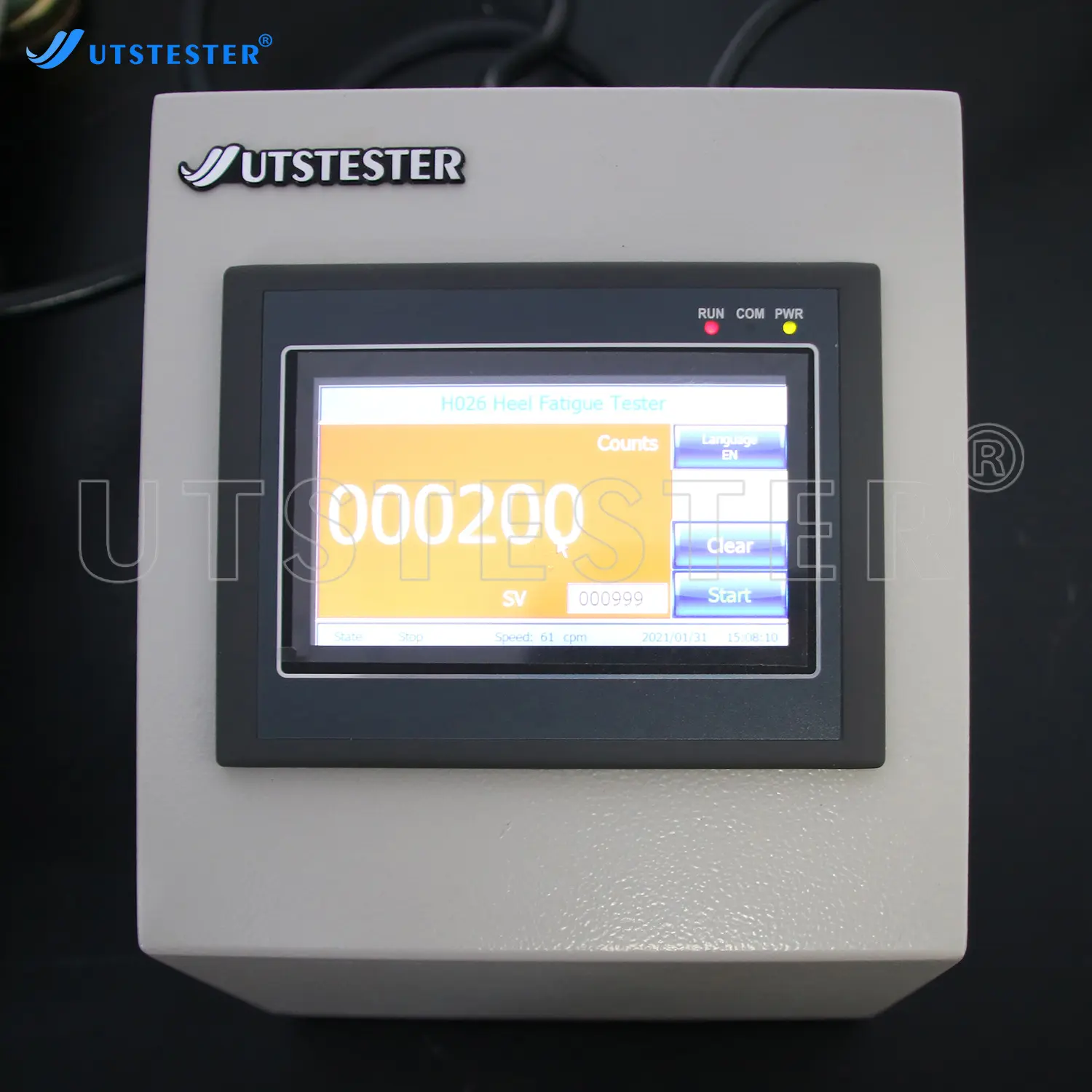

Control panel
Preventing bounce stop

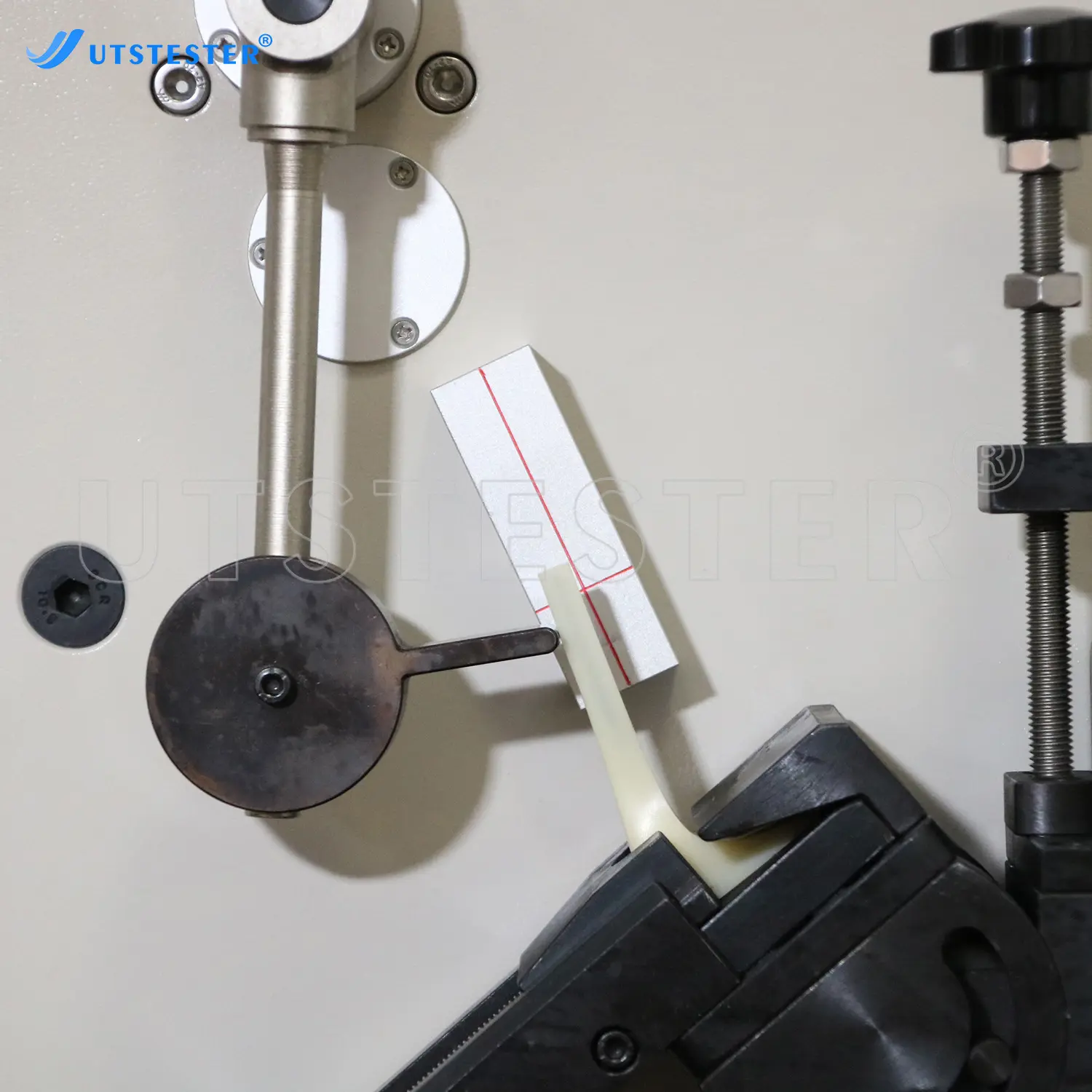

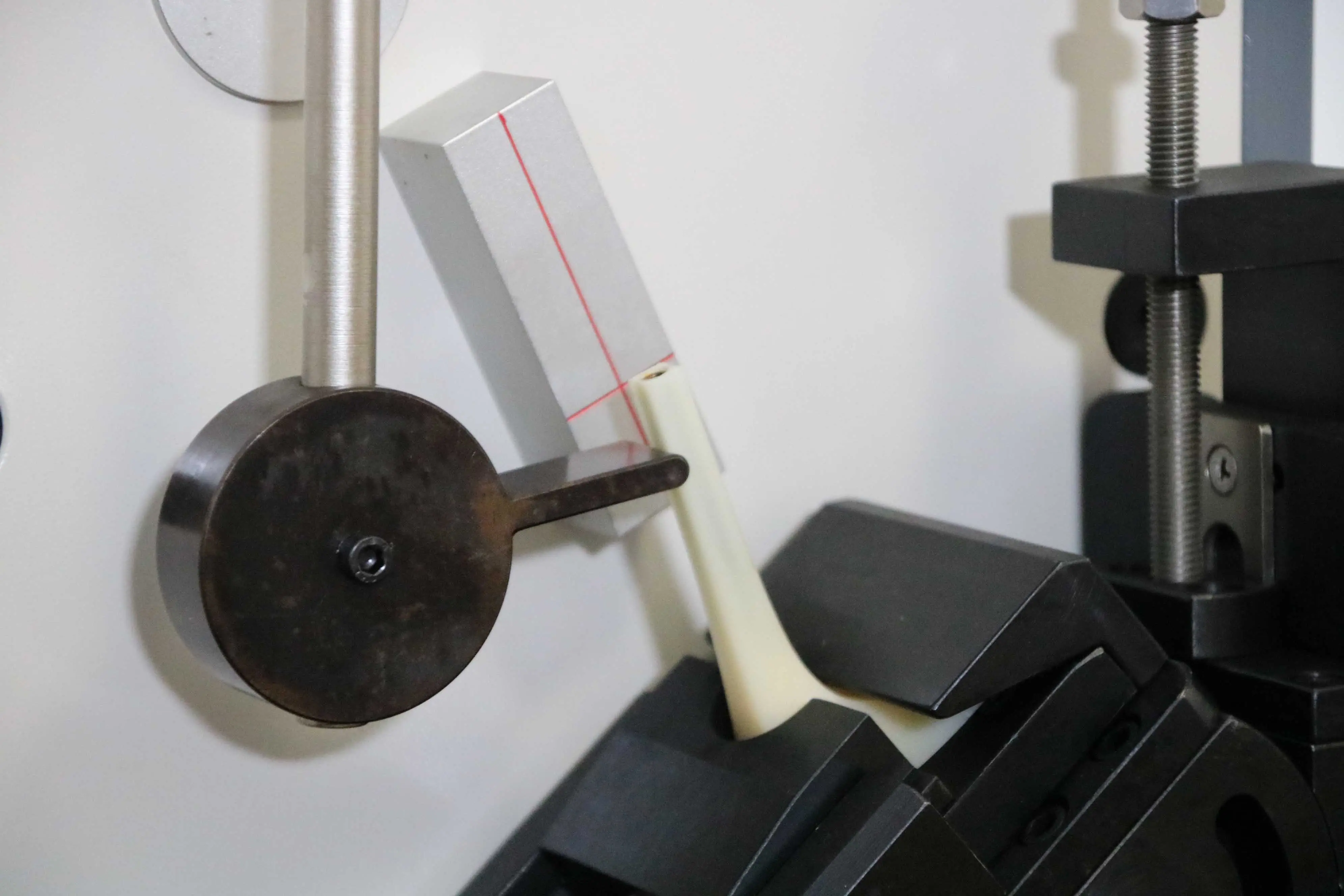

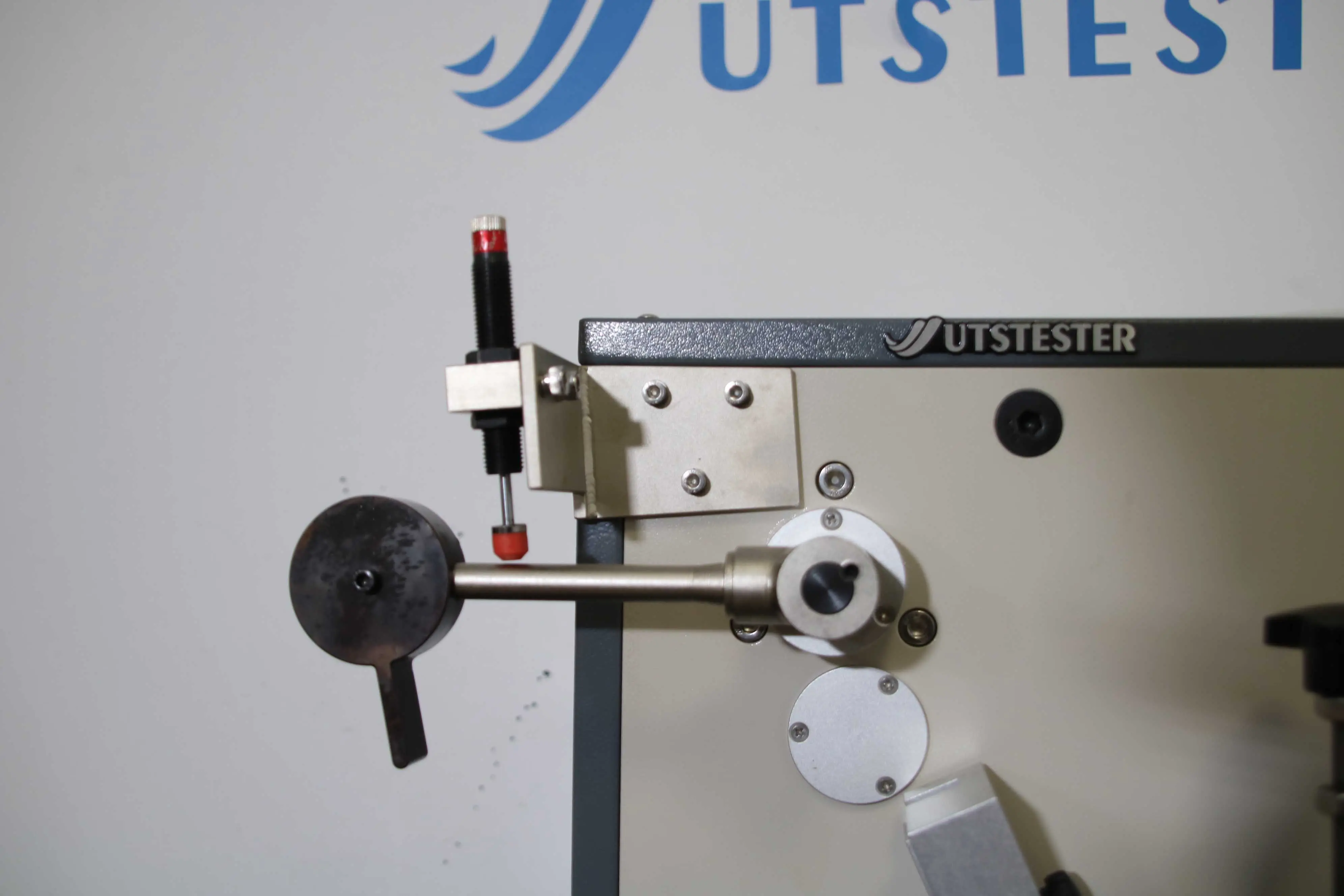

Pendulum bob

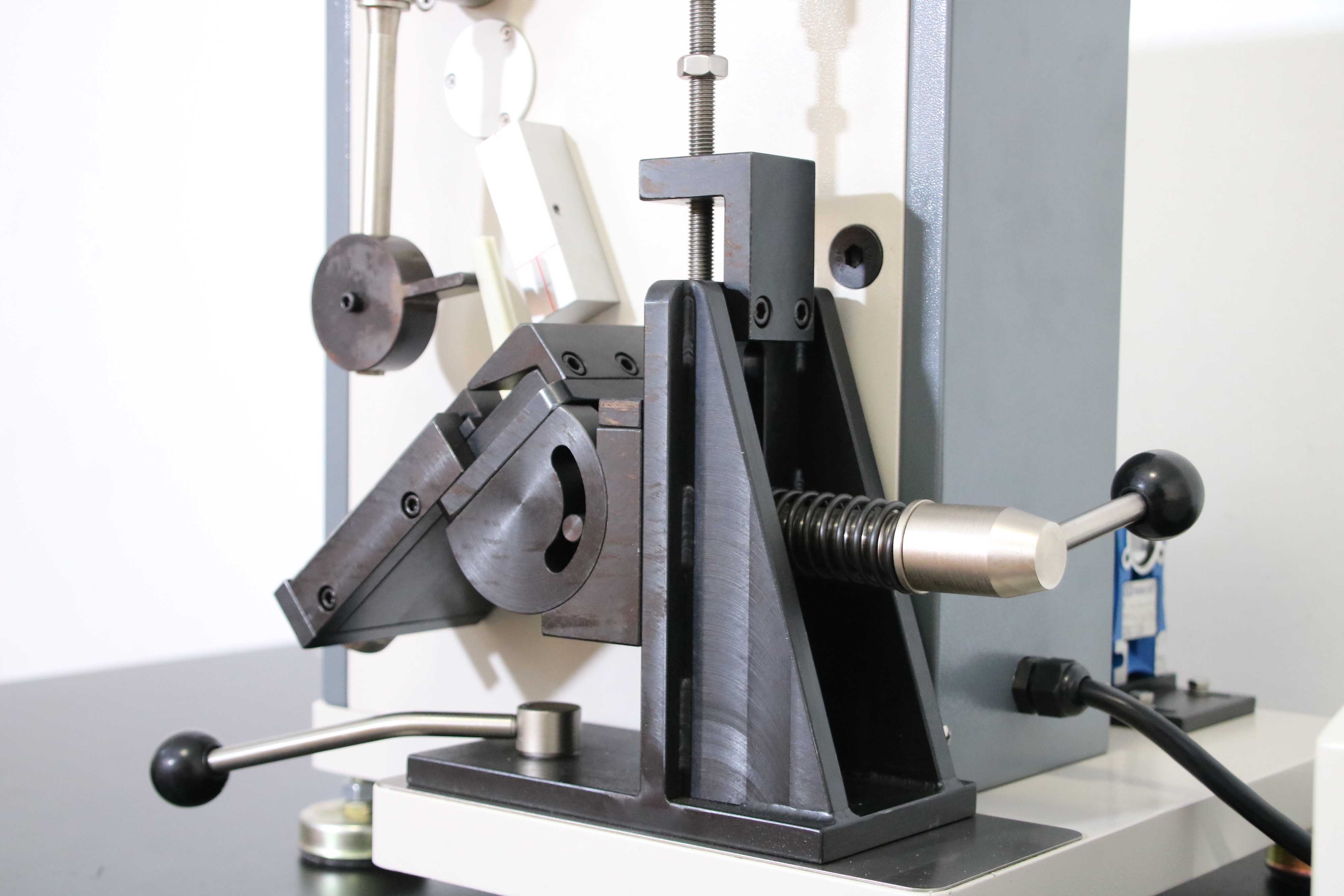

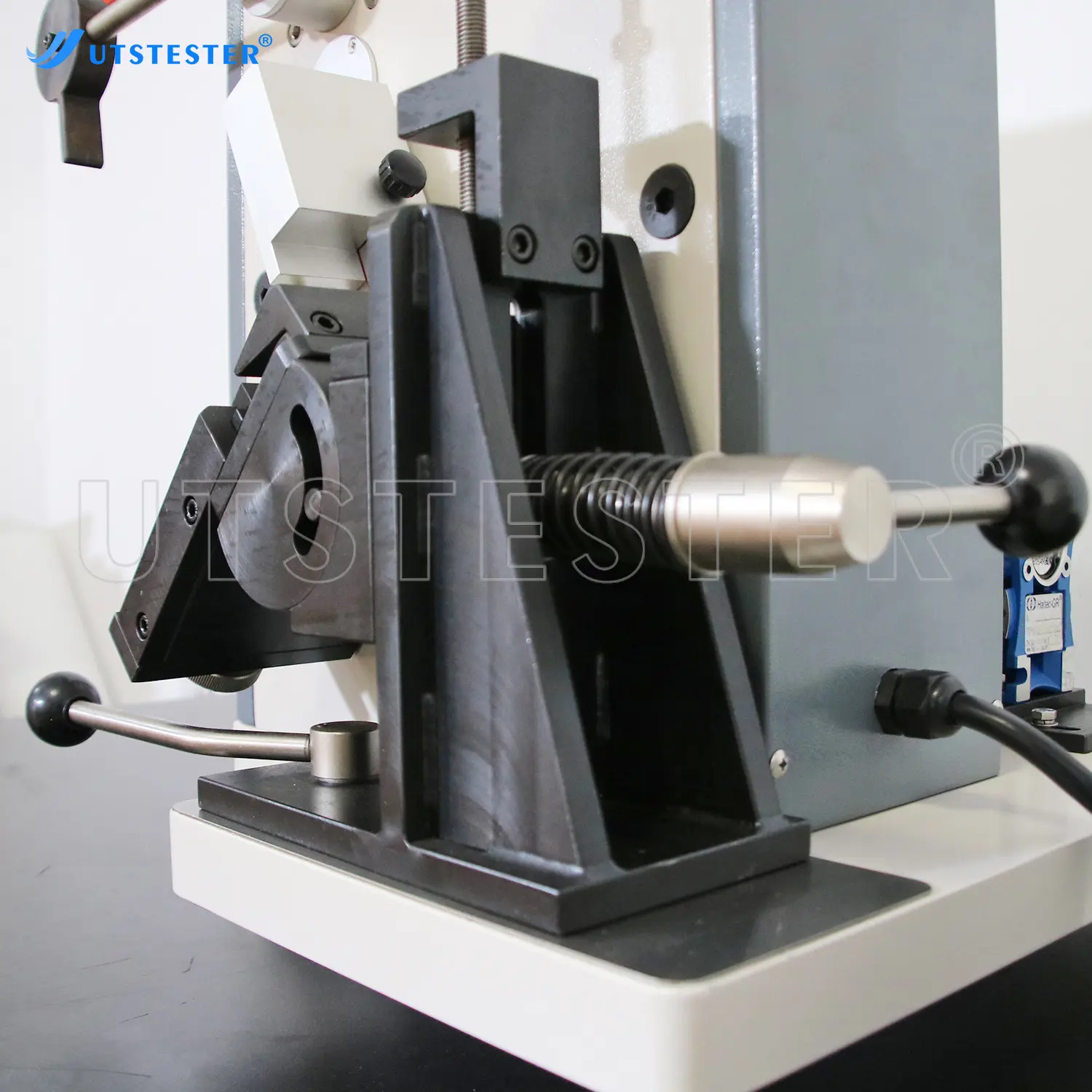

fixation handle
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
