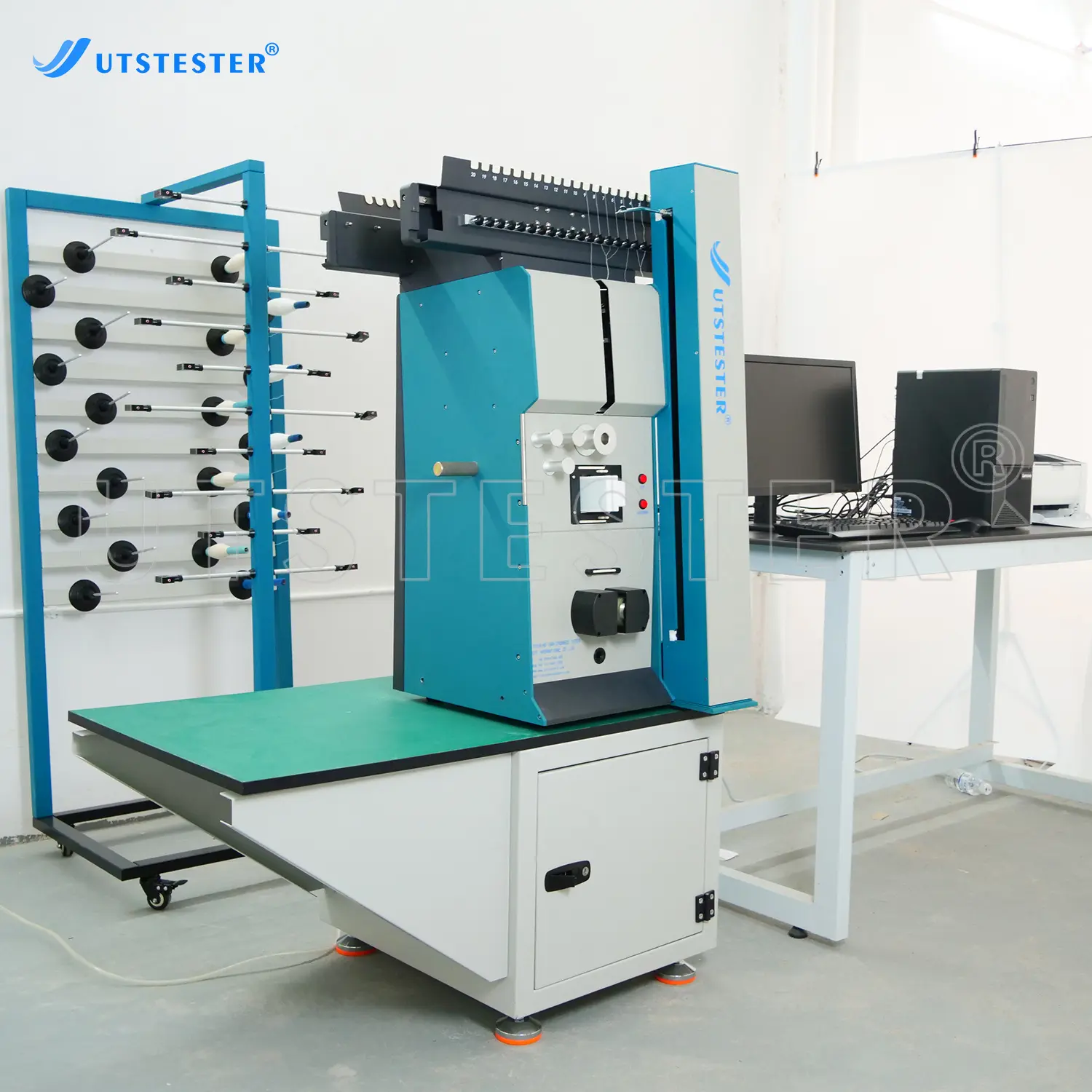

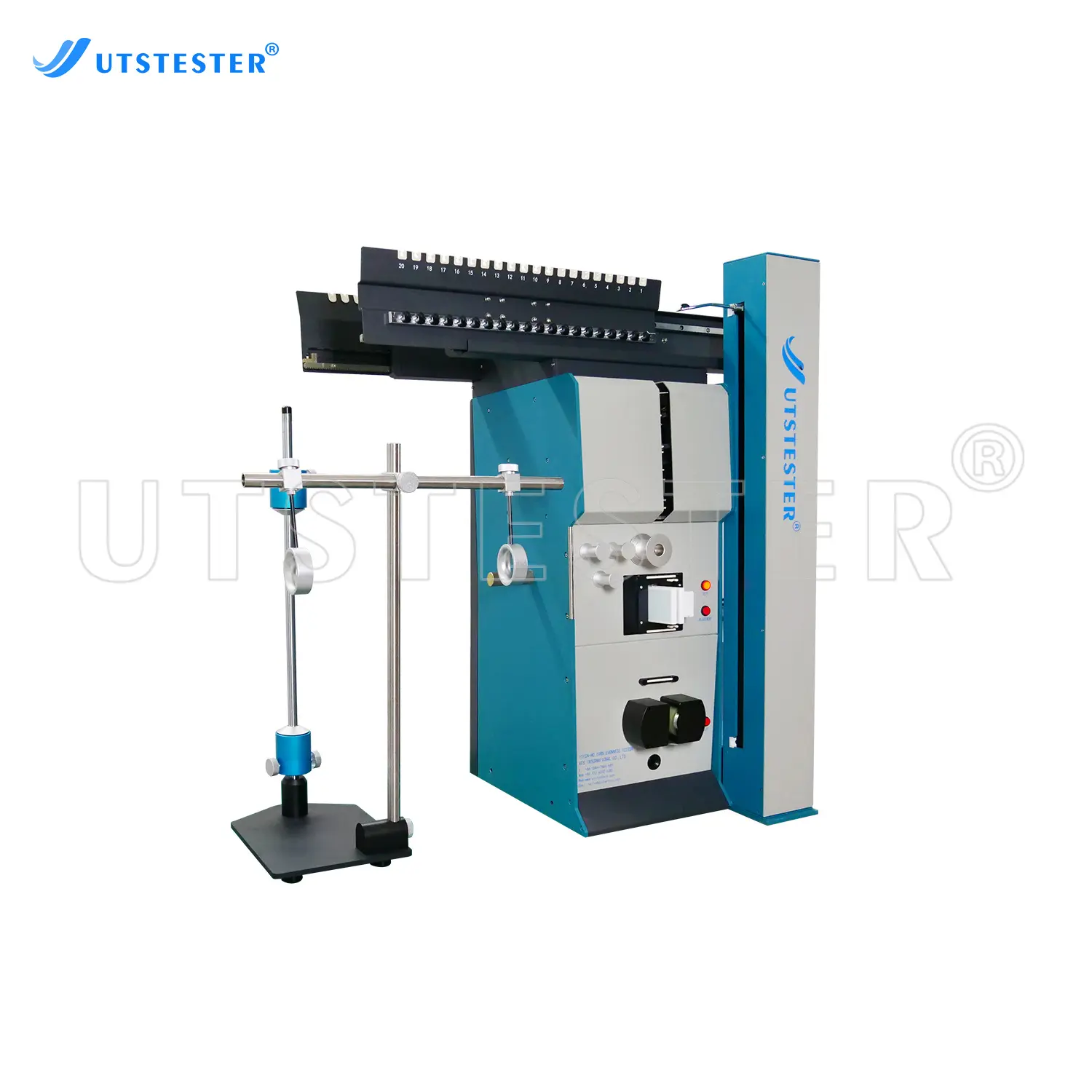

High Quality Evenness Tester Yarn Laboratory Instrument for Textile Machine Y010A-HD

1.Applicable to measure the evenness of spun yarn, roving, sliver. Also this device has the yarn hairiness index test function accorded with International standards.
2.Adopts advanced driving technology to achieve high speed test of 800m/min
3.Auto alarm once sliver breaks during testing procedure.
4.Expert analysis system software can assess the quality of yarn to provide craft and device failure analysis results for users.
5.Detect sensor auto shift and change channels according the fineness of sample sliver, which has more accurate test results.
6.Unevenness curve can be saved and playback, and the defect will be marked on the unevenness curve.
7.Unique CV-L curve analysis software is available to real-time quantitatively analyze nonperiodic uneven and can be traced back to the produce process.
8.Optional function of slub yarn and the problem of irregular slub yarn can be provided for stable quality analysis in detail.
9.Yarn defects classification function is optional
10.Cloth simulation function optional

product details

Production Processes

Packing System

Overview

To determine and analyze sliver, roving and spun yarn’s evenness and the evenness of structure . Applicable to silver, roving and spun yarn made of cotton, wool, synthetic fiber, linen and blended yarn, etc.

Drawing mechanism adopts dual-motor drive mode to achieve non-silp of sliver. Large size of roller to lower rotate speed with unique aseismic design and more stable transmission. Roller is available for auto open-close, auto scaling, and can be used in revising direction, which reduces the abrasion for roller from yarn, and extend service life of roller.

Wave spectrogram can display wavelength value, unevenness curve can be scaled freely. With larger data retrieval function.

Application

yarn

Standards

standards

Key Parameters

Model	Y010A-HD
Capacitance detection trough	4
Test range	4tex~12Ktex(available to extend up to 80ktex)
Evenness test speed	4m/min, 8m/min, 25m/min, 50m/min, 100m/min, 200m/min, 400m/min, 800m/min
Test time	Freely setting between 10Sec~20min
CV%, U% value range	0.2%-100%
Variation - Length curve	Cutting length 1cm~1500m
Line density distribution	- 100% to + 100%, +100% to +400%
Dr% values	Output DR(1m, +5%), DR. (1m, -5%), DR(20cm, +35%), DR(20CM, -30%), 4dr %
A single set of measurement times	≦20, one group can realize two varieties test; The same variety can be achieved: up to 10 groups of 200 tube data statistics.
Yarn liner test range	0-3mm
Impurities and dust levels	16
Defect value	Simultaneously output 12 grades’ defect value Thin: -30%, -40%, -50%, -60% Thick: +35%, +50%, +70%, +100% Nep: +140%, +200%, +280%, +400%
Wavelength range	1cm~2950m
Spectrum channel	170 channels
Power supply	220V±10% 50Hz±5Hz ≤500VA

Product Details

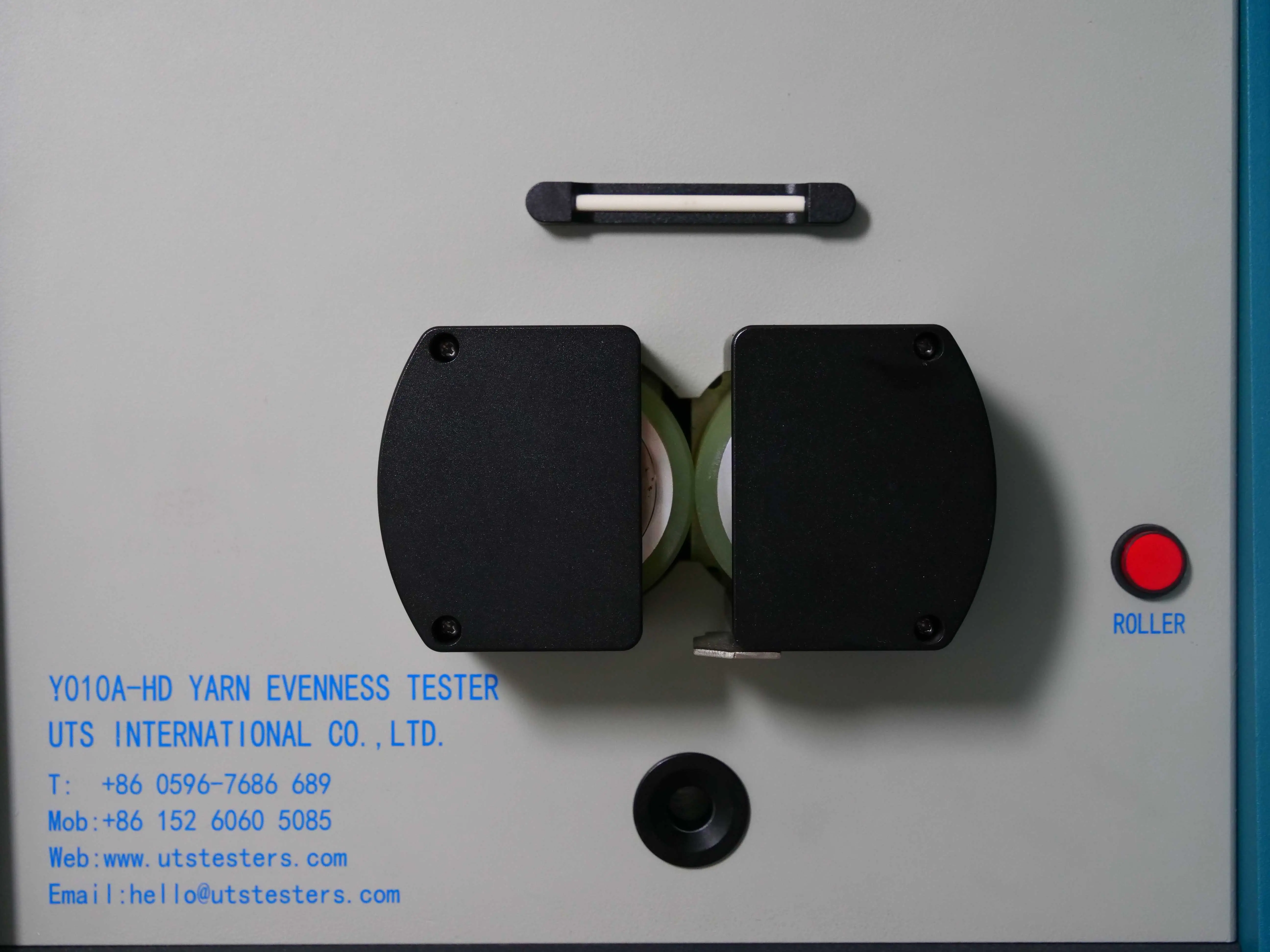

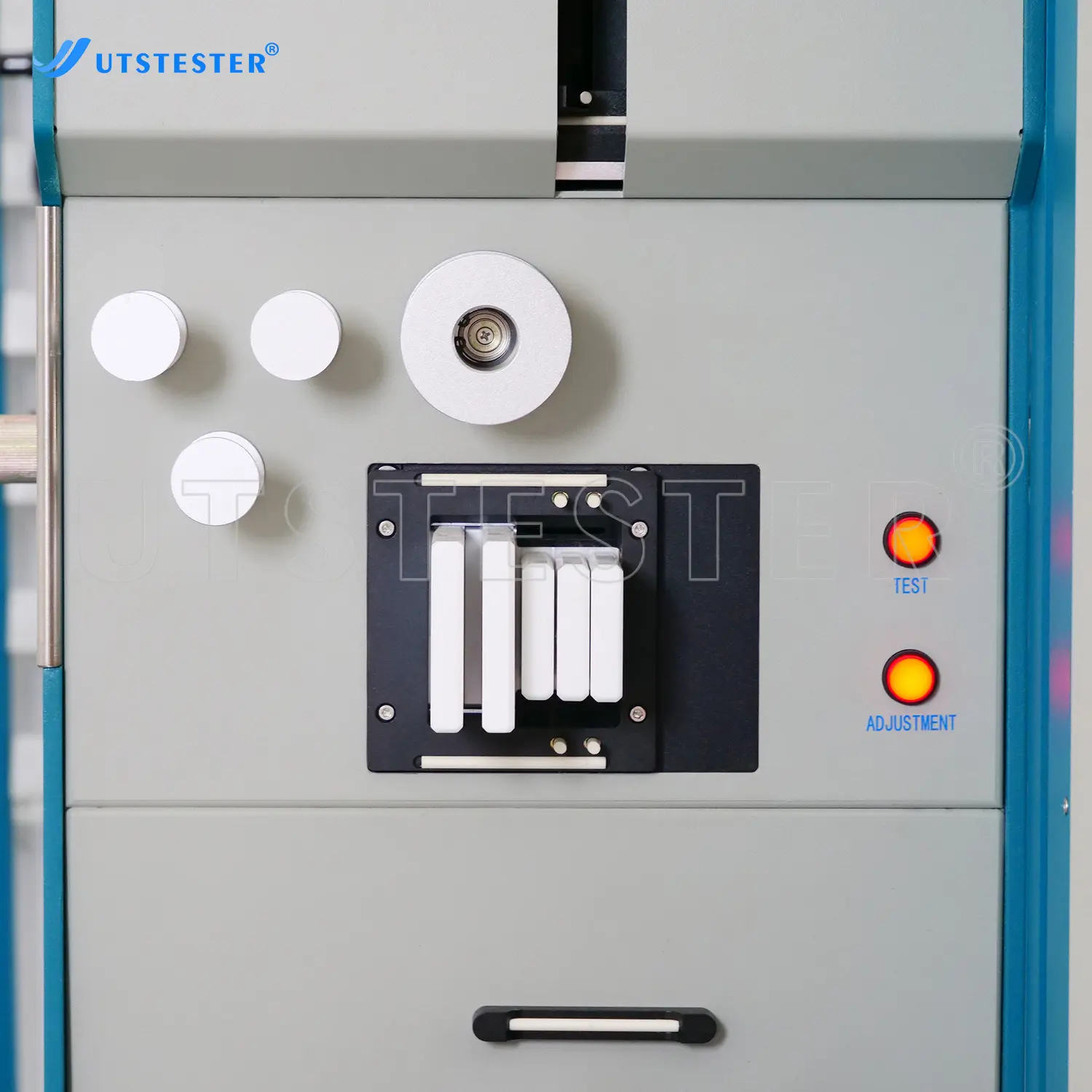

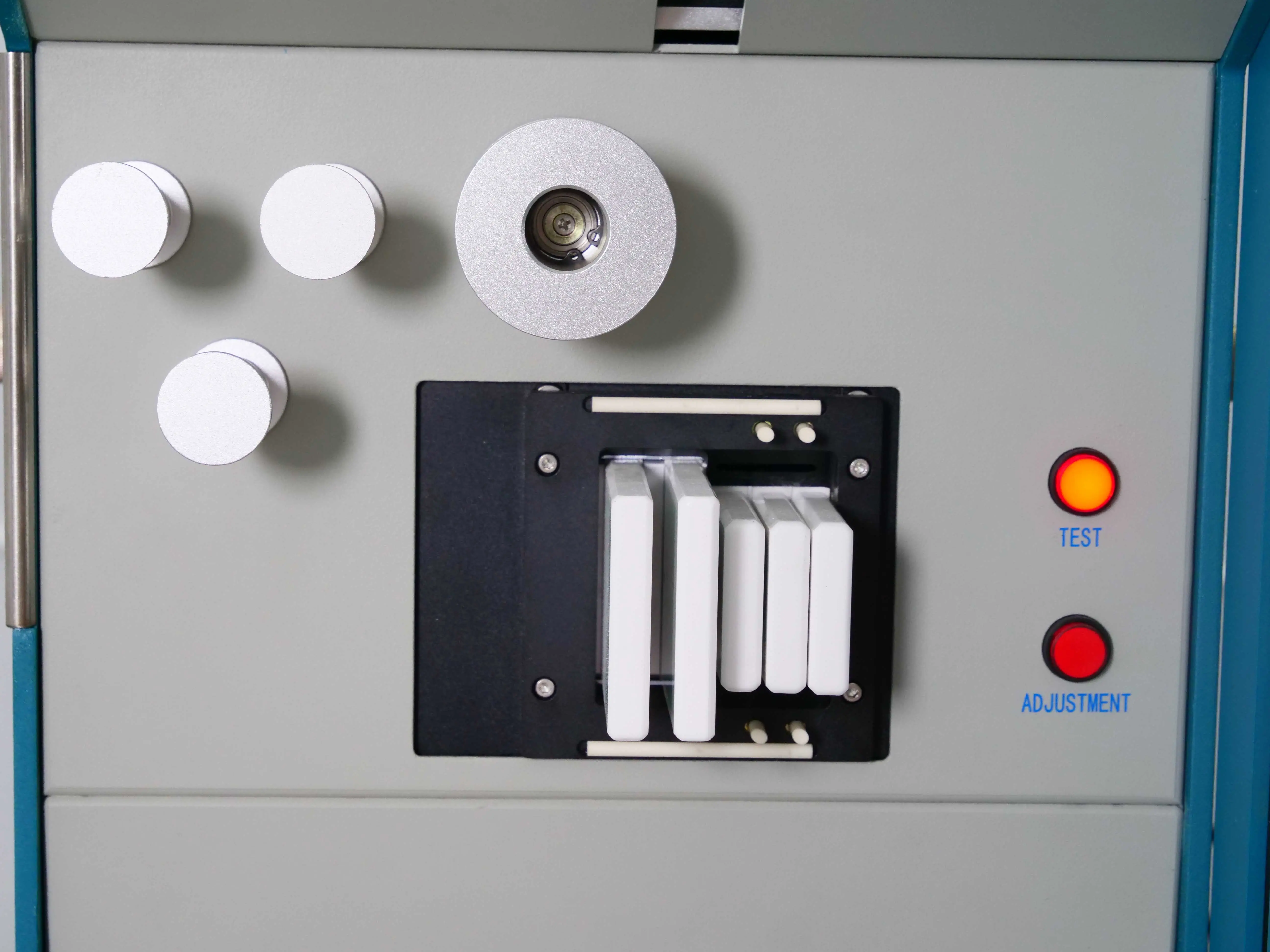

Capacitor unit

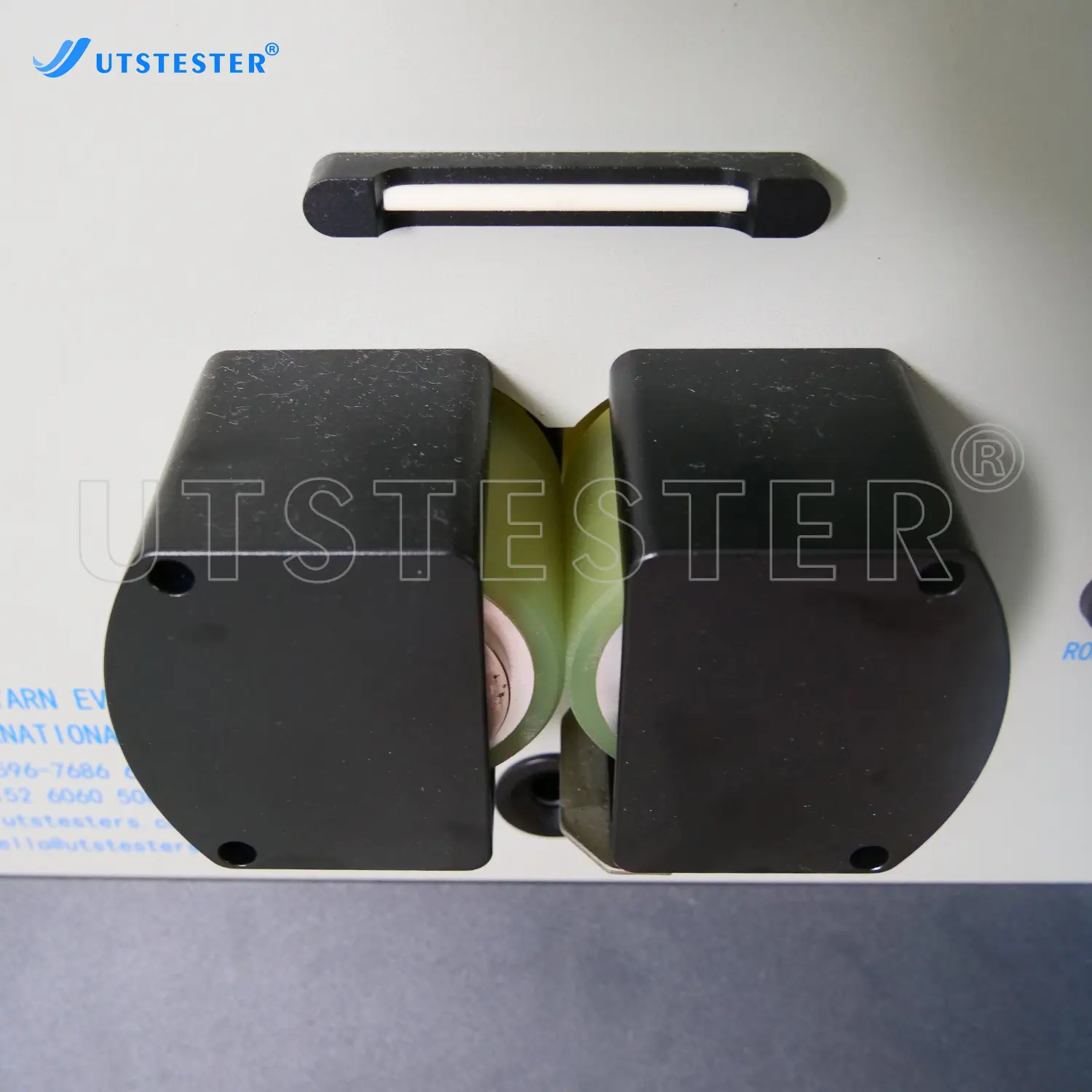

Traction unit

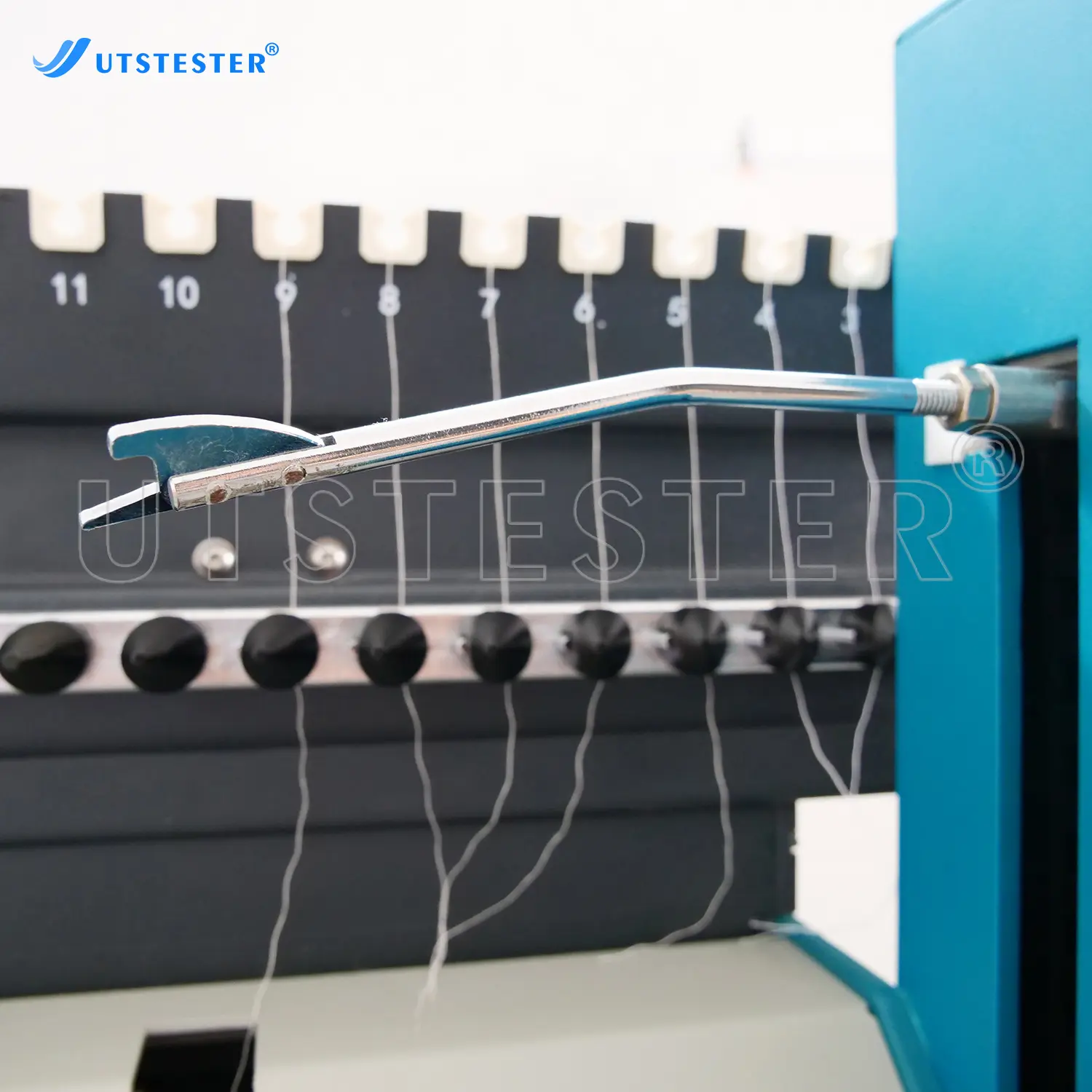

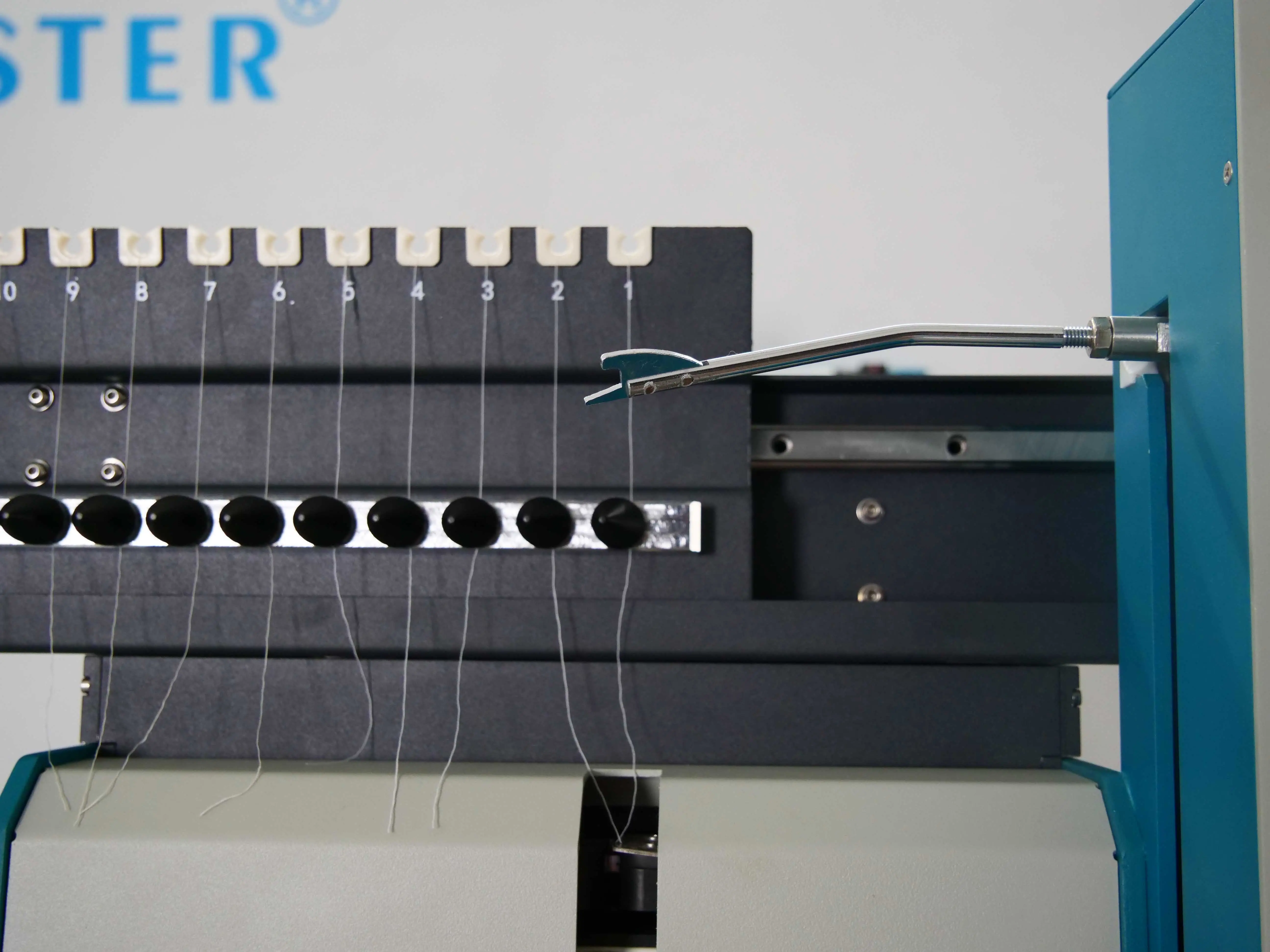

Mobile creel

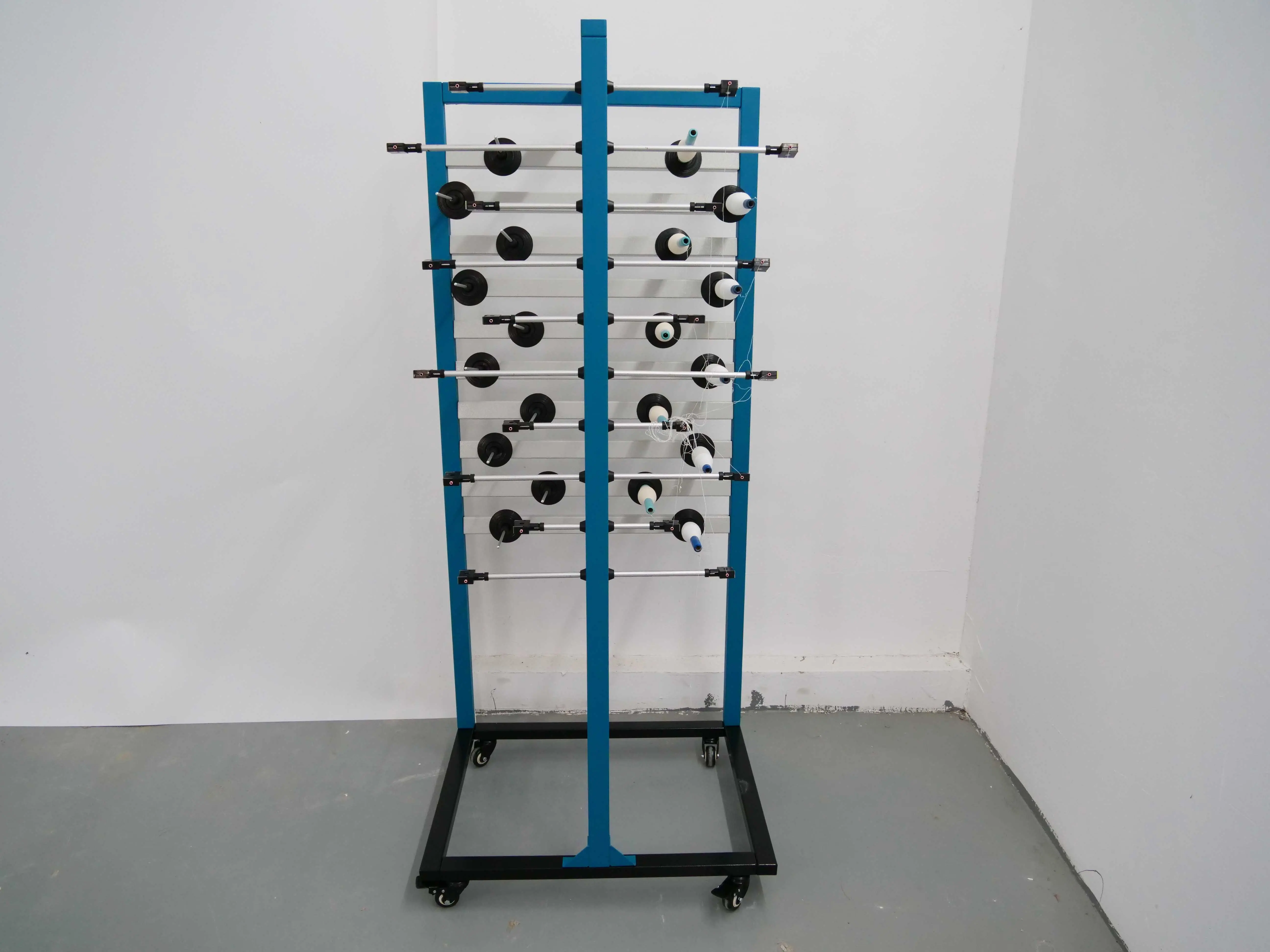

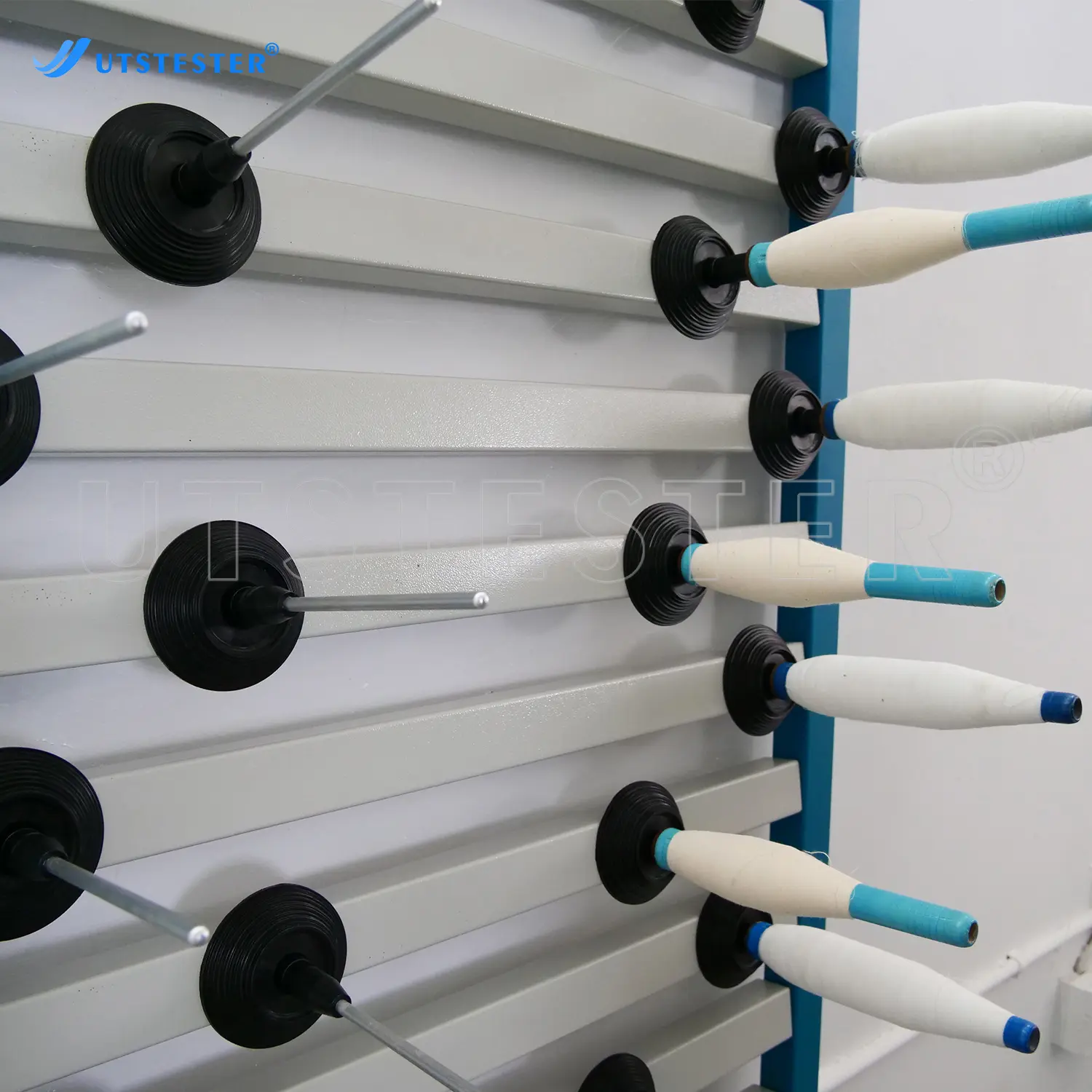

Rack of yarns

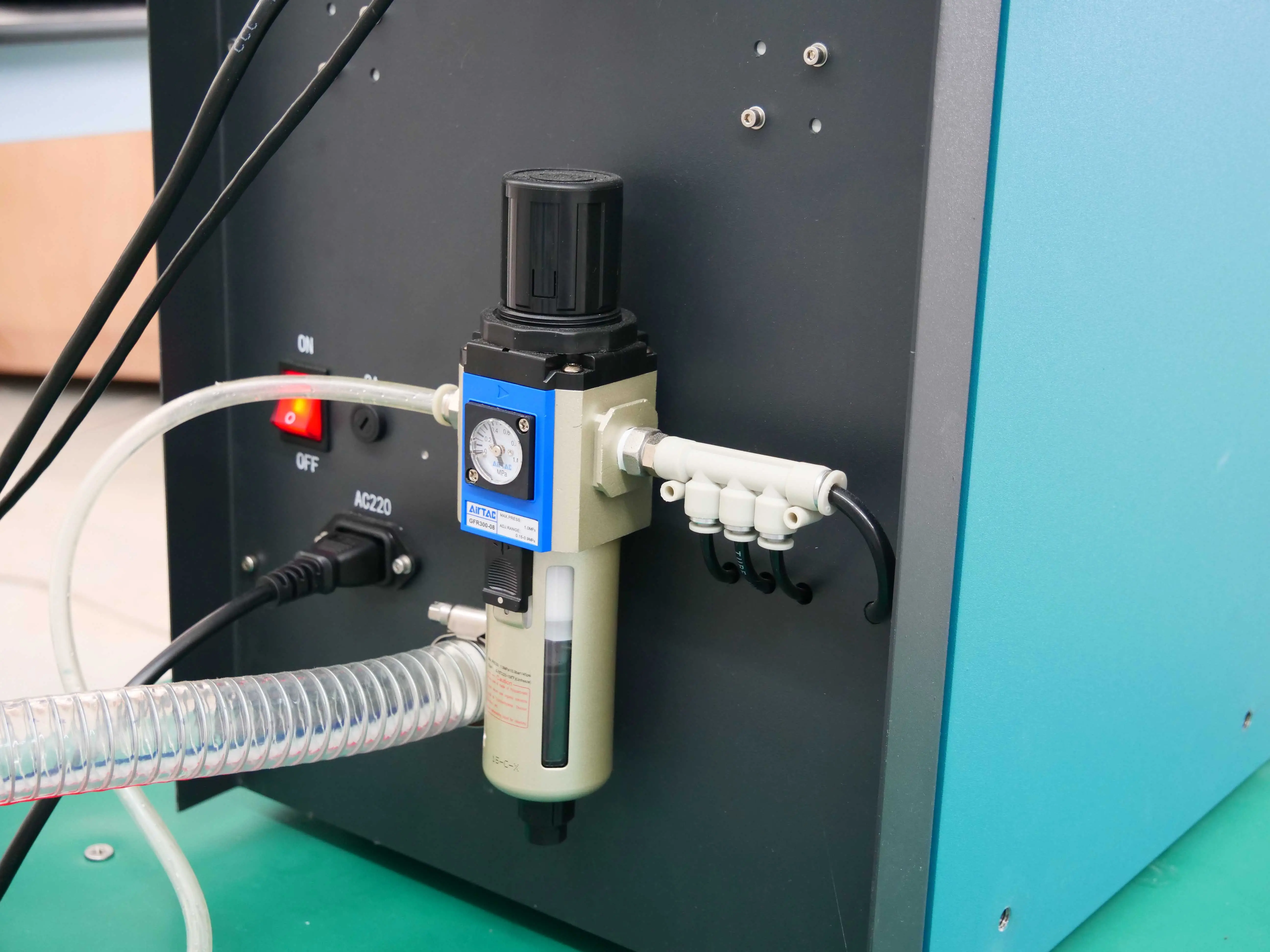

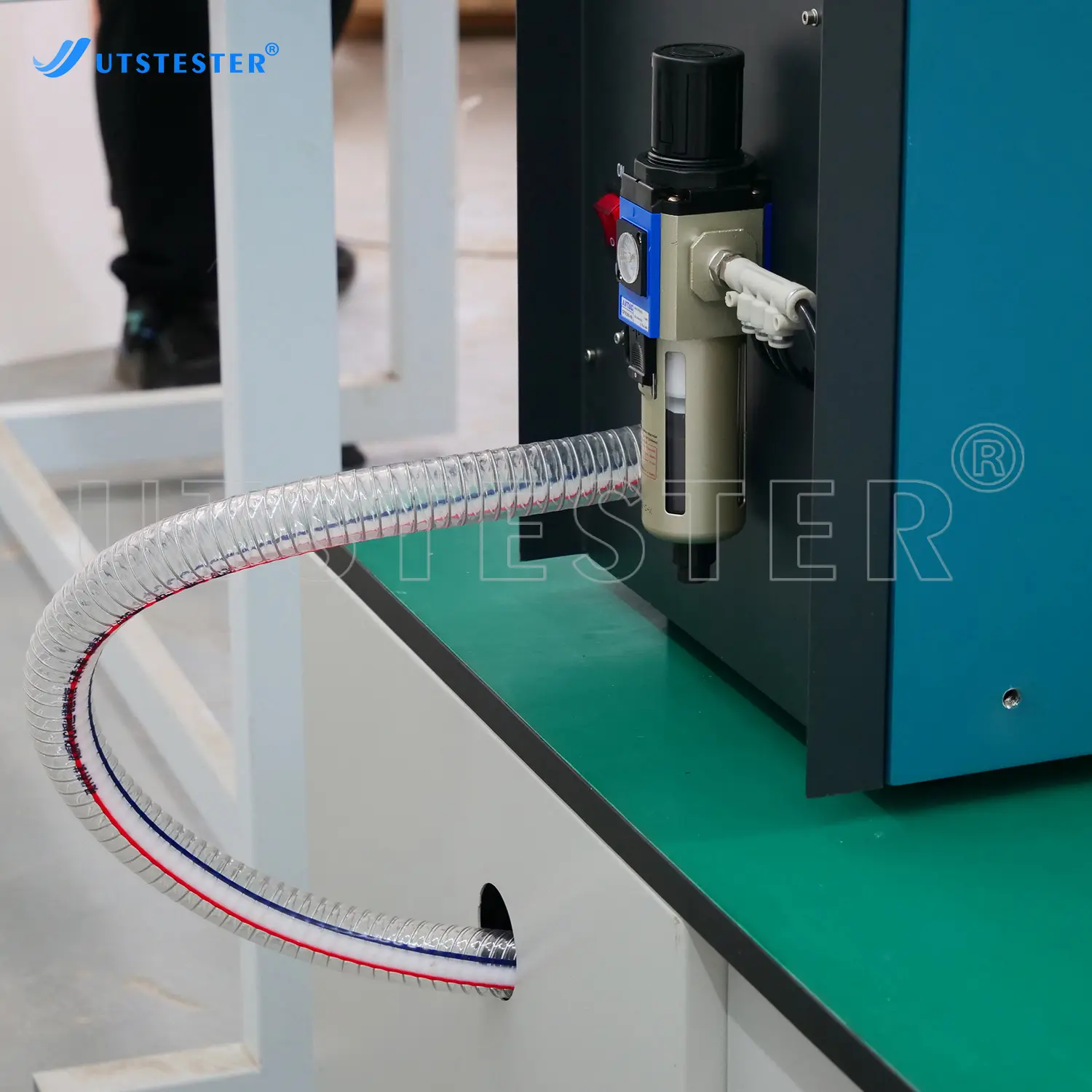

Air Valve

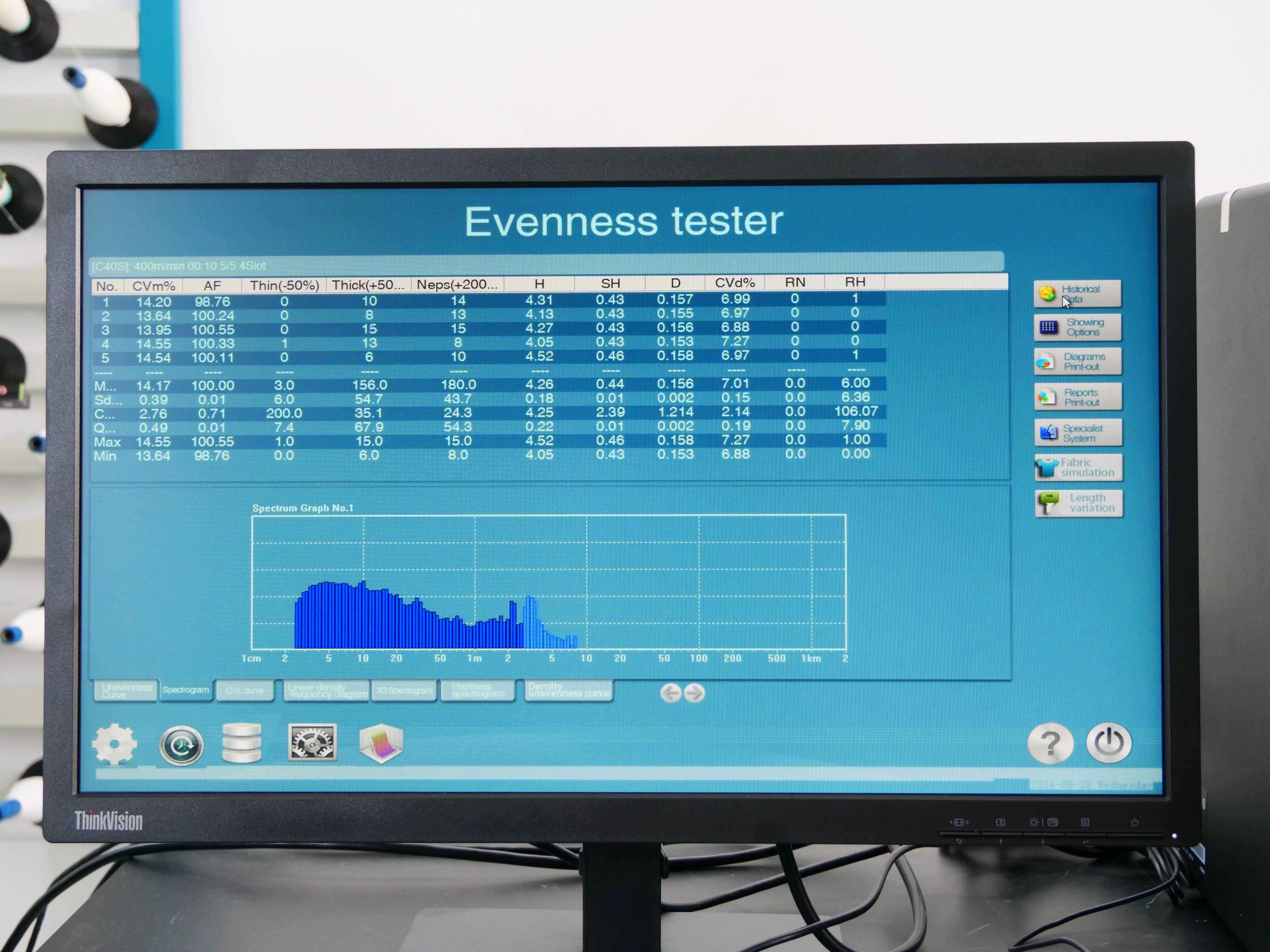

Operating software

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
