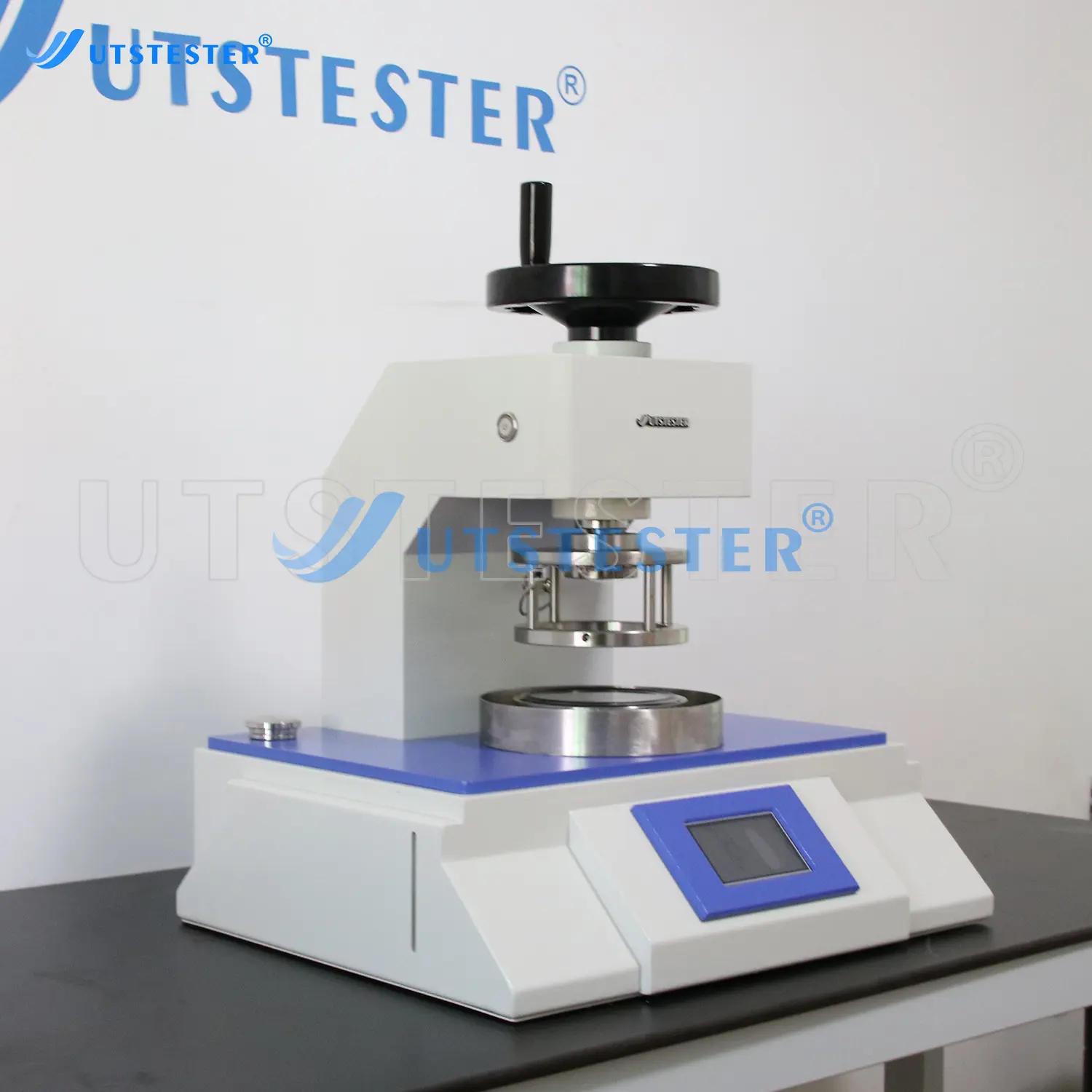

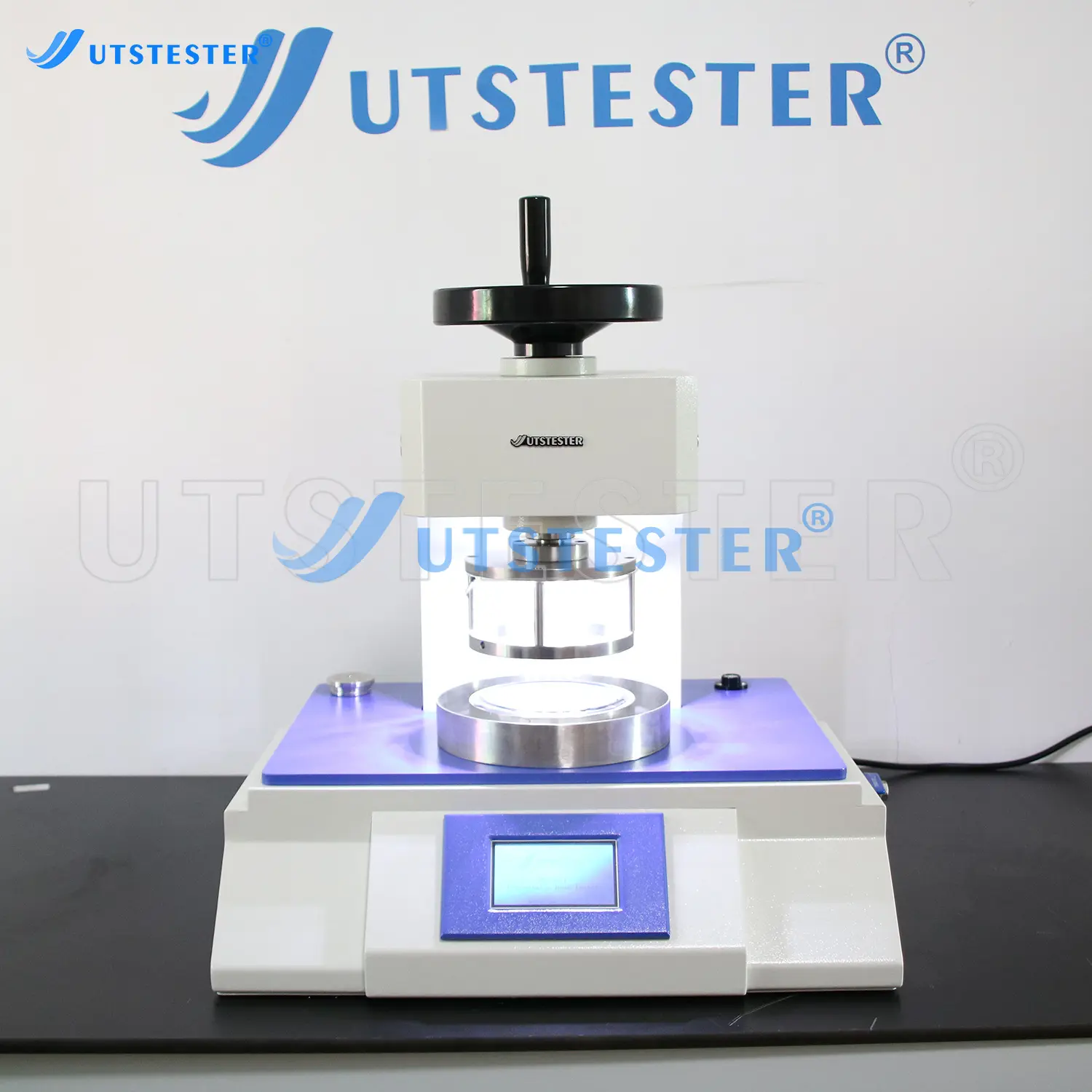

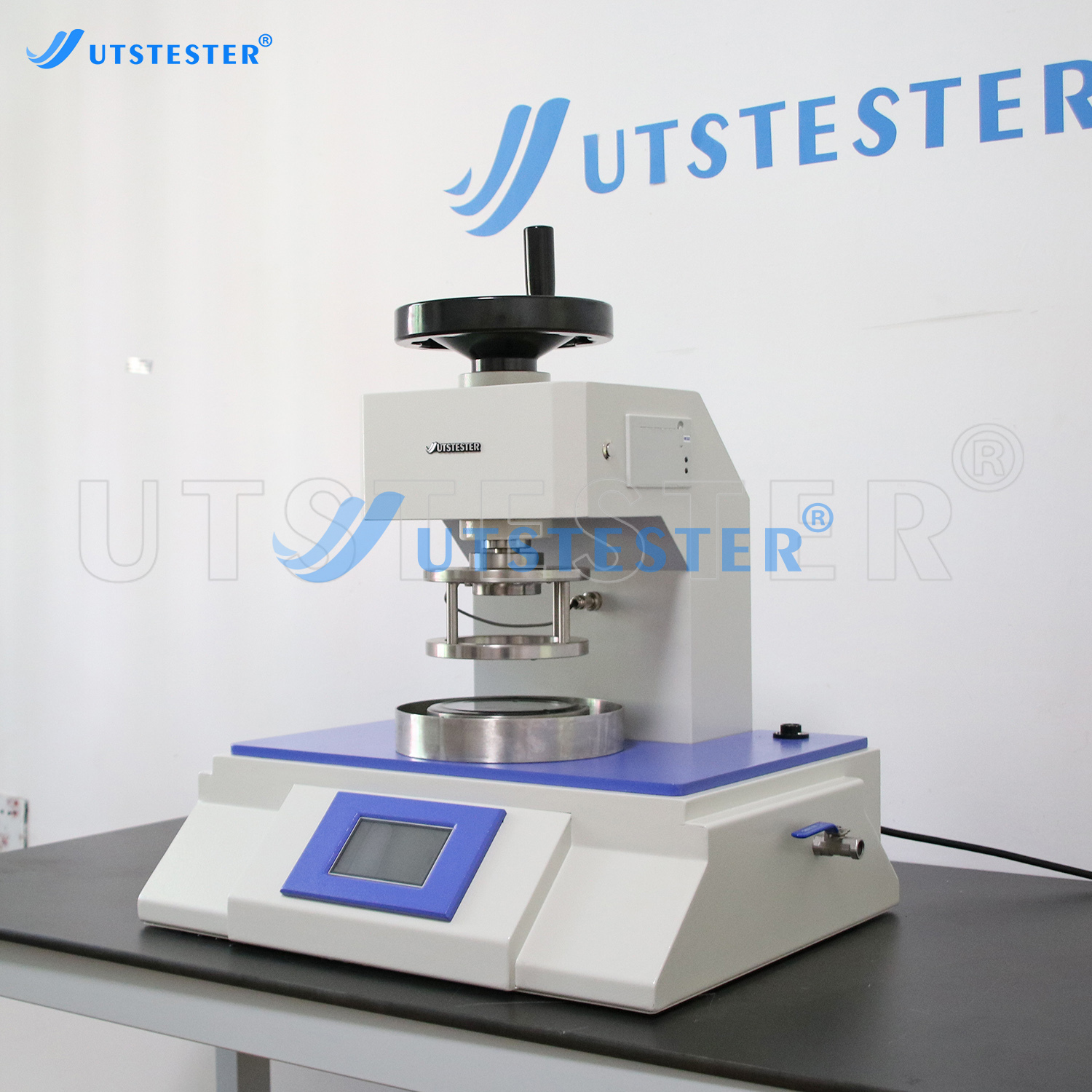

Hydrostatic Pressure Tester - Water Resistance Testing Hydrostatic Head Tester for Textile M023C
Overview
To test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.
Application
Tent cloth
Mask
Geosynthetic
Canvas
Medical non-woven
Rainproof cloth
Standards
AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, ERT 160-0, ISO 9073-16, JIS 1092 B-b, ASTM D751, EN 343, GB/T 4744, IST 080.4(01), IST 080.6(01), WSP 080.6.R4(12), FZ/T01004, DIN 53886, ISO 1420
Key Parameters
|
Model |
M023C-1 |
M023C-2 |
|
Testing Range |
500pa-200kpa |
5kpa-500kpa |
|
Sample test area |
100cm2 |
7.8cm2(Optional) |
|
Water pressure rising rate |
1kpa -30kpa/min |
1kpa-100kpa/min |
|
Accuracy |
0.2%F.S |
|
|
Test mode |
Supercharge method Leaking method |
|
|
Testing unit |
Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar. |
|
|
Power supply |
AC 220V 50/60HZ 100W |
|
|
Dimension |
550 x 400 x 500mm (L x W x H) |
|
|
Weight |
50 kg |
Product Details

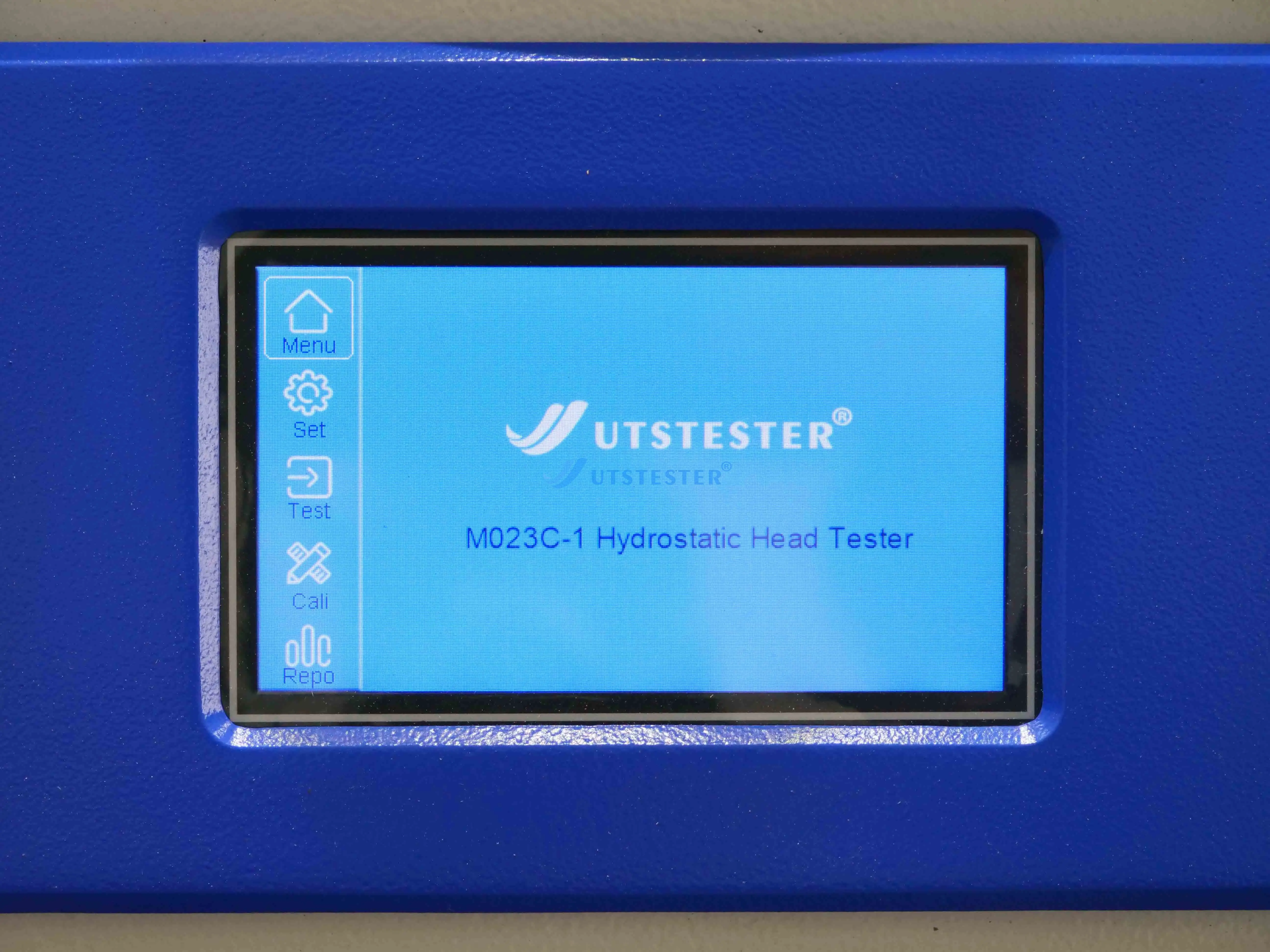

Color touch screen

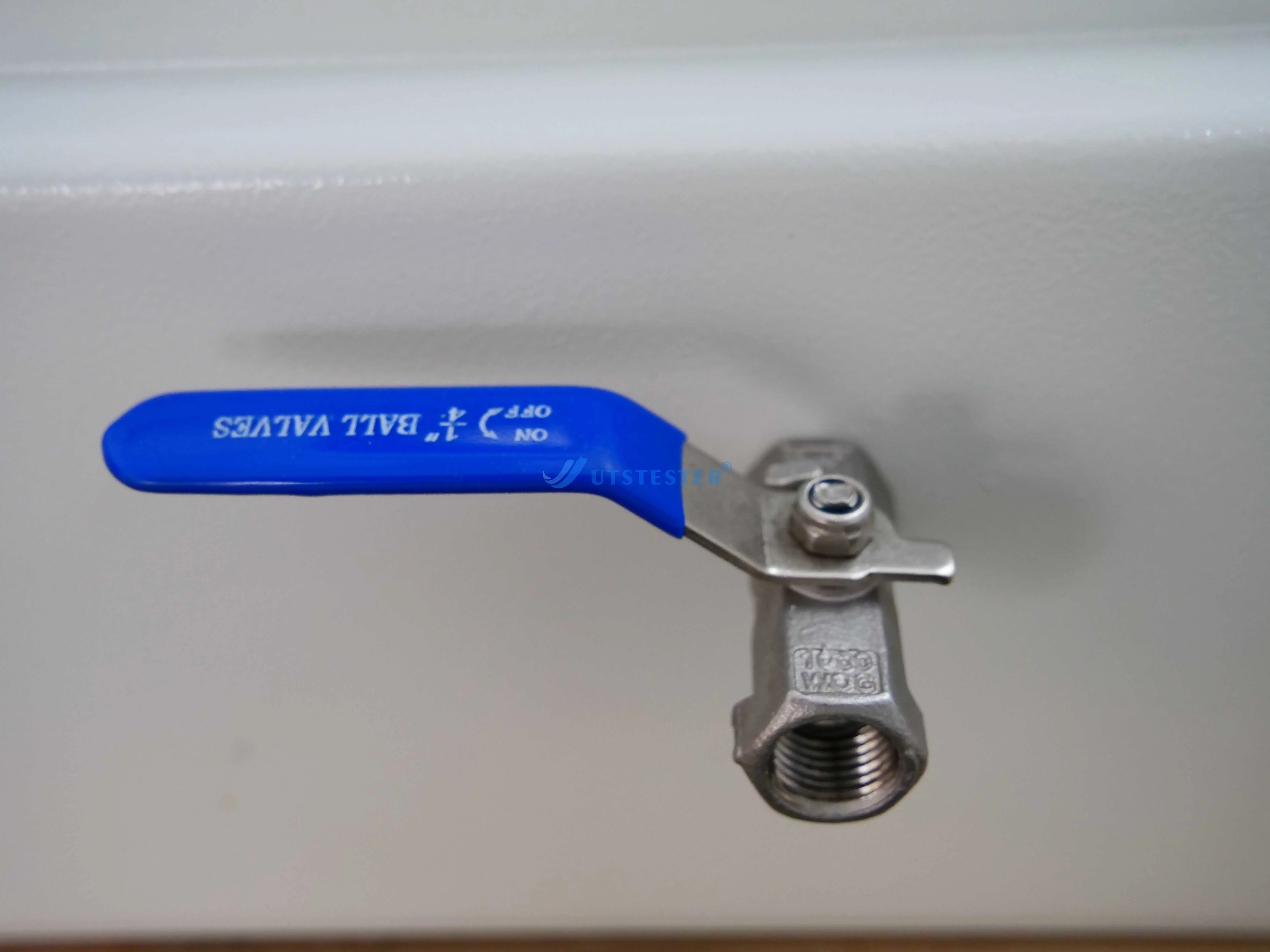

Water tank drain valve

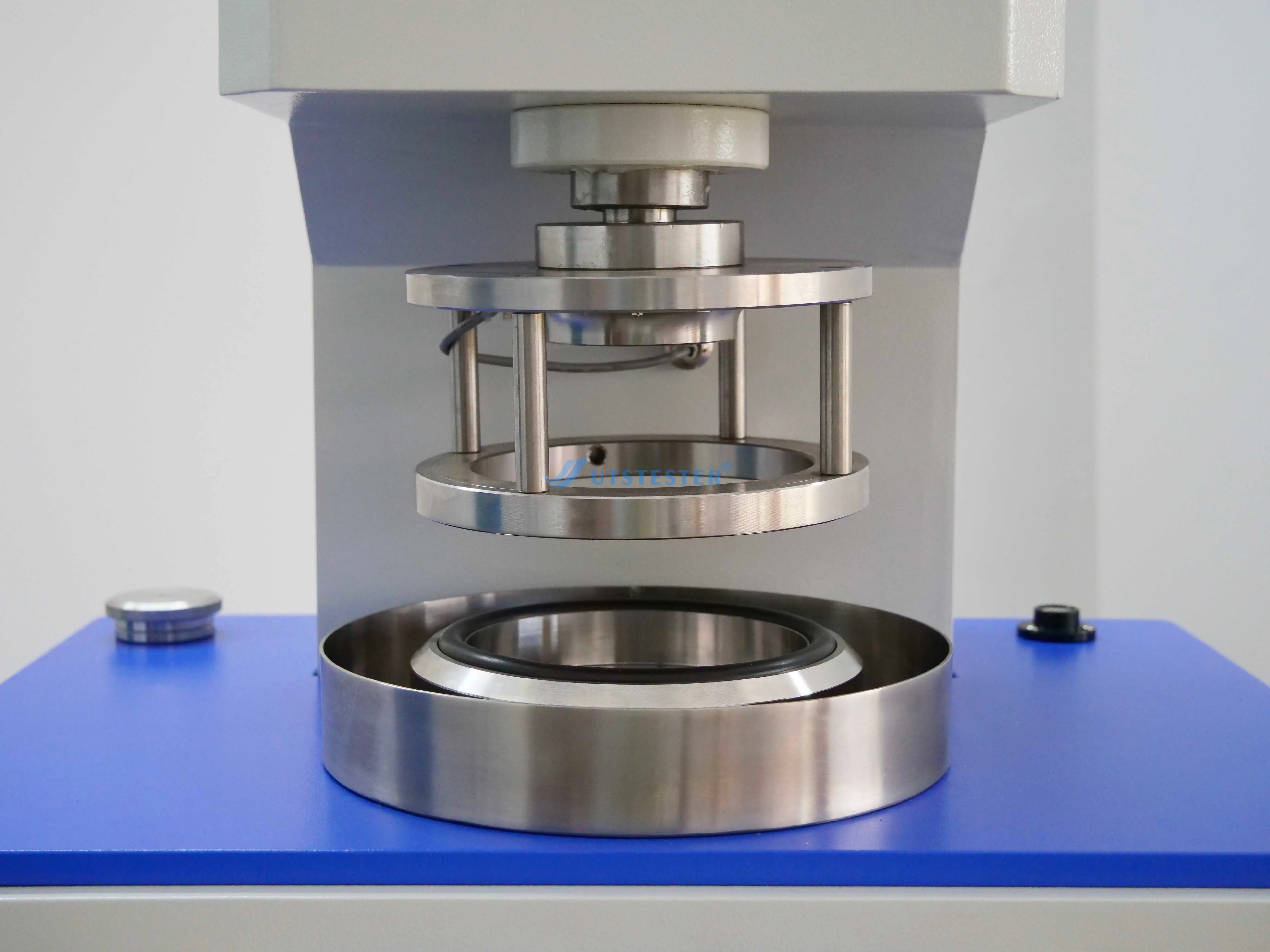

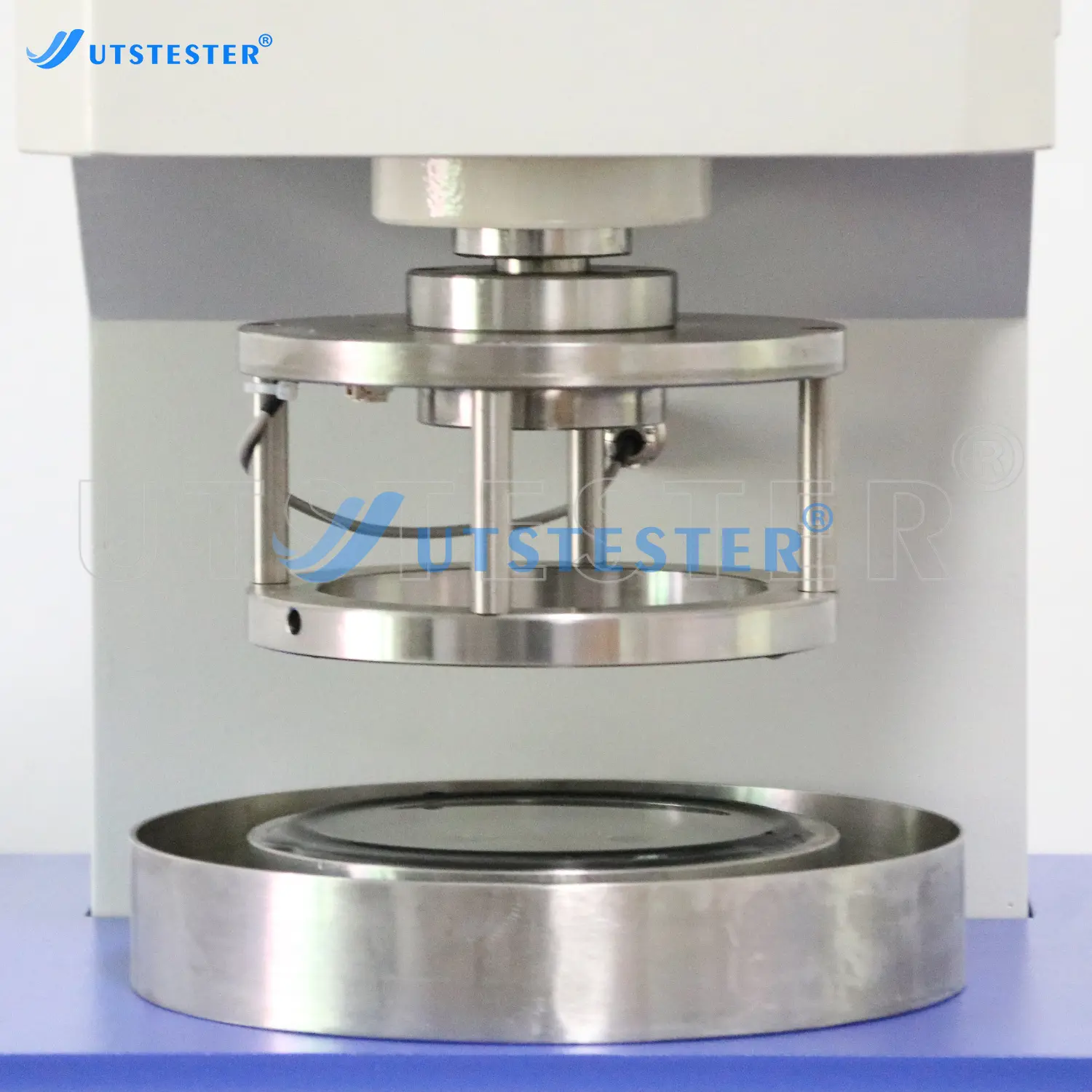

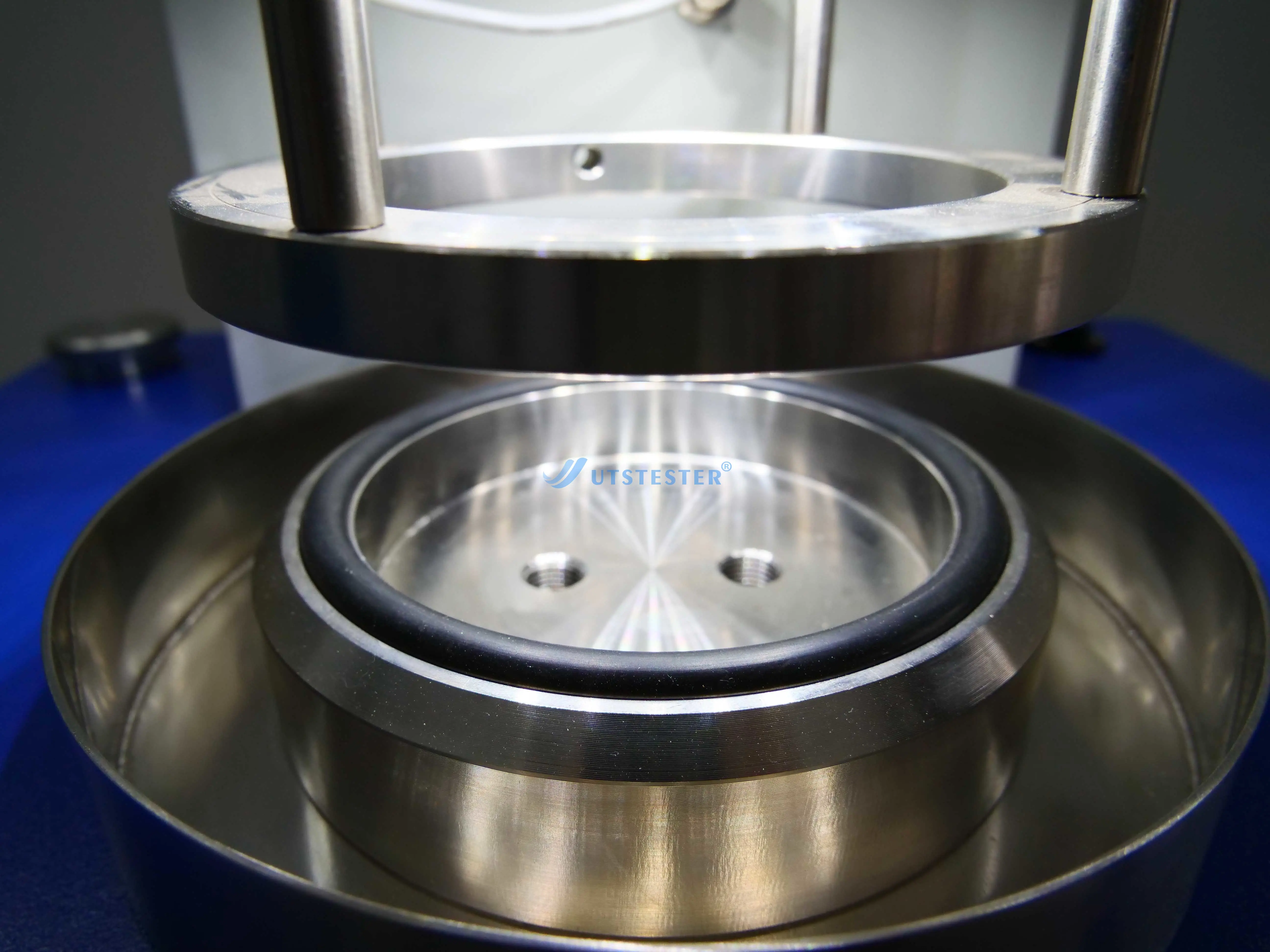

Lower grip
Upper grip

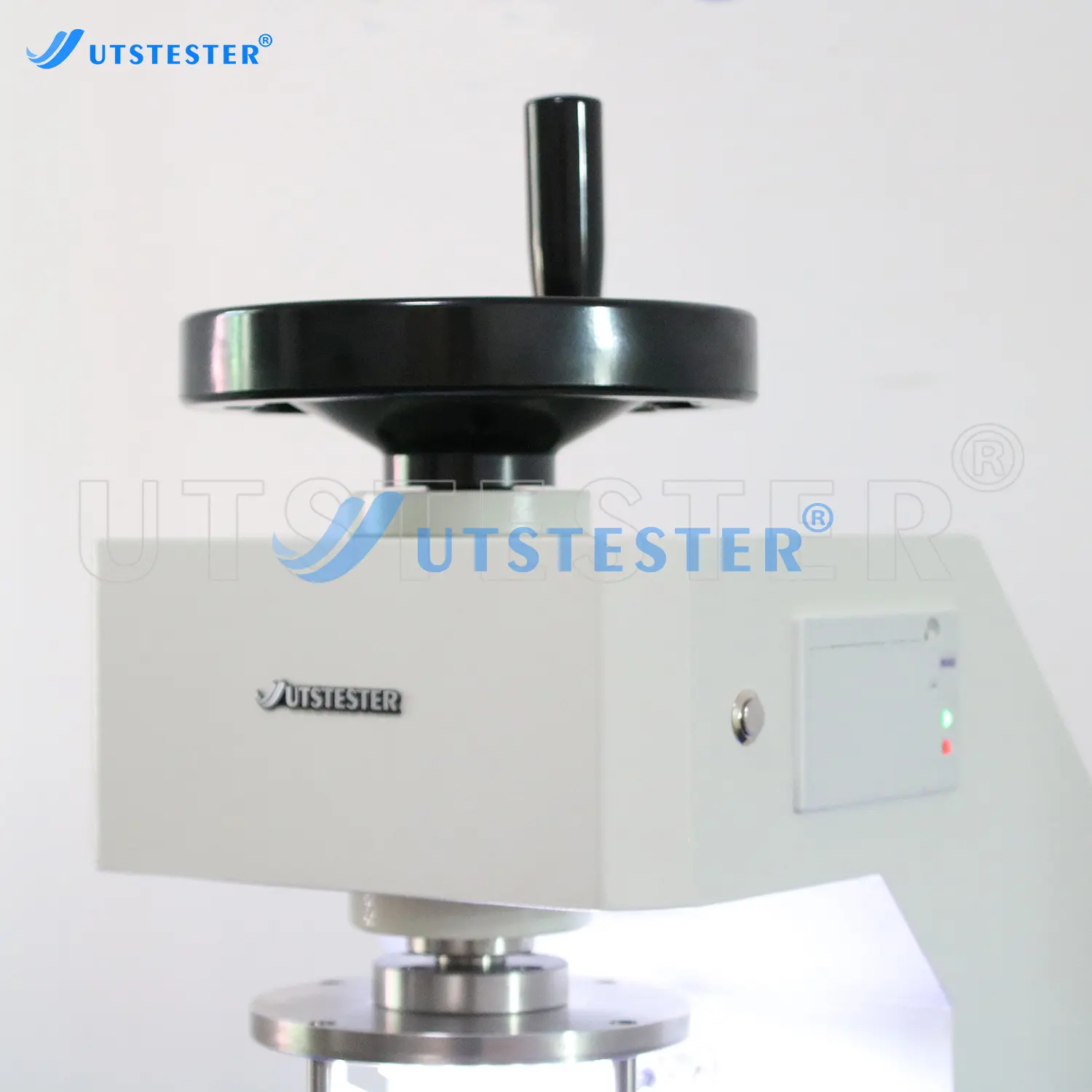

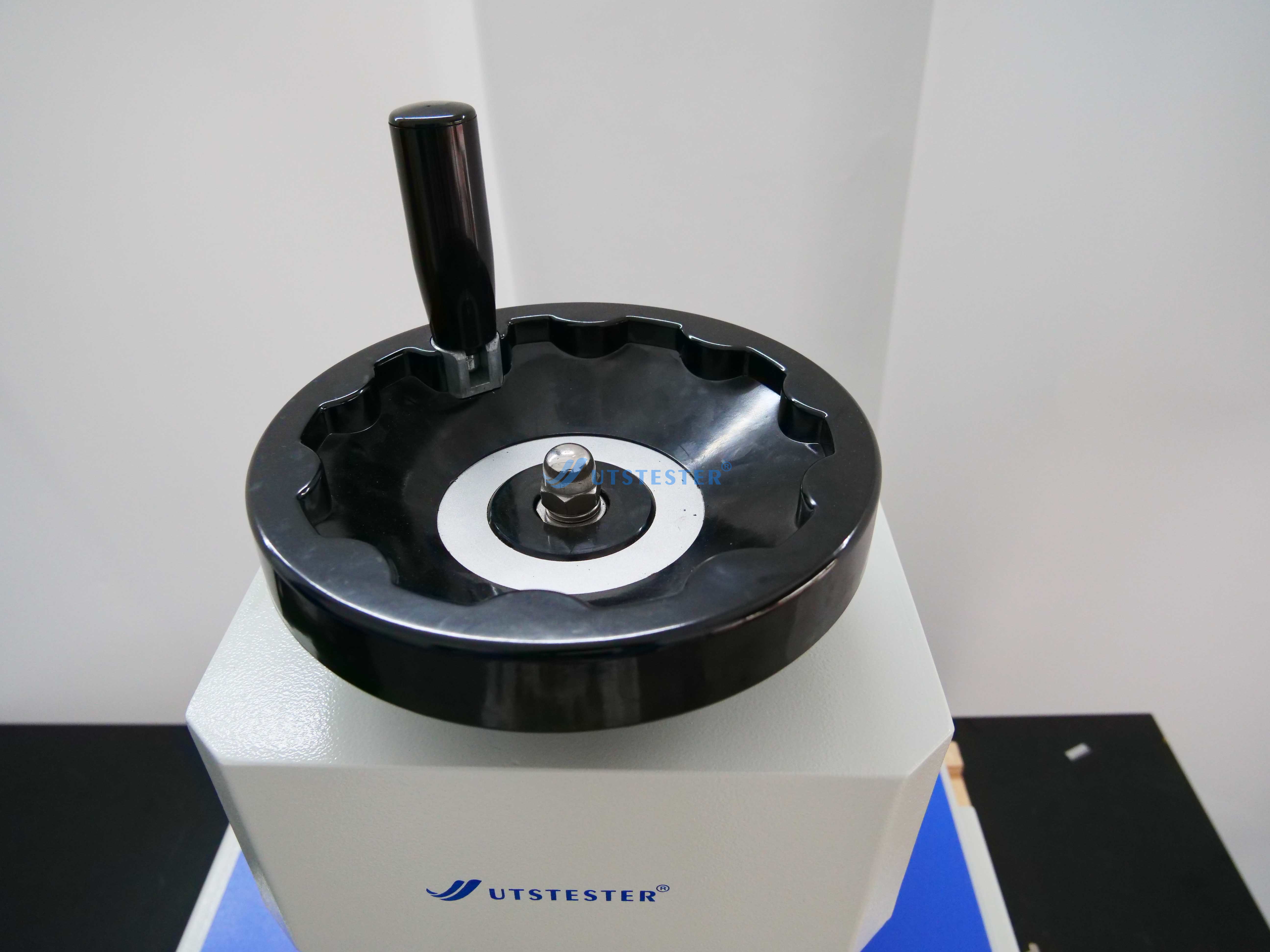

Manual Downwards rocking handle
Water storage disk
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
