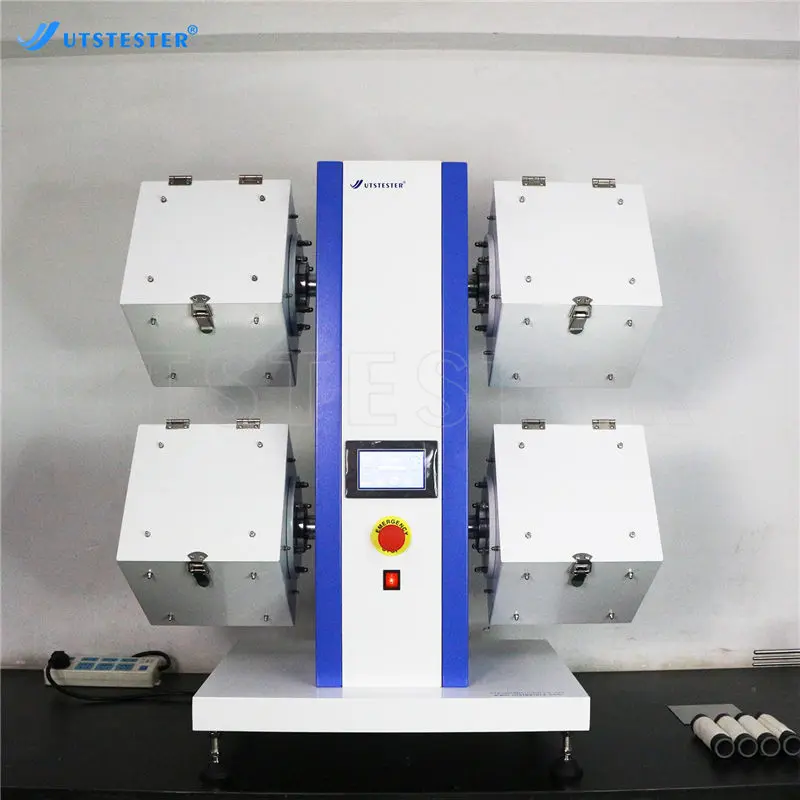

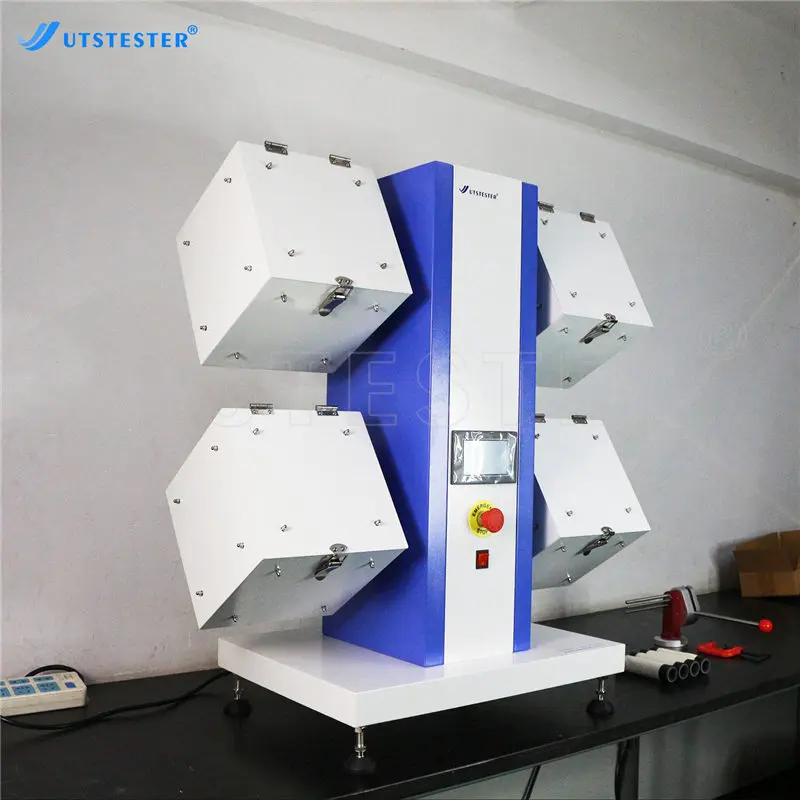

Fabric Pilling Test Equipment Ici Pilling Test Machine Textile Tester Machine M010B
Overview
M010 ICI Pilling Tester is used to assess surface pilling degree for fabrics particularly wool knitted fabric.
The color touchscreen controller has all the standard tests preloaded so tests can be started with just a couple of touches. Magnetic backed cork liners make cork changes easy without the need tow remove the box from the drive.
Application
IMITATION WOOLEN KNIT
WOOLEN KNIT
Standards
GB/T4802.3, ISO 12945.1, BS5811, JIS L1076, IWS TM152
Key Parameters
| Model | M010A | M010B | M010C | M010D |
| Pilling boxes quantity | 2 Boxes | 4 Boxes | 6 Boxes | 9 Boxes |
| Interior box size | 235×235×235mm | |||
| Rotational speed | 30-70 rpm, adjustable | |||
| Rotational direction | positive and negative rotation, optional | |||
| Counter range | 1-99999 times | |||
| Polyurethane sample tubes | External: Φ31.5×140 mm 4 Pieces per box | |||
| Power supply | AC 220V 50/60HZ 120W | |||
| Dimensions (L x W x H) | 1200x 500x 500 mm | 1200x 500x 800mm | 900×500×1100mm | 1400x500x1600mm |
| Weight | 40kg | 60kg | 120kg | 180kg |
Product Details

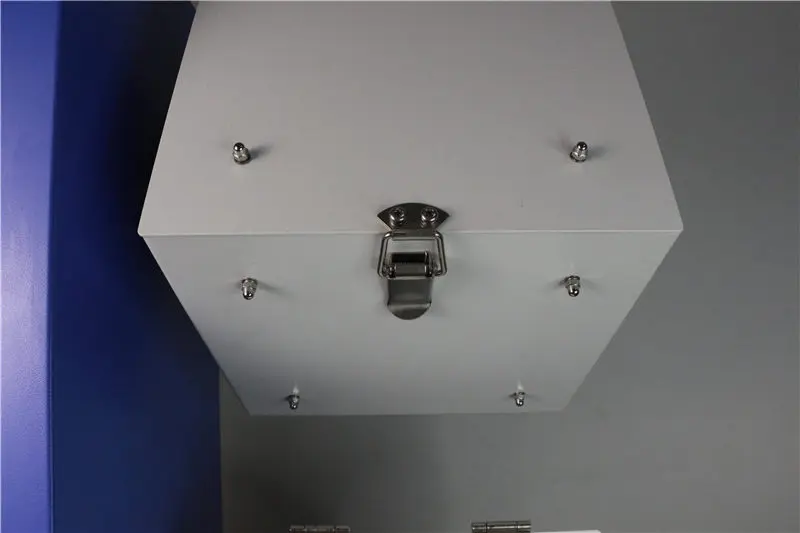

box lid

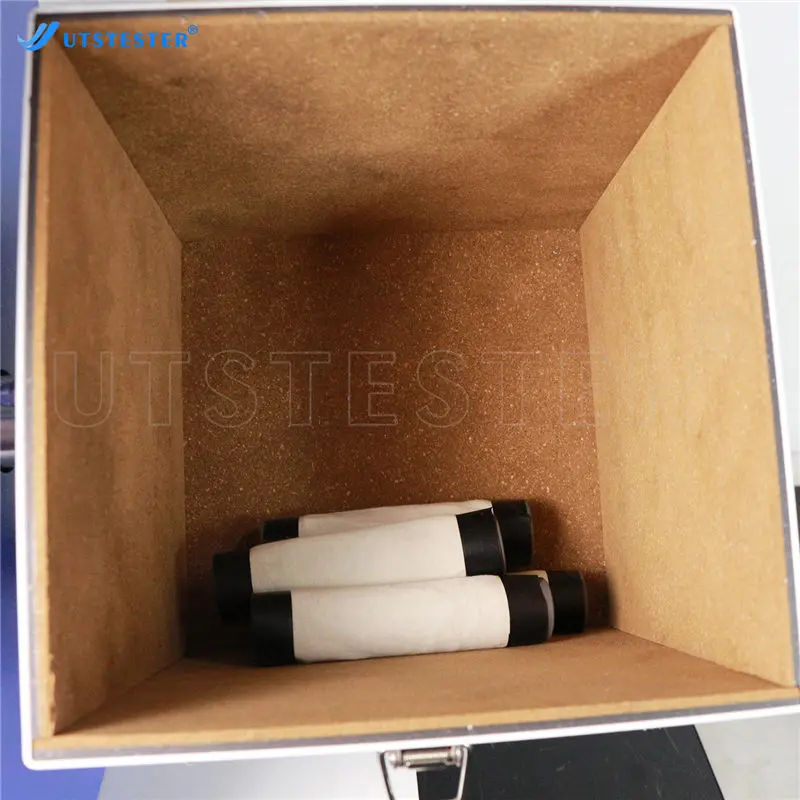

box(placing sample)

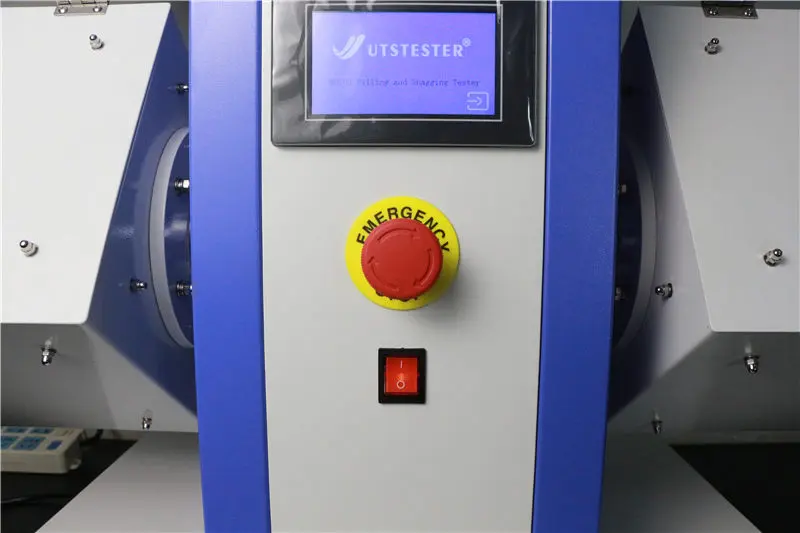

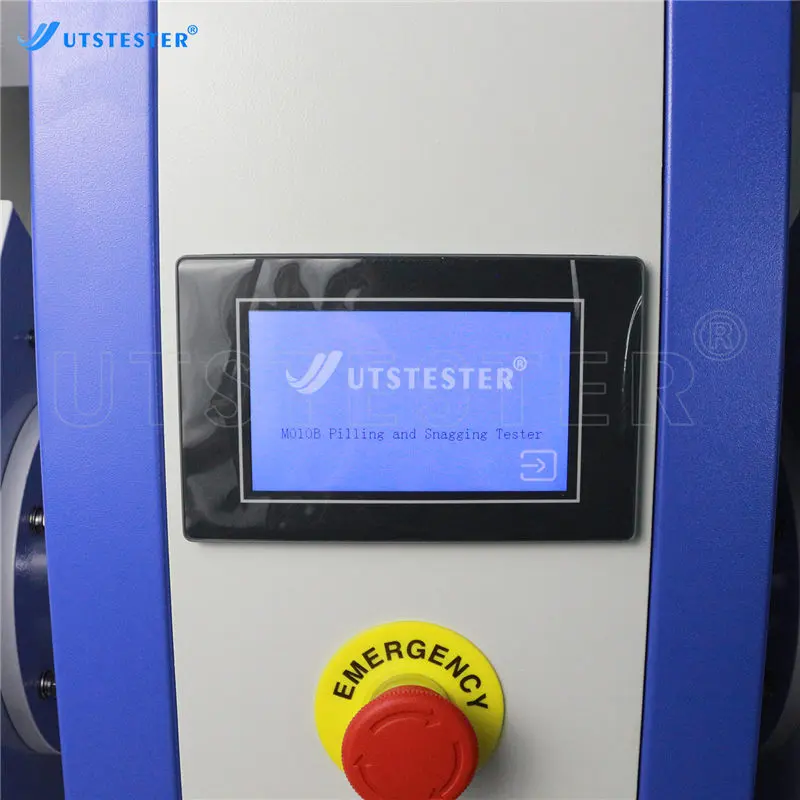

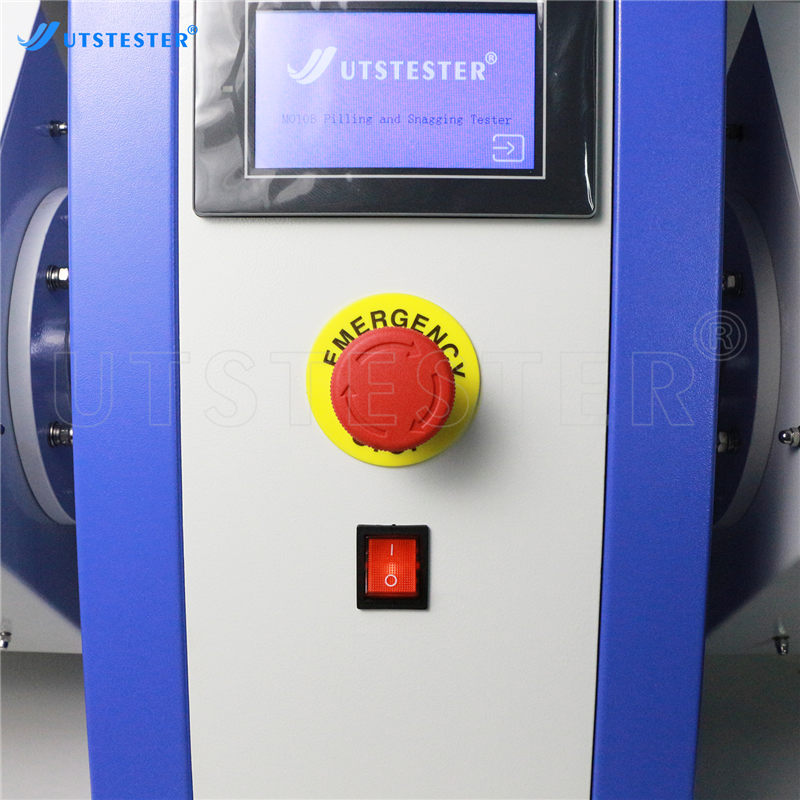

screen

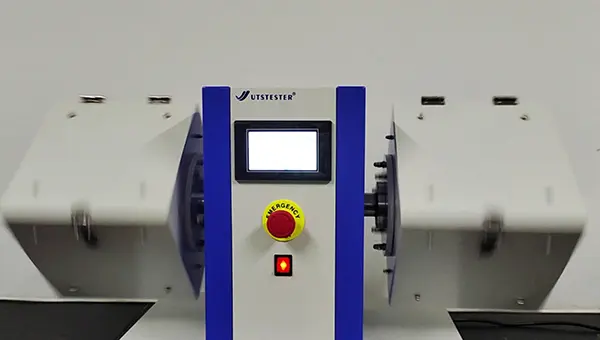

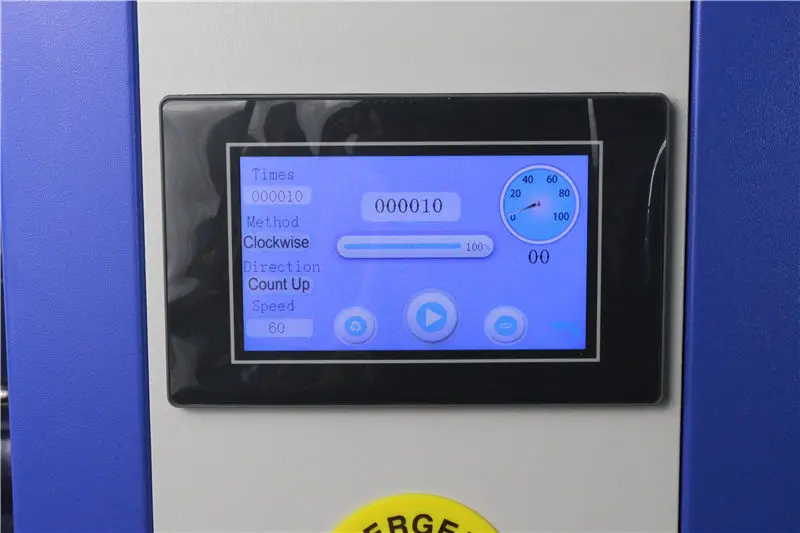

test interface screen
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation

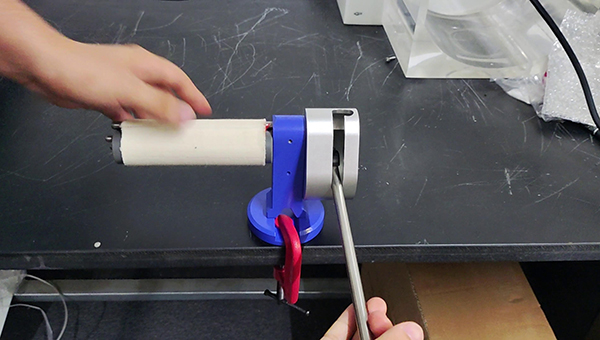

Cut samples to standard
Cut the sample and make it according to GB/T4802.3-1997 national standard.

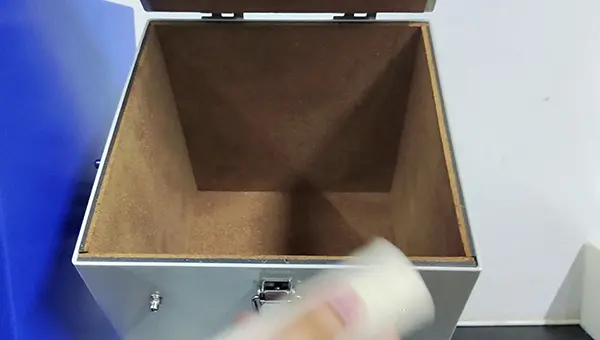

Check the pilling box
Check the pilling box, the box must be clean, without any wool fiber.

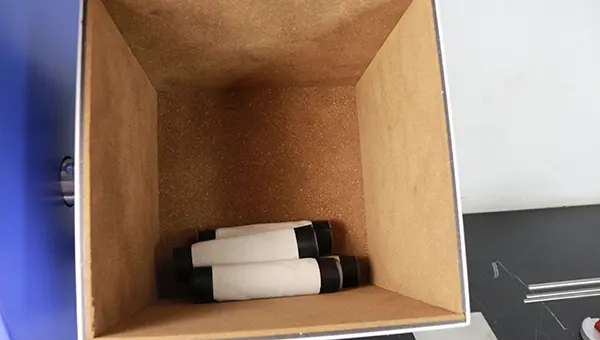

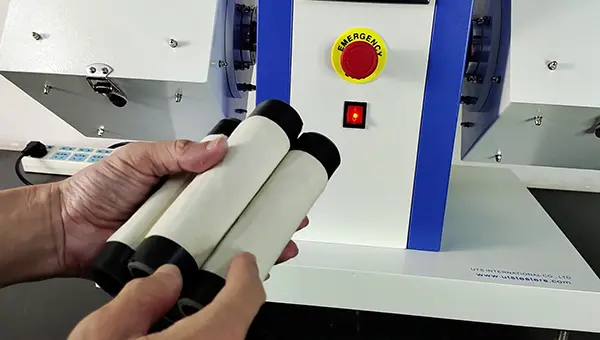

Put in sample
Put the sample carrying tube with the sample set into the box.close the box cover and buckle the lock box.
Preset parameter

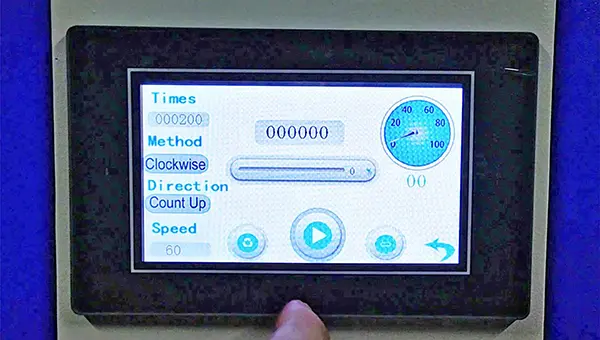

Plug in the power plug to turn on the power switch, preset the speed and times.
Start testing
press the start button, after the completion of the experiment, the instrument will automatically stop.
Observe sample
take out the sample for observation.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
