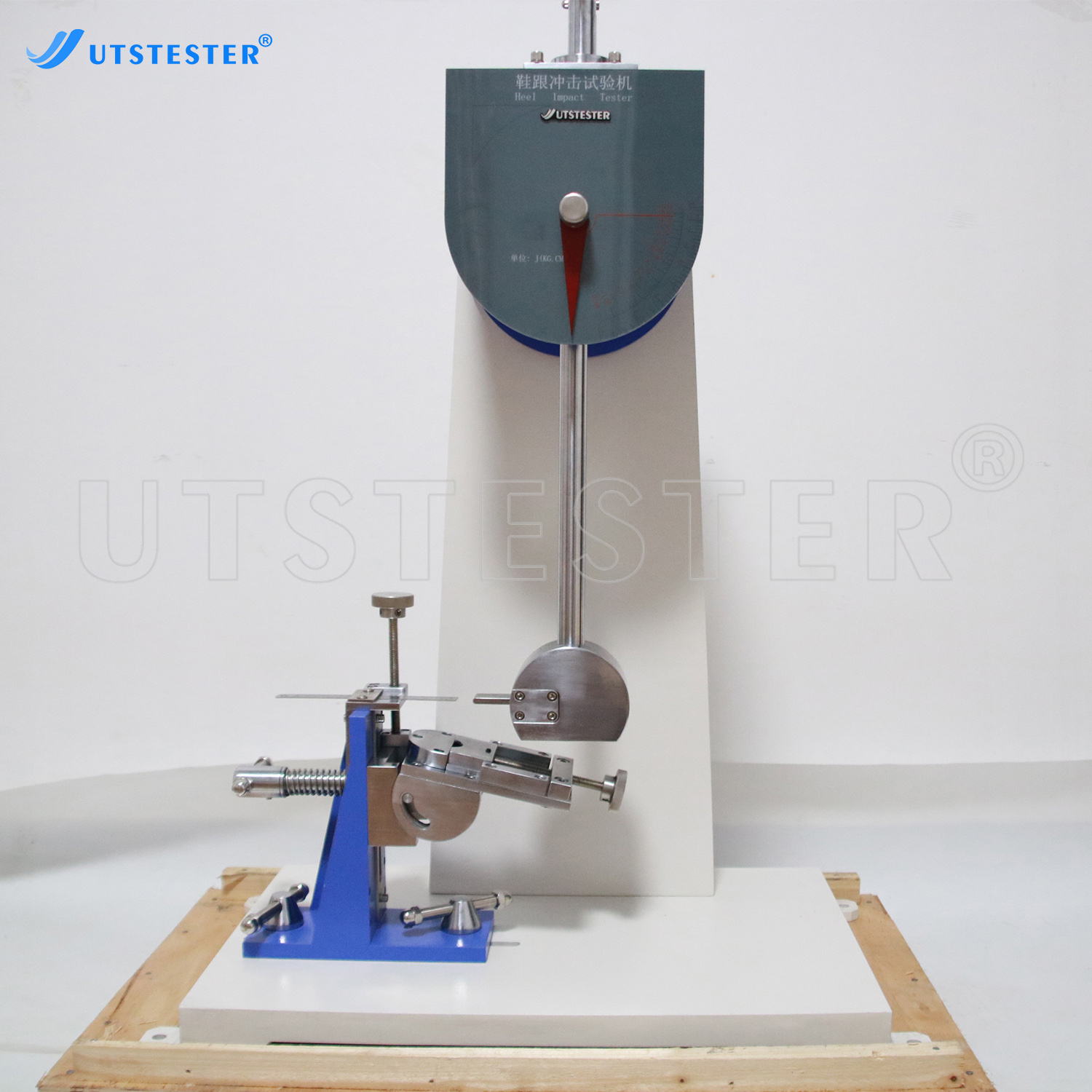

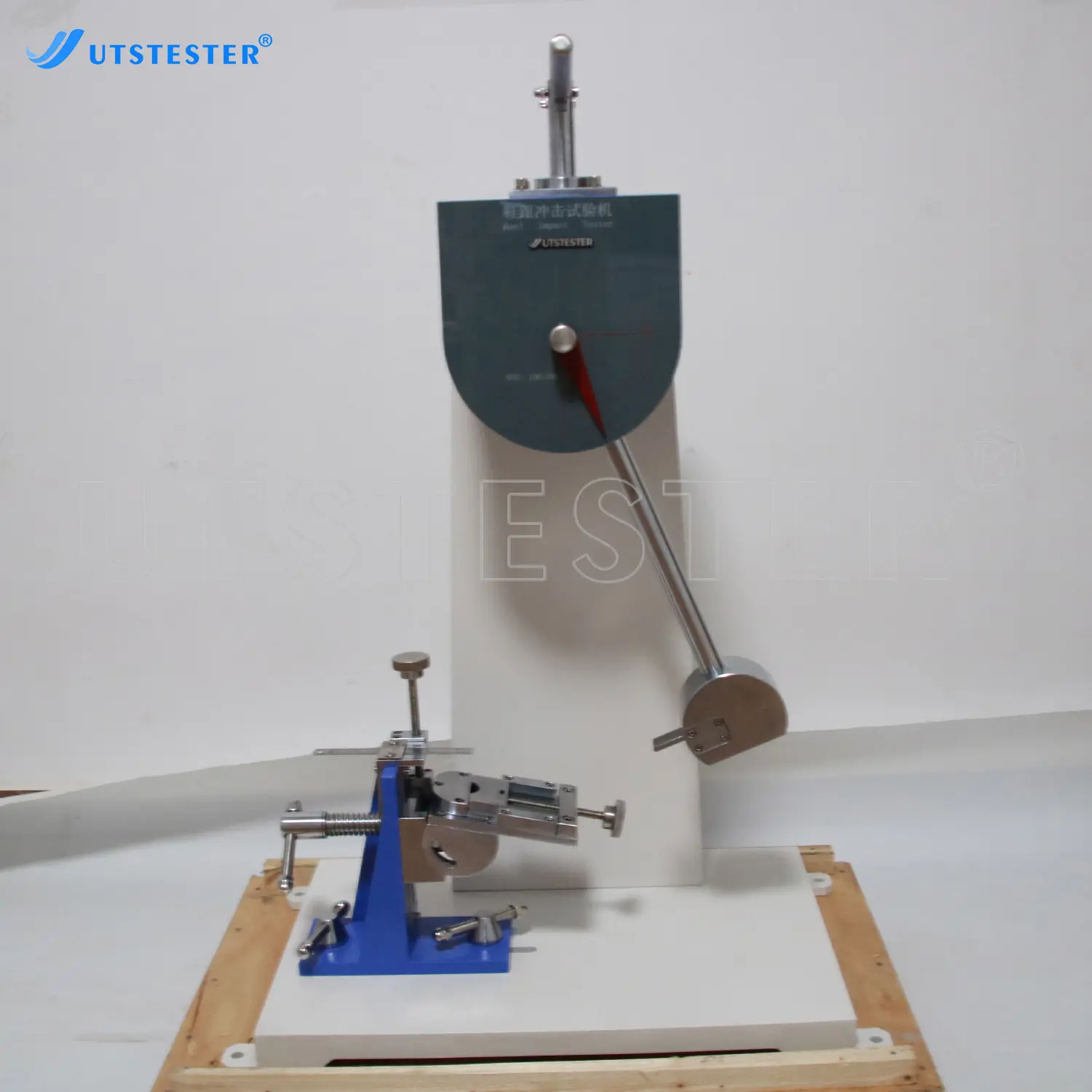

Lab Equipment Footwear Shoes Heel Impact Testing Machine Heel Continuous Impact Tester H025
Overview
To determine resistance of sole to impact load. When test, each time increase impact energy until heal break / rupture and read impact index
Application
heel (of a shoe)
sole (of a shoe)
Standards
BS-5131, ISO 19953, QB/T 2863, SATRA TM20
Key Parameters
|
Model |
H025 |
|
Energy |
0~18.3J(13.5ft-lb ), minimum read 0.68J(0.5ft-lb ) |
|
Pendulum energy when swing horizontally |
17.3N~m(12.7ft-lb ) |
|
Pendulum |
Ф108mm, thickness 49.2mm |
|
Pendulum center to enter of shaft |
432mm |
|
Impact head |
(W×D×L)25×6×35mm, Radium 3mm |
|
Sample base adjustable range |
Height 0~25mm,angle 0~45degree |
|
Dimension |
65×41×115cm |
|
Weight |
100kg |
Product Details

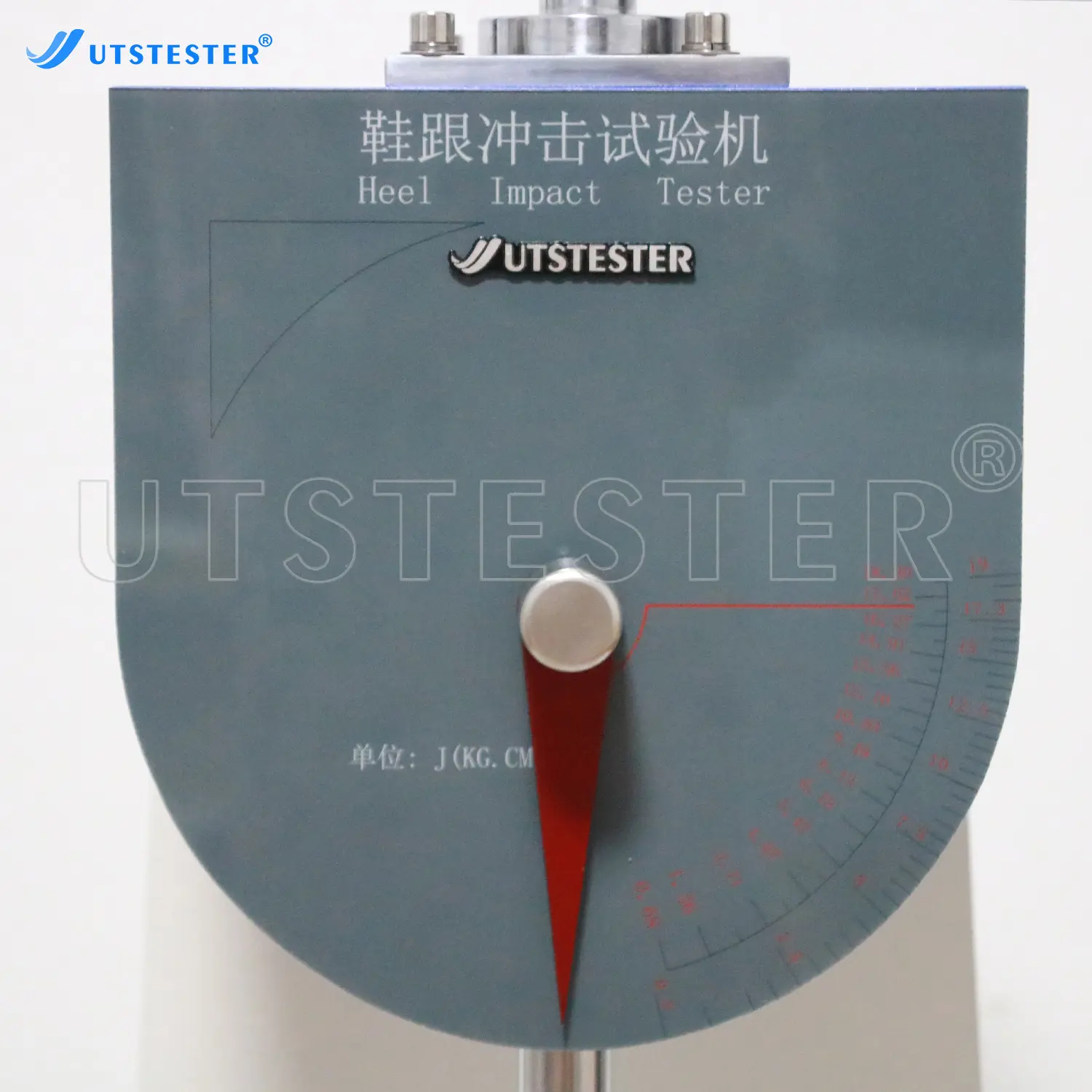

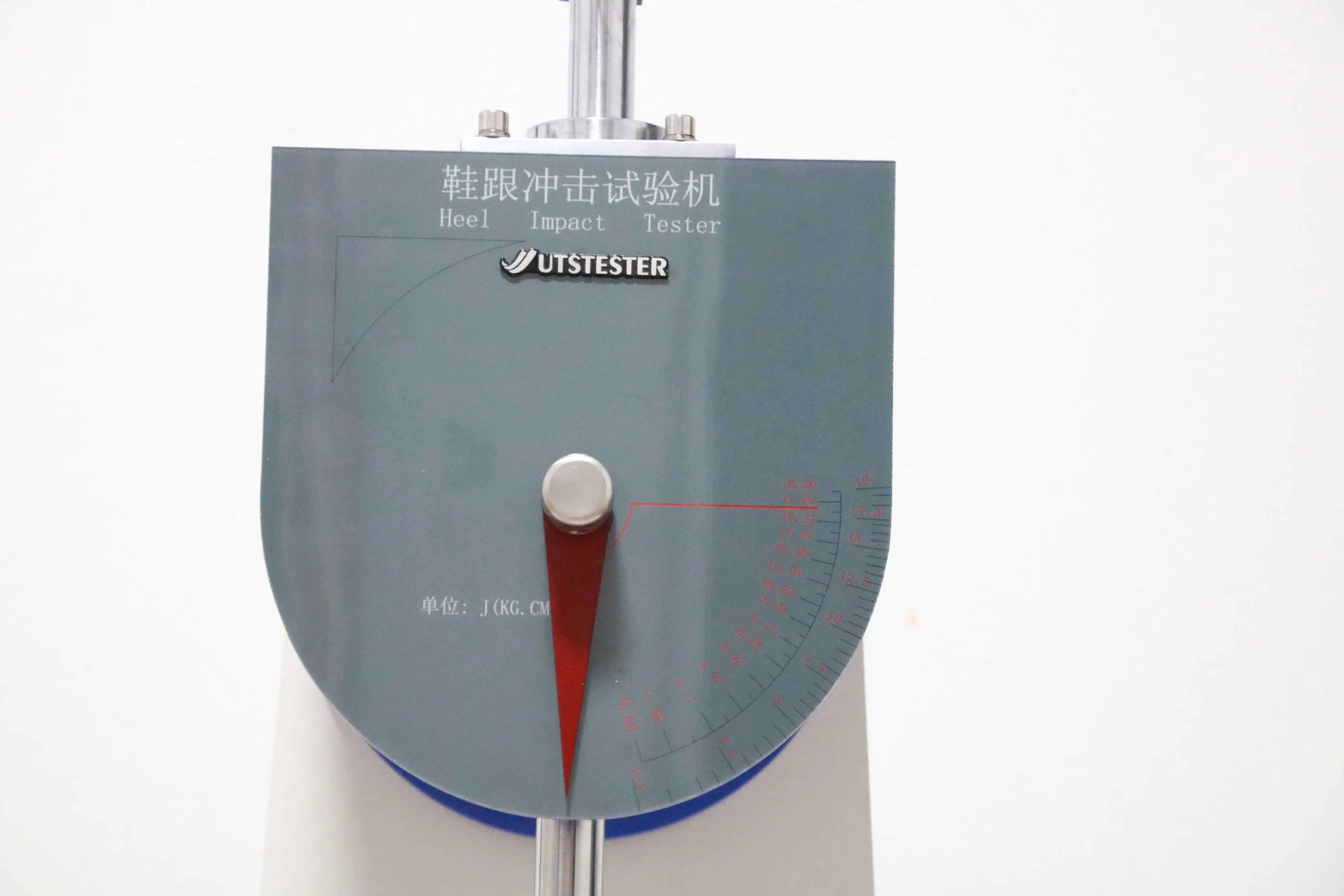

Energy scale

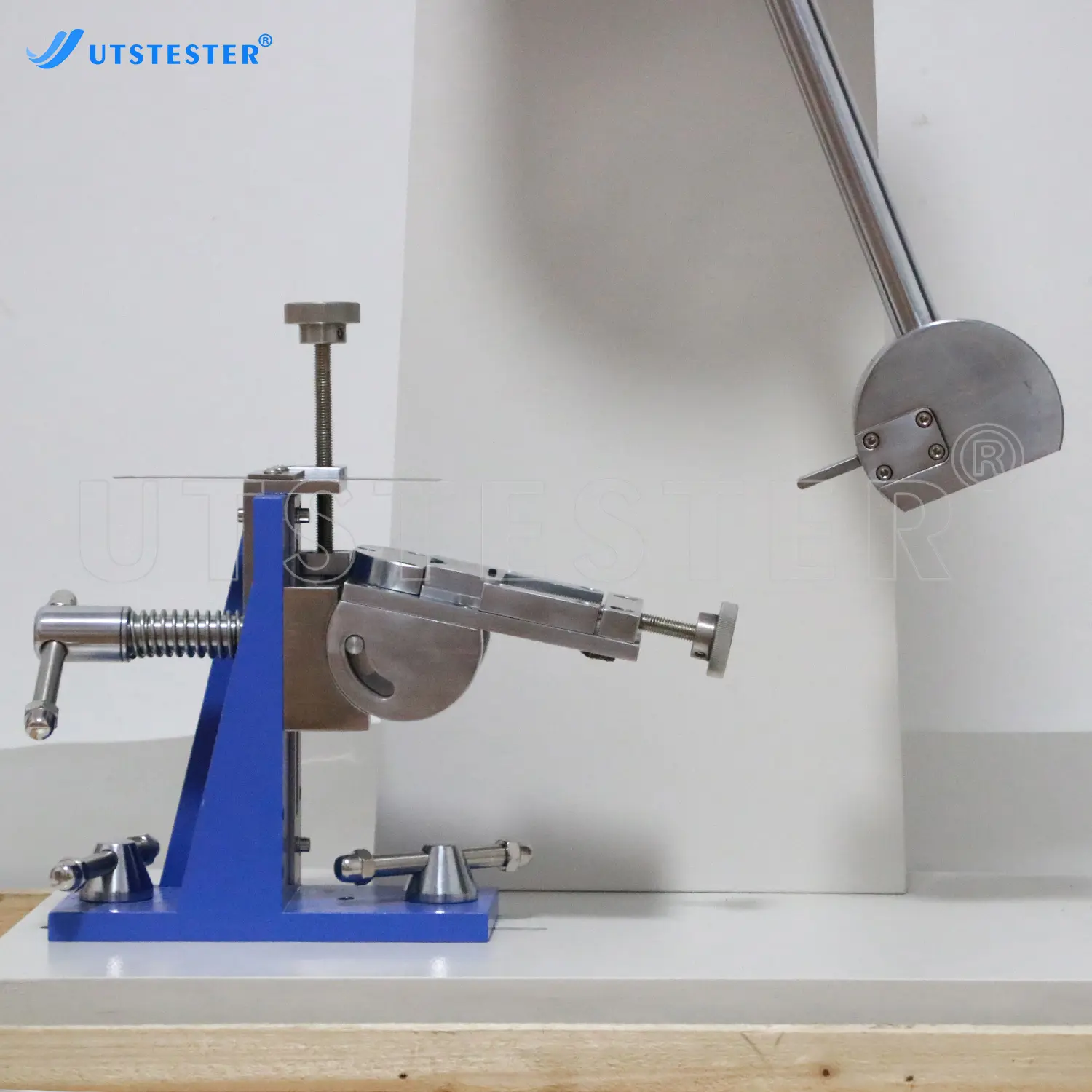

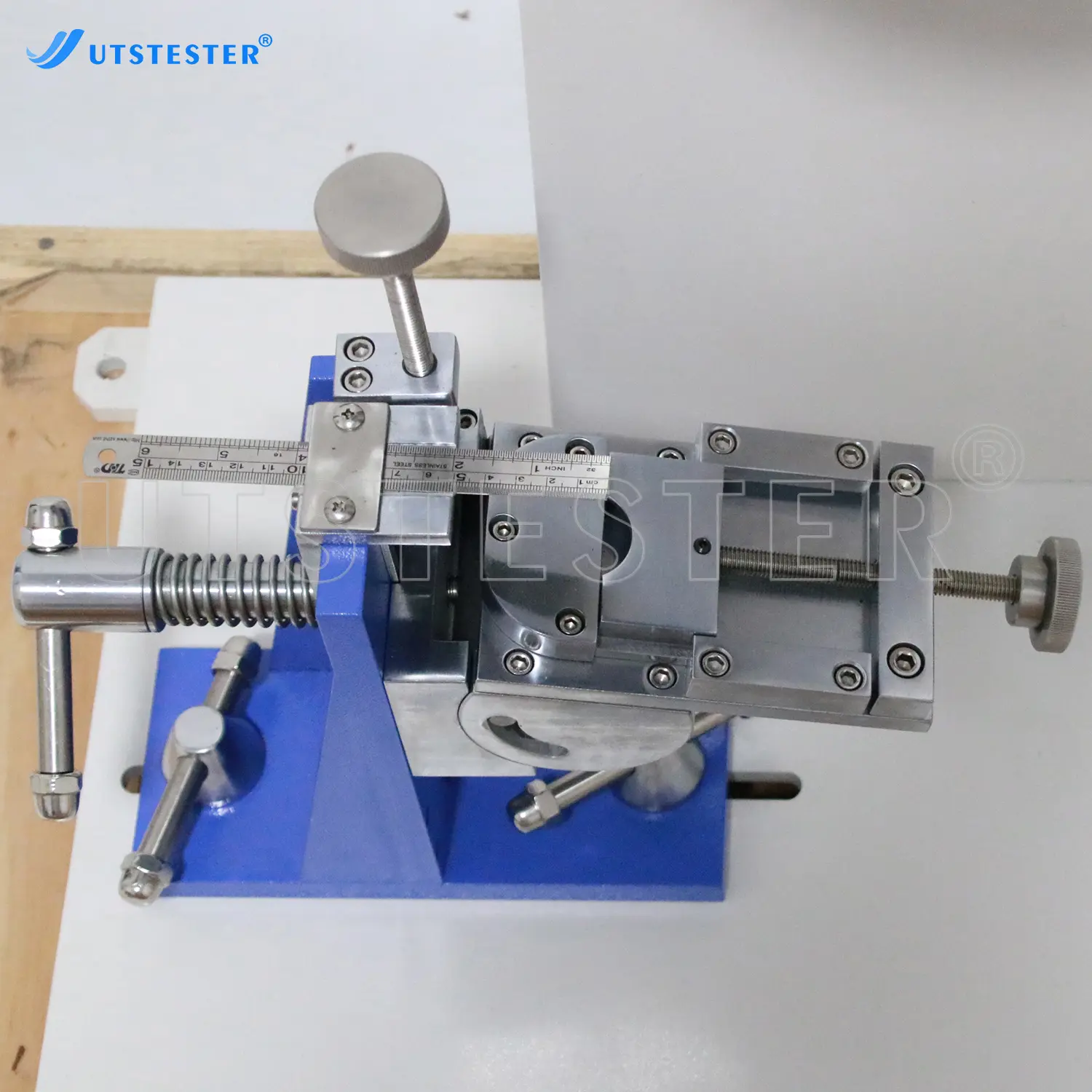

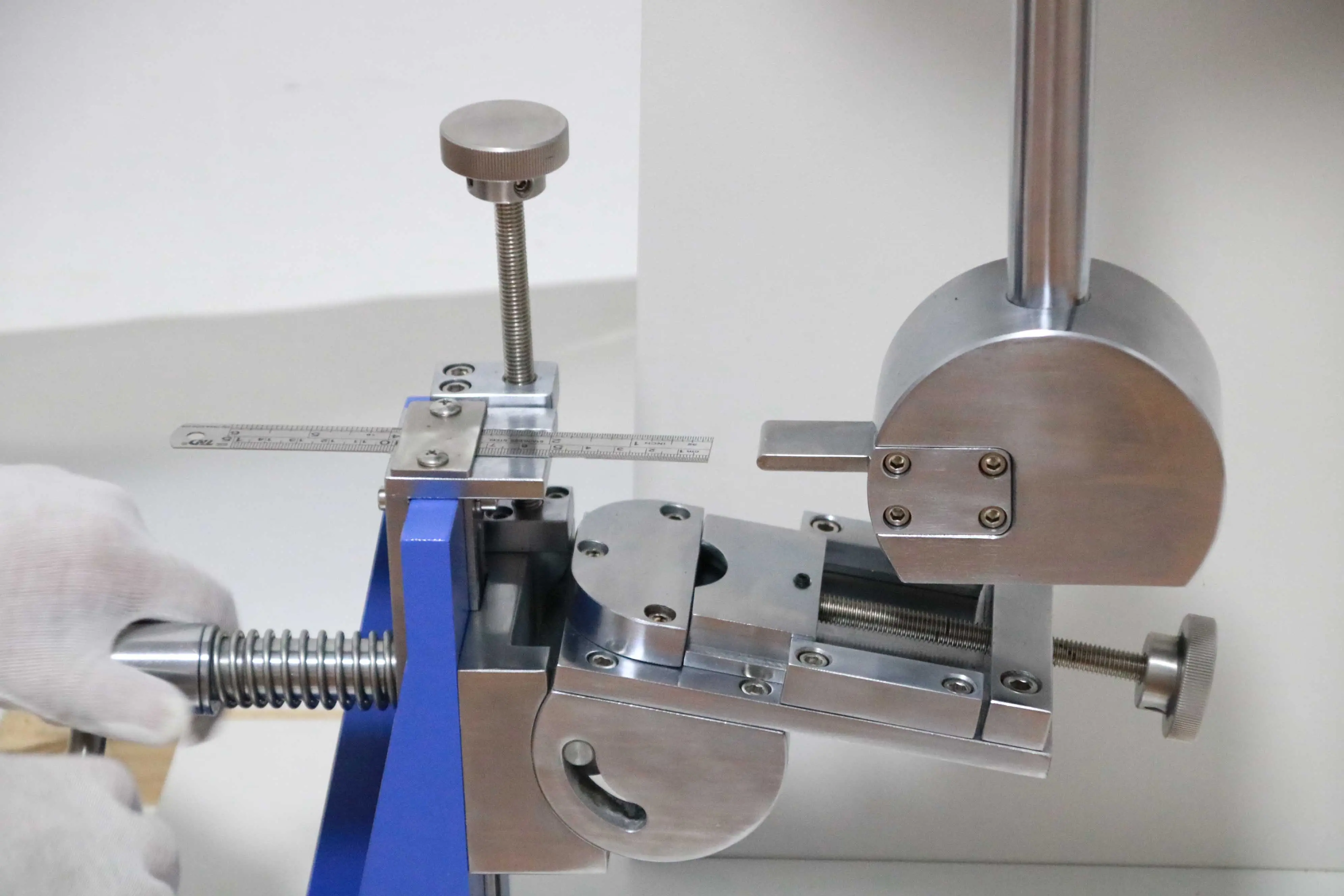

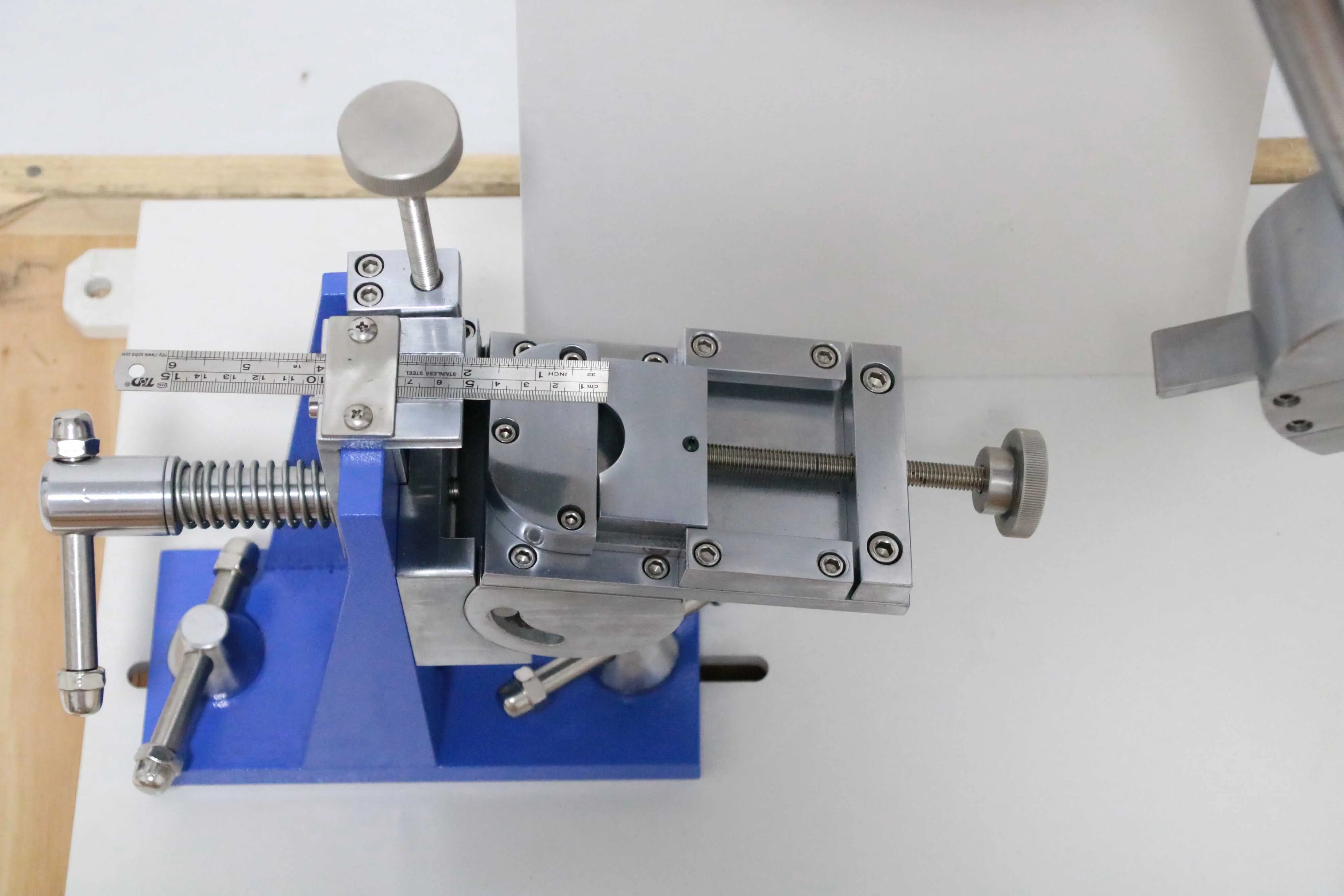

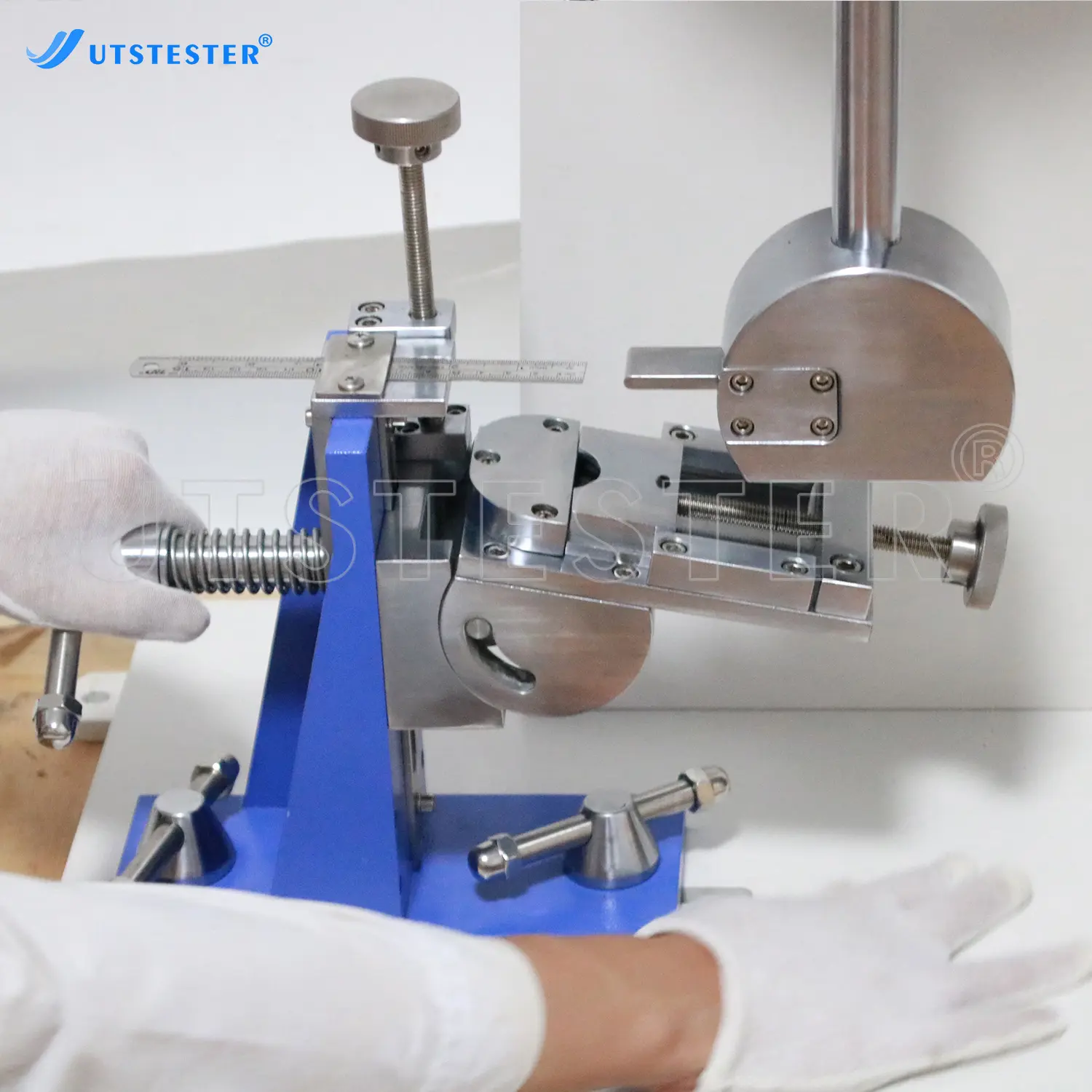

Clamp
Pendulum bob
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
