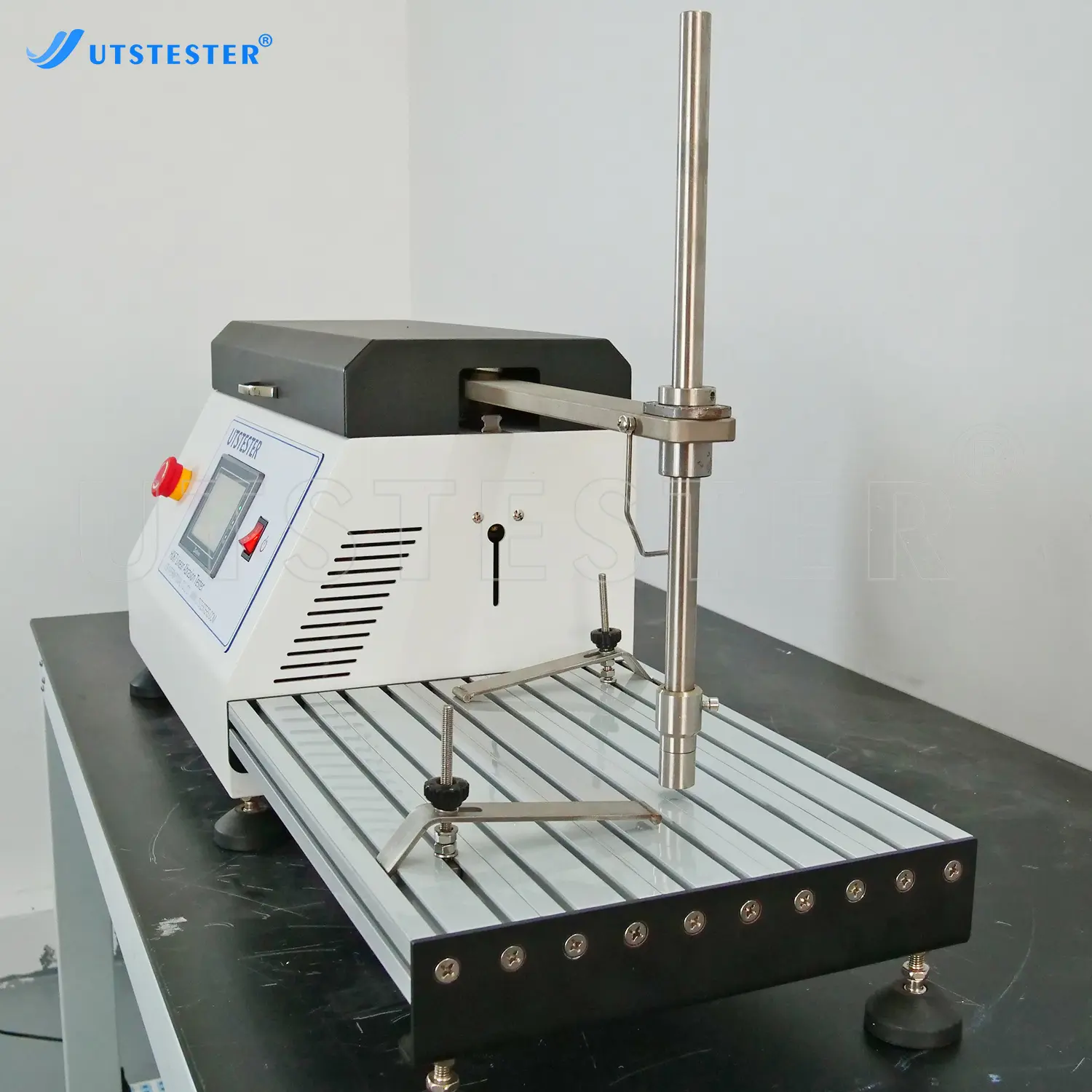

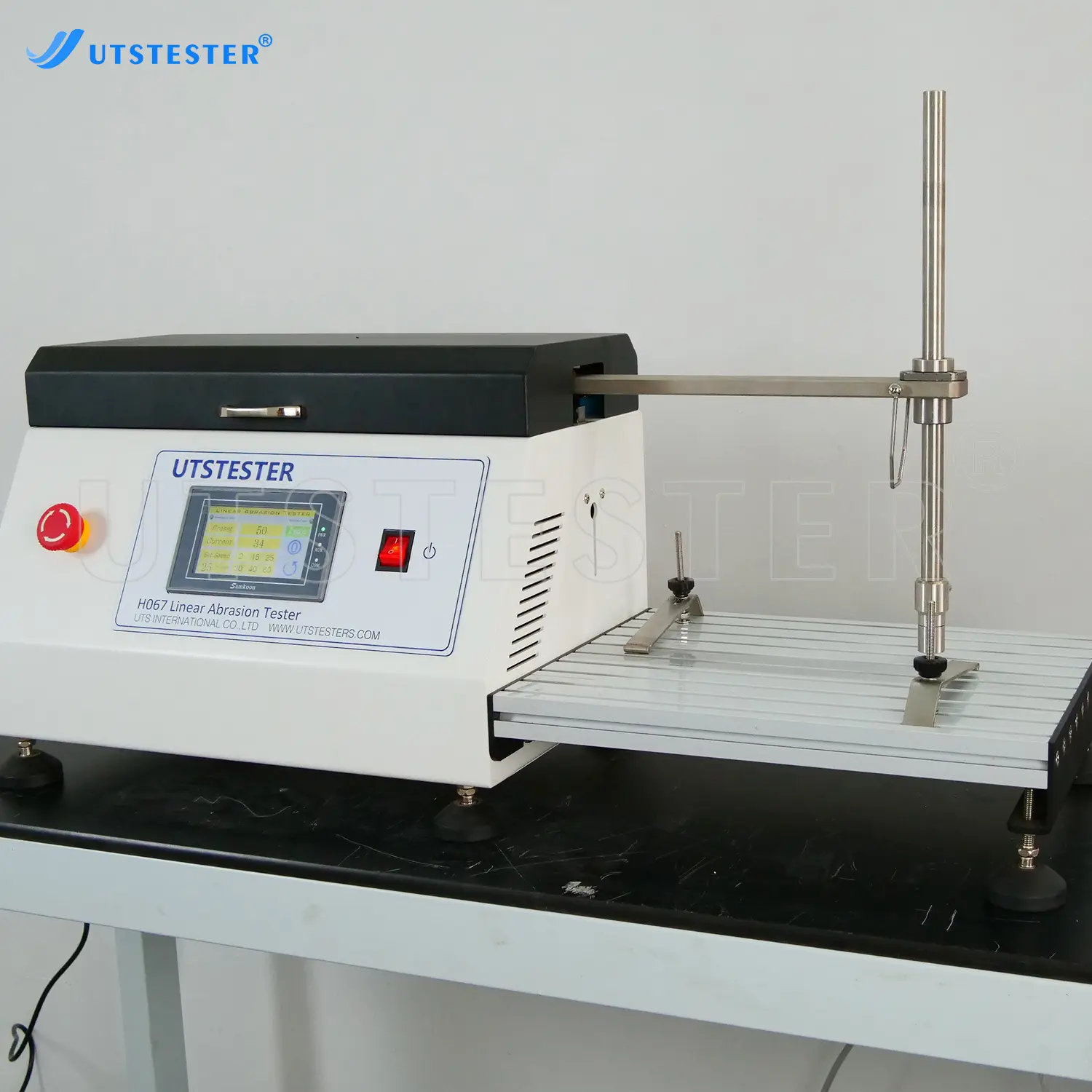

Lab Equipment Linear Abrasion Tester Dry and Wet Abrasion Testing Machine H067
Overview
This tester is suitable for testing the wear resistance property of plastic, auto parts, rubber, leather and textile, electroplating, free disassembly of components, paint, printing products, etc. Not only can be used to evaluate the product wear resistance, also can be used to evaluate the scratch resistance of the product single or multiple scratches and colours of transitivity. Dry abrasion test and wet abrasion test are available.
Application
Leather and textiles
Electroplating
Automotive parts
Plastics
Rubber
Printed graphics
Key Parameters
|
Model |
H067 |
|
Working position |
1 |
|
Testing stroke |
0~101.6mm(0~4in) adjustable |
|
Testing speed |
5~72r/min, adjustable |
|
Load |
250g, 6 pcs |
|
Abrasion head weight |
750g |
|
Load weight |
750g~2250g |
|
Control |
PLC+ touch screen |
|
Abrasion position Alignment style |
Laser alignment |
|
Dimension |
87x32x52cm |
|
Weight |
45Kg |
|
Power supply |
1∮ AC 220V 5A |
Product Details

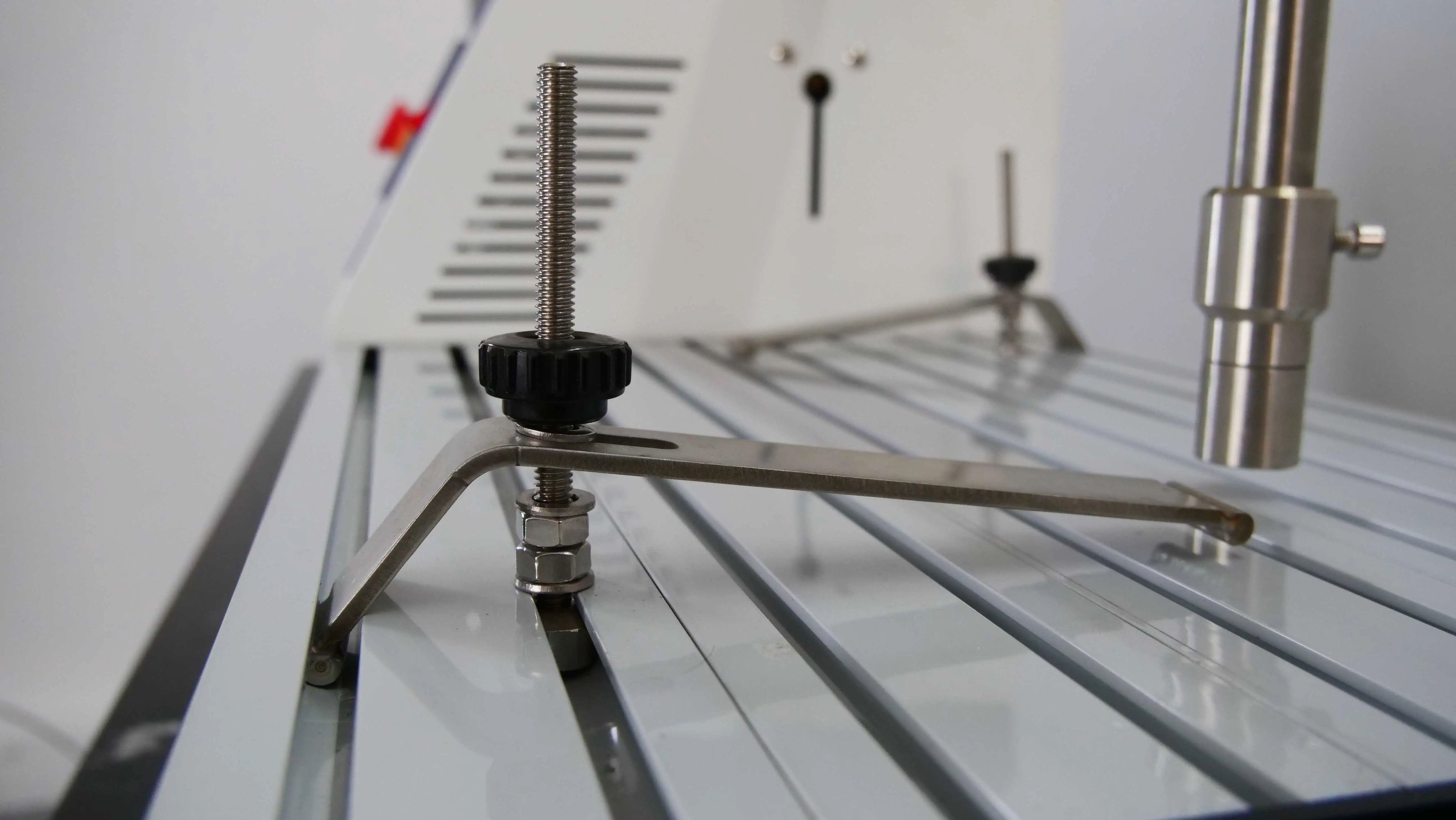

Fixed fixture

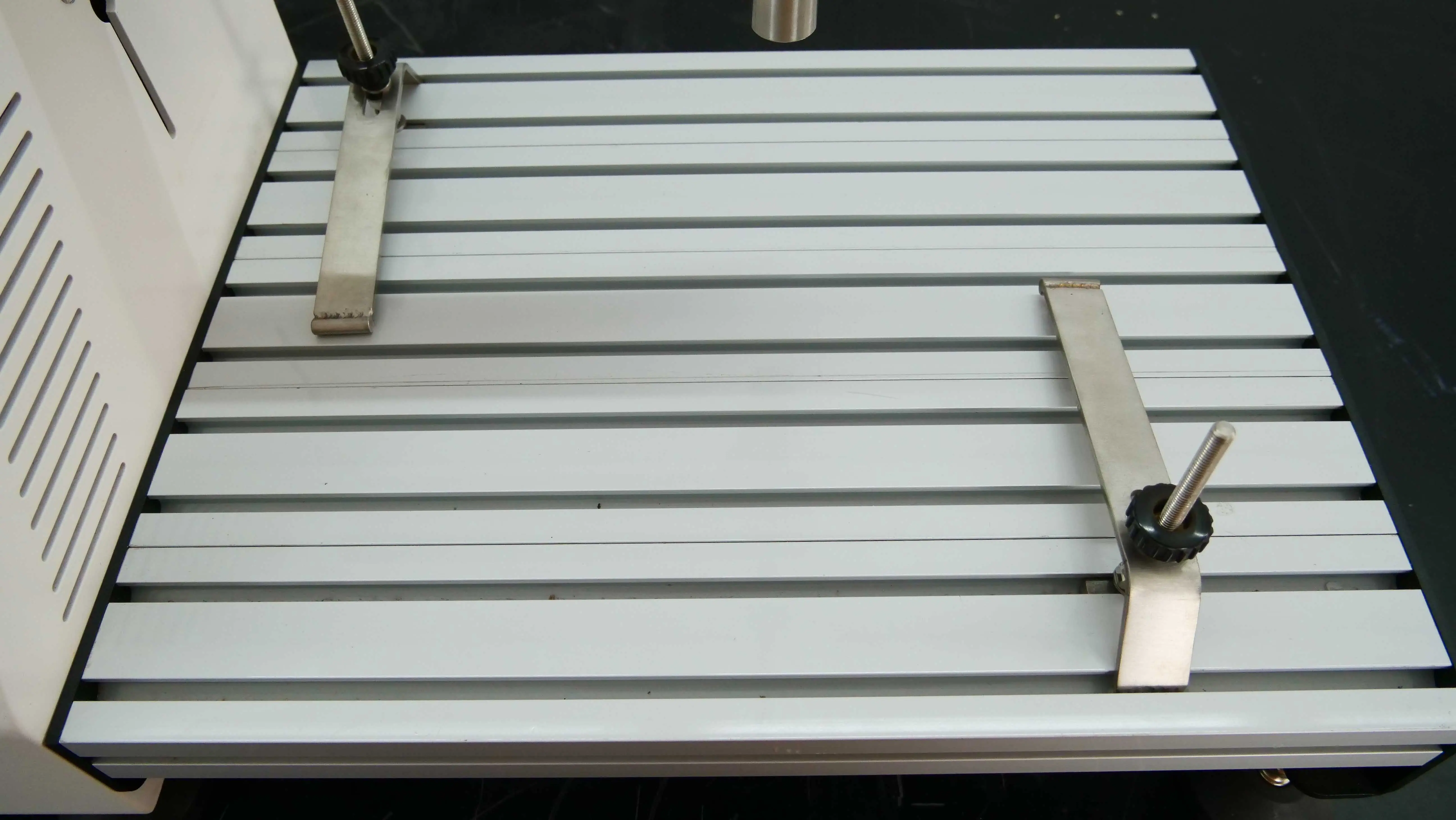

Friction platform

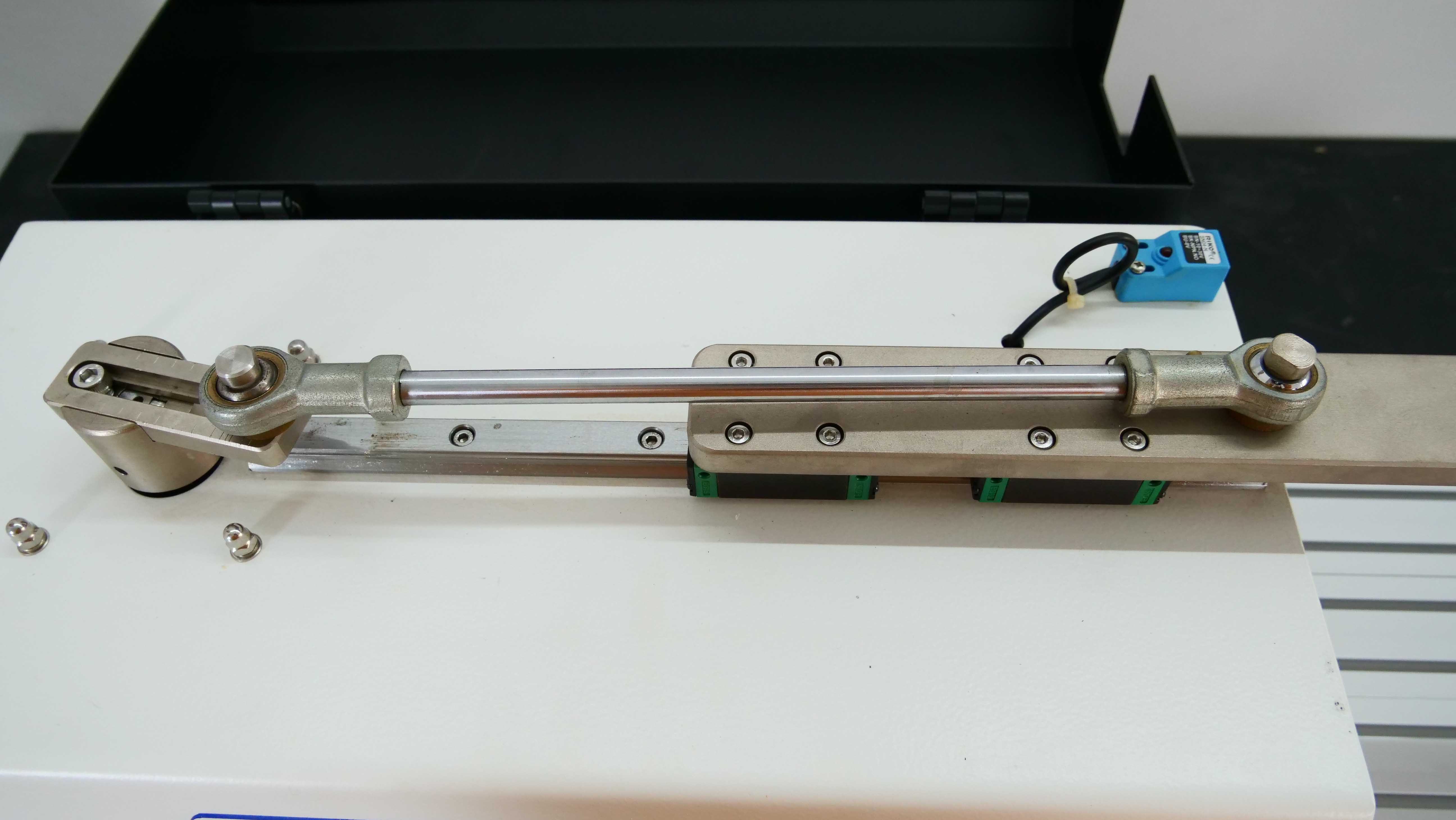

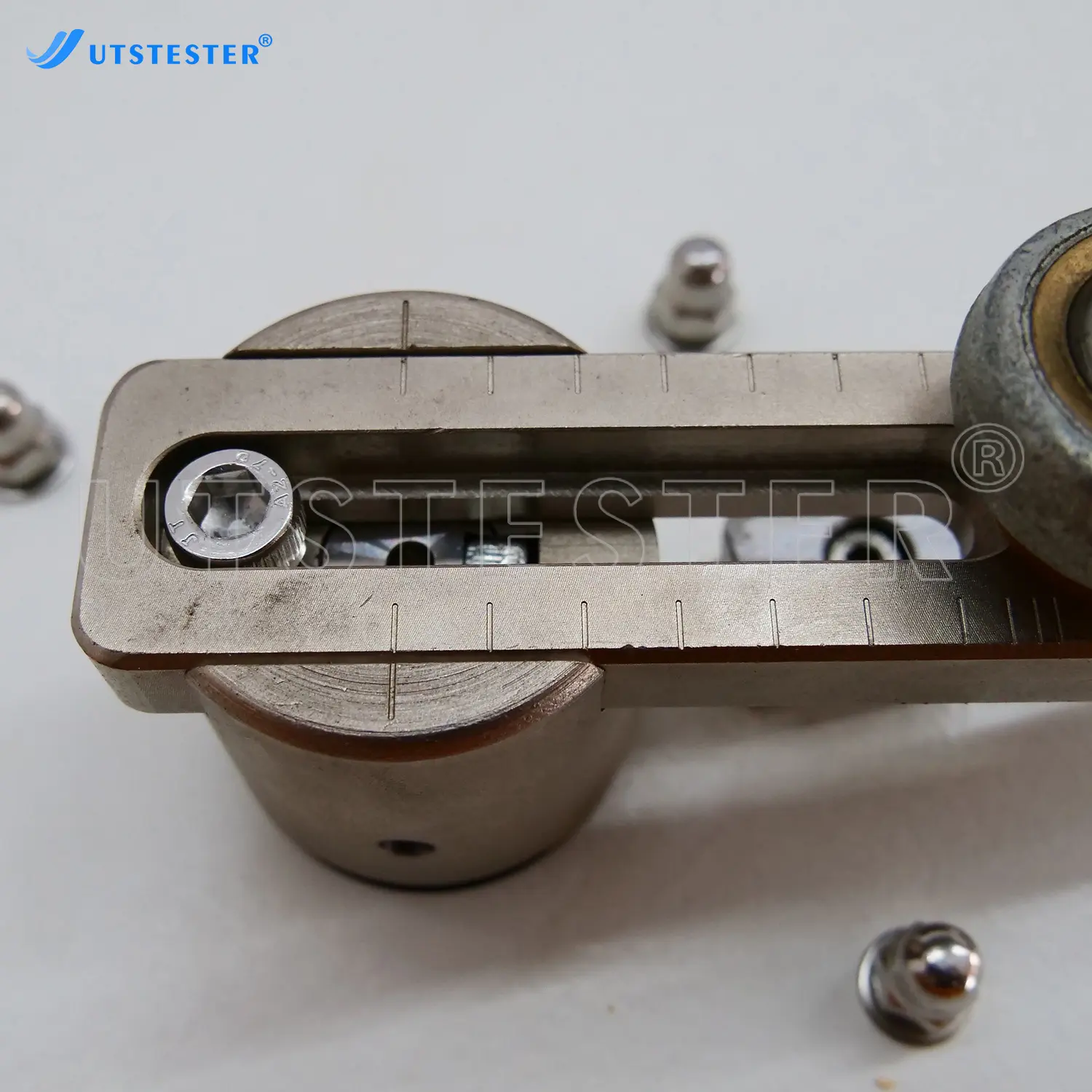

Eccentric wheel and adjusting block

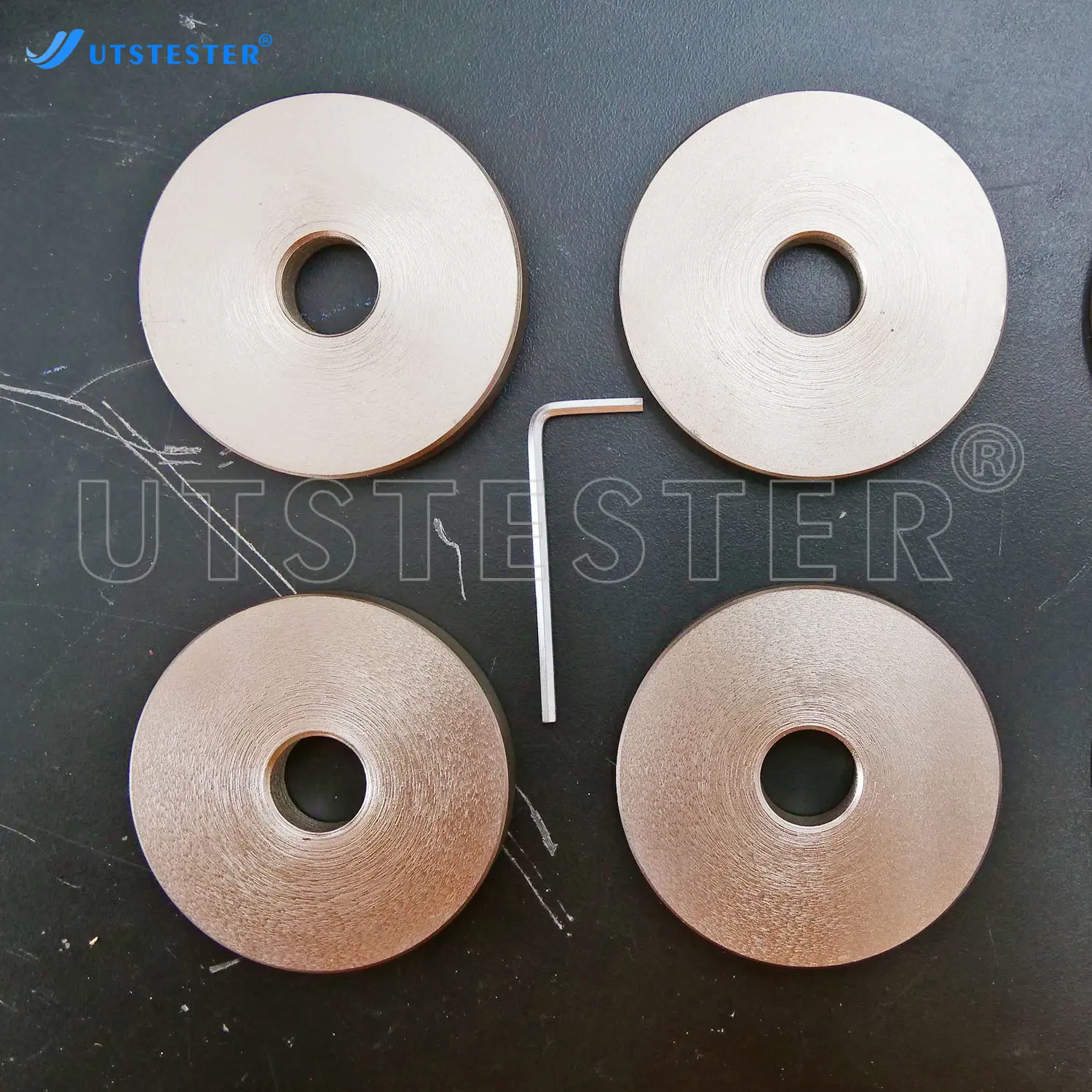

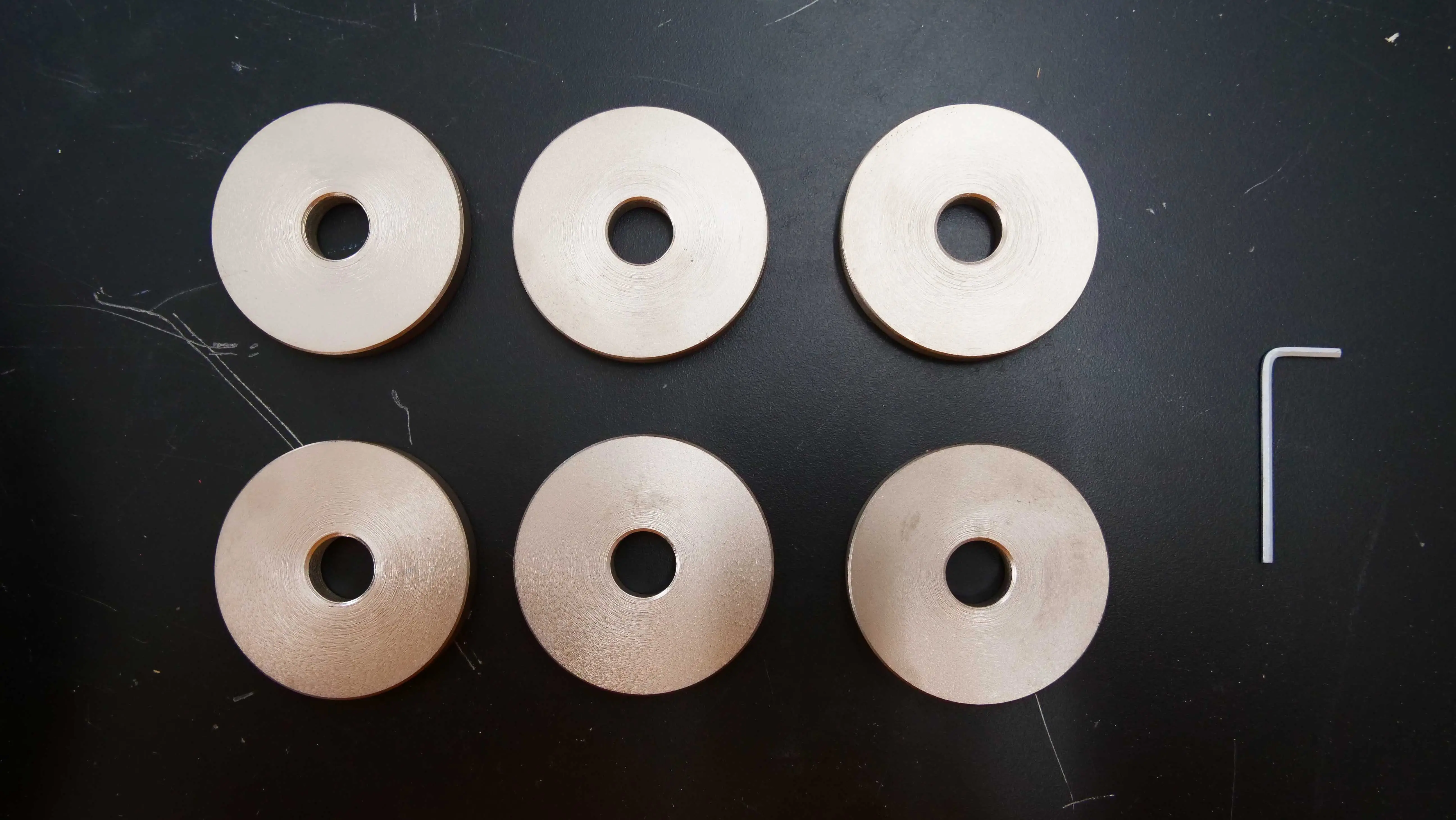

Weights

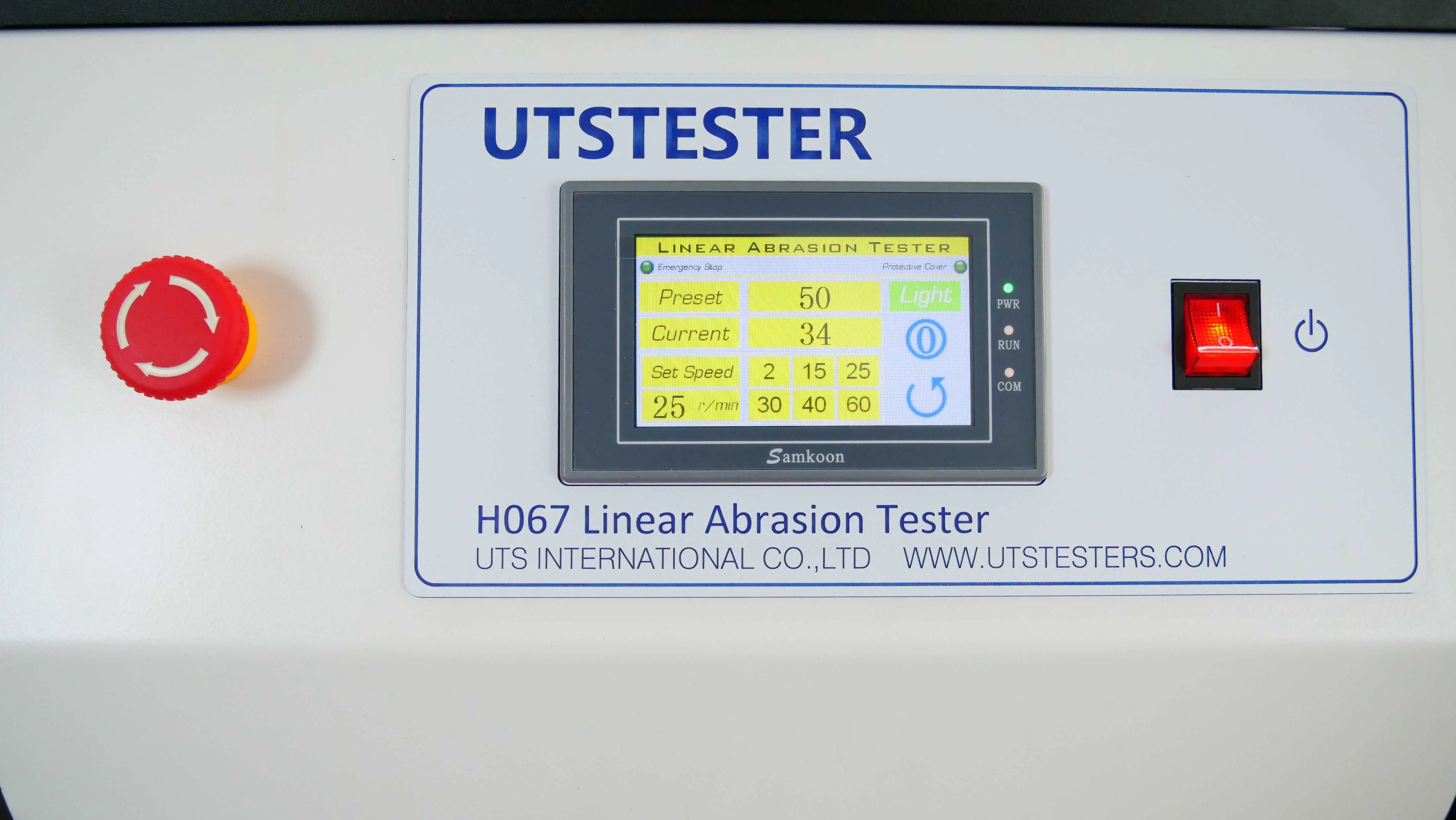

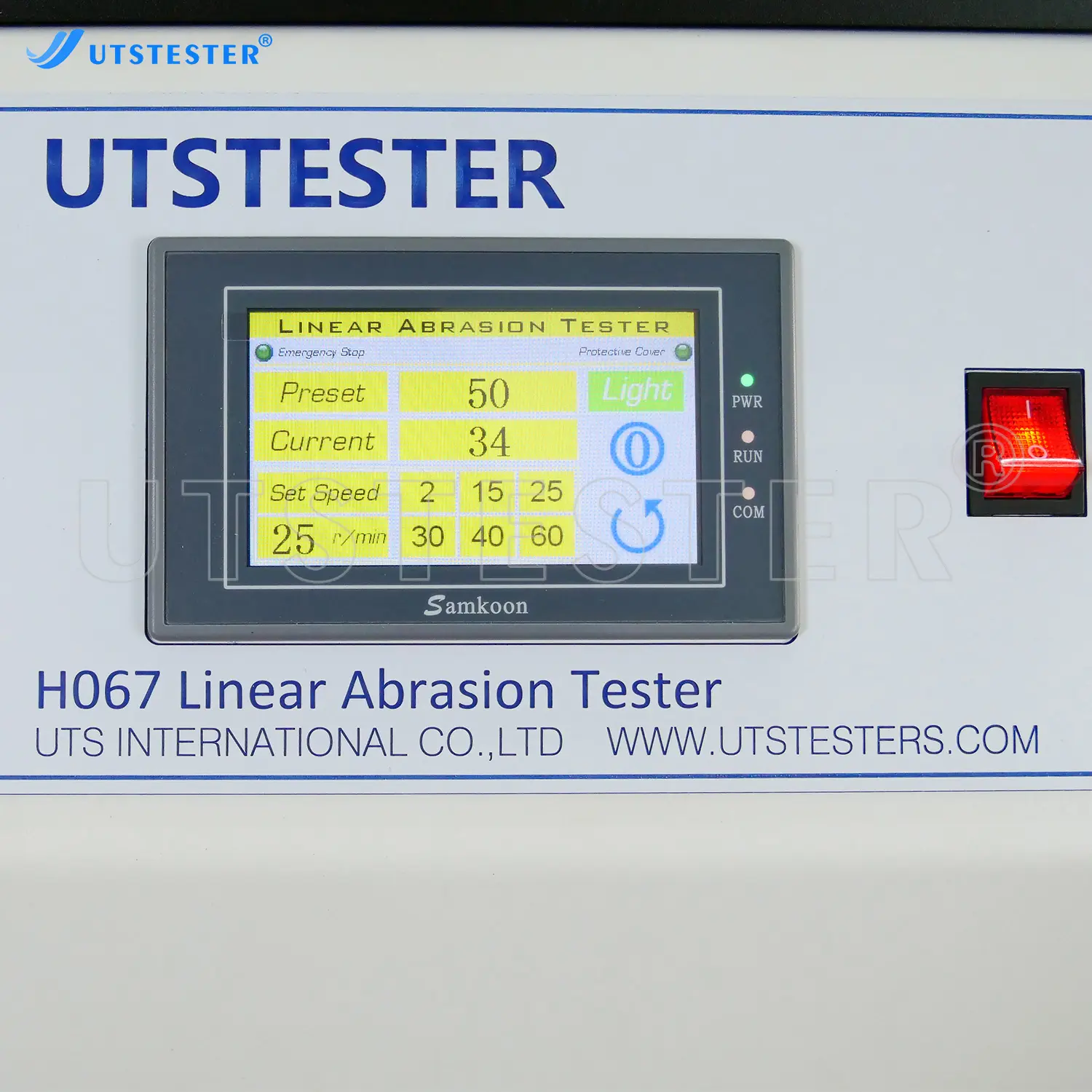

Control panel

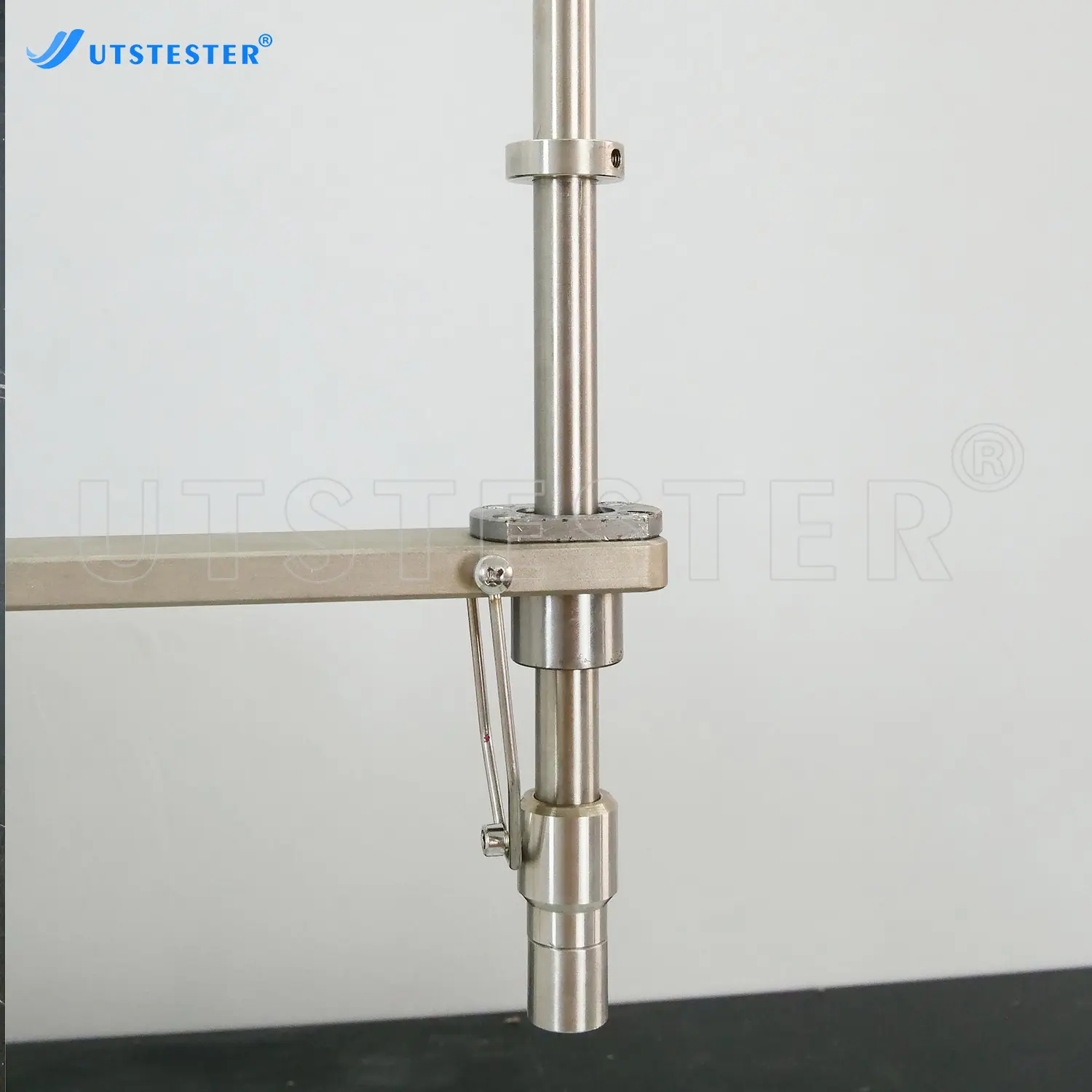

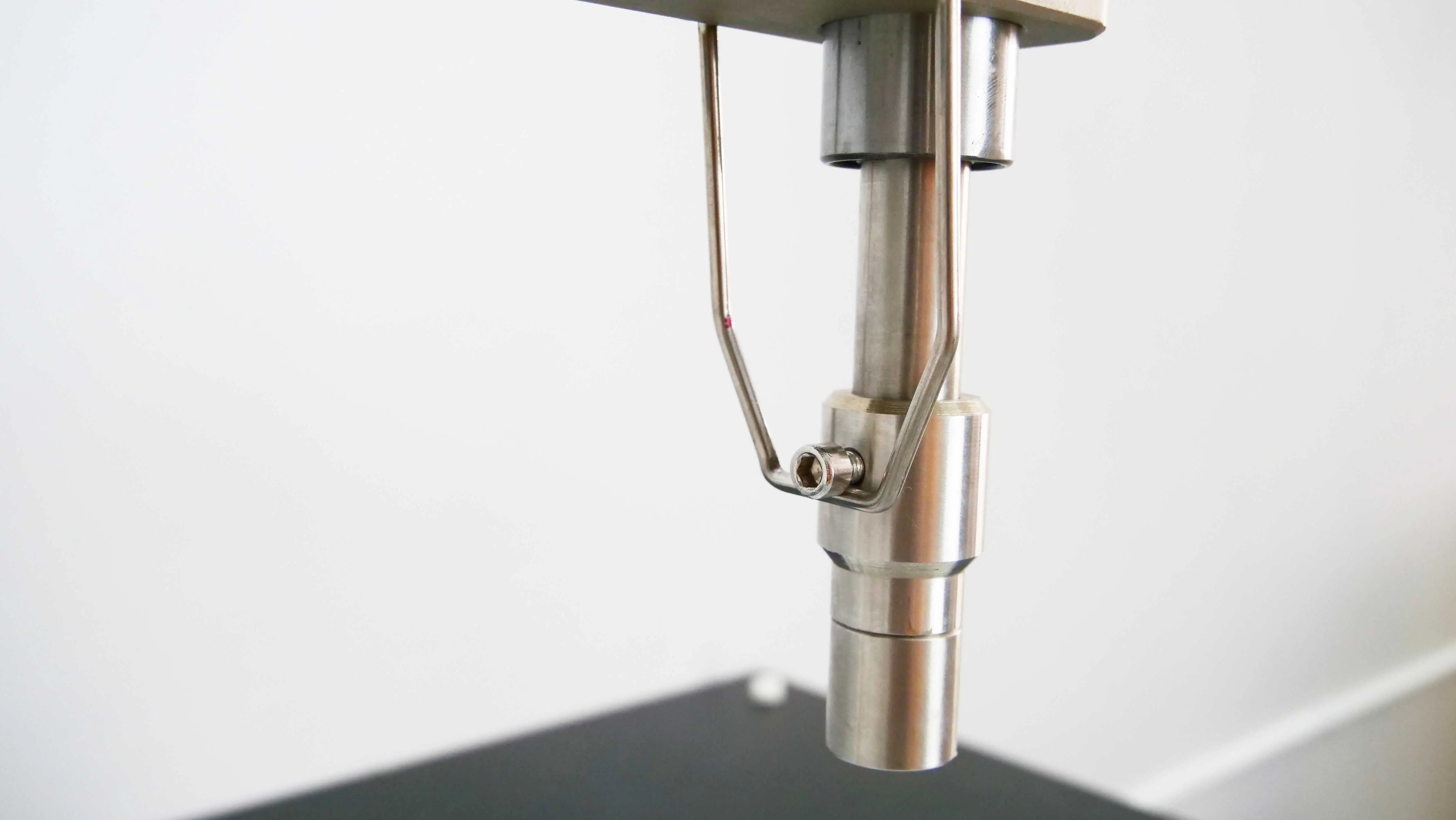

Friction head
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
