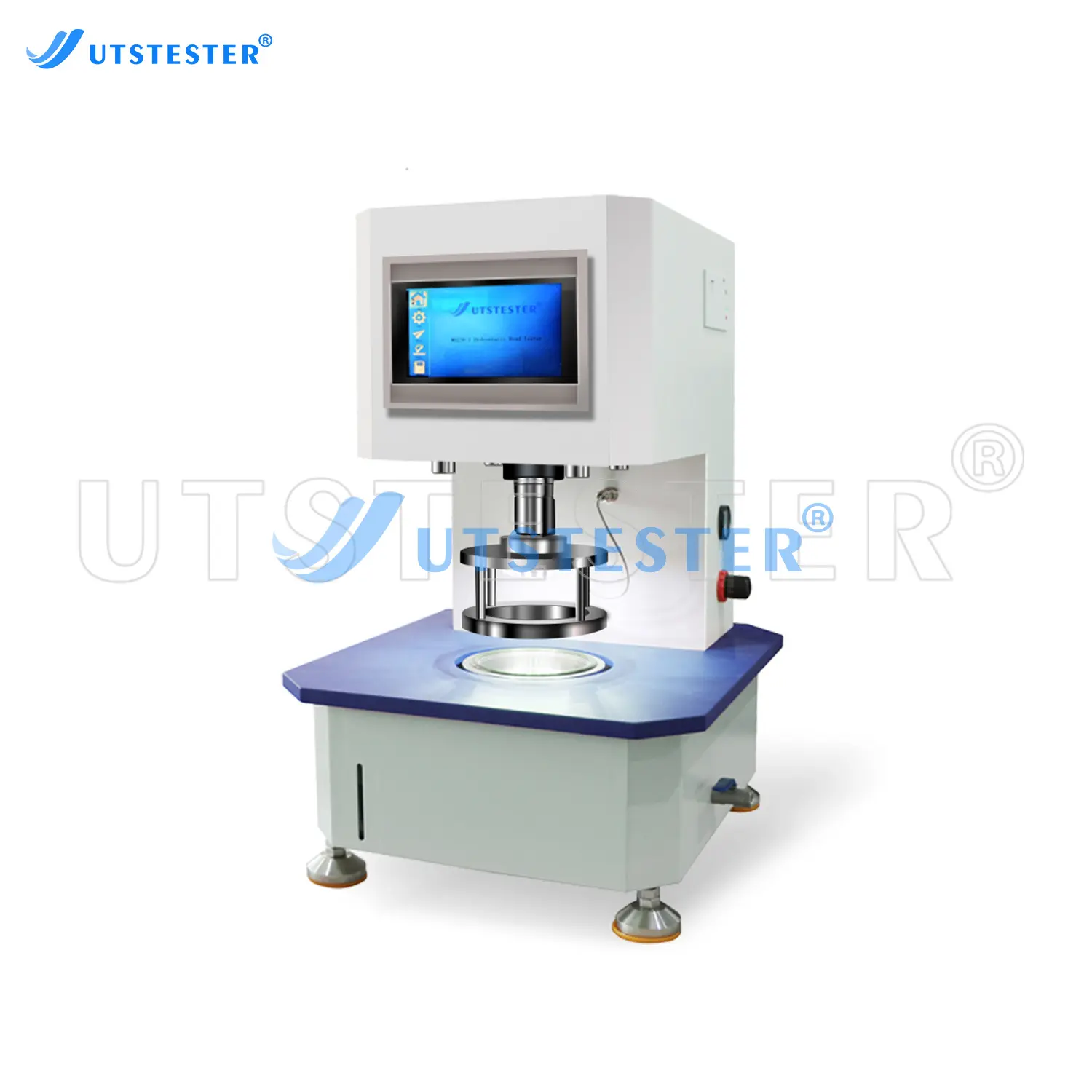

Lab Instrument Waterproof Test High Pressure-Servo Hydrostatic Head Tester M023B
Overview
To test the waterproof property for fabric, Such as canvas, medical non-woven material, coated fabric, geosynthetic materials, cloth, tent cloth, tarpaulin and rainproof clothing fabric.
Application
Tent cloth
Mask
Geosynthetic
Canvas
Medical non-woven
Rainproof cloth
Standards
GB/T 4744, FZ/T 01004, JIS L 1092, ISO 811, ISO1420, BS EN20811, AATCC127, DIN 53886, ERT120-1 160-0, AFNOR G07-057
Key Parameters
|
Model |
M023B |
|
Pressure display resolution |
0.01kPa |
|
Sensor test accuracy |
≤1% (5% to 100% within the full scale range of a single sensor) |
|
Precision of Tensile Speed |
±2% |
|
Experimental area |
100cm², 7.8cm² (optional) |
|
Pressurization rate |
1kPa～100kPa/min (stepless adjustable) |
|
Working mode |
Pressurization method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection test |
|

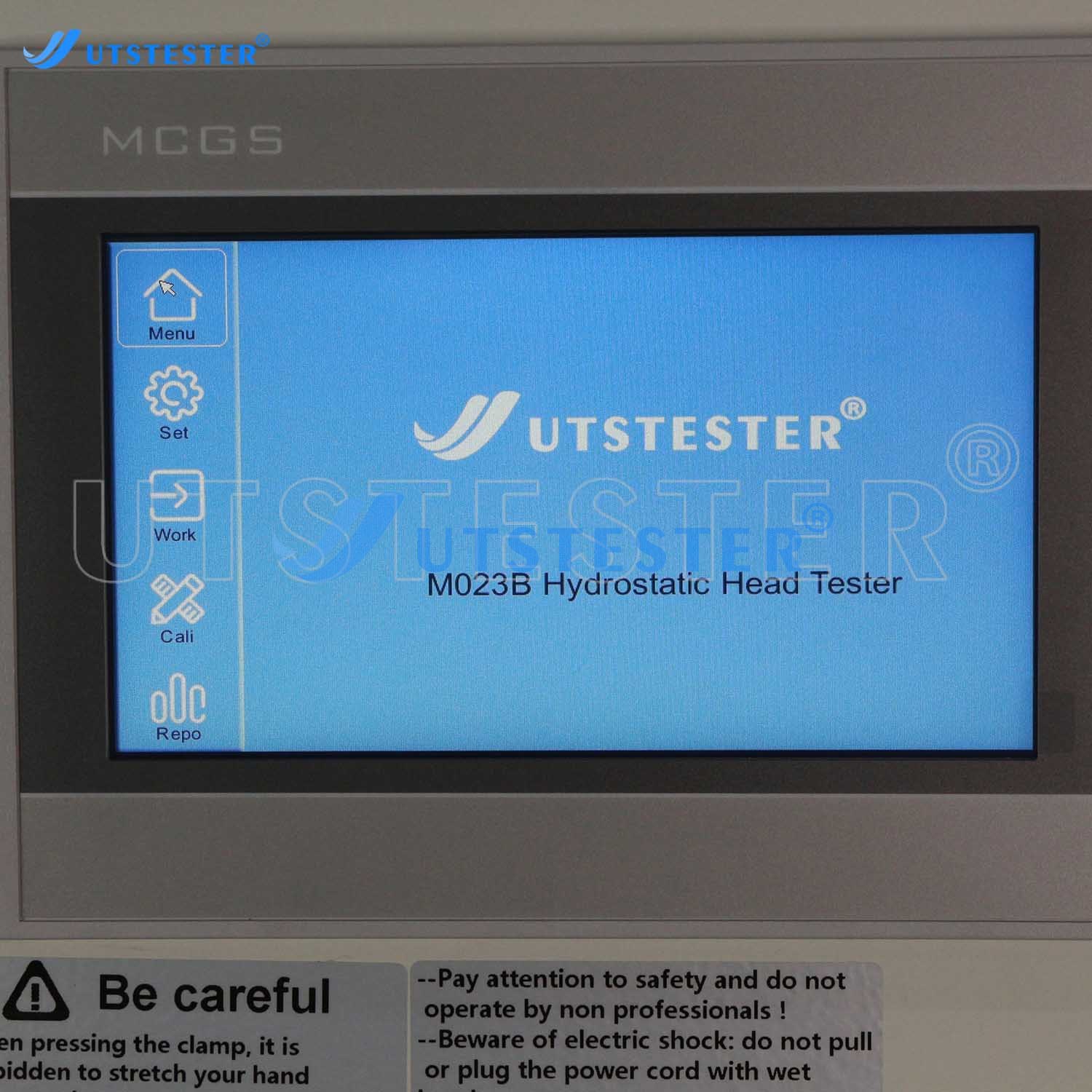

Display mode |
Color screen in Chinese and English |
|
Printer |
Thermal micro printer |
|
Sensor Protection |
Overload self protection |
|
Testing unit |
Pa, Kpa, cmH2O, mmHg |
|
Power supply |
AC220V 50Hz 500W |
|
Dimensions |
500×440×680mm |
|
Weight |
70g |
Product Details

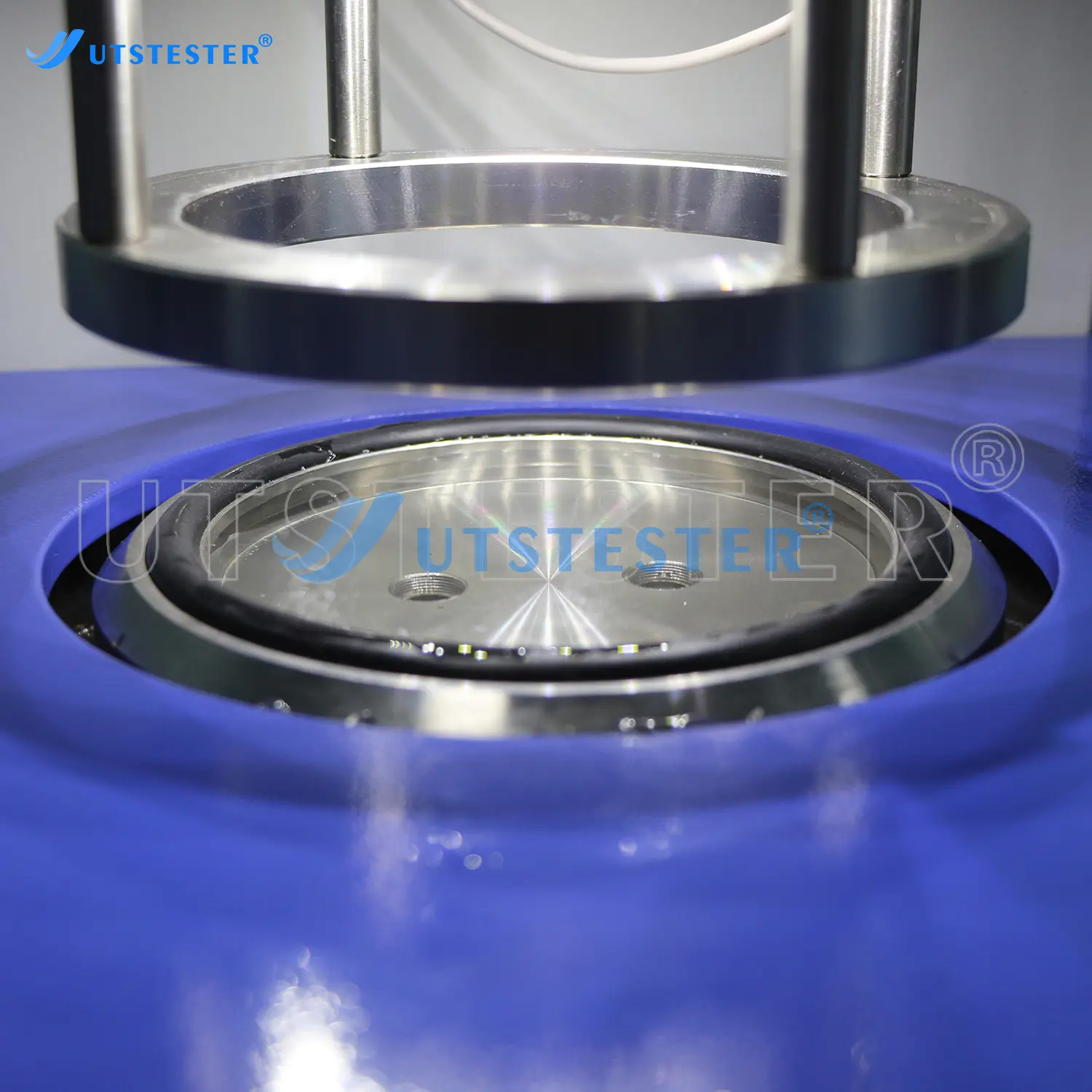

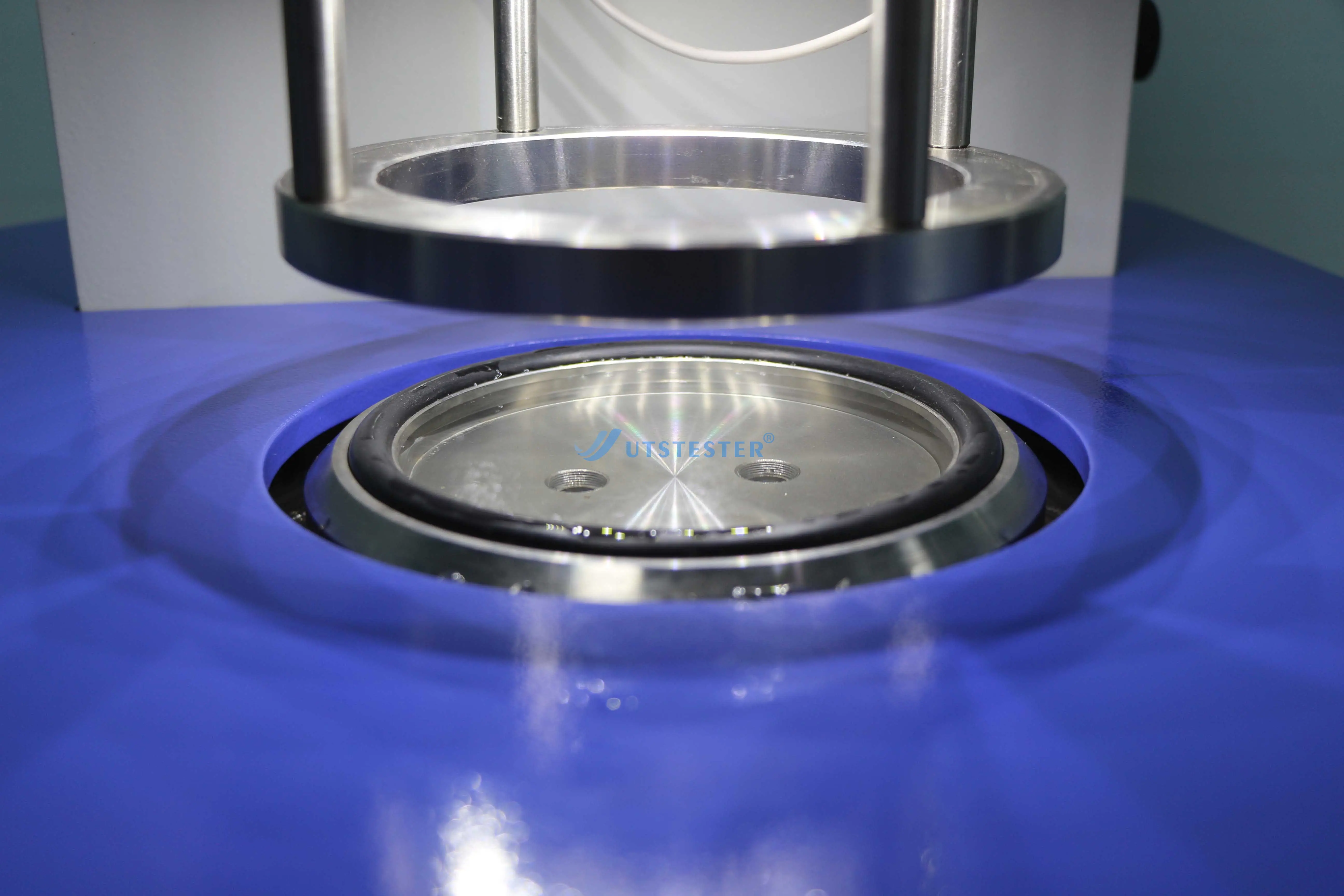

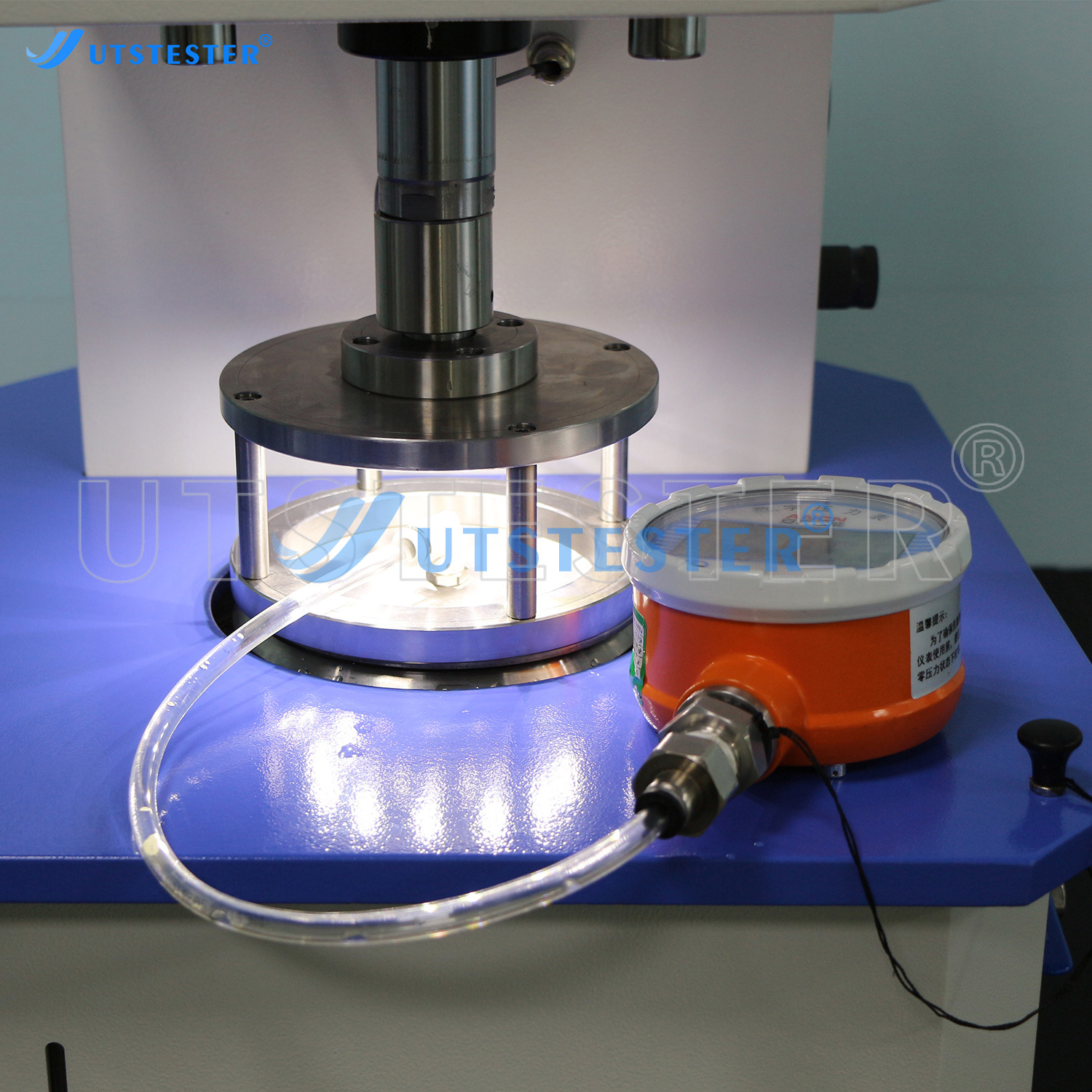

Lower pressure plate

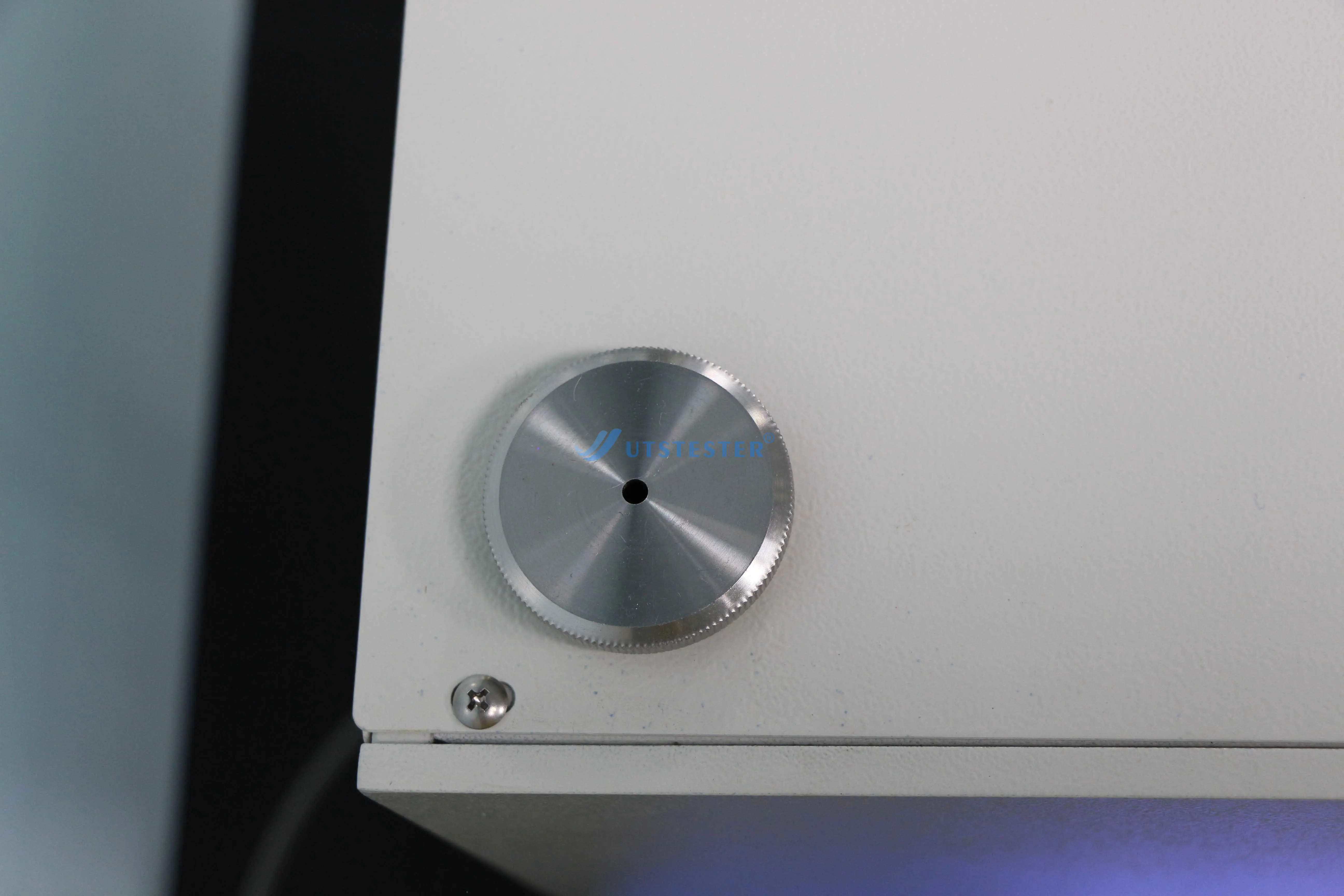

Water filling port

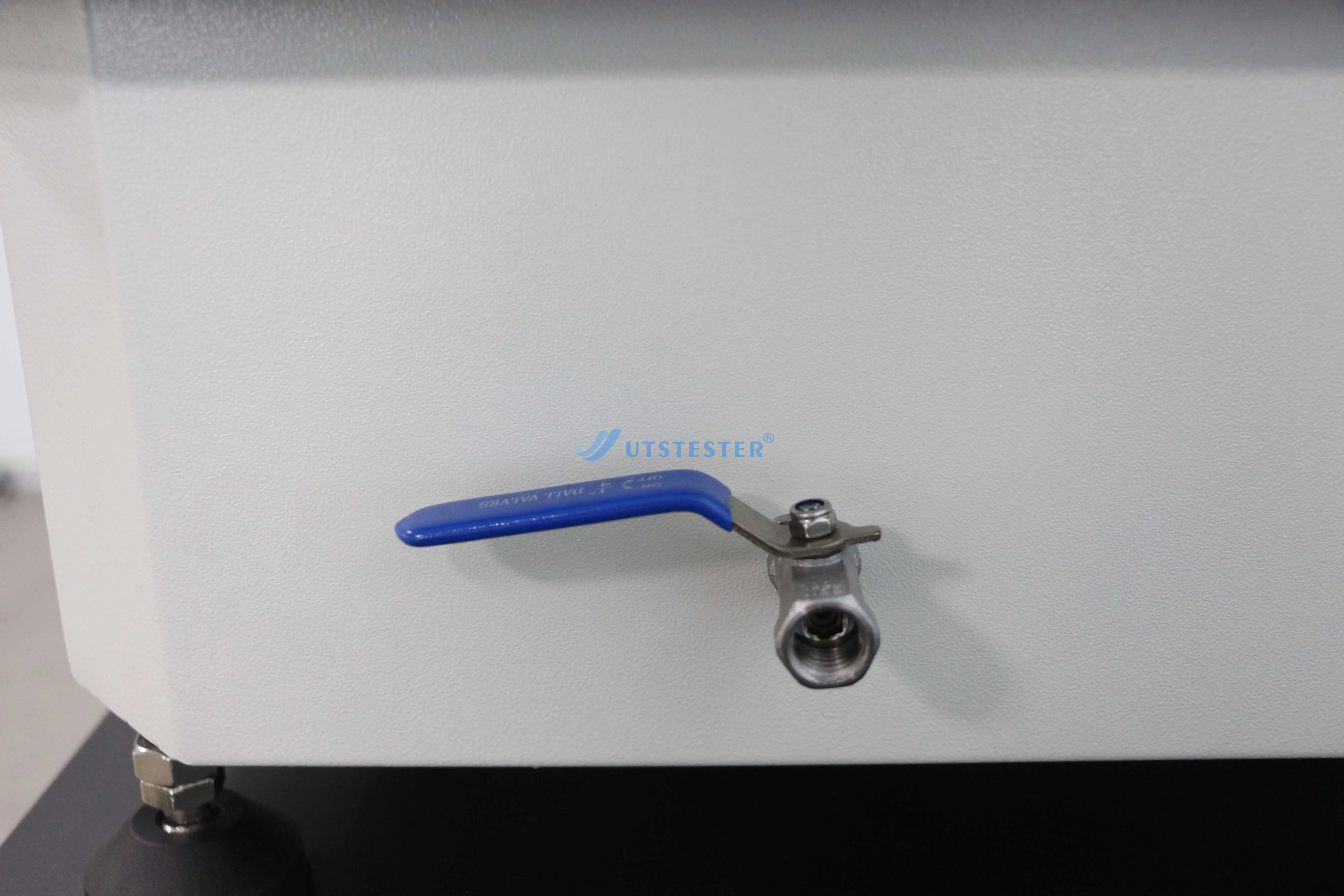

Water storage plate drainage valves

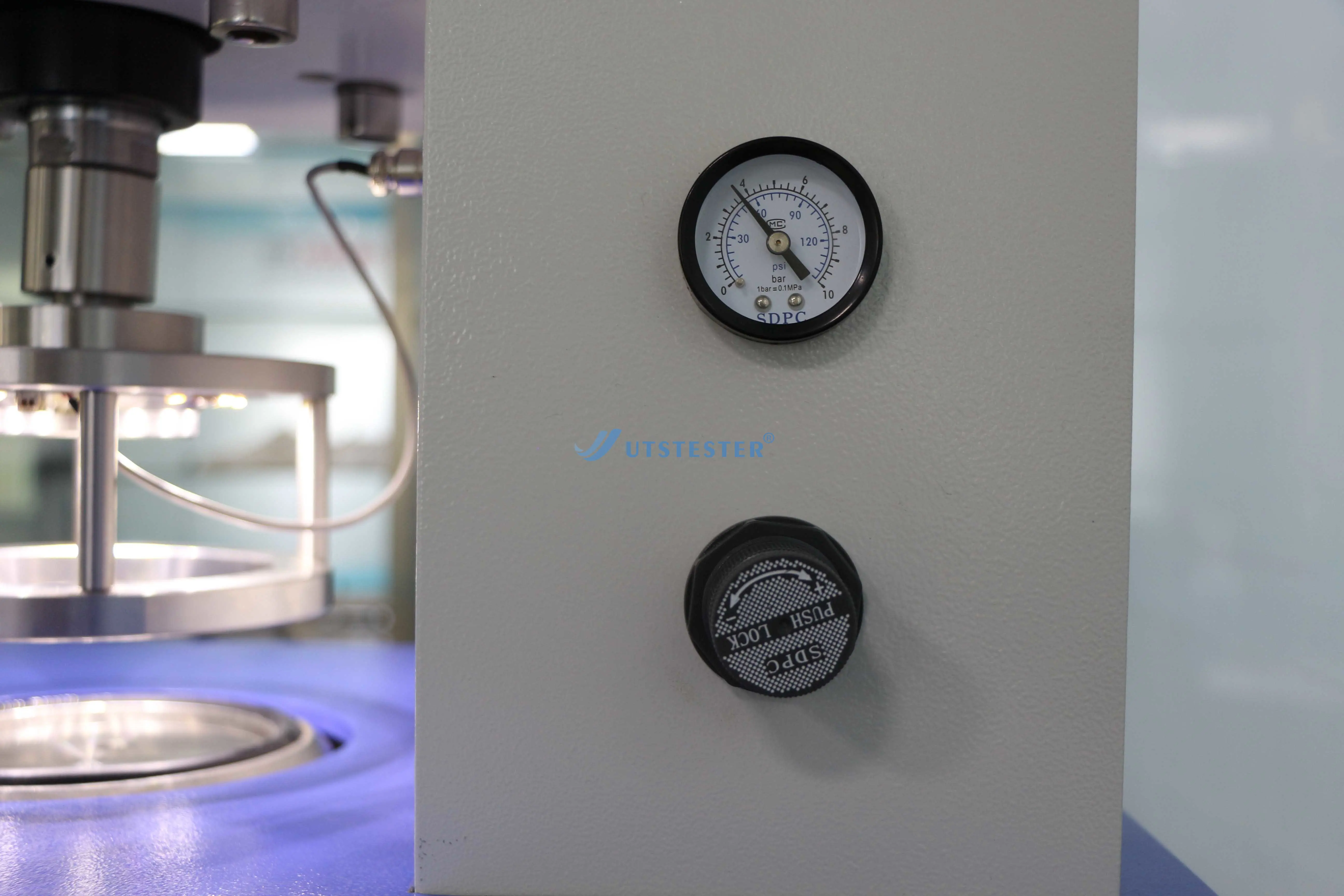

Pressure gauge

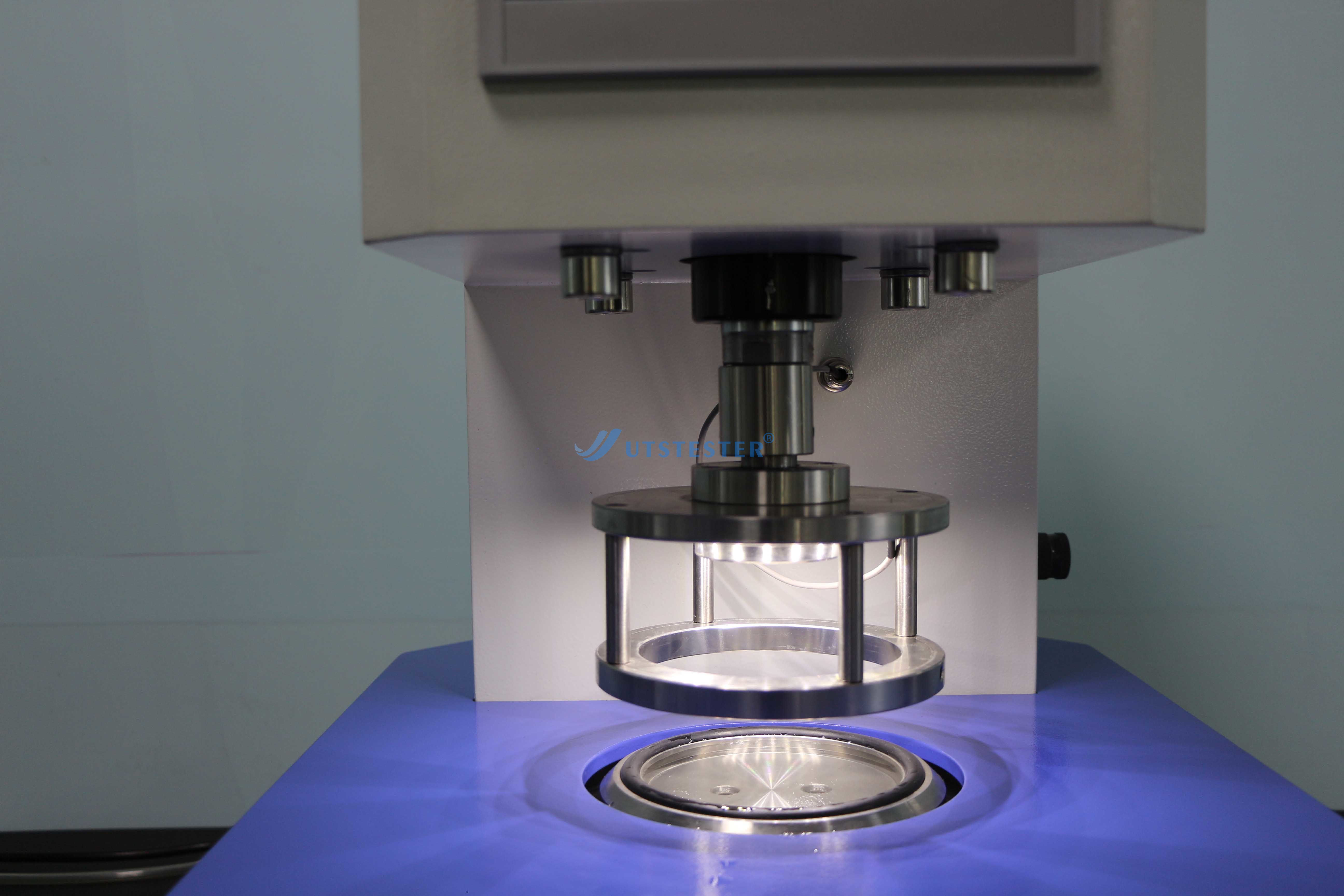

Upper pressure plate
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
