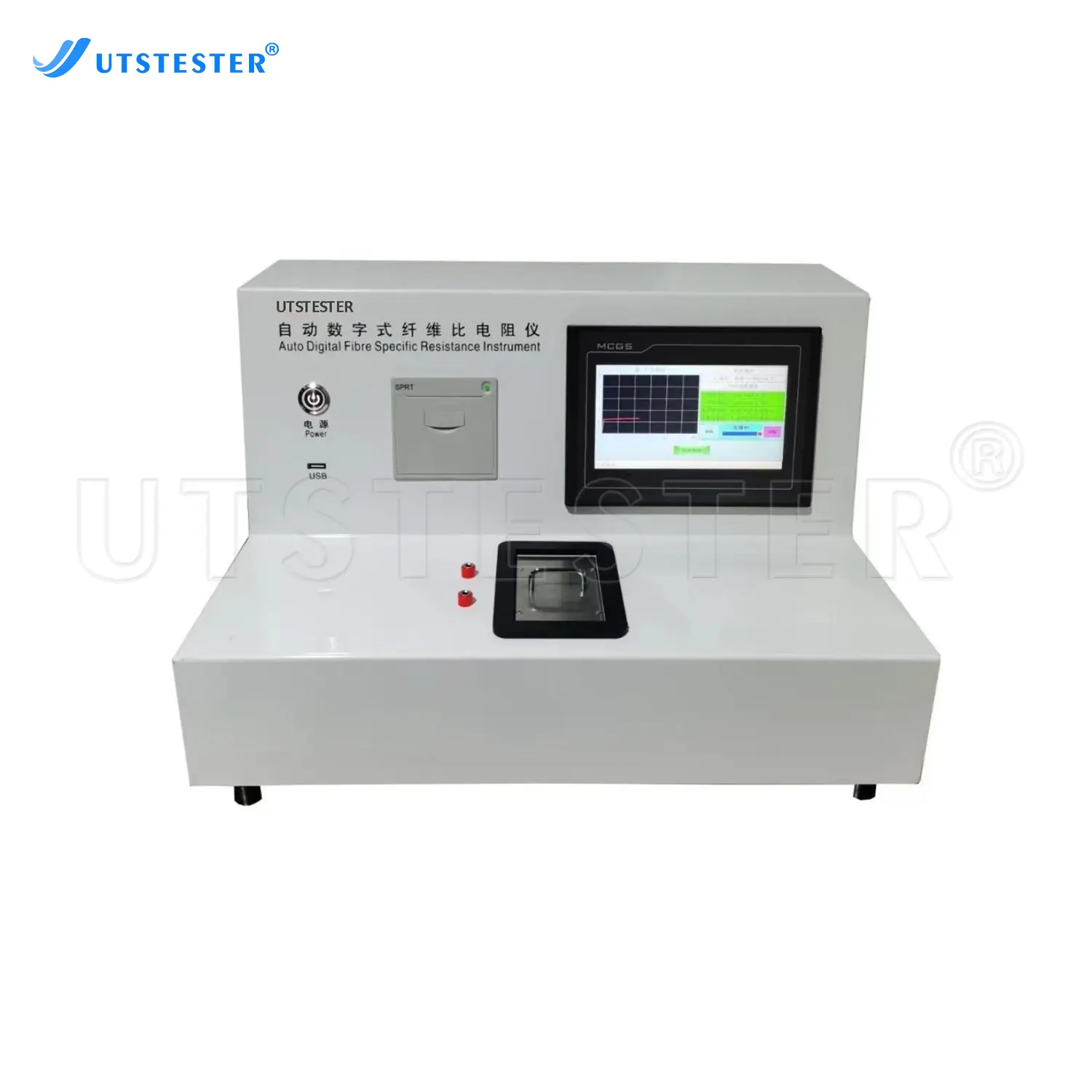

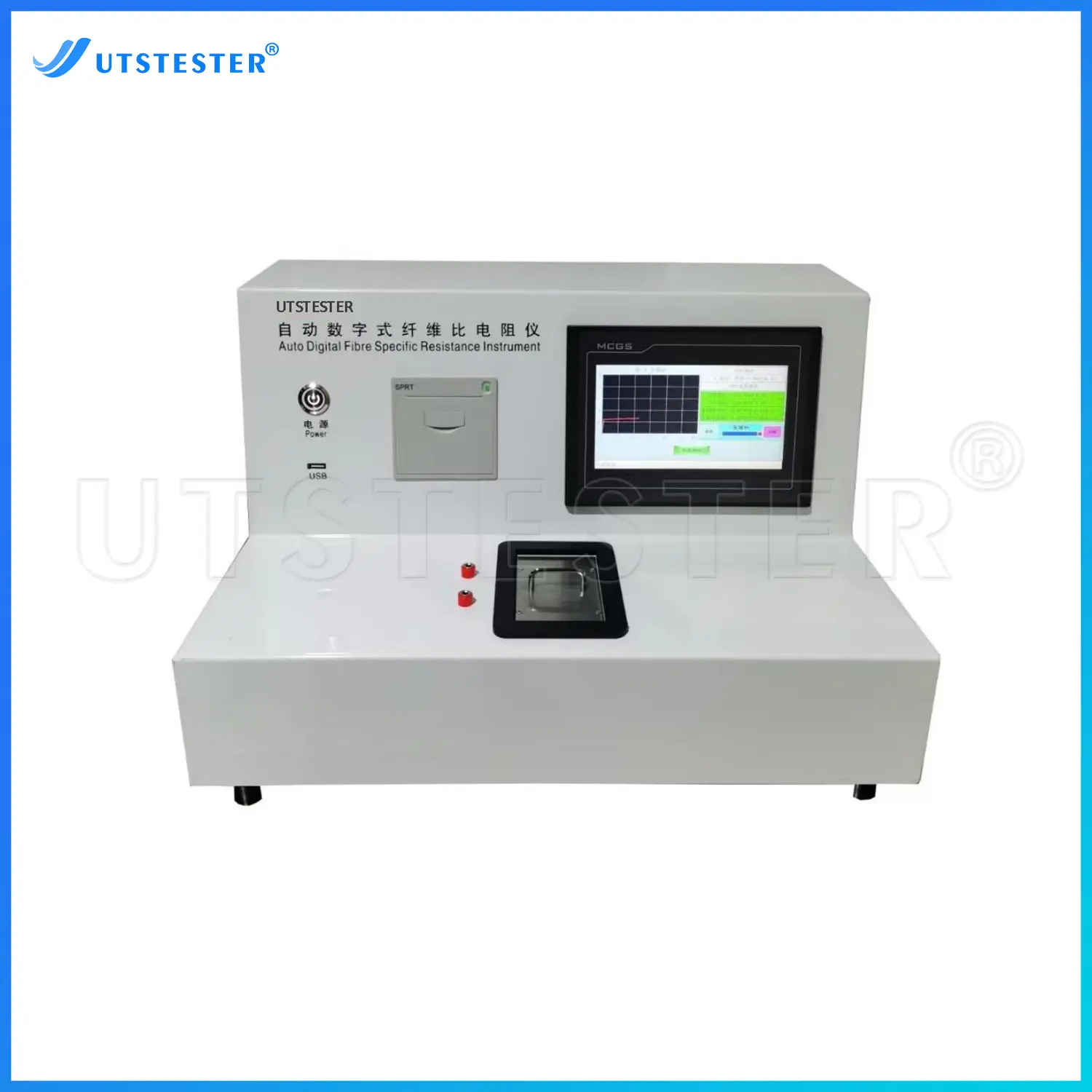

Lab Instruments Automatic Digital Fiber Resistivity Tester F028A
Overview
Used to determine the specific resistivity of various chemical and natural fibers. The compression and positioning of the fiber aggregate sample is precisely controlled by a push rod motor, reducing measurement errors associated with manually cranking the screw and visually positioning the pointer. The instrument automatically discharges, switches resistance values, and places the sample box into the test chamber, all automatically, ensuring simple and efficient operation.
Application
Cotton fiber
Fibers
Standards
The instrument complies with the requirements of the national standards GB/T 14342-2015 "Test method for specific electrical resistance of chemical staple fibers" and FZ/T50035-2016 "Test method for electrical resistance of synthetic filament fibers."
Key Parameters
|
Model |
F028A |
|
Measurement range |
10Ω ~1014Ω (resolution 0.01Ω). |
|
Measurement error |
≤5% (resistance ≤ 1012Ω), ≤10% (resistance > 1012Ω). |
|
Test voltage |
1V and 100V. |
|
High resistance measurement range |
106Ω ~ 1014Ω (measurement voltage 100V). |
|
Low resistance measurement range |
10Ω~ 107Ω (measurement voltage 1V). |
|
Voltage deviation |
≤1% (instrument automatically tracks). |
|
Power supply |
AC220V 300W. |
|
weight |
18kg |
Product Details

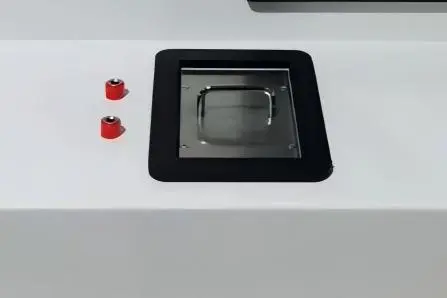

Sample test area

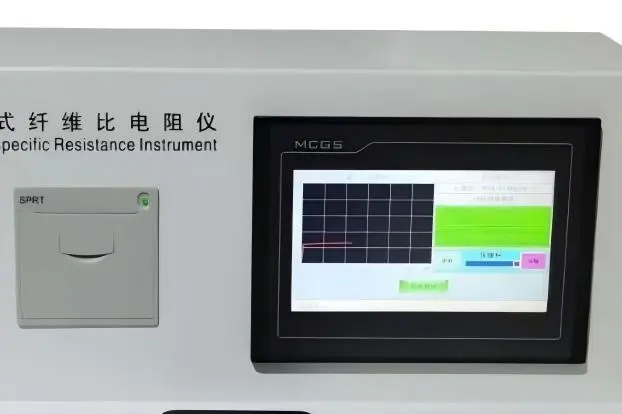

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
