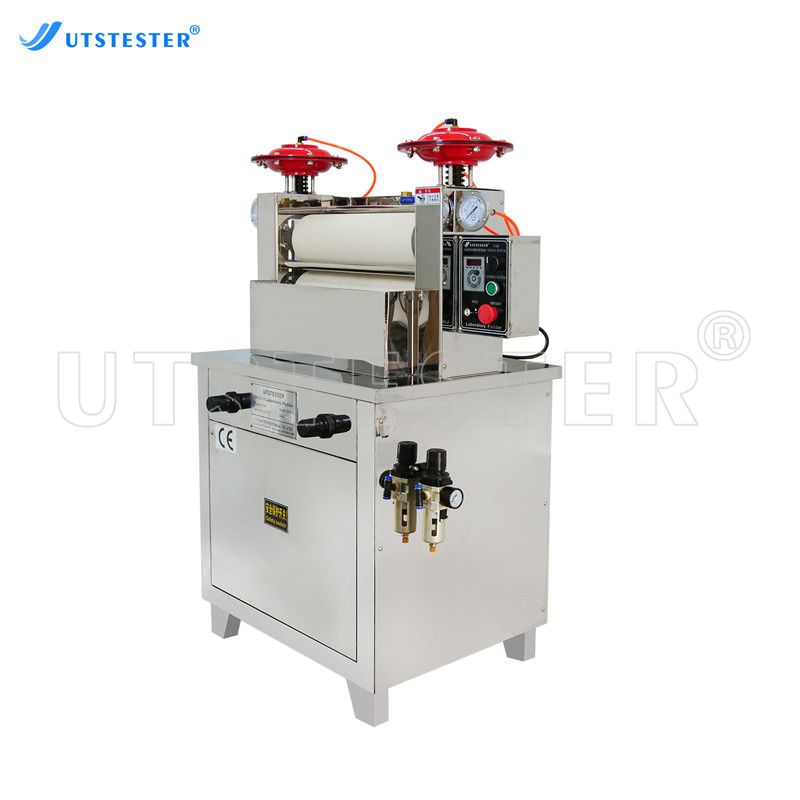

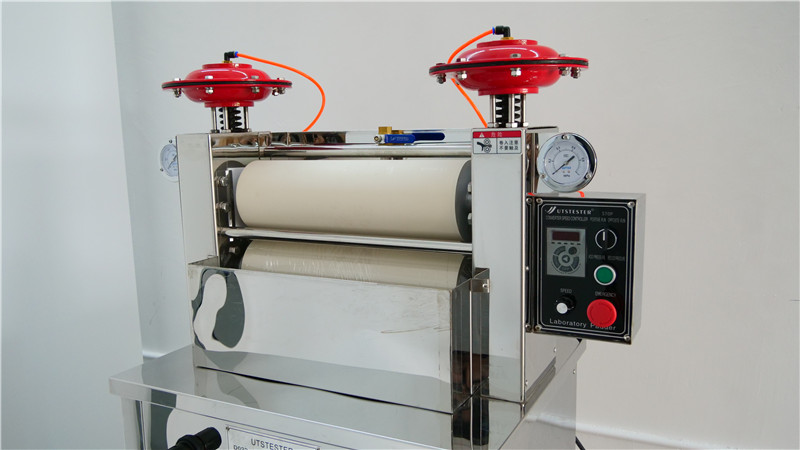

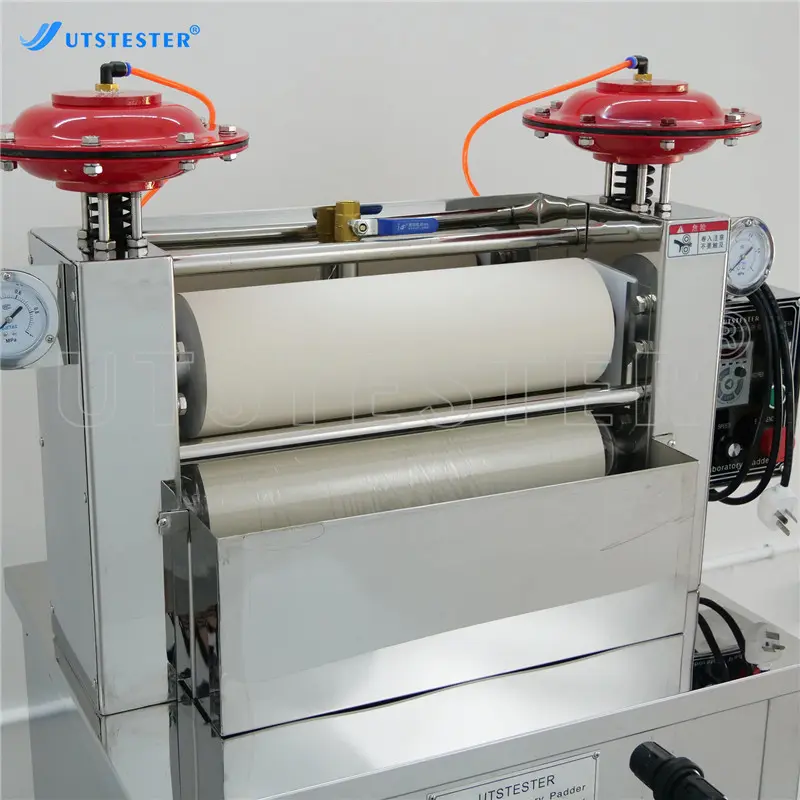

Laboratory Padder / Mangle Dyed Fabric Pressure Shrinkage Tester

1. The machine is all made of high-quality SUS304L mirror plate, which is firm and durable, clean and beautiful, and has a compact and reasonable structure.
2. The rubber roller is made of acid and alkali resistant imported NBR(nitrile rubber buna), with a length of 420mm, a diameter of 130mm and a hardness of 70 degrees Shore.
3. The speed is controlled with stepless frequency conversion, 0-25 RPM, 0-10 m/min.
4. The pressure of the roll is 0.05-0.6mpa, and the cylinder on both sides is a new large-section thin-film cylinder.

product details

Production Processes

Operation

Packing System

Overview

Laboratory Padder /Mangle is designed to test the effect of the small batch various types of dyeing fabrics, and assess the pressure absorption rate of fabrics, or dyeing fabrics and post-treatment effect and quality testing.

Application

FABRICS

GARMENT

HESSIAN

SILK

Key Parameters

Model	D022-1		D022-2
Rollers position	Vertical		Horizontal
Rollers width	420mm
Rollers diameter	130mm
Rubbers hardness	70degree shore
Cloth speed	0-10m/min
Standard pressure required	0.6MPa
Retained dyestuff ratio	40-80%
Power supply	Frequency converter	0-18rpm, speed adjustable. Power supply 220V, 50HZ
	Fixed speed	0-10rpm, power supply 380V, 50Hz
Pressure suction rate	When the hardness of the roll is 70 degrees Shore, the pressure suction rate can be controlled between 25% and 110%, which is applicable to a wide variety of cloth.
Control	Pneumatic
Safety device	There is a hidden knee pressure micro switch at the bottom of the front of the main engine. There is an emergency stop switch on the control panel.
Dimensions ( L x W x H )	890 x 630 x 1300mm		850 x 680 x 1100mm
Weight	140kg

Product Details

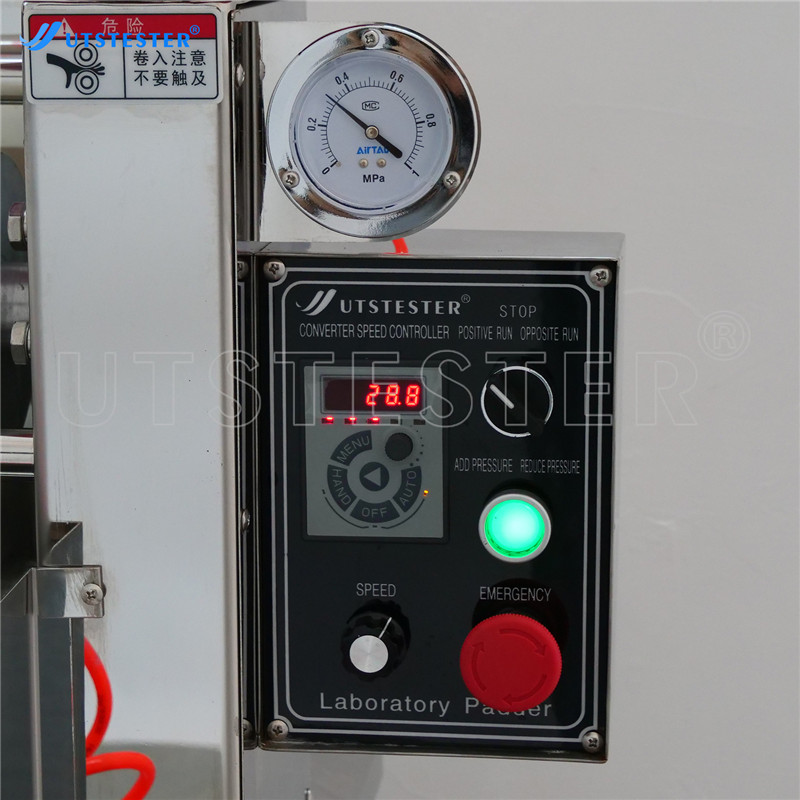

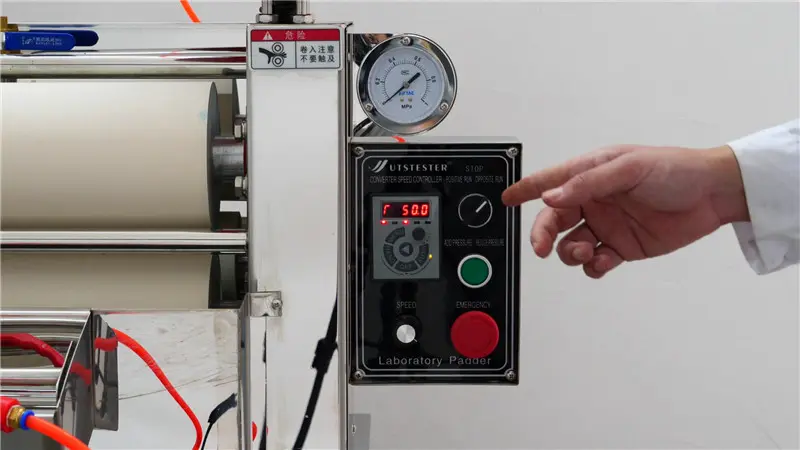

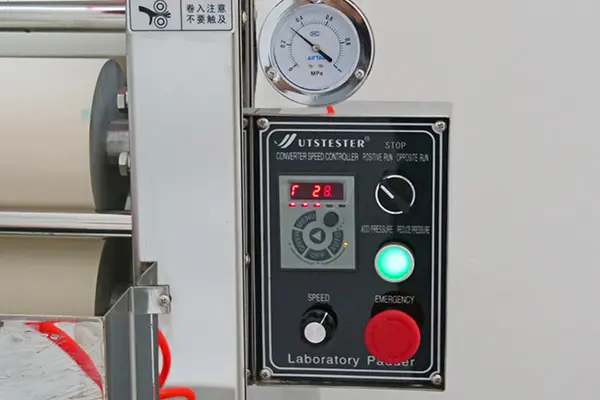

Control Panel

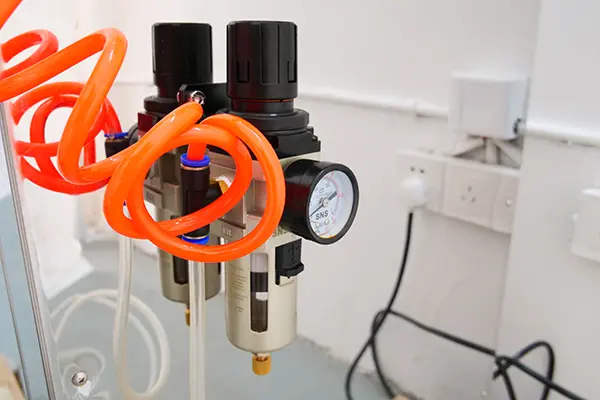

Filter

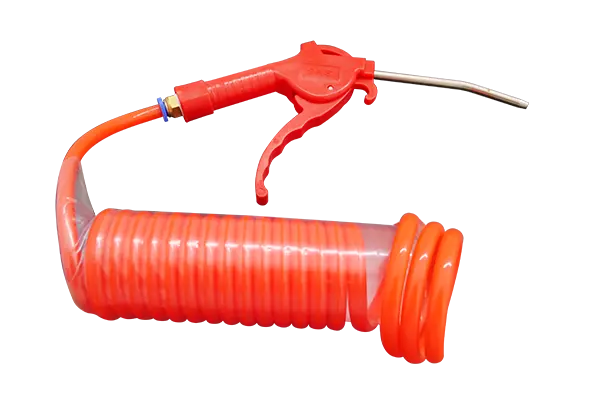

Handwheel air gun

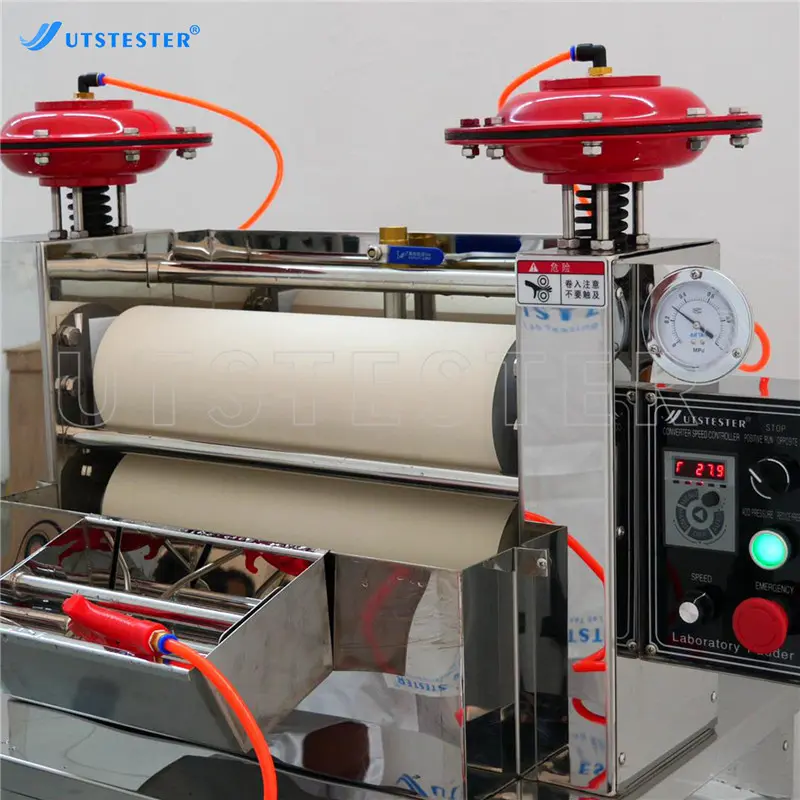

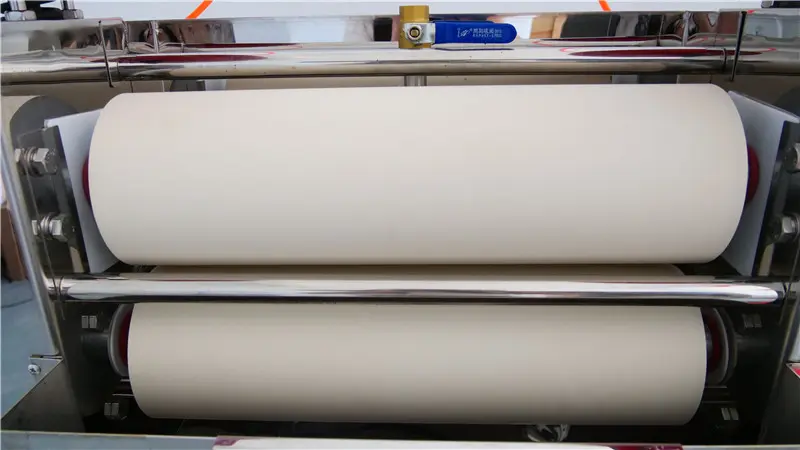

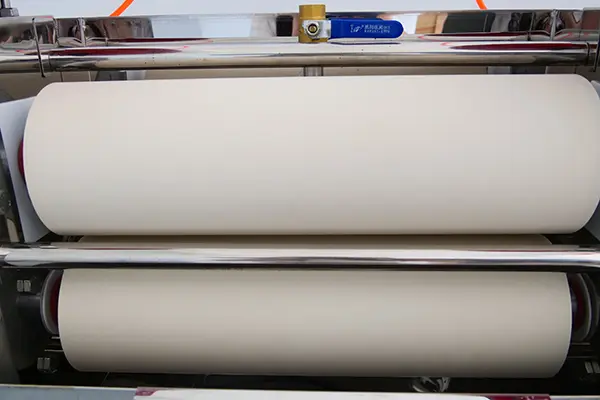

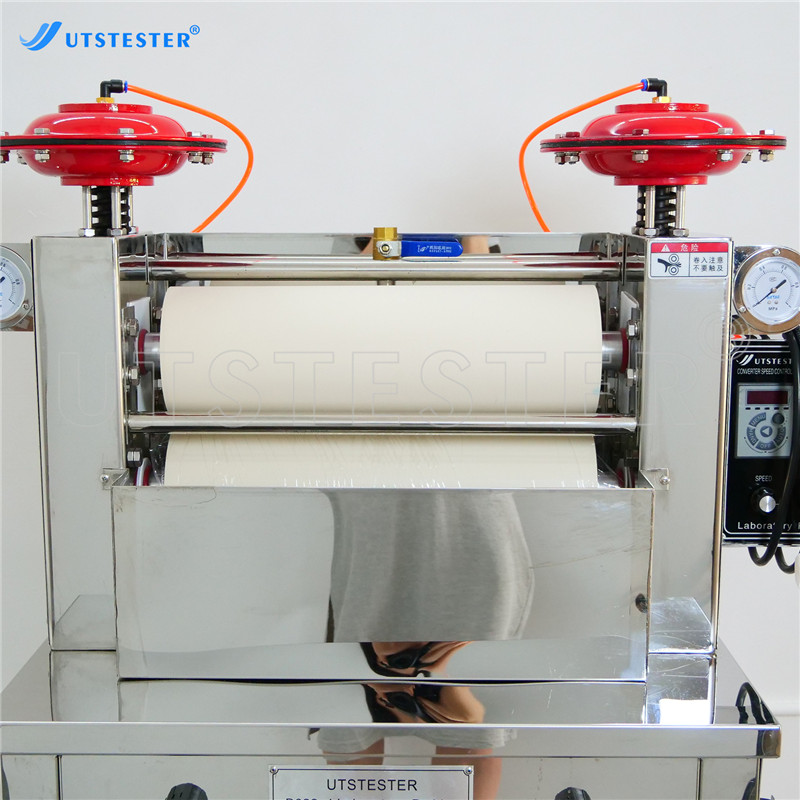

Horiozntal Rubber Roller

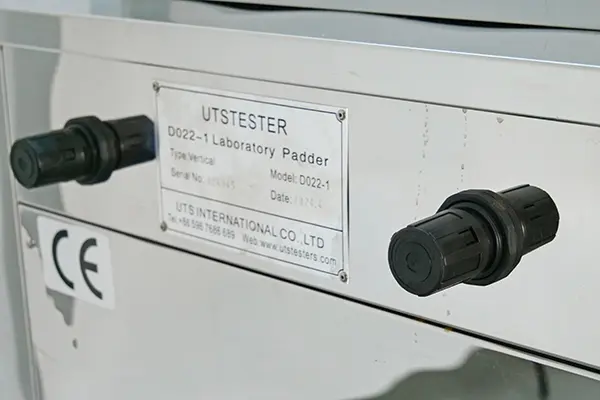

Pressure regulating switch

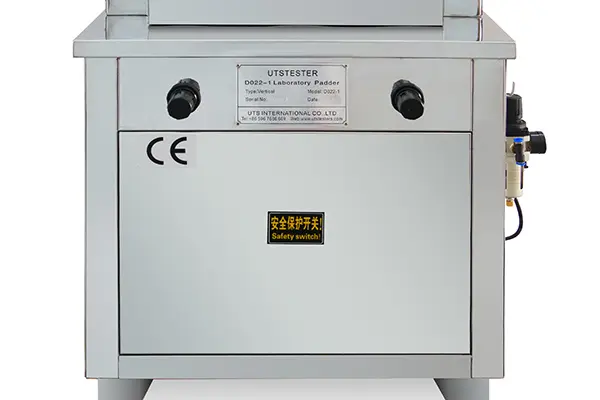

Safety protection switch

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

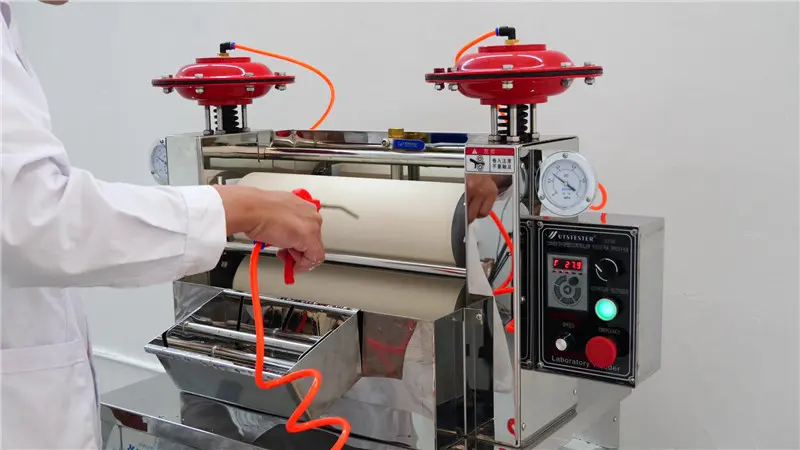

Adjust the pressure

This machine pressing air origin need not smaller than 6kg/cm2 , before start the machine, adjust the same pressure for the 2 cylinders,otherwise, drawing tilted in fabric.

Roller running

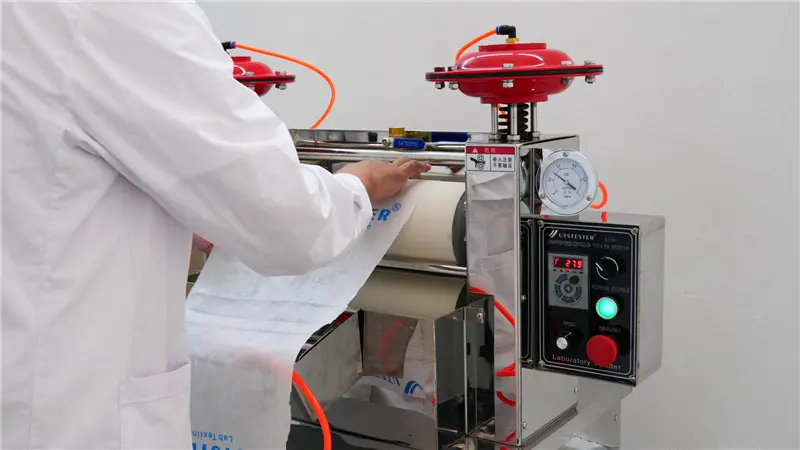

The down-roller is initiative, the up-roller is driven, after connecting the air and power, the down-roller rolling according the setting direction, the up-roller is moved down slowly by 2 cylinders, before pressing together, it is rolling.

Into the fabric

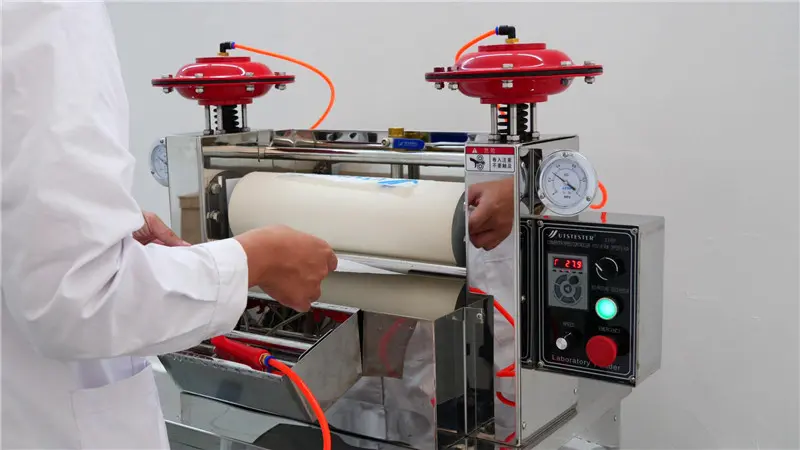

Put the fabric into the surface of the roller.

Start testing

Use the button by hand, let the roller running.

Sample removal

Use the finger take the sample out once it go out.

Clean the drum

Each time clean the roller when finish.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
