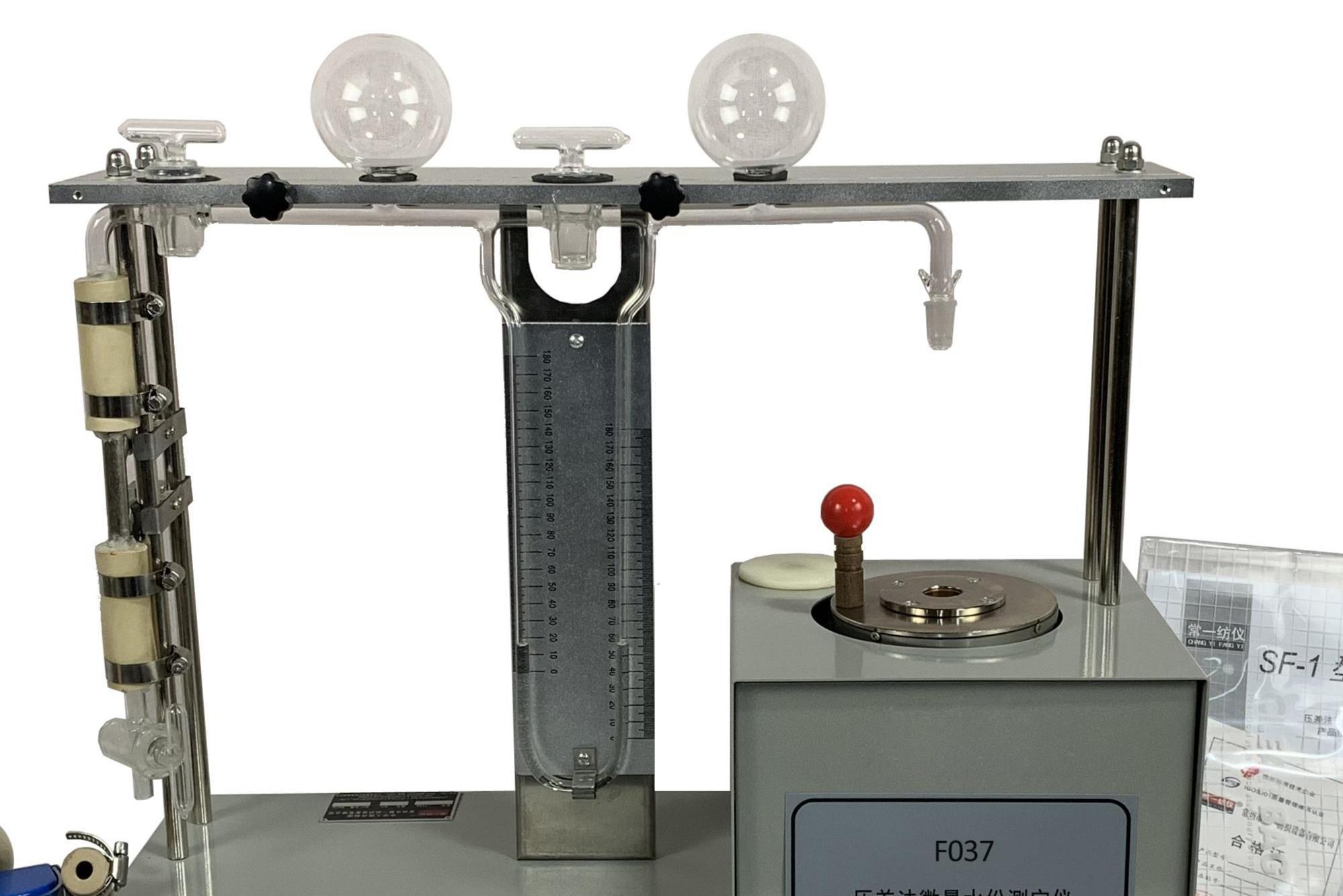

Micromoisture Measuring Apparatus(Differential Pressure Method) F037
Overview

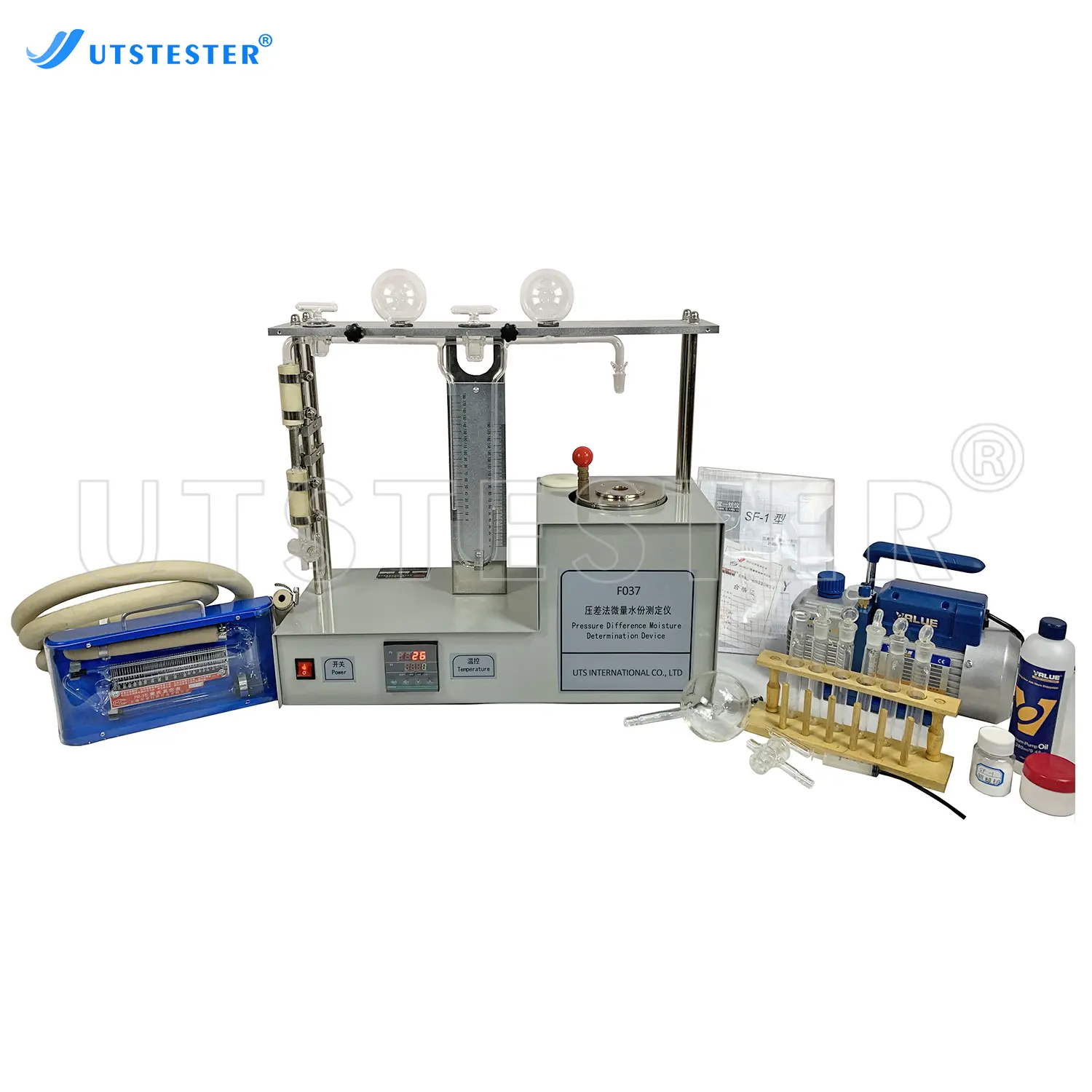

This instrument is mainly composed of differential pressure glass instrument, heater, automatic centering lifting device, temperature control instrument, vacuum gauge, vacuum pump, etc., and has been equipped with sodium molybdate reagent, vacuum grease, silicone oil, vacuum hose, mercury, needle tube, vacuum pump interface and other scattered, spare parts.
Application
Cotton fiber
Fibers
Standards
ISO6188－1980
Key Parameters
|
Model |
F037 |
|
Temperature control range |
Room temperature ~ 250℃ |
|
Temperature control fluctuation |
±2.0℃ |
|
True space |
≤100pa |
|
Determination range:
|
5-3000ppm (corresponding sample size of 3 ~ 0.5g, sample size up to about 10g) |
|
Power source: |
1PH AC 220V 50HZ 2A |
Product Details

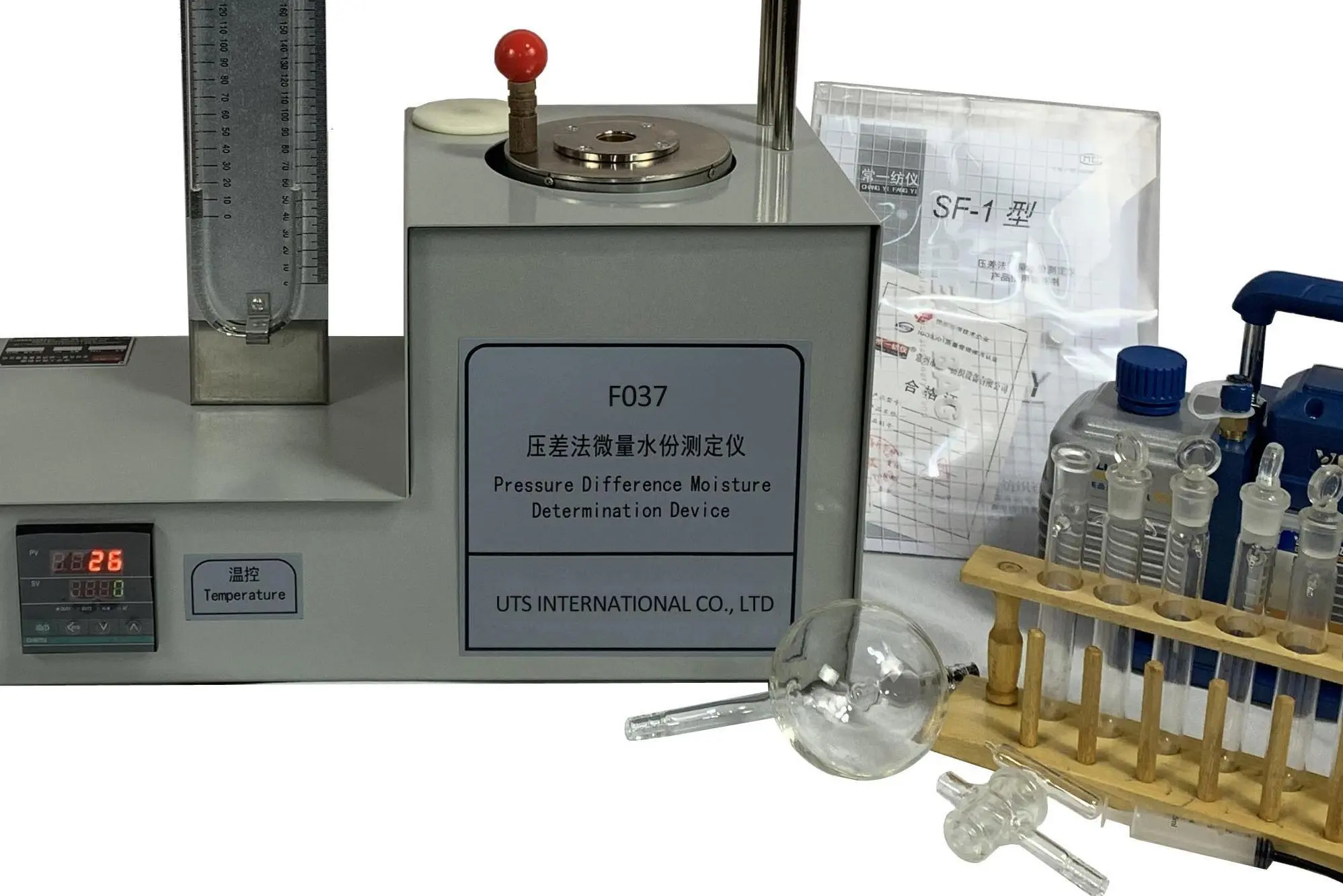

Sample test area
Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
