Monitor Antistatic Tester Multifunction Testing Electrostatic Resistance Equipment M047N
Overview

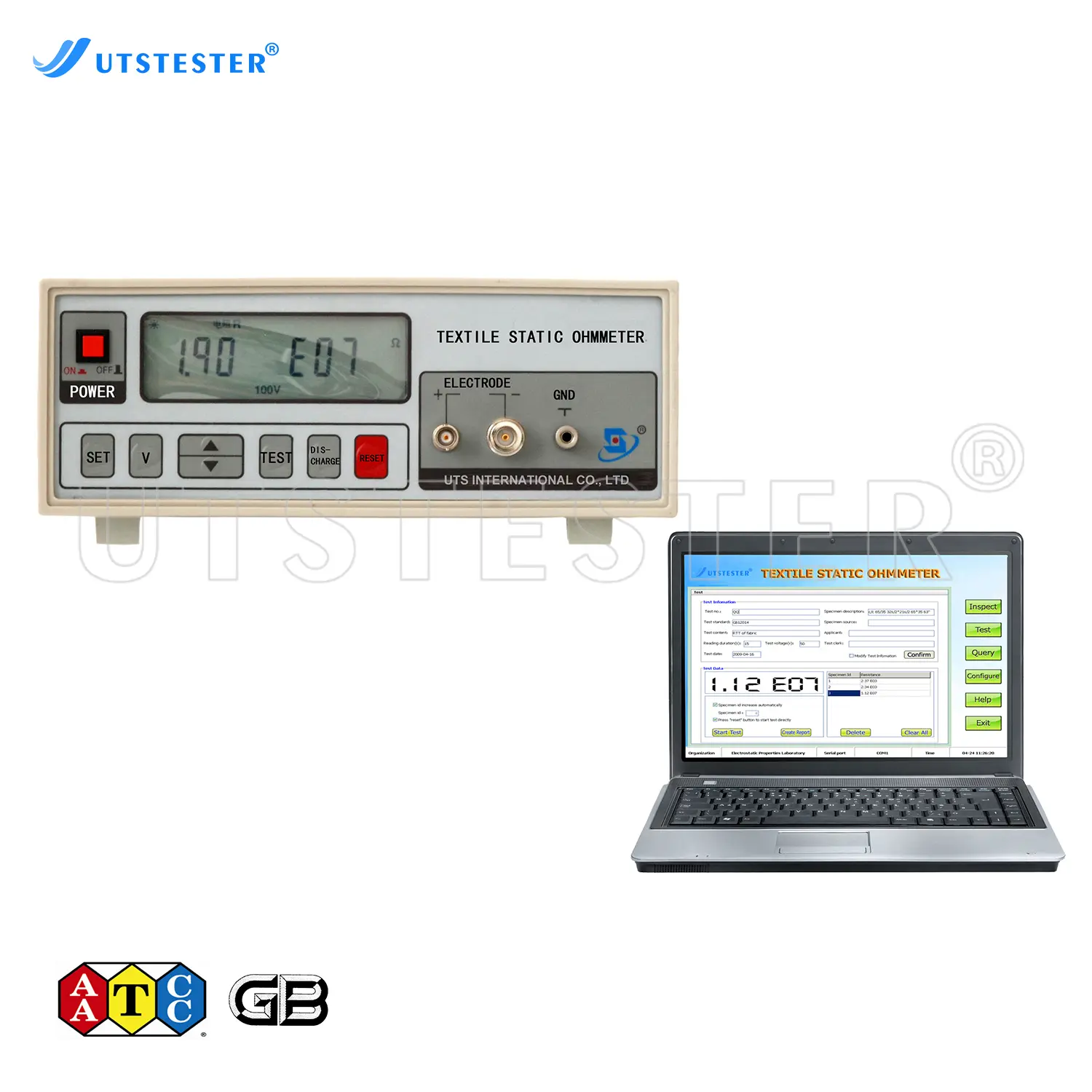

The ohmmeter/Antistatic Test Equipment is a multifunction testing electrostatic resistance equipment, which realizes the test of electrostatic properties from textile fiber to fabric.

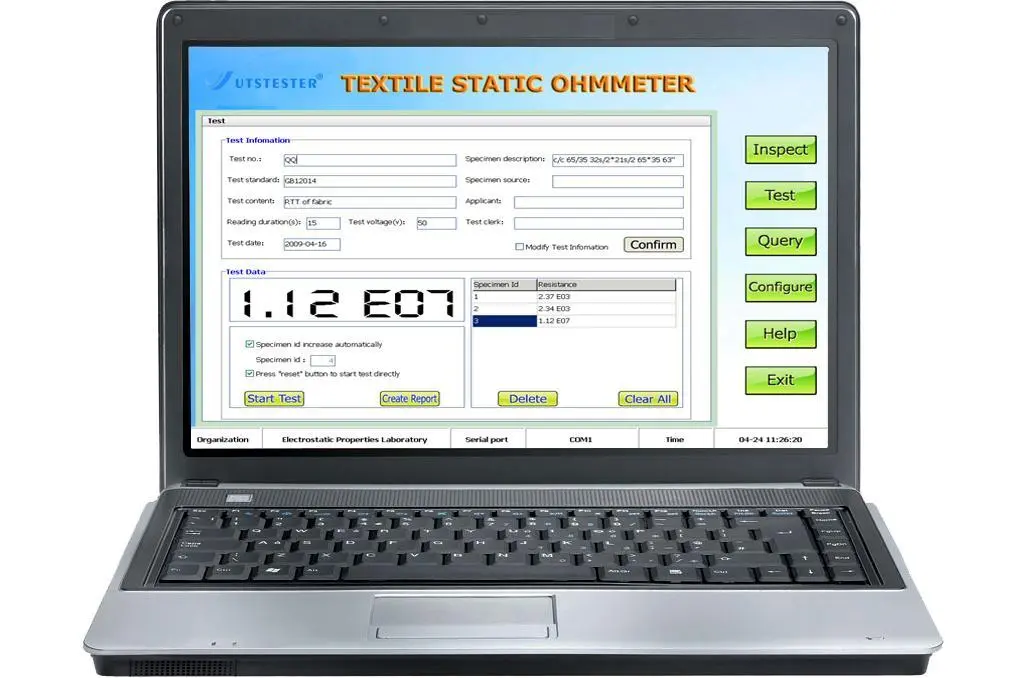

The matched computer software system can directly operate the ohmmeter, and automatically complete the sample test, according to selected testing standards. Moreover, it can keep records and process the data of test results, print the test report. It holds the excellent performances of quick testing and accuracy.
Application
Fabrics
Protective clothing
Standards
GB12014, ESD STM2.1.GB/T22042, EN 1149-1, AATCC 76.GB/T22043, EN 1149-2.GB/T 14342.
Key Parameters
RANGING: 1×103Ω～1×1014Ω
ACCURACY: ≤±5％
POWER SUPPLY:AC220V±10%
POWER:≤15W
STABILITY: connect ohmmeter with 1 × 108Ω standard resistor, observe 1 hour, changing of the reading should be less than ± 2%. The apparatus can work eight hours continuously.
PHYSICAL DIMENSIONS: 110mm high ×295mm wide ×270mm deep
Product Details
Sample Testing Area

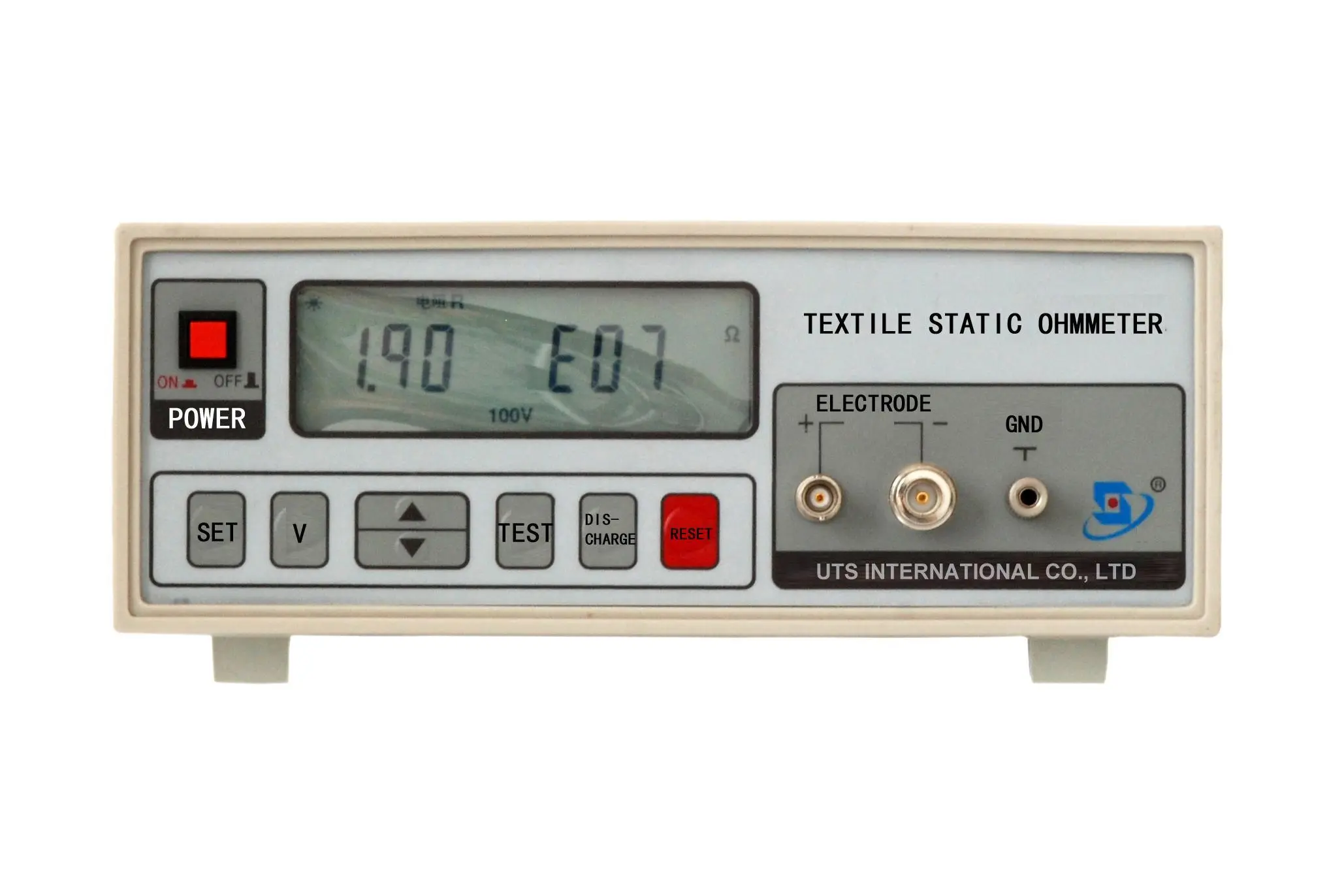

Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
