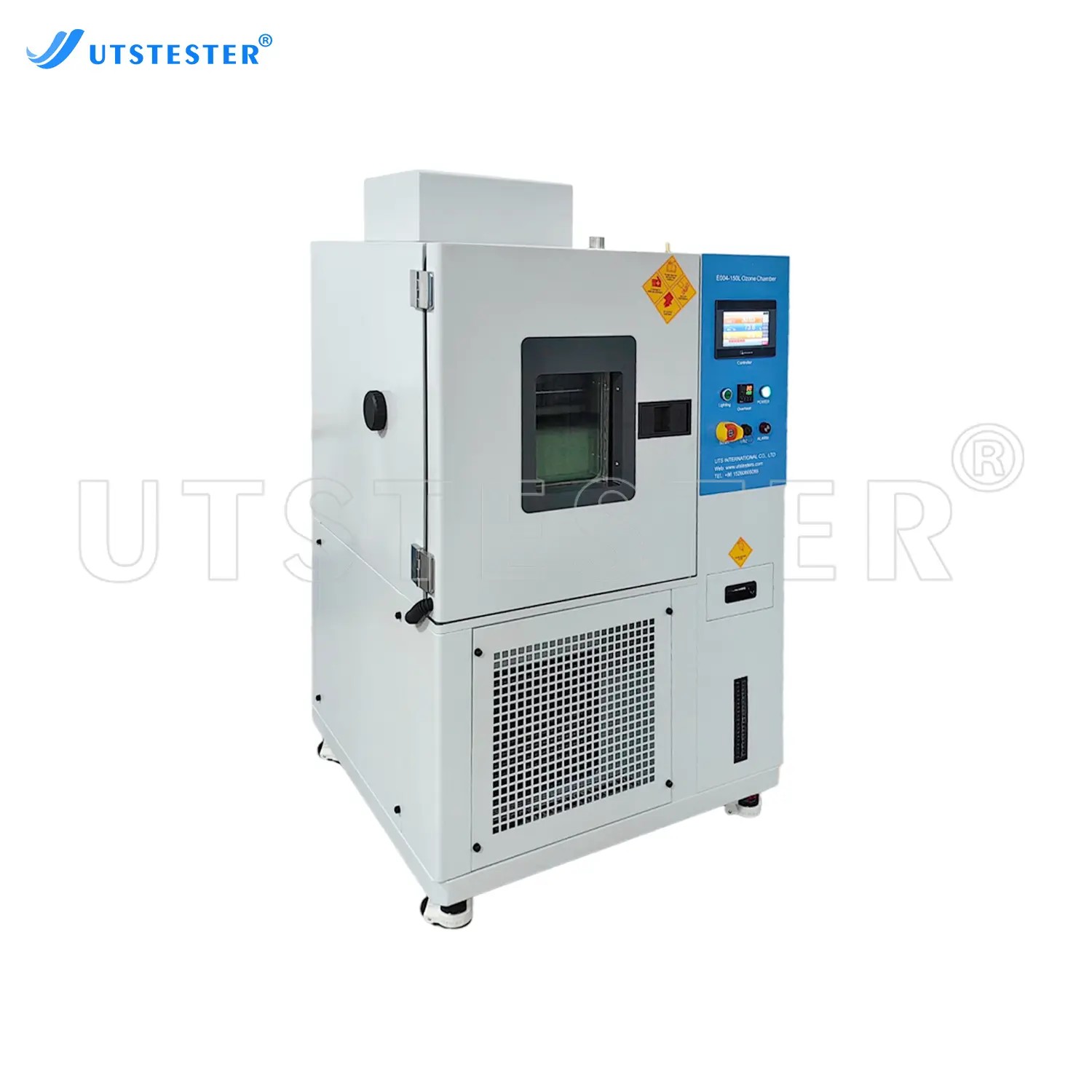

Programmable Lab Climate Test Chamber Xenon Ozone Chamber E004

1.The liner adopts imported high-quality mirror stainless steel plate
2.The insulation material is high density glass fiber cotton
3.Layer high and low temperature resistant silicone seal to ensure that the test area is closed.
4.Built-in 360 ° rotating sample rack 3 sets of static stretch +3 sets of dynamic stretch
5.Attached sample aluminum alloy sample fixture 6 pairs
6.Exhaust air system, after the test is completed, the high concentration of ozone in the box will be discharged outside to prevent human body from inhaling high concentration of ozone and causing poisoning.

product details

Production Processes

Packing System

Overview

This series of test chamber produces high concentration of ozone by ozone generator, which can be used for aging test of non-metallic materials and organic materials (coating, rubber, plastic, paint, pigment, etc.) under ozone condition.

Application

coating

plastic

rubber

paint

pigment

Standards

AATCC 109 & ISO 105 G03

Key Parameters

Material of outer box	SPCC plate surface is sprayed with static electricity
Inner box material	SUS304# stainless steel
Temperature range	40℃~80℃
Ozone concentration	50~1000pphm
Power	1.5 KW
Temperature fluctuation	±0.5℃
Test equipment	New rubber tensile specimen rack
Rotating speed of sample rack	360 ° rotating sample rack
Temperature control	Imported touch screen microcomputer controller
Ozone concentration analysis	Input concentration analysis regulator 4~20mA output, rs-232 communication port(the ozone sensor is mounted externally, and the air in the box is taken out of the box for testing, to prevent the sensor from being aged by high concentration of ozone gas in the box)
Ozone generator	Silent discharge tube type
Ozone concentration deviation	National standard 10%
Safety protection	Leakage, short circuit, overtemperature, motor overheating, overcurrent protection

Product Details

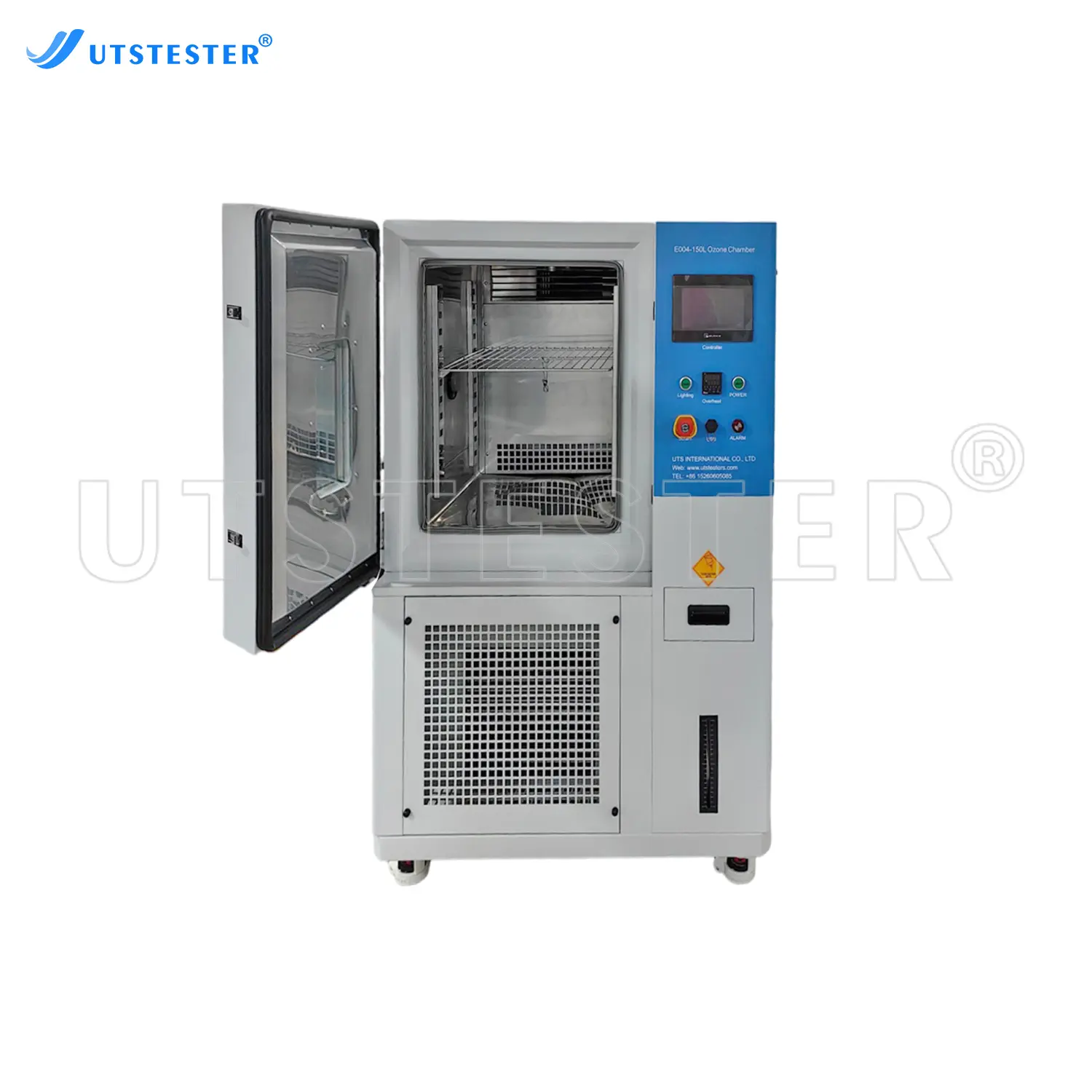

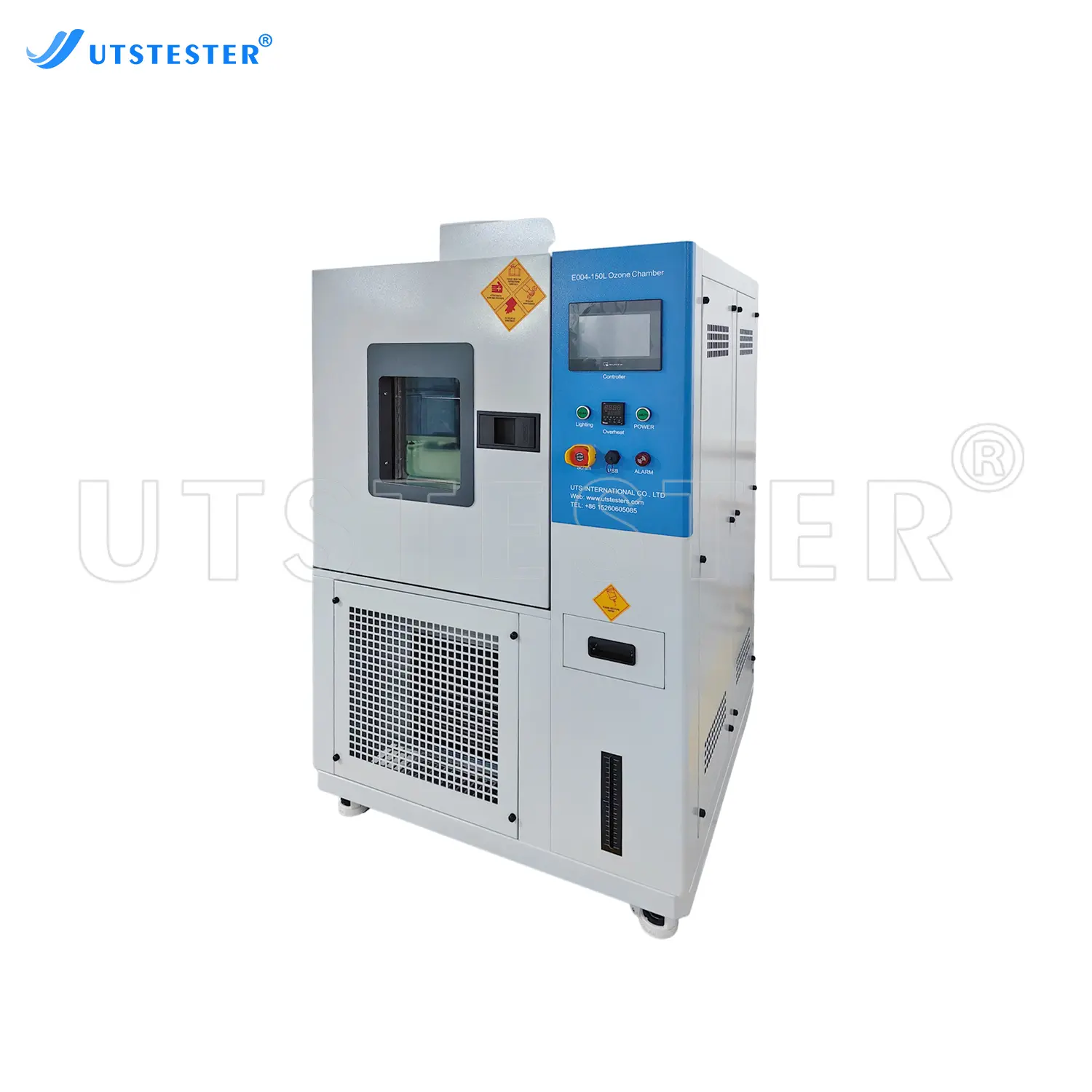

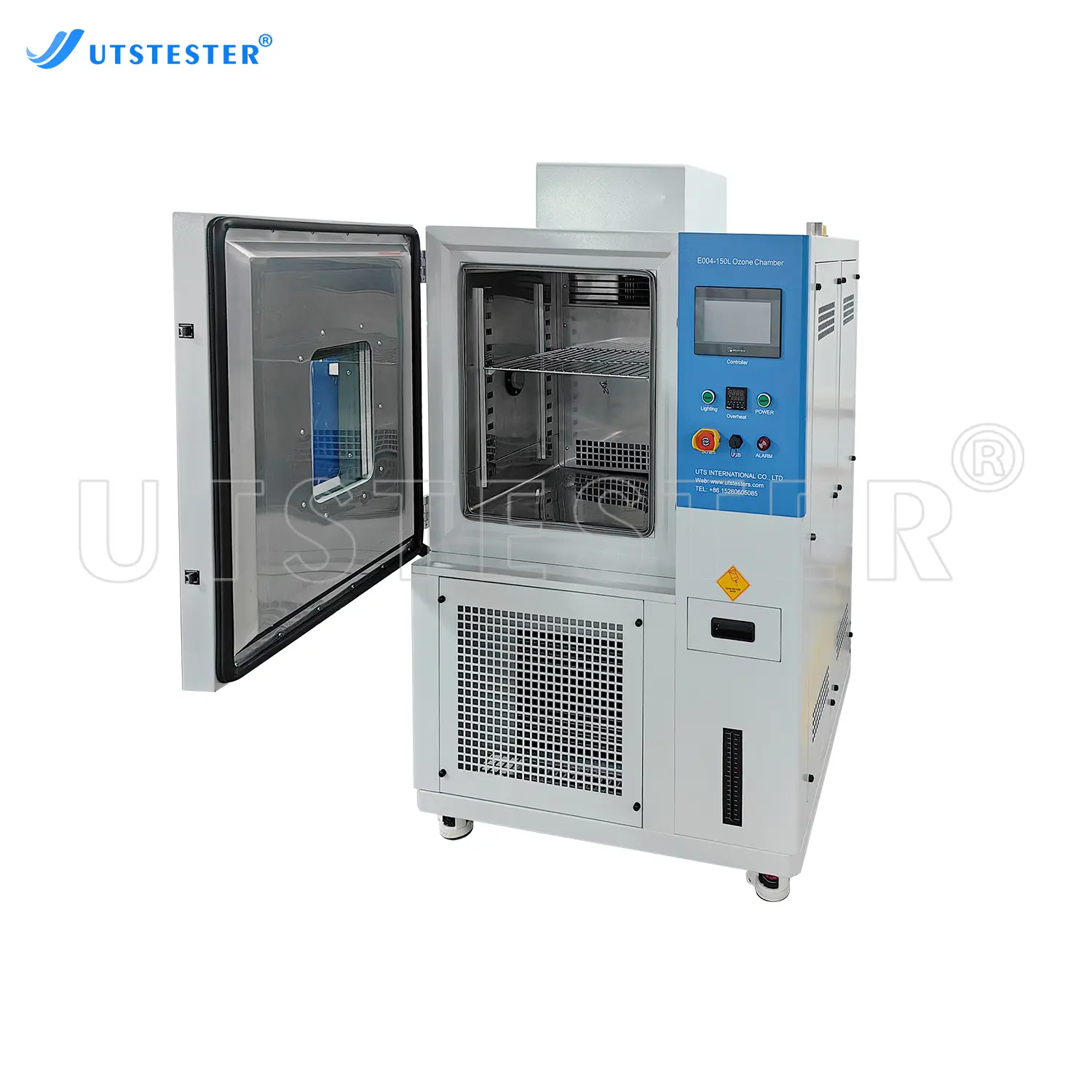

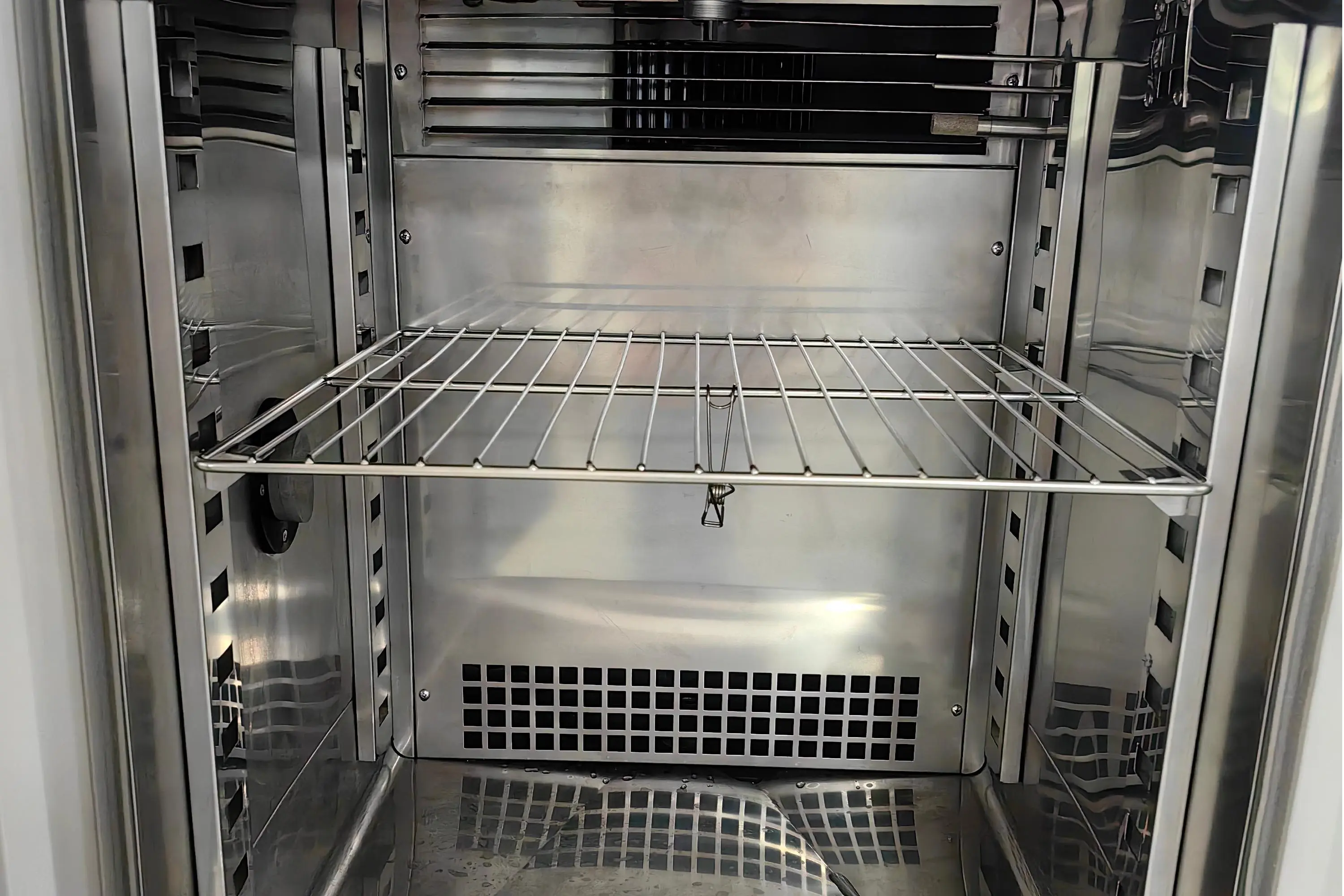

Test Chamber

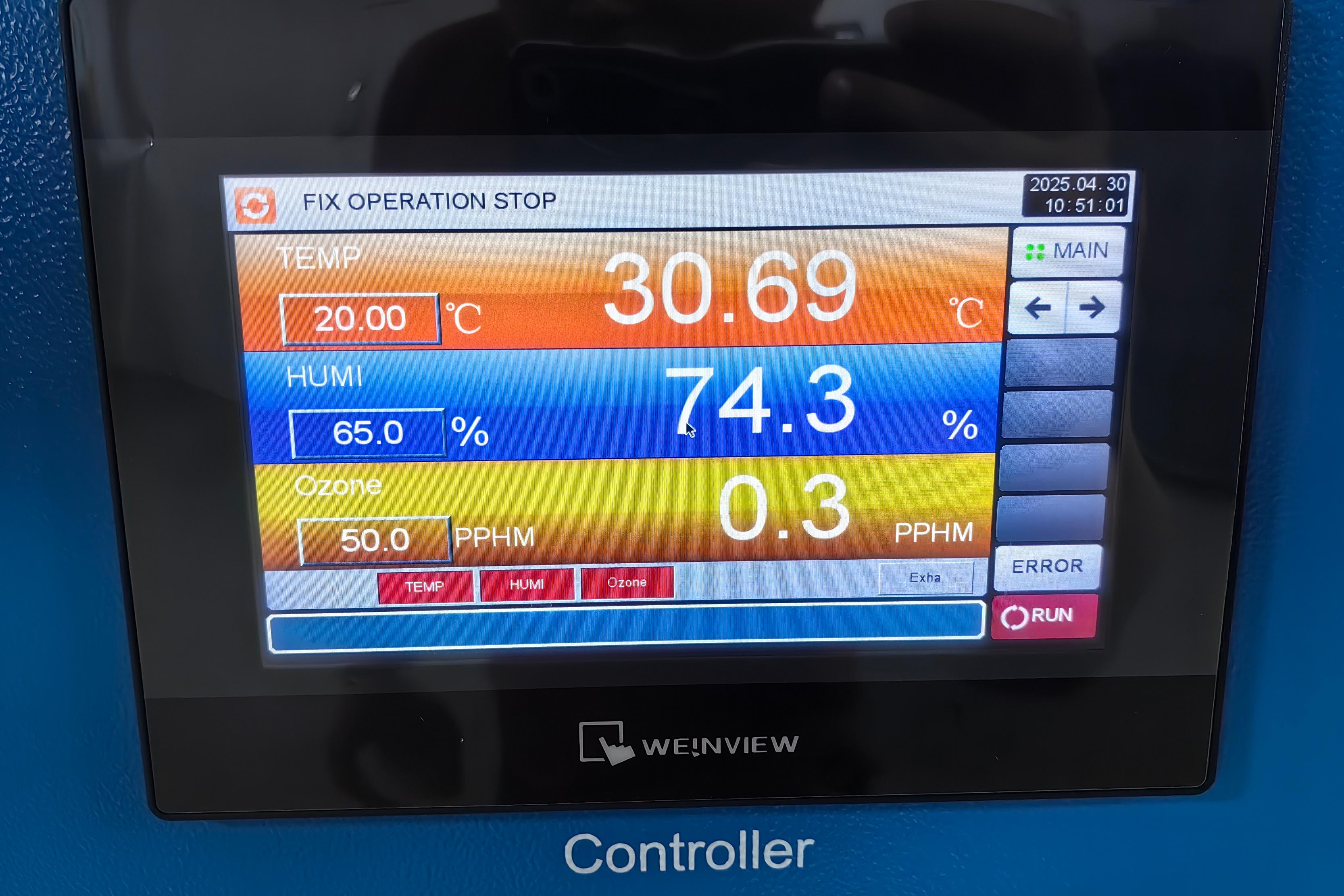

Control screen

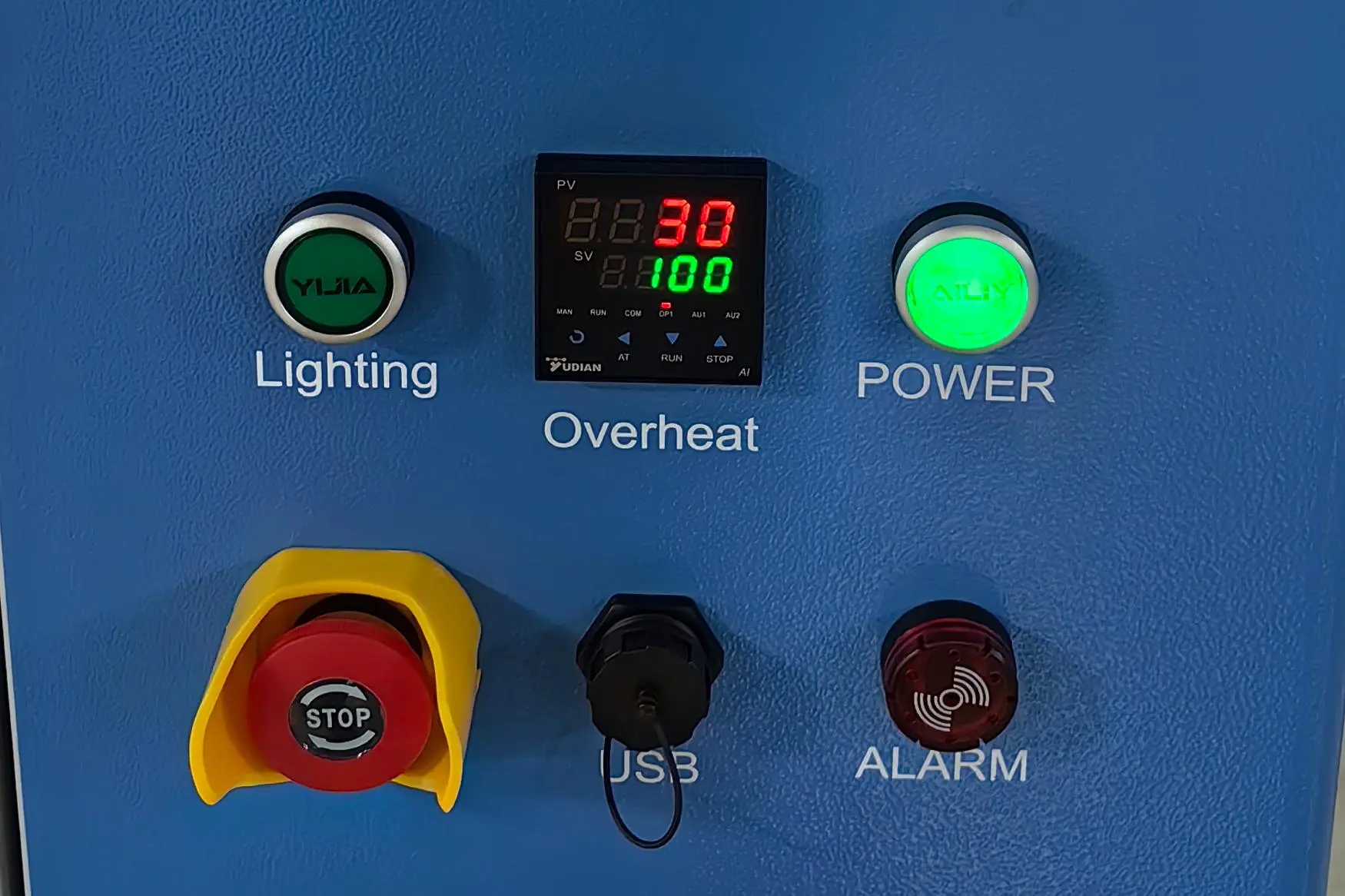

Control panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
