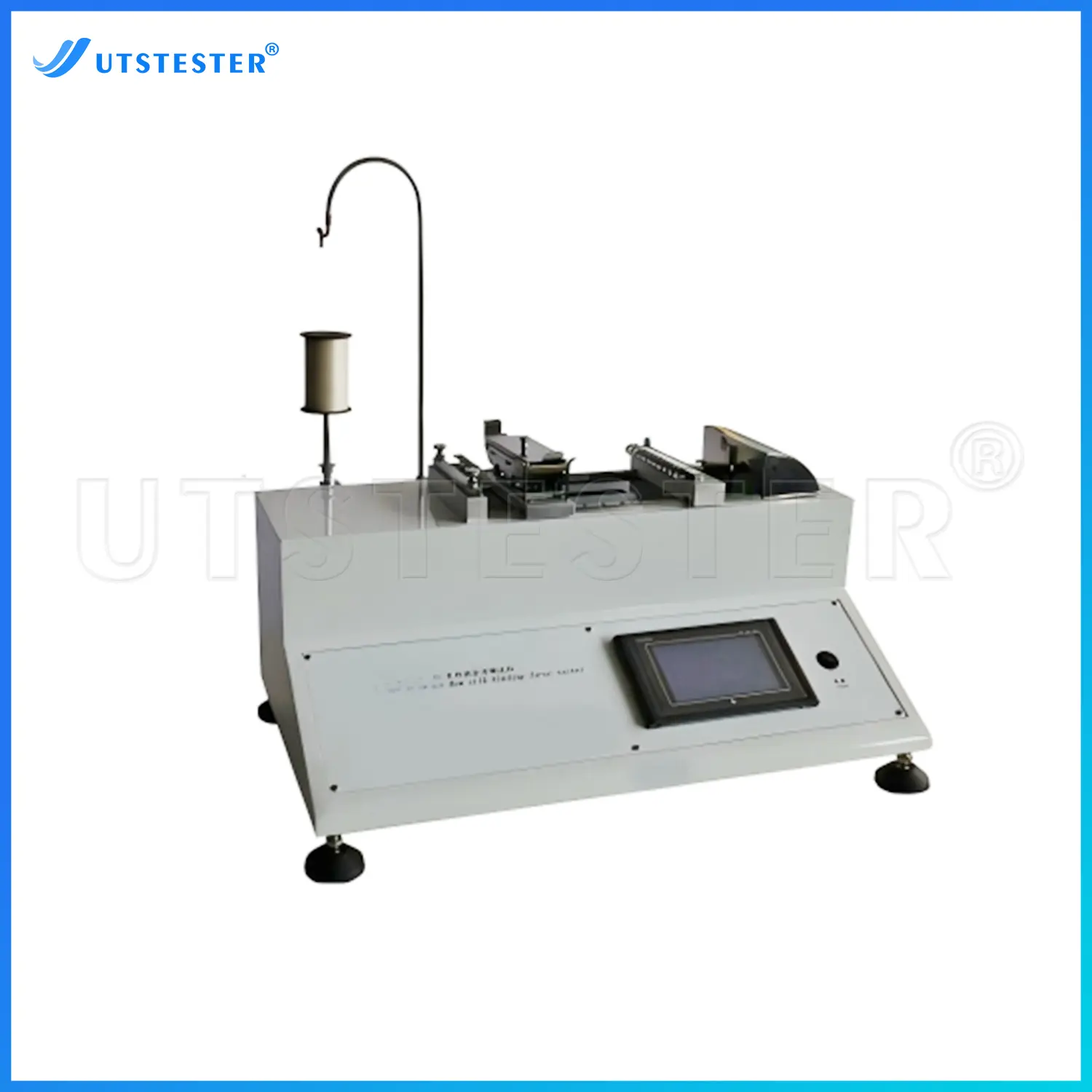

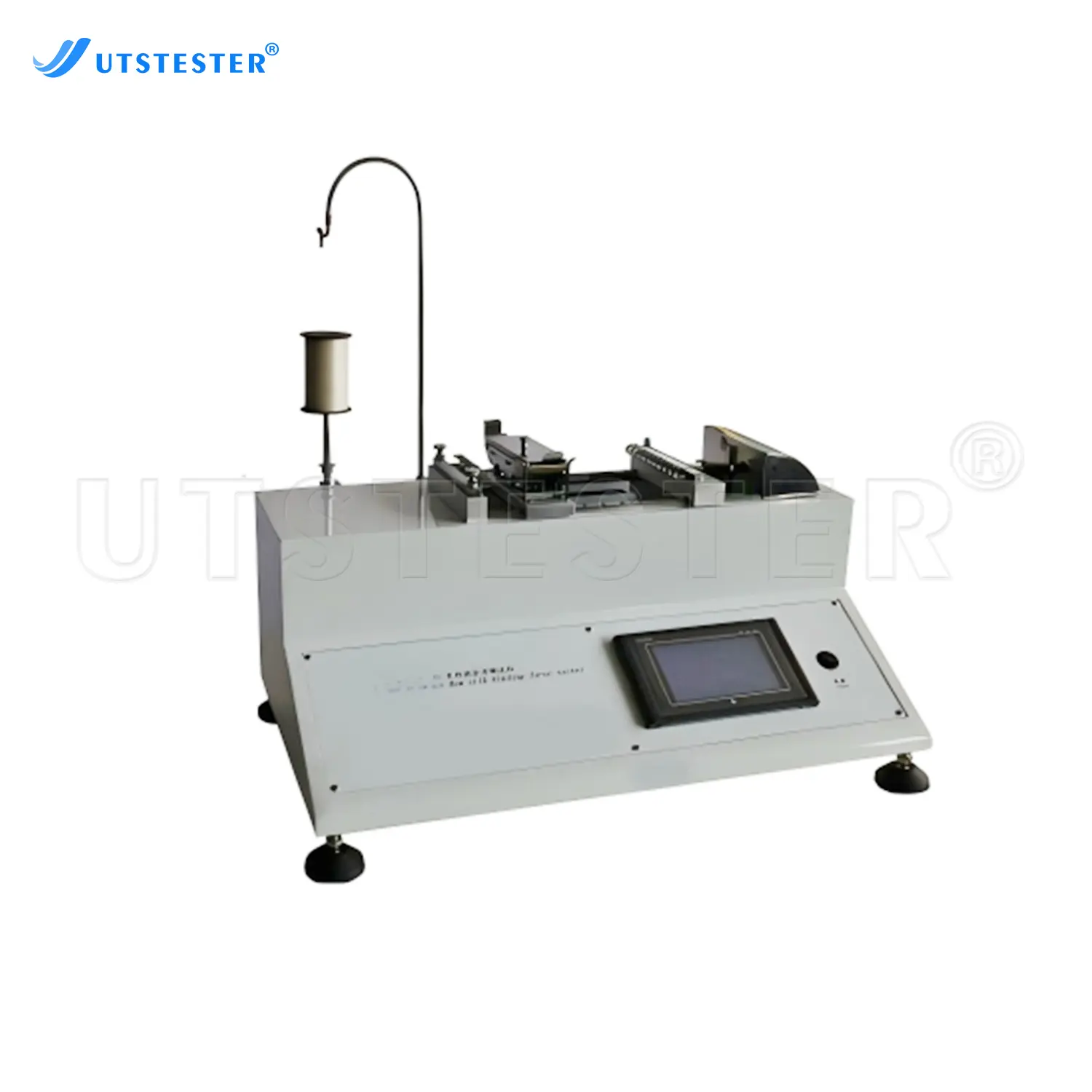

Raw Silk Binding Force Tester Y029
Overview
This instrument is suitable for the national standard GB/T1798-2008 "Raw Silk Test Method", which is used to detect the cohesion force of yarn, cocoon and raw silk, and to test the firmness of mutual cohesion of various yarns. This instrument can also be used for chemical fibers, yarns Rubbing fastness test of wires and other materials.
Raw silk is made up of several cocoon threads that are glued together and merged with each other. This is the cohesive force of raw silk. If the cohesion of raw silk is poor, the thread structure will not be firm, with many filaments, poor pulling force, and poor friction resistance. During the weaving process, breakage easily occurs, which affects the quality. By detecting the inherent quality of raw silk, it is relatively stable, so it is very important to use this instrument to detect sample silk.
Application
Yarn
Standards
Standards
Key Parameters
|
Model |
Y029 |
|
DC motor with gearbox |
80W AC220V 1500r/min |
|
Friction tool holder reciprocating stroke |
90mm |
|
Number of friction reciprocations |
60~150 times/min adjustable |
|
Tension load |
200g |
|
Tension weight: 50g (3 pieces) Weight tray 50g |
50g (3 pieces) Weight tray 50g |
|
Overall dimensions |
600×350×320mm |
|
Total machine weight: 35kg |
35kg |
Product Details
Control panel

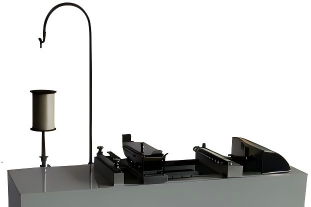

Sample test area
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
