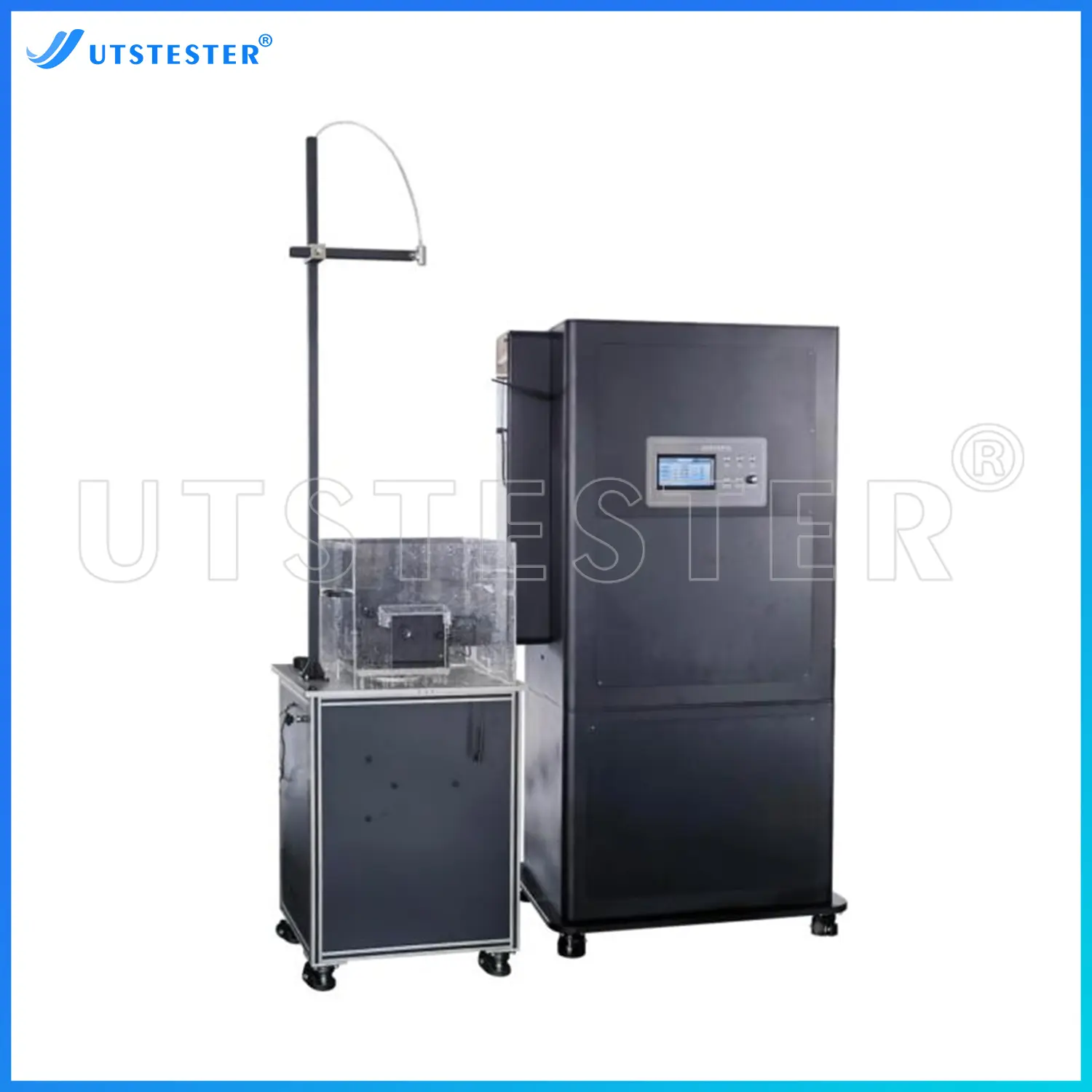

Retroreflection coefficient measuring device For visual warning clothing worn M046N
Overview
It is used to evaluate the reflective performance of high visibility warning materials for occupation, reflective uniforms for primary and secondary school students in dry state and wet state.
Application
Reflective uniform
Reflective uniform
Standards
GB 20653-2006 "High visibility Warning clothing for Occupation" Appendix C, Appendix D, GB/T 28468 and other standards.
Key Parameters
|
Sample size: |
150*150mm |
|
Incidence angle β1: 0 ° ~ 40 ° adjustable, resolution |
0.1 ° |
|
Incidence angle rotation speed |
12°/s |
|
Nozzle calibre |
1.19mm±0.01mm with adjusting device |
|
Nozzle distance from specimen |
1000±2mm |
|
Flow rate of precipitation from sprinkler heads per unit hour |
284mm/h |
|
The water column contacts the specimen in the vertical direction with the surface of the specimen. |
10±1° |
|
Collector size |
Diameter: 105±1mm, Height: 245±1mm |
|
Matt glass cover |
L460*W360*H400 (mm), opening size 150*150±0.1 (mm) |
|
power supply |
220V 50HZ |
|
External dimensions of specimen table |
L630*W430*H1900mm |
|
Specimen table weight |
80kg |
Product Details
Sample Testing Area
Control panel
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
