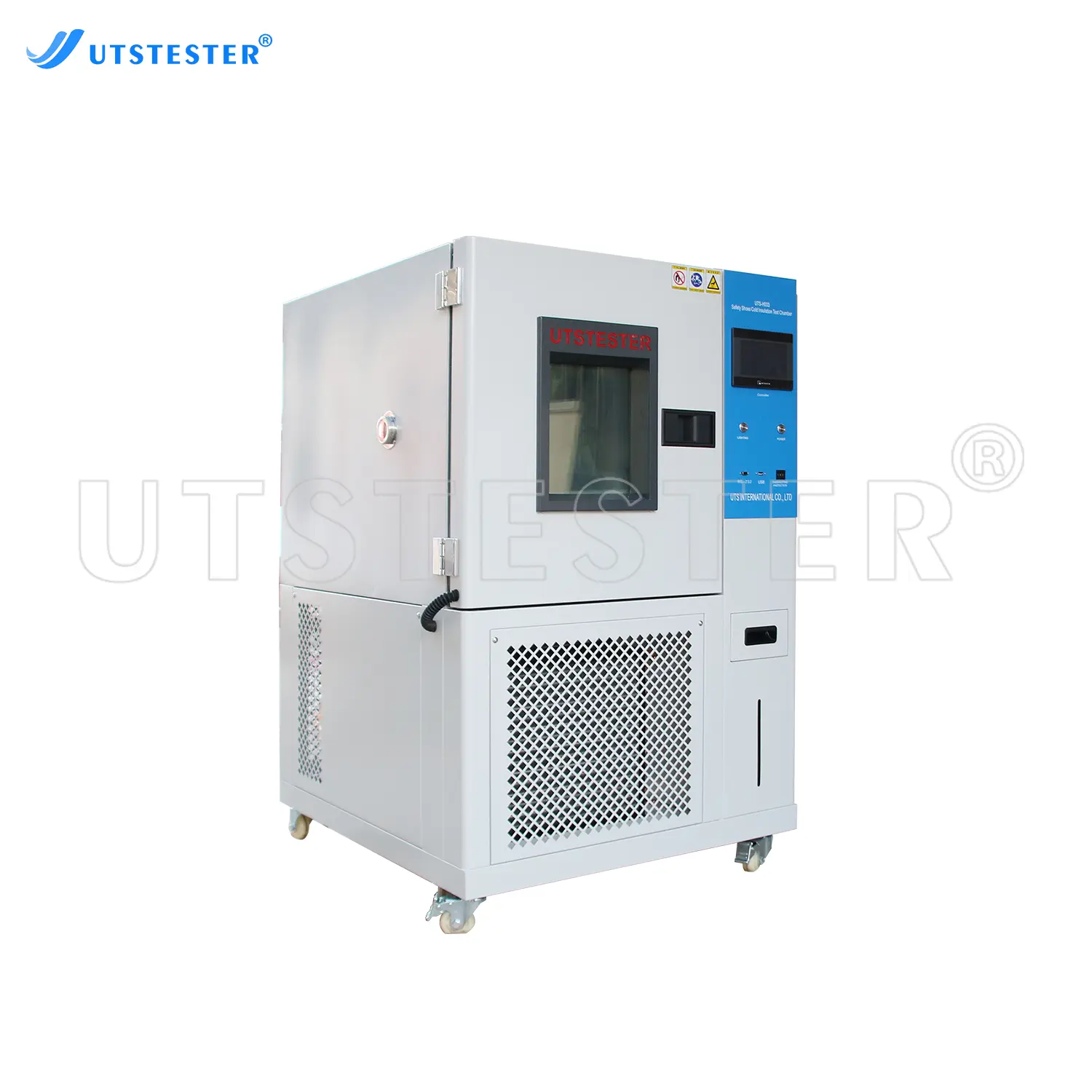

Safety Shoes Cold Insulation Test Chamber Temperature Humidity Testing Chamber ISO 20344 H033
Overview
This machine is used to test the heat insulation performance of shoes in low temperature environment.
Application
Safety shoes
Safety shoes
Standards
ISO 20344:2011 5.13
Key Parameters
|
Model |
H033 |
|
|
Testing device inside chamber |
Heat transfer medium |
Stainless steel balls: 5 mm diameter , total mass(4 000 ± 40) g. |
|
Temperature probe |
Accuracy of ± ± 0,5°C, soldered to a copper disc (2 ± 0,1) mm thick and (15 ± 1)mm diameter. |
|
|
Copper plate |
(350 ± 5) mm x (150 ± 1) mm x (5 ± 0,1) mm (Length x width x thickness) |
|
|
Test chamber temperature |
-30°C to room temperature |
|
|
Temperature accuracy |
0.1°C |
|
|
Material of internal and external chamber |
Stainless steel #304 |
|
|
Power Supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions ( L x W x H ) |
198*75*95cm |
|
|
Weight |
320kg |
|
Product Details

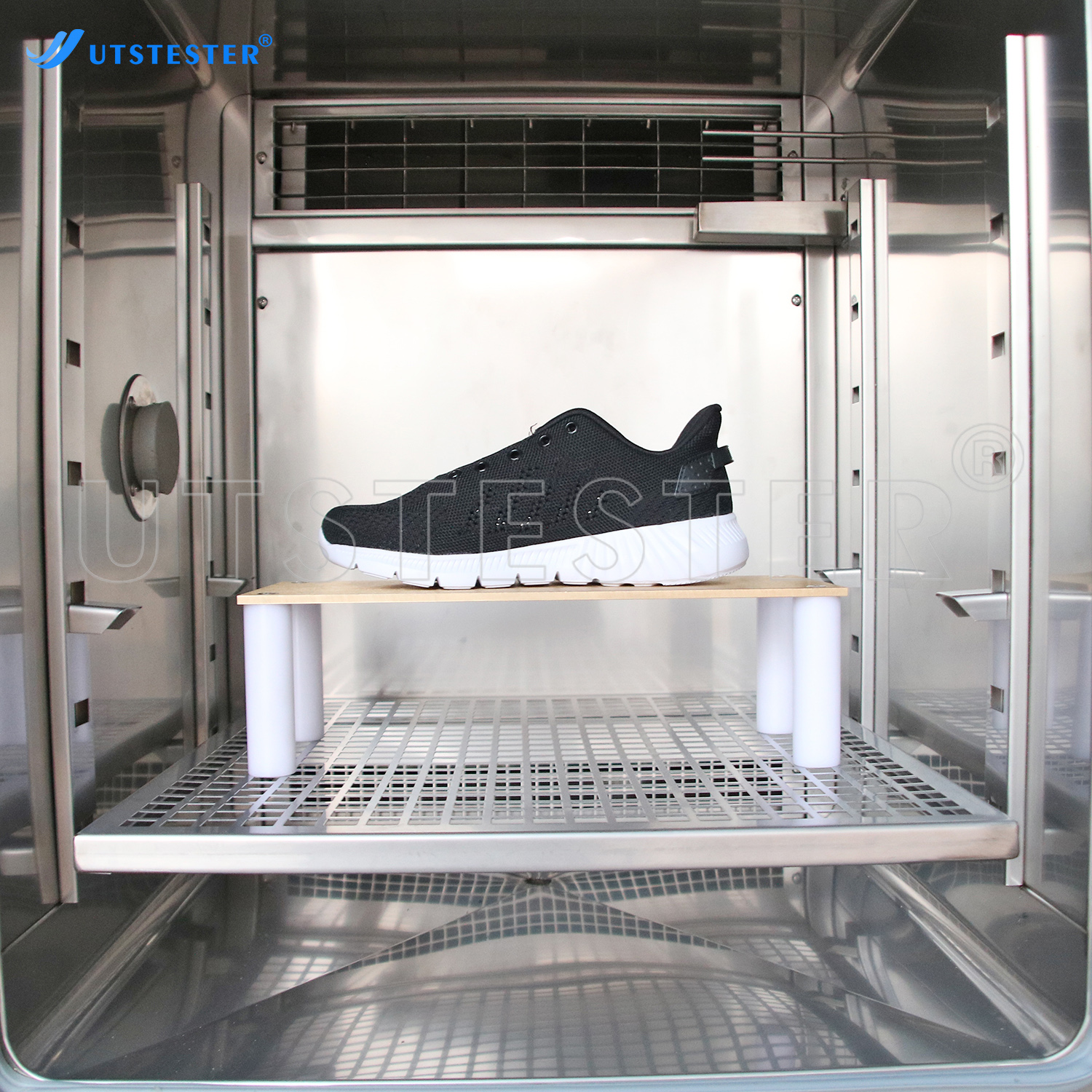

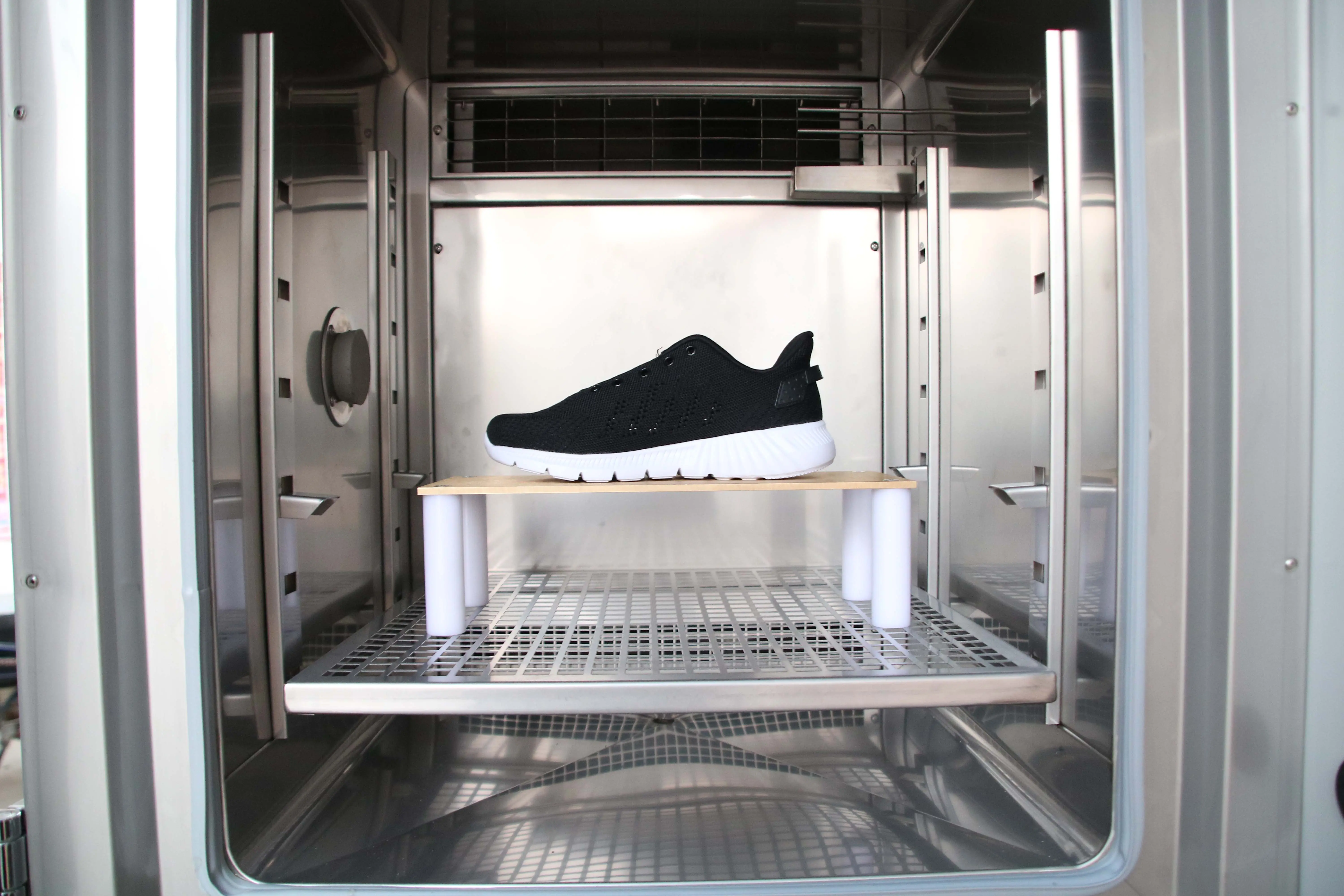

Test bin

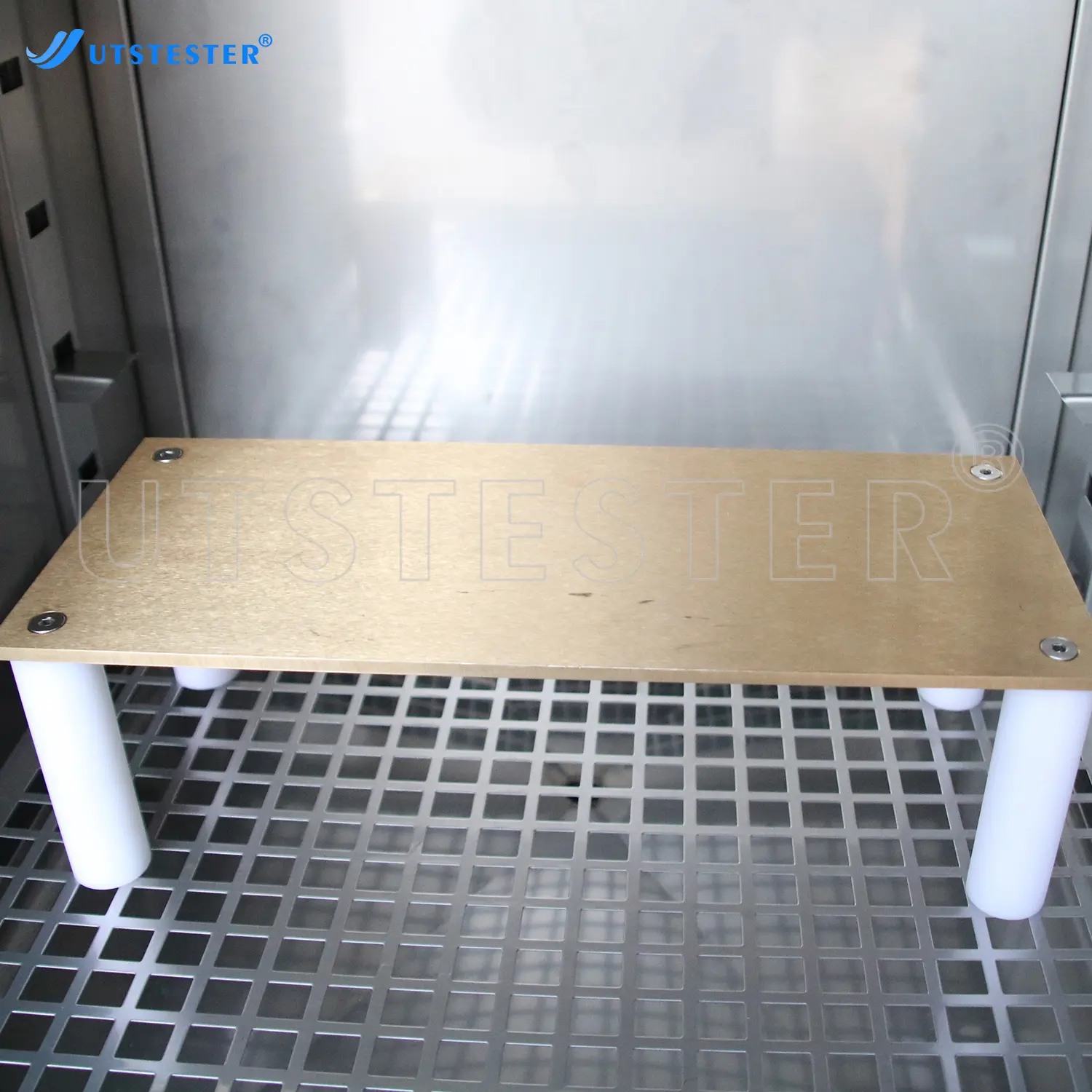

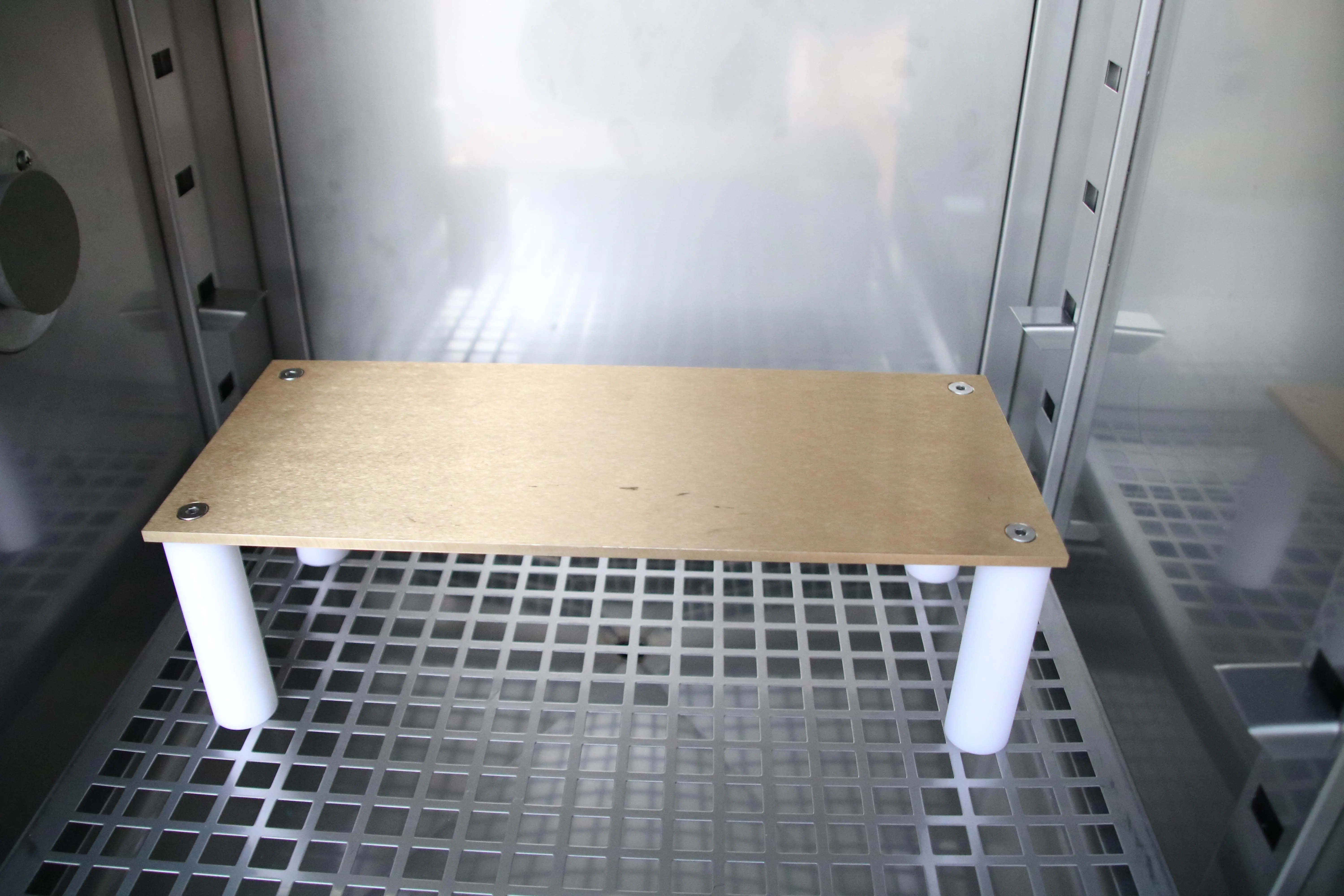

Sample rack
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
