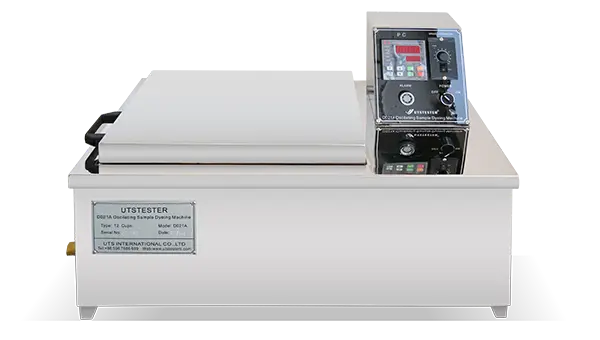

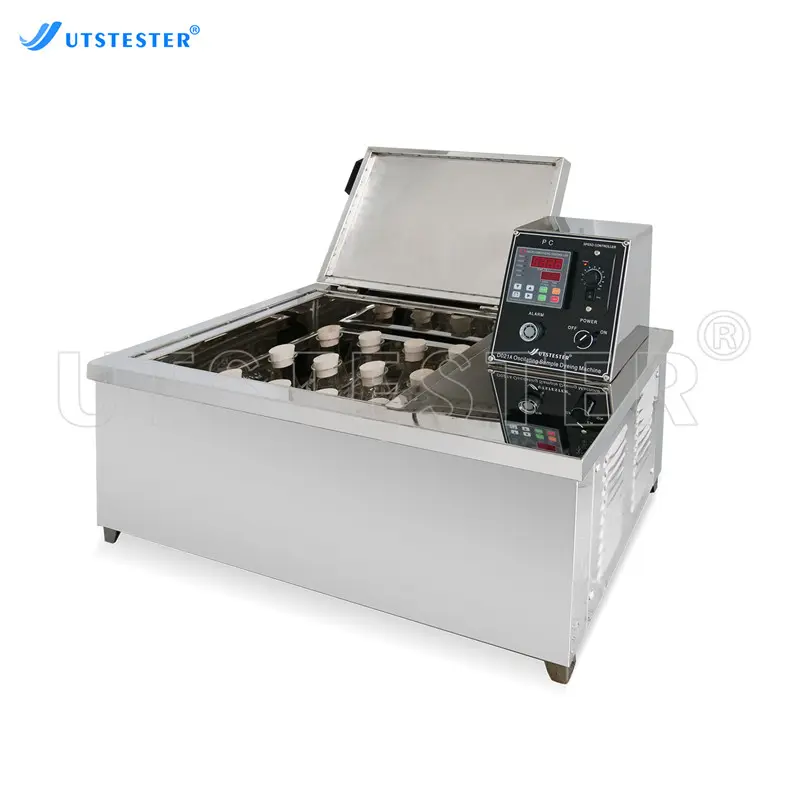

Sample Oscillation Dyeing Machine Dyestuff Test and Colorfastness Test
Overview
To do oscillating cultivating test of room temperature dyeing formula & dyestuff test and colorfastness test.
Application
CHEMICAL INDUSTRY

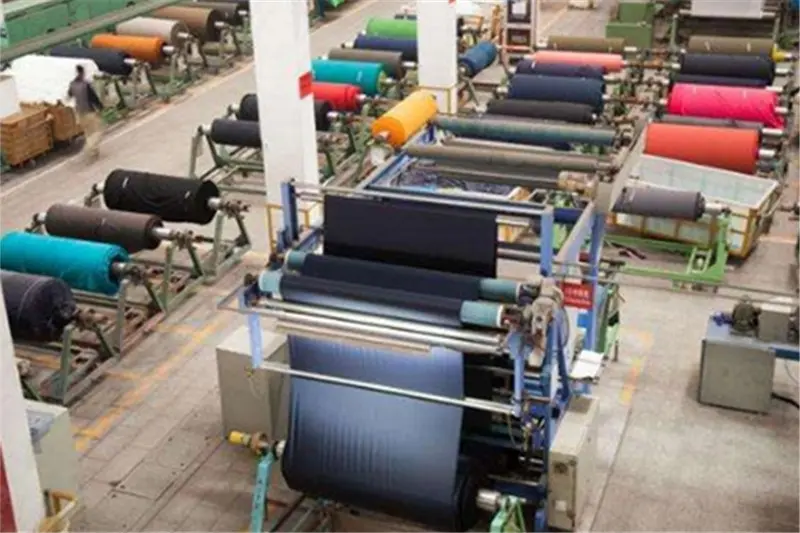

DYEING AND FINISHING
GARMENT

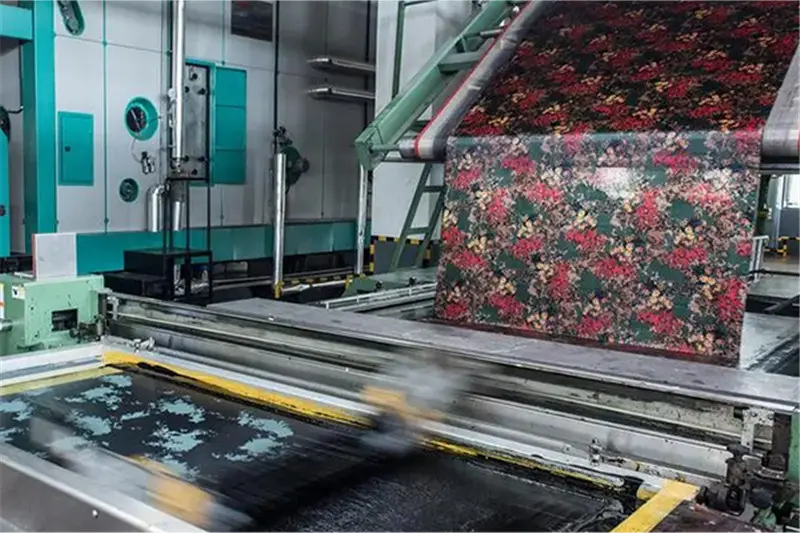

PRINGTING AND DYEING
Standards
GB/T 4802.1; JJG 040-1990
Key Parameters
|
Model |
D021-12 |
D021-24 |
|
Beakers |
12 |
24 |
|
Heating power |
3KW |
6KW |
|
Heating medium |
Water |
|
|
Maximum temperature |
Room temp. To 99℃ |
|
| Liquor ratio |
1:5-1:20 |
|
| Temperature controlling accuracy |
0.1℃ |
|
| Heating mode |
Electric heating tube |
|
|
Cups volume |
250ml |
|
|
Power supply |
AC 220V/50Hz |
|
|
Dimension |
750*420*510mm |
950*530*510mm |
|
Weight |
35kg |
50kg |
Product Details

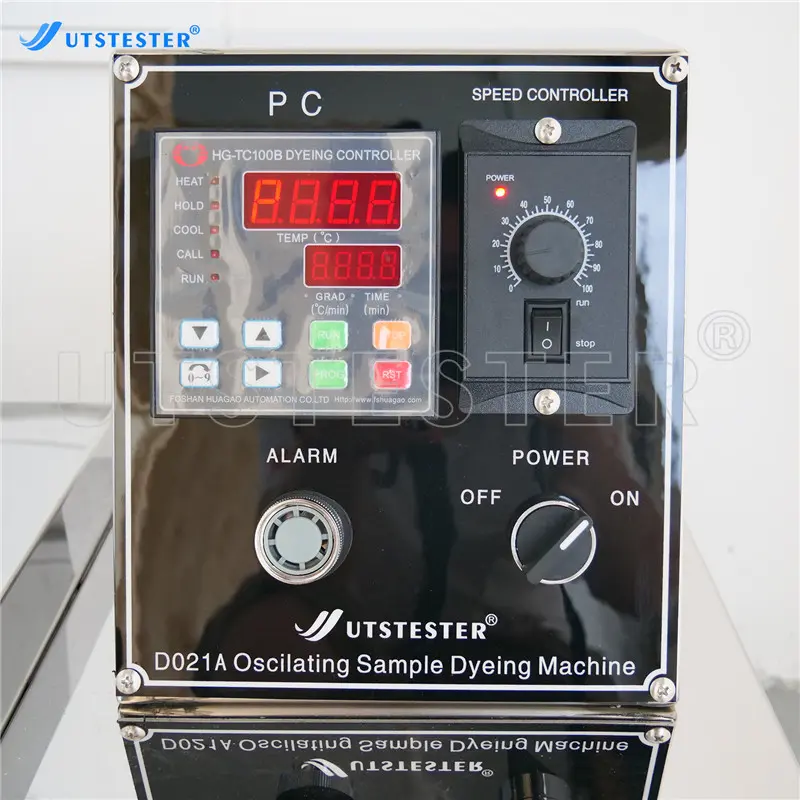

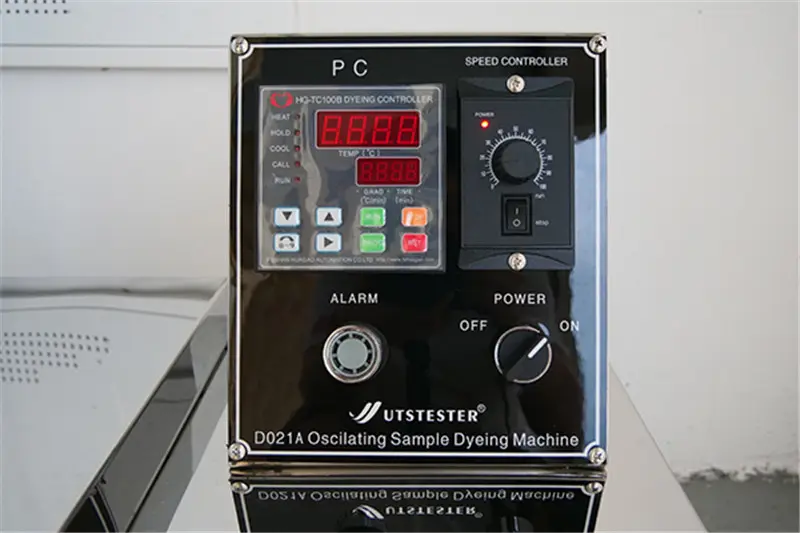

computer control system

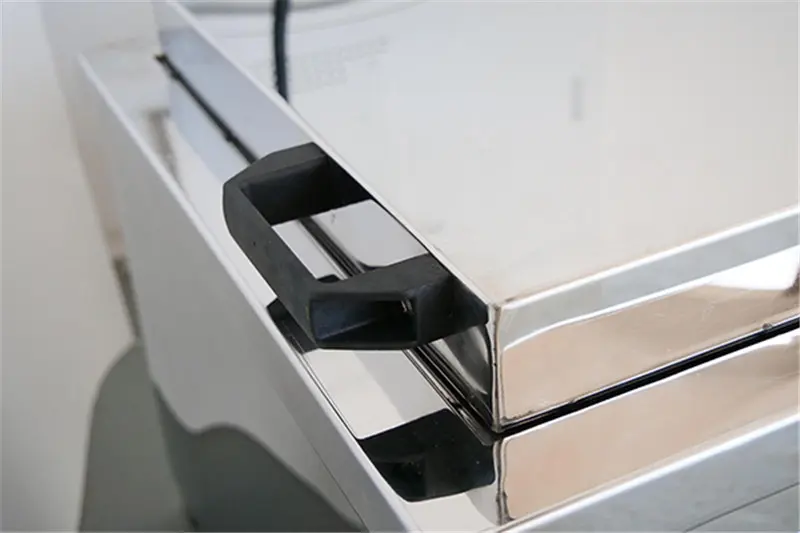

doorknob

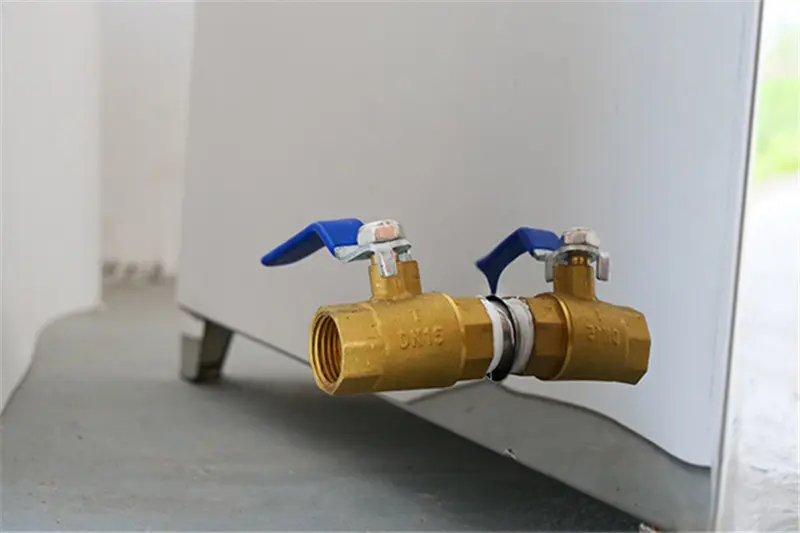

drainage outlet

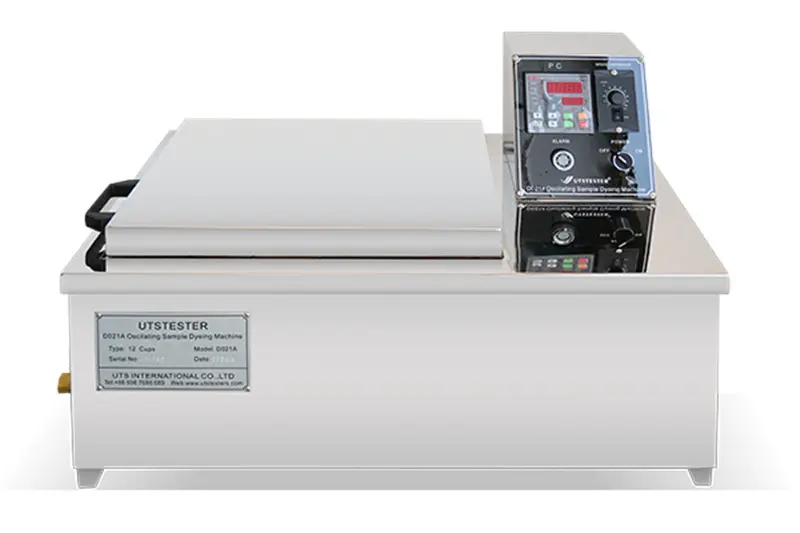

stainless steel machine body

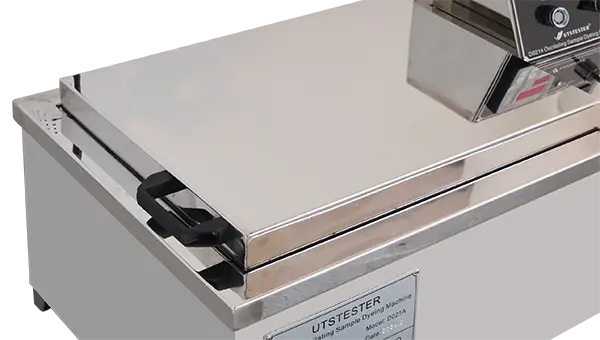

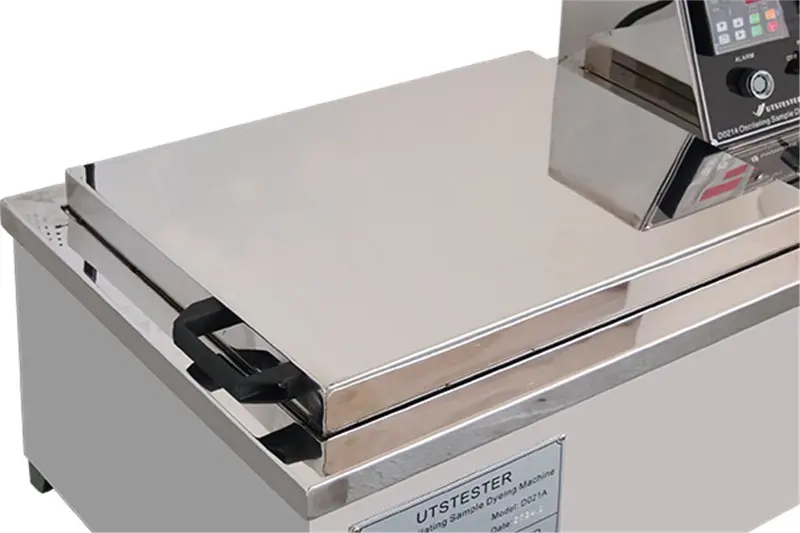

therm insulation cover

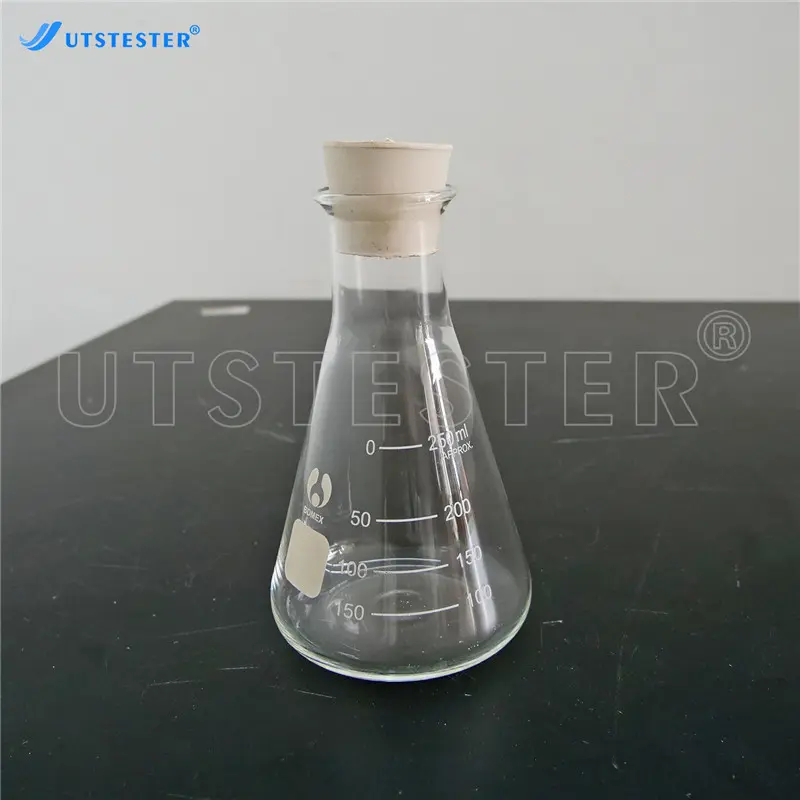

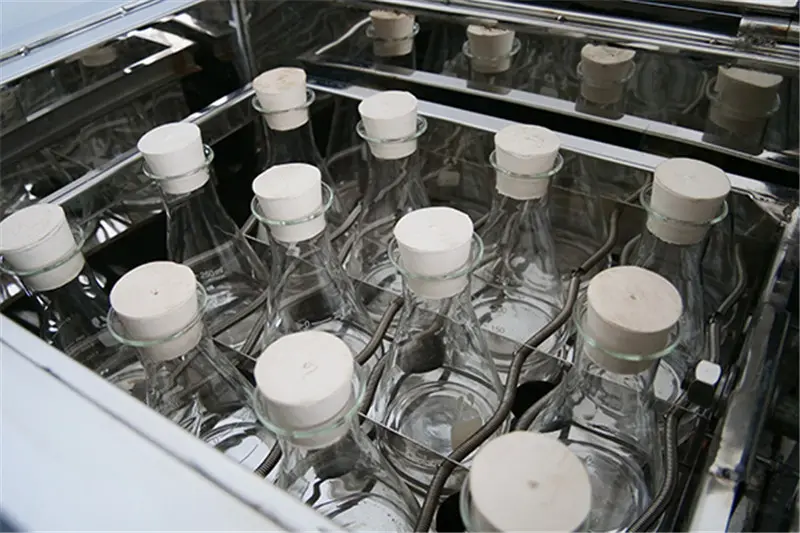

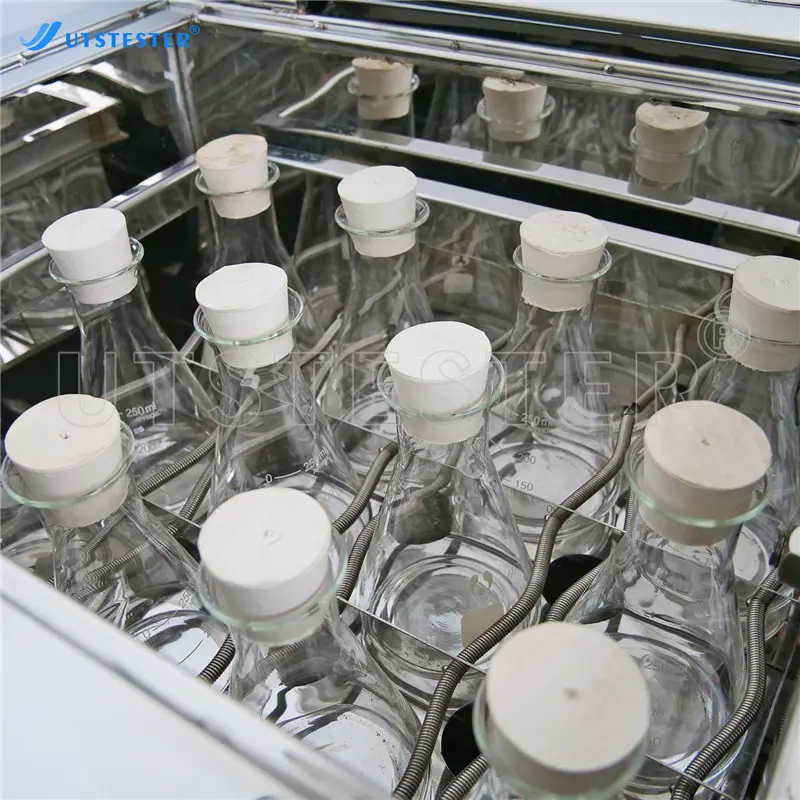

triangle cup
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Equipped with solution

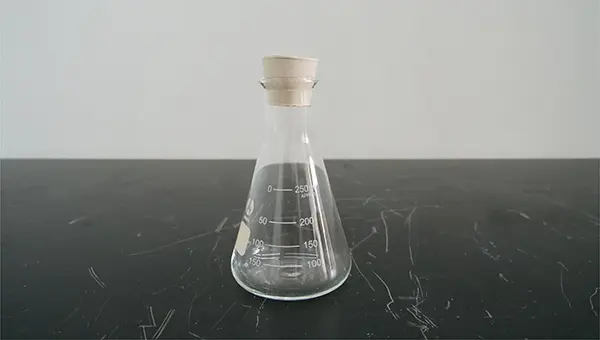

The sample to be tested is placed in a beaker equipped with a certain solution.
Placement of samples

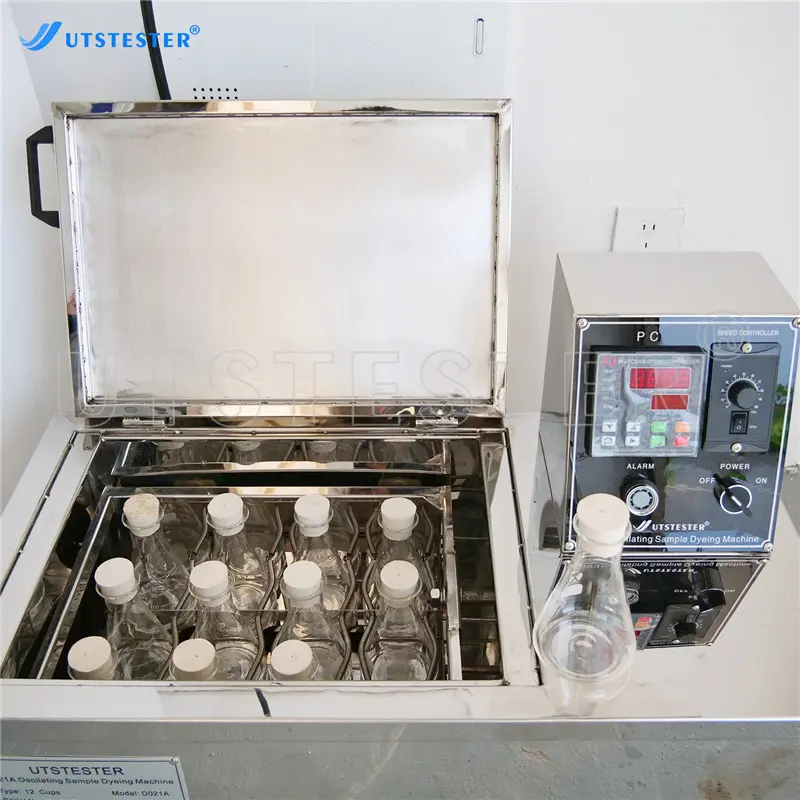

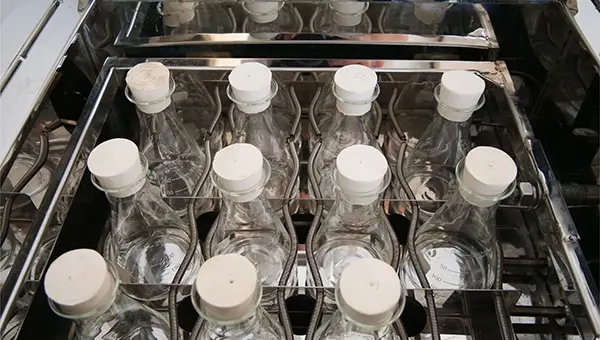

Place the beaker in the oscillating dyeing machine.
Put the lid on
After adding a certain amount of water to the oscillating dyeing machine, gently cover the lid.
Program

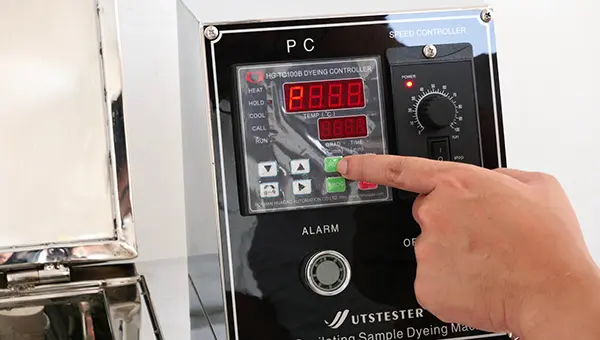

Program according to the test requirements, set the heating temperature, heating rate, holding time, cooling temperature, cooling rate, etc.

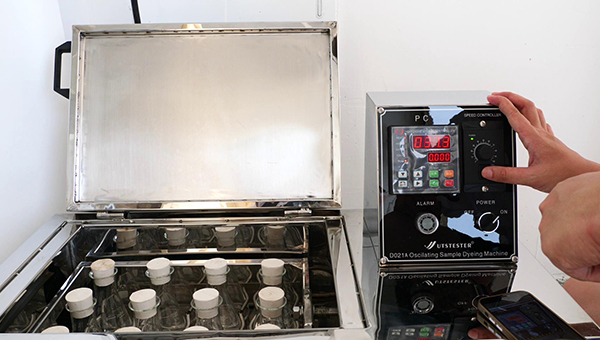

Start testing
The oscillator starts running and uses vibration to disperse the dye evenly into the sample.
Constant temperature standby
Automatically cools and holds the sample when finished and removes it.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
