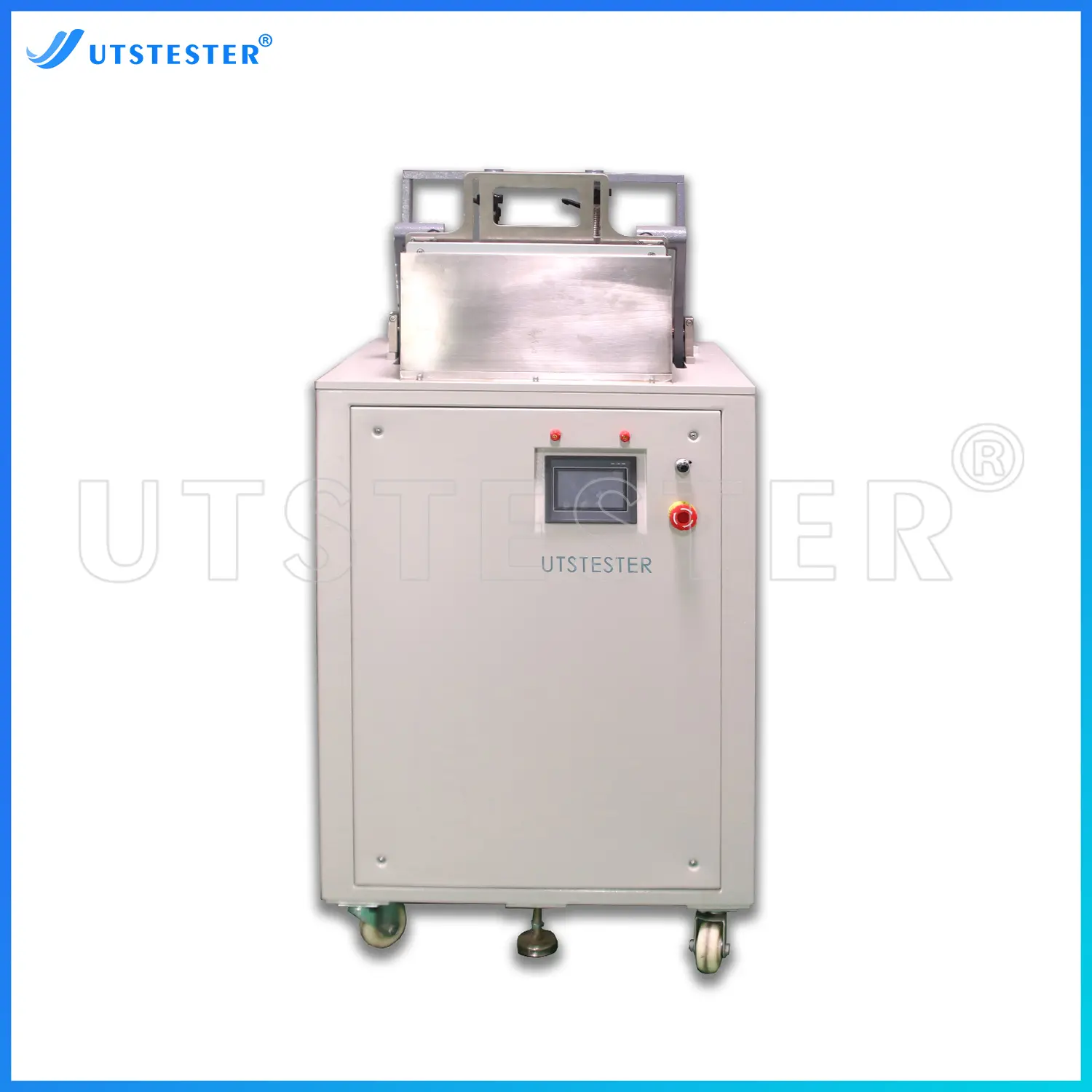

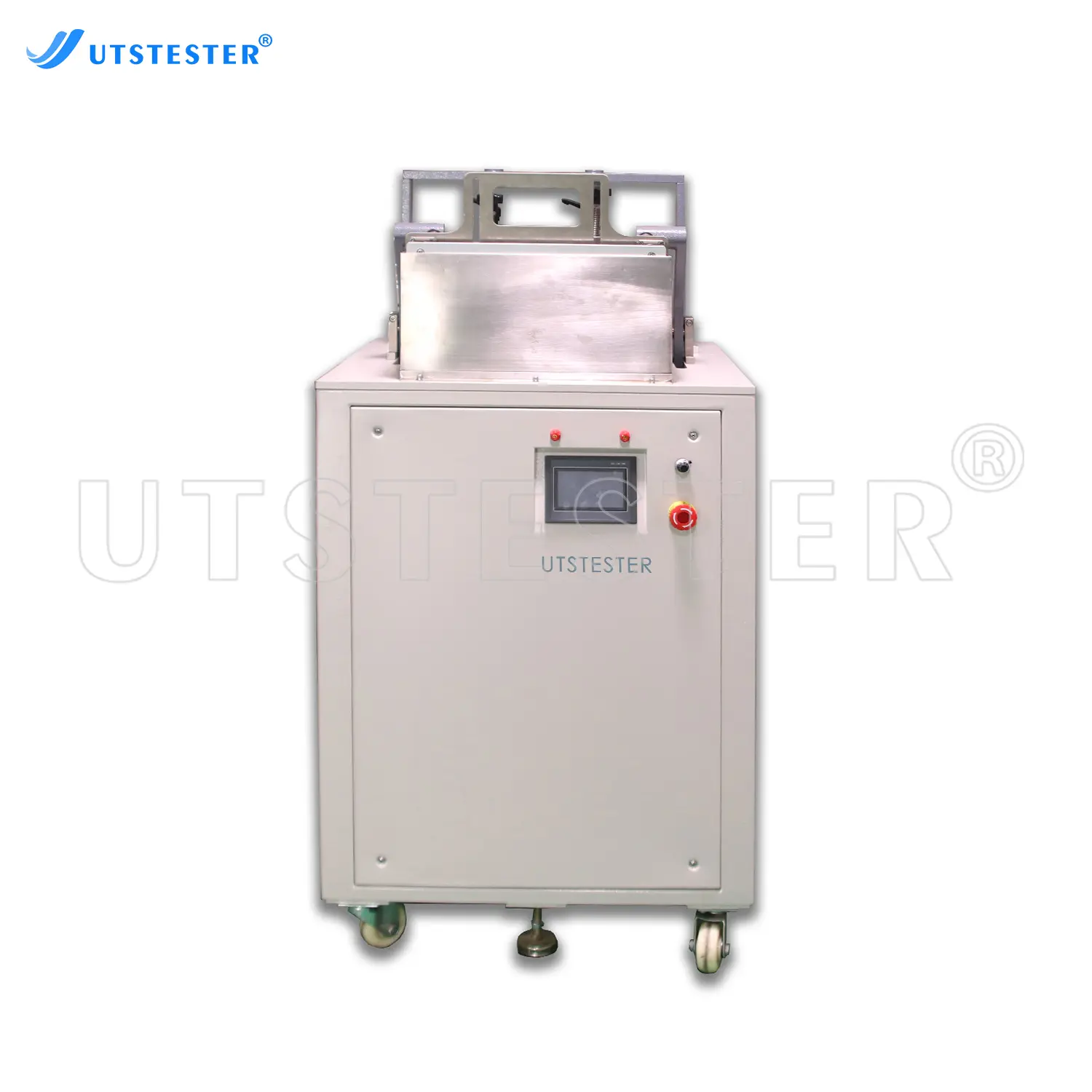

Satra TM77 Shoe Bending Waterproofness Tester H008
Overview
To determine the dynamic water resistance property and durability of flexing for shoe immersed in water.
Application
shoes
shoes
shoes
Standards
SATRA TM77 GB/T 16641 ISO20344- 2011
Key Parameters
|
Model |
H008 |
|
Fixture quantity |
2 (individually detected) |
|
Test speed |
0~140±10r/min adjustable |
|
Test Range |
Children shoes: 4-13 size(Britain), foot length 135~211 mm Adult shoes: 1-12 size(Britain), foot length 218~314 mm |
|
Bending angle |
10°, 15°, 20°, 25°, 30°, 35°, 45° (0-45° adjustable) |
|
Penetrate signal induction |
Automatic |
|
Power |
1∮AC 220V 50/60HZ 3A (Specified by user) |
|
Dimension (W×D×H) |
650×830×1280mm |
|
Weight |
150kg |
Product Details

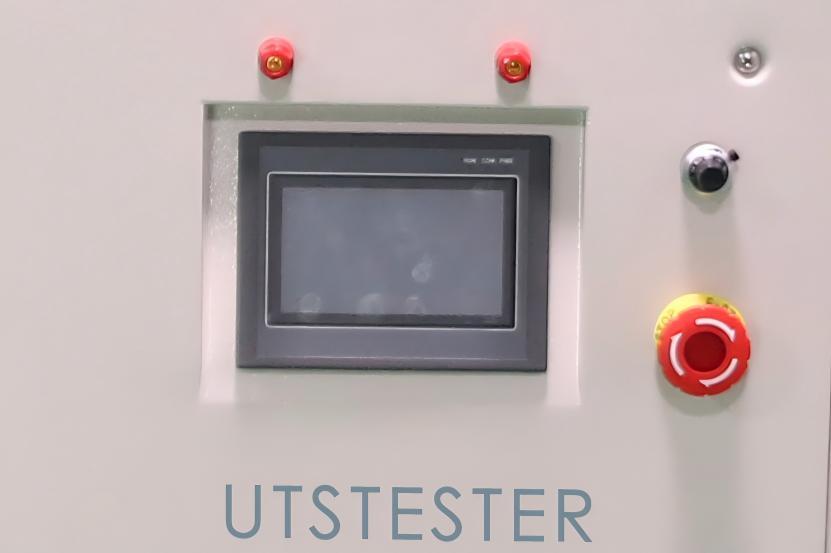

Control panel
Sample test
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
