Spi Flammability Tester for Polyethylene Plastic Film Materials Flame Retardant Performance Tester M107
Overview
This instrument is applicable to the flame retardant performance test of polyethylene plastic film materials. The test range is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials.Including flat, convex, cast film or surface treated material.
Application

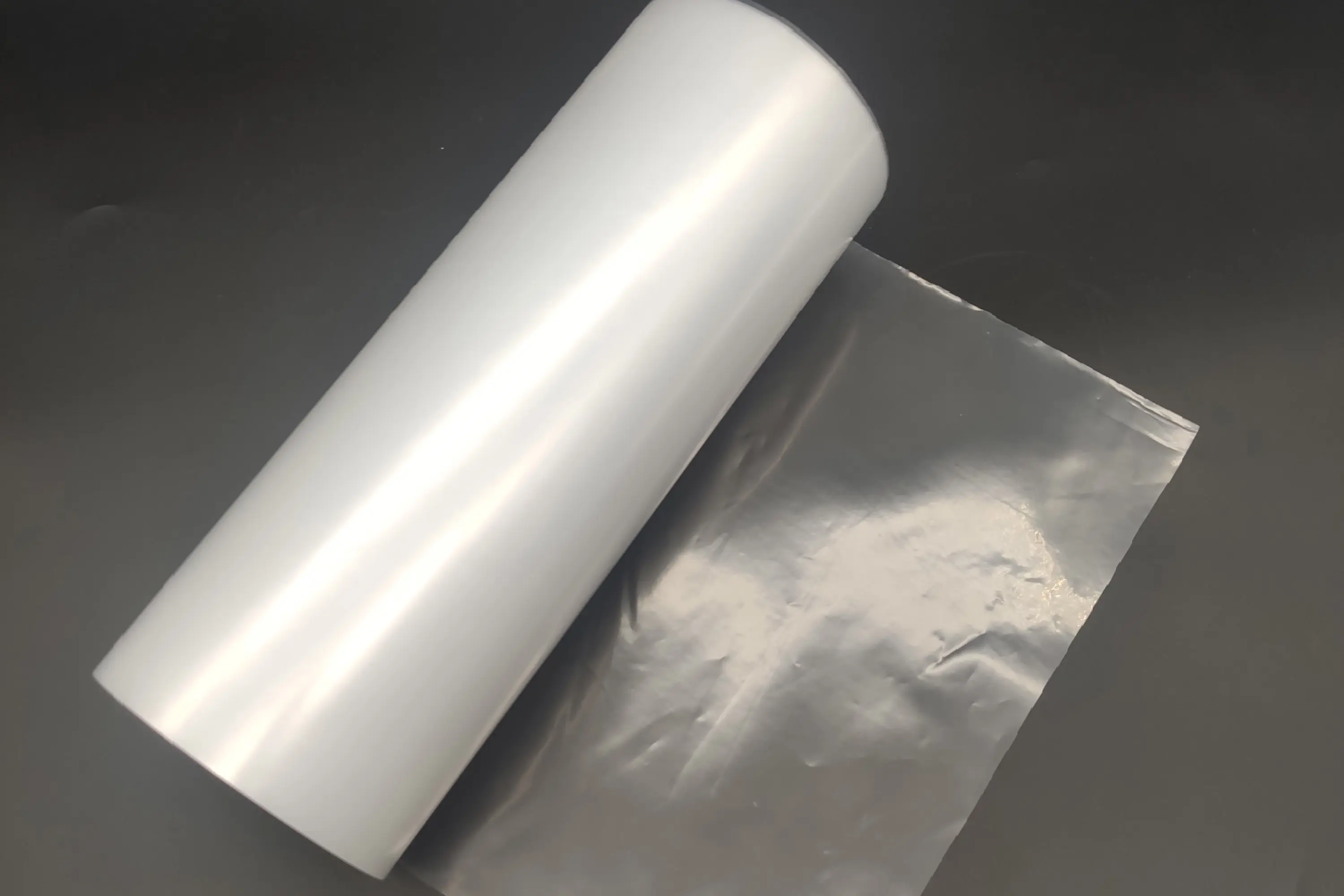

Polyethylene plastic film
Standards
16 CFR Part 1611
Key Parameters
|
Model |
M107 |
|||||
|
Test Chamber |
30cm x 25cm x 37cm, with 5 air holes of 20mm on the left and right sides |
|||||
|
Sample frame |
45 ° |
|||||
|
Sample holder |
Length |
Width |
Slotted width |
End bending length |
Width |
Bending Angle |
|
11 " |
4 15/16 " |
1 1/2 " |
1 " |
3 7/8 " |
45° |
|
|
Mark line spacing |
6" |
|||||
|
Nozzle distance from sample surface |
9/16" |
|||||
|
Flame length |
1/2" |
|||||
|
Gas |
Butane |
|||||
|
Sample size |
3 "x9" |
|||||
|
Power Supply |
1 wire AC 220V 50Hz 3A |
|||||
|
Dimension(W×D×H) |
46 x29x52cm |
|||||
|
Weight (Approx) |
≈20Kg |
|||||
Product Details
Control panel
Sample testing area
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
