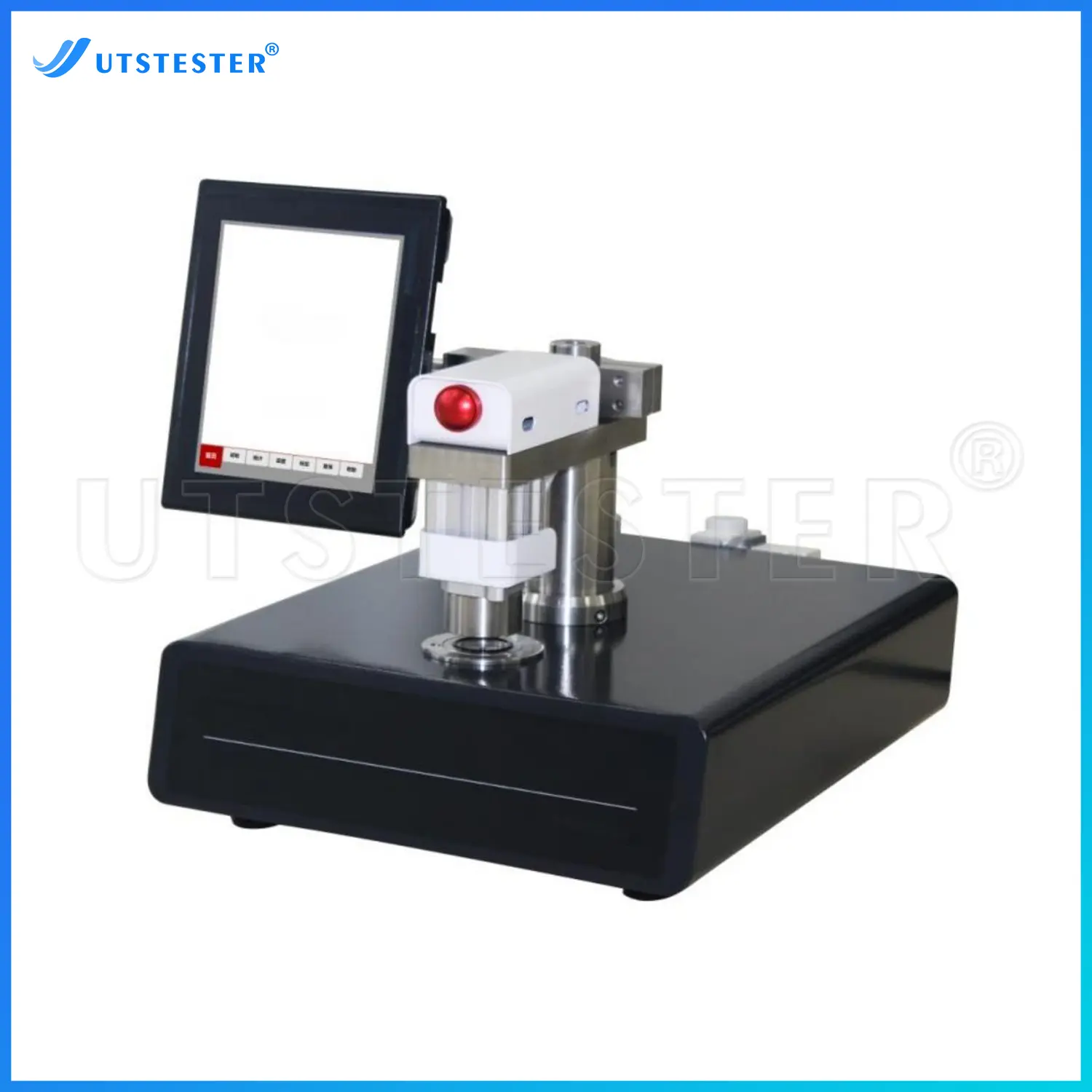

Textil Laboratory Equipment From China Air Permeability Meter M027C
Overview
The air permeability meter is suitable for measuring the air permeability indicators of battery separators, exchange membranes, carbon paper, paper, textiles and other materials.
Application
Battery separators
Exchange membranes
Carbon paper
Paper
fabrics
Standards
ISO 5636.5, ASTM D726, TAPPI T460, GB/T 36363-2018
Key Parameters
|
Model |
M027C |
|
Test range |
1015000s/100ml (standard configuration) Other ranges are available. |
|
Resolution |
0.1s/100ml |
|
Number of specimens |
1 piece |
|
Pressure range: |
20kPa, (5kPa, 10kPa optional) |
|
Pressure accuracy: |
0.01kPa |
|
Test area |
1.0in2 . （0.25in2 , 0.1in2 optional） |
|
Sample thickness |
≤6mm |
|
Test gas |
Clean air (prepared by user) |
|
Air source pressure |
0.3MPa 1.0MPa |
|
Interface size |
Ф6mm |
|
Overall dimensions |
470mm (L) × 340mm (W) × 385mm (H) |
|
Power supply |
AC 220V 50Hz |
|
Net weight |
29kg |
Product Details

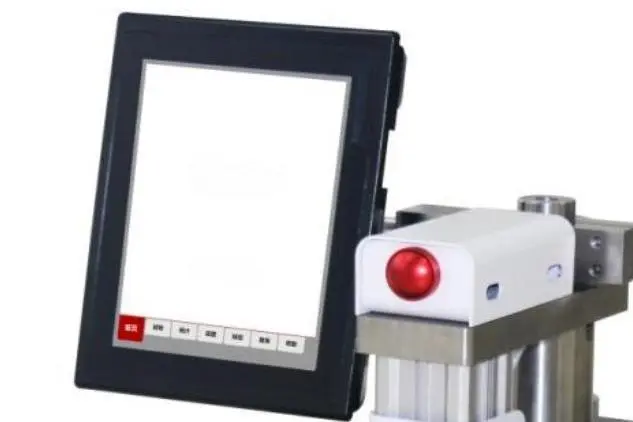

Display and operation panel

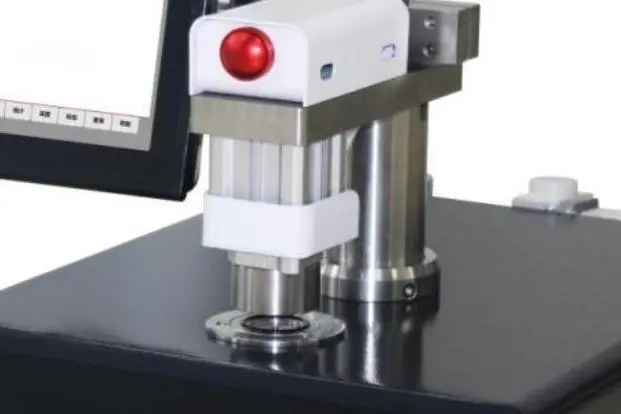

Sample fixture
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
