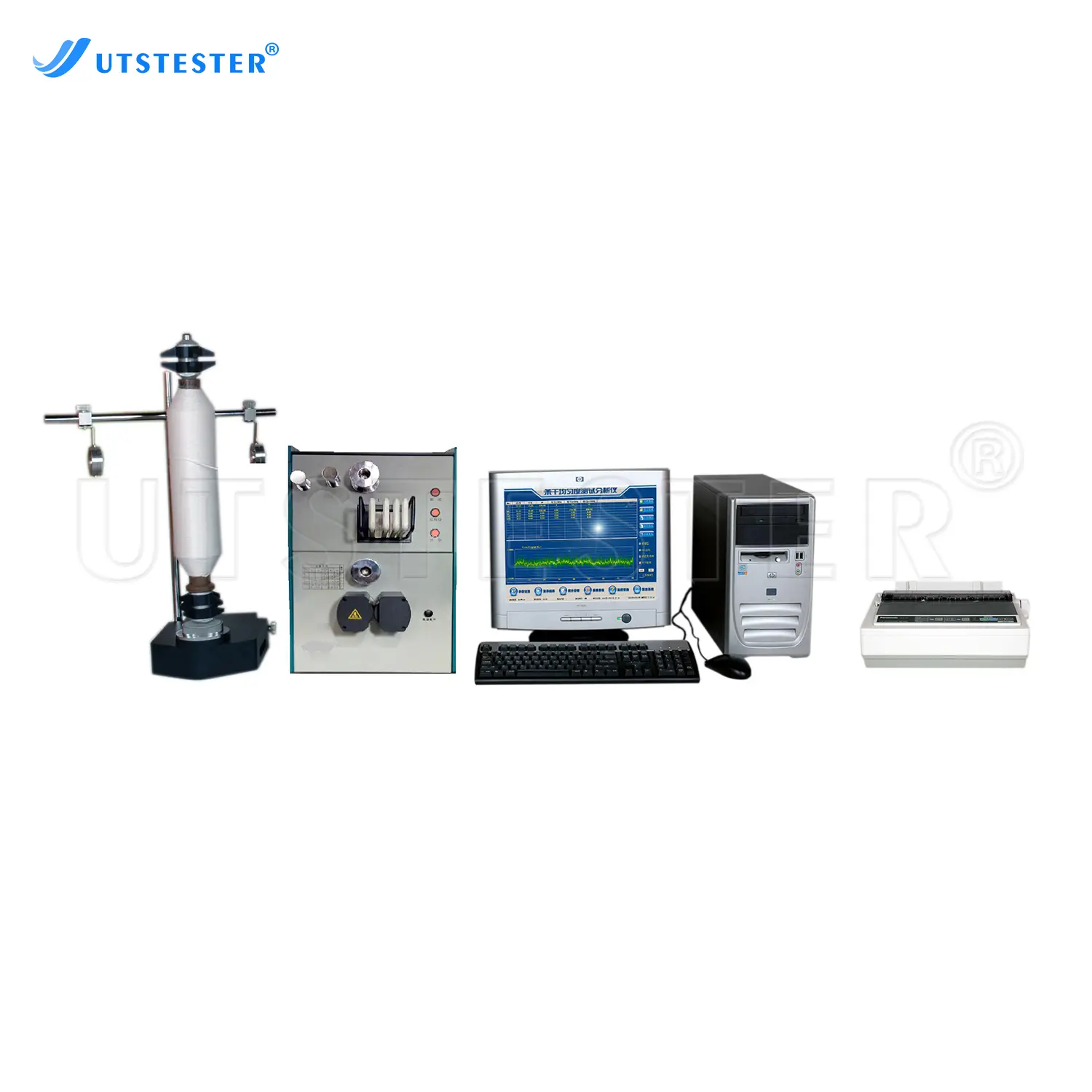

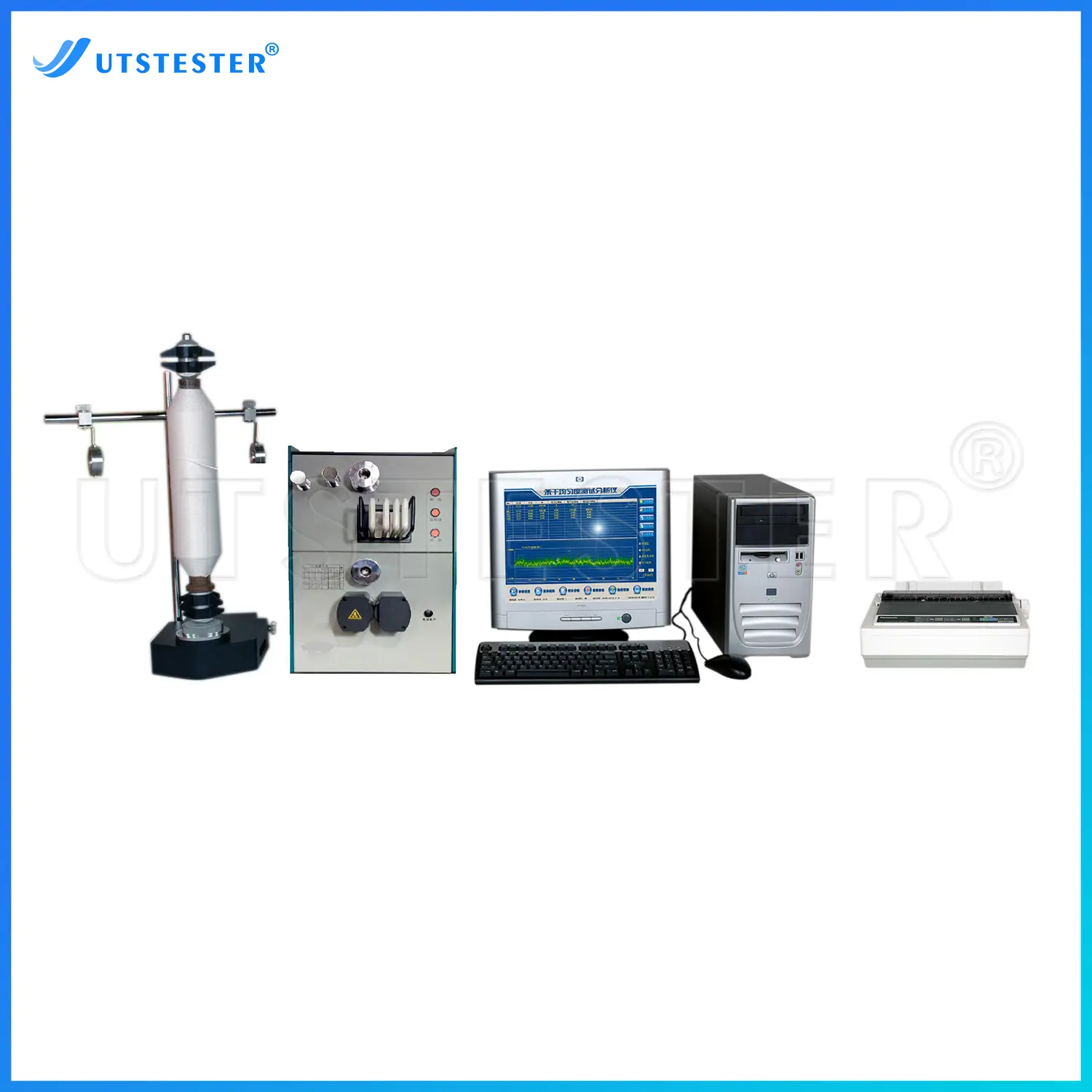

Textil Laboratory Equipment From China Yarn and Sliver Evenness Tester Y010T
Overview
To determine and analyze sliver, roving evenness and the evenness of structure . Applicable to silver, roving made of cotton, wool, synthetic fiber, linen and blended yarn, etc.
Drawing mechanism adopts dual-motor drive mode to achieve non-silp of sliver. Large size of roller to lower rotate speed with unique aseismic design and more stable transmission. Roller is available for auto open-close, auto scaling, and can be used in revising direction, which reduces the abrasion for roller from yarn, and extend service life of roller.
Wave spectrogram can display wavelength value, unevenness curve can be scaled freely. With larger data retrieval function.
Application
Yarn
Yarn
Roving
Standards
Standards
Key Parameters
|
Model |
Y010T |
|
Test Slot |
3 |
|
Test range |
160tex-80k tex |
|
Evenness test speed |
4、8、25、50、100m/min |
|
Test time |
Freely setting between 10Sec~20min |
|
CV%, U% value range |
0.2%-100% |
|
Variation - Length curve |
Cutting length 1cm-1500m |
|
Wave spectrogram |
170 channels, wavelength 1cm-2950m |
|
The frequency distribution of the linear density |
100~+100%, +100%~+400% |
|
Drift rate (DR%) value |
DR（1m,+5%）, DR（1m,-5%）, DR（20cm,+35%）, DR（20cm,-30%） |
|
Power supply |
220V±10% 50Hz±5Hz ≤500VA |
Product Details

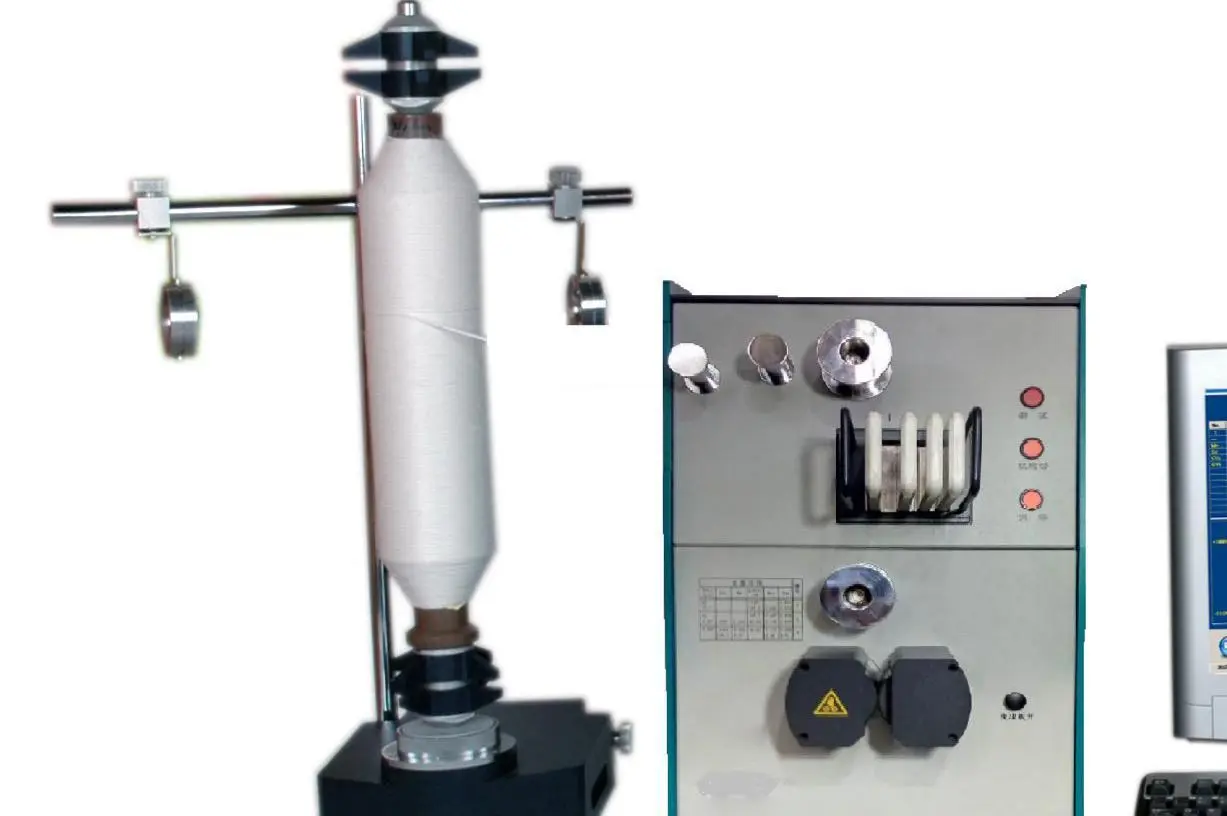

Hosts

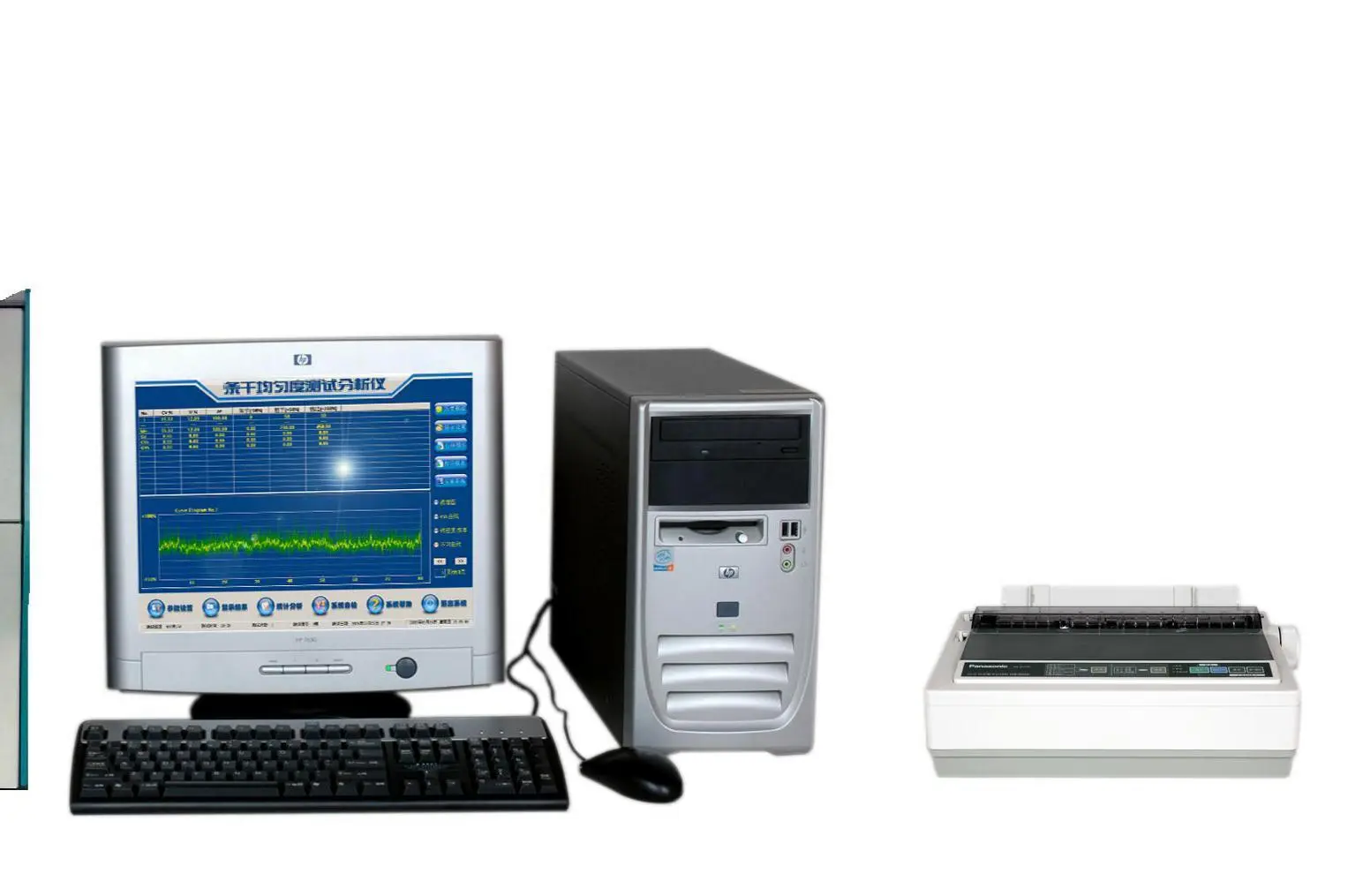

Computer software
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
