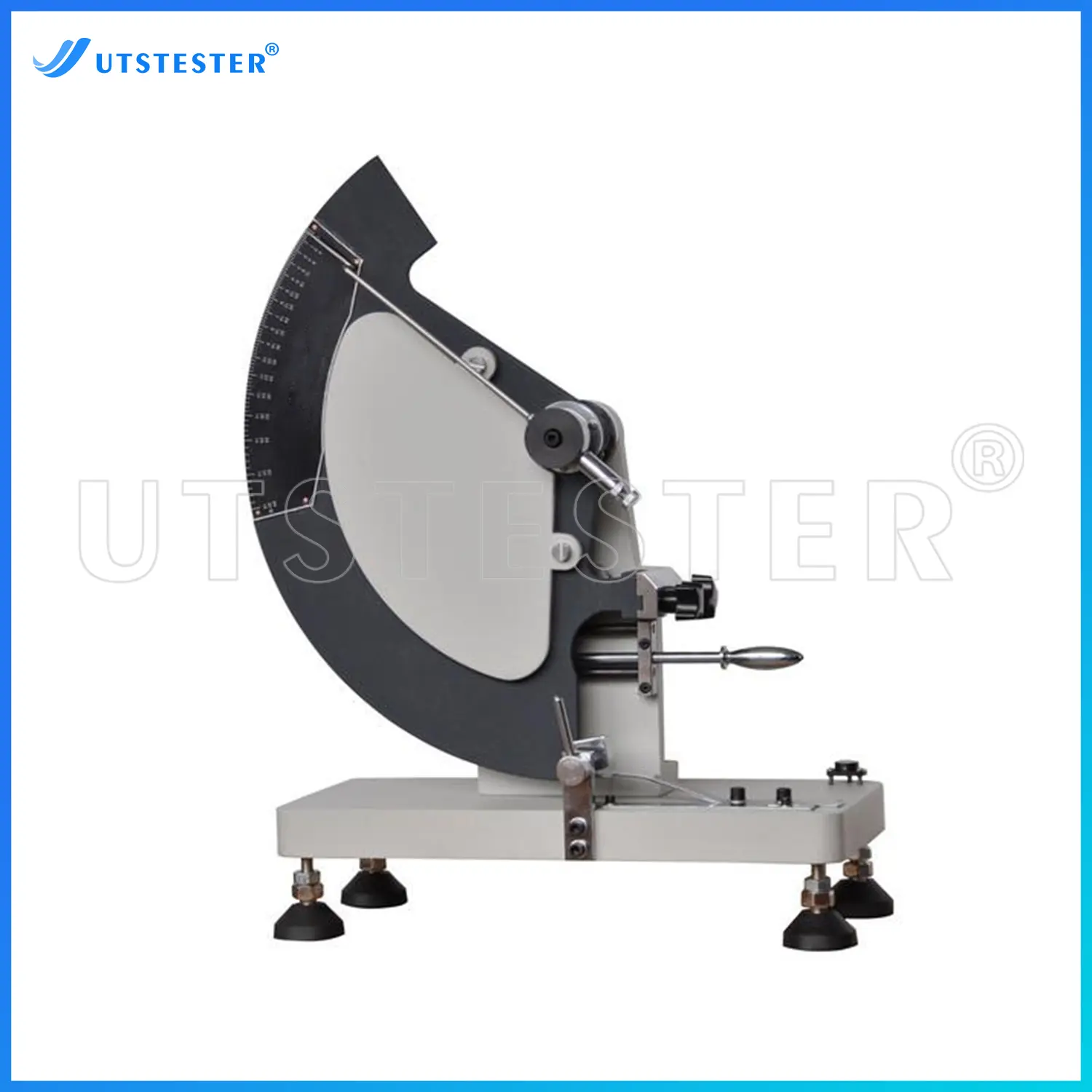

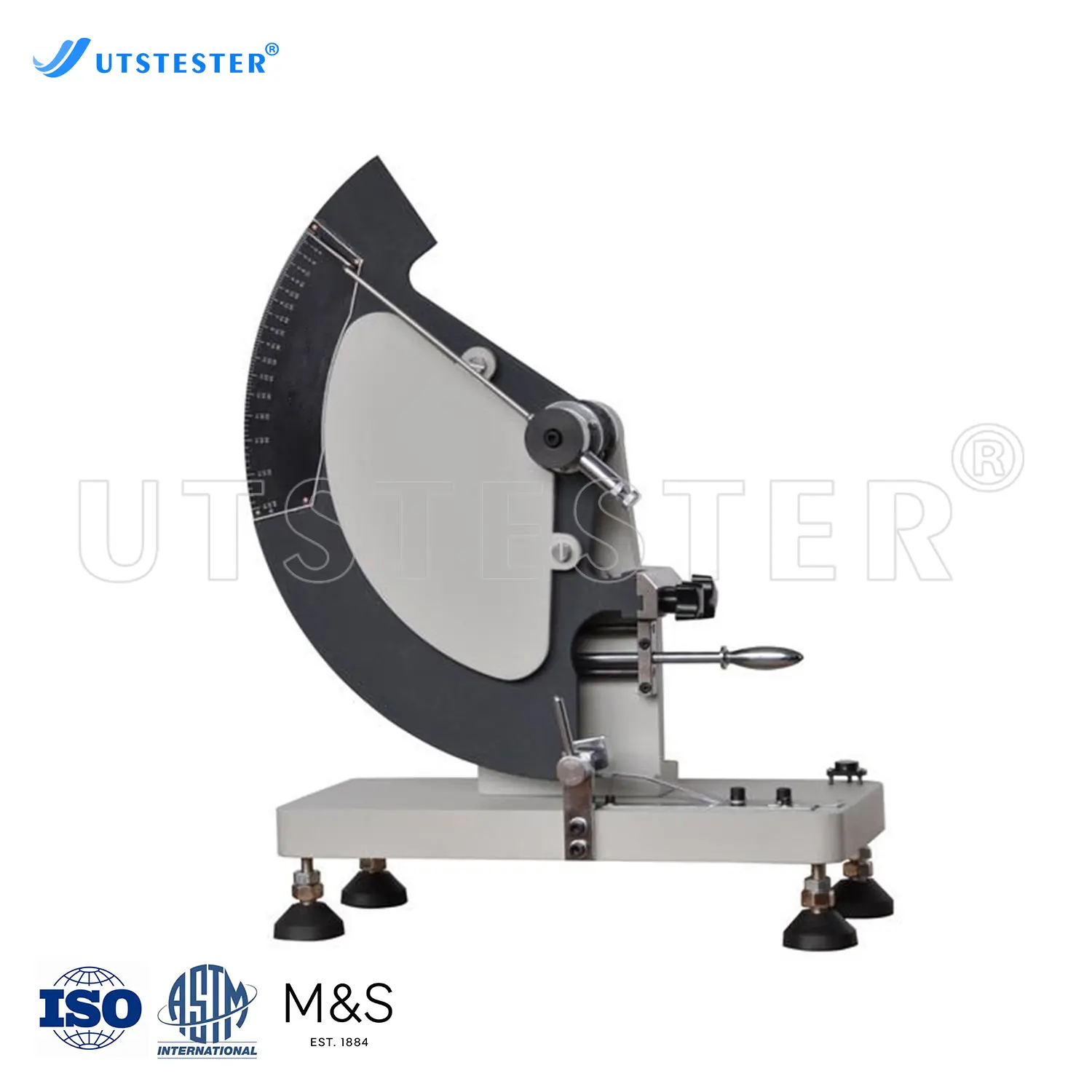

Textile Equipment Elmendorf Falling-Pendulum Type Fabric Tearing Tester M005
Overview
To determine the resistance to tear(Elmendorf method) for textiles, non-woven fabrics, sheet metal, paper, paperboard, thin film, plastic cloth, electrician tape, etc. Three interchangeable pendulums ranging from 16,000 to 64,000 Millinewtons (mN) can be selected separately for multiple test method compliance.
Application
textile
cotton
thick paper
plastic cloth
Standards
ISO 13937-1, ISO4674-2, ISO9290, ISO1974, ASTM D5734, ASTM D1424, DIN 53862, GB/T 3917.1, M&S P29, NF G07-149, FZ/T60006 FZ/T75001
Key Parameters
|
Range of tearing force |
A: 0-16N B: 0-32N C: 0-64N |
|
Accuracy |
≤±1 |
|
Sample size |
100 x 75mm (L x W) |
|
Incision length |
20±0.2mm |
|
Tearing length |
43mm |
|
Dimensions |
400 x 210 x 395mm |
|
Net weight |
30kg |
Product Details
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation
Connecting the air supply
Connect the air supply to the instrument.
Add distilled water
Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.
Put in filte
Unscrew the screws and remove the top plate,Take away the reflector.
Put in filter.
Install the xenon lamp
Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.
Mount the sample
Mount the sample on the sample clamp.
BPT Sampling
Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
For Metal Box Package
For Carton Package
For Wooden Case
