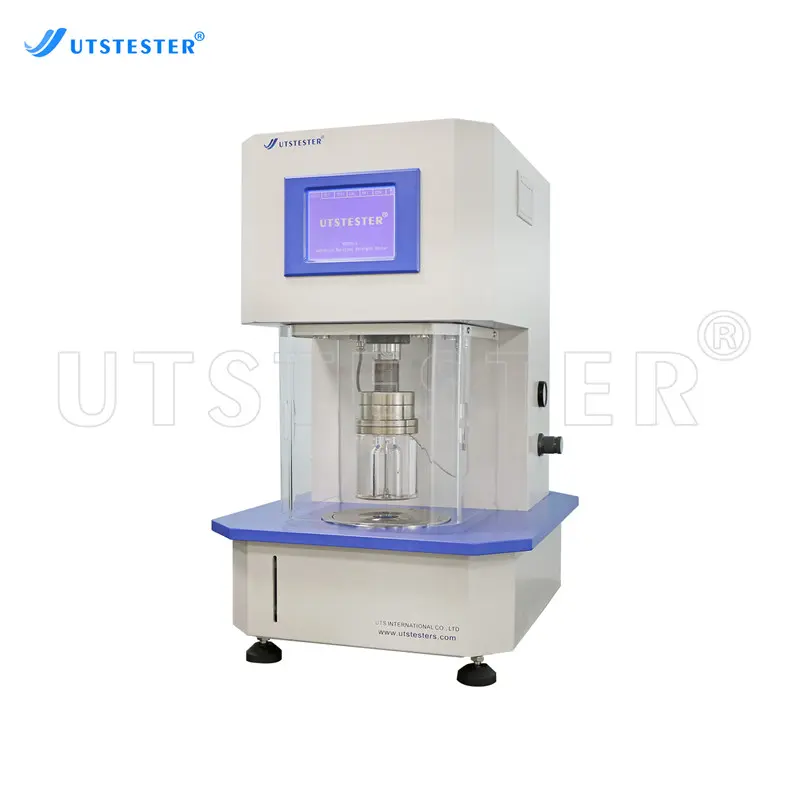

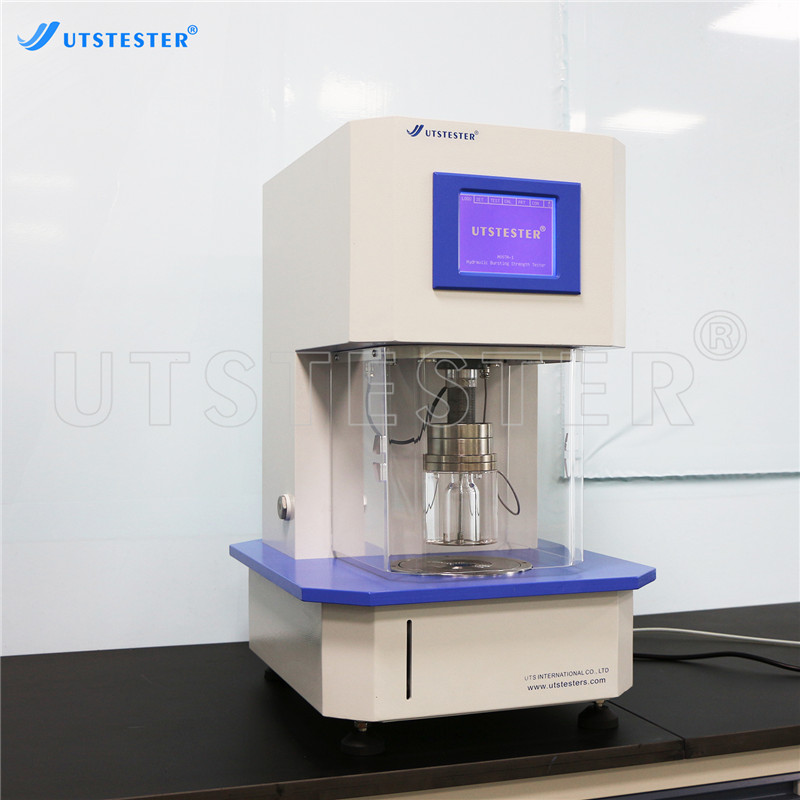

Textile Equipment Hydraulic Bursting Strength Tester Digital Bursting Strength Tester M007A
Overview
Adopts hydraulic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.
Application
KNITTED FABRIC
LAMINATED FABRIC
MASK
NON-WOVEN FABRIC
WOVEN FABRIC
Standards
ISO 13938-1, GB / T 7742, FZ/T 60019, FZ/T 01030, BS 4768, Woolmark TM29, WSP 30.1, JIS L 1018.6.17, ASTM D 3786, etc
Key Parameters
|
Model |
M007A-1 |
M007A-2 |
|
Testing range |
2.00 Mpa |
10.00 Mpa |
|
Minimum scale |
0.001 Mpa |
0.003 Mpa |
|
Elastic membrance |
≦2mm |
|
|
Maximum expansion |
75 +/-0.02mm |
|
|
Pressurization rate |
20-600 ml/min |
|
|
Test methods |
Constant burst, constant pressure, constant expansion, timing. | |
|
Test units |
Freely switched: Kpa, atm, mmHg, lb/in2, kgf/cm2 |
|
|
Output mode |
Print our, display and support online operation |
|
|
Power supply |
1 Phase AC 220V±10% 50Hz 1200W |
|
|
Dimensions(L x W x H) |
675mm x 440mm x 630mm |
|
|
Weight |
200KG |
|
Product Details

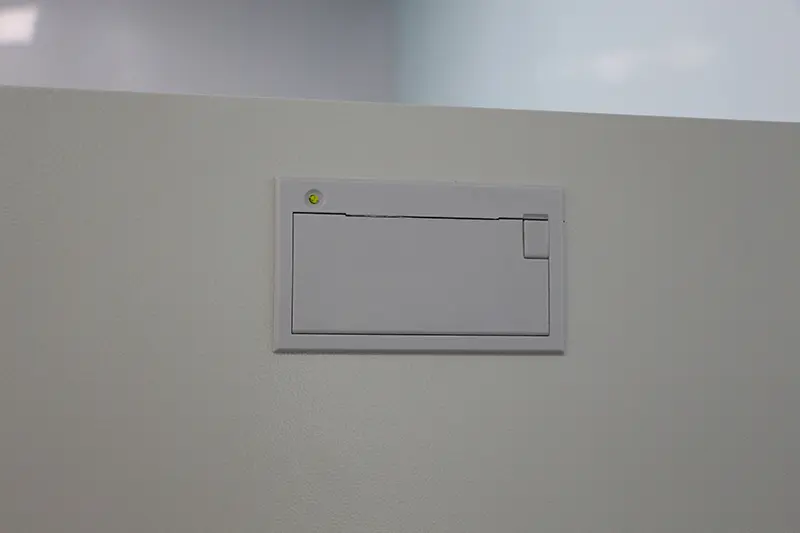

Micro printer

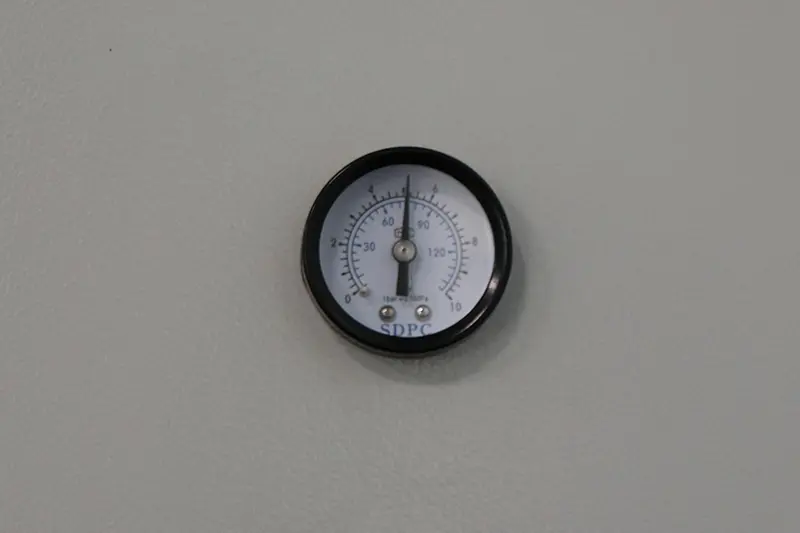

oil pressure gauge

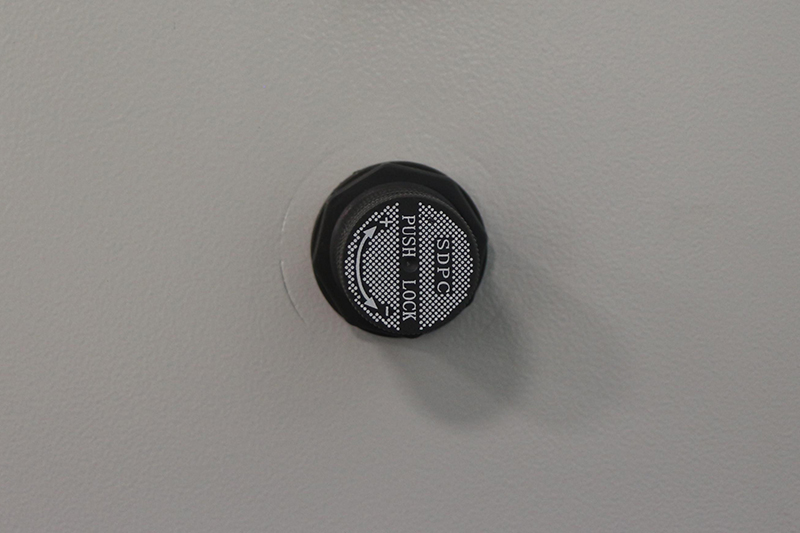

pressure regulaing valve

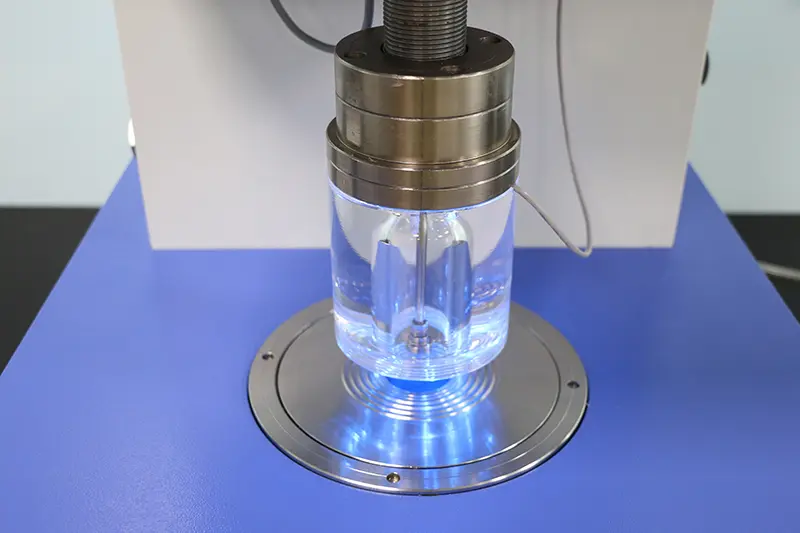

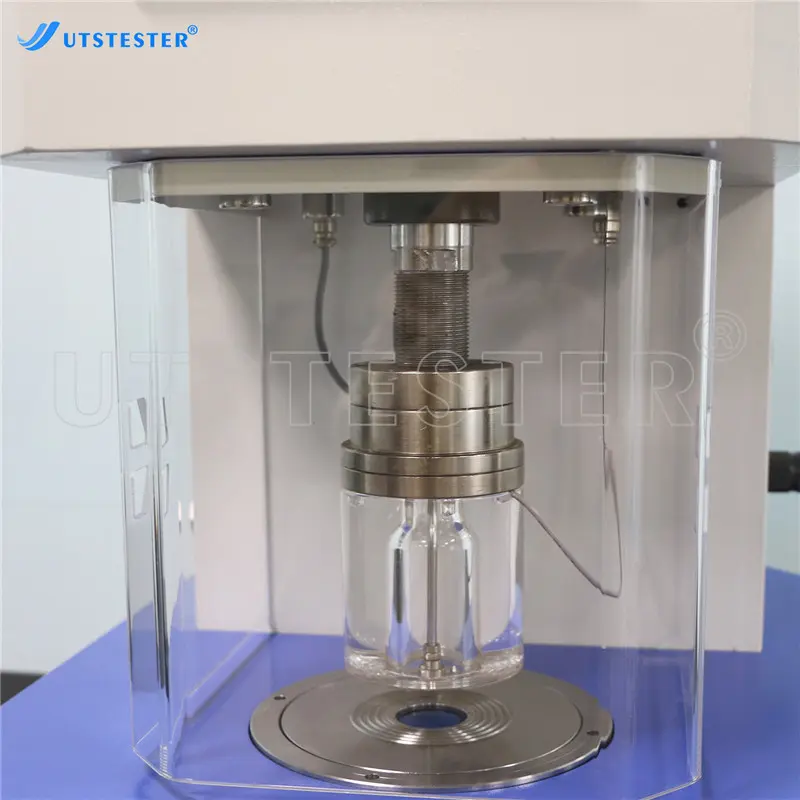

sample lower fixture

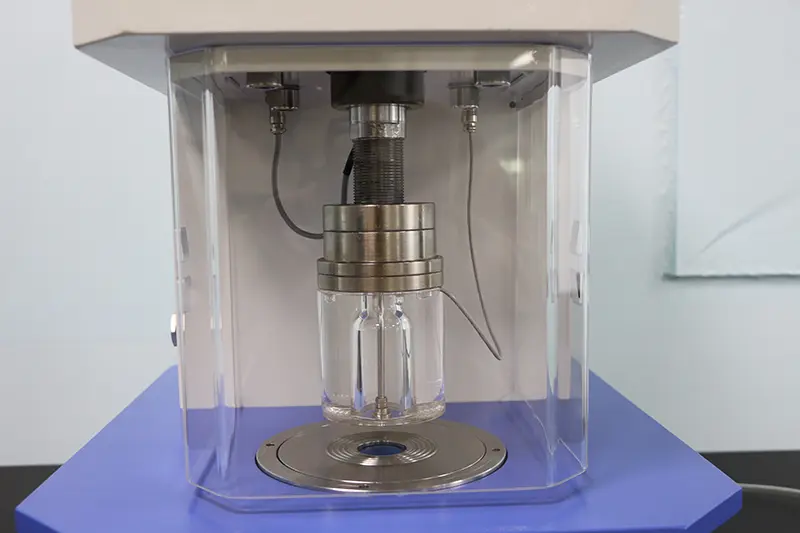

sample upper fixture

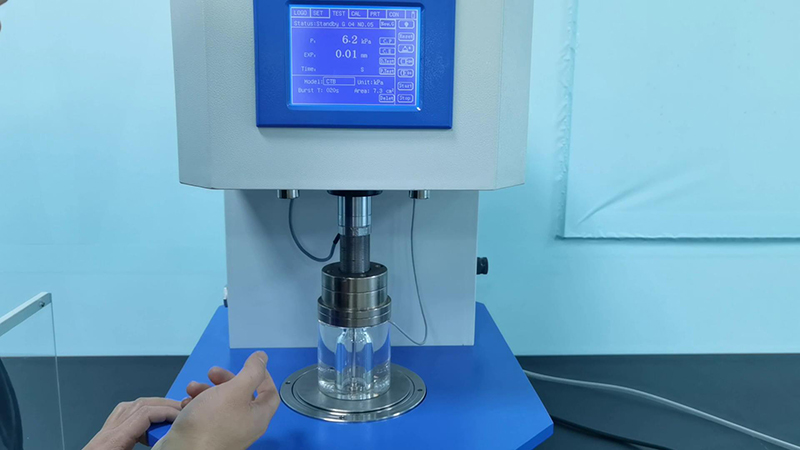

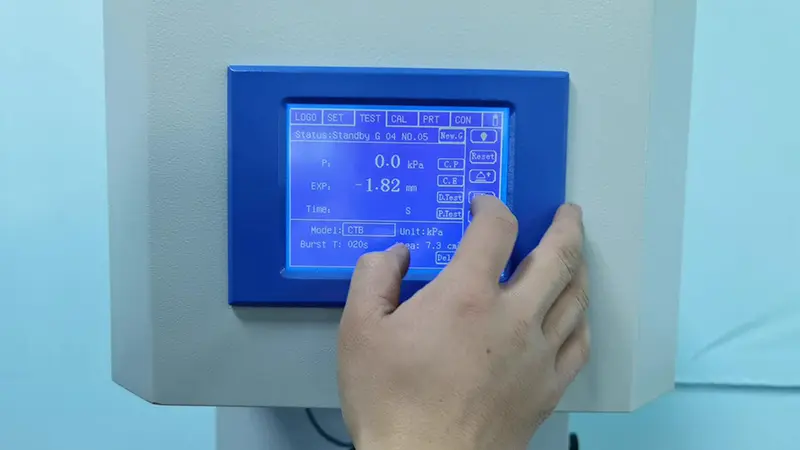

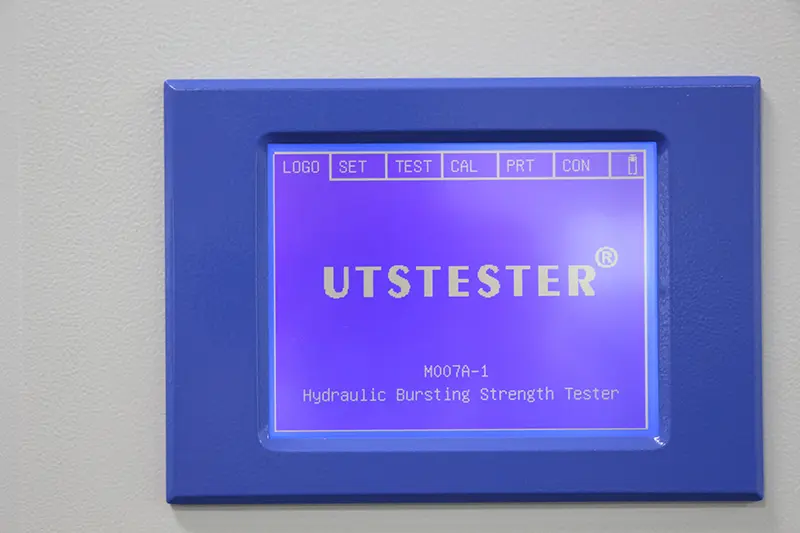

touch screen

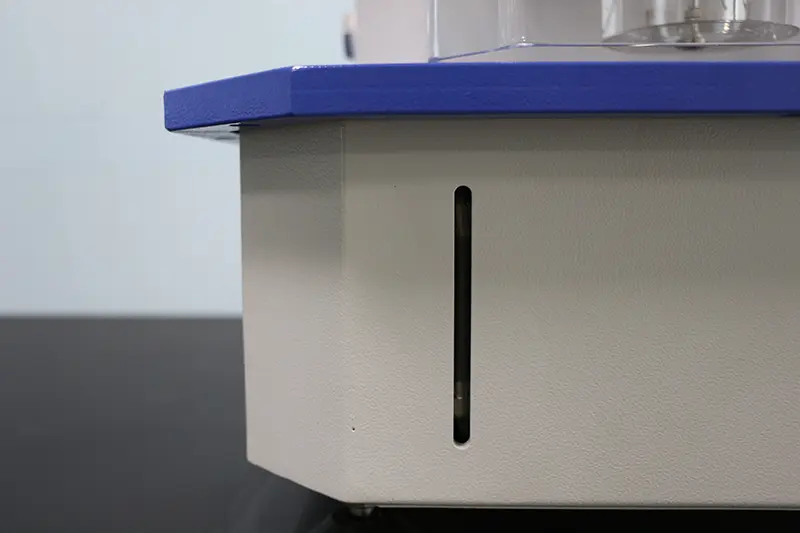

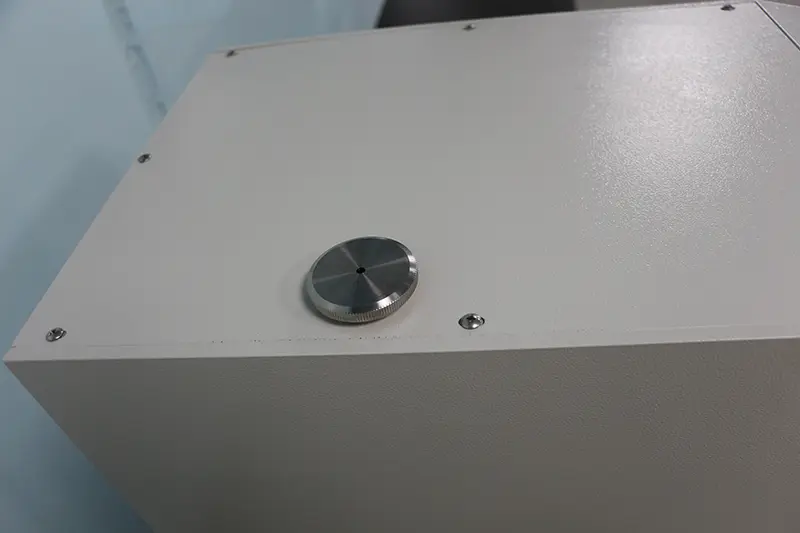

water level observation
Micro printer
Production Processes
Process design and design and manufacture of specialized process equipment
Machining of components
Assembly of products
Comprehensive testing of machines
Scenarios of Use
Laboratory
Textile factory
Operation

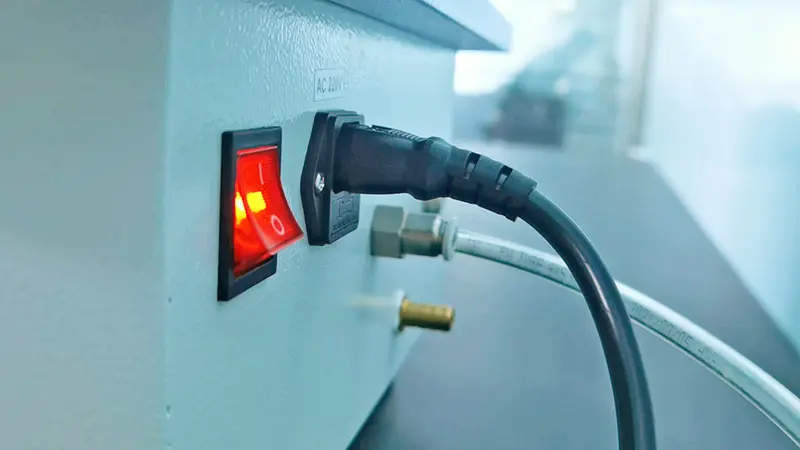

Connect the power supply
Connect the power supply and gas source, and turn on the instrument switch.

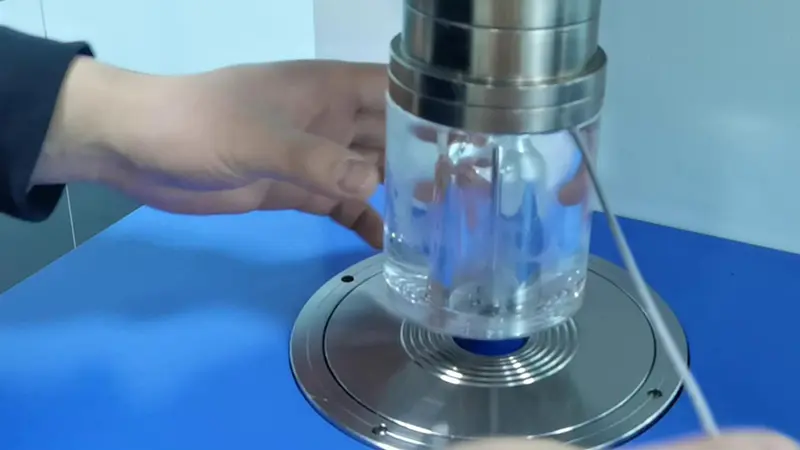

Install the fixture
Install the fixture, raise the altimeter, load into the fixture, connect the fixture power cord.
Pressure, height zeroing
Put in the calibration plate and zero the pressure and height with the fixture hanging.
Set parameters
Select the appropriate test method, set the test parameters and enter the test interface.

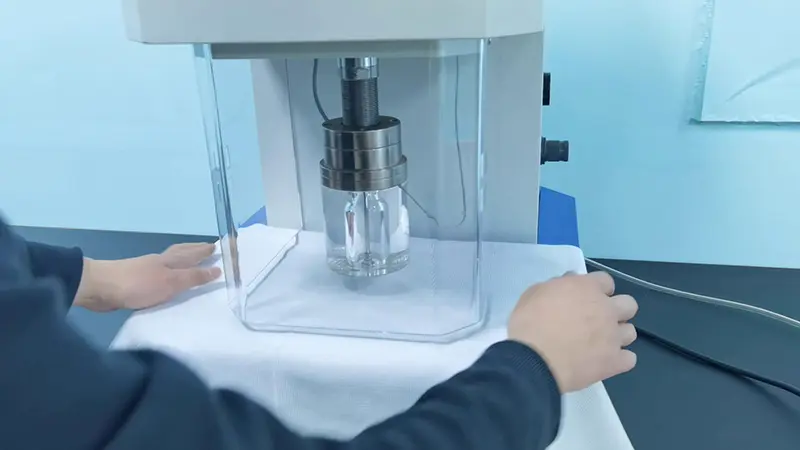

Put in the test specimen
Put in the test specimen, create a new set of tests, turn on the light.

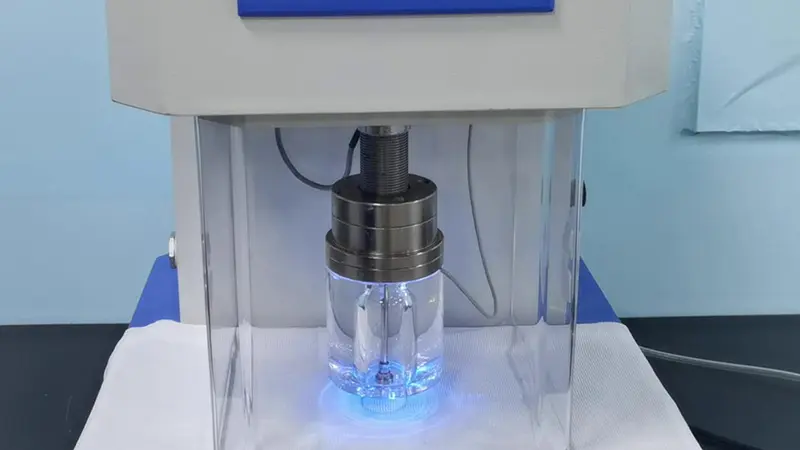

Start testing
Click “Start” to start the test, after the specimen test is completed, conduct a membrane test.
Transportation
Packing System
1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.
2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.
3. Packing materials selected accorded with economic and safety requirements
4. Compliance with environmental requirements.
