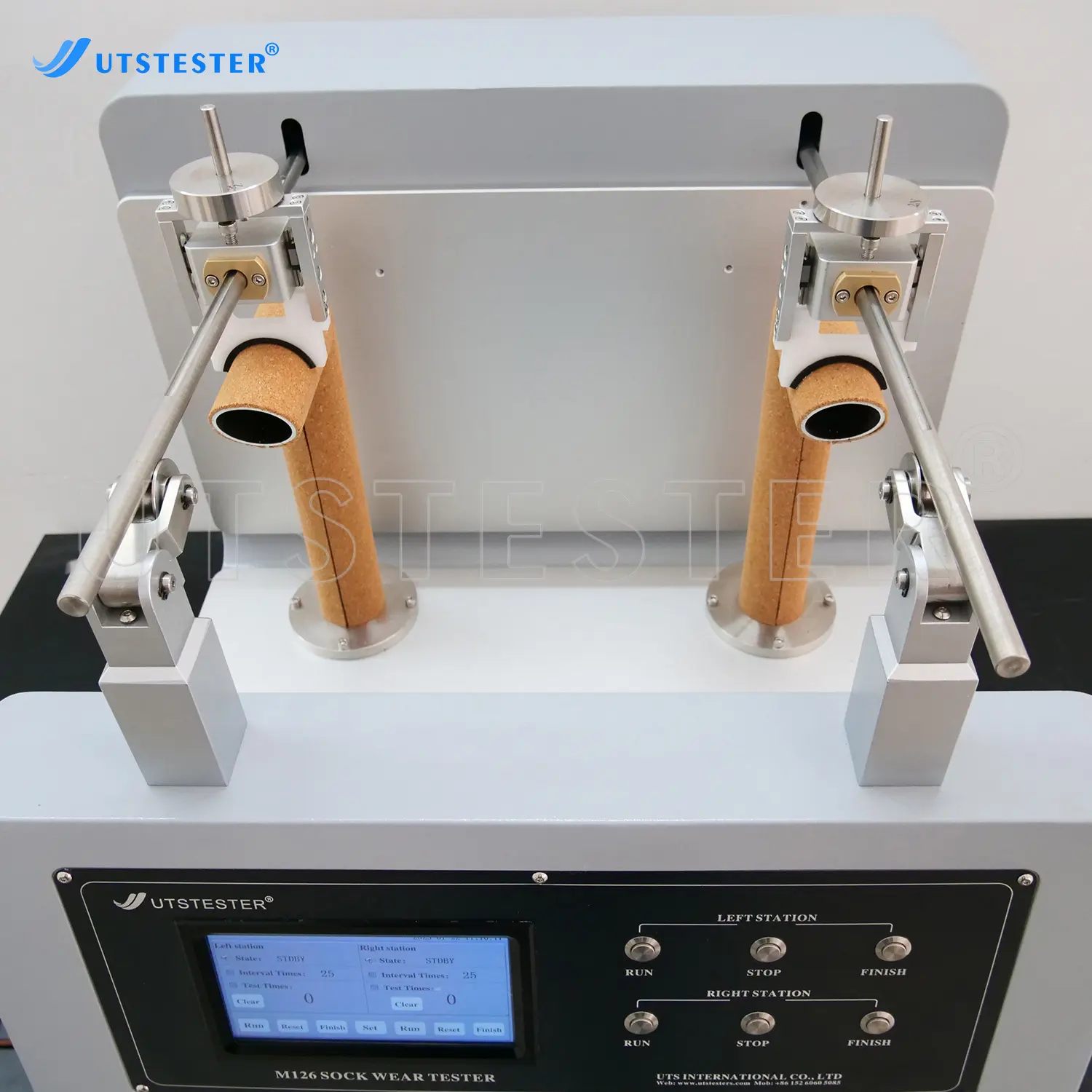

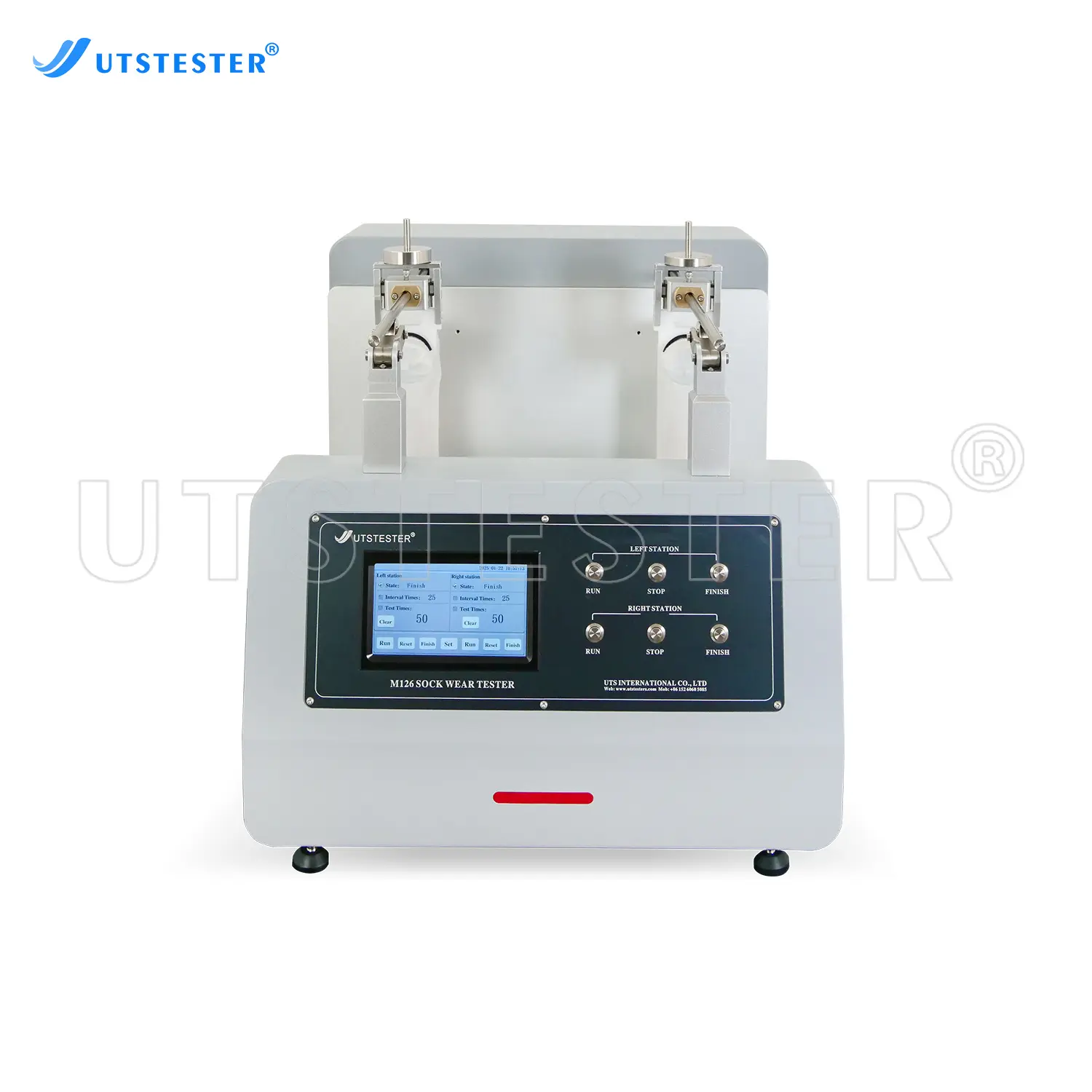

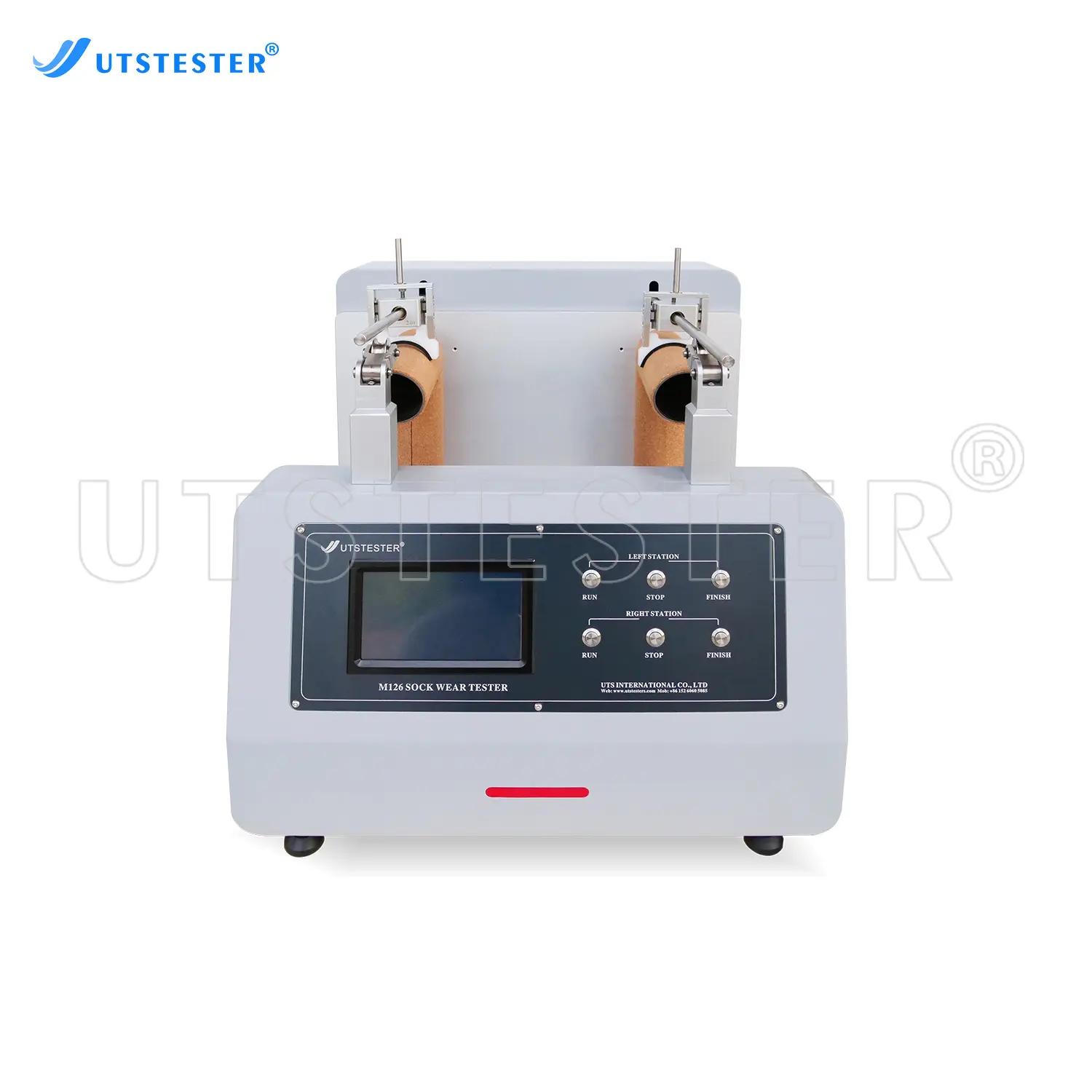

Textile Inspection Equipment Sock Wear Test Machine Sock Wear Tester M126

1. Metal paint is used in the electronic control box;
2. The imported aluminum drawing panel is beautiful and generous;
3. The transmission taxi mechanism adopts imported straight slider, runs smoothly, without shake;
4. The base is treated with metal paint process;
5. Sample hand wheels are locking with threads, good friction, not slipping;
6. Adopt a colorful touch screen operation, interface user -friendly design; with Chinese and English bilingual operating system.
7. Servo drive and motor, stable and adjustable speed, extremely low running noise;
8. Imported cork on the surface of the leg shape.

product details

Production Processes

Packing System

Overview

Tests the abrasion resistance and tearing properties of socks. Conforms to EN 13770-2002 Textile Knitted shoes and socks abrasion resistance determination in method C and other standards.

Application

Socks

Standards

EN 13770-2002

Key Parameters

Model	M126
Number of frictions	1 ~ 999999 times (configurable)
Re -schedule	1～30 mm
Station	2
Reopening frequency	125 times /min
Mains	AC220V ±10% 50Hz
Boundary dimension	650mm×600mm×580mm
Weight	45Kg

Product Details

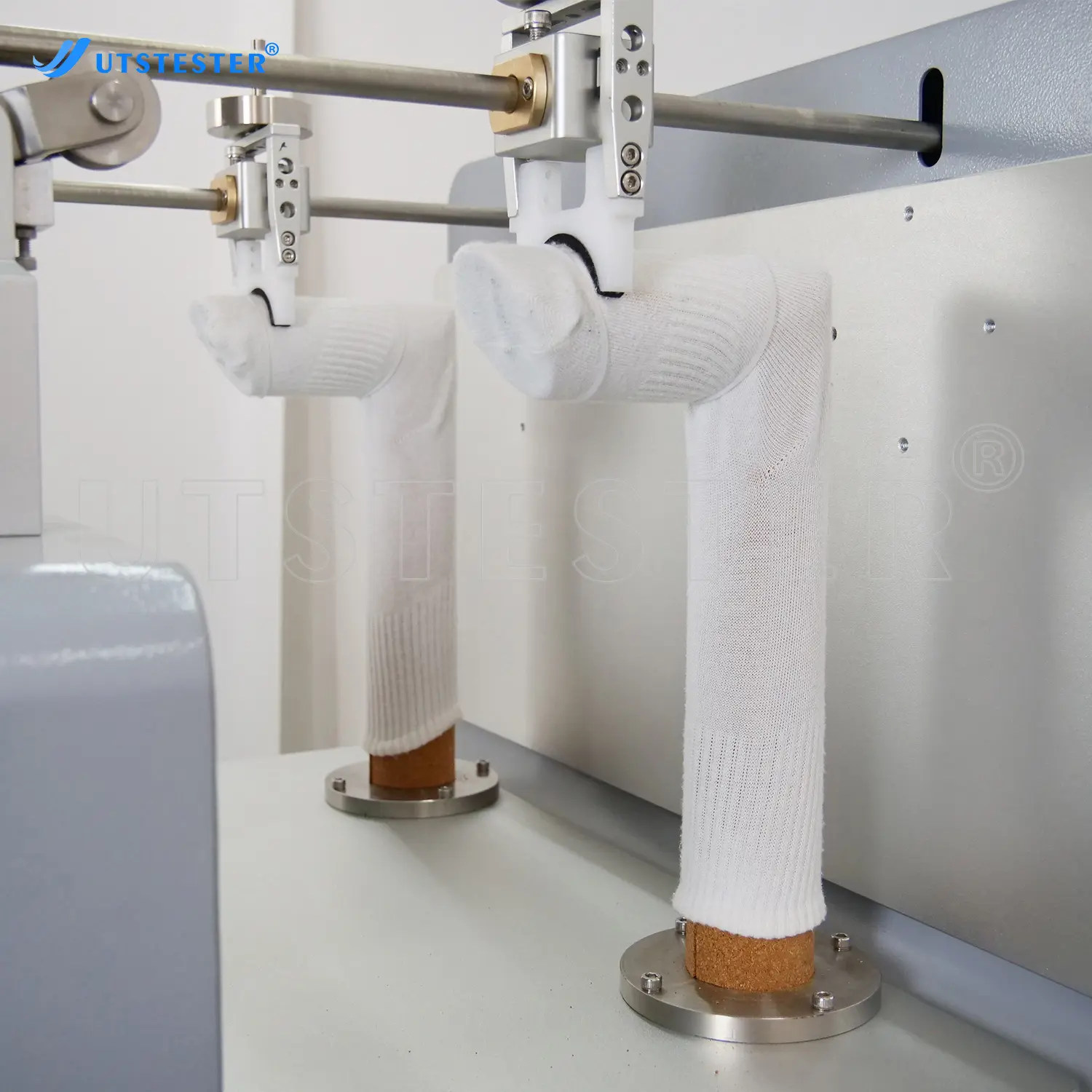

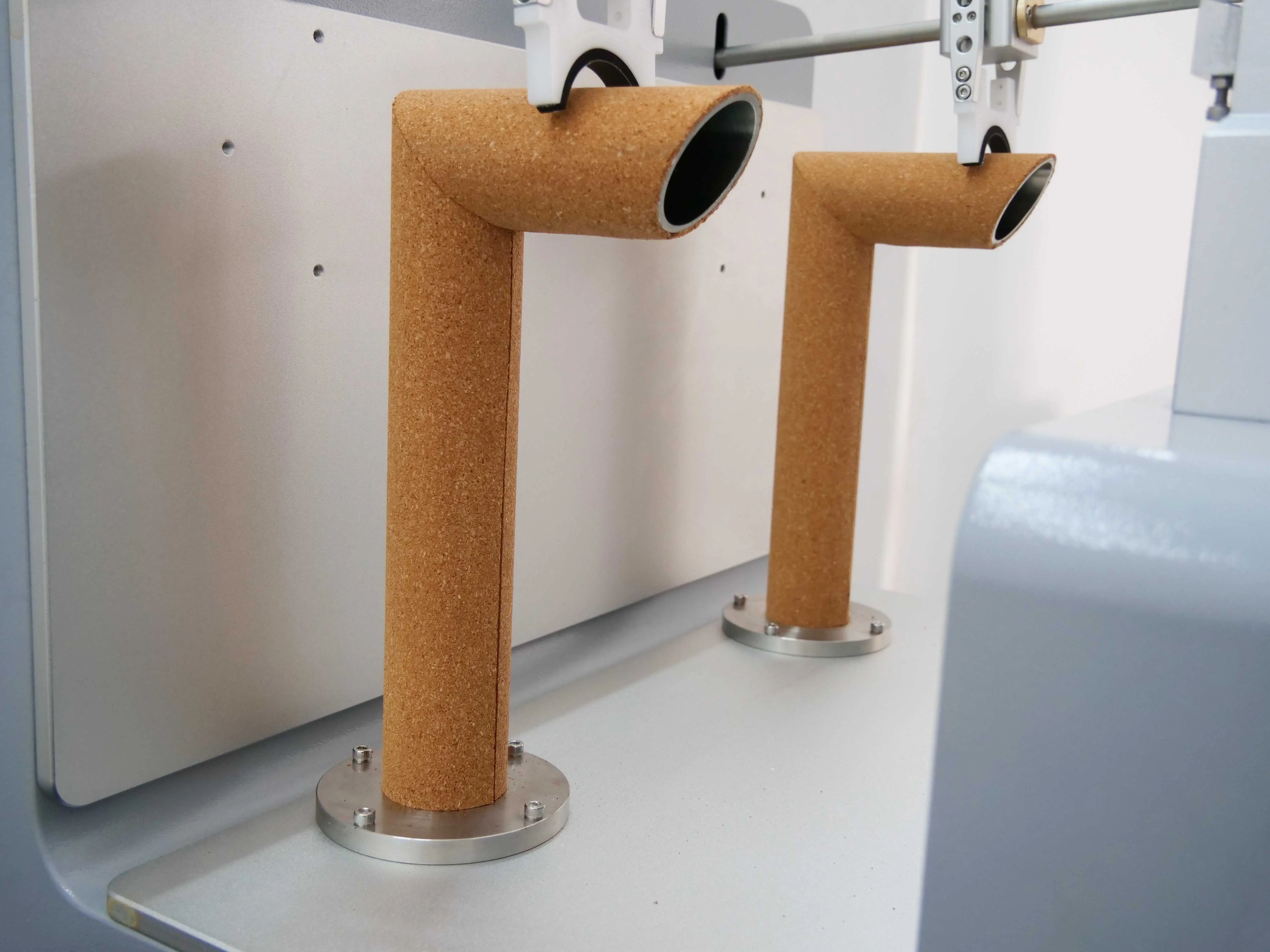

Leg mold

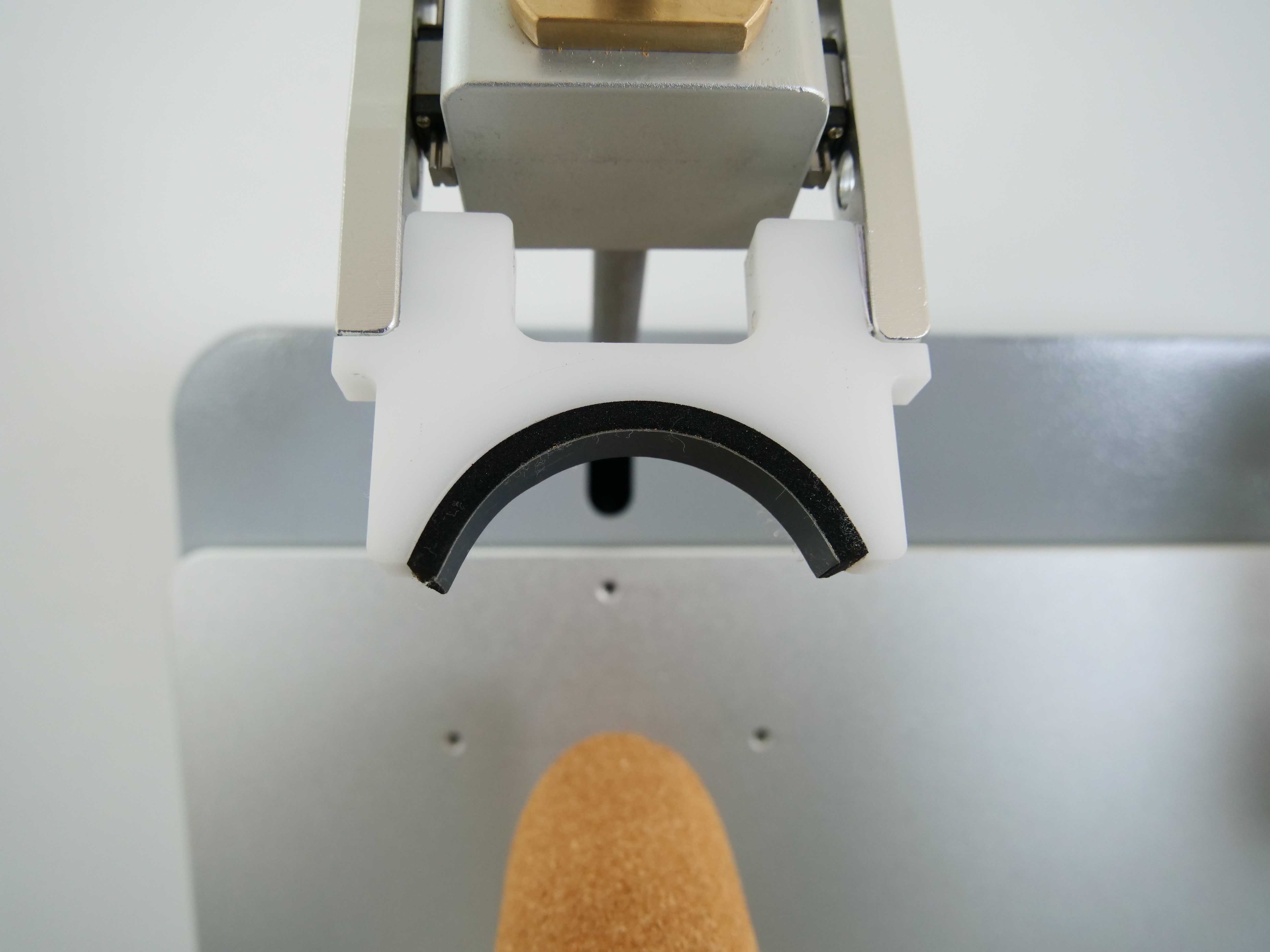

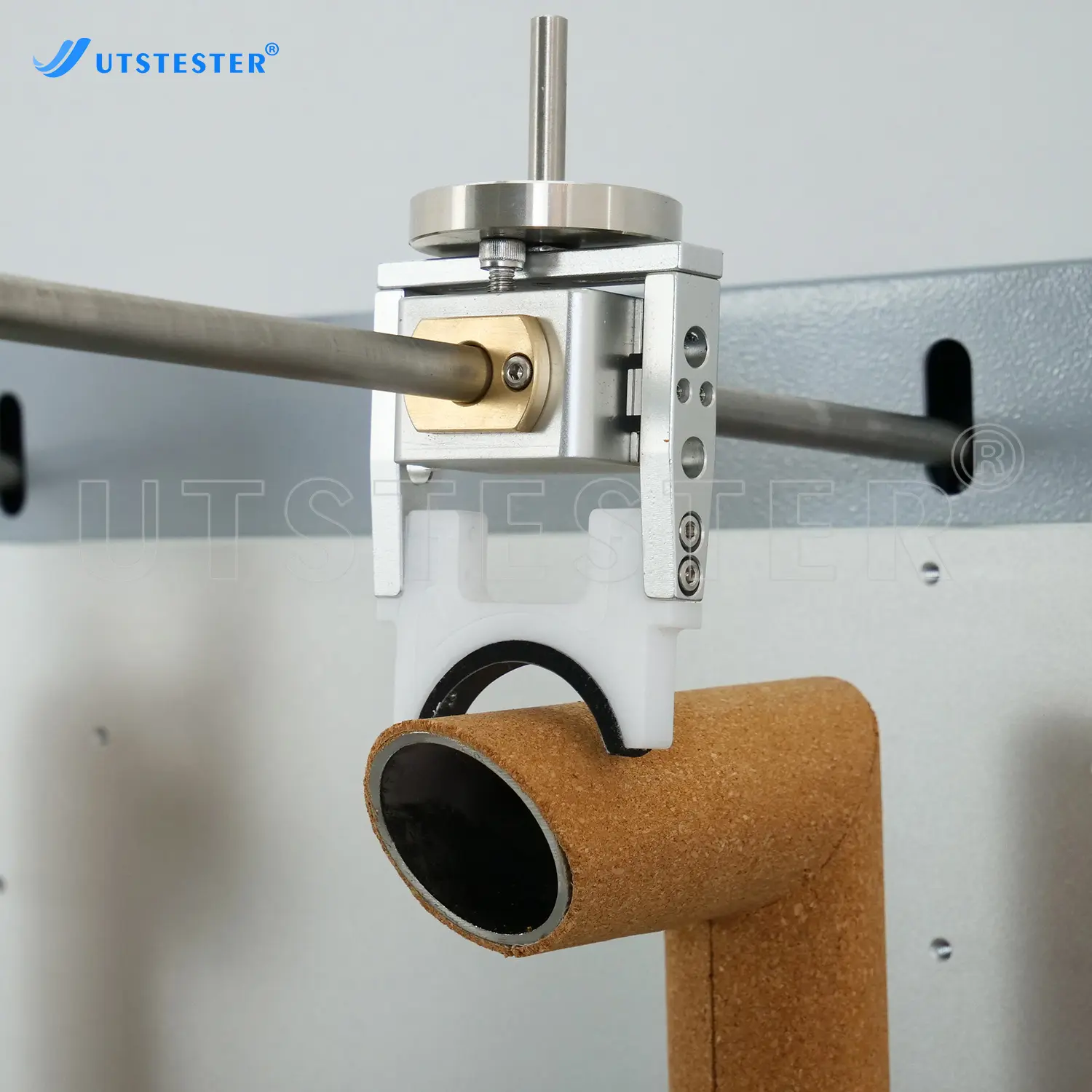

Rubbing head

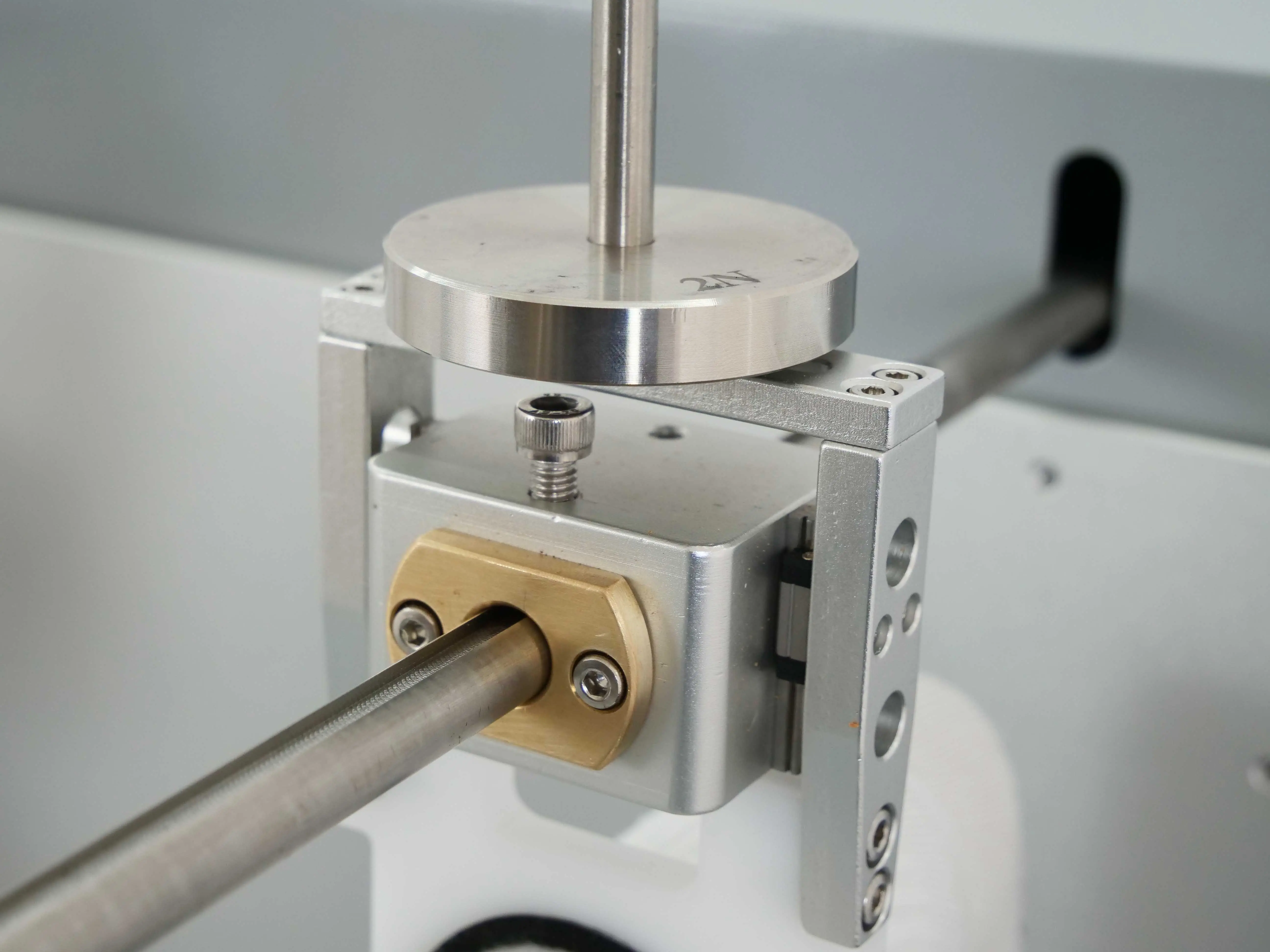

Weights

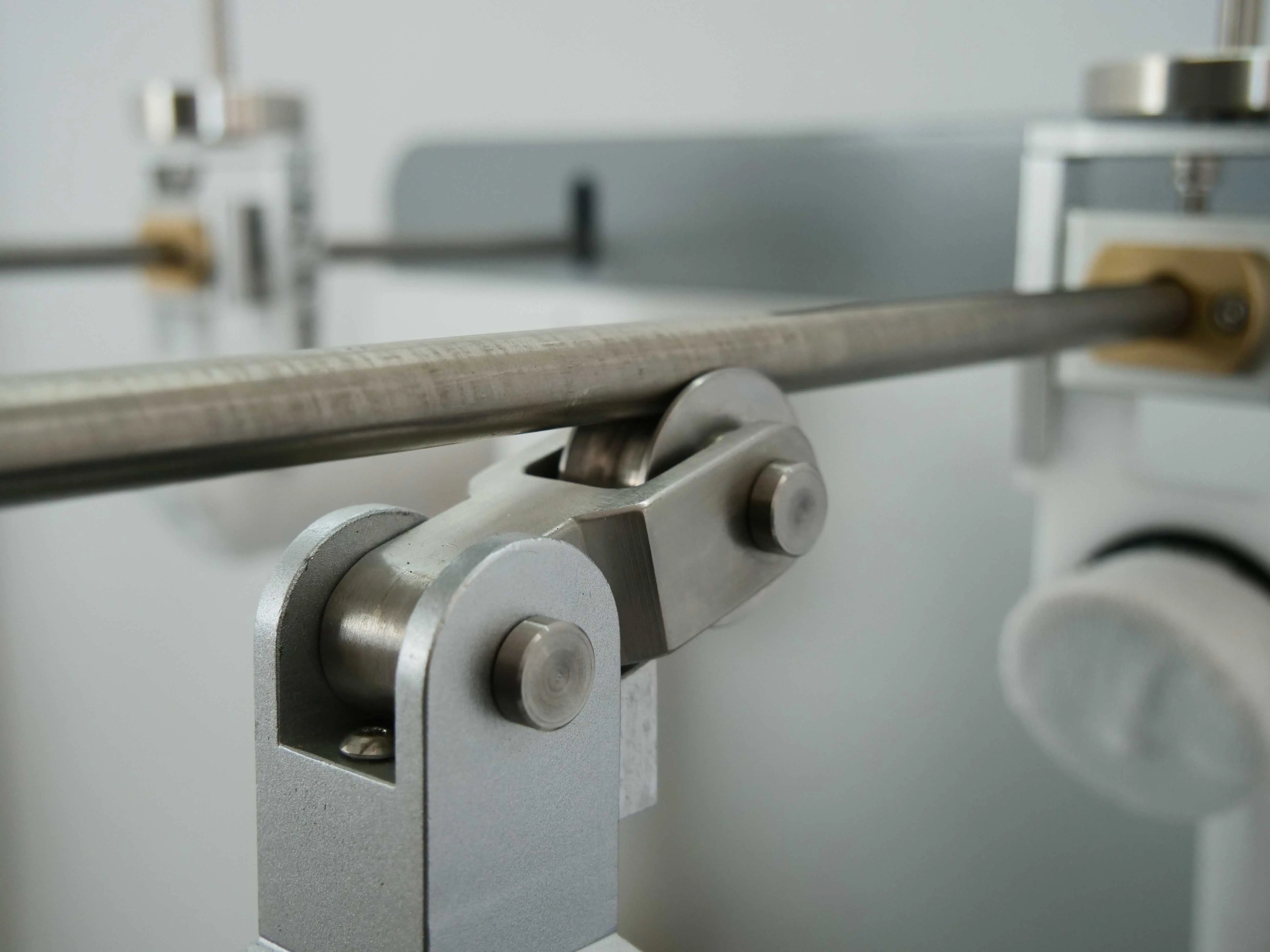

Anchor pulley

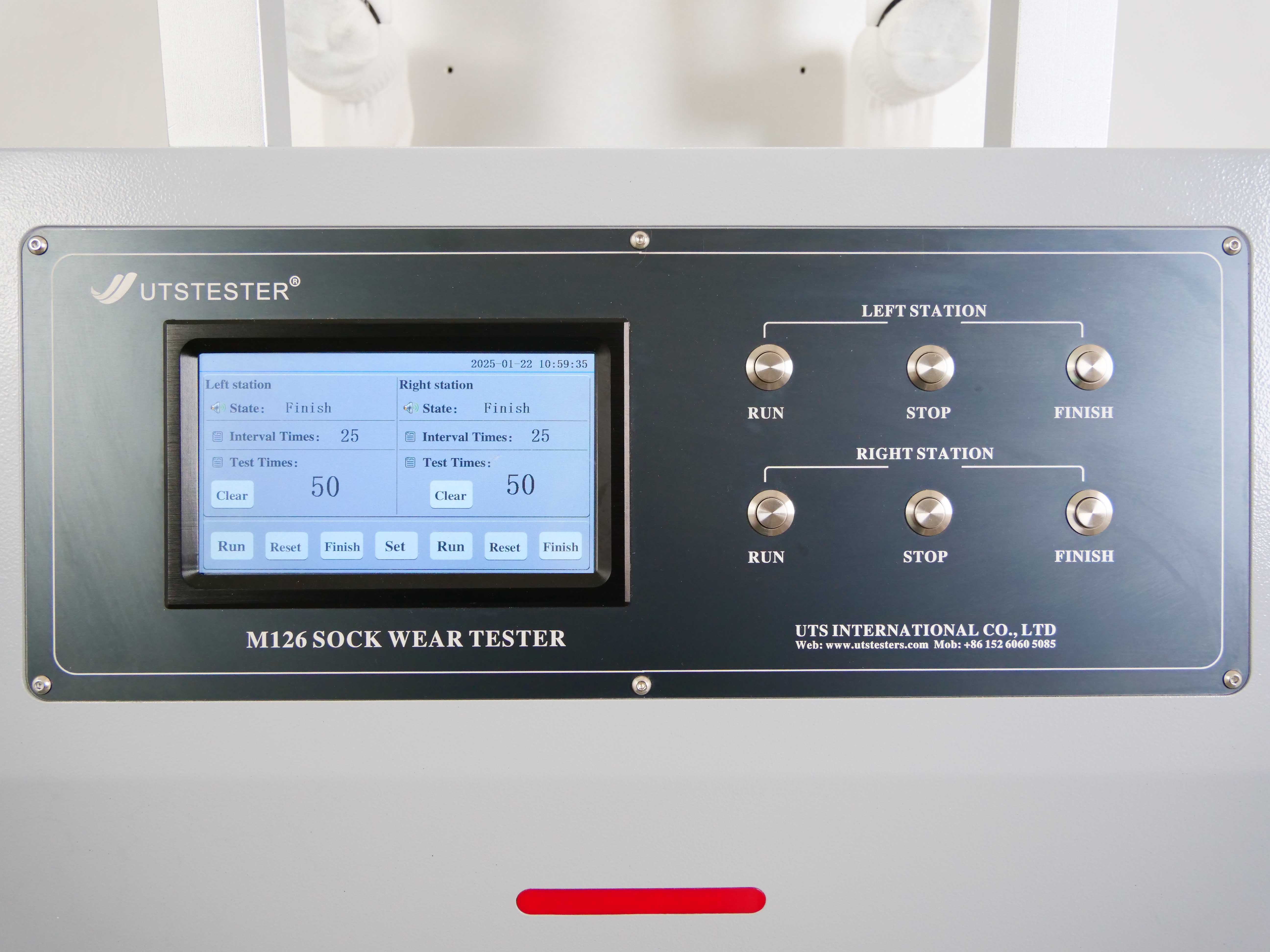

Control Panel

Production Processes

Process design and design and manufacture of specialized process equipment

Machining of components

Assembly of products

Comprehensive testing of machines

Scenarios of Use

Laboratory

Textile factory

Operation

Connecting the air supply

Connect the air supply to the instrument.

Add distilled water

Connect tube from the freestanding funnel to the water connector located at the back right-hand corner of the SST unit. Add distilled water.

Put in filte

Unscrew the screws and remove the top plate,Take away the reflector.

Put in filter.

Install the xenon lamp

Install the xenon lamp and connect the lamp cabler.Replace the top cover and tighten the set screws.

Mount the sample

Mount the sample on the sample clamp.

BPT Sampling

Place the sample into the test chamber and close the door.Be careful to avoid covering the BPT sensor.

Transportation

Packing System

1. Products are covered with air bubble film before put them into composite board standard export wooden case. To ensure waterproof, moistureproof, corrosion, anti-corrosion and security.

2. Package with shipping mark in line with International and national standards, which is easy for handling, loading and unloading.

3. Packing materials selected accorded with economic and safety requirements

4. Compliance with environmental requirements.
